Prince Castle DHB-BK Series User manual

Product Holding Bin
DHB-BK Series
(with Prince Castle Button Bar)
541-520revD-EN Printed in USA 1/06 © 2006
Operation
Manual
LIMITED WARRANTY
This product is warranted to be free from defects in material and /or
workmanship for a period of 1 year from date of original installation, not to
exceed 18 months from the date of manufacture.
Any component which proves to be faulty in material and/or workmanship
will be replaced or repaired (at the option of Prince Castle, Inc.) without
cost to the customer for parts and labor. This warranty covers on location
service (i.e. trip charges and or mileage). Travel mileage is limited to
100 miles (200 Kilometers) round trip (one trip warranty) from an
authorized service agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• Alllabor to be performed during regular work hours. Overtime premium
(the incremental amount) will be charged to the customer.
• Damage caused by carelessness, neglect and/or abuse (e.g., dropping,
tampering or altering parts, equipment damaged in shipment, by fire,
flood or an act of God) is not covered under this warranty.
• All problems due to operation at voltages other than that specified on
equipment nameplates are not covered by this warranty. Conversion to
correct voltage is the customer’s responsibility.
• This equipment must be serviced by Prince Castle Authorized Service
Agency or a Prince Castle Service Technician during the warranty
period.
TABLE OF CONTENTS
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setting the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Calibrating Heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Selecting Breakfast and Regular Menus . . . . . . . . . . . . . . . . . . . . . . . 7
Programming the Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Changing the Hold and Cook-More Times . . . . . . . . . . . . . . . . . . . . . 8
Changing Product Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CastleNet®Communications Network . . . . . . . . . . . . . . . . . . . . . . . . 10
Factory Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

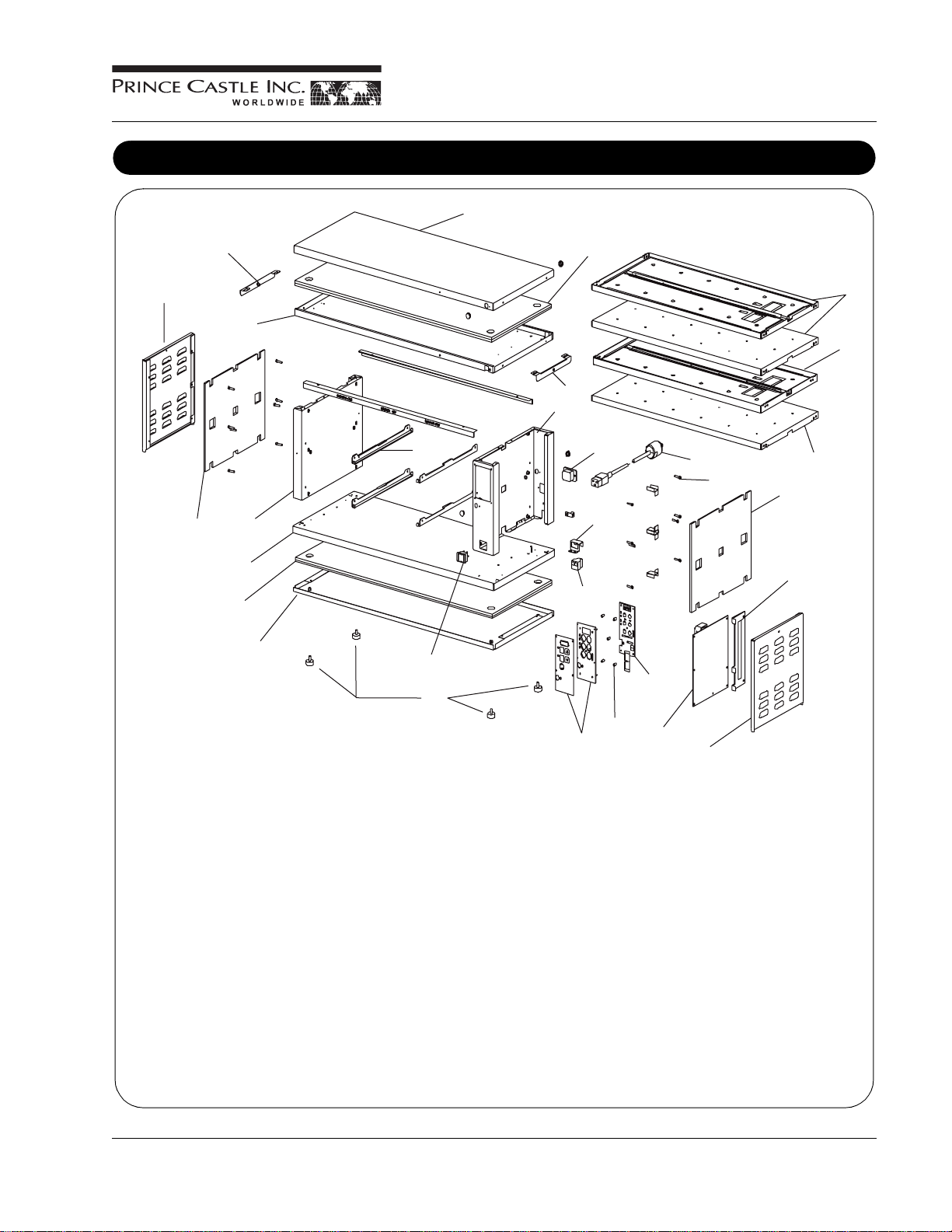

Exploded View and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: [phone] • Toll Free: 1-800-PCASTLE
Fax: [phone] • www.princecastle.com

Printed in USA 1/06 © 2006 2 541-520revD-EN
Product Holding Bin
DHB-BK Series
Safety Information
Indicates information important to the proper operation of the
unit. Failure to observe may result in damage to the
equipment and/or severe bodily injury or death.
Indicates information important to the operation of the unit. Failure
to observe may result in damage to the equipment.
WARNING
CAUTION
Electrical Specifications
Model No. Volts Watts Amps Hz
DHB-BK1C 208 – 240 2500 8.7 – 10.5 50/60
DHB-BK3C 208 – 240 2500 8.7 – 10.5 50/60
DHB-BK5C 220 – 240 2300 10.0 50/60
DHB-BK7C 220 – 240 2300 10.0 50/60
Product Identification
Transfer Button
LED Timers (tri-color)
(qty. 8)
Button Bar
REG (Regular Menu) LED
Power On/Off Switch UP and DOWN Arrow
Buttons
Pan Racks
Burger King Logo
Button
Components Temperature Control
Panel Pan Covers
Only used with broiled products
(Fried products do not require covers)
Pan Buttons
(qty. 8)
Lower Pan Displays
(qty. 4)
Upper Pan Displays
(qty. 4)
BKFT (Breakfast) LED
DAYPART/ENTER
Button
Important
Prince Castle reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions or replacements for previously purchased equipment.

541-520revD-EN 3 Printed in USA 1/06 © 2006
Product Holding Bin
DHB-BK Series
Installation
Remove the unit from the carton and inspect for signs of damage. If there
is damage to the unit:
• notify the carrier within 24 hours of delivery
• save carton and packaging materials for inspection purposes
• contact your local dealer, or if purchased directly, the Prince Castle
Sales Department at 800-722-7853 or 1-630-462-8800 to arrange for a
replacement unit.
Verify that the following parts have been received.
• 1 pan cover kit
NOTE: When installing this unit, the ambient temperature at the mounting
site should not exceed 100°F.
Plug the power cord into the proper electrical receptacle. All electrical
connections must be in accordance with local electrical codes and any
other applicable codes.
If the unit is to be networked with other Prince Castle units, refer to the
CastleNet®Communication Network section in this manual for installation
instructions.
Operation
Turn power On/Off switch (A) to ON position.
1
Load pan covers (if used) onto pan racks
and insert racks into the unit.
Allow 20 minutes for heaters to
reach operating temperature.
The Temperature Display will
read “
---- ” until unit is warmed
up, then display will show pre-
programmed operating
temperature.
(A)
LED Timing Status
3
LED Timers
RED (steady) = Ready for product
RED (flashing) = Discard product
GREEN (steady) = Oldest product, use first
GREEN (flashing) = Cook more product
YELLOW (steady) = Newer product, use green first
YELLOW (flashing) = Cook more product
EGGS EGGS
EGGS EGGS
Press all PAN buttons.
The PAN displays will show the assigned product name.
2
If no product is assigned, the
display will be dim and show “
---- ”.
Pressing the PAN button will not
activate the timer if “
---- ” is
displayed. Pressing PAN button
when product name is displayed
will start timing cycle.
BKFT (Breakfast) or
REG (Regular Menu)
will be lit depending on
pre-programmed menu.
When LED is steady RED, load product and press the PAN button.
4
If more than one pan is active for a
product, the LED for the first pan
loaded will turn from RED to
GREEN.
An LED timer can be stopped
(cancelled) at any time by
pressing and releasing the
corresponding PAN button.
If only one pan is active for a
product, the LED will turn from
RED to GREEN.
The LED for the 2nd pan loaded
will turn from RED to YELLOW.

Printed in USA 1/06 © 2006 4 541-520revD-EN
Product Holding Bin
DHB-BK Series

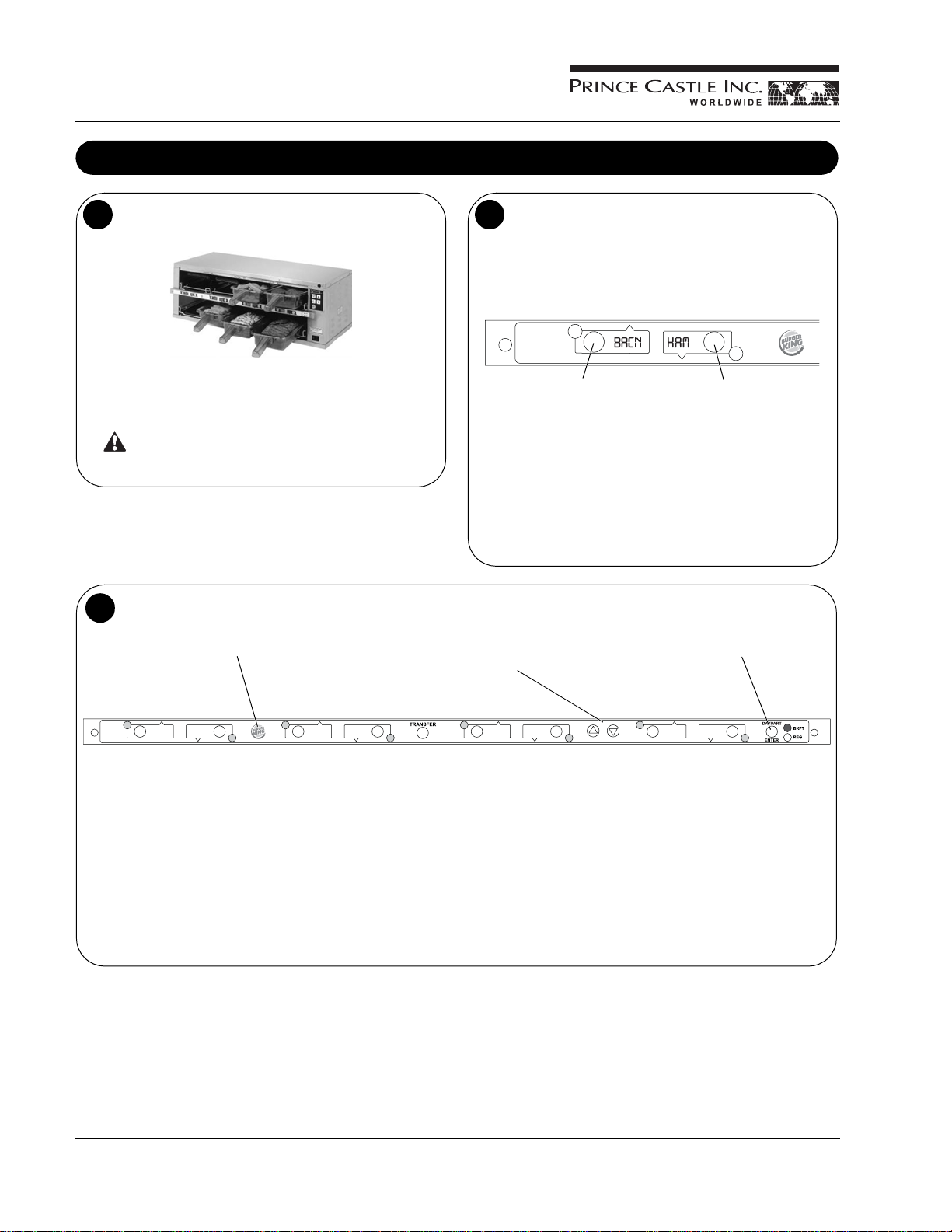

Operation (continued)
When any of the timer LEDs flash, cook more product or remove
and discard product as indicated.
5
GREEN (flashing) = Cook more product
YELLOW (flashing) = Cook more product
RED (flashing) = Discard product
Hot surfaces.
WARNING
6Product, along with any remaining time, can be transferred from
one cavity to another as follows:
A. Press and release the
TRANSFER button. All displays
will flash between bright and
dim.
C. Press and release the
TRANSFER button again.
B. Press and release the PAN
button of the product to be
moved. All displays except this
one will stop flashing.
D. Move the product. Press and
release the PAN button for the
new location. The new location
will finish timing the product.
When the transferred pan
timing expires, location will
revert to original menu setting.
NOTE: If product transfer is not completed within a pre-programmed
transfer time, the transfer will be cancelled. See your Manager.
PROGPROGPROGPROGPROGPROGPROGPROG
To change a menu selection for a specific pan cavity, use the following steps:
7
A. Press and hold the BURGER KING LOGO button for 6 seconds. All
PAN displays will show “PROG”. All LED Timers will be RED.
B. Press and hold the DAYPART/ENTER button. The display next to the
DAYPART/ENTER button will display the menu choices. While holding
the DAYPART/ENTER button, press the UP or DOWN Arrow button to
scroll through the menu choices.
C. Press a PAN button to change the menu. The LED Timer will change
to YELLOW and the display will change from “PROG” to the assigned
menu item.
D. Press the UP or DOWN Arrow
button to scroll to the desired
menu item.
E. Press the DAYPART/ENTER
button to select the menu item.
F. Repeat steps A – E as required for other PAN displays. Press the
BURGER KING LOGO button to exit the Program Mode.
NOTE: Up to six menu items may be programmed for each PAN button. In
addition, a pan may be set as “not used” by assigning “----” as its product.

541-520revD-EN 5 Printed in USA 1/06 © 2006
Product Holding Bin
DHB-BK Series

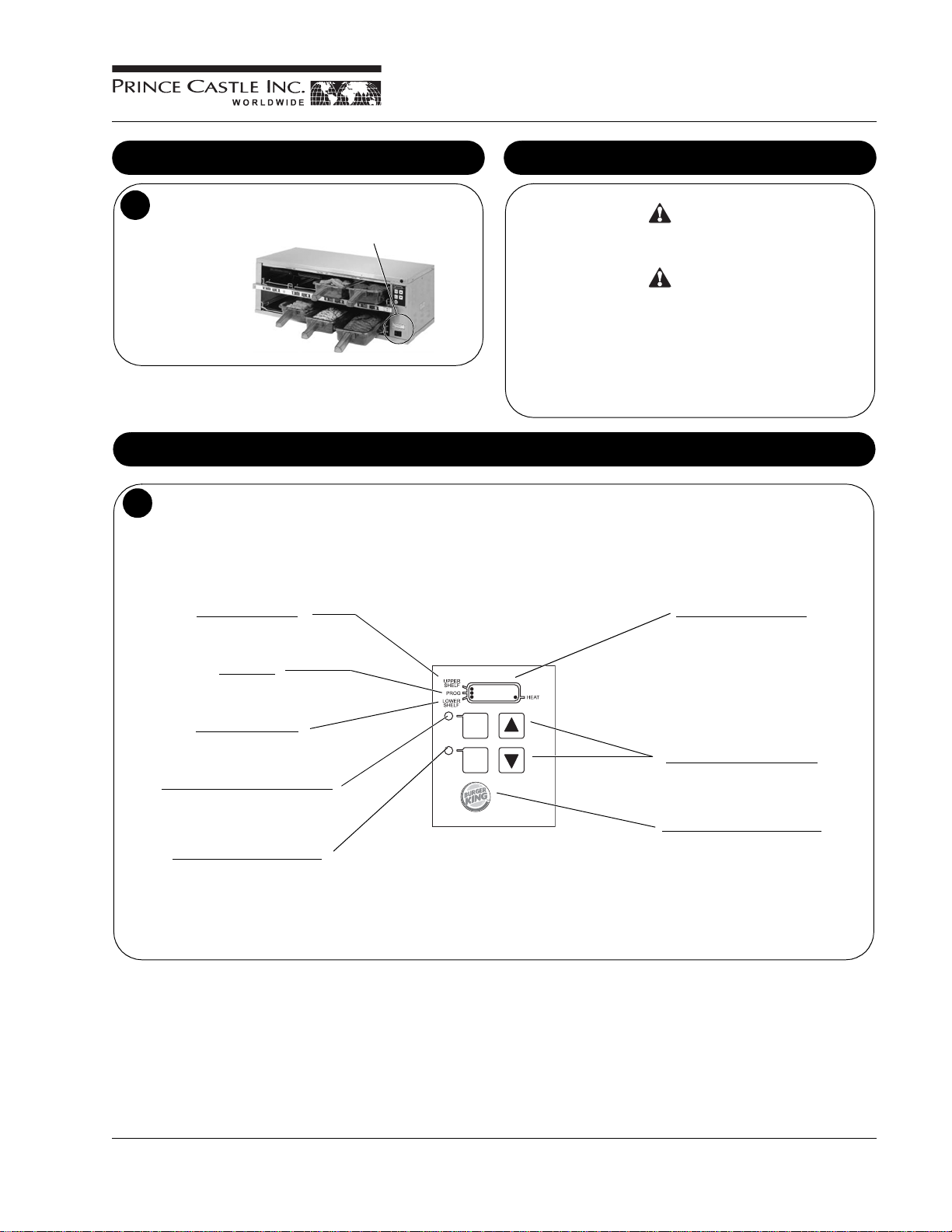

Operation (continued)
To shut down the unit, turn the power On/Off switch (A) to OFF.
8
(A)
Cleaning
Before performing any maintenance, turn the power switch to the
OFF position and unplug the power cord from the electrical
receptacle.
This unit is not watertight. Do not clean with a water jet/jet spray. Do not
immerse the unit in water.
1. Turn the unit off and unplug the power cord from the electrical
receptacle.
2. Remove the pan covers and pan racks. Wipe all parts and unit with
a damp cloth. DO NOT use a green Scotch Bright pad cleaner, ice
or water.
WARNING
CAUTION
Setting the Temperature
ACTUAL
TEMP
SET-
POINT
u225
The unit has two shelves, each with an upper and lower heater (four heaters total).
The factory pre-set for the two upper heaters is 225°F.
The factory pre-set for the two lower heaters is 195°F.
Each heater has a programmable range of 150° – 275°F.
Use the control below and the following steps to set the setpoint temperatures for each heater.
1
UPPER SHELF LED
This LED will be lit to indicate upper shelf is
selected.
PROG LED
This LED will be lit to indicate unit is in Program
Mode.
LOWER SHELF LED
This LED will be lit to indicate lower shelf is
selected.
ACTUAL TEMP BUTTON and LED
Press to display actual temperature for the
selected heater. LED will be lit when actual
temperature is displayed.
SETPOINT BUTTON and LED
Press to display setpoint temperature of a
selected heater. LED will be lit when setpoint
temperature is displayed.
TEMPERATURE DISPLAY
U = Upper Heater
L = Lower Heater
NOTE: The unit is preset to display temperature
in Fahrenheit. To display in Celsius, press and
hold the DOWN Arrow button immediately after
turning on the power switch. To switch back to
Fahrenheit, press and hold the UP Arrow button
after turning on the power switch.
UP/DOWN ARROW BUTTONS
Used with other Buttons to scroll through heater
and temperature selections.
BURGER KING LOGO BUTTON
Press to enter temperature selections.
NOTE: To reset all times and temperatures to the factory settings, turn the unit off, then press and hold the UP and DOWN Arrow buttons simultaneously
while turning the unit back on. A “P” will appear in the display and all times and temperatures will be reset to original factory settings.

Printed in USA 1/06 © 2006 6 541-520revD-EN
Product Holding Bin
DHB-BK Series

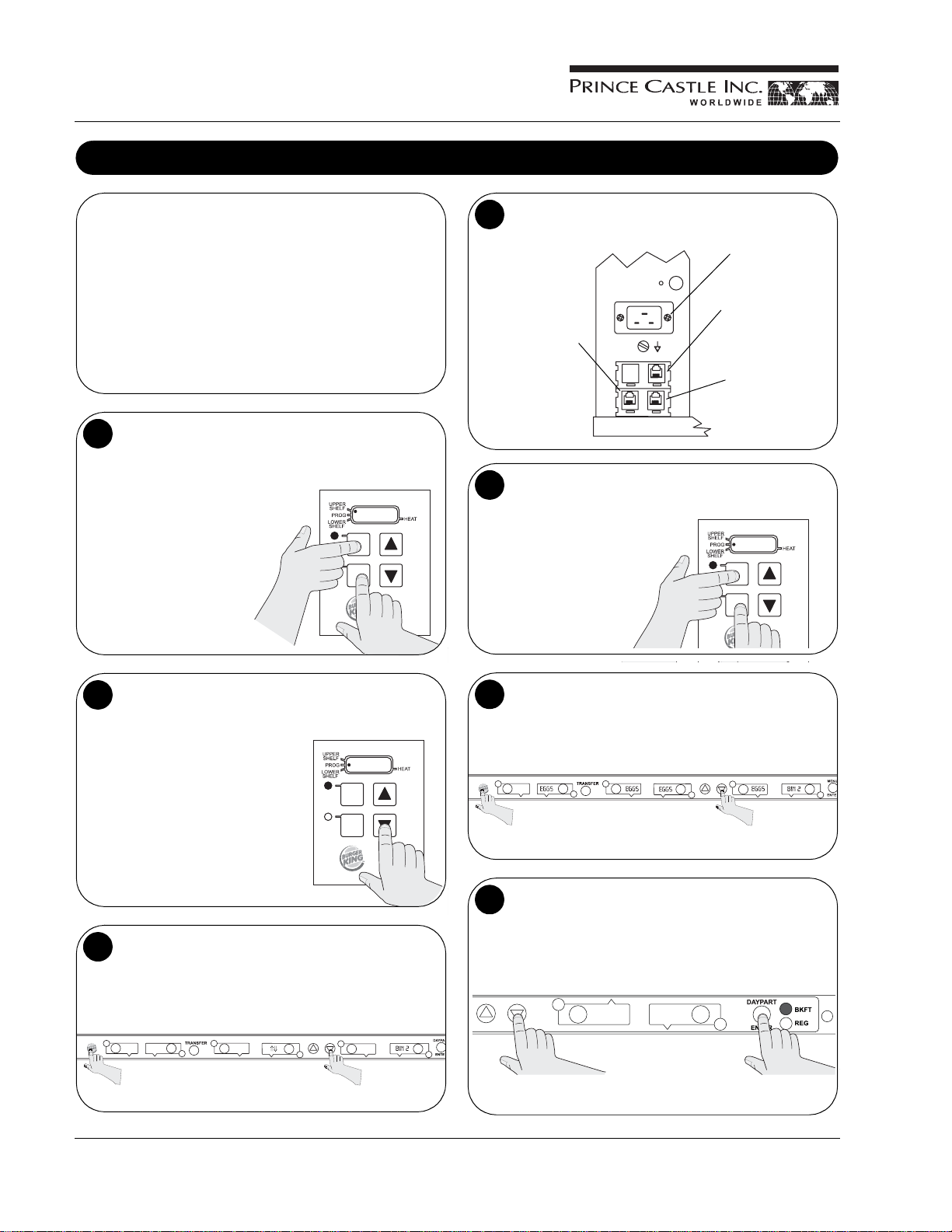

Setting the Temperature (continued)
ACTUAL
TEMP
SET-
POINT
Press the UP or DOWN Arrow button until the desired shelf
LED and upper (U) or lower (L) heater is selected.
2
ACTUAL
TEMP
SET-
POINT
Press the UP or DOWN Arrow button until the desired setpoint
temperature is displayed.
4
ACTUAL
TEMP
SET-
POINT
Press and hold the SETPOINT button and the BURGER KING
LOGO button for 5 seconds. The Program LED will light.
3
ACTUAL
TEMP
SET-
POINT
Press the BURGER KING LOGO button to save the new setpoint
value. Repeat Steps 2 – 5 to change the setpoint for any other
heater.
5
Calibrating Heaters
ACTUAL
TEMP
SET-
POINT
Use the following steps to calibrate the individual heaters.
1
NOTE: Allow sufficient amount of
time for temperatures to stabilize
before starting calibration.
Press the UP or DOWN Arrow
button until the desired shelf LED
and upper (U) or lower (L) heater is
selected.
ACTUAL
TEMP
SET-
POINT
ACTUAL
TEMP
SET-
POINT
u2:30 u2:30
A. Press and hold the BURGER KING LOGO and ACTUAL TEMP
buttons for 5 seconds. The colon (:) LED indicator will light. The
temperature displayed is the actual heater temperature sensed
by the controller.
B. To clear any offset readings, press the SETPOINT button.
3
AB
Take a temperature reading within the shelf near the center
of the heater surface.
2
Use a stand-alone temperature
meter (not supplied).
Hot surfaces. Use caution
when taking temperature
readings within the shelf.
WARNING
ACTUAL
TEMP
SET-
POINT
ACTUAL
TEMP
SET-
POINT
u2:20 u220
A. Press the UP or DOWN Arrow button until the temperature
displayed matches the reading obtained in Step 2.
B. Press the BURGER KING LOGO button to save the
temperature value and exit the Calibration Mode.
4
AB

541-520revD-EN 7 Printed in USA 1/06 © 2006
Product Holding Bin
DHB-BK Series

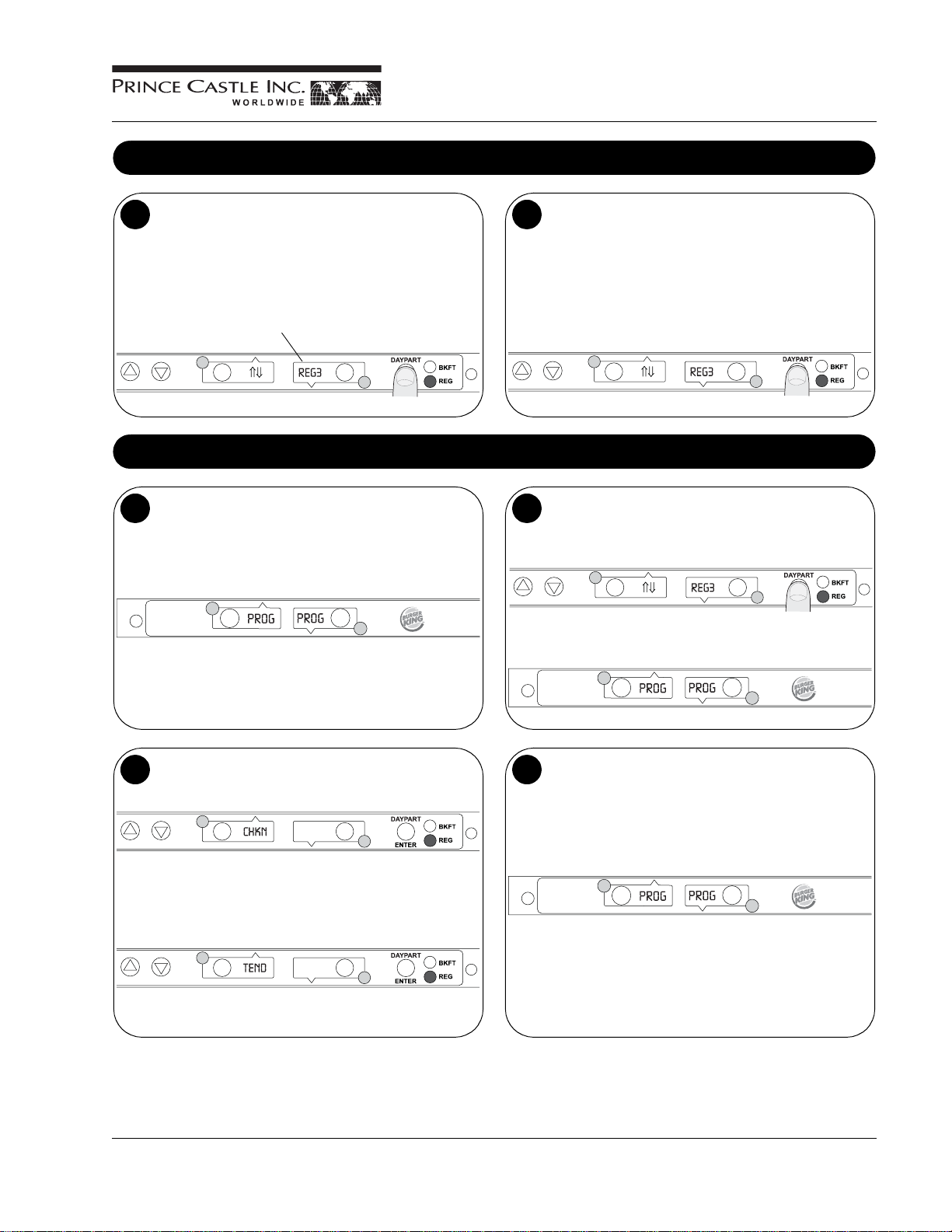

Selecting Breakfast and Regular Menus
There are six menus available:
BKFT LED ON = Breakfast1 or Breakfast2
REG LED ON = Regular1, Regular2, Regular3, or Regular4
Press and hold the DAYPART/ENTER button, then use the UP or
DOWN Arrow button to scroll through the 6 menus.
1
When scrolling, menus appear
in this display.
When the desired menu is displayed, release the DAYPART/
ENTER button. The food products for the menu will be
displayed in the upper and lower PAN displays.
2
When you change to a new menu, any timers started before the change
will flash the product name from the previous menu. Press the PAN
button next to the flashing display to cancel the timer and stop the
display from flashing.
Programming the Menus
Press and hold the BURGER KING LOGO button (on the
button bar) until all the displays show PROG and the PAN buttons
LEDs all glow RED.
1
Press the PAN button next to the display to be changed. The
LED will change from RED to YELLOW and the display will
change from PROG to the assigned menu item.
3
Press the UP or DOWN Arrow button to scroll to the desired product.
Press the DAYPART/ENTER button to save the selection. All other
displays will show PROG.
Press and hold the DAYPART/ENTER button, then use the UP
or DOWN Arrow button to scroll through the 6 menus.
Release the DAYPART/ENTER button when the desired menu
is displayed.
2
When the DAYPART/ENTER button is released,
all displays will again show PROG.
Repeat Steps 2 – 3 as required. Press the BURGER KING
LOGO button to exit the Program Mode.
NOTE: A pan may be set as “not used” by assigning “----” as
its product.
4

Printed in USA 1/06 © 2006 8 541-520revD-EN
Product Holding Bin
DHB-BK Series
Changing the Hold and Cook-More Times
entrtimePROdset
The SET PRODUCT TIME menu is used to change the Hold and Cook-More times.
Press and hold the BURGER KING LOGO button, then immediately press and hold the DAYPART/ENTER button until the display shows one
of four programming menus.
Use the UP or DOWN Arrow button to scroll to the SET PROD TIME ENTR (Set Product Time) menu.
1
BURGER KING LOGO Button DAYPART/ENTER Button
eggs
Press and release the DAYPART/ENTER button to enter the Set
Product Time menu. The display will show SET EGGS TIME ENTR.
Use the UP or DOWN Arrow button to scroll through the list of
products. When the desired product is displayed, press the
DAYPART/ENTER button to select it.
2
NOTE: Holding the UP or DOWN Arrow button for longer than 2 seconds
will cause the product list to automatically scroll up or down.
4
eggsCOOK
:09EGGS
The display will show cook EGGS :07 ENTR.
NOTE: Cook-More time cannot be increased to more than the Hold
time plus one minute.
Use the UP or DOWN Arrow button to scroll to the desired Cook-More
time. When the desired Cook-More time is displayed, press the
DAYPART/ENTER button to save it.
eggs 2:00HOLD
2:18EGGS
The display will show hold EGGS 2:00 ENTR.
3
NOTE: Hold time cannot be reduced to less than the Cook-More time
plus one minute.
Use the UP or DOWN Arrow button to scroll to the desired Hold time.
When the desired Hold time is displayed, press the DAYPART/ENTER
button to save the desired Hold time.
entrtimePROdset
The display will show SET PROD TIME ENTR. Repeat Steps 2 – 4
for any other product.
Press and release the BURGER KING LOGO button at any time
to exit the Program Mode and return to the Run Mode.
5
NOTE: If the DAYPART/ENTER button has not been pressed to
save any changes, the program will revert to the original values.

541-520revD-EN 9 Printed in USA 1/06 © 2006
Product Holding Bin
DHB-BK Series
Changing Product Names
EDIT PROD NAME
The EDIT PRODUCT NAME menu is used to change a default product name to one of your own choosing.
Press and hold the BURGER KING LOGO button, then immediately press and hold the DAYPART/ENTER button until the display shows one
of four programming menus.
Use the UP or DOWN Arrow button to scroll to the SEL PROD xxxx ENTR (Edit Product Name) menu.
NOTE: The default names available for editing are BACN, POP, MOZ, SPCY and EXP1 through EXP9.
1
BURGER KING LOGO Button DAYPART/ENTER Button
Press and release the DAYPART/ENTER button to enter the Edit
Product Name menu.
Use the UP or DOWN Arrow button to scroll through the list of
products. When the desired product is displayed, press the
DAYPART/ENTER button to select it.
The first letter (in this case, theE) will start blinking.
2
When all four digits have been changed, press the DAYPART/
ENTER button to select the new name.
4
To change the blinking E, use the UP or DOWN Arrow button to
scroll to the desired letter/number/symbol. When the desired
selection is displayed, press the PAN button to move to the next
digit. Repeat for all digits.
3
NOTE: Holding the UP or DOWN Arrow button for longer than 2 seconds
will cause the display to automatically scroll up or down.
EDIT PROD NAME
The display will show edit prod name entr. Repeat Steps 2 – 4
for any other product.
Press and release the BURGER KING LOGO button at any time
to exit the Program Mode and return to the Run Mode.
NOTE: If the DAYPART/ENTER button has not been pressed to
save any changes, the program will revert to the original names.
5

Printed in USA 1/06 © 2006 10 541-520revD-EN
Product Holding Bin
DHB-BK Series
CastleNet® Communications Network
The Prince Castle DHB-BK1PC, DHB-BK3PC Bins, Retro Bun Timer
and New Bun Cabinet Timers can be inter-connected to form the
CastleNet®Communication Network.The network can be used for
data transfer between bins and timers for menu updates or to transfer
product Hold time from bin-to-bin.
Each bin is supplied with a standard 25' cable and allows units to be
“daisy-chained” together to form the network. Extender cables are
available (refer to Parts List on page 13).
ACTUAL
TEMP
SET-
POINT
BIN2
The factory default address for all bins and timers is address 2.
The factory default address for the Retro Bun Timer is BUNF.
2
To check the bin address, press and
hold the ACTUAL TEMP and
SETPOINT buttons. The display will
show the bin address. Default for a
new address is BIN2.
EXAMPLE: If a location has three
bins, the bins and timers must be set
to address 1 through 3. See the
following steps.
ACTUAL
TEMP
SET-
POINT
BIN3
Use the UP or DOWN Arrow button to scroll to the desired
address. Press the BURGER KING LOGO button to store the
new address.
4
Available addresses are:
bin1thru bin9, binA, binB, binC, binD, BINe
and BinF.
IMPORTANT: A timer address must
match the corresponding bin address.
For example, if the bin address is BIN3,
the timer address must also be BIN3.
Continue to Step 5 to check the timer
address. Two timers mounted on
separate bins cannot have the same
address.
set addr entr
To change the timer address, disconnect power to the unit and
wait 30 seconds. Reconnect power to the unit and immediately
press and hold the BUGER KING LOGO button and the DOWN
Arrow button until the display shows set addr entr bin2.
The address number will blink on/off.
6
Telephone jack plugs are located on the back of the unit.
Connect the units using the cables provided as shown here.
1
Power Cord Inlet
Blue Plug Jack
(Plug timer data cable
in here)
Black Plug Jack
(Out to another unit)
White Plug Jack
(In from another unit)
ACTUAL
TEMP
SET-
POINT
BIN2
To change a bin address, disconnect power to the unit and wait
30 seconds. Reconnect power to the unit and immediately press
and hold the ACTUAL TEMP and SETPOINT buttons.
3
Continue to hold the buttons
until PROG LED turns on.
To check the timer address, press and hold the BURGER KING
LOGO button and the DOWN Arrow button. The current timer
address will be displayed in the far right timer display.
To change the timer address, proceed to Step 6.
5
bin3entr
Use the UP or DOWN Arrow button to scroll to the desired
address. Press the DAYPART/ENTER button to store the new
address and return to normal operating mode.
Available addresses are:
BIN1 thru BIN9 and BINA, BINB, BINC, BIND, BINE, and BINF.
7

541-520revD-EN 11 Printed in USA 1/06 © 2006
Product Holding Bin
DHB-BK Series
Factory Presets
Product Menu Details
1. Hold and Cook-More times may be re-programmed. See page 8.
2. Product abbreviations BACN through EXP9 may be reprogrammed. See page 9.
Product Display Name Hold Minutes 1Cook-More Minutes 1
Eggs EGGS 120 7
Biscuits BISC 60 17
Sausage SAUS 60 1
French Toast FR-T 30 2
Ham HAM 120 2
Fish FISH 45 5
Chicken Crisp CRSP 45 3
Chick Patty CHKN 45 3
Chicken Tenders TEND 30 3
Burgers BURG 60 3
Whoppers WHPR 45 3
BK Broiler -BK- 60 6
Bacon BACN2120 2
Poppers POP230 2
Mozzarella Stick MOZ230 2
Spicy Chicken Wings SPCY260 3
Experimental #1 EXP1260 2
Experimental #2 EXP2260 2
Experimental #3 EXP3260 2
Experimental #4 EXP4260 2
Experimental #5 EXP5260 2
Experimental #6 EXP6260 2
Experimental #7 EXP7260 2
Experimental #8 EXP8260 2
Experimental #9 EXP9260 2
Menus
Timer 8 Timer 7 Timer 6 Timer 5 Timer 4 Timer 3 Timer 2 Timer 1 Menu Indicator
BACN HAM FR-T SAUS BISC EGGS EGGS EGGS MNU1 Bkft
WHPR WHPR WHPR WHPR BURG BURG BURG BURG MNU2 Reg
TEND TEND CHKN CHKN CRSP CRSP FISH FISH MNU3 Reg
WHPR WHPR WHPR WHPR BURG BURG BURG BURG MNU4 Reg
SPCY SPCY MOZ MOZ POP POP -BK- -BK- MNU5 Reg
BACN HAM FR-T SAUS BISC EGGS EGGS EGGS MNU6 Bkft

Printed in USA 1/06 © 2006 12 541-520revD-EN
Product Holding Bin
DHB-BK Series
PROBLEM PROBABLE CAUSE SOLUTION
Display flashes OpN and REL.Open relay. Circuit inoperable. Replace power circuit board.
Display flashes SHR and REL.Shorted relay. Circuit inoperable.
Open heater.
Unplugged ribbon cable between power and main
circuit boards.
Replace power circuit board.
Test heater resistance (150.2 Ohms). Replace heater if necessary.
Verify ribbon cable connection.
Display flashes OPN and REL.Temperature is below 75°F.
Heater inoperable.
Probe inoperable.
Relay inoperable.
Normal display during warmup.
Test heater resistance (150.2 Ohms).
Check for open thermocouple wires from probe. Replace heater/probe
assembly.
Replace power circuit board.
Display shows HHH for an
extended period of time and
heater surface temperature
is hot.
Temperature is above 300°F (abnormal operation). Diagnostic circuit inoperable. Replace power circuit board.
Display shows HHH for an
extended period of time and
heater surface temperature
is cool.
Probe is inoperable. Check for pinched thermocouple wires from probe. Replace heater/
probe assembly.
Troubleshooting
Wiring Diagram

541-520revD-EN 13 Printed in USA 1/06 © 2006
Product Holding Bin
DHB-BK Series
Exploded View and Parts List
Ref. Part No. Description
1 541-316 Side Panel Cover
2 541-735S Main P.C. Board Kit
3 541-799 P.C. Board Bracket
4 541-317 Insulation
5 541-326 Wire Chase
6 541-333S Display P.C. Board Kit
7 89-955 Spacer
8 536-802S Overlay Kit
9 86-118 Hole Plug
10 541-320 Hold Down Bracket
11 78-219S Power Switch
12 88-609S Power Inlet
13 72-200-25S Power Cord Kit
72-235S Power Cord Kit, UKC series
14 76-724 Screw, Socket, 8-32 x 3/4
15 541-375S Lower Heater Assy (230 Volt)
16 541-376S Upper Heater Assy (230 Volt)
17 541-656 Chassis, Right
18 541-129 Side Cover Bracket
19 541-369 Insulation Bottom
28
9
Ref. Part No. Description
20 541-329 Top Cover
21 541-324 Header
22 541-650 Trim
23 541-383 Shelf Bracket
24 541-488 Chassis, Left
25 541-317 Insulation
26 541-606 Base
27 197-232 Foot
28 541-322 Bottom Cover
* 541-723E4S Black Pan Covers (Pkg of 4)
* 940-0504 Cable, Radio Shack
* PC-Comext Tel Cable RJ12/RJ
* 541-636 Rack, Guide w/Hand
* 541-TSMCS Button Bars (Main)
* 541-TSACS Button Bars (Aux)
* 541-TSMUKCS Button Bars (Main for UKC Series)
* 541-TSAUKCS Button Bars (Aux for UKC Series)
* 541-757S Overlay (Main)
* 541-758S Overlay (Aux)
* Part not shown.
10
25 24
4
26
11
19
14
12 15
3
21
6
7
8
13
1
18
20
21
19
18
16
15
23
17
27

355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: [phone] • Fax: [phone]
Toll Free: 1-800-PCASTLE
www.princecastle.com
Printed in USA 1/06 © 2006
Prince Castle Inc.
