Pro-face GP-3600T Series User manual

第6版2014 年6月
Easy! Smooth!
Replacement Guidebook
GP-3600T
-> SP-5600TA(Advanced Display)
+SP-5B10(Power Box)
SP-5B00(Standard Box)
The 6th Edition Jun. 2020

Preface
This guidebook introduces the procedures to replace a unit in GP-3600T series with a
SP-5600TA+SP-5B10/SP-5B00.
Model in use
Model No.
Recommended Substitution
GP-3600T
AGP3600-T1-AF
SP-5600TA (Advanced Display)
＋SP-5B00(Standard Box)
->see 1.1
AGP3600-T1-D24
GP-3600T
(DIO Type)
AGP3600-T1-AF-D81C
SP-5600TA (Advanced Display)
＋SP-5B10(Power Box)
+ FLEXNETWORK Unit (Model No. PFXZCHEUFN1)
->see 1.2
AGP3600-T1-D24-D81C
AGP3600-T1-AF-D81K
AGP3600-T1-D24-D81K
GP-3600T
(FLEX
NETWORK
Type)
AGP3600-T1-AF-FN1M
AGP3600-T1-D24-FN1M
GP3600T
(CANOpen
type)
AGP3600-T1-AF-CA1M
SP-5600TA (Advanced Display)
＋SP-5B10(Power Box)+
CANopen Master Unit (Model
No. PFXZCHEUCAM1)
->see 1.2
AGP3600-T1-D24-CA1M
‘Display’ and ‘Box’ of SP5000 series can be separated, so you can freely select a
suitable combination of them according to use. This guidebook introduces
specifications for a combination of SP-5600TA (Advanced Display) that is a 12-inch
display module and SP-5B10(Power box) or SP-5B00 (Standard box) that is a box
module.
Safety Information
HAZARD OF OPERATOR INJURY, OR UNINTENDED EQUIPMENT DAMAGE
Before operating any of these products, be sure to read all related manuals
thoroughly.
Failure to follow these instructions can result in death, serious injury or unintended
equipment damage.

Contents
CHAPTER 1 SPECIFICATION COMPARISON 5
1.1. SPECIFICATION OF GP-3600T (STANDARD CLASS)AND
SP-5600TA+SP-5B00 5
1.2. SPECIFICATION OF GP-3600T (CONTROL CLASS)AND
SP-5600TA+SP-5B10 8
CHAPTER 2 COMPATIBILITY OF HARDWARE 11
2.1. LOCATIONS OF CONNECTOR 11
2.2. POWER SUPPLY 12
2.3. USB TRANSFER CABLE 12
2.4. INTERFACE 13
2.4.1. SERIAL INTERFACE 13
2.4.2. AUXILIARY I/O INTERFACE (AUX) 13
2.4.3. SOUND OUTPUT INTERFACE 13
2.4.4. FLEXNETWORK INTERFACE,FLEXNETWORK INTERFACE,CANOPEN INTERFACE,DIO
INTERFACE 13
2.4.5. CF CARD INTERFACE 14
2.5. PERIPHERAL UNITS AND OPTION UNITS 15
2.5.1. BARCODE/2D [TWO-DIMENSIONAL]CODE READER CONNECTION 15
2.5.2. PRINTER CONNECTION 15
2.5.3. EXPANSION UNIT 15
2.5.4. ISOLATION UNIT 16
2.6. BACKUP BATTERY 16
2.7. SUPPORTED FEATURES 17
2.8. POWER CONSUMPTION 17
2.9. DISPLAY RESOLUTION 17
2.10. ABOUT PRO-SERVER EX 18
2.11. OTHER NOTES 18
CHAPTER 3 REPLACEMENT PROCEDURE 19
3.1. WORK FLOW 19
3.2. PREPARATION 20

3.3. RECEIVE SCREEN DATA FROM GP3000 SERIES 21
3.4. CHANGE THE DISPLAY UNIT TYPE 26
3.5. TRANSFER THE SCREEN DATA TO SP5000 SERIES 26
3.6. DIFFERENCES OF SOFTWARE 30
CHAPTER 4 COMMUNICATION WITH DEVICE/PLC 31
4.1. SHAPES AND COMMUNICATION METHOD OF COM PORTS 31
4.2. SIGNALS OF COM PORTS 31
4.3. CABLE DIAGRAM AT THE TIME OF REPLACEMENT 32
4.4. MULTILINK CONNECTION 32
CHAPTER 5 APPENDIX 33
5.1. CHANGING THE SETTING OF THE EXTERNAL MEDIA TO USE 33

Chapter 1 Specification Comparison
1.1. Specification of GP-3600T (Standard Class) and SP-5600TA+SP-5B00
GP-3600T
SP-5600TA+SP-5B00
Display Type
TFT Color LCD
Display Colors
65,536 colors
(without blink)/
16,384 colors
(with blink)
UP!
262,144 colors
(without blink) *1
Display Resolution
SVGA (800×600 pixels)
XGA (1,024×768 pixels)
->see 2.9
Panel Cut Dimensions
W301.5×H227.5mm
External Dimensions
W313×H239×D56mm
NEW！
W315×H241×D67mm *2
Touch Panel Type
Resistive film
(Analog)
UP!
Resistive film
(Analog, Single-touch)
Memory
Application
16MB
UP!
64MB
SRAM
SRAM : 320KB
UP！
NVRAM : 320KB
Backup Battery
Secondary Battery
(Rechargeable Lithium
battery)
UP！
-
-> see 2.6
Input Voltage
DC24V
AC 100 to 240V
NEW！
DC 12 to 24V
-> see 2.2
Serial
I/F
COM1
D-Sub9 pin (plug)
RS-232C/422/485
D-Sub9 pin (plug)
RS-232C
COM2
D-Sub9 pin (socket)
RS-422/485
NEW！
D-Sub9 pin (plug)
RS-422/485
-> see 2.4.1 see Chapter 4

6 / 34
Ethernet I/F
1 port
10BASE-T/100BASE-TX
UP！
2 ports
10BASE-T/100BASE-TX
CF Card I/F
✔
NEW！
-
-> see 2.4.5
SD Card I/F
-
NEW！
✔
-> see 2.4.5
USB
I/F
Type A
2 ports
2 ports
Type mini B
-
NEW！
1 port
Printer I/F
USB Type A
-> see 2.5.2
Auxiliary I/O I/F
✔
-*3
Sound Output I/F
Speaker
Output:70mW(Rated
Load:8Ω,
Frequency:1kHz),
Connector: 2-piece
terminal block (AUX) x 1
-*3
FLEXNETWORK
I/F
✔
(AGP3600-T1-AF-FN1M/
AGP3600-T1-D24-FN1M)
-*3
CANopen I/F
✔
(AGP3600-T1-AF-CA1M)
-*3
DIO I/F
✔
AGP3600-T1-AF-D81*/
AGP3600-T1-D24-D81*
only
-*3
Expansion Unit I/F
（Communication Unit）
✔
-*3
Expansion Unit I/F
(Image Unit)
✔
-
Expansion Memory
✔
-*4
Software
GP-Pro EX 2.00 or later
GP-Pro EX 4.08.200 or later
*1: SP-5B00 does not support hardware 3rd speed blink.
*2: Size for the time when SP-5600TA (Advanced display) is combined with
SP-5B00 (Standard box).
*3: If need this I/F, SP5B10(Power box) is required.

7 / 34
*4: No expansion memory but SP5000 series has enough memory to cover GP3000
series + expansion memory.

8 / 34
1.2. Specification of GP-3600T (Control Class) and SP-5600TA+SP-5B10
GP-3600T
SP-5600TA+SP-5B10
Display Type
TFT Color LCD
Display Colors
65,536 colors
(without blink)/
16,384 colors
(with blink)
UP!
262,144 colors（without blink）
/65,536colors（with blink）
Display Resolution
SVGA (800×600 pixels)
XGA (1,024×768 pixels)
->see 2.9
Panel Cut Dimensions
W301.5×H227.5mm
External Dimensions
W313×H239×D56mm
NEW！
W315×H241×D67mm *1
Touch Panel Type
Resistive film
(Analog)
UP!
Resistive film
(Analog, Single-touch)
Memory
Application
16MB
UP!
64MB
SRAM
SRAM : 320KB
UP！
NVRAM : 320KB
Backup Battery
Secondary Battery
(Rechargeable Lithium
battery)
UP！
-
-> see 2.6
Input Voltage
DC24V
AC 100 to 240V
NEW！
DC 12 to 24V
-> see 2.2
Serial
I/F
COM1
D-Sub9 pin (plug)
RS-232C/422/485
COM2
D-Sub9 pin (socket)
RS-422/485
NEW！
D-Sub9 pin (plug)
RS-232C/422/485
-> see 2.4.1 see Chapter 4

9 / 34
Ethernet I/F
1 port
10BASE-T/100BASE-TX
UP！
2 ports
10BASE-T/100BASE-TX/
1000BASE-T
CF Card I/F
✔
NEW！
-
-> see 2.4.5
SD Card I/F
-
NEW！
✔
-> see 2.4.5
USB
I/F
Type A
2 ports
2 ports
Type mini B
-
NEW！
1 port
Printer I/F
USB Type A
-> see 2.5.2
Auxiliary I/O I/F
✔
✔
-> see 2.4.2
Sound Output I/F
Speaker
Output:70mW(Rated
Load:8Ω,
Frequency:1kHz),
Connector: 2-piece
terminal block (AUX) x 1
UP!
Speaker Output: 300mW or
more (Rated Load: 8Ω,
Frequency: 1kHz)
LINE Output: 1.4Vp-p (Rated
Load: 10kΩ)
Connector: 2-piece terminal
block(AUX) x 1
→See 2.4.3
FLEXNETWORK
I/F
✔
(AGP3600-T1-AF-FN1M/
AGP3600-T1-D24-FN1M)
FLEXNETWORK Unit
(Model No. PFXZCHEUFN1)
is required.
For more details, refer to
FAQ:FA330215
CANopen I/F
✔
(AGP3600-T1-AF-CA1M)
CANopen Master Unit
(Model No. PFXZCHEUCAM1)
is required.
For more details, refer to
FAQ:FA326702
DIO I/F
✔
AGP3600-T1-AF-D81*/
AGP3600-T1-D24-D81*
only
Required to change to
FLEXNETWORK
Expansion Unit I/F
（Communication Unit）
✔
✔
-> see 2.5.3
Expansion Unit I/F
✔
-

10 / 34
(Image Unit)
-> see 2.7
Expansion Memory
✔
-*2
Software
GP-Pro EX 2.00 or later
GP-Pro EX 4.08.200 or later
*1: Size for the time when SP-5600TA (Advanced display) is combined with
SP-5B10 (Power box). For further use of the below expansion unit, please refer to
below FAQ.
PROFIBUS DP slave/MPI unit (Model No. PFXZCDEUPF1)
https://www.proface.com/en/support/faq?page=content&country=PROFACE&lang
=en&locale=en_US&id=FA315627&prd=&redirect=true
FLEXNETWORK Unit (Model No. PFXZCHEUFN1)
https://www.proface.com/en/support/faq?page=content&country=PROFACE&lang
=en&locale=en_US&id=FA330215&prd=&redirect=true
CANopen Master Unit (Model No. PFXZCHEUCAM1)
https://www.proface.com/en/support/faq?page=content&country=PROFACE&lang
=en&locale=en_US&id=FA326702&prd=&redirect=true
*2: No expansion unit, but SP5000 series has enough memory to cover GP3000
series + expansion memory.

11 / 34
Chapter 2 Compatibility of Hardware

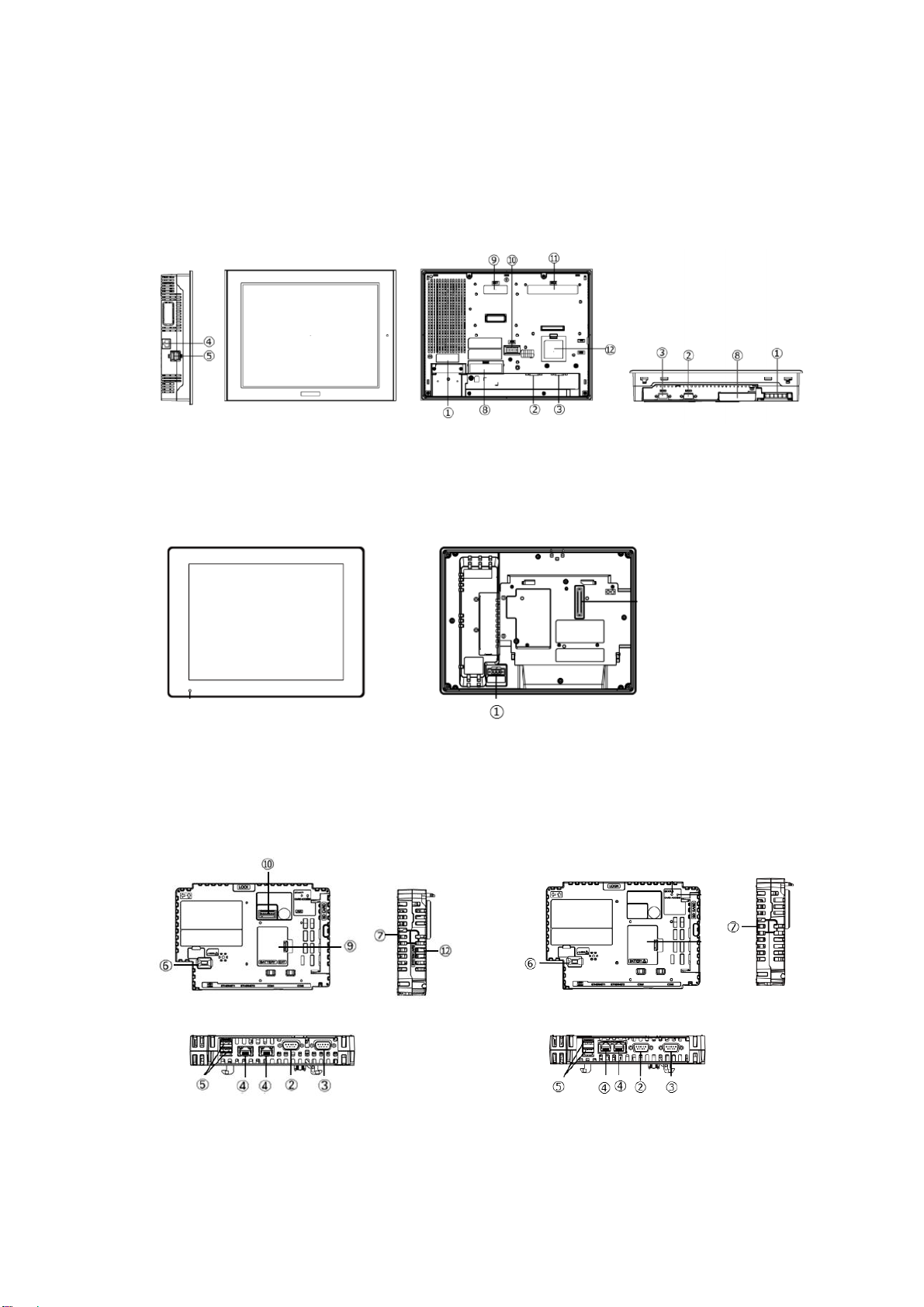

2.1. Locations of connector
Connector locations of GP-3600T and SP-5600TA+SP-5B10/SP-5B00
GP-3600T
SP-5600TA (Advanced display)
SP-5B10 (Power box) SP-5B00 (Standard box)

12 / 34

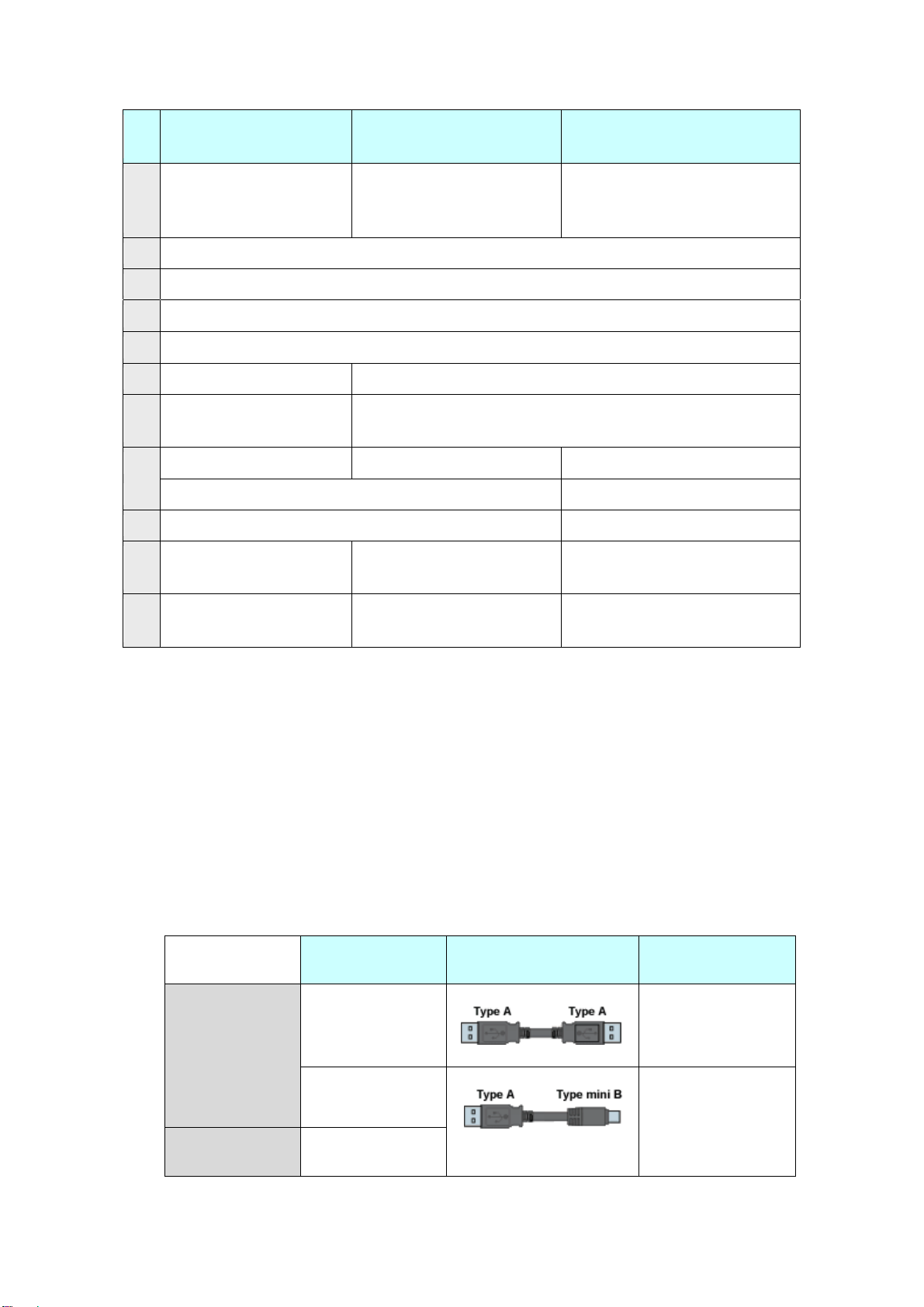

GP-3600T
SP5000 series
SP-5B10(Power box)
SP5000 series
SP-5B00(Standard box)
1
Power Input Terminal
Block (AC) /
Power Connector (DC)
Power Connector (DC)
Power Connector (DC)
2
Serial I/F (COM1)
3
Serial I/F (COM2)
4
Ethernet I/F
5
USB I/F (Type A)
6
-
USB I/F (Type mini B)
7
-
Storage Card Cover
(There’s a SD card I/F for storage under the cover.)
8
CF card I/F
-
-
9
Expansion Unit I/F (Communication Unit)
-
10
Auxiliary I/O / Sound Output I/F (AUX)
-
11
Expansion Unit I/F
(Image Unit)
-
-
12
Expansion Memory
Cover
-
-
2.2. Power supply
SP5000 has a DC power supply type only. When replacing GP-3600T AC type with
SP5000 series, changing to DC power supply is required. For the detailed electric
specifications, see the hardware manual.
2.3. USB Transfer cable
Like the GP3000 series, a USB transfer cable (CA3-USBCB-01) can be used for the
SP5000 series. Also, a USB (Type mini B) cable (ZC9USCBMB1) and commercial
cables can be used on the SP5000 series’ side.
Model
Connector Type
Connector on
Display
Options
CA3-USBCB-01
USB (Type A)
ZC9USCBMB1
USB (Type mini B)
Commercial
Item
-

13 / 34
2.4. Interface
2.4.1. Serial Interface
The SP5000 series has a COM port on the side of box module.
The pin array and the shapes of the plug and the socket differ between GP-3600T
COM2 port and SP-5B10 (Power box)/SP-5B00 (Standard box) COM port. The PLC
connection cable that used to be connected to GP3000 Series via its COM2 port
cannot be used as it is. For details, refer to “Chapter 4 Communication with
Device/PLC”. Cables other than that can be used as they are.
When both the COM1 port and the COM2 port have the RS-422/485 setting, only
the COM2 port can be used for RS-422/485 connection after replacement to
SP-5B00(Standard box).
2.4.2. Auxiliary I/O Interface (AUX)
SP-5B10(Power box) has ‘Auxiliary I/O Interface (AUX), but either Alarm Output
or Buzzer Output can be used (Alarm Output and Buzzer Output can be switched
to each other on GP-Pro EX.). Note that RUN Output and External Reset Output
that used to be used for GP-3600T cannot be used anymore.
2.4.3. Sound Output Interface
If sound output is needed, select SP-5B10(Power Box) and use AUX I/F.
When using Speaker Output, the output value has increased from 70mW to
300mW, so customers using an amplifier should be aware of it.
2.4.4. FLEXNETWORK interface, FLEXNETWORK interface, CANopen interface,
DIO interface
When GP3000 series (C Class) DIO model, FLEXNETWORK model and CANOpen
model was used, SP-5B10 (Power BOX) is required.
For SP5000 series, below module is required.
GP3000 Series (Control model)
Unit for SP-5B10
(Power box)
DIO Model
AGP3600-T1-AF-D81C
AGP3600-T1-D24-D81C
AGP3600-T1-AF-D81K
AGP3600-T1-D24-D81K
FLEXNETWORK Unit
(Model No. PFXZCHEUFN1)
For more details, refer to
FAQ:FA330215
FLEXNETWORK Model
AGP3600-T1-AF-FN1M
AGP3600-T1-D24-FN1M
CANopen Model
AGP3600-T1-AF-CA1M
AGP3600-T1-D24-CA1M
CANopen Master Unit
(Model No. PFXZCHEUCAM1)
For more details, refer to
FAQ:FA326702
SP-5B00 (Standard Box) cannot be used for expansion unit.

14 / 34
2.4.5. CF Card Interface
SP5000 series is not equipped with a CF card slot. But a SD card slot and a USB
interfaces are installed. In order to use the GP-3600T data saved in the CF card and
the functions using the CF card, use a SD card or a USB flash drive instead.
SP-5B10 (Power box) has 2 SD card interfaces, one for the system and the other
for backup. Use the interface of the SD card for backup.
* When using a SD card with SP-5B10(Power box), please verify it supports the
following specifications:
File format
Maximum capacity
SD
FAT16
2GB
SDHC
FAT32
32GB
When the setting of the output destination folder is set to “CF Card” on GP-Pro EX,
if you change the display unit type, the setting will automatically change to the
one that uses a SD card.
To change the setting of the output destination folder, see [5.1 Changing the
setting of the external media to use].

15 / 34
2.5. Peripheral units and option units
2.5.1. Barcode/ 2D [two-dimensional] code reader connection
Like GP3000 series, SP5000 series allows you to connect a barcode reader to its
USB interface (Type A) or its serial interface. In replacing GP3000 series with
SP5000 series, verify proper operation of the barcode/2D code reader before use.
2.5.2. Printer connection
Like GP3000 series, SP5000 series allows you to connect a printer on its USB
interface (Type A). In replacing GP3000 series with SP5000 series, verify proper
operation of the printer before use.
2.5.3. Expansion Unit
If you used GP3000 series+ VM unit/RGB input unit, please refer to the
Replacement Guidebook for GP4621T.
If you used PROFIBUS unit for GP3000 series, SP-5B10 (Power Box) is required for
the replacement.
If you used PROFIBUS unit for GP3000 series (model:CA5-PFSALL/EX-01), please
apply PROFIBUS DP Slave (model no.: PFXZCDEUPF1) for SP-5B10(Power box).
Reference:
[FA315627] Replacement for GP3000 series PROFIBUS unit (Model no.:
CA5-PFSALL/EX-01)
https://www.proface.com/en/support/faq?page=content&country=PROFACE&la
ng=en&locale=en_US&id=FA315627&prd=&redirect=true
SP5000 Series Option List
(https://www.proface.com/en/product/hmi/sp5000/option）
The expansion unit (each kind of unit like CC-LINK Unit, VM unit) for GP3000
series cannot be used for SP5000 series.

16 / 34
2.5.4. Isolation Unit
RS-485 isolation unit for GP3000 Series (CA3-ISO485-01) cannot be used for
SP-5B10 (Power box)/ SP-5B00 (Standard box). You can use the RS-232C
isolation unit (CA3-ISO232-01) for SP-5B10 (Power box)/ SP-5B00 (Standard
box) instead. (The communication method is switched with this unit’s DIP switch.)
Note for using RS-232C isolation unit (CA3-ISO232-01)
・Connect it to SP5000 series via COM1 (232C).
・In the case of RS-232C, it’s necessary to set the 9th pin of the COM port to
VCC.
[Settings on GP-ProEX]
Select “VCC” from [System Settings] -> [Device/PLC] in the [Project] menu
on GP-Pro EX.
・RS-422/485 (2-wire type) communication and serial multilink are not
supported.
2.6. Backup Battery
SP-5B10/ SP-5B00 (Standard box) is not needed a backup battery for Clock.
Supercapacitor (electric double-layer capacitor) can be back up clock data.
Please note the following points,
•When the voltage from the Supercapacitor is low, clock data is lost when this
product is turned OFF. In order to charge up the super capacitor, power
needs to be supplied to the main unit for 5 minutes or longer.
•The average period for backup is as follows:
Initial: Approximately 100 days
After 5 years: Approximately 30 days (used at ambient temperature of 25 °C [77 °F])
By connecting the Battery for Memory Backup (Model Number PFXZCBBT1)
accessory, you can set up a backup period of up to 10 years or more.

17 / 34
2.7. Supported features
SP5000 Series does not support the following features.
•Recording/Playing a video
•Features using Image Unit (VM/DVI/RGB input)
•Camera-Viewer EX
•RPA
•PLC Ladder Monitor
2.8. Power Consumption
The power consumption of GP3000 series is different from that of SP5000 series.
GP-3600T
ST-5600TA+
SP-5B10
ST-5600TA+
SP-5B00
50W or less
36W or less
28W or less
2.9. Display Resolution
SP5600TA (Advanced Display) only support XGA (1,024*768).
If you wish to use lower resolution (SVGA 800*600) as it was, please select
SP-5600TP (Premium Display) for the Display unit.
If you check on [Convert Resolution] when changing the Display Unit type (as
shown below), you can adjust both size and location of the part and the text
relative to the display resolution automatically. But please note that their width
gets larger due to change of horizontal resolution of the screen area. In this case,
confirm their size and location and adjust them if necessary.
Especially, if using Standard font for the font type, after resolution converter, the
size will get smaller.
In that case, you can improve by using stroke font or image font.

18 / 34
2.10. About Pro-Server EX
Use Pro-Server EX Ver.1.33 or later. For more detail, please refer to the following.
(http://www.proface.co.jp/otasuke/qa/server_ex/replace/)
If using SP-5B00(Standard BOX), use Pro-Server EX Ver.1.36 or later.
2.11. Other Notes
•Do not expose SP5000 series to direct sunlight.
•Do not use SP5000 series outdoors.
•Do not turn on SP5000 series if condensation has occurred inside the device.
•When you are continuously using SP5000 series without oxygen, the
brightness might decrease. Please ventilate the control panel periodically.

19 / 34
Chapter 3 Replacement Procedure
3.1. Work Flow
Installation
Screen
Communication
Check the compatibility of
hardware in Chapter 2.
Receive screen data from
GP3000 Series. *1
Remove GP3000 Series.
Install SP5000 series.
Connect the power cord.
Check the performance
and start operation.
Change the received data
on GP-Pro EX.
Check and modify the
data on GP-Pro EX.
Transfer the screen data
to SP5000 series.
Check the connection
between SP5000 series
and a PLC in the GP-Pro
EX Device/PLC
Connection Manual.
Connect SP5000 series
and PLC with the PLC’s
cable.
Start connection and
check the communi-
cation.
*1: This step is required if screen data is saved only in the GP unit, not in any other device.
When replacing GP3000
series to SP5000 series
process the panel.

20 / 34
3.2. Preparation
Requirements for
receiving screen data
from GP3000 Series*1
PC in which GP-Pro EX Transfer Tool is installed. *2
USB Transfer Cable (model: CA3-USBCB-01)
* Possible to send/receive a screen via a CF card, a USB
storage device or Ethernet.
Requirements for
converting screen data
of GP3000 Series and
transferring the
converted data to
SP5000 series.
PC with GP-Pro EX installed.
*Ver4.02 or later is required for SP-5B10 *3
*Ver4.08.200 or later is required for SP-5B00.
Transfer Cable (The following three types of cables are
available)
・A USB transfer cable (model: CA3-USBCB-01)
・A USB data-transfer cable (model: ZC9USCBMB1)
・A commercial USB cable (USB Type A/mini B)
* Possible to send/receive a screen via a SD card , a USB
storage device or Ethernet.
*1: This step is required if screen data is saved only in the GP unit, not in any other device.
*2: Please use the same version or later as or than that of the software used during creating screens on
GP3000 Series. If you don’t know the version, we recommend you to use the newest version. For the
newest version, you can download the transfer tool from our web site called [OtasukePro!]
(http://www.pro-face.com/otasuke/download/freesoft/gpproex_transfer.htm).
*3 PROFIBUS DP slave/MPI unit (Model number:PFXZCDEUPF1) of SP5000 series is supported at GP-Pro EX
V4.07.000 or later. Also FLEXNETWORK unit (Model number: PFXZCHEUFN1), CANopen Master unit
(Model number: PFXZCHEUCAM1) is supported at GP-Pro EX V4.07.200 or later
