Pro-face GP-3300T Manual

1
Easy! Smooth!
GP-3300 Series->GP4000 Series
Replacement Guidebook
Fifth Edition Jul. 2012
Copyright © 2012.7 Digital Electronics Corporation. All Rights Reserved.

2
Preface
This guidebook introduces the procedures to replace a unit in GP-3300 series with a
GP-4301T/TW unit.
Model in use
Model No.
Recommended Substitution
GP-3300T
AGP3300-T1-D24
GP-4301T
GP-3300S
AGP3300-S1-D24
GP-4301TW
GP-3300L
AGP3300-L1-D24
GP-3301S*1
AGP3301-S1-D24
GP-3301L*1
AGP3301-L1-D24
GP-3302B*1
AGP3302-B1-D24
*1: It is also possible to replace GP-3301S/L with GP-4301TM (modular type). For
details, please refer to “GP/ST3000 Series -> GP4000M Series Replacement
Guidebook”.
What is “Modular Type” graphic operator interface, GP-4301TM?
GP-4301TM is the modular type graphic operator interface that can be installed
with a φ22-mm circular hole as shown below.

3
Safety Information
HAZARD OF OPERATOR INJURY, OR UNINTENDED EQUIPMENT DAMAGE
Before operating any of these products, be sure to read all related manuals thoroughly.
Failure to follow these instructions can result in death, serious injury or unintended equipment
damage.

4
GP4000 Series Model Number
GP4000 series model number partly differs depending on a specification. Before
placing an order, please make sure of the model number.
A
2
GP-4200 series (3.5”)
3
GP-4300 series (5.7”)
4
GP-4400 series (7.5”/7.0”W)
5
GP-4500 series (10.4”)
6
GP-4600 series (12.1”)
B
01
RS-232C/422/485
03
RS-485 (isolation)
C
T
TFT color LCD
W
TFT color LCD (Wide Type)
D
A
Analog Resistive Film Touch Panel
M
Matrix Resistive Film Touch Panel
E
A
AC Type Power Supply
D
DC Type Power Supply
F
W
GP-4201TW/4301TW/4401WW/4501TW
C
Coated model
WC
Coated model of GP-4301TW

5
Contents
PREFACE 2
SAFETY INFORMATION 3
HAZARD OF OPERATOR INJURY, OR UNINTENDED EQUIPMENT DAMAGE
3
GP4000 SERIES MODEL NUMBER 4
CONTENTS 5
CHAPTER 1 SPECIFICATION COMPARISON 7
1.1 SPECIFICATIONS OF GP-3300T AND GP-4301T 7
1.2 SPECIFICATIONS OF GP-3300S/L AND GP-4301TW 9
1.3 SPECIFICATIONS OF GP-3301S/L AND GP-4301TW 11
1.4 SPECIFICATIONS OF GP-3302B AND GP-4301TW 13
CHAPTER 2 COMPATIBILITY OF HARDWARE 14
2.1 LOCATIONS OF CONNECTOR 14
2.2 DISPLAY COLORS (ONLY WHEN REPLACING GP-3300L/3301L/3302B) 18
2.3 TRANSFER CABLE 19
2.4 INTERFACE 20
2.4.1 SERIAL INTERFACE 20
2.4.2 CF CARD INTERFACE (EXCEPT GP-3302B) 21
2.5 PERIPHERAL UNITS AND OPTIONS 21
2.5.1 BARCODE READER CONNECTION 21
2.5.2 PRINTER CONNECTION 21
2.5.3 EXPANSION UNIT 22
2.5.4 ISOLATION UNIT 22

6
2.6 BACKUP BATTERY (ONLY WHEN REPLACING WITH GP-4301T) 22
2.7 POWER CONSUMPTION 23
2.8 MATERIALS/COLORS OF THE BODY 23
2.9 BACKUP MEMORY (SRAM) (ONLY WHEN REPLACING WITH GP-4301TW) 23
CHAPTER 3 REPLACEMENT PROCEDURE 24
3.1 WORK FLOW 24
3.2 PREPARATION 25
3.3 RECEIVE SCREEN DATA FROM GP-3300 SERIES 26
3.4 CHANGE THE DISPLAY UNIT TYPE 33
3.5 TRANSFER SCREEN DATA TO GP-4301T/TW 34
3.6 DIFFERENCES OF SOFTWARE 38
CHAPTER 4 COMMUNICATION WITH DEVICE/PLC 39
4.1 DRIVERS 39
4.2 SHAPES OF COM PORTS 39
4.3 SIGNALS OF COM PORTS 40
4.3.1 SIGNALS OF COM1 40
4.3.2 SIGNALS OF COM2 43
4.4 MULTILINK CONNECTION 44
4.5 CABLE DIAGRAM AT THE TIME OF REPLACEMENT 45
CHAPTER 5 APPENDIX 47
5.1 CHANGING THE SETTING OF THE EXTERNAL MEDIA TO USE 47

7
Chapter 1 Specification Comparison

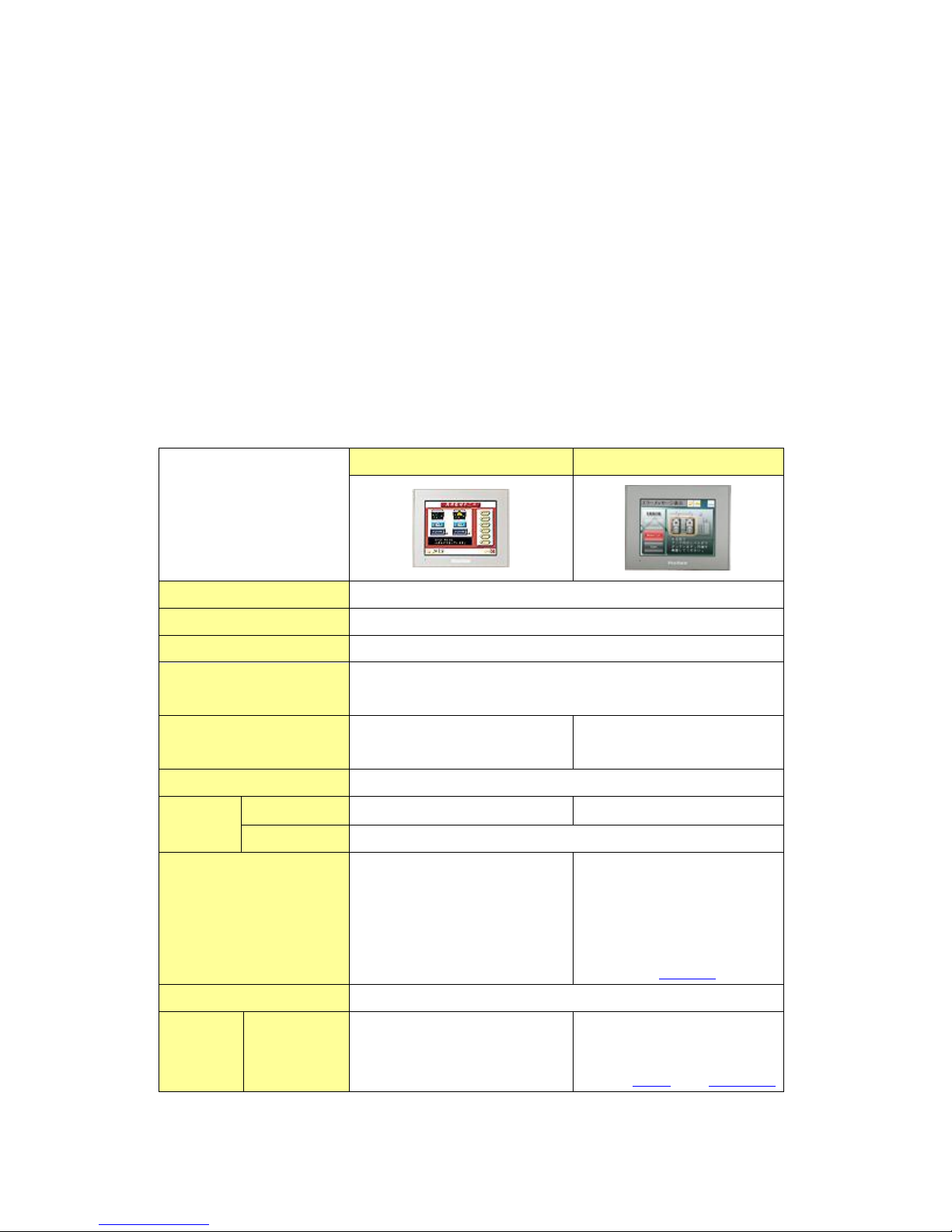

1.1 Specifications of GP-3300T and GP-4301T
GP-3300T
GP-4301T
Display Type
TFT color LCD
Display Colors, Levels
65,536 colors (without blink)/16,384 colors (with blink)
Display Resolution
QVGA (320x240 pixels)
Panel Cutout
Dimensions (mm)
156(W)×123.5(H)
External Dimensions
(mm)
167.5(W)x135(H)x59.5(D)
169.5(W)x137(H)x59.5(D)
Touch Panel Type
Resistive film (Analog)
Memory
Application
6MB
UP! 16MB
SRAM
320KB
Backup Battery
Secondary Battery
(Rechargeable Lithium
battery)
NEW!
Primary Battery
(Replaceable Lithium
battery)
->See 2.6
Rated Input Voltage
DC 24V
Serial
I/F
COM1
D-Sub 9 pin (plug)
RS-232C/422/485
D-Sub 9 pin (plug)
RS-232C
->See 2.4.1 and Chapter4

8
COM2
D-Sub 9 pin (socket)
RS-422/485
D-Sub 9 pin (plug)
RS-422/485
->See 2.4.1 and Chapter4
Ethernet I/F
10BASE-T/100BASE-TX
CF Card I/F
✔
-
->See 2.4.2
SD Card I/F
-
NEW! ✔
USB
I/F
Type A
✔
✔
->See 2.3
Type mini B
-
Expansion Unit I/F
✔
- ->See 2.5.3

9

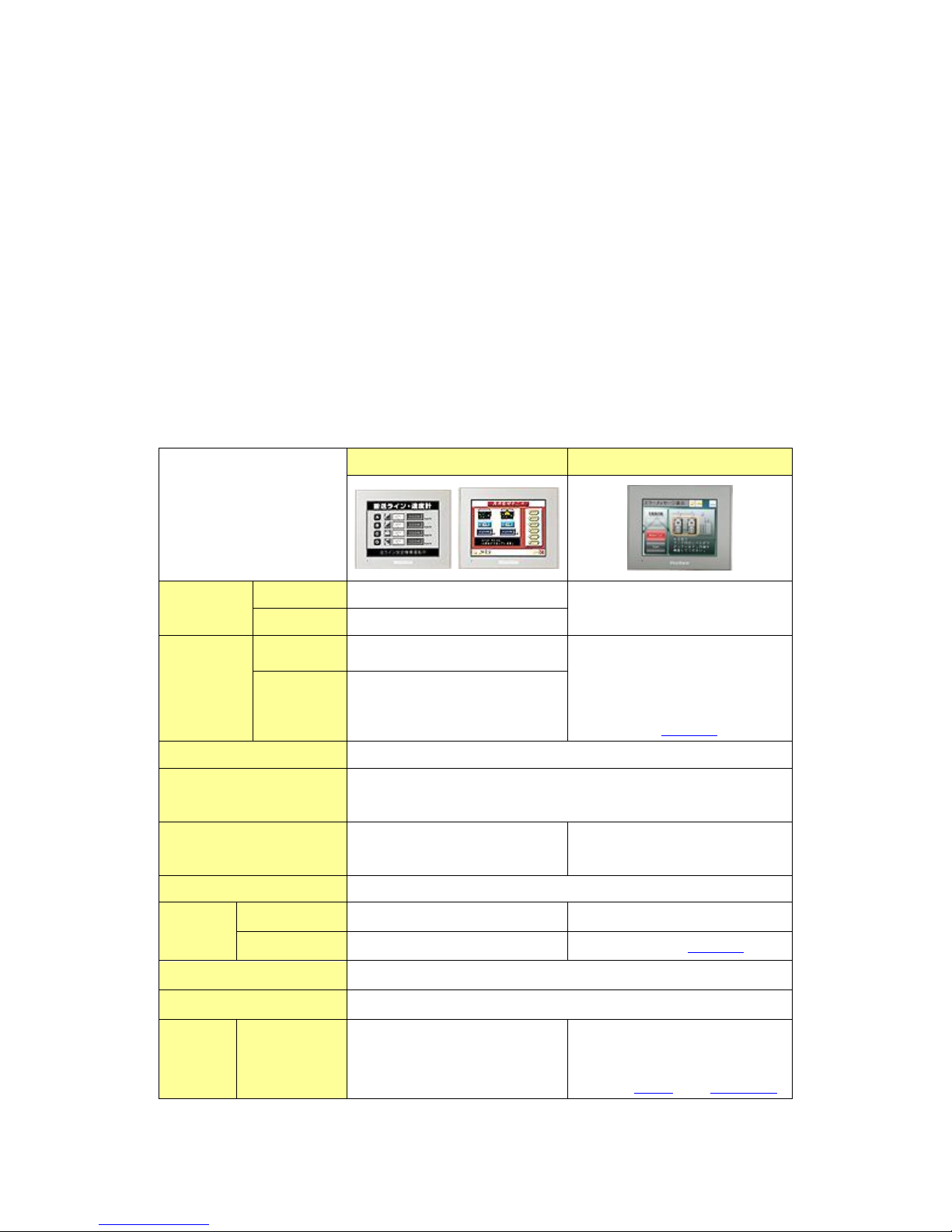

1.2 Specifications of GP-3300S/L and GP-4301TW
GP-3300S/L
GP-4301TW
Display
Type
GP-3300S
STN color LCD
UP! TFT color LCD
GP-3300L
Monochrome LCD
Display
Colors,
Levels
GP-3300S
4,096 colors
UP!
65,536 colors (without blink)/
16,384 colors (with blink)
->See 2.2
GP-3300L
Monochrome, 16 levels
Display Resolution
QVGA (320x240 pixels)
Panel Cutout
Dimensions (mm)
156(W)×123.5(H)
External Dimensions
(mm)
167.5(W)x135(H)x59.5(D)
169.5(W)x137(H)x59.5(D)
Touch Panel Type
Resistive film (Analog)
Memory
Application
6MB
UP! 8MB
SRAM
320KB
128KB ->See 2.9
Backup Battery
Secondary Battery (Rechargeable Lithium battery)
Rated Input Voltage
DC 24V
Serial
I/F
COM1
D-Sub 9 pin (plug)
RS-232C/422/485
D-Sub 9 pin (plug)
RS-232C
->See 2.4.1 and Chapter4

10
COM2
D-Sub 9 pin (socket)
RS-422/485
D-Sub 9 pin (plug)
RS-422/485
->See 2.4.1 and Chapter4
Ethernet I/F
10BASE-T/100BASE-TX
CF Card I/F
✔
- ->See 2.4.2
USB
I/F
Type A
✔
✔
->See 2.3
Type mini B
-
Expansion Unit I/F
✔
- ->See 2.5.3

11
1.3 Specifications of GP-3301S/L and GP-4301TW
GP-3301S/L
GP-4301TW
Display
Type
GP-3301S
STN color LCD
UP! TFT color LCD
GP-3301L
Monochrome LCD
Display
Colors,
Levels
GP-3301S
4,096 colors
UP!
65,536 colors (without blink)/
16,384 colors (with blink)
->See 2.2
GP-3301L
Monochrome, 16 levels
Display Resolution
QVGA (320x240 pixels)
Panel Cutout
Dimensions (mm)
156(W)x123.5(H)
External Dimensions
(mm)
167.5(W)x135(H)x59.5(D)
169.5(W)x137(H)x59.5(D)
Touch Panel Type
Resistive film (Analog)
Memory
Application
6MB
UP! 8MB
SRAM
320KB
128KB ->See 2.9
Backup Battery
Secondary Battery (Rechargeable Lithium battery)
Rated Input Voltage
DC 24V
Serial
I/F
COM1
D-Sub 9 pin (plug)
RS-232C/422/485
D-Sub 9 pin (plug)
RS-232C
->See 2.4.1 and Chapter4

12
COM2
D-Sub 9 pin (socket)
RS-422/485
D-Sub 9 pin (plug)
RS-422/485
->See 2.4.1 and Chapter4
Ethernet I/F
-
NEW!
10BASE-T/100BASE-TX
CF Card I/F
✔
- ->See 2.4.2
USB
I/F
Type A
✔
✔
->See 2.3
Type mini B
-
Expansion Unit I/F
✔
- ->See 2.5.3

13

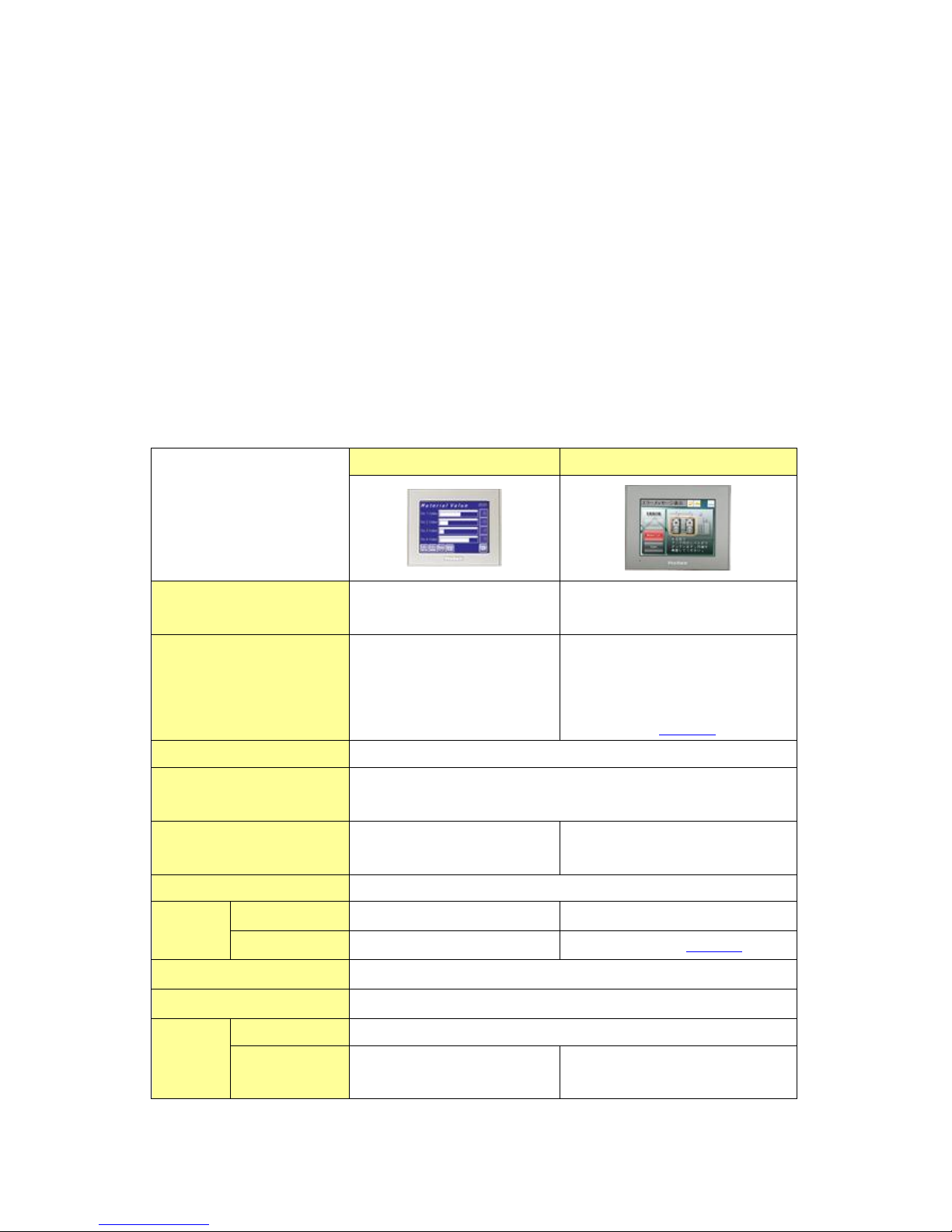

1.4 Specifications of GP-3302B and GP-4301TW
GP-3302B
GP-4301TW
Display Type
Monochrome Blue Mode
LCD
UP! TFT color LCD
Display Colors,
Levels
Monochrome, 8 levels
UP!
65,536 colors (without blink)/
16,384 colors (with blink)
->See 2.2
Display Resolution
QVGA (320x240 pixels)
Panel Cutout
Dimensions (mm)
156(W)x123.5(H)
External Dimensions
(mm)
167.5(W)x135(H)x59.5(D)
169.5(W)x137(H)x59.5(D)
Touch Panel Type
Resistive film (Analog)
Memory
Application
6MB
UP! 8MB
SRAM
320KB
128KB ->See 2.9
Backup Battery
Secondary Battery (Rechargeable Lithium battery)
Rated Input Voltage
DC 24V
Serial
I/F
COM1
D-Sub 9 pin (plug) RS-232C
COM2
D-Sub 9 pin (plug)
RS-422
D-Sub 9 pin (plug)
RS-422/485

14
Ethernet I/F
-
NEW! 10BASE-T/100BASE-TX
USB
I/F
Type A
✔
✔
->See 2.3
Type mini B
-
Expansion Unit
✔
- ->See 2.5.3
Chapter 2 Compatibility of Hardware
2.1 Locations of connector
Connector locations on GP-3300 series and GP-4301T/TW are as follows:

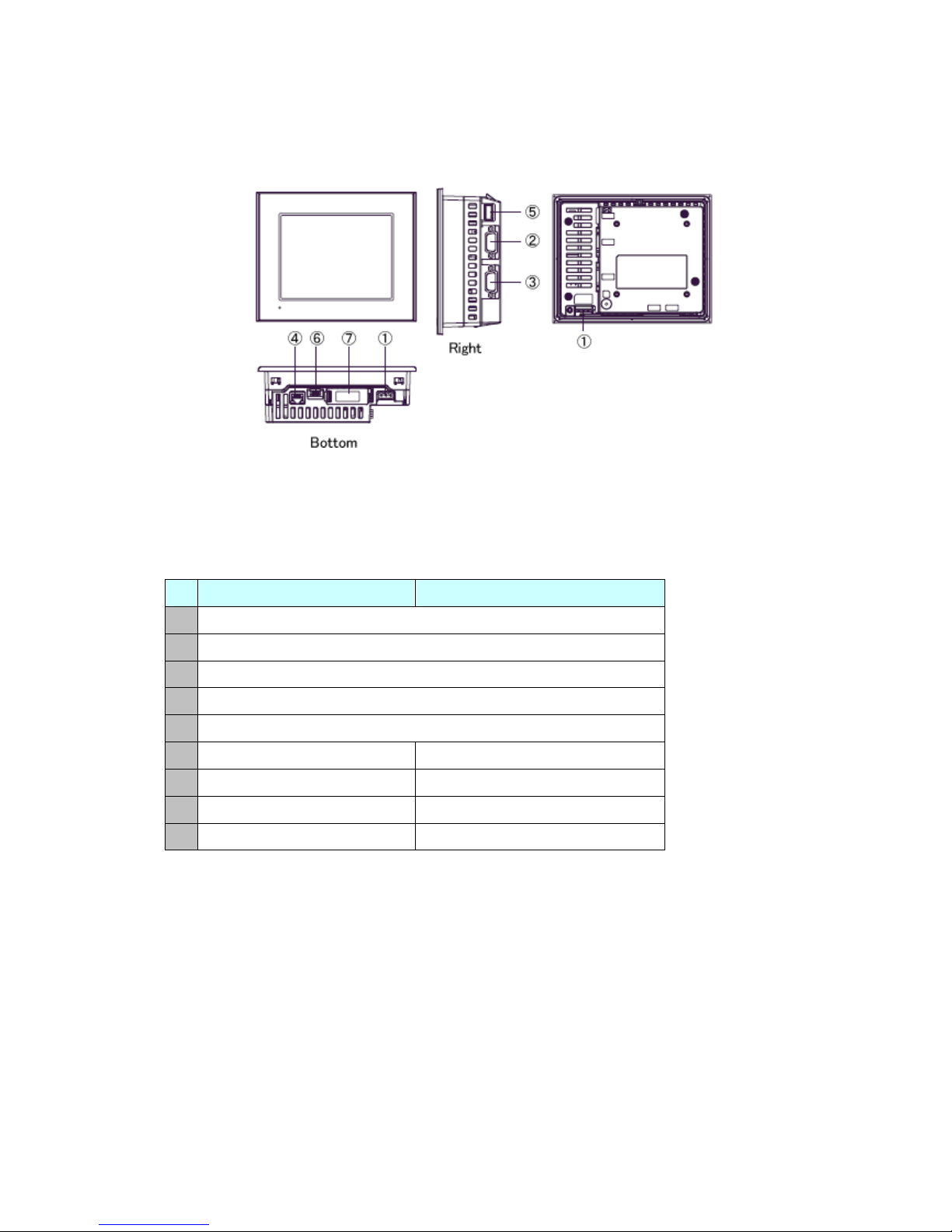

Connector locations on GP-3300T and GP-4301T
GP-3300T
GP-4301T

15
Interface names
GP-3300T
GP-4301T
1
Power Connector
2
Serial Interface (COM1)
3
Serial Interface (COM2)
4
Ethernet Interface
5
USB Interface (Type A)
6
-
USB Interface (Type mini B)
7
-
SD Card Interface
8
CF Card Interface
-
9
Expansion Unit Interface
-

16

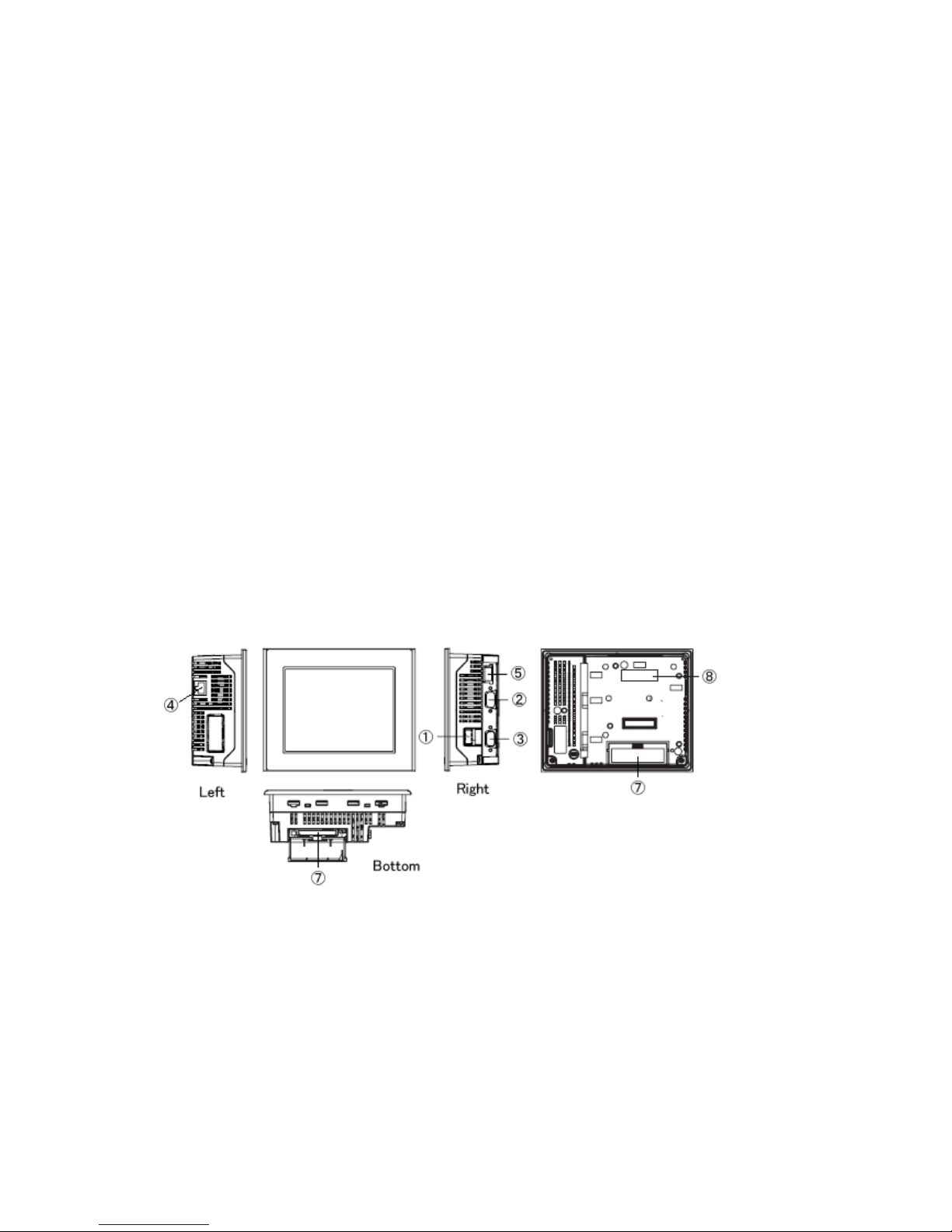

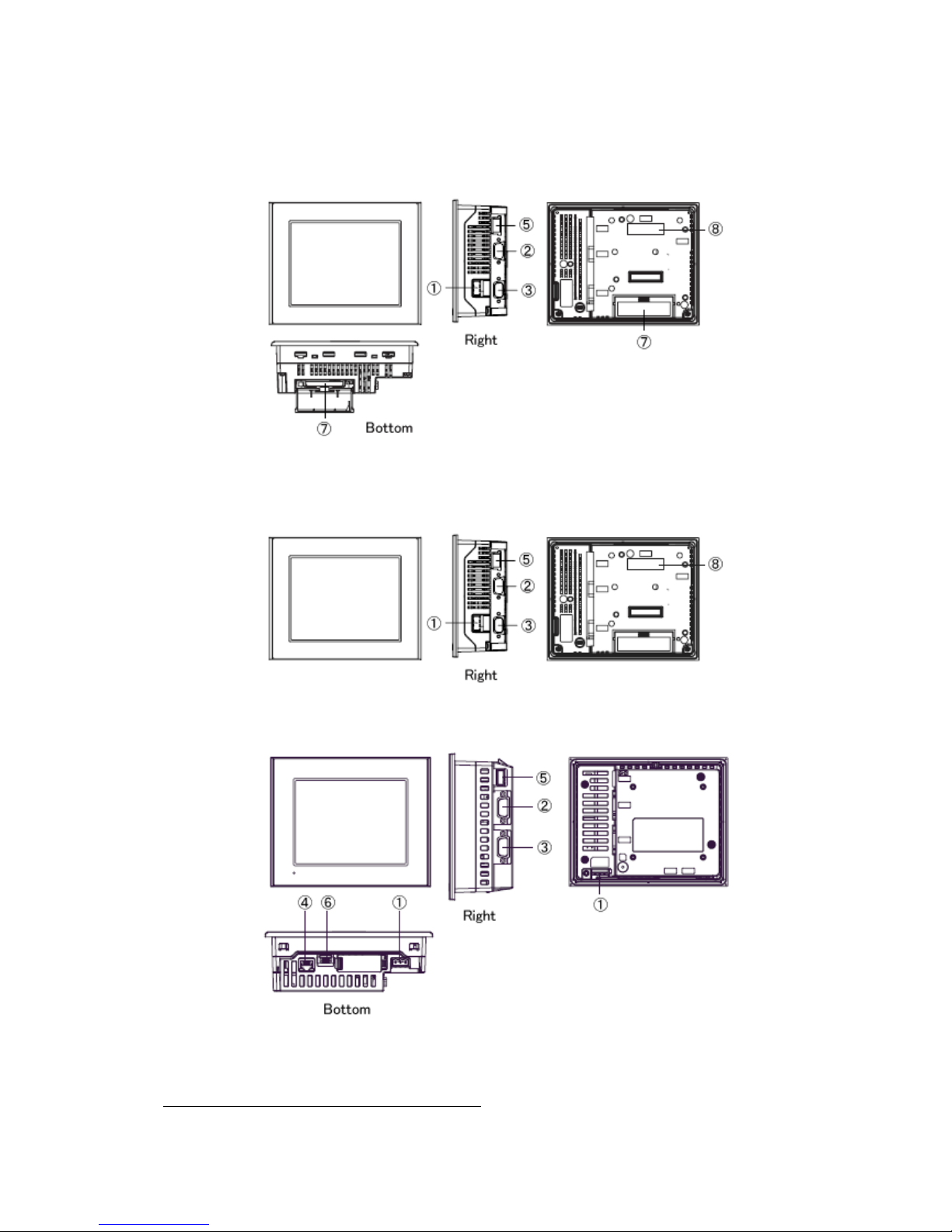

Connector locations on GP-3300S/L, GP-3301S/L, GP-3302B and GP-4301TW
GP-3300S/L
GP-3301S/L

17
GP-3302B
GP-4301TW
Interface names

18
GP-3300S/L
GP-3301S/L
GP-3302B
GP-4301TW
1
Power Connector
2
Serial Interface (COM1)
3
Serial Interface (COM2)
4
Ethernet Interface
-
Ethernet Interface
5
USB Interface (Type A)
6
-
USB Interface
(Type mini B)
7
CF Card Interface
-
8
Expansion Unit Interface
-
2.2 Display Colors (only when replacing GP-3300L/3301L/3302B)
The display color of GP-3300L/3301L/3302B is monochrome, but GP-4301TW has a
TFT color LCD. After replacement, the display color changes from monochrome to
color.
When the setting of the display unit type is changed from a monochrome model to a
color one on GP-Pro EX, the data may be displayed in colors depending on the GP-Pro
EX version or settings of the drawing/the parts on the screens.
After changing the display unit type, please confirm the display colors of the drawing
or the parts on the screens just in case.
If the display is in colors after changing the display unit type…
GP-Pro EX Ver. 3.01.200 (Service Pack1) or later supports the function which
changes drawing in colors to monochrome. To change the color to monochrome,
follow the steps below.
(1) Click [Project]->[System Settings]->[Display Unit].

19
(2) Open the [Display Settings] tab.
(3) Change [Color] setting to “16 Levels Monochrome, 3-Speed Blink”.
* [Reverse Display] setting is for displaying the screen with black/white reversed.
Check on this setting if needed.
* Please confirm the display colors of the drawing or the parts on the screens after
changing the [Color] setting.
2.3 Transfer cable
To transfer screen data to GP-4301T/TW, use a USB transfer cable or Ethernet.
The USB cables that can be used for GP-4301T/TW are as follows:
Model
Connector Type
Connector on GP
Options
CA3-USBCB-01
USB (Type A)
ZC9USCBMB1
USB (Type mini B)
Commercial Item
-
The same USB transfer cable (CA3-USBCB-01) as the one for GP-3300 series can be
used.

20
2.4 Interface
2.4.1 Serial Interface
The pin assignment and the shape of plug/socket connector of GP-3300 series are
different from those of GP-4301T/TW.
To know the details about them, see [4.2 Shapes of COM ports] and [4.3 Signals of
COM ports].
Because of it, the existing PLC connection cables cannot be used as they are.
If you use the existing connection cables, see [4.5 Cable Diagram at the time of
replacement].
* For the models except GP-3302B:
When both the COM1 port and the COM2 port have the RS-422/485 setting, only
the COM2 port can be used for RS-422/485 connection after replacement.
Using a USB/RS-422/485 Conversion Adapter (PFXZCBCBCVUSR41) allows you to
use GP4000 series’ USB interface as RS-422/485 serial interface for connection.
For more information, please refer to USB/RS-422/485 Conversion Adapter
Installation Guide.
(http://www.pro-face.com/otasuke/download/manual/cgi/manual.cgi?mode=33
&cat=3)
IMPORTANT
When using USB/RS-422/485 Conversion Adapter (PFXZCBCBCVUSR41) with a
display unit, the device/PLCs you can connect to its serial interface
(RS-422/485) are limited. To check the connection configuration, please refer to
GP-Pro EX Device/PLC Connection Manual.
(http://www.pro-face.com/otasuke/files/manual/gpproex/new/device/index.h
tm)
If it’s not possible to use USB/RS-422/485 Conversion Adapter
