Pro-Form 485 E Eng/french User manual

USER'S MANUAL
Model No. 831.285731
Serial No.
Serial
Number
Decal
Patent Pending
CAUTION
Read all precautions and
instructions in this manual
before using this equipment.
Keep this manual for future
reference.
Write the serial number in the
space above for future reference.
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE PROFORM¨485E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

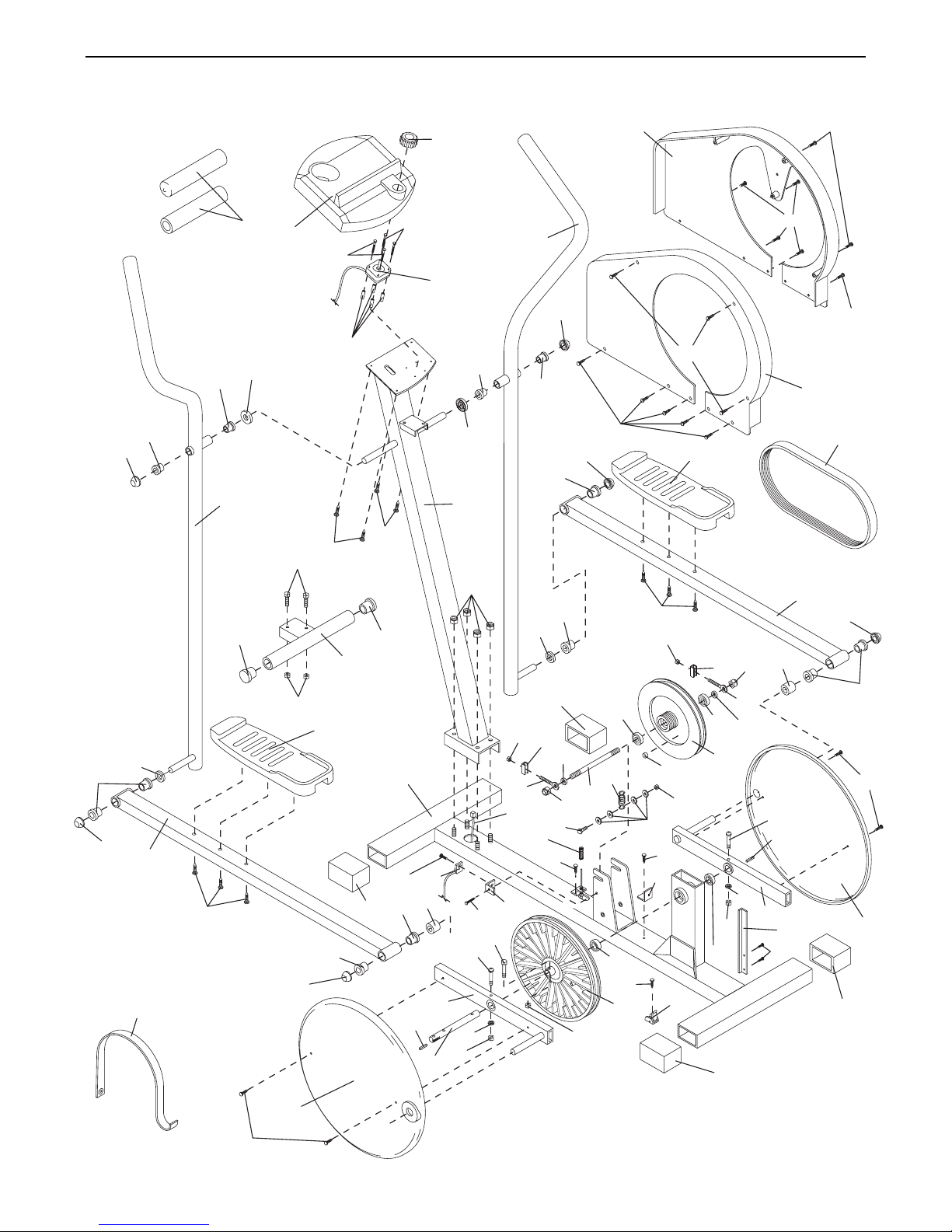

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

3
1. Read all instructions in this manual before
using the 485E.
2. Use the 485E only as described in this
manual.
3. It is the responsibility of the owner to
ensure that all users of the 485E are ade-
quately informed of all precautions.
4. Place the 485E on a level surface, with a mat
beneath it to protect the floor or carpet.
Keep the 485E indoors, away from moisture
and dust.
5. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the 485E at all times.
7. The 485E should not be used by persons
weighing more than 250 pounds.
8. Wear appropriate clothing when using the
485E. Always wear athletic shoes for foot
protection.
9. When mounting and dismounting the 485E,
always hold the handlebars or the T-handle
and step onto and off the pedal that is in the
lowest position.
10. Each time you stop exercising on the
485E, allow the pedals to come to
a complete stop before dismounting.
11. Always keep your back straight when using
the 485E. Do not arch your back.
12. If you feel pain or dizziness at any time
while exercising, stop immediately and
begin cooling down.
13. The 485E is intended for in-home use only.
Do not use the 485E in a commercial, rental,
or institutional setting.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the PROFORM¨485E.
WARNING: Before beginning this or any exercise program, consult your physician. This is espe-
cially important for persons over the age of 35 or persons with pre-existing health problems. Read
all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
The decal shown at the right
has been placed on the 485E.
If the decal is missing, or if it is
not legible, please call our toll-
free HELPLINE at 1-800-736-
6879 to order a free replace-
ment decal. Apply the decal in
the location shown.
Do not allow children on or
around machine.
Keep hands and feet away
from moving parts and contact
points.
Read owner's manual and
follow instructions.

4
BEFORE YOU BEGIN
Congratulations for selecting the PROFORM¨
485E low-impact elliptical exerciser. The 485E is an
incredibly smooth exerciser that moves your feet in a
natural elliptical path, minimizing the impact on your
knees and ankles. And the unique 485E features
adjustable resistance, upper-body and stationary han-
dlebars, and a multi-mode exercise monitor to help
you get the most from your exercise. Welcome to a
whole new world of natural, elliptical-motion exercise
from PROFORM.
For your benefit, read this manual carefully before
you use the PROFORM¨485E. If you have additional
questions, please call our toll-free HELPLINE at 1-
800-736-6879, Monday through Saturday, 7 a.m. until
7 p.m. Central Time (excluding holidays). To help us
assist you, please note the product model number
and serial number before calling. The model number
is 831.285731. The serial number can be found on a
decal attached to the 485E (see the front cover of this
manual for the location of the decal).

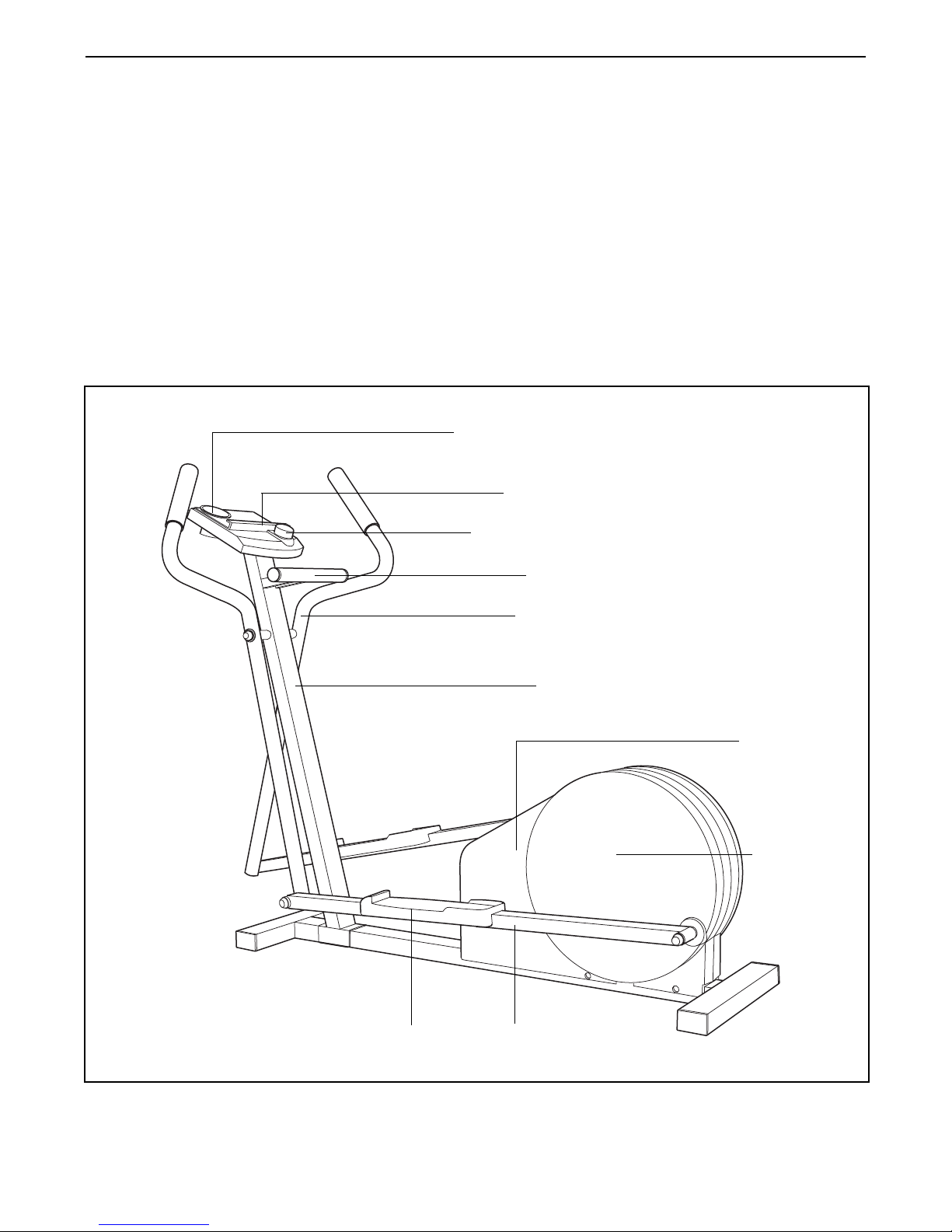

Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
Resistance Knob
FRONT
BACK
LEFT SIDE Pedal Arm
Pedal Disk
Side Shield
Pedal
Book Holder
Upright
Water Bottle Holder
(Bottle not included)
T-Handle
Handlebar

5

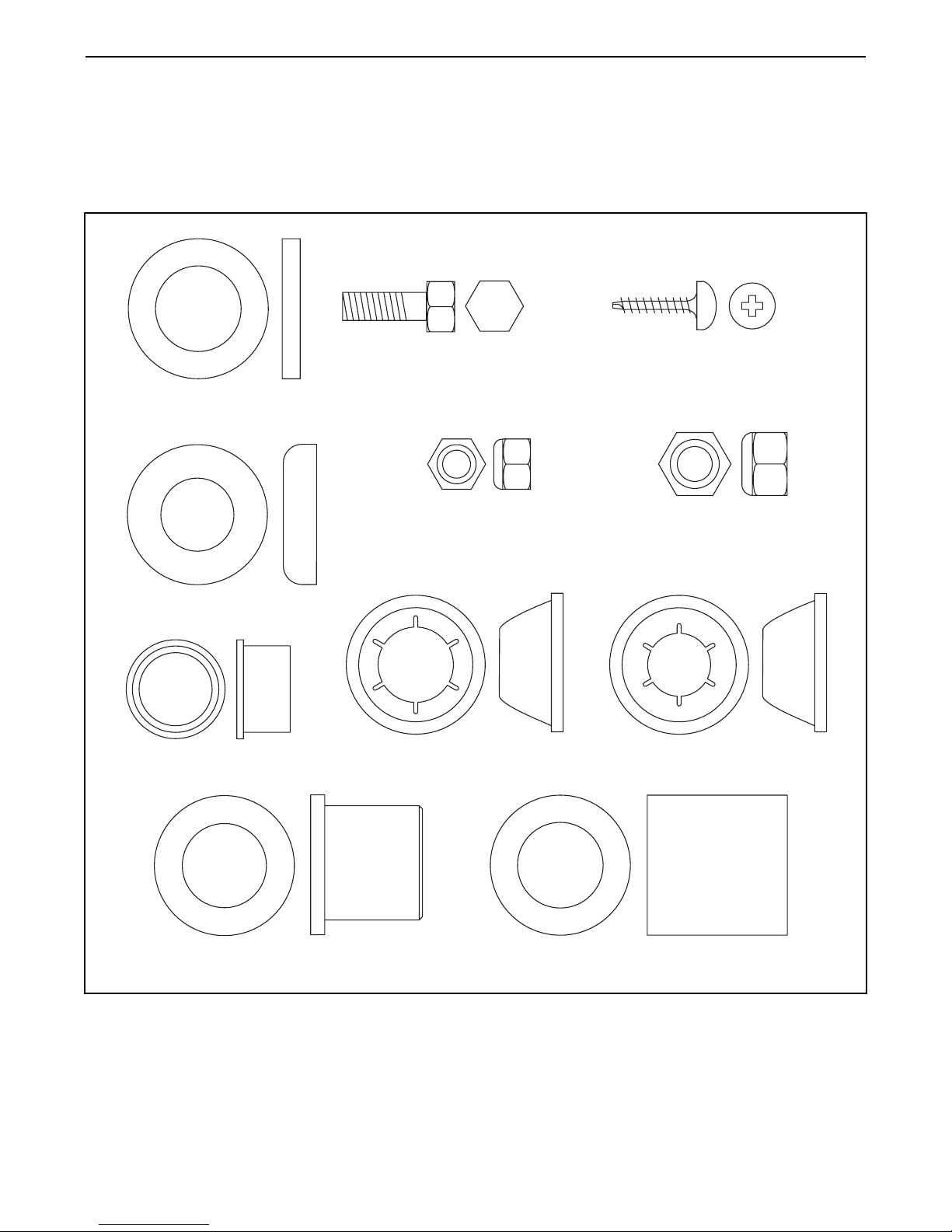

PART IDENTIFICATION CHART
Use the chart below to identify the small parts used in
assembly. The number in parenthesis below each part
is the key number of the part, from the PART LIST on
page 14. The number after the dash indicates the
quantity needed for assembly. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it has
been pre-attached.
3/8" Nylon Locknut (29)Ñ4
Pedal Arm Spacer (41)Ñ3
#8 x 3/4" Round Head Screw (16)Ñ10
Weld Spacer (49)Ñ2
5/8Ó Axle Cap (57)Ñ23/4Ó Axle Cap (43)Ñ4
Pivot Bushing (56)Ñ4
1/4" Black Nylon Locknut (55)Ñ2
1/4Ó x 3/4Ó Screw (54)Ñ2
Pedal Arm Bushing (42)Ñ8
Handlebar Spacer (39)Ñ2

6

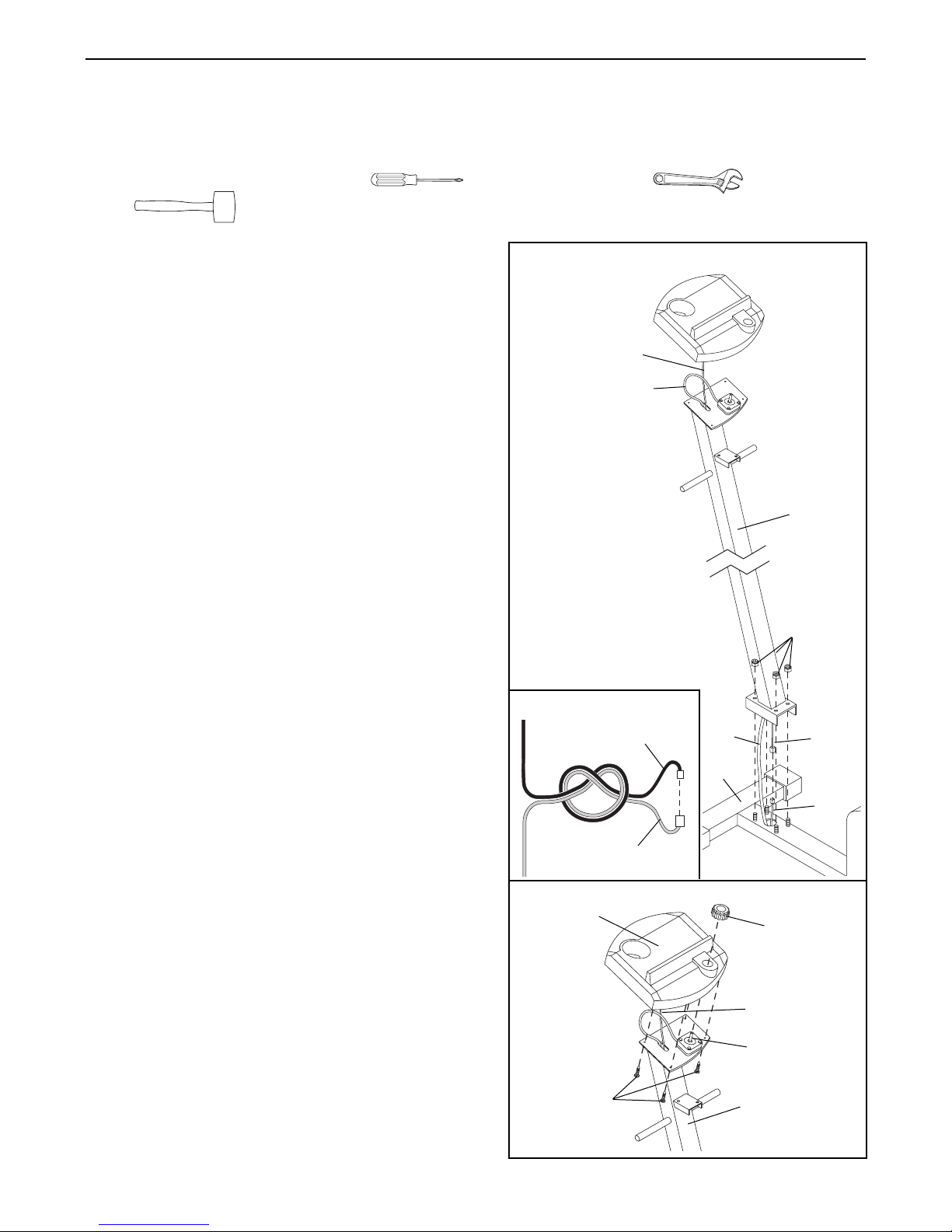

1. Feed the console wire down through the Upright (3)
as shown. While another person holds the Upright
near the Frame (1), tie the console wire and the
Sensor Wire (25) together as shown in drawing 1a.
Next, connect the console wire to the Sensor Wire.
Gently pull the Resistance Cable (26) and the
console wire out of the top of the Upright (3) until
there is no slack between the Upright and the
Frame (1).
Slide the Upright (3) onto the welded bolts on the
Frame (1). Be careful to avoid pinching the
Resistance Cable (26) and the Sensor Wire (25).
Tighten a 3/8Ó Nylon Locknut (29) onto each welded
bolt.
2. Feed the console wire back down into the Upright (3).
Attach the Console (6) to the Upright with four #8 x
3/4Ó Round Head Screws (16). Be careful to avoid
pinching the console wire.
Press the Resistance Knob (50) onto the Resistance
Control (26).
ASSEMBLY
Assembly requires two people. Place all parts of the PROFORM¨485E in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver , two adjustable wrenches , and a rubber
mallet .
2
1
Console
Wire
Console
Wire
Console
Wire
3
1
25
26
29
3
50
26
6
16
26
Console
Wire
25
1a

7
3. Attach a Pedal (31) to one of the Pedal Arms (12)
with three #8 x 3/4Ó Round Head Screws (16) as
shown.
Repeat this step to attach a Pedal to the other Pedal
Arm (not shown).
4. Make sure that there are Pedal Arm Bushings (42) in
the ends of both Pedal Arms (12).
Identify the Left Handlebar (8) (there is a decal on the
Left Handlebar for identification). Slide a Handlebar
Spacer (39) and one of the Pedal Arms (12) onto the
Left Handlebar as shown (these parts fit tightly; it may
be helpful to use the rubber mallet). Refer to the
PART IDENTIFICATION CHART on page 5 and iden-
tify the 3/4Ó Axle Caps (43). Tap a 3/4Ó Axle Cap onto
the Left Handlebar.
Repeat this step to attach the other Pedal Arm (12) to
the Right Handlebar (9).
5. Slide a Pedal Arm Spacer (41) and the left Pedal Arm
(12) onto the axle on the left Pulley Arm (34) (these
parts fit tightly; it may be helpful to use the rubber
mallet). Be careful not to confuse the left Pedal
Arm with the right Pedal Arm (not shown); look at
the position of the Left Handlebar (8) to identify
the left Pedal Arm.
Tap a 3/4Ó Axle Cap (43) onto the axle on the left
Pulley Arm (34).
Repeat this step to attach the right Pedal Arm (not
shown).
5
34
41
12
43
8
3
31
12
16
8
9
42
43
12
12
4
39

8
8. The Console (6) requires two ÒAAÓ batteries (not
included). Alkaline batteries are recommended.
To install batteries, first locate the battery clip under
the Console (6). Insert two batteries into the battery
clip as shown. Make sure that the batteries are
turned so the negative ends of the batteries
(marked ÒÐÓ) are touching the springs in the
battery clip.
9. Make sure that all parts of the 485E are properly
tightened. Place a mat under the 485E to protect the
floor or carpet from damage.
6
8
7
55
54
10
3
Batteries
Battery
Clip
6
8
56
56
57
49
3
6. Refer to drawing 6a. Push the left Pedal Arm (12)
until the axle on the left Pulley Arm (34) is at the back
of the Side Shields (4, 5) as shown.
Slide a Weld Spacer (49) and a Pivot Bushing (56)
onto the left axle on the Upright (3). Make sure that
the open side of the Weld Spacer is facing the Upright
and that the Pivot Bushing is turned as shown.
Slide the Left Handlebar (8) onto the left axle on the
Upright (3). Make sure that the Left Handlebar slides
onto the Pivot Bushing (56) on the axle. Slide another
Pivot Bushing (56) onto the axle and start it into the
Left Handlebar. Using a rubber mallet and the extra
Pedal Arm Spacer (41, not shown), tap the Pivot
Bushing into the Left Handlebar. Remove the Pedal
Arm Spacer.
Tap a 5/8Ó Axle Cap (57) onto the axle.
Repeat this step to attach the Right Handlebar (not
shown).
7. Attach the T-Handle (10) to the Upright (3) with two
1/4Ó x 3/4Ó Screws (54) and two 1/4Ó Black Nylon
Locknuts (55).
6a
12
4, 5
34

9
HOW TO USE THE PROFORM¨485E
HOW TO EXERCISE ON THE 485E
To mount the 485E, firmly hold the handlebars or the
T-handle and carefully step onto the pedal that is in
the lowest position. Next, step onto the other pedal.
Push the pedals until they begin to move with a con-
tinuous motion. Note: The pedal disks can turn in
either direction; it is recommended that you turn
the pedal disks in the direction shown below;
however, to give variety to your exercise, you may
choose to turn the pedal disks in the opposite
direction.
To dismount the 485E, allow the pedals to come to a
complete stop. CAUTION: The 485E does not have
a freewheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the highest pedal first. Then, step off the low-
est pedal.
HOW TO ADJUST THE RESISTANCE OF THE
PEDALS
As you exercise,
you can adjust
the resistance of
the pedals with
the resistance
knob on the
console. To
increase the
resistance,
turn the knob
clockwise; to
decrease the
resistance, turn the knob counterclockwise.
Pedal
Pedal Disk
Resistance Knob

10

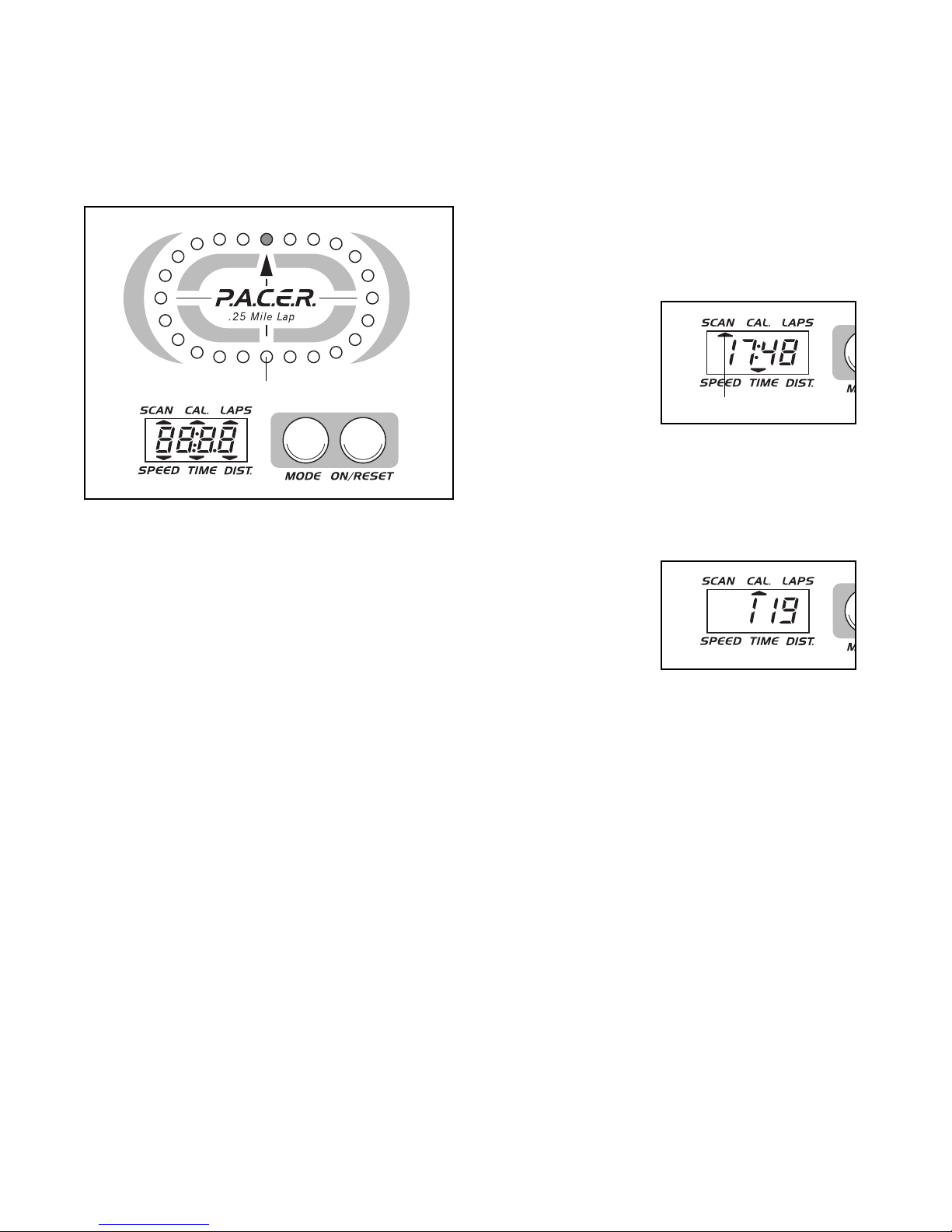

DESCRIPTION OF THE CONSOLE
The console is designed to help you get the most
from your workouts. As you exercise, you can watch
your progress around the LED track, while the
display provides continuous exercise feedback.
The six modes of the display are described below.
SpeedÑThis mode displays your current exercise
speed, in miles per hour.
TimeÑThis mode displays the length of time you
have exercised. Note: If you stop exercising, the time
mode will pause until you resume.
DistanceÑThis mode displays the total distance you
have completed, in miles.
LapsÑThis mode displays the number of 1/4-mile
laps you have completed around the LED track.
CalorieÑThis mode displays the approximate number
of Calories you have burned.
ScanÑThis mode displays the speed, time, distance,
laps, and calorie modes, for 5 seconds each, in a
repeating cycle.
BATTERY INSTALLATION
Before the console can be operated, two ÒAAÓ batter-
ies must be installed. If you have not installed batter-
ies, see assembly step 8 on page 8.
HOW TO OPERATE THE CONSOLE
If there is a thin sheet of clear plastic on the face of
the console, remove it.
1. To turn on the power, press the on/reset button or
simply begin exercising. When the power is turned
on, one LED indicator will light in the LED track,
and the entire display will appear for two seconds.
The console will then be ready for operation.
2. Select one of the five modes:
Scan modeÑ
When the power
is turned on, the
scan mode will
automatically be
selected. One
mode indicator
will show that the
scan mode is selected, and a flashing mode indica-
tor will show which mode is currently displayed.
Note: If a different mode is selected, you can
select the scan mode again by repeatedly pressing
the mode button.
Speed, time,
distance, laps,
or calorie modeÑ
To select one of
these modes for
continuous
display, press the
mode button repeatedly. The mode indicators will
show which mode is selected. (Make sure that the
scan mode is not selected.)
3. The LED track represents a distance of 1/4 mile. As
you exercise, the indicators around the track will
light one at a time until you have completed 1/4
mile. A new lap will then begin.
4. To reset the display, press the on/reset button.
5. To turn off the power, simply wait for about four
minutes. Note: The console has an Òauto-offÓ
feature. If the pedals are not moved and the
console buttons are not pressed for four
minutes, the power will turn off automatically
in order to conserve the batteries.
Mode Indicators
LED Track

11
MAINTENANCE
Inspect and tighten all parts of the PROFORM¨485E
regularly. Replace any worn parts immediately.
The 485E can be wiped clean with a soft cloth and
mild detergent. Do not use abrasives or solvents.
To prevent damage to the console, keep liquids away
from the console. Use only a sealable water bottle in
the console.
CONSOLE TROUBLE-SHOOTING
If the console does not function properly, the batteries
should be replaced. To replace the batteries, refer to
assembly step 8 on page 8.
STORAGE
When storing the 485E, remove the batteries from the
console. Keep the 485E in a clean, dry location, away
from moisture and dust.

12
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your

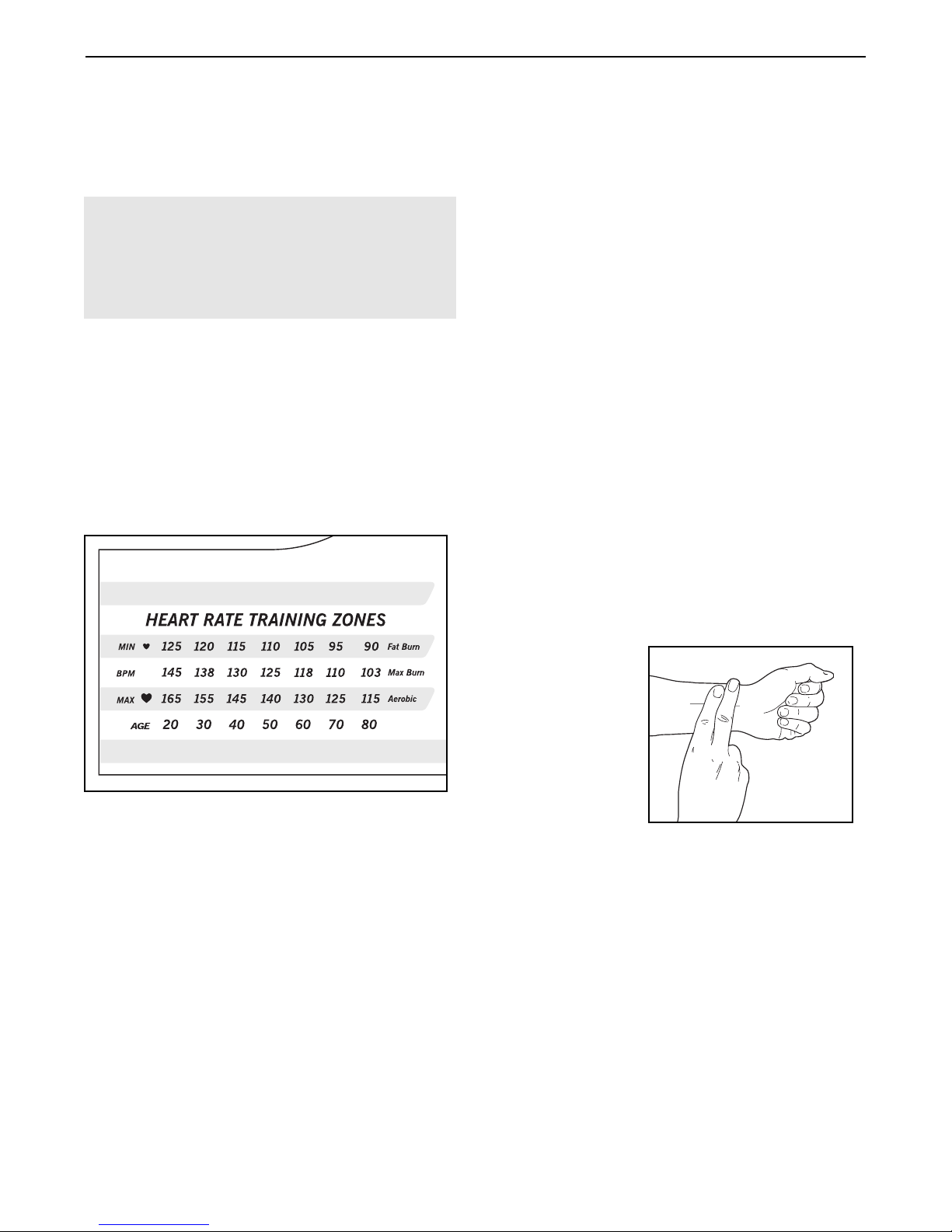

heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers
above your age. The three numbers are your Òtraining
zone.Ó The smallest number is the recommended
heart rate for fat burning; the middle number is the
heart rate for maximum fat burning; the largest
number is the heart rate for aerobic exercise.
Burning Fat
To burn fat effectively, you must exercise at a rela-
tively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the smallest
number in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle num-
ber in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be Òaerobic.Ó Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the largest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart rate, first exercise for at least
four minutes. Then, stop exercising and place two
fingers on your
wrist as shown.
Take a six-second
heartbeat count,
and multiply the
result by 10 to find
your heart rate.
For example, if
your six-second
heartbeat count is
14, your heart rate
is 140 beats per
minute. (A six-second count is used because your
heart rate will drop rapidly when you stop exercising.)
WORKOUT GUIDELINES
Each workout should include the following three
important parts:
A warm-up, consisting of 5 to 10 minutes of stretch-
ing and light exercise. (See page 13.) A proper warm-
up increases your body temperature, heart rate, and
circulation in preparation for exercise.
WARNING: Before beginning this or any exer-
cise program, consult your physician. This is
especially important for persons over the age
of 35 or persons with pre-existing health
problems.

13
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the
right. Move slowly as you stretchÑnever bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees, and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight and
your back foot flat on the floor. Bend your front leg, lean for-
ward and move your hips toward the wall. Hold for 15 counts,
then relax. Repeat 3 times for each leg. To cause further
stretching of the achilles tendons, bend your back leg as well.
Stretches: Calves, achilles tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
1
2
3
4
Training zone exercise, consisting of 20 to 30
minutes of exercising with your heart rate in your
training zone. (During the first few weeks of your
exercise program, do not keep your heart rate in
your training zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching.
This will increase the flexibility of your muscles
and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may plan up to five workouts each week, if desired.
Caution: Be sure to progress at your own pace
and avoid overdoing it. Incorrect or excessive
training may result in injury to your health.
Remember, the key to success is make exercise a
regular and enjoyable part of your everyday life.

14
PART LISTÑModel No. 831.285731 R1197A
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
Key Part
No. No. Qty. Description
1 141723 1 Frame
2 143334 1 Reed Switch Bracket
3 142799 1 Upright
4 143335 1 Right Side Shield
5 143336 1 Left Side Shield
6 141103 1 Console
7 142058 2 Foam Handlebar Grip
8 143337 1 Left Handlebar
9 143338 1 Right Handlebar
10 143130 1 T-Handle
11 013163 3 #8 x 1/2Ó Screw
12 143339 2 Pedal Arm
13 013316 5 #10 x 3/4Ó Screw
14 143340 1 Resistance Strap
15 143341 1 Strap Buckle
16 013322 10 #8 x 3/4Ó Round Head Screw
17 012090 5 1/4Ó Nylon Locknut
18 100128 2 Adjustment Bracket
19 104536 2 1/4Ó Eyebolt
20 119425 2 3/8Ó Nylon Jam Nut
21 143342 1 Flywheel Axle
22 143344 2 Flywheel Bearing
23 143345 1 Flywheel
24 107094 1 Magnet
25 143346 1 Sensor Wire/Reed Switch
26 143363 1 Resistance Control/Cable
27 109204 4 Stabilizer Endcap
28 143361 1 Tension Spring
29 012108 4 3/8Ó Nylon Locknut
30 143348 1 Belt
31 141779 2 Pedal
32 143350 1 Pulley
33 113362 2 1/4Ó x 1 1/2Ó Bolt
34 143351 2 Pulley Arm
35 142889 2 Short Pulley Axle Pin
Key Part
No. No. Qty. Description
36 143352 2 Pulley Bearing
37 143353 2 Pedal Disk
38 013300 16 #8 x 3/4Ó Tek Screw
39 143354 2 Handlebar Spacer
40 143355 1 Side Shield Bracket
41 143356 2* Pedal Arm Spacer
42 143357 8 Pedal Arm Bushing
43 103735 4 3/4Ó Axle Cap
44 013540 1 #8 x 3/4Ó Flat Head Screw
45 143358 1 Pulley Axle
46 125328 4 #8 Flat Washer
47 012009 1 Clamp Nut
48 013009 1 Clamp Bolt
49 108668 2 Weld Spacer
50 119811 1 Resistance Control Knob
51 142587 4 #8 x 1 1/4Ó Screw
52 143359 1 Return Spring
53 014132 2 3/8Ó Washer
54 128643 2 1/4Ó x 3/4Ó Screw
55 012139 2 1/4Ó Black Nylon Locknut
56 143362 4 Pivot Bushing
57 100151 2 5/8Ó Axle Cap
58 126047 4 TCD Spacer
59 014062 2 1/4Ó Split Washer
60 141806 1 Buckle Bracket
61 013427 1 1/4Ó x 1 1/2Ó Bolt
62 101049 1 #12 x 1/2Ó Screw
63 116980 2 T-Handle Endcap
# 143155 1 UserÕs Manual
# 142965 2 Side Shield Decal
# 139801 1 Warning Decal
# 143147 1 Hardware Kit
*One extra Pedal Arm Spacer is included.

14
17 18
19
2021
15
44
22
23
24
25
11
17
18
19
20
22
1
3
4
5
7
8
9
12
28
30
32
33
34
33
34
35
35
36
36
37
37
38
38
41
42
43
41
42
43
42
16
46
29
31
38
25
45
53
53
13
62 2
42
43
16
31
42
43 12
47
48
52
50
51
51
26
16
16
56
57
57 56
27
27
27
27
56 56
6
40
13
38
38
38
59
59 17
17
17
60
11
61
11
58
39
39 42
49
49
54
55
6363
10
EXPLODED DRAWINGÑModel No. 831.285731 R1197A
15

Part No. 143155 G04151-C R1197A Printed in USA © 1997 Sears, Roebuck and Co.
The model number and serial number of your PROFORM¨485E
are listed on a decal attached to the frame. See the front cover of
this manual to find the location of the decal.
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center.
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.
When requesting help or service, or ordering parts, please be pre-
pared to provide the following information:
¥ The NAME OF THE PRODUCT (PROFORM¨485E )
¥ The MODEL NUMBER OF THE PRODUCT (831.285731)
¥ The PART NUMBER OF THE PART (see page 14)
¥ The DESCRIPTION OF THE PART (see page 14).
Model No. 831.285731
QUESTIONS?
If you find that:
¥ you need help assembling or
operating the PROFORM¨485E
¥ a part is missing
¥ or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
MondayÐSaturday, 7 amÐ7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need to
be replaced, call the following
toll-free number
1-800-FON-PART
(1-800-366-7278)
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS ELLIPTICAL EXERCISER, contact the nearest SEARS Service Center throughout the United
States and SEARS will repair or replace the ELLIPTICAL EXERCISER, free of charge.
This warranty does not apply when the ELLIPTICAL EXERCISER is used commercially or for rental
purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
