Pro-Form 600 S Treadmill User manual

CAUT ON
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
Serial
Number
Decal
Model No. PFEL5105.3
Serial No.
QUEST ONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. f you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERV CE DEPARTMENT
D RECTLY.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
Sat. 8 a.m.–5 p.m. MST
ON THE WEB:
www.proformservice.com
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
V
USERʼS MANUAL

TABLE OF CONTENTS
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
OWTOUSET EELLIPTICALEXERCISER ..................................................11
MAINTENANCEANDTROUBLES OOTING ...................................................24
CONDITIONINGGUIDELINES...............................................................25
PARTLIST ..............................................................................28
EXPLODEDDRAWING ....................................................................30
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
2
PROFORM is a registered trademark of ICON IP, Inc.

3
MPORTANT PRECAUT ONS
WARN NG: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser. Use the ellipti-
cal exercise only as described in this
manual.
2. t is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
4. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dis-
mount, and use it.
5. nspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds
(113 kg).
8. Wear appropriate exercise clothes while
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exer-
cising.
9. Hold the handgrip pulse sensor or the han-
dlebars when mounting, dismounting, or
using the elliptical exerciser.
10. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
11. Keep your back straight when using the ellip-
tical exerciser; do not arch your back.
12. f you feel pain or dizziness while exercising,
stop immediately and cool down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
14. The decal shown below has been placed on
the elliptical exerciser. f the decal is miss-
ing or illegible, call the telephone number on
the front cover of this manual and order a
free replacement decal. Apply the decal in
the location shown.
WARN NG: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. CON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

4
BEFORE YOU BEG N
Thank you for selecting the revolutionary PROFORM®
850 elliptical exerciser. The 850 elliptical exerciser
provides a wide array of features designed to make
your workouts at home more effective and enjoy-
able—and when youʼre not exercising, the unique 850
elliptical exerciser can be folded out of the way.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number is PFEL5105.3. The
serial number can be found on a decal attached to the
elliptical exerciser (see the front cover of this manual
for the location of the decal).
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
andgrip Pulse Sensor andlebar
Pedal Disk
Wheel
Pedal
Console
Water Bottle older*
Leveling Foot
andle
Storage Latch
Storage Magnet
Fan
Pedal Arm Latch
*No water bottle is included

5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. n addition to the
included hex keys, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 28 and 29. The second number
is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. f a part is not
in the parts bag, check to see if it has been pre-assembled.
M10 x 127mm Button Screw (83)–2
M4 x 14mm
Screw (104)–8
M10 Nylon
Locknut (81)–2
M8 Jamnut
(79)–5
M8 Washer
(88)–6
Wave Washer
(111)–2
M8 x 23mm Button
Screw (84)–4
M8 Split
Washer (90)–3
M8 x 41mm Button
Bolt (78)–4
M4 x 16mm
Round Head
Screw (101)–8
M4 x 32mm
Round Head
Screw (105)–6
M4 x 45mm
Screw (108)–2
M8 x 23mm Shoulder
Screw (115)–4
M8 x 69mm Button
Bolt (80)–1
M10 x 80mm Carriage
Bolt (82)–2
Hub Screw (87)–8
Star Washer
(112)–8

6

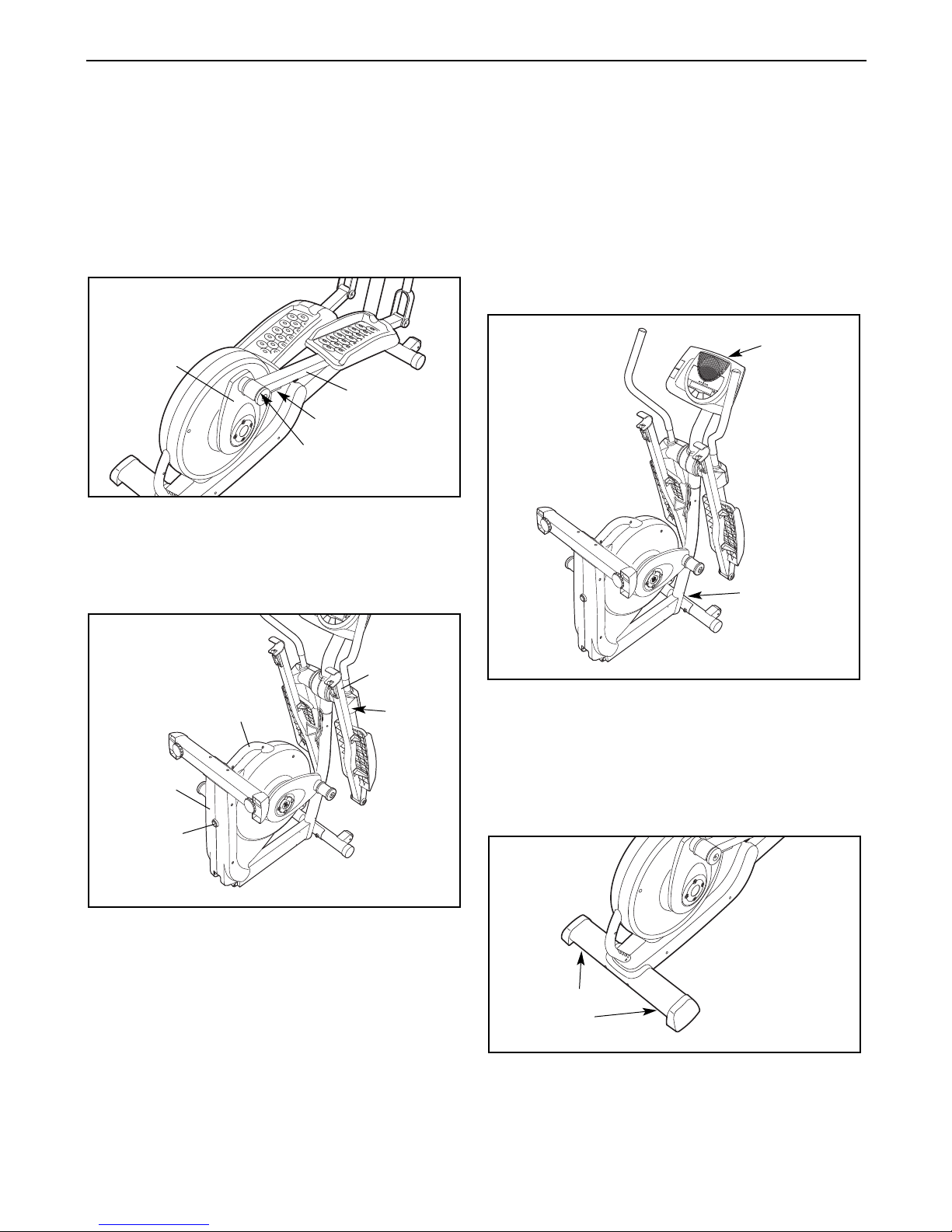

1.
While another person lifts the Base (1), attach the
Front Stabilizer (6) to the Base with two M10 x 80mm
Carriage Bolts (82) and two M10 Nylon Locknuts (81).
2. Remove the indicated screw and the shipping bracket
from the Base (1). Discard the screw and the shipping
bracket.
Next, turn the Base Foot (26) into the Base (1) as far
as possible.
3. Attach the Rear Stabilizer (7) to the Frame (2) with two
M10 x 127mm Button Screws (83).
Next, hold the handle on the Frame (2), press the
Latch Button (68), and lower the Frame until the Rear
Stabilizer (7) is resting on the floor.
6
81
81
82
1
1
Shipping
Bracket
26
Screw
383
7
andle
2
68
2
1
To make assembly easier, read the information
on page 5 before you begin assembling the
elliptical exerciser.

7
5. While another person holds the Upright (3), connect
the Upper Wire arness (48) to the Lower Wire
arness (49). Gently pull the upper end of the
Upper Wire Harness to remove any slack, and
insert the Upright into the Base (1). Attach the Upright
with an M8 x 69mm Button Bolt (80), an M8 Split
Washer (90), and an M8 Jamnut (79). Do not tighten
the Button Bolt yet; make sure that the Jamnut is
in the hexagonal hole in the Base.
Next, finger tighten two M8 x 23mm Button Screws
(84) with two M8 Split Washers (90) into the Base (1).
Do not tighten the Button Screws yet.
Attach the Water Bottle older (22) to the Base (1)
with two M4 x 14mm Screws (104).
6
17
17
3
101
101
3
80
48
49
22
84
84
90
90
90 104
79
1
5
6. Orient one of the Upright Covers (17) as shown, and hold
it against the Upright (3). Attach the Upright Cover with
two M4 x 16mm Round ead Screws (101). Attach the
other Upright Cover in the same way.

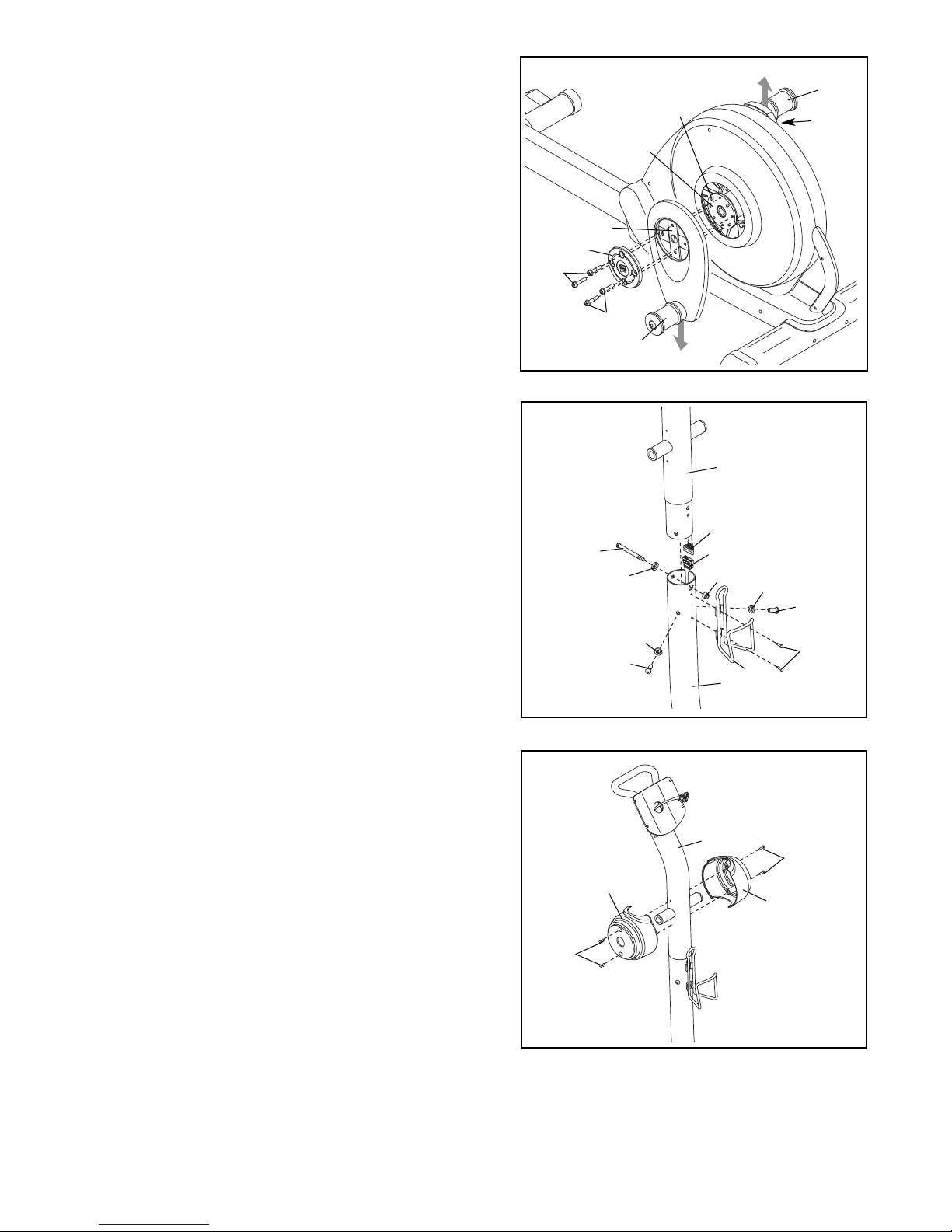

4. old a ub Cover (75) and a Crank Arm (36) against
the left Crank ub (38). Align the holes in the ub
Cover and the Crank Arm with the unused holes in the
left Crank ub. Next, insert four ub Screws (87) into
the ub Cover and the Crank Arm, and finger tighten
the ub Screws into the left Crank ub. Tighten one of
the ub Screws, and then tighten the ub Screw
across from the first ub Screw. Then, tighten the
remaining two ub Screws.
Repeat this step on the right side of the elliptical exer-
ciser; make sure that the Crank Arms (36) are ori-
ented so the Crank Bushing Sleeves (43) are in the
positions shown. Note: There are no Pulley Screws
(98) on the right side.
4
36
38
98
75
87
87
36
43
43

8
9. Identify the Left andlebar (8) and the Left Upper Body
Arm (11), which are marked with stickers.
Orient the Left andlebar (8) and the Left Upper Body
Arm (11) as shown. Insert the Left andlebar into the
Left Upper Body Arm. Attach the Left andlebar with two
M8 x 41mm Button Bolts (78) and two M8 Jamnuts (79).
Make sure that the Jamnuts are in the hexagonal
holes in the Left Upper Body Arm.
Attach the Right andlebar (9) to the Right Upper Body
Arm (12) in the same way.
9
11
8
9
12
78
78
79
79
7. The Console (5) requires four 1.5V “D” batteries (not
included); alkaline batteries are recommended.
MPORTANT: f the ellipical exerciser has been
exposed to cold temperatures, allow it to warm to
room temperature before inserting batteries into the
Console. f you do not do this, the console displays
or other electronic components may become dam-
aged. Press the two tabs on the battery cover, and
remove the battery cover. Next, insert four batteries into
the Console. Make sure that the batteries are orient-
ed as shown by the diagrams inside of the battery
compartments. Then, reattach the battery cover to the
Console.
Battery
Cover
Batteries
Tabs
7
5
8. While another person holds the Console (5) near the
Upright (3), connect the wire harness on the Console to
the Upper Wire arness (48). Insert the excess wire
harness into the Upright. Next, attach the Console to
the Upright with four M4 x 16mm Round ead Screws
(101). Be careful to avoid pinching the wire har-
ness.
48
5
3
101
Wire
arness
8

9
12. Identify the Left Pedal (13) and the Left Pedal Leg
(14), which are marked with stickers.
Attach the Left Pedal (13) to the Left Pedal Leg (14)
with an M4 x 45mm Screw (108), three M4 x 14mm
Screws (104), and four Star Washers (112).
Attach the Right Pedal (not shown) to the Right Pedal
Leg (not shown) in the same way.
13
14
104
104
112 112
112 112
108
12
11. old the Left Front andlebar Cover (18) and the Left
Rear andlebar Cover (19) around the Left Upper Body
Arm (11). Attach the andlebar Covers with three M4 x
32mm Round ead Screws (105).
Attach the Right Front andlebar Cover (20) and the
Right Rear andlebar Cover (21) around the Right
Upper Body Arm (12) in the same way.
10. Insert the Pivot Axle (74) into the Upright (3) and center
it. Apply a generous amount of the included grease to
the Pivot Axle.
Orient the Left Upper Body Arm (11) as shown, and
slide it onto the left end of the Pivot Axle (74). Slide the
Right Upper Body Arm (12) onto the right end of the
Pivot Axle.
Tighten an M8 x 23mm Button Screw (84) with an M8
Washer (88) and a Wave Washer (111) into each end of
the Pivot Axle (74). Make sure that the Wave Washers
are on the ends of the Pivot Axle.
88
84
111
88
74
3
84 111
12
11
20
21
105
12
19
Grease
11
10
18
11

10
13. Apply a thin film of grease to one of the Pedal Leg Axles
(32) and to the faces of the two Pedal Leg Bushings
(33) in the Left Pedal Leg (14).
Next, slide an M8 Washer (88) and a Pedal Leg Cover
(31) onto an M8 x 23mm Shoulder Screw (115), and
turn the Shoulder Screw a few turns into the Pedal Leg
Axle (32).
While another person holds the front end of the Left
Pedal Leg (14) inside of the bracket on the Left Upper
Body Arm (11), insert the Pedal Leg Axle (32) into both
parts. Next, slide an M8 Washer (88) and a Pedal Leg
Cover (31) onto another M8 x 23mm Shoulder Screw
(115), and turn the Shoulder Screw a few turns into the
Pedal Leg Axle. Tighten both Shoulder Screws.
Repeat this step to attach the Right Pedal Leg (not
shown) to the Right Upper Body Arm (12).
14. Lift the latch on the underside of the Left Pedal Leg
(14), and set the Left Pedal Leg on the left Crank
Bushing Sleeve (43). Release the lever, and make sure
that the Left Pedal Leg is securely connected to the
Crank Bushing Sleeve.
Connect the Right Pedal Leg (not shown) in the same
way.
See step 5. Tighten the M8 x 69mm Button Bolt (80)
and the two M8 x 23mm Button Screws (84).
15. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
Grease
13
115
32
88
31
12
11
31
14
115
88
33–Grease
Latch
14
43
14

11
HOW TO USE THE ELL PT CAL EXERC SER
HOW TO FOLD AND UNFOLD THE ELL PT CAL
EXERC SER
When the elliptical exerciser is not in use, the frame
can be folded out of the way. First, lift the latch under
each pedal leg, and lift the pedal legs off the sleeves
on the crank arms.
Next, raise the pedal legs until they touch the magnets
on the upper body arms; the magnets will hold the
pedal legs in place. Then, hold the handle and lift the
frame until it locks in a vertical position.
To use the elliptical exerciser, first hold the handle,
press the latch button, and lower the frame.
Next, pull the pedal legs off the magnets on the upper
body arms. Then, lift the latches under the pedal
legs, and set the pedal legs on the sleeves on the
crank arms. Release the latches, and make sure that
the pedal legs are securely connected to the crank
arms.
HOW TO MOVE THE ELL PT CAL EXERC SER
To move the elliptical exerciser, first fold it as
described at the left. Next, stand in front of the ellipti-
cal exerciser, hold the handle on the upright, and place
one foot against the center of the front stabilizer. Pull
the handle until the elliptical exerciser will roll on the
front wheels. Carefully move the elliptical exerciser to
the desired position, and then lower it.
HOW TO LEVEL THE ELL PT CAL EXERC SER
If the elliptical exerciser rocks slightly on your floor
during use, turn one or both of the leveling feet
beneath the rear stabilizer until the rocking motion is
eliminated.
Latch
Sleeve
Pedal Leg
Crank
Arm
andle
Place
your foot
here
Magnet
andle
Frame
Latch
Button
Pedal Leg
Leveling
Feet

12
HOW TO EXERC SE ON THE ELL PT CAL
EXERC SER

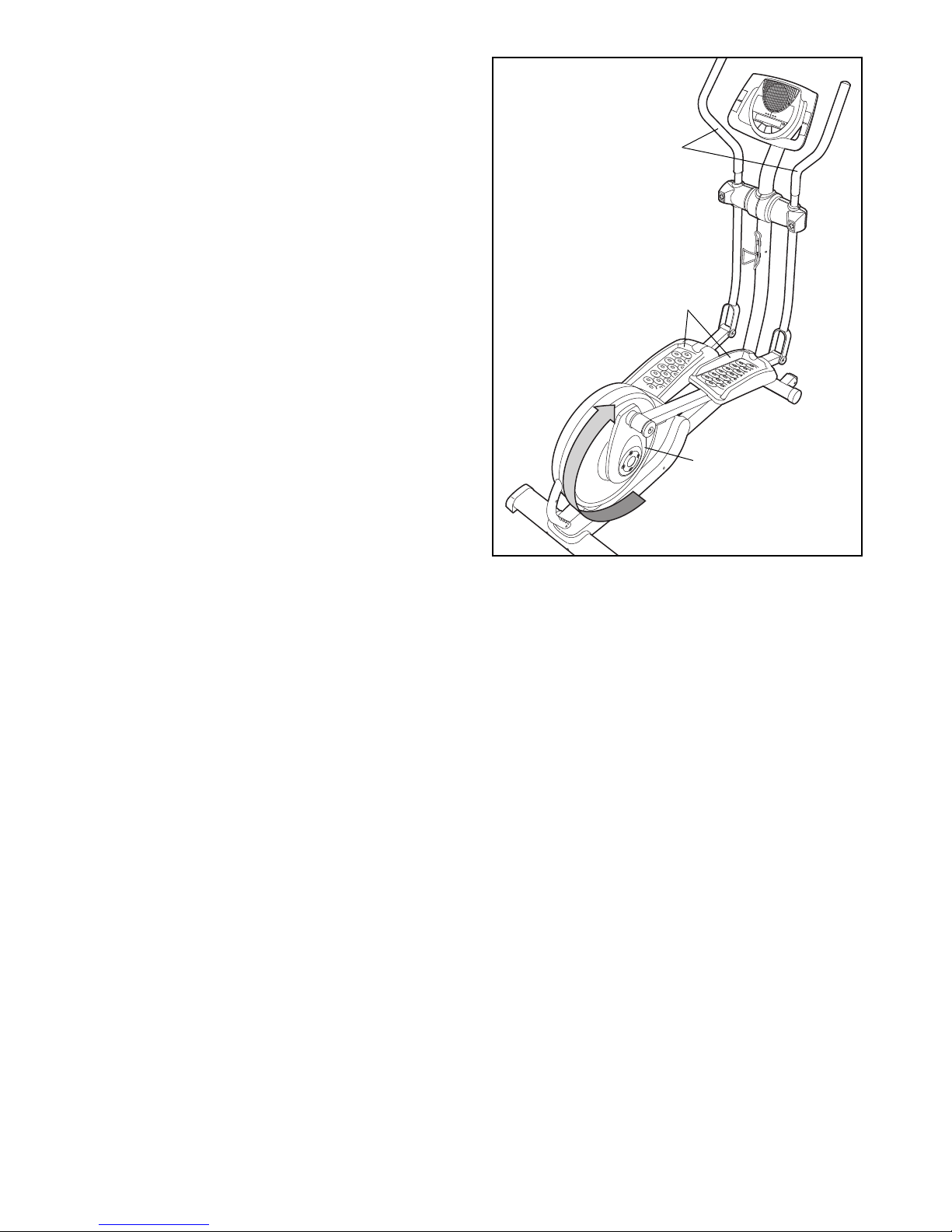

To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Next, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion.
Note: The crank arms can turn in either direction.
t is recommended that you turn the crank arms in
the direction shown by the arrow at the right; how-
ever, for variety you can turn the crank arms in the
opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
Pedals
Crank Arm
andlebars

13
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When the manual mode of the console is
selected, you can change the resistance of the pedals
with the touch of a button. As you exercise, the con-
sole will provide continuous exercise feedback. You
can even monitor your heart rate using the handgrip
pulse sensor.
The console also offers a selection of preset programs.
The two calorie goal programs allow you to choose a
calorie-burning goal for your workout. As you exercise,
the console will count the calories that you burn until
the goal is reached.
The two pulse control programs automatically control
the resistance of the pedals and prompt you to
increase or decrease your pedaling pace to keep your
heart rate near a target heart rate setting during your
workout.
The distance program counts the number of revolu-
tions that you pedal during your workout, until you
have completed 5,000 revolutions.
The three resistance & rpm programs automatically
change the resistance of the pedals and prompt you to
vary your pedaling pace as they guide you through an
effective workout.
The console also features iFIT.com interactive technol-
ogy. aving iFIT.com technology is like having a per-
sonal trainer in your home. Using a stereo audio cable
(available at electronics stores), you can connect the
elliptical exerciser to your portable stereo, home stereo,
computer, or VCR and play special iFIT.com CD and
video programs (iFIT.com CDs and videocassettes are
available separately). iFIT.com programs automatically
control the resistance of the pedals and prompt you to
vary your pace as a personal trainer coaches you
through every step of your workout. igh-energy music
provides added motivation. To purchase iF T.com
CDs and videocassettes, call the telephone num-
ber on the front cover of this manual.
With the elliptical exerciser connected to your comput-
er, you can also go to our website at www.iFIT.com
and access programs directly from the internet.
Explore www.iF T.com for more information.

14
To use the manual mode of the console, follow the
steps beginning on page 14. To use a calorie goal
program, see page 16. To use a pulse control pro-
gram, see page 16. To use the distance program,
see page 18. To use a resistance & rpm program,
see page 18. To use an iF T.com CD or video pro-
gram, see page 22. To use an iF T.com program
directly from our website, see page 23.
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
HOW TO USE THE MANUAL MODE

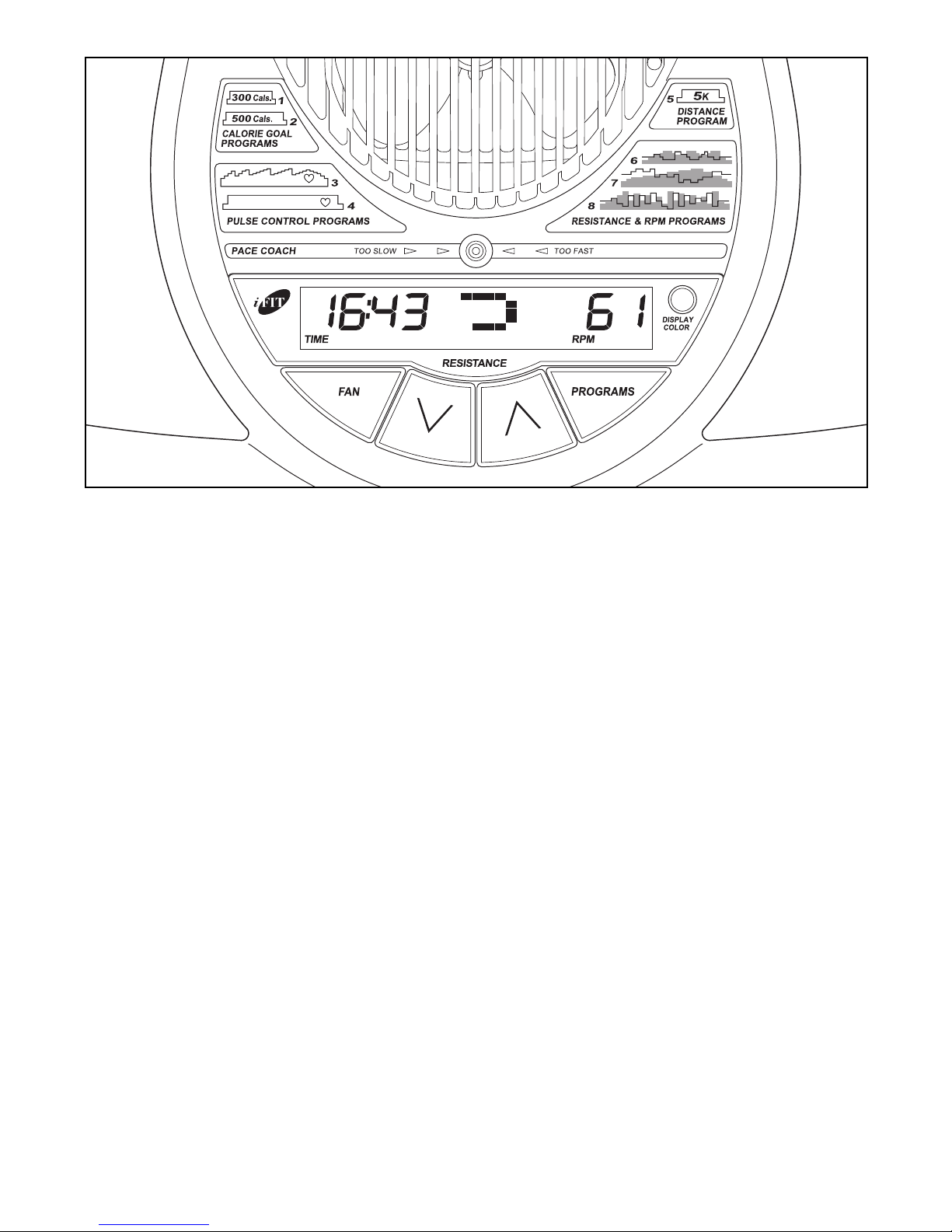

Press the Resistance decrease button or
begin pedaling to turn on the console.
A moment after the console is turned on, the dis-
play will light.
Select the manual mode.
Each time the console is turned on, the manual
mode will be selected automatically. If you have
selected a program or the iFIT.com mode, select
the manual mode by pressing the Programs but-
ton repeatedly until the display appears as shown
below.
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change
the resistance of the
pedals by pressing
the Resistance
increase and
decrease buttons
repeatedly. There are
ten resistance levels. Note: After the buttons are
pressed, it will take a moment for the pedals to
reach the selected resistance level.
Monitor your progress with the display.
Note: The display can be backlit with any of three
colors, or the backlighting can be turned off to
conserve the batteries. Press the Display Color
button repeatedly to select a color or to turn off
the backlighting.
The left side of the
display—The left side
of the display will
show the elapsed
time, the approximate
number of calories
you have burned, and
the approximate number of grams of carbs you
have burned. Note: When some preset programs
are selected, the display will show the time
remaining in the program instead of the elapsed
time. When a calorie goal program is selected,
the display will show the number of calories still to
be burned instead of the number of calories you
have burned.
The left side of the display will also show your
heart rate when you use the handgrip pulse sen-
sor (see step 5 on page 15).
The center of the
display—When the
manual mode, a calo-
rie goal program, the
distance program, or
the iFIT.com mode is
selected, the center of
the display will show a track that represents 640
revolutions. As you exercise, the indicators around
the track will appear in succession until the entire
track appears. The track will then disappear and
the indicators will again begin to appear in suc-
cession.
The center of the display will also show the resis-
tance setting of the pedals for a few seconds each
time the resistance setting changes.
The right side of the
display—The right
side of the display will
show the distance
(total revolutions) you
have pedaled and
your pedaling pace
(revolutions per minute [rpm]). Note: When the
distance program is selected, the display will
show the number of revolutions still to be pedaled
instead of the number of revolutions you have
pedaled.
1
4
3
2

15
Measure your heart rate if desired.
f there are thin
sheets of plastic on
the metal contacts
on the handgrip
pulse sensor,
remove the plastic.
To measure your
heart rate, hold the
handgrip pulse sen-
sor, with your palms
resting against the metal contacts. Avoid moving
your hands or gripping the contacts too
tightly.
When your pulse is
detected, a heart-
shaped symbol will
flash in the left side
of the display each
time your heart
beats, one or two
dashes will appear, and then your heart rate will
be shown. For the most accurate heart rate read-
ing, hold the contacts for at least 15 seconds.
Note: If you continue to hold the handgrip pulse
sensor, the display will show your heart rate for
up to 30 seconds. The display will then show your
heart rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts too tightly. For opti-
mal performance, clean the metal contacts using
a soft cloth; never use alcohol, abrasives, or
chemicals.
Turn on the fan if desired.
To turn on the fan at low speed, press the Fan
button. To turn on the fan at high speed, press
the button a second time. To turn off the fan,
press the button a third time. Note: If the pedals
are not moved for a few minutes, the fan will
automatically turn off to conserve the batteries.
Pivot the thumb tab
on the right side of
the fan to adjust the
angle of the fan.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for several seconds, a
tone will sound and the console will pause.
If the pedals are not moved for about five min-
utes, the console will turn off and the display will
be reset.
5
6
7
Thumb
Tab
Metal Contacts

16
HOW TO USE A CALOR E GOAL PROGRAM
Press the Resistance decrease button or
begin pedaling to turn on the console.
Amoment after the console is turned on, the dis-
play will light.
Select one of the calorie goal programs.
Press the Programs
button repeatedly
until “P 1” or “P 2”
and a goal of 300
calories or 500 calo-
ries appear in the dis-
play.
Begin pedaling to start the program.
When a calorie goal program is used, the console
will function in the same way as when the manual
mode is selected, except the left side of the dis-
play will show the number of calories still to be
burned instead of the number of calories you
have burned. When the calorie goal is reached, a
tone will sound and the time will stop incrementing
in the display.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 15.
HOW TO USE A PULSE CONTROL PROGRAM
Press the Resistance decrease button or
begin pedaling to turn on the console.
A moment after the console is turned on, the dis-
play will light.
Select one of the pulse control programs.
Press the Programs
button repeatedly until
“P 3” or “P 4” appears
in the right side of the
display.
f pulse control pro-
gram 3 is selected, a
profile of the target
heart rate settings of
the program will scroll
across the center of
the display.
f pulse control pro-
gram 4 is selected, a
pulse symbol will
appear in the center
of the display. Each
time a heartbeat is
detected while you
are using the handgrip pulse sensor, the pulse
symbol will reappear.
Enter a target heart rate setting.
f pulse control pro-
gram 3 is selected,
the maximum target
heart rate setting of
the program will flash
in the display. If
desired, press the
Resistance increase and decrease buttons to
change the maximum target heart rate setting
(see EXERC SE NTENS TY on page 25). If you
change the maximum target heart rate setting,
the intensity level of the entire program will
change.
f pulse control program 4 is selected, the tar-
get heart rate setting for the program will flash in
the display. If desired, press the Resistance
increase and decrease buttons to change the tar-
get heart rate setting (see EXERC SE NTENS -
TY on page 25).
4
3
2
1
3
1
2

17
Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse
sensor continuously during a pulse control pro-
gram; however, you should hold the handgrip
pulse sensor frequently for the program to oper-
ate properly. Each time you hold the handgrip
pulse sensor, keep your hands on the metal
contacts for at least 30 seconds.
Begin pedaling to start the program.
Pulse control program 3 is divided into 30 one-
minute segments. One target heart rate setting is
programmed for each segment. Note: The same
target heart rate setting may be programmed for
two or more consecutive segments.
The target heart rate
setting for the first
segment will be
shown in the flashing
Current Segment col-
umn in the center of
the display. The tar-
get heart rate settings for the next four segments
will be shown in the columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and all target heart
rate settings will move one column to the left.
The target heart rate setting for the second seg-
ment will then be shown in the flashing Current
Segment column.
Pulse control program 4 is divided into 40 one-
minute segments. The same target heart rate set-
ting is programmed for all segments. Note: For a
shorter workout, stop exercising or select a differ-
ent program before the program ends.
During both pulse control programs, the con-
sole will regularly compare your heart rate to the
target heart rate setting. If your heart rate is too
far below or above the target heart rate setting,
the resistance of the pedals will automatically
increase or decrease to bring your heart rate
closer to the target heart rate setting.
After the first minute of the program, the Pace
Coach will prompt you to maintain a consistent
pedaling pace. When one of the “Too Slow”
arrows lights, increase your pace. When the one
of the “Too Fast” arrows lights, decrease your
pace. When the center indicator lights, maintain
your current pace.
mportant: The target heart rate settings are
intended only to provide motivation. Your
actual heart rate may be slower than the tar-
get heart rate settings. Make sure to exercise
at a pace that is comfortable for you.
Note: During the program, you can manually over-
ride the resistance setting for the current seg-
ment, if desired, by pressing the increase and
decrease buttons. owever, when the console
compares your heart rate to the target heart rate
setting, the resistance of the pedals may auto-
matically increase or decrease to bring your heart
rate closer to the target heart rate setting.
If you stop pedaling for several seconds, a tone
will sound and the program will pause. To restart
the program, simply resume pedaling.
Monitor your progress with the display.
See step 4 on page 14.
Turn on the fan if desired.
See step 6 on page 15.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 15.
4
8
7
6
5
Current Segment

18
HOW TO USE THE D STANCE PROGRAM
Press the Resistance decrease button or
begin pedaling to turn on the console.
A moment after the console is turned on, the dis-
play will light.
Select the distance program.
Press the Programs
button repeatedly until
“P 5” and a goal of
5,000 revolutions
appear in the display.
Begin pedaling to start the program.
When the distance program is used, the console
will function in the same way as when the manual
mode is selected, except the right side of the dis-
play will show the number of revolutions still to be
pedaled instead of the number of revolutions you
have pedaled. When the calorie goal is reached, a
tone will sound and the time will stop incrementing
in the display.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 15.
HOW TO USE A RES STANCE & RPM PROGRAM
Press the Resistance decrease button or
begin pedaling to turn on the console.
A moment after the console is turned on, the dis-
play will light.
Select one of the resistance & rpm programs.
Press the Programs
button repeatedly until
“P 6,” “P 7,” or “P 8”
appears in the right
side of the display.
When a resistance &
rpm program is select-
ed, a profile of the resistance settings of the pro-
gram will scroll across the center of the display.
The left side of the display will show how long the
program will last.
Begin pedaling to start the program.
Each program is divided into several one-minute
segments. One resistance setting and one pace
setting are programmed for each segment. Note:
The same resistance setting and/or pace setting
may be programmed for two or more consecutive
segments.
The resistance setting
for the first segment
will be shown in the
flashing Current
Segment column in
the center of the dis-
play. (Note: The pace
settings are not shown in the display.) The resis-
tance settings for the next four segments will be
shown in the columns to the right.
As you exercise, the Pace Coach will help you to
keep your pedaling pace near the pace setting for
the current segment. When one of the “Too Slow”
arrows lights, increase your pace. When the one
of the “Too Fast” arrows lights, decrease your
pace. When the center indicator lights, maintain
your current pace.
3
2
1
4
3
1
2
Current Segment

19
mportant: The pace settings are intended
only to provide motivation. Your actual pace
may be slower than the pace settings. Make
sure to exercise at a pace that is comfortable
for you.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and all resistance set-
tings will move one column to the left. The resis-
tance setting for the second segment will then be
shown in the flashing Current Segment column,
and the resistance of the pedals will change to the
resistance setting for the second segment. Note: If
all of the indicators in the Current Segment col-
umn are lit after the resistance settings have
moved to the left, the resistance settings may
move downward so only the highest indicators
appear in the matrix.
The program will continue until the resistance
setting for the last segment is shown in the
Current Segment column and the last segment
ends.
Note: During the program, you can override the
resistance setting for the current segment, if
desired, by pressing the increase or decrease but-
ton. owever, when the next segment begins, the
resistance will change if a different resistance set-
ting is programmed for the next segment.
If you stop pedaling for several seconds, a tone
will sound and the program will pause. To restart
the program, simply resume pedaling.
Monitor your progress with the display.
See step 4 on page 14.
Measure your heart rate if desired.
See step 5 on page 15.
Turn on the fan if desired.
See step 6 on page 15.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 15.
7
6
5
4

20
To use iF T.com CDs, the elliptical exerciser must be
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages 20
and 21 for connecting instructions. To use iF T.com
videocassettes, the elliptical exerciser must be connect-
ed to your VCR. See page 22 for connecting instruc-
tions. To use iF T.com programs directly from our
website, the elliptical exerciser must be connected to
your computer. See page 23.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: f your CD player has separate L NE OUT and
PHONES jacks, see instruction A below. f your CD
player has only one jack, see instruction B.
A. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the P ONES jack.
B. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the P ONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: f your stereo has an RCA-type AUD O OUT
jack, see instruction A below. f your stereo has a
1/8" L NE OUT jack, see instruction B. f your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the cable
into the AUDIO OUT jack on your stereo.
B. See the drawing above. Plug one end of a 1/8" to
1/8" stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the P ONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable
ead-
phones
A
PHONES
PHONES
Audio
Cable
1/8"
Y-adapter
eadphones
B
AUDIO OUT
RIGHT
LEFT
LINE OUT
Audio
Cable
A/B
PHONES
Audio
Cable
C
1/8"
Y-adapter
eadphones
