Pro-Form 280 CSX User manual

USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. PFEX71608.1
Serial No.
Write the serial number in the
space above for future reference.
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
www.proform.com

2
TABLE OF CONTENTS
WARNINGDECA P ACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMB Y ...............................................................................5
HOWTOOPERATETHEEXERCISECYC E...................................................10
MAINTENANCEANDTROUB ESHOOTING ...................................................15
EXERCISEGUIDE INES ...................................................................16
PART IST ..............................................................................18
EXP ODEDDRAWING ....................................................................19
ORDERINGREP ACEMENTPARTS ..................................................BackCover
IMITEDWARRANTY ..............................................................BackCover

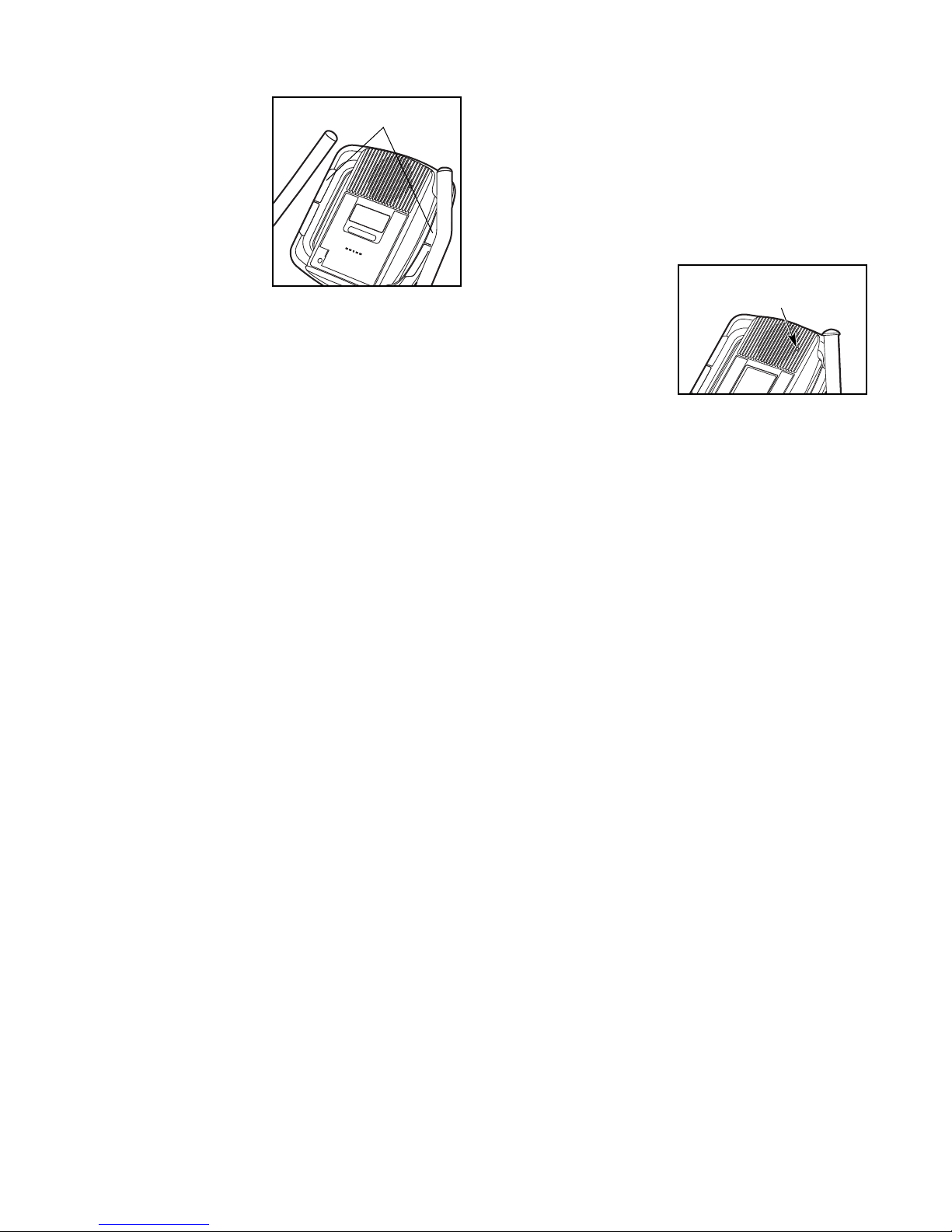

WARNING DECAL PLACEMENT
PROFORM is a registered trademark of ICON IP, Inc.

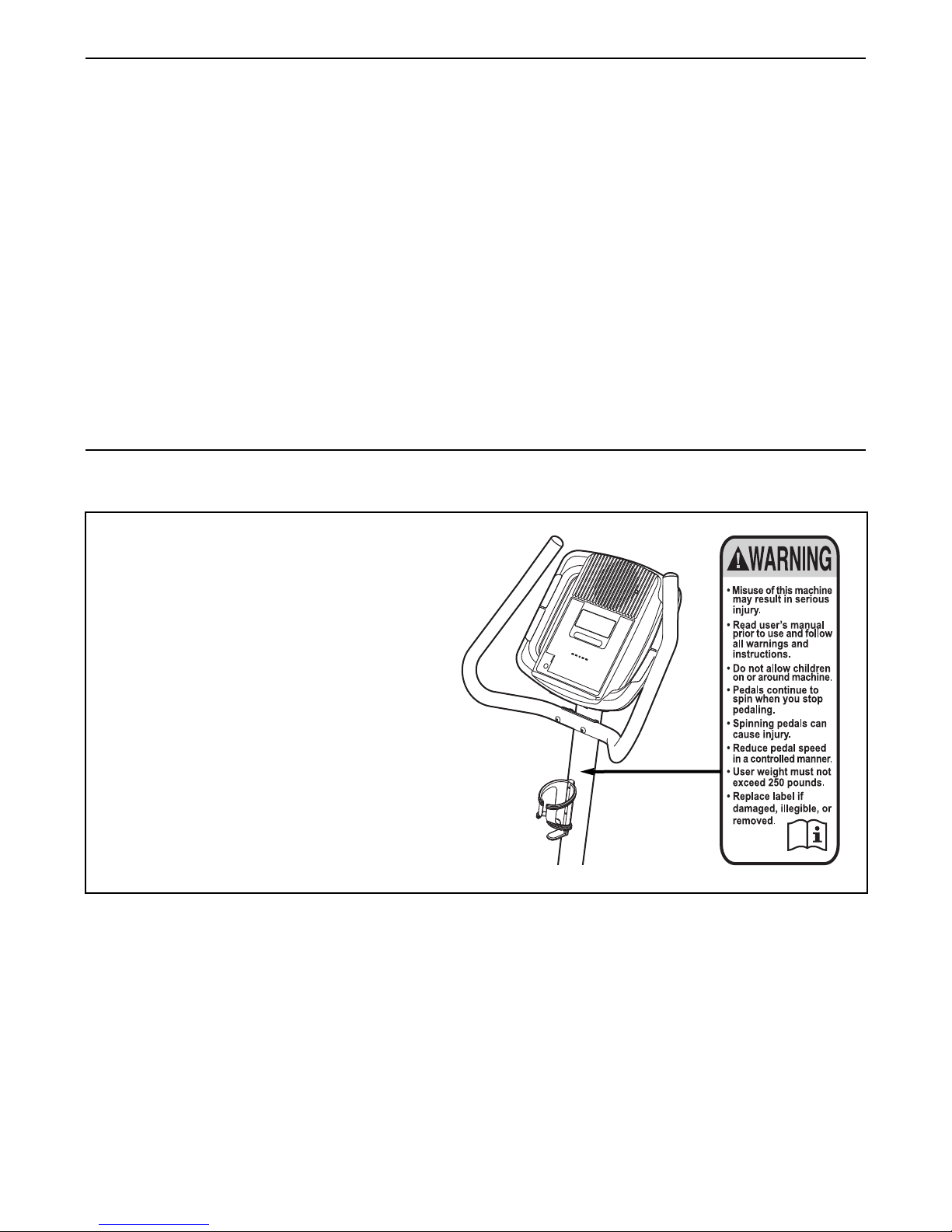

This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.

3
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
3. Your exercise cycle is intended for home use
only. Do not use your exercise cycle in a
commercial, rental, or institutional setting.
4. Keep your exercise cycle indoors, away from
moisture and dust. Place your exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is at least 2 ft. (0.6 m) of clearance
around your exercise cycle.
5. Inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your exercise cycle at all times.
7. Your exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
8. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on your exercise cycle.
Always wear athletic shoes for foot protec-
tion while exercising.
9. When adjusting the seat, insert the adjust-
ment knob into one of the holes in the seat
post. Do not insert the seat pin under the
seat post.
10. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. Keep your back straight while using your
exercise cycle; do not arch your back.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your exercise cycle only as described in
this manual.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS

4
Congratulations for selecting the new PROFORM®
280 CSX exercise cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fit-
ness, building endurance, and toning the body. The
280 CSX exercise cycle offers a selection of features
designed to let you enjoy this healthful exercise in the
convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
To avoid a registration fee for any service needed
under warranty, you must register the exercise
cycle at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Seat
Seat Knob
*No water bottle is included
Pedal/Strap
Handgrip Pulse Sensor
Water Bottle Holder*
Fan
Handlebar
eveling Foot
BEFORE YOU BEGIN
Console

5
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included tools and your own adjustable wrench and Phillips screwdriver .

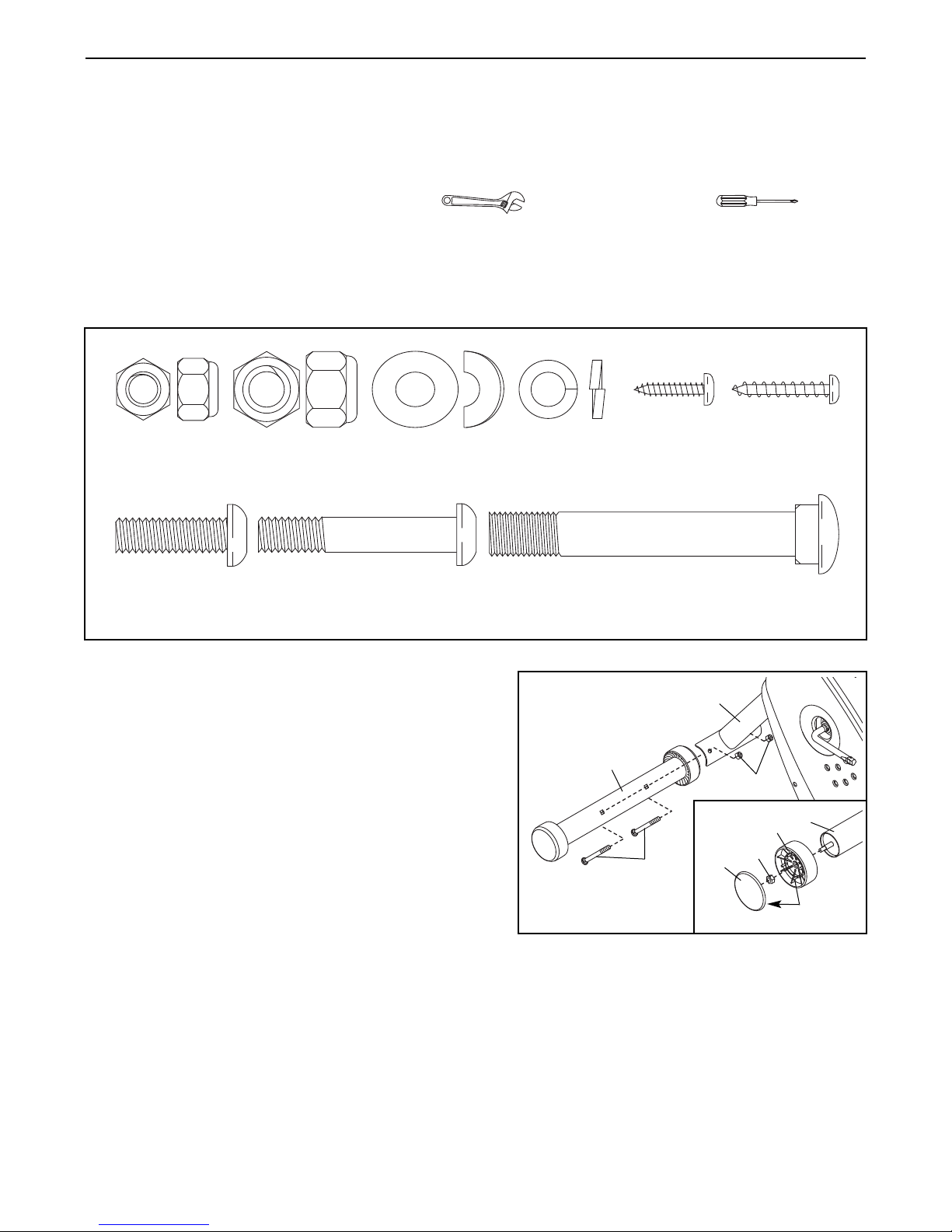

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART IST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: Some small parts may have been preassembled.
If a part is not in the hardware kit, check to see if it has been preassembled.
M8 Nylon
Locknut (10)–6
M8 Split
Washer (41)–10
M10 Nylon
Locknut (33)–4
M4 x 16mm
Screw (49)–4
M8 x 25mm Button
Screw (45)–6
M10 x 75mm Carriage Bolt (30)–4
M8 x 45mm Button
Screw (9)–2
M8 Curved
Washer (57)–2
M4 x 22mm
Screw (20)–2
1. Identify the Front Stabilizer (2). See the inset drawing.
Attach a Wheel (14) to one end of the Front Stabilizer
with an M8 Nylon ocknut (10). Make sure that the
Wheel is oriented as shown and that it turns
freely. Next, align the four plastic posts on a Wheel
Cover (23) with the plastic posts on the Wheel, and
press the Wheel Cover onto the Wheel. Assemble
the other Wheel (not shown) in the same way.
While another person lifts the front of the Frame (1),
attach the Front Stabilizer (2) to the Frame with two
M10 x 75mm Carriage Bolts (30) and two M10 Nylon
ocknuts (33) as shown.
2
33
30
1
1
2
14
23 10
Post

6
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (6) with two M10 x 75mm
Carriage Bolts (30) and two M10 Nylon ocknuts (33).
30
6
1
33
33
2
3
55
41
41
45
45
1
13
20
8
36
3. Tip: Avoid pinching the Wire Harnesses (36, 55)
during this step.
While another person holds the Upright (13) in the
position shown, connect the Upper Wire Harness (36)
to the ower Wire Harness (55).
Carefully pull the excess Upper Wire Harness (36) out
of the top of the Upright (13), and slide the Upright
onto the Frame (1). Next, attach the Upright with three
M8 x 25mm Button Screws (45) and three M8 Split
Washers (41).
Attach the Water Bottle Holder (8) to the Upright (13)
with two M4 x 22mm Screws (20).
Avoid pinching the
Wire Harnesses (36,
55) during this step

7
4
4. Attach the Handlebar (15) to the Upright (13) with two
M8 x 45mm Button Screws (9) and two M8 Curved
Washers (57).
13
15
9
57
57
5. The Console (16) can use four 1.5V D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been exposed to
cold temperatures, allow it to warm to room tem-
perature before inserting batteries. Otherwise, you
may damage the console displays or other elec-
tronic components. Remove the battery cover, insert
the batteries into the battery compartment, and reat-
tach the battery cover. Make sure to orient the bat-
teries as shown by the diagram inside the battery
compartment.
To purchase an optional AC adapter, contact the
store where you purchased this product or call
the telephone number on the cover of this manu-
al. To avoid damaging the console, use only a
manufacturer-supplied AC adapter. Plug one end of
the AC adapter into the jack on the console; plug the
other end into an outlet installed in accordance with
all local codes and ordinances.
16
Batteries
Battery
Cover
5

8
6. Hold the Console (16) near the Upright (13). Connect
the console wire to the Upper Wire Harness (36).
Insert the excess console wire and Upper Wire
Harness (36) downward into the Upright (13). Next,
attach the Console (16) to the Upright with four M4 x
16mm Screws (49). Be careful to avoid pinching
the wires.
16
6
Avoid pinching
the wires during
this step
13
49
49
36
Console
Wire
7. Attach the Seat Frame (28) to the Frame (1) with three
M8 x 25mm Button Screws (45) and three M8 Split
Washers (41).
1
41
41
45
45
45 28
7
8. Turn the Seat Knob (11) counterclockwise and pull it
outward. Next, insert the Seat Post (5) into the Seat
Frame (28). Press the Seat Post Cap (54) into the
lower end of the Seat Post.
Next, align one of the adjustment holes in the Seat
Post (5) with the indicated hole in the Seat Frame (28).
Then, release the Seat Knob (11) into the Seat Frame
and the Seat Post, and turn the Seat Knob clockwise a
few turn. Make sure that the Seat Knob is inserted
through one of the adjustment holes in the Seat
Post.
28
5
11
54
Hole
Adjustment
Holes
8

9
11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
9. Attach the Seat (12) to the Seat Post (5) with four M8
Nylon ocknuts (10) and four M8 Split Washers (41).
Note: The Nylon ocknuts and the Split Washers may
be preattached to the underside of the Seat.
10. Identify the eft Pedal (24), which is marked with an
“ .” Using an adjustable wrench, firmly tighten the
eft Pedal counterclockwise into the left arm of the
Crank (21). Tighten the Right Pedal (not shown)
clockwise into the right arm of the Crank. IMPOR-
TANT: Tighten both Pedals as firmly as possible.
After using the exercise cycle for one week,
retighten the Pedals. For best performance, keep
the Pedals tightened.
Adjust the eft Pedal Strap (25) to the desired posi-
tion, and press the end of the Pedal Strap onto the
tab on the eft Pedal (24). Adjust the Right Pedal
Strap (not shown) in the same way.
9
41
10
12
5
10
24
21
25
Tab
41
10

10
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO AD UST THE SEAT POST
For effective exer-
cise, the seat should
be at the proper
height. As you
pedal, there should
be a slight bend in
your knees when
the pedals are in the
lowest position. To
adjust the height of
the seat, first turn
the seat knob coun-
terclockwise and
pull it outward. Next,
slide the seat post upward or downward, and align
one of the adjustment holes in the seat post with the
indicated hole in the seat frame. Then, release the
seat knob into the seat frame and the seat post, and
turn the knob clockwise until it is tight. Make sure that
the seat knob is inserted through one of the
adjustment holes in the seat post.
HOW TO AD UST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps off
the tabs on the ped-
als. Adjust the straps
to the desired posi-
tion, and then press
the ends of the straps
back onto the tabs.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle
rocks on your floor
during use, turn one
or both of the level-
ing feet beneath the
rear stabilizer until
the rocking motion is
eliminated.
Strap
Tab
Knob
Hole
Seat
eveling
Feet

11
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. As you exercise, the con-
sole will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor.
The console also offers eight preset workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling speed as it guides you through an effective
workout.
You can even connect your MP3 player or CD player
to the consoleʼs sound system and listen to your
favorite music or audio books while you exercise.
To use the manual mode, see page 12. To use a
preset workout, see page 14. To use the sound
system, see page 14.
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.

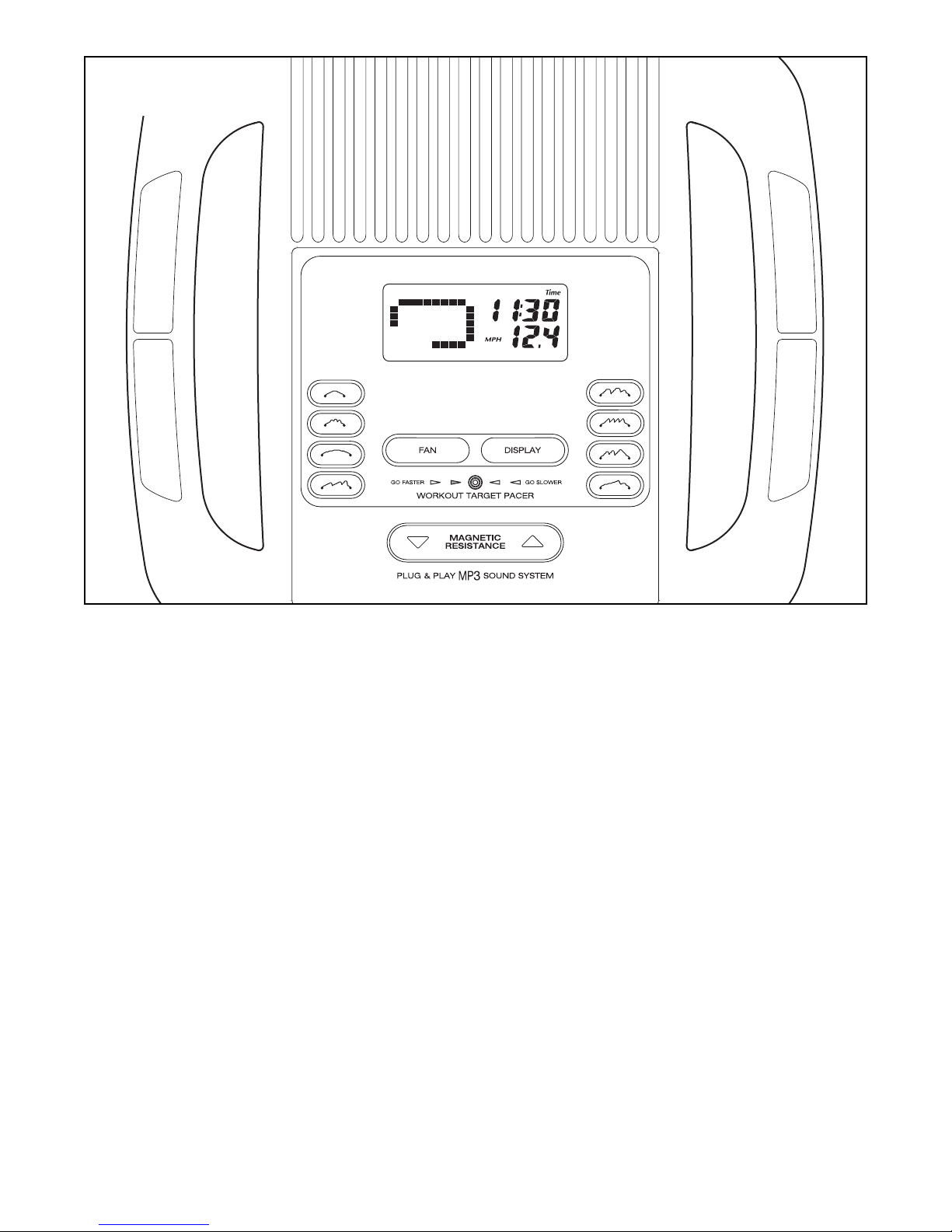

CONSOLE DIAGRAM

12
HOW TO USE THE MANUAL MODE
1. Press any button on the console or begin ped-
aling to turn on the console.
When you turn on the console, the displays and
the workout target pacer will light. A tone will then
sound and the console will be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a workout,
reselect the manual mode by pressing one of the
eight workout buttons on the console repeatedly
until a track appears in the left display.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change
the resistance of the
pedals by pressing the
Magnetic Resistance
increase and
decrease buttons.
There are ten resistance levels. Note: After you
press the buttons, it may take a moment for the
pedals to reach the selected resistance level.

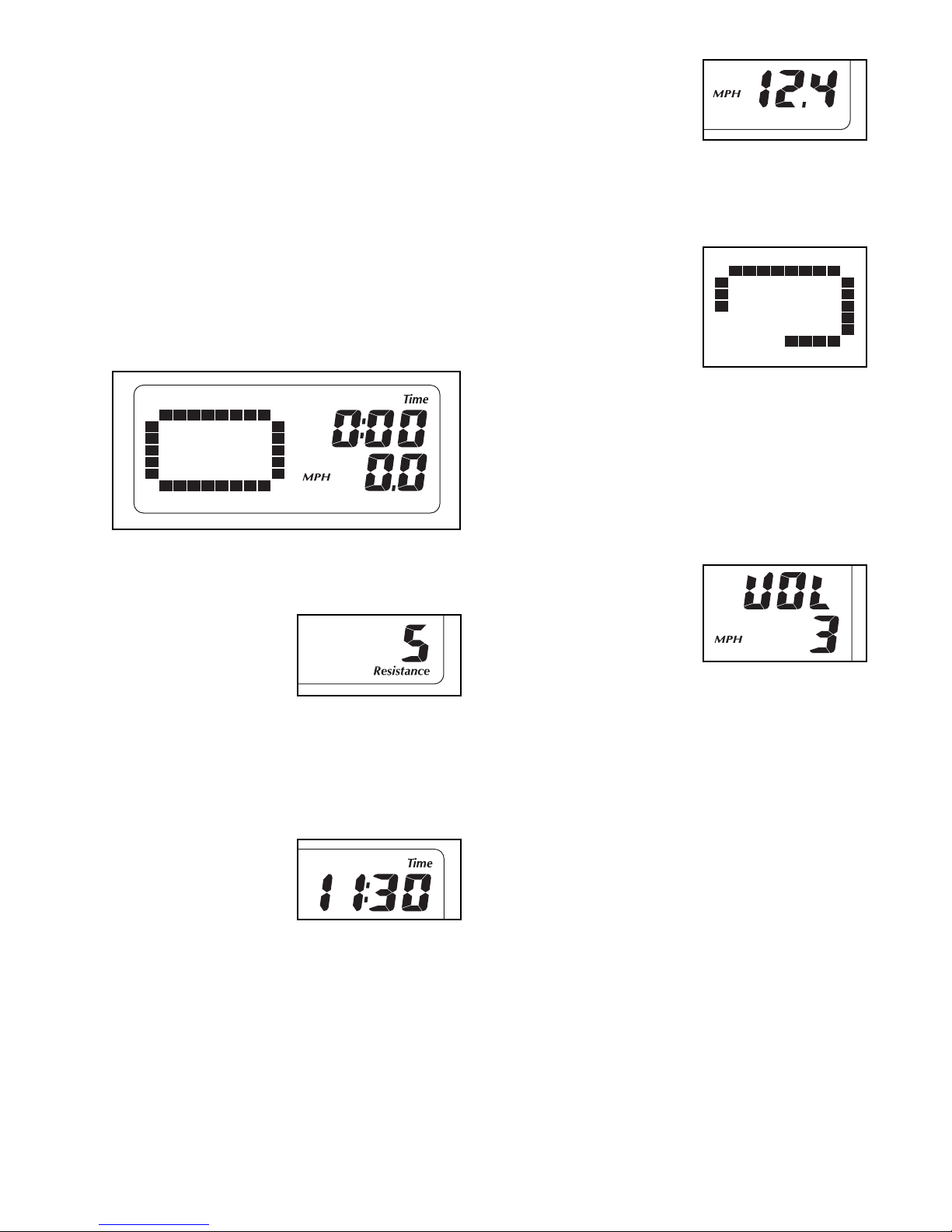

4. Follow your progress with the displays.
The upper right
display can show the
elapsed time, the
approximate number
of calories you have
burned, and the dis-
tance you have pedaled. The display will change
modes every few seconds.
The lower right
display can show your
pedaling speed and the
resistance level of the
pedals. The display will
change modes every
few seconds. The display will also show your heart
rate when you use the handgrip pulse sensor (see
step 5 on page 13).
The left display will
show a track repre-
senting 1/4 mile. As
you exercise, indicators
will appear in succes-
sion around the track
until the entire track
appears. The track will
then disappear and the indicators will again begin
to appear in succession
To change the display mode, press the Display but-
ton repeatedly until the desired exercise information
appears in the upper or lower right display. After
several seconds, the displays will change modes
automatically as before.
Note: The console can
display speed and dis-
tance in either miles or
kilometers. The letters
MPH or Km/H will
appear while your ped-
aling speed is dis-
played to show which unit of measurement is
selected. To change the unit of measurement, first
press the Display button for a few seconds until the
display is blank; then, release the Display button.
Press the Fan button repeatedly to change the unit
of measurement. You can also adjust the volume of
the console tones at this time. Press the Magnetic
Resistance increase and decrease buttons to select
a volume level between 1 and 5. When you have
selected the desired unit of measurement and vol-
ume level, press the Display button again.

13
5. Measure your heart rate if desired.
If there are
sheets of clear
plastic on the
metal contacts
on the handgrip
pulse sensor,
remove the plas-
tic. In addition,
make sure that
your hands are
clean. To measure
your heart rate,
hold the handgrip pulse sensor with your palms
resting against the metal contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, a heart-shaped sym-
bol will flash in the lower right display each time
your heart beats, one or two dashes will appear,
and then your heart rate will be shown. For the
most accurate heart rate reading, hold the con-
tacts for at least 15 seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
The fan has high, low, and auto speed settings;
while the auto mode is selected, the speed of the
fan will automatically increase or decrease as you
increase or decrease your pedaling speed. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan. Note: If the pedals do not move
for about thirty seconds, the fan will turn off auto-
matically.
Pivot the thumb tab
on the right side of
the fan to adjust
the fan angle.
To turn off the fan, press the Fan button again.
Note: If the pedals do not move for about thirty
seconds, the fan will automatically turn off to con-
serve the batteries.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound and the console will
pause.
If the pedals do not move for about five minutes,
the console will turn off and the displays will be
reset.
Contacts
Thumb
Tab

14
HOW TO USE A PRESET WORKOUT
1. Press any button on the console or begin ped-
aling to turn on the console.
See step 1 on page 12.
2. Select a preset workout.
To select one of the eight preset workouts, press
one of the eight buttons on the right or left side of
the console.
When you select a preset workout, the name of
the workout and the maximum resistance level will
appear in the display for a few seconds. A profile
of the resistance levels of the workout will also
scroll across the left side of the display.
3. Begin pedaling to start the workout.
Each workout is divided into either 20 or 30 one-
minute segments. One resistance level and one
target pace setting are programmed for each seg-
ment. Note: The same resistance level and/or tar-
get pace setting may be programmed for consecu-
tive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
During the workout, the workout target pacer will
prompt you to keep your pedaling speed near the
target pace setting for the current segment. When
a left indicator lights, increase your speed; when a
right indicator lights, decrease your speed. When
the center indicator lights, maintain your current
speed. IMPORTANT: The workout target pacer
is intended only to provide a goal. Make sure
to pedal at a speed that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Magnetic
Resistance increase or decrease button. However,
when the current segment ends, the resistance of
the pedals will automatically adjust to the resis-
tance level programmed for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
workout ends.
4. Follow your progress with the displays.
See step 4 on page 12.
5. Measure your heart rate if desired.
See step 5 on page 13.
6. Turn on the fan if desired.
See step 6 on page 13.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 13.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the consoleʼs
sound system while you exercise, plug an audio cable
(not included) into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player.
Profile

15
Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 5 on page 7.
Note: If you use the sound system regularly, it is rec-
ommended that you purchase an optional manufactur-
er-supplied AC adapter (see assembly step5 on page
7).
HOW TO AD UST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left shield must be removed.
Turn the Crank (21) to the position shown. Using an
adjustable wrench, turn the eft Pedal (24) clockwise
and remove it. Next, remove the indicated M4 x 25mm
Screws (42) and the indicated M4 x 16mm Screws
(49). Then, carefully remove the eft Shield (17).
Next, locate the Reed Switch (43). Turn the Crank (21)
until the Magnet (38) is aligned with the Reed Switch.
oosen, but do not remove, the indicated M4 x 16mm
Screw (49). Slide the Reed Switch slightly closer to or
away from the Magnet, and then retighten the Screw.
Turn the Crank for a moment. Repeat until the console
displays correct feedback. When the Reed Switch is
correctly adjusted, reattach the left shield and the left
pedal.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle rocks on your floor during use,
see HOW TO EVE THE EXERCISE CYC E on
page 10.
MAINTENANCE AND TROUBLESHOOTING
49
24
42
17
49
21
42
49
42
49
21
43 38
42

These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

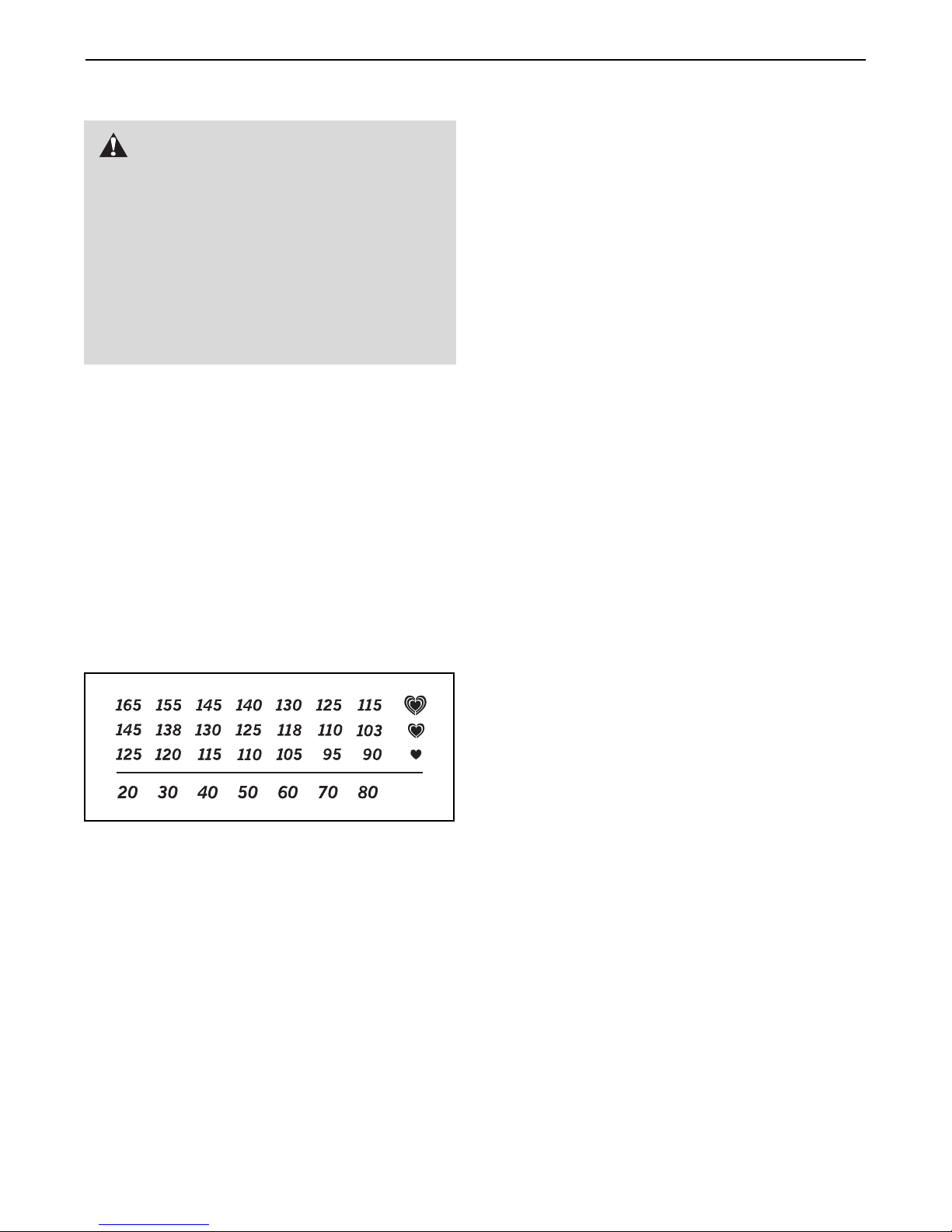

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
16
EXERCISE GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.

17
SUGGESTED STRETCHES

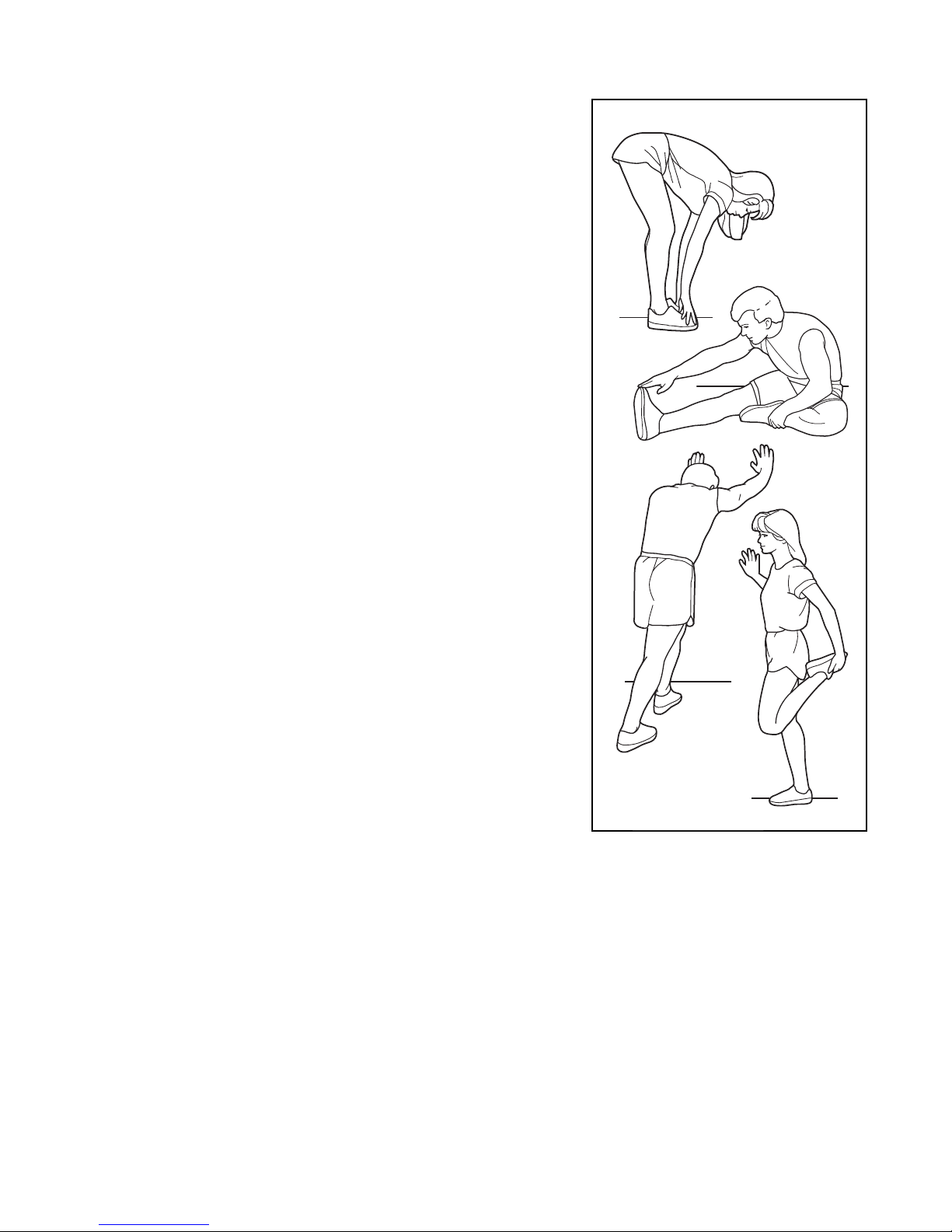

The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat on
the floor. Bend your front leg, lean forward and move your hips
toward the wall. Hold for 15 counts, then relax. Repeat 3 times for
each leg. To cause further stretching of the achilles tendons, bend
your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
1
2
3
4

18
11Frame
21Front Stabilizer
31 Spring
42Stabilizer Cap
51Seat Post
61Rear Stabilizer
72Handlebar Cap
81Water Bottle Holder
92M8 x 45mm Button Screw
10 7 M8 Nylon ocknut
11 1 Seat Knob
12 1 Seat
13 1 Upright
14 2 Wheel
15 1 Handlebar
16 1 Console
17 1 eft Shield
18 1 Right Shield
19 1 Resistance Motor
20 2 M4 x 22mm Screw
21 1 Crank/Pulley
22 1 Reed Switch Clamp
23 2 Wheel Cover
24 1 eft Pedal
25 1 eft Pedal Strap
26 1 Right Pedal
27 4 Motor Screw
28 1 Seat Frame
29 1 Stop Bolt
30 4 M10 x 75mm Carriage Bolt
31 1 Pillow Block
32 1 Idler Block
33 4 M10 Nylon ocknut
34 4 M5 Washer
35 2 eveling Foot
36 1 Upper Wire Harness
37 1 Flywheel
38 1 Magnet
39 1 Right Pedal Strap
40 1 “C”-magnet
41 10 M8 Split Washer
42 4 M4 x 25mm Screw
43 1 Reed Switch/Wire
44 1 Crank Bearing Set
45 6 M8 x 25mm Button Screw
46 1 M4 x 16mm Round Head Screw
47 4 Pillow Block Screw
48 1 Drive Belt
49 9 M4 x 16mm Screw
50 1 Idler Block Screw
51 2 M6 Nut
52 2 Frame Bushing
53 1 Resistance Cable
54 1 Seat Post Cap
55 1 ower Wire Harness
56 4 M4 x 12mm Screw
57 2 M8 Curved Washer
*–Userʼs Manual
*–Assembly Tool
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. PFEX71608.1 R0908A

19
1
2
3
4
4
5
7
10
12
13 15
16
17
18
22
25
24
26
39
36
37
40
43
44
6
48
19
30
30
33
33
33
49
41
42
49
49 34
45
45
45
41
41
41
27
38
21
55 53
7
49
49
42
41
10
47
34
28
9
11
56
56
52
52
56
54
41
45
45 41
45
41
23
23
14
31
47
35
35
50
32
10
42
49
42
46
29 51
10
10
20
57
8

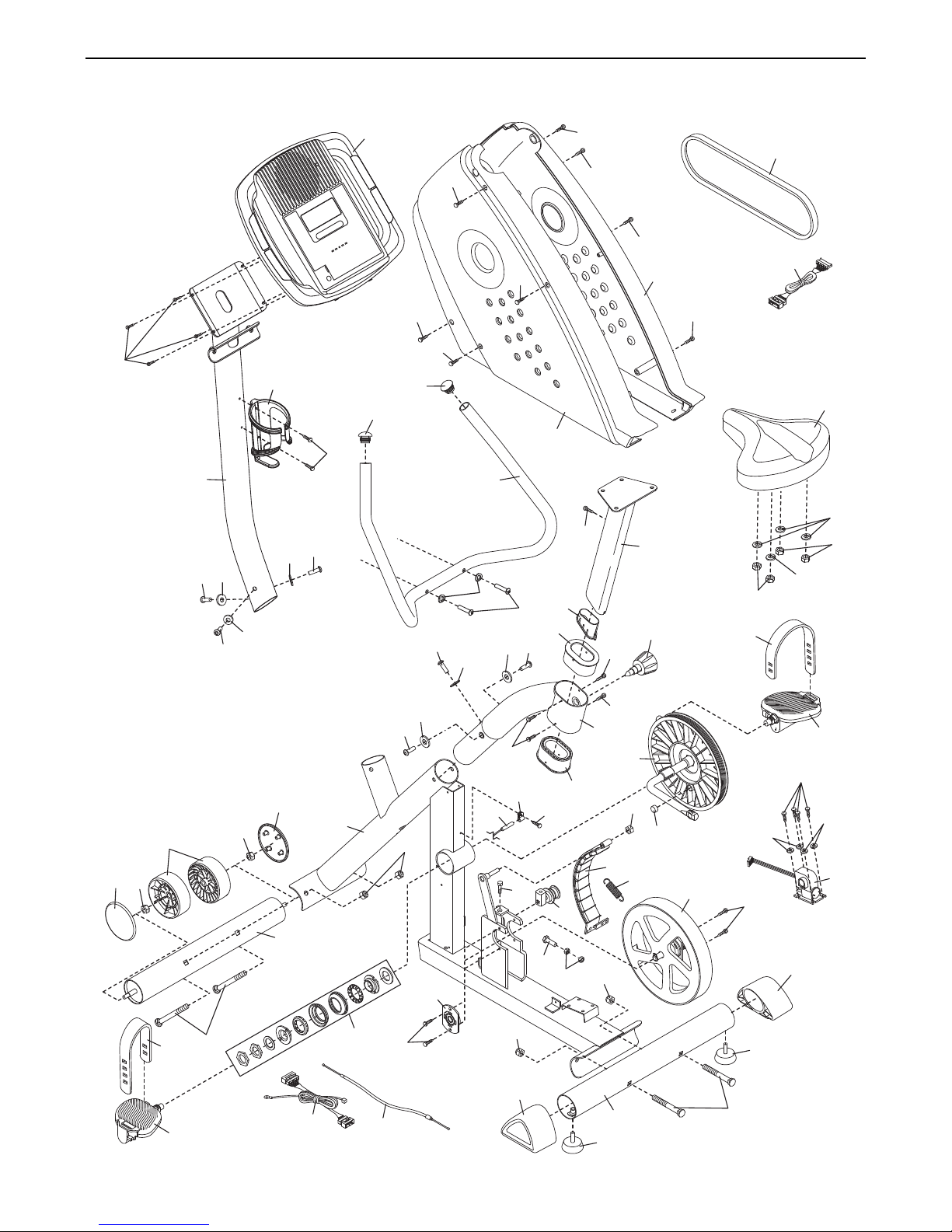

EXPLODED DRAWING—Model No. PFEX71608.1 R0908A

Part No. 274924 R0908A Printed in USA © 2008 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART IST and the EXP ODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days
from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip
charge. This warranty does not extend to any damage to a product caused by or attributable to freight
damage, abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized
service center; products used for commercial or rental purposes; or products used as store display
models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or
other consequential damages of whatsoever nature. Some states do not allow the exclusion or limita-
tion of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties
of merchantability or fitness for a particular purpose are limited in their scope and duration to the terms
set forth herein. Some states do not allow limitations on how long an implied warranty lasts.
Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
