Pro-Form PFEVEL49716.1 User manual

USER’S MANUAL
Serial
Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. PFEVEL49716.1
Serial No.
Write the serial number in the space
above for reference.
CUSTOMER SERVICE
www.nordic-track.ru

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT

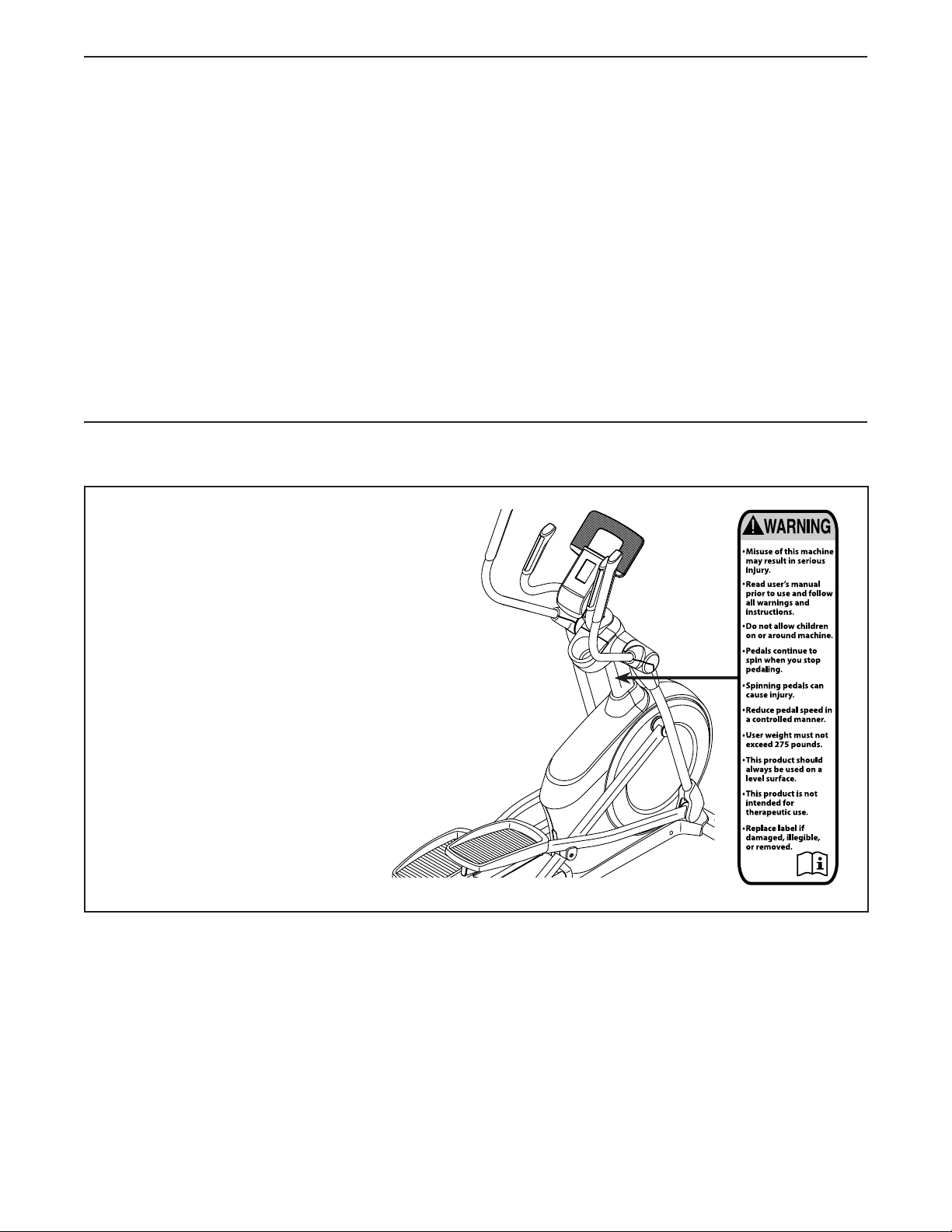

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL ..............................................................15
MAINTENANCE AND TROUBLESHOOTING.....................................................23
EXERCISE GUIDELINES ....................................................................25
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ORDERING REPLACEMENT PARTS ..................................................Back Cover
RECYCLING INFORMATION .........................................................Back Cover
PROFORM is a registered trademark of ICON Health & Fitness, Inc. IFIT is a registered trademark of ICON
Health & Fitness, Inc. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android
and Google Play are trademarks of Google Inc. The BLUETOOTH®word mark and logos are registered trade-
marks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in
the U.S. and other countries and is used under license.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 275 lbs. (125 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the
elliptical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4
Thank you for selecting the revolutionary PROFORM®
ENDURANCE 420 E elliptical. The ENDURANCE 420
E elliptical provides an impressive selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

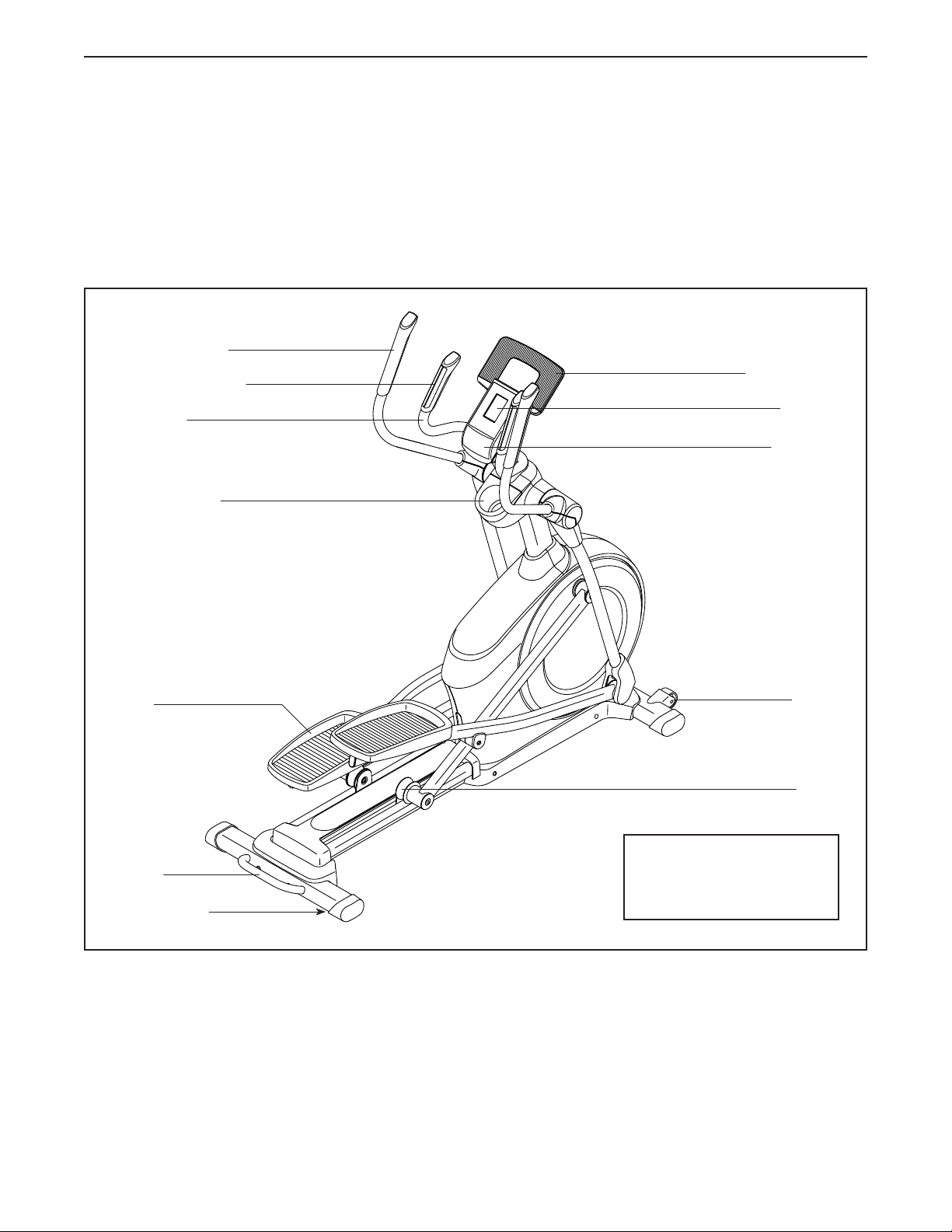

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Accessory Tray
Speakers
Handlebar
Upper Body Arm
Pedal
Roller
Handle
Console
Tablet Holder
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 8 in. (173 cm)
Width: 2 ft. 2 in. (66 cm)
Weight:167 lbs. (76 kg)

5
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 x 13mm
Screw (82)–6
M10 x 25mm Screw
(92)–4 M10 x 122mm Screw
(104)–4
M8 Locknut
(102)–4
M4 x 16mm
Screw (101)–16
16mm Wave
Washer (54)–2
M10 Split Washer
(105)–8
M5 Washer
(32)–2
M8 x 38mm Bolt
(96)–4
M8 x 14mm
Shoulder
Screw (9)–2
M8 Washer
(97)–8

6

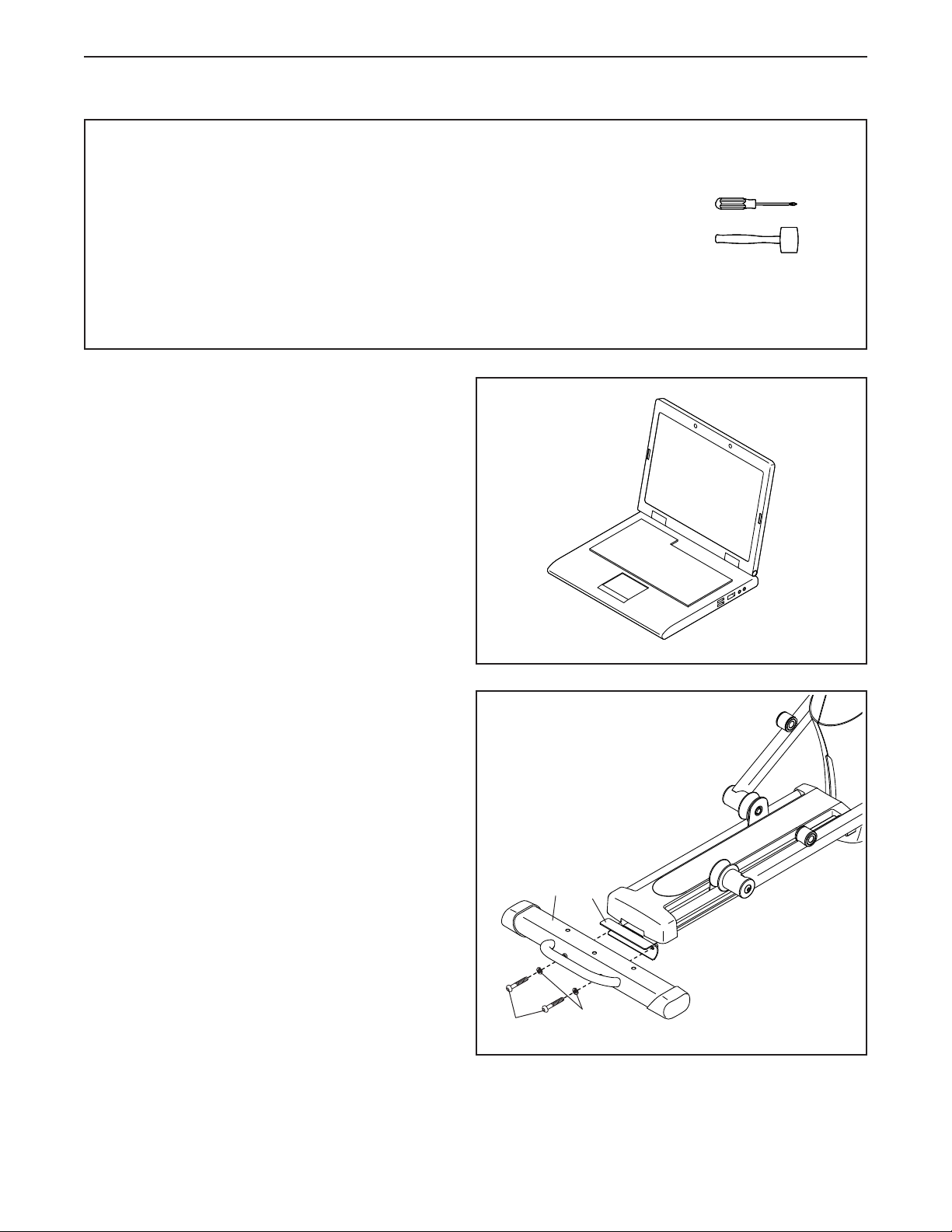

2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
Attach the Rear Stabilizer (2) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Then, remove the packing materials from under
the rear of the Frame (1).
2
1
2
104 105
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Service (see the front cover of this
manual) and register your product.

7
3
2
106
15
3. Press the Cover Mounts (106) on the underside
of the Rear Stabilizer Cover (15) into the Rear
Stabilizer (2).
4

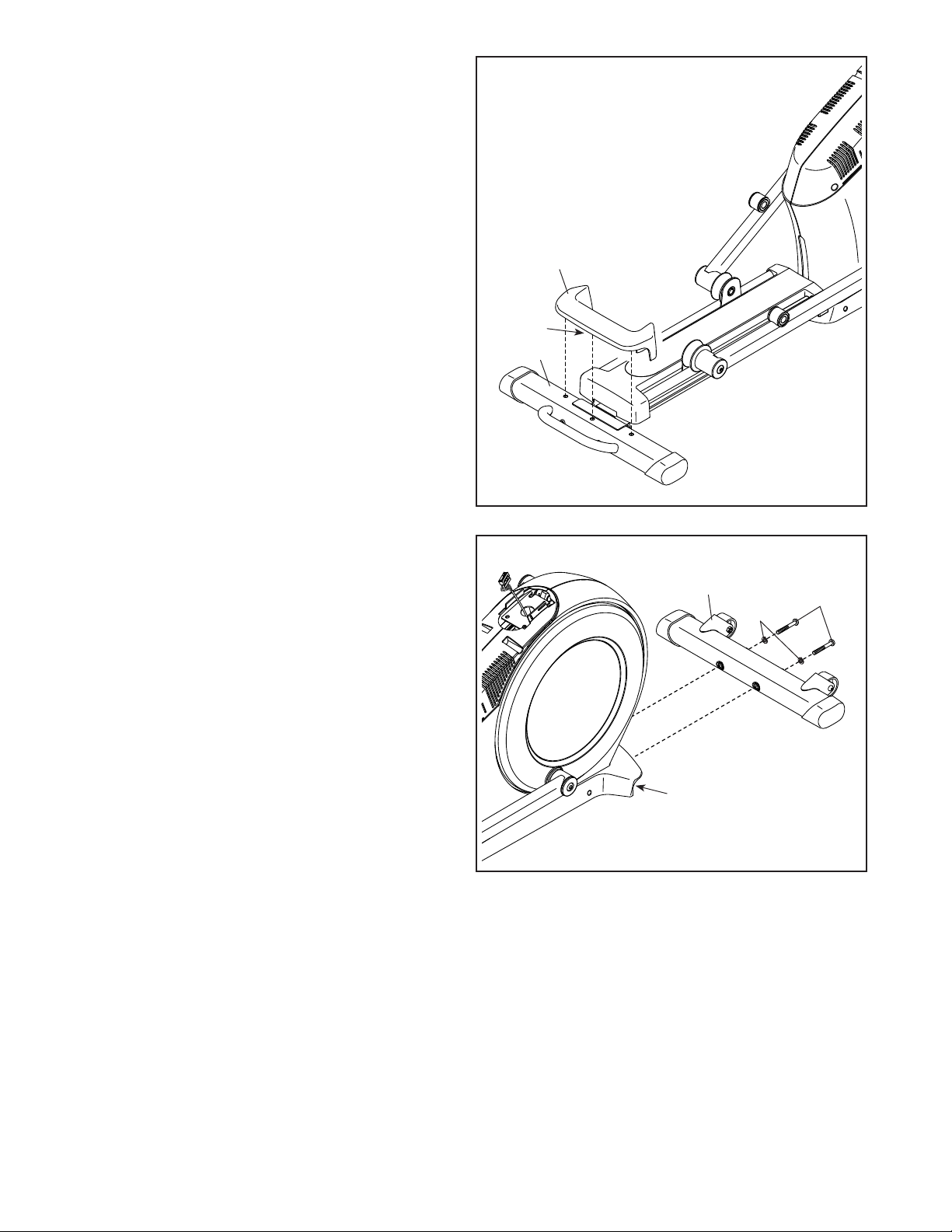

4. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (6) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Then, remove the packing materials from under
the front of the Frame (1).
1
6104
105

8
5

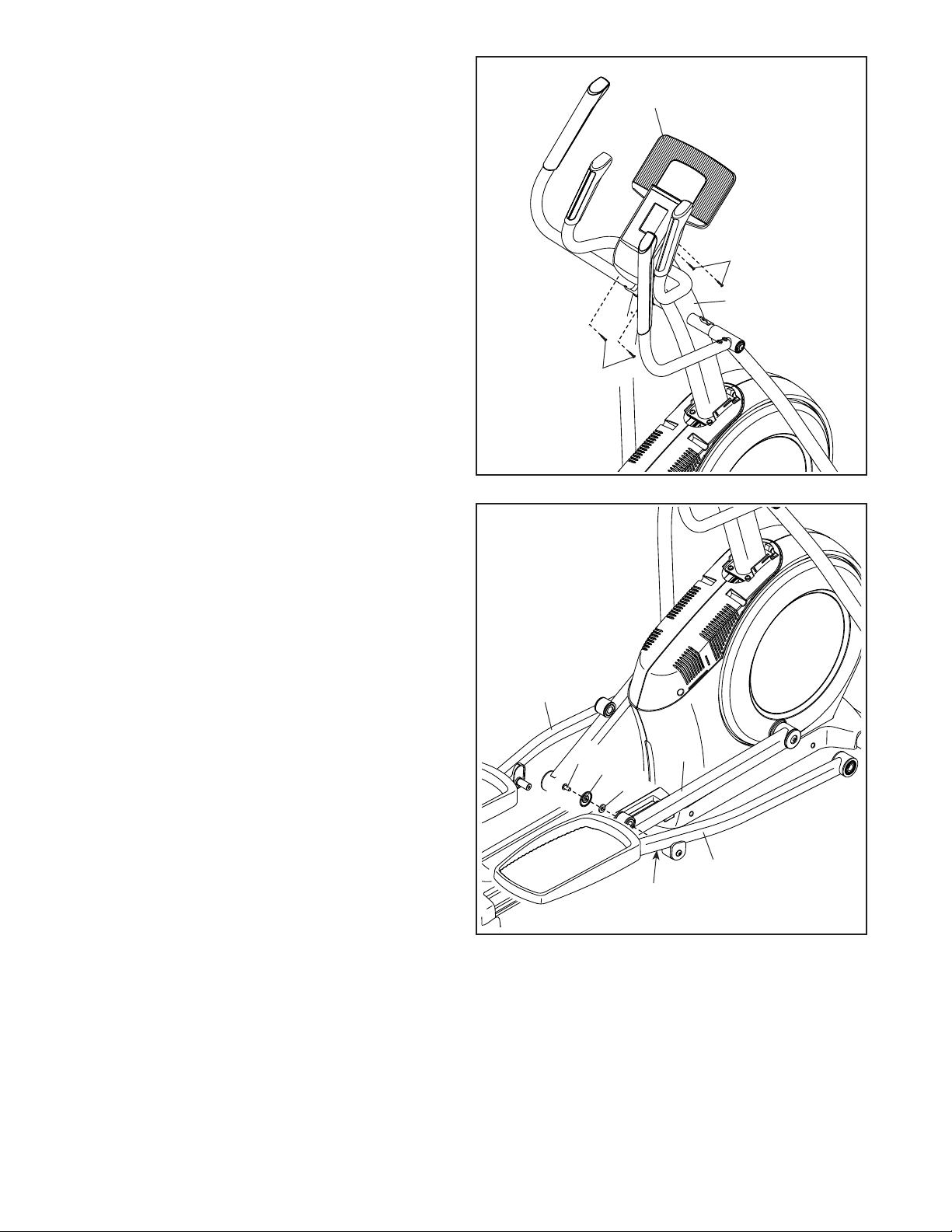

5. Orient the Upright (4) as shown. Have a second
person hold the Upright near the Frame (1).
See the inset drawing. Locate the wire tie (A)
in the lower end of the Upright (4). Tie the wire
tie to the Main Wire (48). Then, pull the upper
end of the wire tie until the Main Wire is routed
through the Upright.
Tip: To prevent the Main Wire (48) from fall-
ing into the Upright (4), secure the Main Wire
with the wire tie (A).
1
4
48
A
A
48
6
6. Tip: Avoid pinching the Main Wire (48). Avoid
damaging the indicated plastic tabs (B). Set
the Upright (4) on the Frame (1).
Attach the Upright (4) with four M10 x 25mm
Screws (92) and four M10 Split Washers (105);
start all the Screws, and then tighten them.
Avoid pinching the Main
Wire (48) and avoid
damaging the tabs (B)
B
4
1
105
105
92
92
48

9
7
7. Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35) and to two 16mm Wave Washers (54).
Insert the Pivot Axle (35) through the Upright (4)
and center it. Tip: It may be helpful to use a
rubber mallet.
Identify the Right Upper Body Leg (60) and ori-
ent it as shown.
Slide a 16mm Wave Washer (54) and the Right
Upper Body Leg (60) onto the right side of the
Pivot Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
Tighten an M8 x 13mm Screw (82) and an M8
Washer (97) into each end of the Pivot Axle (35)
at the same time.
60
54
46
82
97
35
4
Grease
8

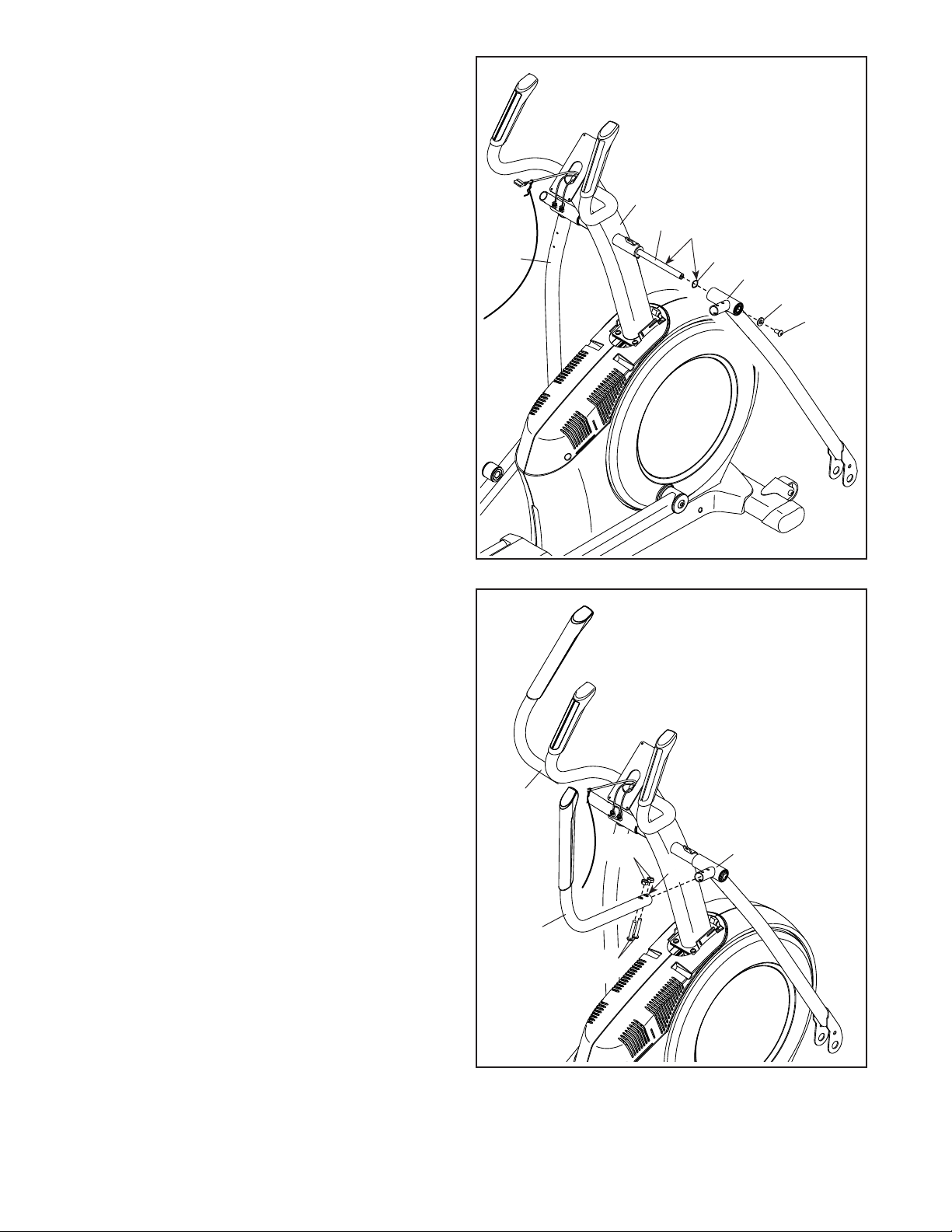

8. Identify the Right Upper Body Arm (61) and ori-
ent it as shown.
Slide the Right Upper Body Arm (61) onto the
Right Upper Body Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 38mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes (C).
Repeat this step for the Left Upper Body
Arm (47).
60
61
47
96
102 C

10
10
7
4
63
48
10. Untie and discard the wire tie on the Main
Wire (48).
While a second person holds the Console (7)
near the Upright (4), plug the Main Wire (48) and
the Pulse Sensor Wires (63) into the matching
receptacles on the back of the Console.
The connectors on the Main Wire (48) and the
Pulse Sensor Wires (63) should slide easily
into the receptacles and snap into place. If a
connector does not slide easily into a receptacle,
turn the connector and try again. If you do not
connect the connectors properly, the console
may become damaged.
Insert the excess wire into the Upright (4) or into
the Console (7).
9
9. The Console (7) requires four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components.
Remove the screws and the battery cover from
the back of the Console (7), insert batteries into
the battery compartment, and then reattach the
battery cover. Make sure to orient the batteries
as shown by the diagrams inside the battery
compartment.
To purchase an optional power adapter, call
the telephone number on the cover of this
manual. To avoid damaging the Console (7),
use only a manufacturer-supplied regulated
power adapter. Plug one end of the power
adapter into the receptacle inside the battery
compartment on the Console and route the
power adapter through the notch in the bat-
tery cover; plug the other end into an outlet
installed in accordance with all local codes and
ordinances.
Battery
Cover
7

11
12
12. Orient the Right Pedal Arm (58) as shown.
Apply grease to the axle on the Right Pedal
Arm (58).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 14mm Shoulder
Screw (9), a Small Axle Cover (55), and an M8
Washer (97).
Repeat this step for the Left Pedal Arm (44).
Grease
55
58
59
44
97
9
11
Avoid pinching
the wires
7
11. Tip: Avoid pinching the wires. Attach
the Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
101
101
4

12
14
14. Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101); start all
the Screws, and then tighten them.
Next, orient the Front Upright Cover (12) as
shown.
Attach the Front Upright Cover (12) around the
Upright (4) by pressing the hooks on the Rear
Upright Cover (81) onto the tabs on the Front
Upright Cover.
101
81
12
4
82
82
97
97
77
60
46
64
13. Apply a small amount of grease to one of the
Pedal Arm Axles (64).
Next, slide an M8 Washer (97) and an Axle
Spacer (77) onto an M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64).
While a second person holds the front end of the
Right Pedal Arm (58) inside the bracket on the
Right Upper Body Leg (60), insert the Pedal Arm
Axle (64) into both parts.
Slide an M8 Washer (97) and an Axle Spacer
(77) onto another M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64). Then, tighten both Screws at the
same time.
Repeat this step on the other side of the
elliptical.
Grease
58
77
13

13
16. Identify the Right Leg Inner Cover (83) and orient
it as shown.
Attach the Right Leg Inner Cover (83) to the
Right Upper Body Leg (60) with an M4 x 16mm
Screw (101) and an M5 Washer (32).
Next, identify the Right Leg Outer Cover (69)
and orient it as shown.
Attach the Right Leg Outer Cover (69) around
the Right Upper Body Leg (60) by pressing the
hooks on the Right Leg Inner Cover (83) onto
the tabs on the Right Upper Leg Outer Cover.
Repeat this step on the other side of the
elliptical.
60
83 32 101 69
16
15
15. Identify the Right Arm Front Cover (65) and ori-
ent it as shown.
Attach the Right Arm Front Cover (65) to the
Right Upper Body Leg (60) with two M4 x 16mm
Screws (101).
Next, identify the Right Arm Rear Cover (66) and
orient it as shown.
Attach the Right Arm Rear Cover (66) around
the Right Upper Body Leg (60) by pressing the
hooks on the Right Arm Rear Cover onto the
tabs on the Right Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
65
60
101
66

14
18
18. Orient the Rear Console Cover (80) as shown.
Attach the Rear Console Cover (80) to the
Upright (4) with two M4 x 16mm Screws (101).
Next, orient the Front Console Cover (79) as
shown.
Attach the Front Console Cover (79) around the
Upright (4) by pressing the hooks on the Rear
Console Cover (80) onto the tabs on the Front
Console Cover.
79
4
80
101
17
75
11
73, 74

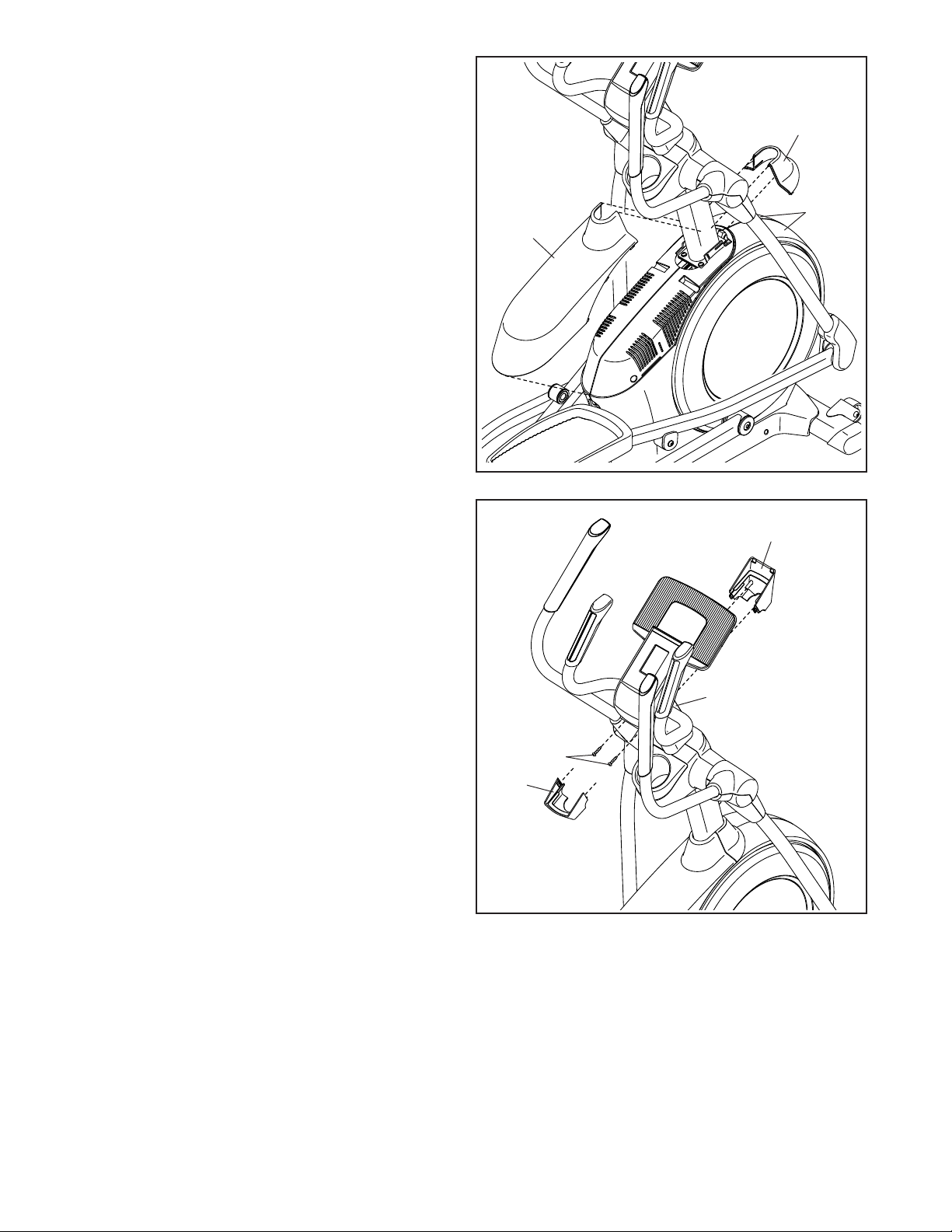

17. Orient the Shield Cover Cap (11) and the Shield
Cover (75) as shown.
First, press the tabs on the Shield Cover Cap
(11) into the Left and Right Shields (73, 74).
Then, press the tabs on the Shield Cover (75)
into the Left and Right Shields (73, 74).
19. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.

15
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
wheels. Pull on the upright and have a second person
lift the handle until the elliptical will roll on the wheels.
Carefully move the elliptical to the desired location, and
then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your
floor during use,
turn one or both
of the leveling feet
beneath the rear of
the frame until the
rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder is designed for use
with most full-size tablets. Do not place any other
electronic device or object into the tablet holder.
To insert a tablet into
the tablet holder, set
the bottom edge of the
tablet in the tray. Make
sure that the tablet is
firmly secured in the
tablet holder. Reverse
these actions to
remove the tablet from
the tablet holder.
Pull on the
upright
Place
your foot
here
Lift
here
Leveling
Feet
HOW TO USE THE ELLIPTICAL

16
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars or the
upper body arms and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The pedals can turn in either direc-
tion. It is recommended that you turn the pedals
in the direction shown by the arrow; however, for
variety, you can turn the pedals in the opposite
direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Handlebars
Upper
Body Arms
Pedals

17

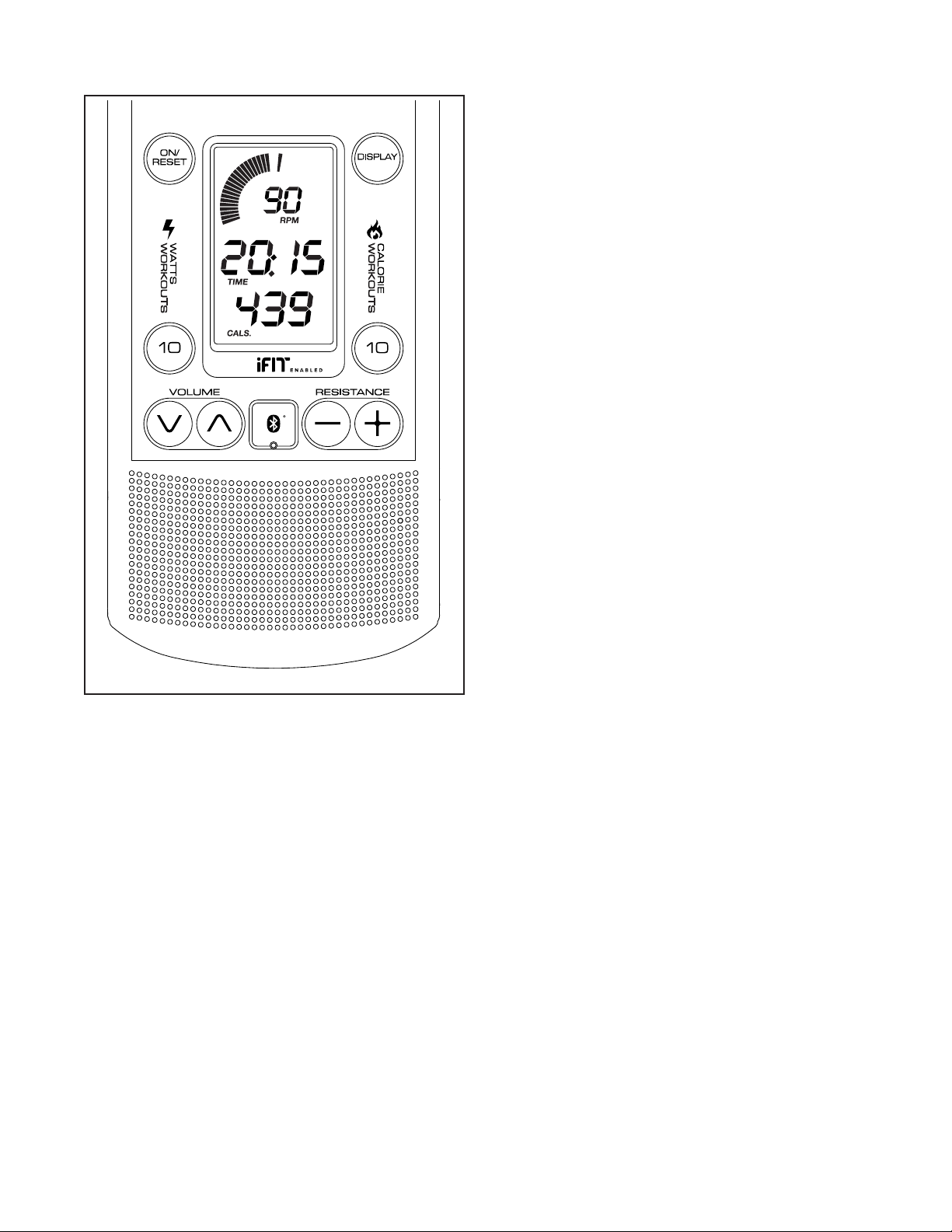

CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor
or a compatible heart rate monitor. See page 21 for
information about purchasing an optional chest
heart rate monitor.
You can also connect your tablet to the console and
use the iFit®Bluetooth Tablet app to record and track
your workout information.
The console also offers a selection of preset workouts.
Each workout automatically changes the resistance
of the pedals and prompts you to vary your pedaling
speed while guiding you through an effective workout.
You can even connect your personal audio player to
the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 18. To use
the sound system, see page 19. To use a preset
workout, see page 20. To connect your tablet to
the console, see page 21. To connect your heart
rate monitor to the console, see page 22. To use
the settings mode, see page 22.
Note: Before using the console, make sure that
batteries are installed (see assembly step 9 on page
10). If there is a sheet of plastic on the display,
remove the plastic.
Audi
ELPE49716
PFEVEL49716

18
HOW TO USE THE MANUAL MODE
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the displays will turn
on, a tone will sound, and the console will be ready
for use.
2. Select the manual mode.
When you turn on the con-
sole, the manual mode will
be selected automatically.
If you have selected a
workout, reselect the manual
mode by pressing the On/
Reset button.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease
buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress with the displays.
The speed meter—This
display will provide a visual
representation of your pedal-
ing speed. As you increase
or decrease your pedaling
speed, bars will appear or
disappear in the speed meter.
Note: During a preset workout, this display will
show a target speed zone for each segment of the
workout.
The upper display—This
display will show your pedal-
ing speed in revolutions
per minute (RPM) and your
power output in watts. The
display will change every few
seconds.
This display will also show the resistance level
of the pedals for a few seconds each time the
resistance level changes.
This display will also show
your heart rate (BPM) when
you use the handgrip heart
rate monitor or a compat-
ible heart rate monitor (see
step 5).
The center display—This
display will show the distance
(Dist.) you have pedaled in
miles or kilometers and the
elapsed time. The display will
change every few seconds.
Note: During a preset workout, the display will
show the time remaining in the workout instead of
the elapsed time.
The lower display—This
display will show your
pedaling speed in miles per
hour or kilometers per hour
and the approximate num-
ber of calories (Cals.) you
have burned. The display will change every few
seconds.
To select an information mode for continuous
display, press the Display button repeatedly until
the desired information is shown in the display.
To return to alternating the information that is
shown in the displays, press the Display button
repeatedly until the word SCAN appears in the
center display.
Change the volume level
of the console by pressing
the Volume increase and
decrease buttons.

19
To pause the console, stop pedaling. When the
console is paused, the displays will pause. To
continue your workout, simply resume pedaling.
To reset the displays to zero, press the On/Reset
button.
Note: The console can show pedaling speed and
distance in either miles or kilometers. To change
the unit of measurement, see THE SETTINGS
MODE on page 22.
5. Measure your heart rate if desired.
You can measure your heart rate using either
the handgrip heart rate monitor or a compatible
heart rate monitor. For information about pur-
chasing an optional chest heart rate monitor,
see page 21.
The console is compatible with all BLUETOOTH®
Smart heart rate monitors. To connect your heart
rate monitor to the console, see page 22.
Note: If you use both heart rate monitors at the
same time, the BLUETOOTH Smart heart rate
monitor will have priority.
If there are sheets of
plastic on the metal
contacts on the hand-
grip heart rate monitor,
remove the plastic. In
addition, make sure
that your hands are
clean. To measure
your heart rate, hold
the handgrip heart rate
monitor with your palms
resting against the contacts. Avoid moving your
hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will be
shown in the upper display. For the most accurate
heart rate reading, hold the contacts for at least
15 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
contacts tightly. For optimal performance, clean
the contacts using a soft cloth; never use alcohol,
abrasives, or chemicals to clean the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and displays will pause.
If the pedals do not move for several minutes, the
console will turn off and the displays will be reset.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on
your personal audio player.
Adjust the volume level using the
volume increase and decrease
buttons on the console or the
volume control on your personal audio player.
Contacts

20
HOW TO USE A PRESET WORKOUT
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the displays will turn
on, a tone will sound, and the console will be ready
for use.
2. Select a preset workout.
To select a preset workout, press the Watts
Workouts or Calorie Workouts button repeatedly
until the number of the desired workout appears in
the lower display. The duration of the workout will
appear in the center display.
3. Start the workout.
Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level and one target speed are
programmed for each segment. Note: The same
resistance level and/or target speed may be pro-
grammed for consecutive segments.
At the end of each segment of the workout, a
series of tones will sound. The resistance level for
the next segment will appear in the upper display
for a few seconds to alert you. The resistance of
the pedals will then change.
The speed meter will
show two flashing bars
that represent the target
speed zone for the seg-
ment; the target speed
zone includes a range of
speeds that are within a
few RPMs of the target
speed for the segment. The solid bars represent
your actual pedaling speed.
As you exercise, keep your pedaling speed within
the target speed zone for the current segment by
increasing or decreasing your pedaling speed or
by increasing or decreasing the resistance of the
pedals.
IMPORTANT: The target speed is intended only
to provide motivation. Make sure to pedal at a
speed and a resistance level that is comfortable
for you.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
If you stop pedaling for several seconds, a series of
tones will sound and the workout will pause.
To restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the workout ends.
4. Follow your progress with the displays.
See step 4 on page 18.
5. Measure your heart rate if desired.
See step 5 on page 19.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 19.
Target
Speed
Zone
