01 INTRODUCTION
01.1 Using this manual 04
01.2 Technical data sheet 06
02 INSTALLATION
02.1 Transport and unpacking 12
02.2 Anchorage points 13
02.3 Connection to the mains power supply 14
02.4 Stretcher’s launch 15
03 OPERATION
03.1 Commands of the stretcher PC-750 17
03.2 Commands of the stretcher PC-751 18
03.3 Commands of the stretcher PC-755 19
03.4 Commands of the support PB-720 20
03.5 Commands of the support PB-725 21
03.6 Elements of the strethcer system PC-750 / PC-751 / PC-755 22
03.7 Elements of the support system PB-720 / PB-725 23
03.8 Loading and unloading operation 24
03.9 Control panel 25
03.10 Breakdowns 26
03.11 Troubleshooter 27
04 MOUNTING AND COMPONENTS
04.1 Main exploded view of stretcher PC-750 / PC-751 / PC-755 29
04.2 Exploded view of lower ensamble PC-750 / PC-751 / PC-755 30
04.3 Exploded view of third locking point PC-750 / PC-751 / PC-755 32
04.4 Exploded view of upper ensamble PC-750 34
04.5 Exploded view of upper ensamble PC-751 36
04.6 Exploded view of upper ensamble PC-755 38
04.7 Exploded view of stretcher bed PC-750 / PC-751 40
04.8 Exploded view of batteries cabinet PC-750 / PC-751 / PC-755 42
04.9 Exploded view of handrail PC-750 / PC-751 44
04.10 Exploded view of telescopic frame PC-751 46
04.11 Main exploded of support PB-720 / PB-725 49
04.12 Exploded view of removable rail PB-720 / PB-725 50
04.13 Exploded view of x rail PB-720 52
04.14 Exploded view of platform PB-720 54
04.15 Exploded view of supplement PB-720 56
04.16 Exploded view of x rail PB-725 58
04.17 Exploded view of platform PB-725 60
04.18 Exploded view of screwed plate PB-720 / PB-725 62
04.19 Exploded view of third locking point PB-720 / PB-725 64
05 ELECTRICAL CIRCUIT DIAGRAM
05.1 Printed circuit board 66
05.2 Electrical wiring diagram 67
06 GENERAL MAINTENANCE 71
07 LEGAL NOTICES 72
08 PRODUCT WARRANTY 73
INDEX
MODEL PC-750
STANDARD STRETCHER
MODEL PC-755
INCUBATOR STRETCHER
MODEL PB-720
SUPPORT WITH CABINET FOR
SCOOP STRETCHER
MODEL PB-725
SUPPORT WITHOUT CABINET
FOR SCOOP STRETCHER
MODEL PC-751
ENGLAND STRETCHER

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
4
01.1 Using of manual
The manual provides using and maintenance instructions of the product, as well as the way of xing minor
faults that could appear.
It is recommended before the operation of the product to read carefully this manual in order to avoid da-
mages caused by a misuse.
Do not lose this document, it should be accessible to any doubt that could appear by medical personnel.
Remember that a good use and maintenance are necessary for the proper operation of the product.
Each product incorporates an identication sticker with the serial number and the model. Keep these num-
bers so that they can be indicated to the dealer if necessary.
01 INTRODUCTION
01.2 Serving request
For information of the correct interpretation of the instruction manual, the use, maintenance, installation
and restoration of the product, please contact Promeba customer service T. 93 837 12 00, Fax [phone],
email [email protected]om or write to PROMEBA, S.L. - Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) ·
SPAIN.
WARNINGS FOR THE CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTI-
VE 2012/19/EU WEEE:
At the end of his life, the product must not be disposed as household waste. Can be taken to special
recycling centers provided by local government, or return it to the dealer on purchase of a new
device of the same type and used for the same functions. Dispose of the product separately avoids
possible negative consequences for the environment and human health resulting from inappro-
priate disposal and allows to recover the materials in order to obtain signicant savings in energy
and resources. The symbol on the label indicates separate collection of electrical and electronic
equipment.
Warning: One incorrect disposal of electrical and electronic equipment could result in sanctions.
01.3 Demolition
When the devices are no longer suitable for use, if they have not been contaminated by any particular
agent, they can be disposed of as normal solid waste, otherwise, follow the current demolition regulations.

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
5
01.4 Legend of Symbols
SYMBOL EXPLANATION / DESCRIPTION
MANUFACTURER symbol. This symbol is accompanied by the name and address of the manufac-
turer, adjacent to the symbol (PRODUCTOS METÁLICOS DEL BAGÉS S.L., Ctra. C-16 Km 59.5, 08650
Sallent (Barcelona)).
Indicates the manufacturer’s catalog number to identify the medical device. The synonyms for “ca-
talog number” are “reference number” and “order number”. PROMEBA, S.L. uses this symbol to set
each internal reference for each conguration and business variant.
Indicates the manufacturer’s serial number to identify a specic medical device.
Indicates the manufacturing date. The symbol must be accompanied by a manufacturing date
(yyyy-mm), adjacent to the symbol.
This symbol is not harmonized for medical devices. It is placed to inform that the product is a “Me-
dical Device”. Considering this symbol as not harmonized, the direct message / translation is also
included to inform and identify the product as a“Medical Device”(see Labeling and IFU Illustrations)
CE symbol without the intervention of a Notied Organism, as a Medical Device classied as Class I
according to the EU Regulation 2017/745 on Medical Devices.
This symbol is not harmonized for the Unique Device Identier.
Symbol“See instructions for use or operating instructions”. This symbol is placed to report IFUs insi-
de product boxes when the IFU brochure is included in the business presentation.
Symbol “caution”. This symbol is placed to alert the user to the need for important precautionary
information in IFUs, such as warnings and cautions not otherwise found on the label.
Waste symbol for electrical and electronic equipment“WEEE” (Waste Electrical and Electronic Equi-
pment). Recycle: Electronic equipment. DO NOT THROW GARBAGE
“Dangerous voltage”symbol. To warn of electricity.
Symbol“Caution”. For a general warning.
“Double insulation” symbol. The protection of appliances marked with this symbol is ensured by
double insulation and does not require a safety electrical connection to earth (ground).
Cot duty cycle: 16.7% (less than 60 seconds on, more than 300 seconds o)
Warning; crushing of hands
01 INTRODUCTION

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
6
01.2 Technical data sheet
MEASUREMENTS AND FEATURES // PC-750 STANDARD STRETCHER
LENGHT 2000 mm OPERATOR REQUIRED 1
WIDTH 590 mm LOAD HEIGHT 1095 mm
HEIGHT MIN/MAX 420-1300 mm MAX. LOAD 300 Kg
WEIGHT 72 Kg POWER SUPPLY 12 V. CC.
INCLINATION OF THE BACK 75º USING UP POWER 48A
FOWLER 17º LOADING TIME 120 min
TRENDELEMBURG 30º OP. TEMPERATURE -20º/+40º
01 INTRODUCTION
IP-54
2000
1095
657
460
1900
590
235
1300
420

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
7
MEASUREMENTS AND FEATURES // PC-751 ENGLAND STRETCHER
LENGHT 2150 mm OPERATOR REQUIRED 1
WIDTH 590 mm LOAD HEIGHT 1095 mm
HEIGHT MIN/MAX 420-1300 mm MAX. LOAD 300 Kg
HEICHT MIN/MAX HANDLES 860-1740 mm POWER SUPPLY 12 V. CC.
WEIGHT 75 Kg USING UP POWER 48A
INCLINATION OF THE BACK 75º LOADING TIME 120 min
FOWLER 17º OP. TEMPERATURE -20º/+40º
TRENDELEMBURG 30º
01 INTRODUCTION
IP-54
2150
1095
1740
810
590
1900
460
230
860
420
1300

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
8
MEASUREMENTS AND FEATURES // PC-755 INCUBATOR STRETCHER
LENGHT 2000 mm MAX. LOAD 300 Kg
WIDTH 575 mm POWER SUPPLY 12 V. CC.
HEIGHT MIN/MAX 390-1270 mm USING UP POWER 48A
WEIGHT 65 Kg LOADING TIME 120 min
OPERATOR REQUIRED 1 OP. TEMPERATURE -20º/+40º
LOAD HEIGHT 1095 mm
01 INTRODUCTION
IP-54
575
690
1095
2000
1765
525
235
1270
390

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
9
MEASUREMENTS AND FEATURES // PB-720 SUPPORT WITH CABINET
LENGHT 2080 mm WEIGHT 120 Kg.
WIDHT 600 mm MAX. LOAD 300 Kg.
FRONT MOVEMENT 1640mm OP. TEMPERATURE -20º / 40º C
SIDE MOVEMENT 300 mm OPERATOR REQUIRED 1
01 INTRODUCTION
IP-54
600
470
1340
2010
2080

MANUAL DE INSTRUCCIONES // CAMILLA PC-750 + RAÍL PB-720
Revisión 07/20
10
MEASUREMENTS AND FEATURES// PB-725 SUPPORT WITHOUT CAB.
LENGHT 2045 mm WEIGHT 80 Kg.
WIDHT 600 mm MAX. LOAD 300 Kg.
FRONT MOVEMENT 1640mm OP. TEMPERATURE -20º / 40º C
SIDE MOVEMENT 300 mm OPERATOR REQUIRED 1
01 INTRODUCTION
IP-54
600
370
1340
1975
2045

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
12
02 INSTALLATION
02.1 Transport and unpacking
First carefully remove the packaging to prevent the da-
mage of the product. Take the wooden cover away and
use a crane to move vertically.
1. Transport with a crane (high load)
· Thread tapes through the upper platform for its trans-
port (as shown in graphs).
· Transport the load level following all the precepts and
regulations for the transport of suspended loads.
2. Transport with a forklift
· Place a pallet or a at surface under the stretcher su-
pport and transport it transversely.
· Do not load the stretcher support directly on the fork-
lift without a pallet or at support surface.
· Do not load the support stretcher longitudinally on
the forklift if a suciently long base is not available.
· Every set has been throughly inspected leaving the
factory. To ensure that it has not been damaged during
the transport, it is requested to carefully examine the
interior and exterior, and in case of nding any dama-
ge, communicate immediately to the installer.
· The stretcher and support set should be levelled for an
optimum performance.
TRANSPORT WITH A CRANE
FIX THE TAPES TO LEVEL THE LOAD WEIGHT
TRANSPORT WITH A FORKLIFT
USE ALWAYS A FLAT SUPPORT SURFACE

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
13
02 INSTALLATION
02.2 Anchorage points
Before putting the stretcher support into operation, ensure that each and every anchorage points are pla-
ced and clasped.
ANCHORE FOR PB-720 · PB-725
(8 anchorage points)
LIMIT AMBULANCE FLOOR
LIMIT AMBULANCE WALL
441mm
MAX.
185
FREE ZONE ON THE FLOOR
180mm
MIN.
USE SCREWS DIN-7991 - M12 - 10.9
102 1274 102
159
2042
256
592
12,5 (X8)
IMPORTANT FOR INSTALLATION
- Screws to be attached on the oor should be M12 according to norm DIN-7991 (8 units)
- Before drilling the ambulance oor, verify that the lateral movement of the stretcher su-
pport is placed at 0 position
- Install it upon the limits indicated on the drawing and make sure to x the set on the rein-
forced chassis are
- The electric installation of the set must be completed with the electrical system of the
ambulance disconnected

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
14
02 INSTALLATION
02.3 Connection to the mains power supply PB-720 / PB-725
To make the connection follow the steps below.
Be particularly careful when the connecting the stretcher support to the required voltage of 12V and do not
leave cables in passageways and or moving elements. It can provoke breakages, cuts and system failures.
Current cable 12V. CC.
Remove the plastic end of the BROWN
(+) y BLUE (-) cables with a thread pee-
ler to make the connection.
Use a power strip and a athead srew-
driver to connect the BROWN (+) y
BLUE (-) wires together with the outlet
of the ambulance.
To make the connection locate the black cable placed on the front side of the
support stretcher.
MAKE SURE YOU HAVE THE POWER LINE PROPERLY PROTECTED AND ENSURE THE POWER
ALONG THE LINE IS STABLE.
A
Power cord 12V. CC.
B C

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
15
02 INSTALLATION
02.4 Stretcher’s launch PC-750 / PC-751 / PC-755
In order to start to use the electric stretcher, it is necessary to charge the batteries. For that, locate the box in
the back of the stretcher according to the photo (A) and open the frontal cover by the lock.
Pull two batteries out and pressuring the trigger in the frontal of the bases of the anchor as it is shown at
photo (B), move the battery to the left and remove it.
Straightaway charge to the maximum the two batteries with their PROMEBA’s charger supplied. (APPROXI-
MATELY 30 MIN. ARE ENOUGH)
External charger for PROMEBA’s batteries. High-performance battery for PROMEBA’s stretcher.
CHARGE ONLY THE BATTERIES OF THE STRETCHER WITH THE CHARGER SUPPLIED BY PRO-
MEBA, OTHERWISE THE BATTERIES COULD BE DAMAGED AND LOSE THEIR GUARANTEE.
A B

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
17

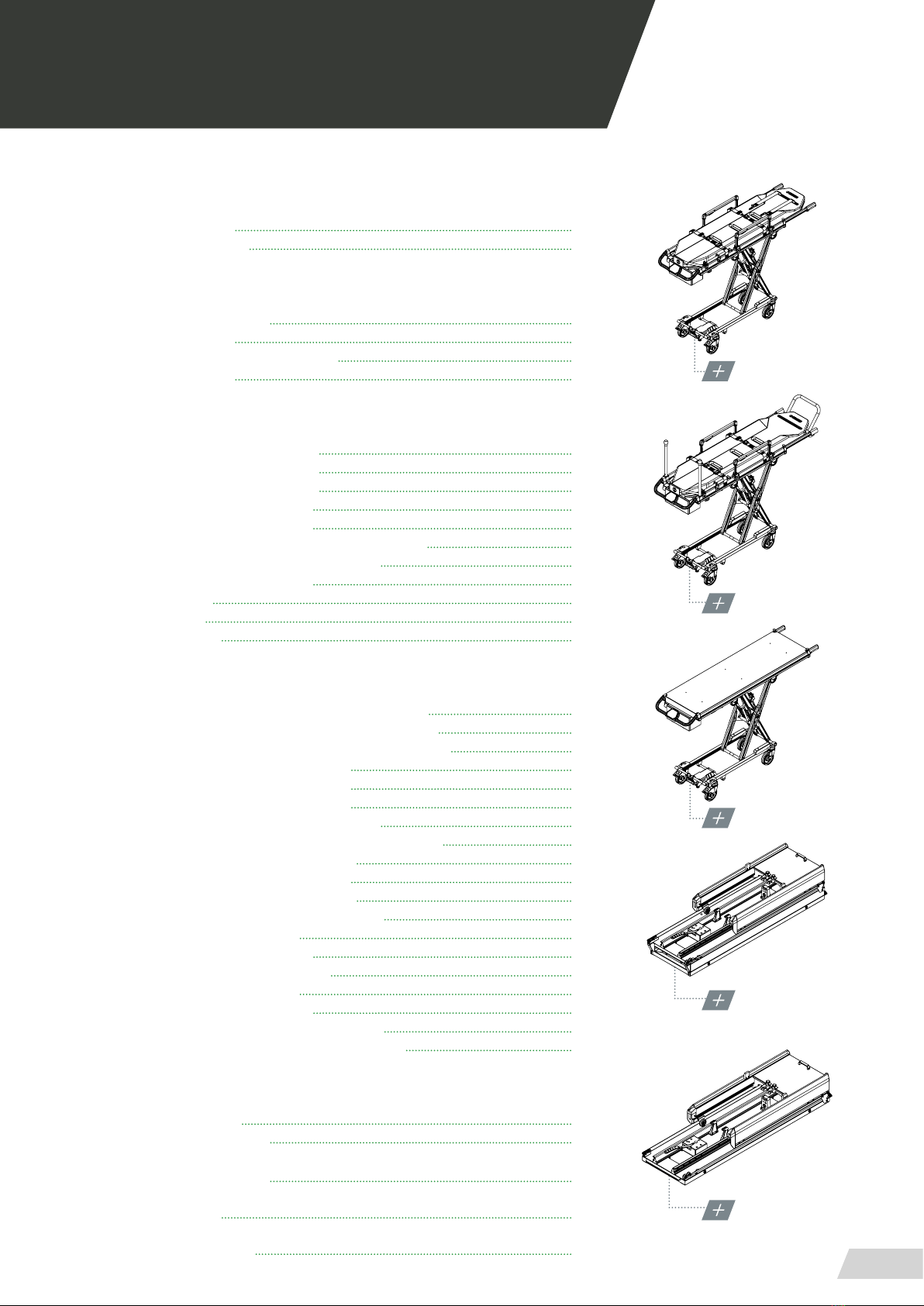

03.1 Commands of the STRETCHER PC-750
1. Foldable and reclining handrails
2. Retractable belts on the backrest
3. Touch control panel in the middle
4. Batteries cabinet with lock
5. Four lockable wheels
6. Telescopic frame for maneuvering
7. Bed with fowler and trendelemburg
8. Folding and adjustable IV pole
9. Powerful LED lighting on the sides
10. Emergency switch
11. Belts with front locking push botton
12. Automatic integrated charging system
03 OPERATION
71012
2
5
11
3
8
4
1
6
7
9
10
12

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
18
03 OPERATION
03.2 Commands of the ENGLAND STRETCHER PC-751
1. Foldable and reclining handrails
2. Retractable belts on the backrest
3. Touch control panel in the middle
4. Batteries cabinet with lock
5. Four lockable wheels
6. Telescopic frame for maneuvering
7. Bed with fowler and trendelemburg
8. Folding and adjustable IV pole
9. Powerful LED lighting on the sides
10. Emergency switch
11. Belts with front locking push botton
12. Automatic integrated charging system
13. High handles
61012
2
5
11
3
8
4
1
6
7
9
10
12
13

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
19
03 OPERATION
03.3 Commands of the INCUBATOR STRETCHER PC-755
1. Stainless steel tray for incubator
2. Touch control panel in the middle
3. Batteries cabinet with lock
4. Four lockable wheels
5. Telescopic frame for maneuvering
6. Powerful LED lighting on the sides
7. Emergency switch
8. Automatic integrated charging system
578
4
1
2
3
5
6
7
8

USER GUIDE // STRETCHER PC-750 + SUPPORT PB-720
Review 07/20
20
03.4 Commands of the SUPPORT PB-720
1. Pull-out lever for removable rail
2. Third point stretcher lock
3. Stretcher loading point
4. Stretcher central hooks
5. Push button to collect the removable rail
6. Ball bearing to support removable rail
7. Lever to collect the removable rail from inside of the ambulance
8. Side movement lever
9. Safety hooks to grip the stretcher
10. Scoop stretcher housing module
03 OPERATION
3
6
1
2
5
7
10
4
9
8
