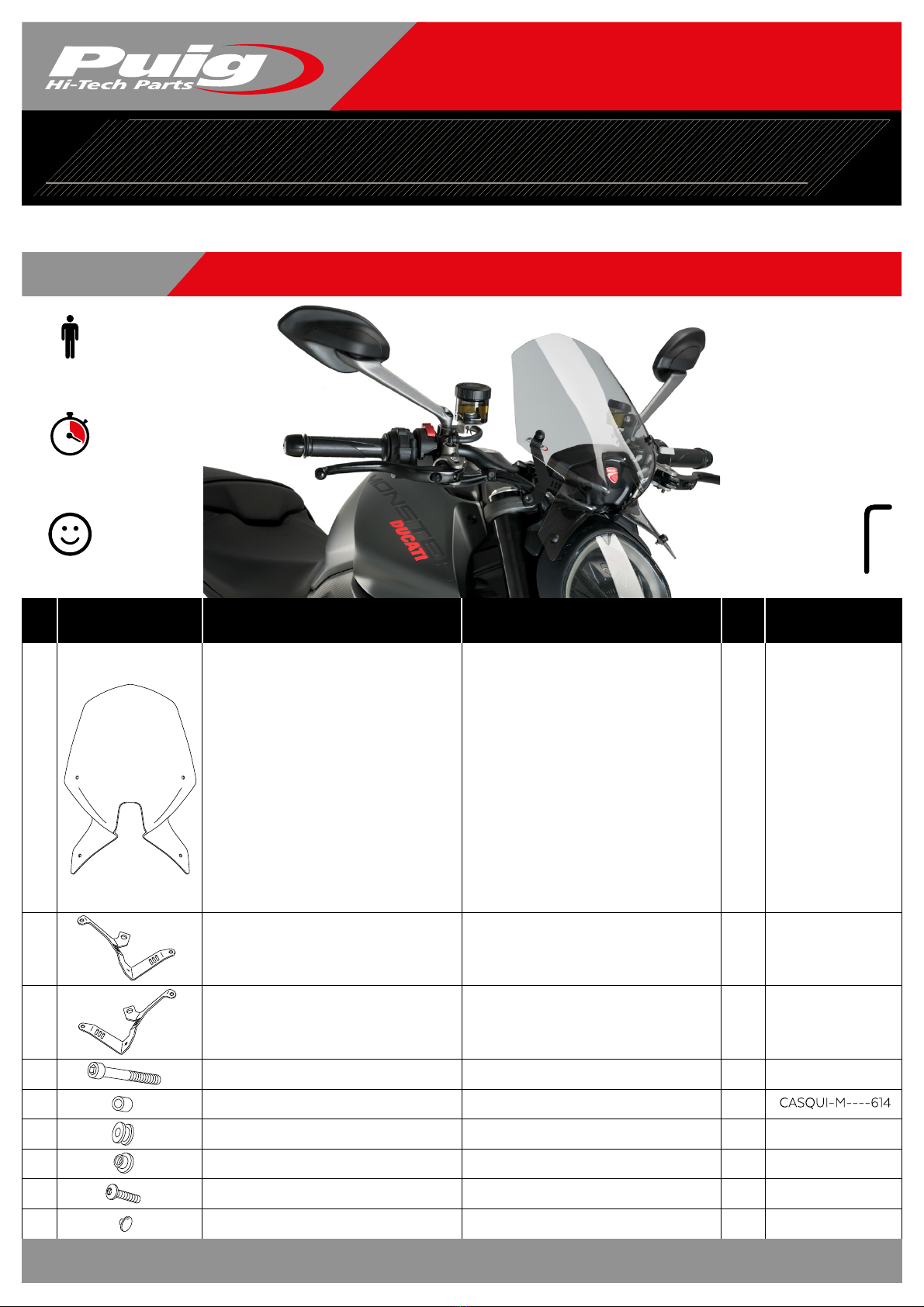

PUIG 20712 User manual

ID QTY REFPIEZA/PART DESCRIPCIÓN DESCRIPTION
www.puig.tv
www.puigusa.com
[e-mail]
[e-mail]
Pg. 1/2
20 min
ALLEN
Nº 2,3
Nº 2,6
DUCATI MONSTER 937 ‘21-
1 Person
EASY
9
5
4
7
6
8
3
2
1
4
2
2
4
4
4
1
1
1
TAPON--------85
TORNI-AD912-508
CASQUI-1A---750
AROPASACABLES-1
TORNI-I7380-493
SOPOR2P4-R20712
SOPOR2P4-L20712
20712F/H/W/N/R/CM3
Tapón tornillo M5 ISO 7380
Casquillo Ø13xØ8,5x15
Tornillo Allen M8x45 DIN912
Casquillo con valona Ø12xØ6,8x7,3
Silentblock Ø12 xØ6 x9mm
Tornillo Allen M5x16 Ø11 ISO 7380
Soporte derecho ( R )
Soporte izquierdo ( L )
Cúpula Sport
M5 ISO 7380 screw cap
Ø13xØ8,5x15 arrowhead
M8x45 DIN912 Allen screw
Ø12xØ6,8x7,3 bush with flange
Ø12 xØ6 x9mm silentblock
M5x16 Ø11 ISO 7380 Allen screw
Right support ( R )
Left support ( L )
Sport screen
MOUN T ING INSTRUCTION S
CARENABRÍS NG SPORT / WINDSHIELD NG SPORT
REF 2 0712
Illustrations and layout by: www.ciandisseny.com
*Algunos componentes se suministran montados.
Some components are supplied assembled.
V0.06/21

www.puig.tv
www.puigusa.com
[e-mail]
[e-mail]
INSTRUCCIONES DE M ONTAJE - MOUNTING INSTRUCTIONS - MONTAGEANLEITUN G
Pg. 2/2
DUCATI MONSTER 937 ‘21-
2
43
1
ASSEMBLY
MONTAJE
ASSEMBLY
MONTAJE
ASSEMBLY
MONTAJE
DISASSEMBLY
DESMONTAJE
Illustrations and layout by: www.ciandisseny.com
V0.06/21
67
1
1
99
88
88
99
4
23
4
5
5
NO EXTRAER LOS TORNILLOS A LA VEZ.
DO NOT REMOVE THE SCREWS AT THE SAME TIME.
NO EXTRAER LOS TORNILLOS A LA VEZ.
DO NOT REMOVE THE SCREWS AT THE SAME TIME.
Par de apriete - 20 Nm
Tightening torque - 20Nm
4
