Dear Customer,
Greetings on purchasing the PURE EPLUTO, India’s premium electric Scooter that is manufactured by PuREnergy Pvt Ltd.
Before you begin riding, please go through this manual to familiarize yourself with the mechanism and controls of the EPluto,
and with its proper care and maintenance to ensure a long trouble-free ride.
Keeping the batteries in good health is vital for the economy and reliability of the EPluto.
Enjoy the PURE ride!
COPYRIGHTS
© Copyright PuREnergy Pvt Ltd. All rights reserved.
This material provided by PuREnergy Pvt Ltd isthe property of PuREnergy Pvt Ltd and is protected bycopyright, trademark and other intellectual property
laws. You may view this material and print this material only for personal use, provided that you maintain all copyright, trademark and other proprietary
rights or notices. You may not otherwise use, reproduce, store, post, broadcast, transmit, modify, sell or make available to others or the public, content
from this material without the prior written approval of PuREnergy Pvt Ltd. Version March 2020
Address:
H.No: 10-38/2, Survey No-424/AA3, Beside Arya College
of Pharmacy, Near IIT Hyderabad, Kandi Village,
Telangana.
Website: www.pureev.in
Follow Us at: @pureevindia

PURE Electric Vehicle
PuR Energy Pvt Ltd
DISCLAIMER
PuREnergy Pvt Ltd, here in after called as PURE EV TM. In this publication the specifications, information,
illustrations used, and performance of the EPluto and other products manufactured by or sold under the
license granted by PURE EV is based on the latest information available at the time of printing. PURE EV
reserves the right to make changes at any time without prior notice. The use of this information or products
and the conditions under which the products are used are the sole responsibility of the buyer and/or the rider.
It is the buyer’s and/or rider’s responsibility to determine the correct and safe selection of settings and
conditions of use of the products and to periodically check the products for secure and proper operation. To
the extent that the law permits, any liability which may be incurred as a result of the use of a product
manufactured by or sold under license granted by PURE EV is limited to the cost of repairing or replacing the
failed product or component at the discretion of PURE EV either within or outside of warranty periods, and
does not extend to any loss or damage which may be caused as a consequence of misuse or failure of the
products. Damages to the product, other property or any persons are the responsibility of the buyer and/or
rider. By using this product manufactured by or sold under license granted by PURE EV, you are stating that
you have read this disclaimer and agree to hold PURE EV, its owner/s and any of its employees or Directors
free from all liabilities, that you agree you are using and operating the product at your own risk, and that no
warranties or guarantees are made by PURE EV, expressed or implied, on performance or operation.

PURE Electric Vehicle
PuR Energy Pvt Ltd
Contents
1About EPLUTO ......................................1
Specifications & Features.....................1
EPluto Kit.............................................1
Smart Lock...........................................5
2PURE Lithium Battery ...........................9
Critical..................................................9
Important............................................10
Battery Health Tips.............................11
3EPluto Charger....................................12
Quick Trouble Shooting................Error!
Bookmark not defined.
Charging your Li-ion Battery...............13
Precautions while charging the battery13
Steps to Charge the Battery Away from
the Vehicle.........................................15
Important Safety Information.............. 16
4Service Policy...................................... 17
5Warranty Policy: Scope of Warranty.. 18
6Mandatory Road Signs ....................... 22
7Trouble Shooting ................................ 23

PURE Electric Vehicle
PuR Energy Pvt Ltd |1
1 About EPLUTO
Specifications & Features
Alloy Rim
25 Kmph Top Speed
60 V Vector Looped Controller
Motor: 250 Watt
67.2V, 6 A Charger
1.8 KWh Patented High Performance PURE Lithium Battery
Comfortable Seat for 2 PAX
LED Display
Tyre - Front: 90/100-10, Rear: 3.00—10
Front Disc and Rear Drum Brakes
Twist Throttle
Active Balance BMS 35A
120 Kgs Load Capacity
69 Kgs Kerb Weight
Regenerative Braking
4 Hrs Charging Time
Portable Battery Pack
Smart Anti-Theft Locking
EPluto Kit
•EPluto Battery
•1 Owner’s Manual
•2 Keys and 2 Remotes
•1 First Aid Kit
•1 Tool Kit
•1 Charger
•(Optional) Other accessories: Side Guards, Helmet Lock, Foot Mat, Seat Cover, Mud Guard Flap

PURE Electric Vehicle
PuR Energy Pvt Ltd |2
1. Rear View Mirrors
2. Head Light
3. Left Brake Lever
4. Front Number Plate
5. Front Storage Box
6. Smart Keys
7. Front Luggage Hook
8. Side Stand
9. External Charging Port
10. Middle Stand
11. Ladies Footrest (Side Foot Rest)
12. Back Number Plate
13. Back Grip (Back Rail)
14. Boot Space Lock
15. LED Display
A. Battery
B. MCB Switch

PURE Electric Vehicle
PuR Energy Pvt Ltd |3
Left-Side Handle Controls
Right Side Handle Controls
1. Side Indicator Switch
1. Headlight / Back Light (Off/No) Switch
2. Horn Switch
2. Horn Switch
3. High / Low Beam Switch
3. Speed Mode Selection Switch
4. Rear Brake Lever
4. Parking Switch
5. Twist Throttle (Accelerator)
6. Front Brake Lever

PURE Electric Vehicle
PuR Energy Pvt Ltd |4
LED Display
Parking Mode On
PURE EV Has integrated additional safety feature of
parking mode. The vehicle remains in “Parking Mode”
when switched on with the metal key or smart key and the
LED status is as show in the figure to the left side. This
keeps the vehicle immobile and avoid any unintentional
acceleration unless the Parking button is pressed.
1. Speedometer
2. High Beam / Low Beam Indicator
3. Right Side Indicator
4. Error Indicators
5. Odometer
6. Speed Mode Indicator
7. Battery Level Indicator
8. Left Side Indicator

PURE Electric Vehicle
PuR Energy Pvt Ltd |5
Smart Lock Feel modish with the smart locking system for the EPluto. The device allows
you to ride your EPluto without any key and is loaded with anti-theft abilities.
The transponder that is built into the ignition key carries a unique
identification code. The vehicle unlocks when the code on the key matches
with the code of the receiver inside the vehicle.
1. Panic Button
2. Lock Button
3. LED Signal Indicator
4. Unlock Button
5. Ignition Button
6. Key Holder

PURE Electric Vehicle
PuR Energy Pvt Ltd |6
Features
Force Panic ON Operation and Automatic Activation of Immobilisation
If the vehicle is in running condition and the lock button is pressed, it overrides the key operation and turns
the vehicle off (immobilise) triggering an alarm until it is unlocked using the Smart Key.
Vehicle Search
If lock button of the ignition button is pressed the vehicle gives a sound output, also flashing its side indicators.
This helps in finding your vehicle in complex and big parking areas
Note:
•Do not attach any heavy or large objects to the Smart Key.
•Keep the Smart Key away from strong magnetic fields. Otherwise, the remote-control function
could be affected.
•The transmitter operation may face interference in case of the Smart Key being close to radio
transmitter such as radio stations.
•Don’t playfully operate Unlock button/ Ignition Button of remote in the vicinity of your vehicle,
as it could lead to an unintentional unlocking your vehicle.
•It is always advisable to carry the key and Smart Key together.

PURE Electric Vehicle
PuR Energy Pvt Ltd |7
Driving your PURE EPluto:
•Take EPluto off the side stand.
•Check for the recommended tyre pressure (30-35 psi) for smooth running.
•Sit on the EPluto and ensure the battery is charged.
•Turn on the Ignition key (Clockwise).
•Press the parking button on the right hand side (with “P” symbol).
•Slowly twist the throttle to get the EPluto moving.
•It is mandatory to use a safety helmet to ensure a safe ride.
•The vehicle should not be overloaded by putting on more load than recommended.
Do’s and Don’ts while riding:
•The power to the motor cuts when brakes are applied. Do not hold on to the brakes when you want
the EPluto to run.
•It is strongly advised to not apply sudden brakes on wet, sandy surfaces.
•Avoid sudden short braking for both self-safety as well as health of the brake lines.
•While going down a steep slope, do not accelerate.
•It is advisable to use both the brakes for smooth braking and better balancing.
•Although the motor is water resistant, it is advisable to avoid driving in waterlogged areas, especially
in exposure to electricity and electric components to avoid short-circuiting.
•Avoid frequent driving of the vehicle at very low battery condition.

PURE Electric Vehicle
PuR Energy Pvt Ltd |8
After Ride
•After ride, turn off the ignition and remove the keys. Ensure, switching off the vehicle using both remote
and key.
•It is advisable to use the center stand for vehicle to be kept stand still for longer duration.
•It is recommended to park the vehicle on flat surface
Important Riding Safety Advices
•Always use a full-face helmet with ISI Mark preferable bright coloured. Ensure the strap is tightened
on wearing.
•Avoid wearing loose fit clothes while driving
•It is advisable to wear eye protection gear
•Keep safe distance between yourself and the vehicle ahead.
•Avoid riding in zero visibility zones
•Avoid operating phones while driving
•It is strictly advised not to drive when under influence of Alcohol. (Avoid Drink and Driving)
** The vehicle is designed to carry 150 Kgs of load (Comfortable for 1 Rider and 1 Pillion Rider), avoid over
loading. ** The vehicle is designed to be used on the roads only.

PURE Electric Vehicle
PuR Energy Pvt Ltd |9

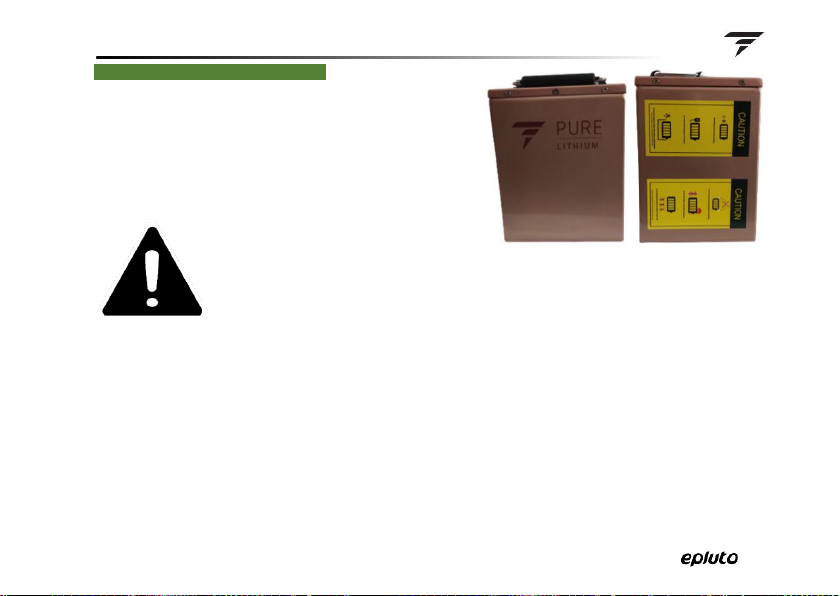

2 PURE Lithium Battery
PURE EPluto, with PURE Li-ion in-house battery
manufacturing and testing, is equipped with Active Battery
Management System (BMS), which protects the battery
from damages due to short-circuiting, over-charging, deep
discharging and high temperatures.
Critical Users should adhere to the below
safety precautions for the proper
functioning of the battery and avoiding any personal injury. Failure to comply with the
safety instructions can damage the inbuilt safety features and may lead the battery pack
to leak acid, overheat, emit smoke, burst and/or ignite.
•Do not disassemble or modify the battery pack.
•Do not connect the positive (+) and negative (–) terminals with a metal object such as a wire.
•Do not discard the battery pack into fire or heat it.
•Do not use or leave the battery pack near a heat source such as a fire or a heater (60°C or higher).
•Do not immerse the battery pack in water or seawater, and do not allow it to get wet.
•Do not recharge the battery pack near fire or in extremely hot weather.
•To recharge the battery pack, use the battery charger specifically designed for the purpose and
observe the recharging conditions specified by PURE EV.
•Do not pierce the battery pack with a nail or other sharp objects, strike it with a hammer, or step on it
•Do not strike or throw the battery pack.
•Do not use an apparently damaged or deformed battery pack.

PURE Electric Vehicle
PuR Energy Pvt Ltd |10
•Do not directly solder the battery pack.
•Do not reverse the positive (+) and negative (–) terminals. Do not connect the battery pack to an
electrical outlet, vehicle cigarette lighter, etc.
•Do not use the battery pack for a purpose other than those specified.
•If the battery pack leaks and the electrolyte gets into the eyes, do not rub them. Instead, rinse the eyes
with clean running water and immediately seek medical attention. Otherwise, eye injury may result.
Important
Users should follow the below general instructions for safe usage of the batteries. Failure to comply with the
safety instructions may lead the battery pack to leak acid, overheat, emit smoke, burst and/or ignite.
•Do not use the battery pack in combination with primary battery packs (such as dry-cell battery packs)
or battery packs of different capacities or brands.
•If the recharging operation fails to complete even when a specified recharging time has elapsed,
immediately stop further recharging.
•If the battery pack leaks or gives off a bad odor, remove it from any exposed flame.
•If the battery pack gives off an odor, generates heat, becomes discolored or deformed, or in any way
appears abnormal during use, recharging or storage, immediately remove it from the equipment or
battery pack charger and stop using it.
•Do not use it in a location where static electricity (greater than the manufacturer’s guarantee) may be
present.
•Do not recharge the battery beyond the recommended operating temperature range.
•If acid leaking from the battery pack contacts your skin or clothing, immediately wash it away with
running water. Otherwise, skin inflammation can occur.
•Store the battery pack in a location where children cannot reach it.

PURE Electric Vehicle
PuR Energy Pvt Ltd |11
•Before use, carefully study the Operation Manual and Precautions. For further information, contact
PURE EV. Safekeeping the manual for future reference.
•For recharging procedures, refer to the Operation Manual of your battery pack charger.
Battery Health Tips
•The battery will take 4 hours to fully charge from a discharged state.
•To maximize the battery and charger life, please refer the Battery care and precautions mentioned
above.
•The charger supplied with your EPluto should only be used for the purpose of charging the battery of
the EPluto. Do not use it for any other purposes.
•Do not try to open the charger. It is sealed.
•During long-term storage the battery must be kept charged once in every month to avoid 100% self-
discharge.
•During storage of the battery, it must not be exposed to extreme heat, light, smoke, dust or water.
•Avoid charging immediately after a long drive, to avoid overheating.
•When not in use, it is recommended to charge the battery every 30days.

PURE Electric Vehicle
PuR Energy Pvt Ltd |12
3 EPluto Charger
The charger provided with the Li-Ion battery is sophisticated and is a special purpose electronic charger. This
charger has an additional protective feature which provides protection from output overvoltage, output
overcurrent, short-circuiting and high temperatures.
LED Colour
Status
Red
Charging
Green
Battery is 100% charged
Fuse
LED Indicator

PURE Electric Vehicle
PuR Energy Pvt Ltd |13
Charging your Li-ion Battery
•Ensure location for charging the battery must be dry, clean, safe and dustproof.
•Do not place the charger on the battery.
•Connect input mains supply plug to the 230V/50hz supply wall socket with proper grounding.
•Make sure earth is connected.
•Connect the charger output cable with connector (DC Output) to the battery make connector.
Precautions while charging the battery
•The phenomenon of sparking is normal when it connects to the battery because of the high
current. This charger is designed for charging lithium type batteries ONLY.
•Avoid charging the wrong type of battery.
•The battery may be damaged if LED2 does not change to green even after charging for a
long time.
•Always place the charger in well-ventilated and dry environments.
•The charger is designed with aluminum case as its heat sink. Do not cover it to avoid the case
from being overheated while charging.
•Do not disassemble charger. Take it to a qualified service person when service or repair is
required.
In case the output cable in the charging socket is not connected properly LED glows green, to ensure
proper connection

PURE Electric Vehicle
PuR Energy Pvt Ltd |14
Steps to Charge Battery Inside the Vehicle
1. Ensure the vehicle ignition is OFF
2. The battery is placed inside the
vehicle and properly connected
3. MCB is ON
4. Three pin connector of the
charger is connected to the port
below the seat
5. Connect the plug to a three pin
socket and switch ON

PURE Electric Vehicle
PuR Energy Pvt Ltd |15
Steps to Charge the Battery Away from the Vehicle
1. Ensure the vehicle ignition is
OFF
2. MCB is turned OFF
3. Disconnect the Battery
4. Remove the Battery
5. Connect the Charger to the battery
6.Connect the plug to a three pin
socket and switch ON

PURE Electric Vehicle
PuR Energy Pvt Ltd |16
Important Safety Information
Misusing or Incorrect connection to the Battery Charger may Damage the equipment or create Hazardous
conditions for user. Read the following Safety instructions and pay special attention to all caution
WARNINGS
•Use the supplied charger only to charge LITHIUM-ION Batteries. Other uses may
cause personal injury and damage.
•Keep sparks, flames & smoking materials away from batteries.
•While charging battery, never place charger on top of the battery.
•Disconnect from mains supply before connecting or disconnecting to battery.
•Study all the battery specific precautions such as, recommended rates of charge and
voltage.
•Ensure all ventilation ports are not obstructed, to avoid overheating.
DANGERS
•Electrical shock Hazard! Earthing of charger is compulsory, if not connected to earth
it may result in hazardous situation.
•Connect charger input power cord to an outlet that has been property installed and
grounded.
•Do not touch uninsulated portion of Input connector/ output wires and uninsulated
battery terminals.
•Do not open or disassemble charger.
•Do not operate charger, if AC supply cord is damaged or charger is in broken condition.
