Puredry PDD 85200 FAMOUS User manual

• USER’S MANUAL
• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ
ENGLISH | ΕΛΛΗΝΙΚΑ
DEHUMIDIFIER PDD 85200 FAMOUS

LANGUAGES
ENGLISH ........................................................................................................3
ΕΛΛΗΝΙΚΑ ....................................................................................................23

3
TABLE OF CONTENTS
1. SAFETY & WARNING INSTRUCTIONS ................................................................... 4
2. ELECTRICAL INFORMATION .................................................................................. 5
3. SOCIABLE REMARKS • ENVIRONMENTAL PROTECTION ..................................... 5
4. STEPS BEFORE USE ................................................................................................ 6
5. PRODUCT FEATURES .............................................................................................. 8
6. GETTING TO KNOW YOUR DEHUMIDIFIER .......................................................... 9
7. CONTROL PANEL • FUNCTIONS. ..........................................................................10
8. WATER TANK & DRAIN HOSE .............................................................................. 13
9. MAINTENANCE & CLEANING .............................................................................. 15
10. STORAGE ............................................................................................................. 15
11. FREQUENTLY ASKED QUESTIONS & TROUBLE SHOOTING ............................ 16
Dear Consumer,
Congratulations on your choice!
What distinguishes, dehumidifier Puredry PDD
85200 Famous, is the unique design and the
upgraded Japanese desiccant technology, that
guarantee efficiency in facing humidity problems.
Please refer to this manual, to obtain full efficiency
of the dehumidifier, through the guidelines included
in the following pages and make savings via clever use
of this device.
EN
12.WARRANTY TERMS ............................................................... ............................ 19

!
1. SAFETY & WARNING INSTRUCTIONS
l No children under the age of 8 should be permitted to operate this electric device. Be
certain, that children, handicapped people, or people with the lack of knowledge and
experience, must be supervised, depending the situation, by persons responsible for
their well-being and do not undertake procedures such as the cleaning or the mainte-
nance of this device.
l It is important that adequate supervision is provided and no minors are left unat-
tended with this device.
l This dehumidifier is for domestic and small office use only. Do not use this device
for commercial, industrial or marine use, and in areas with wet surfaces such as re-
strooms or shower rooms.
l This device should always be kept in an upright position to avoid any damage.
l All house exits (windows doors etc) where the dehumidifier is operating, should be shut.
l If water leakage appears within the unit, turn the unit off and disconnect the pow-
er cord.
l Before moving, unplug the device and manage to keep it in a vertical position in or-
der to safely be transferred from one area to another..
l Be sure to empty the water whenever the water tank is full or when the device will
not be used for a prolonged time.
l Always empty the water tank before storing the unit.
l When unit has been switched o and instantly switched on, keep in mind that, for
operational reasons, there is a 3 minute delay in order to regain normal operation.
l If the unit is misplaced or tipped, unplug the power cord immediately. Make sure the
unit is completely dry before resuming operation..
l Disconnect the device, if abnormal sounds, odors or smoke occur.
l If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons to avoid a hazard. Never attempt to dismantle, re-
pair or modify the device.
l Do not attempt to repair, dismantle or modify this appliance. Contact your author-
ized service technician for repair or maintenance of this device.
l Do not operate or stop the unit by switching the power supply on or off.
l Do not insert any objects in the unit's air inlet and exhaust as this may cause da mage
to the device.
l Do not place heavy objects on the power cord. Make sure that the cord is not com-
pressed.
l Do not place cord under any obstacles (carpets rugs or runners etc). Cord should be
arranged away from areas where accidental tripping may occur.
l Do not sit or climb on the device.
l Do not place the unit in direct sunlight or near other heating sources.
l Do not use the unit near heat sources, chemicals, radiators, flammable materials or
fire.
l Do not remove the water tank while the device is in use.
l Do not use the device without the filter. Dirt and lint may clog the unit thus reducing
performance.
l Do not drink or use the collected water from of the unit for any purpose.
l Do not use the unit with wet hands.
EN
4

5
2. ELECTRICAL INFORMATION
l The nameplate, with all the electrical and technical data of this appliance, is located
on the back panel.
l The appliance should be installed in accordance with national wiring regulations.
l Be sure the device is grounded properly. Proper grounding is important as it mini-
mizes the chance of electric shock or re. The power cord is equipped with a ground-
ing plug for protection against electric shock hazards.
l The device must be used in a properly grounded wall socket. If the specic socket
you intend to use is not adequately grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician to install it properly.
l Ensure the wall socket is still accessible after the installation of the dehumidifier.
l Do not use extension cords or adapter plugs with this device.
l To avoid personal injury, always disconnect the power supply of the device, before
maintenance.
l To connect or disconnect the power, grip the plug and pull it out from power so cket,
never pull or tug on the cord.
Power off the dehumidifier before removing the plug.
Never unplug the unit before the fan has stopped blowing.
3. SOCIABLE REMARKS
ENVIRONMENTAL PROTECTION
Disposal of equipment no longer used.
Please follow the instructions below, when using this dehumidifier in European countries.
l This appliance requires special treatment for disposal. In the European Union, elec-
tronic equipment must not be treated as domestic waste, but must be disposed of pro-
fessionally in accordance with Directive 2002/96/EC of the European Parliament and
Council of 27th January 2003 concerning old electrical and electronic equipment. The
disposal of this unit should follow all legal requirements and should not be disposed
as unsorted municipal waste. The hazardous substances can leak into the ground wa-
ter supply thus entering the food chain, endangering your health and the environment.
l There are several alternative solutions for disposal:
A) Your local municipality has established free collection systems for elec-
tronic waste.
B) Your local retailer upon purchase of a new product.
C) The manufacturer may accept the old appliance for disposal.
D) Old appliances sometimes contain valuable resources for scrap metal
dealers.
EN

4. STEPS BEFORE USE
Drain hose
For warranty purposes, please note
the SN (serial number). Please find it
on the back side of the device
Please refer to the electronic
warranty instructions,
in the last page (English section)
of this manual
User's manual
Desiccant
dehumidifier
EN6
Capacity
8,5 Litres / day (20
O
C, 60%RH)
Working Environment
Voltage
Power
Net Weight
6,8Kg
220-240V~ 50Hz
High:620W / Low:350W
1
O
C~40
O
C
Puredry PDD 85200 Famous
Model :
PDD 85200

7
Installation tips
1) Do not block or restrict
the airflow around the
unit. Make sure the air
inlet exhaust grilles are not
obstructed. Allow 20 cm of
clearance around the unit.
4) Before the initial operation, please check,
if the water level switch, located within the
water bucket area, is in the right position.
EN
2) Ensure the air filter is clean
3)
4) The HEPA-CARBON filter is compliant with
the international standards so that it
retains 99.97% of all particles with size
from 0.1 μm or larger, stops mold spores,
dust, dead cells from pets, mites etc..
When using the HEPA-CARBON filter, you
have to set the fan speed to HIGH. Also
note that the efficiency of the dehumidifier
will be reduced by 30%.

5. PRODUCT FEATURES
*Choosing the correct dehumidifier should be based on the following factors:
l The size of the room
l The room temperature
l The relative humidity
l Room insulation
Consumption values may vary depending on the relative humidity in the room of op-
eration.
**30W Consumption during the fan operation.
The fan only operation is a function that cannot be manually selected. It is
automatically selected when the moisture content in the room is lower than that set
by the HUMIDITY button.
When Low Fan Speed is set, the consumption can reach a maximum of 350W. When
the Medium or High Fan Speed is set, the consumption may reach a maximum of
620W.
The deviation rate of the above values is +/- 5%.
*** Desiccant dehumidifiers, operate without the use of compressor, which is con-
sidered cutting edge Japanese technology for greater efficiency at lower room
temperatures. Including an absorbent Desiccant dehumidifying wheel, that reduces
the room's humidity during its rotation. An electrical resistance heats the Desiccant
element discarding the collected humidity directly inside the water bucket.
EN
8
Model Name PDD 85200 Famous
Dehumidifying Capacity (L/24hours) * 8.5
Power Supply (V/Hz) 220~240 / 50
Power Consumption (W) **30/350/620
Noise Level (dB(A)) (Lo/Mi/Hi) 35/39/42
Air Output m3/h 120
Water Tank (L) 4
Dimensions (WxDxH) (mm) 317 × 213 × 499
Net Weight / Gross Weight (kg) 6.8/7.8
Length of Drain Hose (m) 2
Length of Power Cord (m) 1.94
Type ***Desiccant
Operational Temperature range (ºC) 1-40

9
Power
Cord
Handle
Continuous
Drainage
Removable
water tank
Louver
Water level indicator

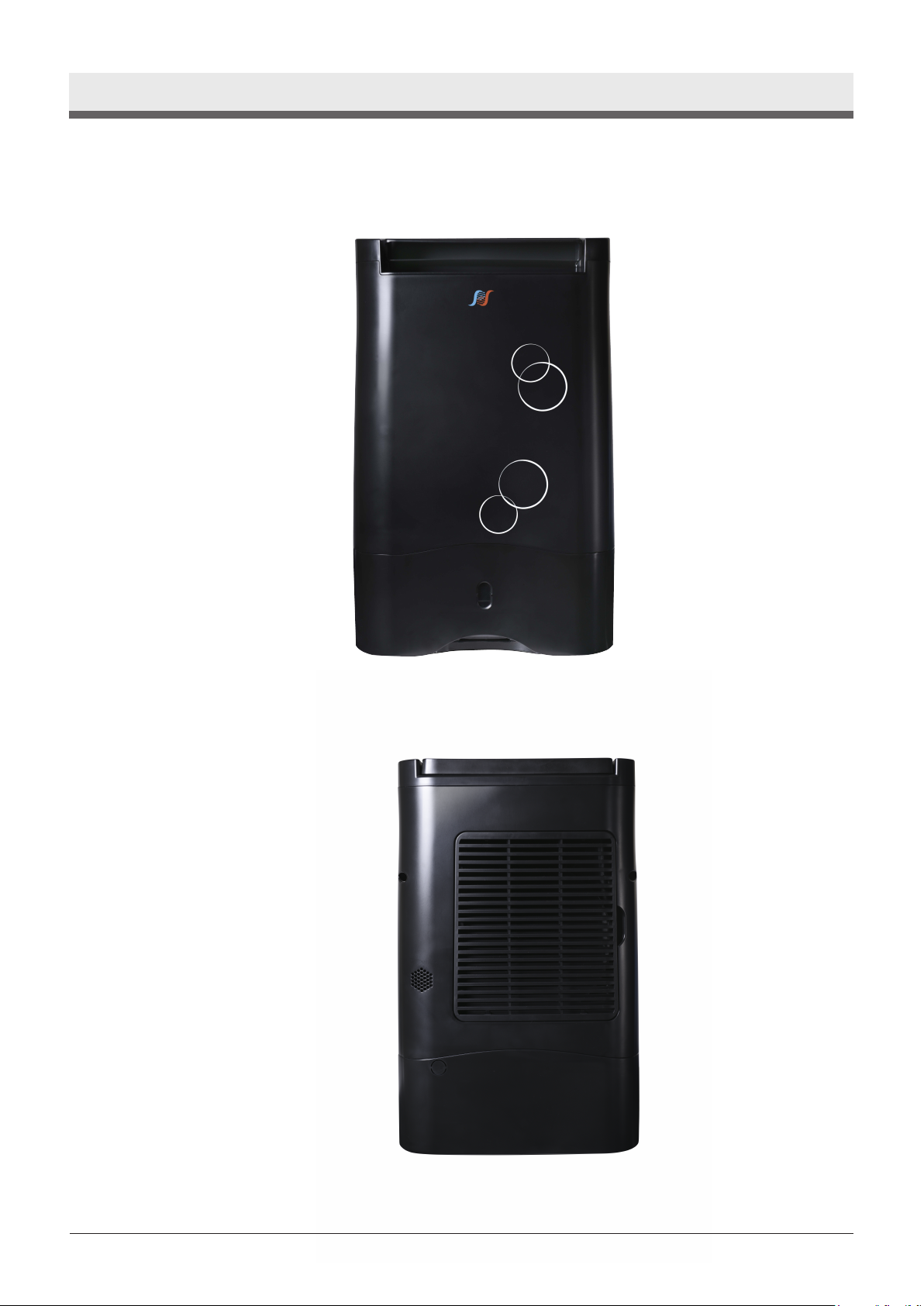

6. GETTING TO KNOW YOU DEHUMIDIFIER
Control panel
Air Intake
Grille
Air outlet
EN

10
7. CONTROL PANEL • FUNCTIONS
EN
Room Humidity (RH)
40
45
55
65
75
%
50 %
60 %
70 %
80 %
Check
Full
Front
Wide
UP
Ionizer
8H
12H
4H
2H
High
Low
Auto
60
50
45
55
40
%
%
%
Room Humidity
indicator
setting
Humidity
indicator
Fan Speed
indicator
Timer
indicator
Swing
indicator
Louver Swing
setting
Fan Speed
setting
Water full indicator
Check indicator
Power key
Timer setting Humidity setting
To activate the ionizer function press together at the same time the SWING and the
TIMER buttons and then release. Do exactly the same to deactivate it.
Press “Power” button to turn the dehumidifier on or off.
•After turning the dehumidifier OFF, the fan continues to operate for a small
period of time, so as to protect the inner components. During this operation DO
NOT unplug the device. Please wait for the fan to stop operating.
•In the event of a power failure the unit has an Auto Restart function. Once the
power is restored after a power failure, the appliance will automatically restart to
operate at the selected settings prior to the power failure (including the timer).
While operating press the "Mode" button to select the fan speed. Low
(Sleep), High fan speeds are available. The corresponding led indicator will
activate, confirming your selection.
•The use of LOW speed is recommended for lower noise and consumption levels
(350W) or for areas with less condensation.
•The use of HIGH speed should be preferred to achieve faster dehumidification.
MODE
•While in AUTO mode the unit checks the humidity level of the room and according
to the difference with the humidity level we set the fan speed and heater are
operating from low to high when the difference is 10% higher and turns from high to
low when the difference is 5% or less.

11
EN
HUMIDITY
Press the humidity setting button to set the humidity as bellow, by 5% step display:
40%
→
45%
→
50%
→
55%
→
60%
→
When the humidity setting is higher than the indoor humidity, the machine will enter
the smart save energy mode (HEATER turns OFF, the air louver stops, and the fan
stops after 2 minutes of cooling operation) and the humidity setting LED will blink. If
the humidity is higher than 5% of the set value, the machine will start dehumidifying.
When in smart save energy mode, after 30 minutes the fan will start to run for 5
minutes to check the indoor humidity. If the indoor humidity is higher than the set
value the machine will start dehumidifying. If not, it stops for another 30 minutes.
During the smart save energy mode, buttons are settable though the fan stops.
TIMER
Press the TIMER button to set the timer and the remaining time before the
machine turns off will be displayed by the LED. If there isn't any timer no LED will be
on. In case of power failure timer setting isn't affected.
2hr → 4hr → 8hr → 12hr → continuous (no led) →
SWING
Press the SWING button to select the position of the air louver from which it will
provide the best air diffusion in the room. Each position when it's selected the
corresponding LED will turn on. Select the swing ranges as bellow:
Upward
→
Frontward
→
Wide
→
Stop (no led)
IONIZER
To activate the ionizer function press together then release at the same time the
SWING and the TIMER buttons. Follow the exact same procedure to deactivate it.
→
ionizer on
Press SWING & TIMER button at the same time Press SWING & TIMER button at the same time
ionizer off
By setting the humidity level to 40% we activate the cloth dry function.

12 EN
CHECK LED INDICATOR
Blinks when the dehumidifier detects an error. In most cases it illuminates because
the air inlet is blocked, which results in the interior of the dehumidifier being
overheated. Clean the filter, make sure the dehumidifier is not next to a heat source
or is covered, and restart the dehumidifier after 10 minutes.
FULL LED INDICATOR
Blinks when the water tank is full and you need to empty it or when the tank is not
properly installed.
•
•
Note: The room humidity display and humidity settings are
displayed with single or two LEDs, e.g. When both 40% and
50% LEDS are illuminated it means 45%.
Note: If the unit malfunctions, an alarm system will activate
and the unit will automatically shut down.
Internal Over Heating Protections: During operation,
malfunctions may occur if the air intake or the air outlet are
obstructed or blocked by objects. This can cause high internal
temperatures and the appliance will automatically shut down. In
this situation the dehumidifier will set off automatically.
Tipping Protection: The unit has a heater inside, to avoid
overheating, the unit is equipped with a tipping switch that
automatically shuts down the device in the event the unit tips over.
SMART SAVE ENERGY MODE
When the unit drops the humidity level to the level the user set, the unit stops
dehumidifying and the fan continues to operate for the next 2 minutes (for internal
cooling). The unit stops and gets into smart save energy mode in which it won't operate
for the next 30 minutes. After 30 minutes the fan will start to operate for 5 minutes
checking the humidity level of the room. If the humidity level is 5% higher than the
humidity level the user set then it will start to dehumidify. If not it will get in a pause of
another 30 minutes.

13
EN
8. WATER TANK & DRAIN HOSE
There are two ways to remove collected water.
1. Using the water bucket
When the water tank is full, the water full indicator will blink.
•Slowly remove the bucket. Grip the handle with caution, and carefully pull outwards so
the water does not overflow. Do not place the tank on the floor because the bottom of
the tank is uneven. Doing so the tank will fall and the water will be spilled on the floor.
•Empty the water from the tank and place it again in to the device. The water tank,
must be securely and properly placed, for the dehumidifier to operate.
•When the water tank is re-installed the unit will automatically restart.
Caution! Clean the water tank with clean water if it is needed to. Do not use hot
water or chemicals.
• When you remove the tank, do not touch any parts
inside the unit, as you may damage the device.
•Be sure to gently place the tank into the dehumidifier.
• Do not drink or use the collected water from the
device.
• Wipe any excess water on, or in, the unit when
removing the tank.
1. 2.
3. 4.

14
When the continuous drainage feature is not being used,
remove the drain hose from the drain hose outlet.
2. Continuous draining
Water automatically can be emptied into a floor drain by attaching the unit with a
water hose.
•Remove the water tank and attach the drain hose to a suitable drainage
facility. Make sure the hose is attached securely to avoid any leaks and
place it as deep as possible to ensure the right drainage.
•The dehumidifier should be placed on a flat surface in an upright position.
•Place the end of the hose into the drain and make sure that the water flows
naturally. For correct drainage, make sure the hose stays below the level of the
drain hose outlet.
Continuous
drainage
EN
Caution: water hose should never be bend or twisted!

15
9. MAINTENANCE & CLEANING
Before performing any maintenance or cleaning of the dehumidier, make sure that
it is unplugged.
l Cleaning the filter:
Use water and mild detergent to clean the dehumidifier.
• Do not use abrasive cleaning agents or solvents; use a brush or vacuum attachments
for cleaning
• Do not use a dishwasher to clean the filter
• Do not apply any water directly on or into the device while cleaning, as it may cause
rust, insulation deterioration or electrical shock.
• Allow the filter to completely dry before re-installing.
l Cleaning the tank:
Partially fill the tank with clean water adding a minimal amount of mild detergent. Clean
thoroughly empty and rinse.
• Clean the tank every 2 weeks to prevent mold, mildew and bacteria growth.
•After cleaning, make sure the tank is placed back securely for the dehumidifier to op-
erate.
NEVER USE THE DEVICE
WITHOUT THE AIR FILTER
10. STORAGE
When the unit is inactive for an extended period of time please make sure you
follow the instructions below, for an appropriate storage of your appliance:
•Turn unit off allowing one day before storage.
• Remove the drain hose (if attached).
•Clean the removable parts of the device, water bucket and air filter.
• Cover the device.
•Store the dehumidifier in upright position, in a dry, well-ventilated area and avoid
direct sunlight.
EN
The air filter must be cleaned every 5
days. The Carbon and Hepa-Carbon
filters are not washable. Use your
vacuum cleaner or shake it to
remove dust.
Carbon Filter
(optional)Hepa-Carbon filter
or
(optional)

16
11. F.A.Q. & TROUBLE SHOOTING
Does the Zeolite need
replacing?
No there is no need for replacement. The Zeolite is
regenerated within the dehumidifier and this will last
for many years.
Are dehumidifiers
expensive to run?
For the first month upon its initial operation, the
dehumidifier operates at its maximum in order to
calibrate in its working environment. As time passes,
this will gradually reduce, since the dehumidifier will
be controlled via its humidistat. In regards to damp
houses, the use of a dehumidifier may lower your
central billing costs significantly.
Do desiccant
dehumidifiers generate
an unpleasant smell?
During the first days of usage and periodically
afterwards you might notice a smell coming from the
dehumidifier. This is caused by the Zeolite desiccant
material and it is not a sign that the dehumidifier is
not working properly nor that it is harmful to humans
or pets. The smell occurs because the Zeolite absorbs
odors from items like cigarettes, cosmetics, hair
sprays, building materials and new furniture, and as
the desiccant is heated the smell is discharged into
the room. You can clear it by running the
dehumidifier in a separate space like a garage or - if it
is dry – outside.
Where would it be
better to place the
dehumidifier?
For optimal results, it is suggested to place the
dehumidifier in a central area, like a hallway. Leave
the doors open and the moisture will migrate
naturally towards the device to be processed.
Can we replace the
filter with one of other
type like HEPA filter ?
EN
Yes, the filter can be replaced with HEPA-CARBON
filter named PDD HEPA-CARBON and with CARBON
filter named PDD CARBON.

Why there is still
condensation from the
windows, even by using
the dehumidifier?
When the room reaches the preferred humidity
level, there is a possibility of humidity appearance
on windows. This happens due to the temperature
difference of the room’s and external ambient
temperature. Keep running the dehumidifier and
when the air temperature outside increases the
windows should be clear of condensation.
The dehumidifier is not
a heating device. What
could be the cause of
warm air being
extracted?
The desiccant dehumidifier PDD 85200 Famous,
operates with an electrical resistance that warms up
the desiccant material. As a result, the temperature
of the outgoing air has been increased to 10-12°C
comparing to the room’s temperature. This doesn’t
denote in any case that this device can be used as a
heating appliance.
The suggested humidity range fluctuates between
50% and 60%. This level of an average humidity
ensures the greatest comfort for you and your
family, preventing allergies or diseases, and keeps
your home healthy and well maintained, in terms of
plasterboards, dye exfoliation, wood furniture and
any other equipment or material that is susceptible
to the harmful consequences of extremely high
humidity conditions.
Which is the most
suitable humidity
level ?
17EN
The full led indicator is
on but the water tank
isn't full. What could be
the cause of it?
When the full led indicator is on but the water tank
isn't full, check the above plastic cover of the water
tank. It has to be correctly installed in order the water
level sensor operate normally.
The unit does not start
l Make sure the dehumidifier’s plug is placed completely into the socket.
l Check the house fuse/circuit breaker box.
l Check whether the power cord is damaged.
l Check the water bucket, if it is full, empty it.
l Check if the dehumidifier has reached its preset level.
l Make sure the water bucket is positioned properly.
l Room temperature is lower or higher than the advised operational range.
l Check whether the humidity level has been set in high levels.

NOTE: All the pictures in the manual are for explanatory purposes only. The actu-
al shape of the unit you purchased may be slightly dierent, but the operations and
functions are the same.
The unit makes a loud noise when operating
l The air filter is clogged.
l The device is tilted instead of being in an upright position.
l The floor surface is not flat.
During the use of the drain hose, you may find water inside the water
tank
l Check that the drain hose has been correctly placed.
l The drain hose has been blocked or damaged.
l Make sure you have cleaned the filter as suggested. Clogged filter may result in re-
duced performance.
l All house exits (windows doors etc). where the dehumidifier is operating, should be
shut.
l Room temperature is below the advised operational range.
l There is a kerosene heater or something giving off water vapor in the room.
l The room that the device is placed is bigger than suggested.
l The humidity level is too high.
18 EN
Dehumidiffier does not dry the air as efficient
l Make sure that the dehumidifier has been operating enough time to remove the
moisture.
l Make sure there are no curtains, blinds or furniture blocking the front or back of the
dehumidifier.
l
The humidity selector may not be set low enough.

12. Warranty Terms
EN 19
Silver Warranty 2 Years
All Puredry Hellas EE products have a Silver two-year warranty, from the date of
purchase.
Covers all products purchased by Puredry Hellas EU or any of its official resellers in
Greece.
The warranty covers the repair or replacement (spare parts and labor) of components
that the Manufacturer or its Dealer has identified as defective, specifying that this repair
or replacement may be done with new spare parts, new parts or remanufactured parts
after assessment of the Manufacturer. Shipping costs are not covered by the warranty.
The warranty for the duration of its validity covers the cost of supply of any defective
spare part as well as the cost of restoration work of the product. It is clarified that the
warranty does not extend in any way to the obligation to replace the device or refund.
For the correct, efficient and safe operation of electrical appliances, it is recommended as
a good practice to clean and maintain them at regular intervals depending on their use by
specialized and certified technicians.
Does not cover:
Accidental damage, sabotage, defects caused by normal wear and tear, including wear of
consumable parts, ie parts that require periodic replacement during normal use of the
system.
- Fractures, tears, scratches, dents, scratches or discolored covers or plastic parts, broken
plastic parts on the doors or other aesthetic damage. Damage caused by use in
combination with another product.
- Use of the System other than that provided for, including, indicatively, the non-use of
the System according to the accompanying user manual.
- Damage caused by accident, abuse, misuse, contact with liquid, fire, earthquake,
incorrect or inadequate maintenance or calibration, negligence or other external causes.
- Damage caused by connection to a voltage other than that indicated on the nameplate
of the appliance and / or to an unplugged socket.
Shipping costs arising from the transport of the product to and from the customer at the
premises of Puredry or its authorized partner.
- Damage and / or damage to the environment caused by smoke, dust, dirt, soot or other
external factors Damage resulting from incorrect transport or packaging when the
System is returned to the Dealership or an authorized center.

20 EN
- Damages caused by service or repairs or other modifications of the System that were not
performed by the Delegation or an authorized center.
- Damage caused by repairs or replacement parts that should not be done by the
customer, which you have done.
Puredry reserves the right to determine the manner, place and time of repair of the
defects at its sole discretion, depending on the specific characteristics of each case. The
means and costs of transportation to and from Puredry technical support points, as well
as the possible insurance of the products, are the choice and responsibility of the
customer. The products travel under the responsibility of the customer, the Puredry
Hellas EE Company does not bear any responsibility for any damages caused during
transport.
Products that remain repaired in the service of the stores beyond the fifteen (15) calendar
days from the notification of the customer, in order for him to receive them, will be
charged with storage costs.
Platinum Warranty 5 years
All Household Dehumidifiers of the Company Puredry Hellas EE that have been acquired
after 1/6/2018 have the right to have the Platinum Five Year Warranty, from the date of
purchase. Necessary condition for the activation of the Five-Year Warranty is the
completion and submission, within thirty (30) days from the date of purchase, of the
relevant electronic form available on the website: https://puredryhellas.com/eggυiseis/. In
addition, it is possible to post the completed form in the accompanying user manual
(Manual).
Covers all products purchased by Puredry Hellas EU or any of its official resellers in
Greece.
The warranty covers the repair or replacement (spare parts and labor) of components that
the Manufacturer or its Dealer has identified as defective, specifying that this repair or
replacement may be done with new spare parts, new parts or remanufactured parts after
assessment of the Manufacturer. Shipping costs are not covered by the guarantee.
The warranty for the duration of its validity covers the cost of supply of any defective
spare part as well as the cost of restoration work of the product. It is clarified that the
warranty does not extend in any way to the obligation to replace the device or refund.
For the correct, efficient and safe operation of electrical appliances, it is recommended as
a good practice to clean and maintain them at regular intervals depending on their use by
specialized and certified technicians.
Does not cover:
- Devices that have been acquired before 1/6/2018 are covered by a 2-year warranty from
the date of purchase.
Accidental damage, sabotage, defects caused by normal wear and tear, including wear of
consumable parts, ie parts that require periodic replacement during normal use of the
system.
