Puretec IMB Series User manual

User Guide
Manual Backwash Water Filter Systems
IMB Series
For correct operation & installation, it is essential to observe these instructions.
JUN2020

2 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
What's Inside
What's Inside
Puretec Customer Service ............................................................................................................................2
Introduction ..........................................................................................................................................................3
Installation Record .............................................................................................................................................3
Warning....................................................................................................................................................................4
Importance & Limits ........................................................................................................................................4
Clause of Ownership.........................................................................................................................................4
Components...........................................................................................................................................................5
Before Installation..............................................................................................................................................6
Positioning the IAB System...........................................................................................................................6
Assembly.................................................................................................................................................................6
Dimensions.............................................................................................................................................................7
Installation..............................................................................................................................................................8
Performance Data...........................................................................................................................................10
Water to be Treated ......................................................................................................................................10
Operation ............................................................................................................................................................10
Maintenance ......................................................................................................................................................11
Troubleshooting ...............................................................................................................................................12
Warranty .............................................................................................................................................................13

3
Manual Backwash Water Filter Systems
Introduction
Puretec Customer Service
Thank you for purchasing a Puretec IMB Series Manual Backwash Water Filter System.
Your system is a proven performer manufactured from only quality materials and
components and will give years of ltered water, if maintained properly.
Customer Service Helpline on 1300 140 140 (Australia) 0800 130 140 (New Zealand).
The Puretec IMB Series systems are designed to run economically for many years,
dependent on the initial installation and periodical maintenance.
Carefully read through the installation and operating instructions and safety information
before installing and putting the unit into service.
Introduction
The IMB Series is a semi-automatic, self-cleaning protection lter with an 89 micron
ltering mesh designed for ltering water intended for human consumption.
The IMB System protects hydro-thermo-sanitary systems and pipes against damage
caused by small quantities of foreign bodies, such as: pebbles, rust akes, oxides and
metal scraps with a maximum size of 2 mm.
For applications other than the ones expressly described herein, it is necessary to contact
Puretec on 1300 140 140 (Australia) 0800 130 140 (New Zealand), before proceeding
with the installation.
The IMB is not a purier and is not a water purication system.
Installation Record
Purchased From:
Installer:
Model No:
Date Installed:

4 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Warning
WARNING: This operating manual is your guide to installation, use and
maintenance of this equipment and should be kept for future reference.
It is considered to be an integral part of the equipment and must follow the
equipment in case of sale, transfer, removal, etc. The instructions described here are
intended for your safety and should be read carefully before installing and using the
equipment. We recommend that you carefully follow all the instructions, since the
proper operation and duration of the equipment depends on it.
When in doubt while reading this manual or for any other question regarding
installation, use and maintenance of the equipment please contact Puretec at 1300
140 140 (Australia) 0800 130 140
Importance & Limits
This document contains the instruction manual for use and maintenance as well as
assembly and installation information which have been designed to provide general
information about use and operation of the equipment. This document contains
instructions and requirements which are not supposed to replace any local government
requirements and current legislation. For any questions regarding installation, use or
maintenance of the equipment please contact Puretec at 1300 140 140 (Australia) 0800
130 140 (New Zealand).
Clause on the Ownership
The contents of this user guide are the exclusive property of Puretec and cannot be
reproduced or copied in any form whatsoever. The manual may only be used as a
reference tool for the supplied equipment and shall not be submitted to examination by
third parties without prior written authorsation by Puretec. Puretec reserves the right to
make changes to its products and user guides without notice.

5
Manual Backwash Water Filter Systems

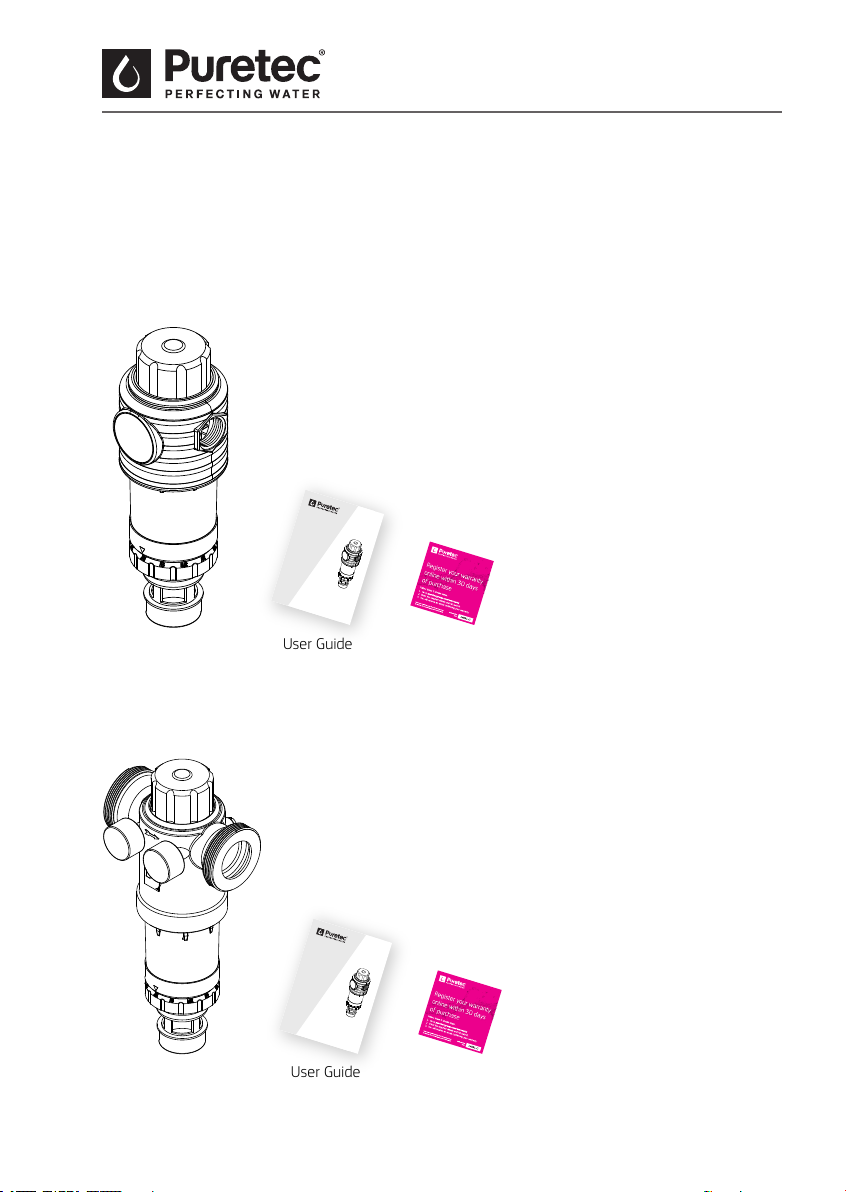

Components
Components
Aer opening the box, check the integrity of the equipment and the presence of all the
items.
IMB Filter System User Guide Warranty Card
User Guide
Manual Backwash Water Filter Systems
IMB Series
Forcorrect operation & installation, it is essential to observe these instructions.
JUN2020
IMB Filter System User Guide Warranty Card
User Guide
Manual Backwash Water Filter Systems
IMB Series
Forcorrect operation & installation, it is essential to observe these instructions.
JUN2020
IMB Filter System User Guide Warranty Card
User Guide
Manual Backwash Water Filter Systems
IMB Series
Forcorrect operation & installation, it is essential to observe these instructions.
JUN2020
IMB Filter System User Guide Warranty Card
User Guide
Manual Backwash Water Filter Systems
IMB Series
Forcorrect operation & installation, it is essential to observe these instructions.
JUN2020
IMB25
IMB50

6 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Before Installation
Before Installation
Before installing the lter, make sure that the system complies with any
local laws or regulations.
The IMB System is not equipped, in its standard version, with anti-ooding devices or
with devices aimed at verifying, checking and triggering an alarming in the event of
uncontrolled water leaks. If necessary, purchase and install a suitable anti-ooding device
separately.
Ensure there is an appropriately size drain available for the back washing
Do not install the IMB System downstream of boilers or in applications involving the
passage inside the lter of water above 30 °C. Install the IMB lter upstream of the
equipment to be protected.
Pay attention to the threads of the connections that could cause hand cuts and
abrasions.
Installation Note: A water lter system/tap, like any product, has a limited life and may
eventually fail. Also sometimes failure happens early due to unforeseen circumstances.
To avoid possible property damage, this product should be regularly examined for
leakage and/or deterioration and replaced when necessary. A drain pan, plumbed to an
appropriate drain or outtted with a leak detector, should be used in those applications
where any leakage could cause property damage, and/or the water supply should be
turned o if no one is home/present.
Positioning the IMB System
The IMB System must be installed in a hygienically suitable, dry, clean place, indoors,
away from: frost, direct exposure to sunlight, humidity and atmospheric agents (rain,
snow, hail).
Do not install the IMB System in wells, near drains or in foul-smelling places.
Do not install it where there may be chemical vapors, gases or fumes of any kind. Avoid
installation in conned spaces that restrict performance or maintenance operations.
The permissible limiting values of the environmental parameters for the installation of
the IMB System are: Min/Max Ambient Temperature 0 - 40 °C (protect from freezing).
Assembly
The lter is supplied with the water inlet on the le.

7
Manual Backwash Water Filter Systems

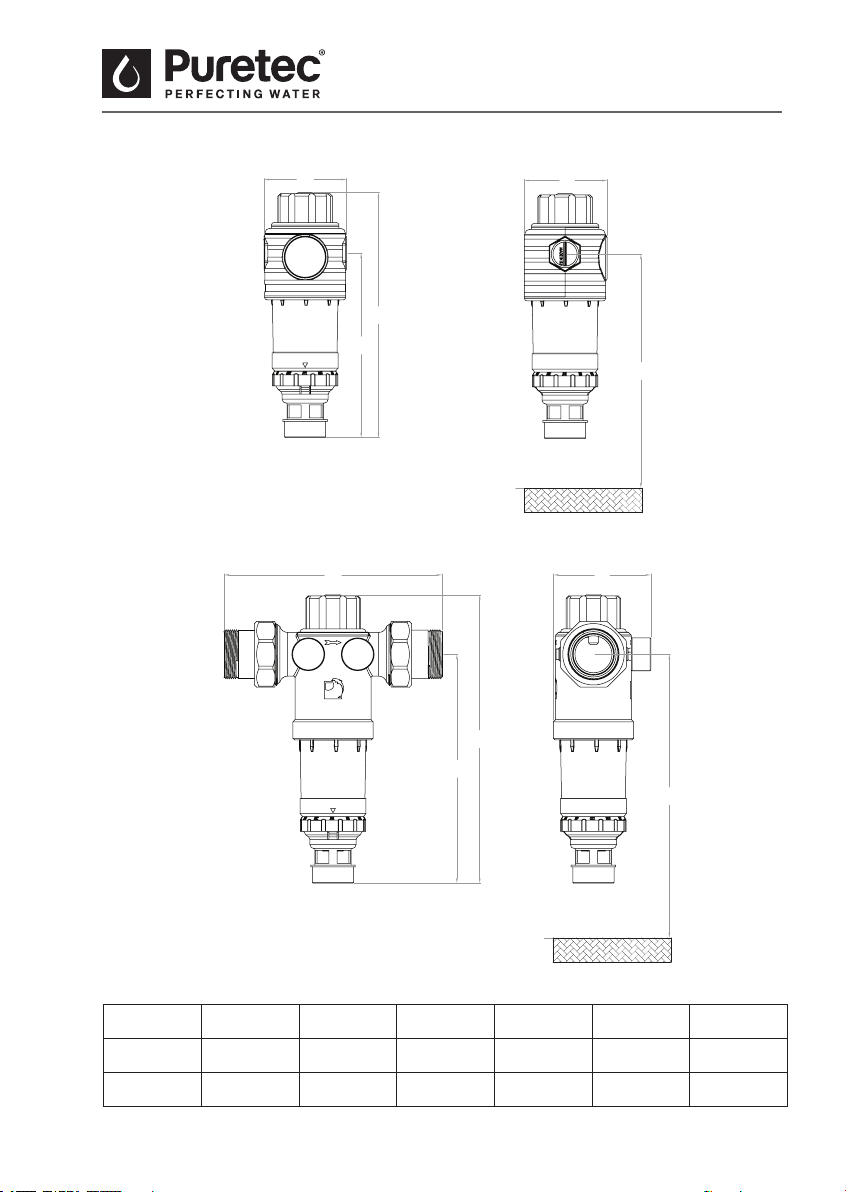

Dimensions
A
B
C
D
E
A
C
B
E
D
A
B
C
D
E
A
C
B
E
D
IMB25
IMB50
Code Connection A B C D E
IMB25 1" 100 mm 295 mm 225 mm 400 mm (min) 100 mm
IMB50 2" 265 mm 361 mm 289 mm 400 mm (min) 109 mm

8 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Installation
Installation
Installation must be carried out by a qualied tradesperson, in compliance with all local
laws.
The plumbing system in which the lter is installed and the installation of the lter itself
must be carried out in compliance with local laws.
Puretec is not responsible for damages to property or persons resulting from the
incorrect installation of the lter and/or the installation of the lter in a system not
complying with the local laws.
All materials used for the construction of water distribution systems for human
consumption must comply with local laws. The construction and modication of a water
distribution system intended for human consumption requires modications to be carried
out in such a way as not to jeopardise the hygiene of the system.
Aer its construction or modication, a water distribution system intended for human
consumption has to be washed and disinfected according to the requirements of local
law.
The lter must not be installed between the boiler and the safety devices.
A non-return valve should be installed in conjunction with this product, along with a by-
pass valve for untreated water.
Ensure there is an appropriate point for drainage.
Prevent solvents, oils, greases, acidic or caustic substances and detergents from coming
into contact with the external plastic and brass parts of the equipment.
In case of damage during transport or assembly, do not install the equipment.
If the system is subject to water hammering, install an appropriate damping system. If
the water pressure can exceed the maximum operating pressure of the lter even for
short periods, install a pressure limiting device.
Avoid overhead installation in order to prevent damages to property or
persons in the event ofa fall, a collapse or water leakages.

9
Manual Backwash Water Filter Systems

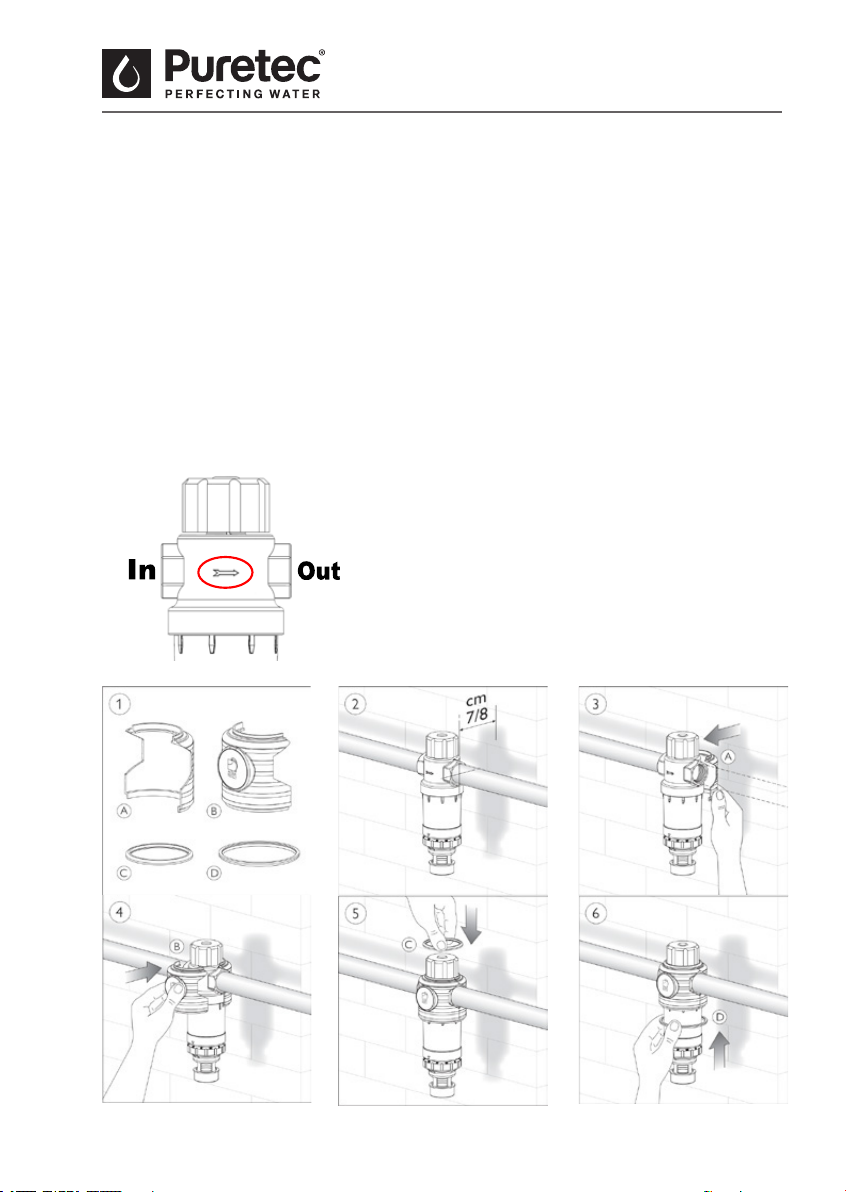

Installation
• Remove the top and bottom green rings to remove the plastic covers.
• Install the lter, ensure that the water is ow direction matches the ow direction
arrow as indicated by the arrow stamped on the brass lter head. Make sure there
is enough room around the lter so the cover can be removed for easy access.
• Install the piping in the and inlet and outlet sides of the lter head.
• Replace the plastic covers and rings.
Note: The lter MUST be installed following the water ow direction indicated on the
lter head. On installations with the inlet water on the right, the label with technical data
would stay behind the lter (facing the wall). Any other arrangement may cause incor-
rect operation of the device. The lter discharge must be canalised in a view drain.

10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Hydraulic Checks Aer Installation
Aer having opened the water upstream of the equipment, check for any leaks.
1) Check that the appliance is correctly positioned so as to ease ordinary maintenance
operations.
2) Check that the system is equipped with: disconnector, by-pass, sampling taps
3) Verify that there are no leaks from the inlet and outlet ttings and from the lter
drain.
Performance Data
Water to be Treated
The IMB System is not designed to lter closed circuit water, water containing large
quantities of sand or coarse particles larger than 2 mm, silt or chemicals (oils, solvents,
acids, bases, glycols).
Operation
Oen lters exclusively remove the dirt accumulated in the bowl, without cleaning the
cartridge. The Puretec IMB Series guarantees an ecient and thorough cleaning of the
lter cartridge too, thanks to its brushing and drainage functionality.
IMB25 IMB50
Connection 1" 2"
Nominal Flow Rate 100 Lpm 236 Lpm
Micron Rating* 89
Rated Pressure 1000 kPa
Min/Max Operating Pressure 150 - 1000 kPa
Min Pressure for Backwashing 250 kPa
Water Consuption During Backwashing 14 L
Min/Max Water Temperature 0 - 30°C (protect from freezing)
Min/Max Ambient Temperature 0 - 40°C (protect from freezing)
*Micron rating is nominal.
Performance Data

11
Manual Backwash Water Filter Systems
Maintenance
Maintenance
Filter Cleaning
Puretec recommends backwashing the screen every 3-4 days, or at user dicretion,
whenever there is a drop in presure. If necessary, backwashing can be repeated.
During the backwashing process, the lter discharges some water . This discharge can be
run o to a drainage point.
The cleaning of plastic parts can only be performed with a so damp cloth, without using
any solvents, soaps or acid detergents.
Note: In order to obtain eective cleaning of the lter, a minimum water pressure of
2 bars is required. If necessary, during the lter cleaning operation , the shut o valve
positioned downstream of the lter should be closed.
Periods of Non-Use
For periods of non-use less than 30 days, perform the lter cleaning operation repeatedly
(4-5 times). For non-use periods longer than 30 days, perform lter sanitisation.
Non-use means the that the plumbing system remains still without any water being
drawn from the taps (e.g. holiday period).
If the plumbing system is subject to cleaning and sanitising maintenance, the IMB system
should also be included in the maintenance plan.
Note: The sanitising maintenance and must be carried out exclusively by a qualied
plumber.
FILTER CLEANING
1° "CLICK" BACKWASH
Rotate the green
handle clockwise until
the rst "click".
Keep the handle in
this position for a few
seconds, until all of
the build up has been
removed from the lter
cartridge.
2° "CLICK" FILTRATION
Rotate the green
handle clockwise again
to bring the filter back
into the operation posi-
tion with the discharge
valve in the neutral
position.

12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Troubleshooting
Periodic Checks
It is advisable to have a check performed every six months by an qualied plumber in
order to ensure the system continues to perform.
Preventative Maitenance
Preventative maintenance or repair, if not correctly performed, can compromise the
functional and/or safety features: these operations are deliberately omitted in this user
guide.
Therefore, all preventative maintenance and repair not mentioned in this user guide must
be carried out exclusively by Puretec or their agents.
In case of doubt, contact Puretec on 1300 140 140 (Australia) 0800 130 140 (New
Zealand).
Troubleshooting
Problem Cause Solution
Low pressure. Filtering element dirty. Perform a manual
backwashing.
Leakgae from the
dicharge valve.
Discharge valve not
completely closed due to
the presence of a foreign
body in the seat. Contact Puretec on 1300
140 140 (AU) 0800 130
140 (NZ).
Filter phased-out

13
Manual Backwash Water Filter Systems
Warranty
Any claim under this warranty must be made within 1 year of the date of purchase of
the product. This product is warrantied to be free of defect of material and workmanship
for 1 year from date of purchase. 1 year warranty is parts and labour only. Excludes
consumables. To make a claim under the warranty, take the product and proof of
purchase to place where you purchased the product, and they will lodge a Warranty
Request with Puretec.
Puretec will pay your reasonable, direct expenses of claiming under this warranty.
You may submit details and proof of your expense claim to place of purchase for
consideration.
The warranty only applies if the product was used and/or installed in accordance with
the user guide and/or installation instructions. This warranty is given in lieu of all other
express or implied warranties and manufacturer shall in no circumstance be held liable
for damages consequential or otherwise or delays caused or faulty manufacturing except
as excluded by law.
Applicable to all above, is that the warranties need to be approved by Puretec to ensure
product was not incorrectly used, installed or claimed. False and incorrect claims will be
pursued at Puretec’s discretion, including chargeable inspection and labour costs incurred.
Warranty

14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020
Warranty/Australia
This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road
Lonsdale SA 5160, telephone no. 1300 140 140 and email at [email protected].
This warranty is provided in addition to other rights and remedies you have under
law: Our goods come with guarantees which cannot be excluded under the Australian
Consumer Law. You are entitled to replacement or refund for a major failure and to
compensation for other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Warranty/New Zealand
This warranty is given by Puretec Ltd, Reg. No 4464398, PO Box 875 Cambridge 3450,
NZ, telephone no. 0800 130 140 and email at [email protected].
This warranty is provided in addition to other rights and remedies you have under
law: Our goods come with guarantees which cannot be excluded under the Consumer
Guarantees Act. You are entitled to replacement or refund for a major failure and to
compensation for other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Warranty

15
Manual Backwash Water Filter Systems
This page was intentionally le blank.
