PVA MV600 Series User manual



PrecisionValve&Automation
OneMustangDrive
Cohoes,NY12047
www.pva.net





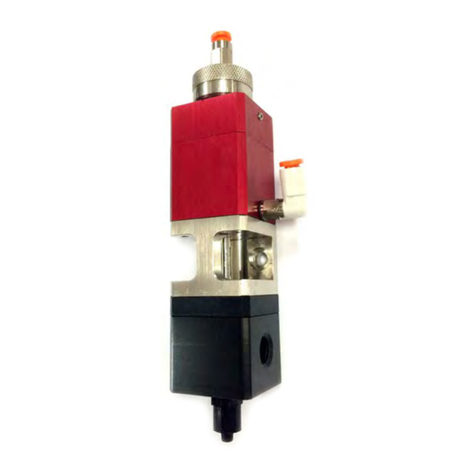

MV600 Series
Metering Valve
Version: 112-10423
OWNER’S MANUAL
Rev A
WHERE
PRECISION
DRIVES
PRODUCTION

MV600SeriesMeteringValve PVA

RevisionA(2018) 2 of 35

Thisdocumentisbasedoninformationavailableatthetimeofitspublication.While
effortshavebeenmadetoensurethecontentsofthismanualareaccurate,the
informationcontainedhereindoesnotpurporttocoverallspecificdetailsorvariationsin
hardware,ortoprovideforeverypossiblecontingencyinconnectionwithinstallation,
operation,ormaintenance.Featuresmaybedescribedhereinwhicharenotpresentin
allhardwareandsoftwaresystems.PrecisionValveandAutomation,Inc.assumesno
obligationofnoticetoholdersofthisdocumentwithrespecttochangessubsequently
made.
PrecisionValveandAutomation,Inc.makesnorepresentationorwarranty,expressed,
implied,orstatutorywithrespectto,andassumesnoresponsibilityfortheaccuracy,
completeness,sufficiency,orusefulnessoftheinformationcontainedherein.No
warrantiesofmerchantabilityorfitnessforpurposeshallapply.
Thisdocument,includingtheinformationcontainedherein,isthepropertyof
PrecisionValveandAutomation,Inc.andisconsideredconfidentialand
proprietaryinformation.Itisdeliveredontheexpressconditionthatitnotbe
used,disclosed,orreproduced,inwholeorinpart,foranyreasonwithoutprior
writtenconsentofPrecisionValveandAutomation,Inc.


Copyright©2014
PrecisionValveandAutomation,Inc.
AllRightsReserved.


MV600SeriesMeteringValve PVA  

RevisionA(2018)
3 of 35

TableofContents
 Introduction...............................................................................................4 
PVAContactInformation....................................................................................4
DocumentHistory...............................................................................................4
Safety..................................................................................................................5
PersonalProtectiveEquipment..........................................................................6
WasteDisposal....................................................................................................6
 TechnicalSpecifications..............................................................................6 
 TheoryofOperation...................................................................................7 
 Setup..........................................................................................................7 
PneumaticSchematic..........................................................................................8
 Operation.................................................................................................10 
ConnectPneumatics.........................................................................................10
BleedValve........................................................................................................10
ValveSettings....................................................................................................11
Shutdown..........................................................................................................11
 PeriodicMaintenance..............................................................................12 
NecessaryToolKit........................................................................................12
SparePartsKit...................................................................................................13
 RoutineCleaningandDisassembly...........................................................14 
DisassembleSections........................................................................................14
DisassembleMeteringCylinder........................................................................15
DisassembleSB300Section...............................................................................18
 AssemblyInstructions..........................................................................21 
AssembleMeteringCylinder.......................................................................21
AssembleSB300Section...................................................................................25
AssembleSections............................................................................................29
 ZerooutMicrometer................................................................................30 
 OptionalAccessories................................................................................31 
ReedSwitch....................................................................................................31

MV600SeriesMeteringValve PVA  

RevisionA(2018)
4 of 35

 Troubleshooting.......................................................................................32 
 Warranty..................................................................................................33 
 TableofFigures........................................................................................34 

Introduction
Beforeyouoperatethissystem,readtheoperationandsetupmanual.Thiswillhelpyou
tobecomefamiliarwiththeproductandensuresuccessfuloperation.
Ifanyquestionsorproblemsarise,contactPVA’sTechnicalSupportdepartment.
PVAContactInformation
MainOffice  PVA
OneMustangDrive
Cohoes,NY12047
Tel+1‐518‐371‐2684
Fax+1‐518‐371‐2688
Websitehttp://www.pva.net
Emailmailto:[e-mail]
TechnicalSupport
Tel+1‐518‐371‐2684
Emailmailto:[email protected]

DocumentHistory
RevisionRevisionDateReasonforChanges
 
REVA January2018Initialrelease,version112‐10423

NOTE: All photographs and CAD model representations in this document are a 
“
general representation” of the valve and its components. The actual
appearance of the valve and its components can differ based upon customer
specific configuration. 

MV600SeriesMeteringValve PVA  

RevisionA(2018)
5 of 35

Safety
Certainwarningsymbolsareaffixedtothemachineandcorrespondtonotationsinthis
manual.Beforeoperatingthesystem,identifythesewarninglabelsandreadthenotices
describedbelow.Notalllabelsmaybeusedonanyspecificsystem.


Alwayswearapprovedsafetyglasseswhenyouoperateor
workwithsprayordispensevalves.



Beforeyouoperatethesystem,readandunderstandthe
manualsprovidedwiththeunit.


Neverputhandsortoolsinareaswiththissymbolwhenthe
machineisinoperation.Adangerousconditionmayexist.

Readandunderstandthemanualsprovidedwiththeunit
beforeanyrepairsormaintenanceisdone.Onlyaqualified
individualshoulddoservice.

Usecautionwhentherearepressurizedvessels.Findand
repairanyleaksimmediately.Alwayswearappropriatesafety
equipmentwhenyouworkwithpressurizedvesselsorvessels
thatcontainchemicals.
Shearhazardfrommovingparts.Avoidcontact.





MV600SeriesMeteringValve PVA  

RevisionA(2018)
6 of 35

PersonalProtectiveEquipment
Operatorsmustuseeyeprotectionbecausematerialcontentsareunderpressure.
Alwaysweargloveswhenhandlingmaterialsandsolvents.RefertoMSDSsheetsonthe
materialbeingdispensedforotherprecautionsandrecommendedsolvents.
WasteDisposal
Disposeofallusedpartsandmaterialsinaccordancewithlocallawsandregulations.

TechnicalSpecifications
Table1:MV600SeriesTechnicalSpecifications
Weight4.6lbs.(2.08kg.)
OverallDimensions10.90”(277mm)x1.50”(38mm)x3.20”(81mm)
WettedComponentsStainlessSteel,Kalrez®,Teflon®Polyurethane
Fluidinlet1/4"MNPT
FluidOutletMaleluerlockadapter
Fluidvolumerange0.10cc–0.80ccpercycle
Recommendedviscosityrange10,000cps–5,000,000cps
Inletfluidpressure30psi–3,200psi
Outletfluidpressure4,000psi.Maximumgeneratedonoutlet
Operatingairpressure80psi.(Canbeoperatedbetween50psi–100psi)
Operatingairports10‐32femalethreadedports(suppliedairfittingsfor5/32”odtube)
Operatingequipment 2‐Position4‐Wayairsolenoidvalve
Optionalequipment 24vdcReedswitch(Quantity2)
MountingdimensionsRefertodrawing112‐10423



MV600SeriesMeteringValve PVA  

RevisionA(2018)
7 of 35

TheoryofOperation
TheMV600isaroddisplacementstyle,positivedisplacementmeteringheadwithtwo
integralcheckvalvestocontroltheflowofmaterialintoandoutofthevalve.Aspring
loadedcheckvalvemountedtothemeteringcylinderact’sastheinletcheckvalveand
theSB300seriesrearclosingdispensevalveactsastheoutletcheckvalve.
Themeteringchamberhousesarodandcylindercombinationtometeraspecific
amountofmaterialtobedispensed.Amicrometerintheupperairsectionisadjustedto
setthetraveldistanceoftherodthussettingthechambervolumethatwilldisplacea
specificfluidvolumeduringeachcycle.Duringfill,theSB300dispensevalvewillstay
closedasfluidpressureisusedtopushthepistonupwarduntilitreachesthe
micrometer“hardstop”.Anairportonthemeteringchamberisavailableforrefillassist
topullfluidintothemeteringsectionfaster.Oncefilled,airpressureissimultaneously
appliedtotheSB300tocycleitopenandtheairsectionofthemeteringchamberto
drivetheroddownandforcefluidoutofthevalve.Asecondairportislocatedonthe
meteringchambertodoublethepressureusedtodrivetheroddowntodispense.
AstrokeadjustmentintheairsectionoftheSB300canbeusedtocontroltheamountof
suckbacktopreventdrippingandstringingwiththickerfluids.

Setup
TheMV600requiresa2‐position,4‐wayairsolenoidvalvetoactuatetheairsection.
Thevalveshouldbeoperatedwithclean,dryairbetween50‐100psi.Two#10‐32
threadedairportsarelocatedontheairsectionoftheSB300valveandthree#10‐32
portsarelocatedonairsectionofthemeteringchamber.Theportlocatedontheside
oftheSB300isairtoclosethevalve.Theportlocatedonthetopofthestroke
adjustmentisairtoopenthevalve.Theairsupplyconnectedtothestrokeadjustment
oftheSB300shouldbetiedtothehighestandlowestportontheairsectionofthe
meteringchamber.Themiddleportofthemeteringchambercanbetiedtotheporton
thesideoftheSB300toproviderefillassist.Quickconnectairfittingsaretypically
suppliedwiththeMV600tofit5/32”tubing.Notethatthevalveshouldbenormallyin
theclosedposition.Flowcontrolairfittingscanbeusedtocontrolthespeedofrefill
anddispenseoffluid.
FluidissuppliedtotheMV600throughthe1/4”mnptinletcheckvalvelocatedonthe
inletofthemeteringcylinder.


MV600SeriesMeteringValve PVA  

RevisionA(2018)
8 of 35


PneumaticSchematic
TherearethreedifferentoptionswhenconnectingpneumatictotheMV600series
valve.TheSB300seriesoutletvalvemustalwaysbeconnectedtothesolenoidbutthe
meteringcylindercontainstoportswhichcanbeusedtodrivefluidtodispenseandone
portwhichcanbeusedtoassistrefillingfluidinthemeteringcylinder.
Option1:Usedforhighestviscosityfluids.Bothdispenseportsareconnectedproviding
a40:1ratiomechanicaladvantagefordispensepressure.Refillassistportisconnected
topullfluidintothemeteringchamberfaster.
Table2:PneumaticSchematic–DualAirDispense&RefillAssist









MV600SeriesMeteringValve PVA

RevisionA(2018) 9 of 35

Option2:Usedformediumviscosityfluids.Onedispenseportisconnectedprovidinga
20:1ratiomechanicaladvantagefordispensepressure.Refillassistportisconnectedto
pullfluidintothemeteringchamberfaster.
Table3:PneumaticSchematic–SingleAirDispense&RefillAssist

Option3:Usedforlowerviscosityfluids.Onedispenseportisconnectedprovidinga
20:1ratiomechanicaladvantagefordispensepressure.Norefillassistisused.
Table4:PneumaticSchematic–SingleAirDispense&NoRefillAssist




MV600SeriesMeteringValve PVA  

RevisionA(2018)
10 of 35


Operation
NOTE: Refer to Table 2, 3, or 4 (Section 4.1) 
NOTE: Use only compatible solvents and materials or the seals and O-rings will
be damaged.
ConnectPneumatics
1. ConnectairlinesfromsolenoidtovalveasshowninTable2,3,or4depending
onthetypeofconfigurationthatfitstheapplication.
2. Supplyairpressuretosolenoidvalveandregulatebetween50‐100psi.
(Note:80psi.optimalairpressuresetting)
3. Turnthemicrometerofthemeteringpistoncounter‐clockwiseuntilthe#3can
beseenontheinsidedial
4. Cyclevalveseveraltimes.Makesurethepistoncanbeheardhittingthe
micrometerandtherodoftheSB300canbeseengoingupanddown.
BleedValve
1. Connectfluiddeliverysystemtovalve.
2. Pressurizefluidandadjustaboveminimumoperatingrange.
3. Cyclevalveseveraltimesusinga1‐2seconddelayinbetweenfillingand
dispensinguntilfluidcanbeseenatluerlockoutlet.
4. Continuecyclingvalveuntilallairisremovedfromthesystemandasteadyflow
offluidcanbeseencomingfromthevalveoutlet.

MV600SeriesMeteringValve PVA  

RevisionA(2018)
11 of 35

ValveSettings
1. Fluidpressuretovalveinletwilldeterminepistonrefilltime.Increasingfluid
pressurewillallowthemeteringchambertofillatafasterrate.

2. Connectingthesolenoidtotherefillassistportasshownintable2or3topull
fluidinfasteranddecreasefilltime.

3. Connectthesolenoidtobothairdispenseportsasshownintable2inorderto
buildthemaximumamountofpressuretodispensefluidanddecreasedispense
time.
4.Turningthemicrometercounter‐clockwisewillincreasethevolumeandturning
itcounter‐clockwisewilldecreasethefluidvolume.
Note: After each adjustment, cycle the valve one to dispense and check new
volume.
Note: Valve should be cycled to the open position when adjusting the
micrometer so the piston is not being forced against the micrometer.
5.Oncethedesiredvolumeisachieved,turnthecolorofthemicrometertolockit
inplace.
6.UsethestrokeadjustmentoftheSB300regulatetheamountoftraveloftherod
andsettheamountofsuckbackattheendofeachcycle.Turningthestroke
adjustmentcounter‐clockwisewillincreasetheamountofsuckbackandturning
itclockwisewilldecreasetheamountofsuckback.
Note: If the stroke adjustment is turned down too low then the SB300 will
not close and fluid will continue to leak from valve. 
7.Oncethedesiredrateandvolumeisachieved,attachaluerlockdispensenozzle
totheoutletofthevalveandrechecksettings.

Shutdown
Attheendofthedayit’srecommendedtoremovetheluerlockdispensetipand
replaceitwithaluerlockplug,thenremoveinletfluidpressuretovalve.




MV600SeriesMeteringValve PVA  

RevisionA(2018)
12 of 35


PeriodicMaintenance
Interval Action
DailyExaminethematerialoutletforcontaminationandcured
material.Cleancuredmaterialifnecessary.
Examineanypackingsealsforleaking.
WeeklyExaminefluidreservoirsorpumpsforsignsofcuredordried
material.

NecessaryToolKit
PVAoffersastandardkitofalltoolsnecessarytomaintainvalve.
ToolKitpartnumber:B12‐04287 
QuantityPartNumberDescription
202662448”AdjustableWrench
1265699/64”AllenKey
1265715/32”AllenKey
2265633/32”AllenKey
1265591/16”AllenKey
15516A18Tweezers
1B62‐20482.5ccSiliconeLubricant
19570K71Hook&PickSet
10266255Pliers
253085A61SoftPlasticCoversforPliers
1MM115RemovableThreadLocker
1TT‐14TeflonTape,¼”
15415A61SnapRingPliers
1PB135/2FlatHeadScrewdriver
1PT17184MicrometerAdjustWrench
1 SpecialTool
 

MV600SeriesMeteringValve PVA  

RevisionA(2018)
13 of 35


SparePartsKit
PVAoffersastandardkitofallwearableitemstorebuildthevalve.
Sparepartskit,partnumber:112‐10423‐SP
QuantityPartNumberDescription
1LipSeal,Molythane01525
1LipSeal,Molythane12500187
1LipSeal,Molythane12500250‐250B
198410A117SnapRing,0.338”id
1VLV‐014BO‐Ring,Buna
1VLV‐008BO‐Ring,Buna
1VLV‐024BO‐Ring,Buna
1VLV‐214BO‐Ring,Buna
2VLV‐016VO‐Ring,Viton
1VLV‐014VO‐Ring,Viton
1VLV‐009BO‐Ring,Buna
1VLV‐010BO‐Ring,Buna
1VLV‐011KO‐Ring,Kalrez
1VLV‐022BO‐Ring,Buna
1VLV‐109KO‐Ring,Kalrez
2VLV‐212BO‐Ring,Buna
1VLV‐010KO‐Ring,Kalrez
1VLV‐015KO‐Ring,Kalrez
14COS‐10‐SSSpring,10psiCrack





MV600SeriesMeteringValve PVA  

RevisionA(2018)
14 of 35




RoutineCleaningandDisassembly
Priortodisassembly,turnofffluid&airpressuretothevalveandremoveallfluidfeed
andairlinesfromthevalve.Discardanydamagedorworncomponentsandreplace
fromthesparepartskitasnecessary.

DisassembleSections
Forpartreference,refertodrawing:112‐10423
1. Usinga9/64”AllenKey,removetwomachinescrews(3)andseparatetheSB300
(2)fromthemeteringcylinder(1).

Figure1:RemoveScrews&SeparateSections
2. Usinganadjustablewrench,unthreadandremovetheinletcheckvalve(4).

Figure2:RemoveCheckValve


MV600SeriesMeteringValve PVA  

RevisionA(2018)
15 of 35

3. Usingtwoadjustablewrenches’,separatethecheckvalve(4)andremovethe
springloadedpistonassembly.

Figure3:SeparateCheckValve


DisassembleMeteringCylinder
Forpartreference,refertodrawing:112‐08449
1.Usinga5/32”AllenKey,removethefourmachinescrews(17)andseparatethe
upperairbody(2)fromthecylinderstop(4).
  
Figure4:RemoveScrews&SeparateSections

2.Usinga1/16”AllenKey,loosenthesetscrew(9)thatsecuresthemicrometer
(11)inplace.

Figure5:LoosenSetScrew


MV600SeriesMeteringValve PVA

RevisionA(2018) 16 of 35

3.Usingplierswithsoftgripcoversunthreadandremovethemicrometer(11)
fromtheupperairbody(2)andremovetheO‐Ring(18).

Figure6:RemoveMicrometer
4. Pullthepistonassembly(1,3,4)outofthelowerairbody(5).

Figure7:RemovePiston
5. Usingplierswithsoftgripcoversholdtheupperpistonassembly(3)andturnthe
meteringpiston(1)byhandseparatetheassemblyfromthecylinderstop(4).

Figure8:SeparatePistonAssembly
6. Usingapick,removetheO‐ring(19)fromthecylinderstop(4)thenremoveO‐rings
(21)fromtheoutsideofthecylinderstopandO‐rings(23)fromthepistons(1,3).

Figure9:RemoveO‐Rings

MV600SeriesMeteringValve PVA

RevisionA(2018) 17 of 35

7. Usinga5/32”Allekkey,removethefourmachinescrews(16)thatconnectthe
fluidbody(6)tothemeteringcylinder(7)lowerairbody(5).

Figure10:RemoveScrews
8. SeparatethesectionsandremoveO‐ring(20)fromthemeteringcylinder(7)andO‐
Ring(22)fromthefluidbody(6).

Figure11:SeparateSection&RemoveO‐Rings
9. Usingthespecialtool,loosenandremovethesealstop(8).

Figure12:RemoveSealStop
10. Usingapick,removethelipseal(10)fromthemeteringcylinder(7).

Figure13:RemoveLipSeal

MV600SeriesMeteringValve PVA  

RevisionA(2018)
18 of 35


DisassembleSB300Section
Forpartreference,refertodrawing:112‐10424
1.Usinganadjustablewrenchunthreadandremovethelueradapter(25).

Figure14:RemoveLuerAdapter

2.Usinga9/64”AllenKey,removethefourmachinescrews(23)locatedonthe
endcap(22).

Figure15:LoosenScrews

3.Pulltheendcap(22)awayfromthevalveandremovetheO‐Ring(24).

Figure16:SeparateSections


MV600SeriesMeteringValve PVA

RevisionA(2018) 19 of 35

4.Pullthesealplate(6)awayfromthevalveandremovetheO‐Ring(21),lipseal
(14),andwasher(16).

Figure17:SeparateSections
5.Usinga9/64”AllenKey,removethefourmachinescrews(9)ontheaircap(3).

Figure18:LoosenScrews
6.Pulltheaircap(3)awayfromtheaircylinder(2).

Figure19:SeparateSections
7.Usingsnapringpliersremovethesnapring(13)fromthestrokeadjust(7).

Figure20:RemoveSnapRing

MV600SeriesMeteringValve PVA

RevisionA(2018) 20 of 35

8.Unthreadandremovethestrokeadjust(7)fromtheaircap(3)andremovetwo
O‐Rings(17,19).

Figure21:SeparateStrokeAdjust
9.Pulltheaircylinder(2)awayfromtheseparationbody(1),completelyremoving
theneedle(10).

Figure22:SeparateSections
10.Pushtheneedle&pistonassembly(4,10)outoftheaircylinder(2)then
removethespring(11)andO‐ring(18).

Figure23:SeparatePistonAssembly
11.Toseparatetheneedle(10)andpiston(4),useanadjustablewrenchand3/32”
Allenkeytoremovethemachinescrew(12).RemoveO‐ring(20).

Figure24:SeparatePiston&Needle
