1 Introducon
The Pyxis LS-202 is a general-purpose, ultrasonic, liquid level sensor. It provides connuous level measure-
ment up to 106 inches (8.8 or 2.7 m) with a 4–20 mA signal, RS-485, and Bluetooth digital output. It can be
wirelessly congured via the uPyxis® Mobile or Desktop App on mobile devices or computers. The sensor
can be powered by four AA alkaline baeries or a 24 VDC external power supply. This baery-powered and
Bluetooth-enabled level sensor is ideally suited for applicaons where signal/power wiring may be dicult
or unavailable to install. A 1.3-inch OLED display and four push-buons are also included in the sensor for
display and setup. This non-contact liquid level sensor is well suited for corrosive liquids and can be used
for cooling tower, boiler or mulple other chemical feed applicaons. LS-202EX is the Class I Div 2 cer-
ed version of this level sensor specically designed & cered for use as Process Equipment Control in
Hazardous Environments.
2 Specicaons
Table 1. LS-202 Specicaons
Specicaon*LS-202 LS-202EX
Part Number (P/N) 54002 54008
Range 4–106 inch (0.1–2.7 m)
Resoluon 0.02 inch (0.5 mm)
Accuracy ±0.15% of the range
Measurement Interval Connuous, 10 or 30 seconds, 3 or 30 minutes, 1 or 4 or 6 hours, or stopped
Output
Bluetooth 5.0, 32 (10 m) Line of Sight,
4–20mA Analog Output,
RS-485 Digital Output with Modbus protocol
Installaon 1” male NPT
Cable Length 10 with IP67 connectors
Power Supply 4 AA alkaline baeries,
24 VDC, 1 W
Dead Zone 4 inch (10 cm)
Dimension (H ×Dia) 6.8 ×3.1 inch (172 ×80 mm)
Weight 1.3 lbs (550 g)
Enclosure Material Polycarbonate (PC)
Transducer Material Polyvinylidene Fluoride (PVDF)
Operaonal
Temperature 14–140 °F (-10–60 °C)
Storage Temperature -4–158 °F (-20–70 °C)
Enclosure Rang IP65
Regulaon CE
CE,
Class I & II/Div 2,
Class III/Div 1 & 2
*With Pyxis’s connuous improvement policy, these specicaons are subject to change without noce.
3 Unpacking Instrument
Remove the instrument and accessories from the shipping container and inspect each item for any damage
that may have occurred during shipment. Verify that all items listed on the packing slip are included. If any

3.1 Standard Accessories
• Four (4) AA alkaline baeries
• Allen wrench
• Waterproof Cable Adapter/Flying Leads (10 ) P/N: 50774
• User Manual available online at hps://pyxis-lab.com/product/ls-202-ultrasonic-level-sensor/

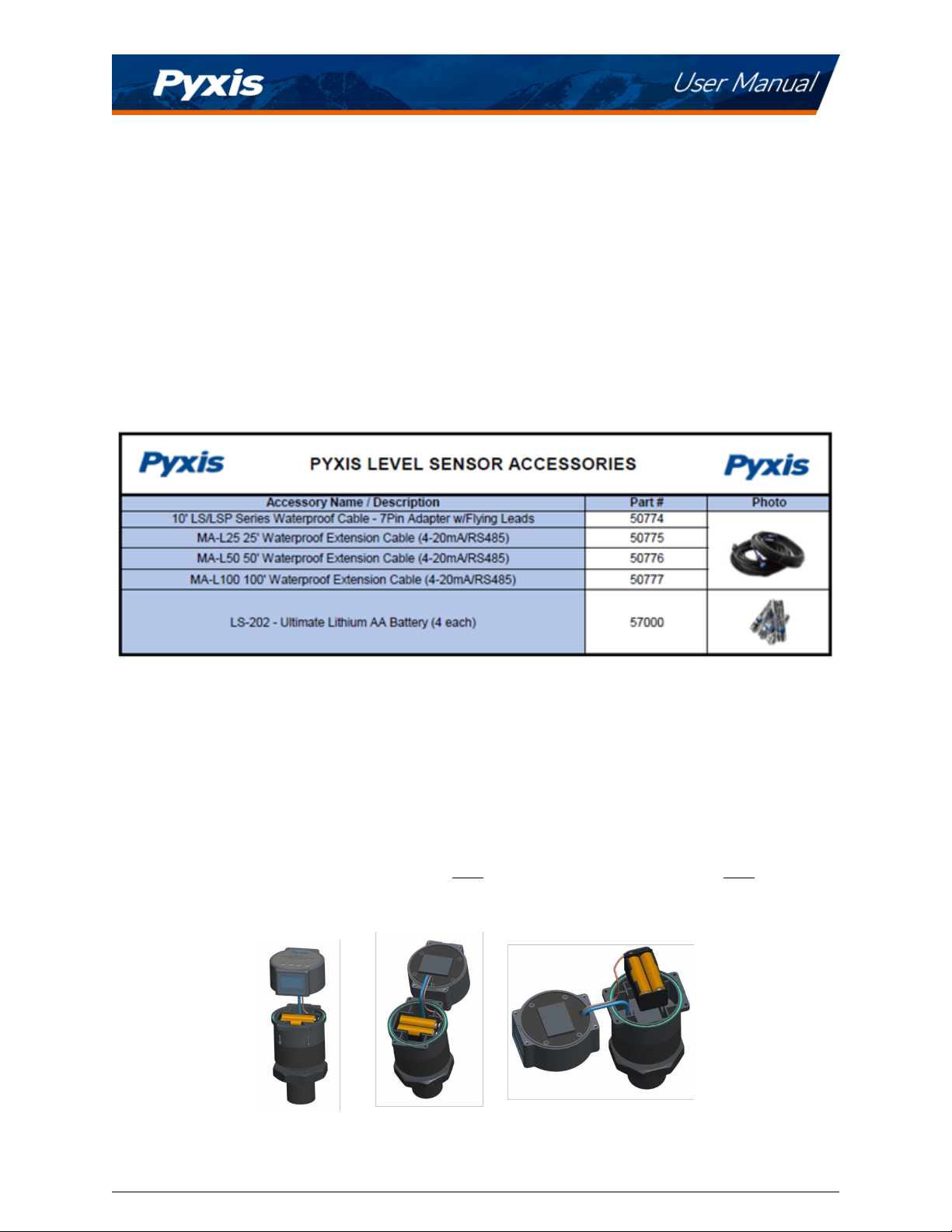

3.2 Oponal Accessories
The following oponal accessories can be ordered from Pyxis Customer Service (order@pyxis-lab.com) or
Pyxis eStore at hps://pyxis-lab.com/shop/.
Figure 1.
4 Installaon
4.1 Baery Installaon
The LS-202 can be powered by four (4) AA alkaline baeries if a 24 VDC is not available. Typical baery life
aer replacing a new baery set is about six months when the measurement interval is set to one hour. It
is important to note that the LS-202 must be operated in BEACON mode for opmum baery life.
*NOTE*When powered by 24 VDC, do NOT put AA baeries in the unit. Do NOT use
rechargeable nickel cadmium (NiCad) or rechargeable lithium baeries.
Figure 2. The LS-202 baery compartment

The LS-202 baery compartment is shown in Figure 2. Install baeries using the following steps:
1. Separate the upper poron of the sensor by loosening the four hex bolts with the Allen wrench in-
cluded.
2. Pull out the baery holder carefully, paying aenon to the wires connecng the upper and lower
sensor bodies.
3. Follow the posive and negave signs and insert baeries rmly into the baery holder. Four baer-
ies need to be replaced, two on each side of the baery holder.
*NOTE*Replace the four baeries together rather than parally.
4. Place the baery holder back into the lower sensor body and secure it rmly.
5. Place the upper sensor body on top of the lower sensor body.
*NOTE*Make sure that the sealing O-ring is lying at in the groove of the lower
sensor body. Failure to do so may result in water/moisture damage to the sensor.
6. Firmly ghten the hex bolts with the provided Allen wrench to prevent the LS-202 from accidentally
powering on or o due to vibraon.
4.2 Tank Top Installaon and Precauons
The sensor should be installed to a 1-inch bulkhead ng on the top of the tank. The major dimensions of
the sensor are shown in Figure 3. If a at horizontal surface is not available on the top of the tank, please use
a self-aligning bulkhead ng so that the sensor can be adjusted to be perpendicular to the liquid surface.
• Install and adjust the sensor to be perpendicular to liquid surface
• Installaon locaon shall not be too close to container wall to avoid interference.
• The sensor has a 3.94 inch (10 cm) dead zone (DZ). Raise the LS-202 to avoid the DZ if desired
• Do not install in a locaon which will cause the ultrasonic wave to be obstructed
• Do not install the sensor in a vacuum environment

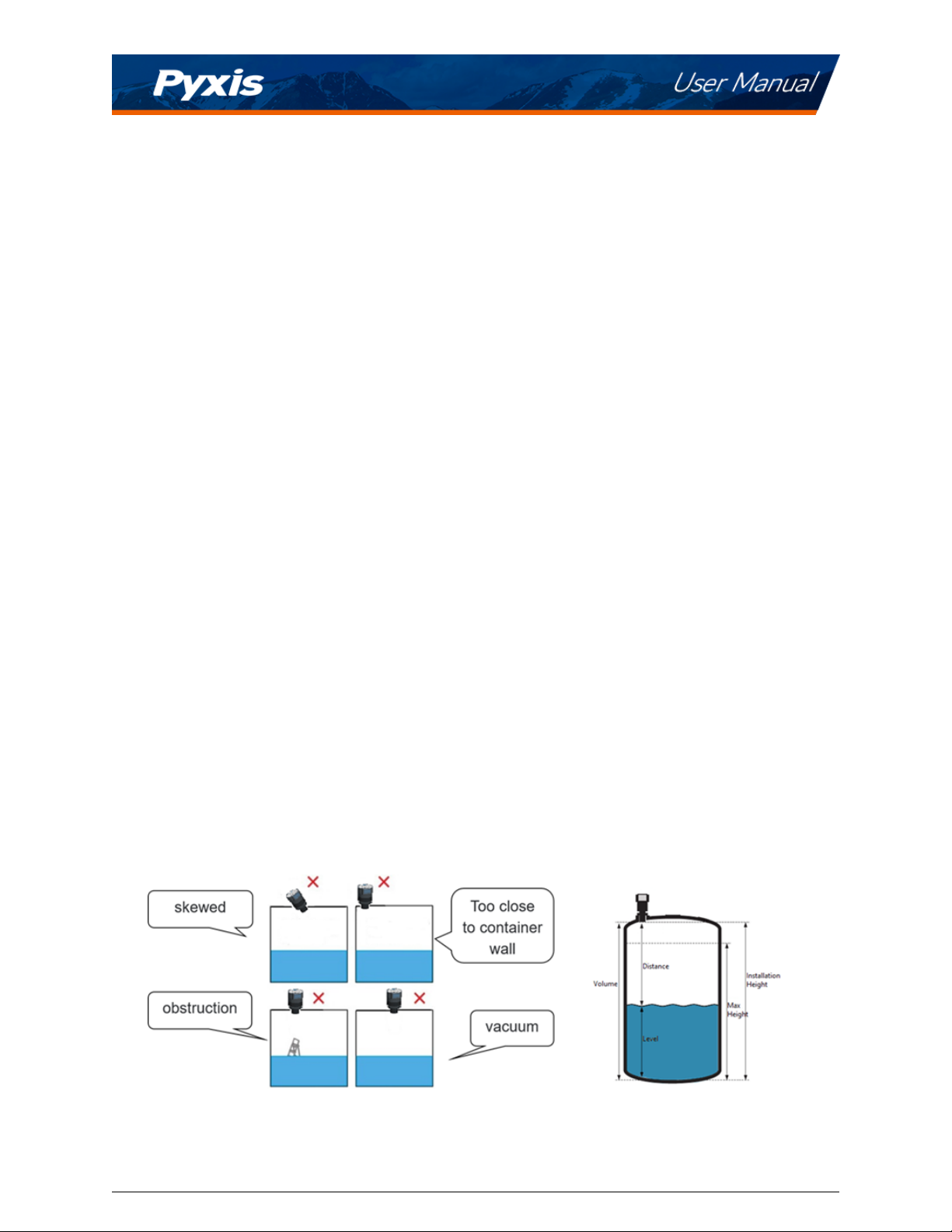

Figure 3. Installaon illustraon

Figure 4. Dimensions, inch (mm)
4.3 Wiring
If the power ground terminal and the negave 4–20mA terminal in the controller are internally connected
(non-isolated 4–20mA input), it is unnecessary to connect the 4–20mA negave wire (green) to the 4–20mA
negave terminal in the controller. If a separate DC power supply other than that from the controller is used,
make sure that the output from the power supply is rated for 22–26 VDC @ 65 mA.
*NOTE*The negave 24V power terminal (power ground) and the negave 4–20mA ter-
minal on the LS-202 are internally connected.
Follow the wiring table below to connect the LS-202 to a controller:
Table 2.
Wire Color Designaon
Red 24V +
Black 24V Power ground
White 4–20mA +
Green*4–20mA -
Blue RS-485 A
Yellow RS-485 B
Clear Shield, earth ground
*Internally connected to the power
ground

5 Instrument Overview
5.1 Funcon Buons

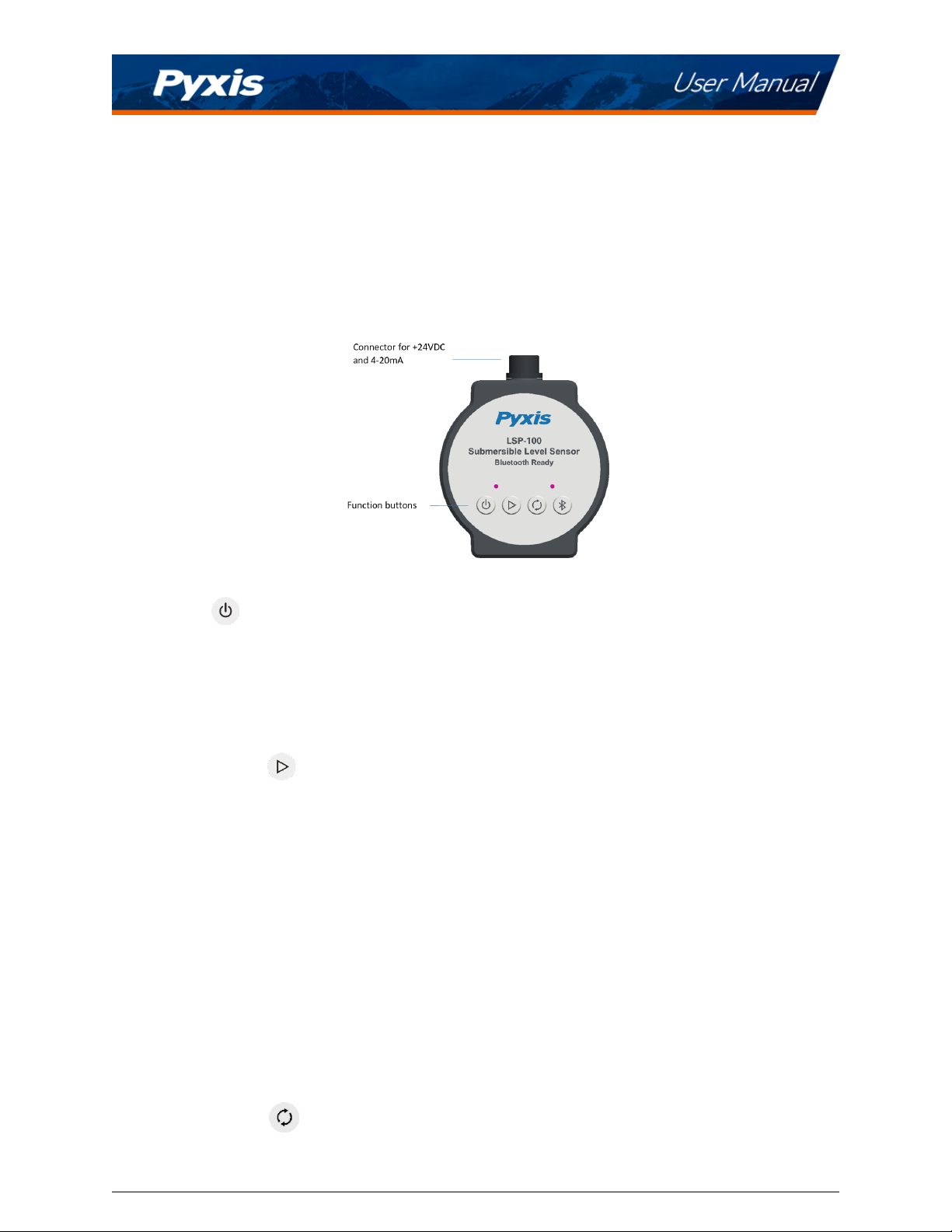

The buons on top of the LS-202 sensor (Figure 5) are used to select one of four display modes, one of
three Bluetooth modes, and one of four measurement modes.
*NOTE*The funcon buons are not used to congure the sensor. For LS-202 sensor con-
guraon, see either the Setup and Conguraon with uPyxis® Mobile App secon or the
Setup and Conguraon with uPyxis® Desktop App secon of this manual.
Figure 5.
Power Buon :
• Power On: Hold the power buon for 1 second
• Power O: Hold the power buon unl OLED display is turned o
• Display Wakeup: Hold the power buon for 1 to relight OLED display (Only the power buon has this
funcon)
Working Mode Buon : This buon cycles through the dierent measurement intervals pre-programmed
into the LS-202 sensor. The current measurement interval is displayed on the top-right corner of the OLED
screen:
• CONT: Connuous measuring
• 10s: Measurement every 10 seconds
• 30s: Measurement every 30 seconds
• 3m: Measurement every 3 minutes
• 30m: Measurement every 30 minutes
• 1h: Measurement every 60 minutes
• STOP: Stop measuring
Other measurement intervals can also be congured on the uPyxis® App.
Display Mode Buon : This buon cycles through four display modes and two system informaon
modes. For more details, see the OLED Display secon of this manual.

Bluetooth Mode Buon : This buon cycles through three Bluetooth modes:
• B: Beacon mode, allows mulple Bluetooth-enabled devices to read the LS-202 sensor’s broadcasng
results at the same me.
• P: Peripheral mode, used for sensor conguraon and data download only. The LS-202 sensor can
only pair with a single Bluetooth-enabled device while in this mode.
• Absence of : Shutdown mode, disables Bluetooth communicaon with the LS-202 sensor.
5.2 OLED Display
The OLED display supports four display modes and two system informaon modes as shown in the following
gures. Press the display mode buon to switch modes.

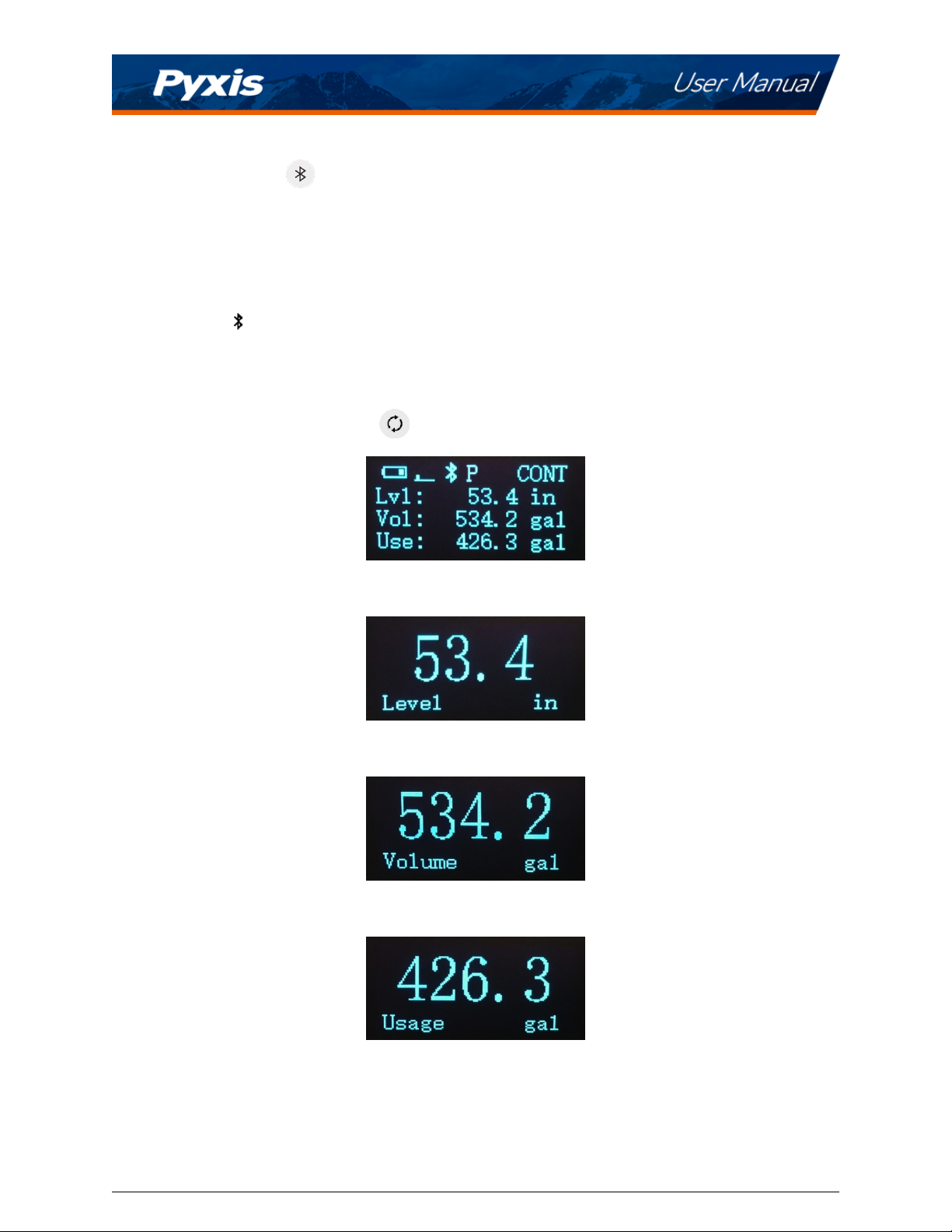

Figure 6. Display Mode 1: Status and Measurement Summary
Figure 7. Display Mode 2: Level
Figure 8. Display Mode 3: Remaining Volume
Figure 9. Display Mode 4: Used Volume

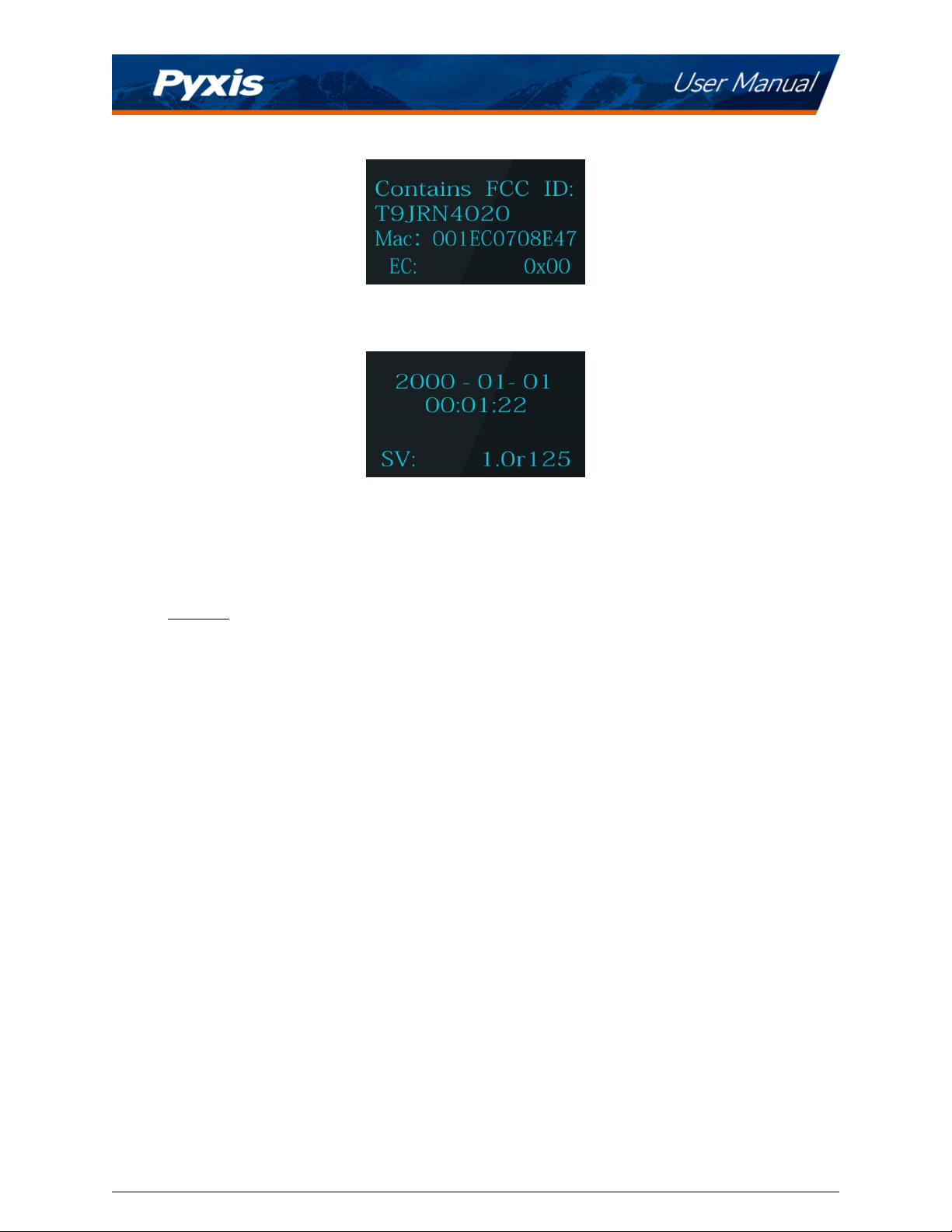

Figure 10. System Info Mode 1: ID’s and Error Code (EC)
Figure 11. System Info Mode 2: Date/Time and Soware Version (SV)
*NOTE*The date/me will reset to 2000-01-01 00:00:00 on every power-on operaon.
When the LS-202 sensor is connected to a phone or PC via the uPyxis® App, the date/me
will be automacally set according to the phone or PC’s clock. The wrong system date/me
does not aect the sensor measurement funcon, but the me stamp in the data log will
be incorrect.

5.3 Display Symbol Glossary
Table 3.
Symbol Denion
P Bluetooth Peripheral mode
P Bluetooth is paired
B Bluetooth Beacon mode
Switching Bluetooth mode
CONT Connuous measuring
_s Measurement every _ seconds
_m Measurement every _ minutes
_h Measurement every _ hours
STOP Stop measuring
Lvl Liquid level
Dst Liquid distance from sensor
in Inches
m Meters
cm Cenmeters
Vol Liquid volume remaining
gal Gallons
L Liters
Usa Liquid usage or used volume
FULL Liquid level is at the highest seng value
EMPTY Liquid level is at the lowest seng value
FCC ID Federal Communicaons Commision Idencaon
Mac Mac Address
EC Error Code
SV Soware Version
6 Setup and Conguraon with uPyxis® Mobile App
6.1 Download uPyxis® Mobile App
Download uPyxis® Mobile App from Apple App Store or Google Play.
Figure 12.

6.2 Connecng to uPyxis® Mobile App
Connect the LS-202 sensor to a mobile smart phone according to the following steps:
1. Press the buon on LS-202 sensor unl the Bluetooth mode changes to Peripheral mode ( P).
2. Open uPyxis® Mobile App.
3. On uPyxis® Mobile App, pull down to refresh the list of available Pyxis devices.
4. If the connecon is successful, the LS-202 and its Serial Number (SN) will be displayed (Figure 13).
5. Press on the LS-202 image.
Figure 13.

6.3 Overview Screen
When connected, the uPyxis® Mobile App will default to the OVERVIEW screen. The Overview screen
displays the current liquid level and volume of liquid remaining.
Figure 14.
6.4 Reading Screen
The READING screen displays the current volume of liquid remaining and liquid level over me.
Figure 15.

6.5 Sengs Screen
The sensor measures the distance between the liquid surface in the tank and the boom sensor surface.
Converng this measured distance to other parameters such as the tank level, the remaining liquid volume,
or the consumed liquid, requires the tank dimensional and volume capacity informaon. Common vercal
tanks have a uniform horizontal cross secon.
*NOTE*For horizontal or other tanks that have a non-uniform cross secon, please contact
Pyxis Technical Support team (service@pyxis-lab.com) for assistance.
To convert the measured distance to volumetric informaon, the user must enter three parameters via the
uPyxis® Mobile App’s Seng screen:
•Tank Volume (rated volume capacity of the tank)
•Installaon Height (from the boom of the tank to the boom of the LS-202)
•Max Level Height (from the boom of the tank to the liquid surface when lled to the rated capacity)
*NOTE*Max Level Height must be at least 4 inches less than Installaon Height
Figure 16 illustrates these parameters for the tank.
In the SETTING screen, the you can also set the Device Name, the Sampling Mode,LCD Display Value,LCD
Screen O Time (in seconds), and the Display Unit. To save the sengs, press APPLY SETTINGS. You may
also create or change a password for the LS-202 by pressing MANAGE PASSWORD.
*NOTE*The LS-202 sensor must be in Peripheral mode ( P) to change sengs.
Figure 16. Figure 17.

6.6 Datalog Screen
From the DATALOG screen, you can view and download the data records of the LS-202 sensor. To view the
records, press READ INFO, then press either READ OVERVIEW,READ LAST 100, or READ ALL. To download
the records, press EXPORT & SHARE. To delete all records, press CLEAR DATALOG.
Figure 18.
7 Setup and Conguraon with uPyxis® Desktop App
7.1 Install uPyxis® Desktop App
Download the latest version of uPyxis® Desktop soware package from: hp://www.pyxis-lab.com/sup-
port.html this setup package will download and install the Microso.Net Framework 4.5 (if not previously
installed on the PC), the USB driver for the USB-Bluetooth adapter (MA-NEB), the USB-RS485 adapter (MA-
485), and the main uPyxis® Desktop applicaon. Double click the uPyxis.Setup.exe le to install.
Figure 19.
Click Install to start the installaon process. Follow the screen instrucons to complete the USB driver and
uPyxis installaon.

7.2 Connecng to uPyxis® Desktop App
Connect the LS-202 sensor to a Windows computer using a Bluetooth/USB adapter (P/N: MA-NEB) according
to the following steps:
1. Plug the Bluetooth/USB adapter into a USB port in the computer.
2. Press the key on LS-202 sensor unl the Bluetooth mode changes to Peripheral mode ( P).
3. Launch uPyxis® Desktop App.
4. On uPyxis® Desktop App, click Device →Connect via USB-Bluetooth (Figure 20).
5. If the connecon is successful, the LS-202 and its Serial Number (SN) will be displayed in the le pane
of the uPyxis® window.
*NOTE*Aer the sensor and Bluetooth is powered up, it may take up to 10 seconds for the
adapter to establish the wireless signal for communicaon.
Figure 20.

7.3 Overview Screen
When connected, the uPyxis® Desktop App will default to the Overview screen. The Overview screen
displays the current liquid level and volume of liquid remaining.
Figure 21.
7.4 Reading Screen
The Reading screen displays the current liquid level and the liquid level over me.
Figure 22.

7.5 Seng Screen
The sensor measures the distance between the liquid surface in the tank and the boom sensor surface.
Converng this measured distance to other parameters such as the tank level, the remaining liquid volume,
or the consumed liquid, requires the tank dimensional and volume capacity informaon. Common vercal
tanks have a uniform horizontal cross secon.
*NOTE*For horizontal or other tanks that have a non-uniform cross secon, please contact
Pyxis Technical Support team (service@pyxis-lab.com) for assistance.
To convert the measured distance to volumetric informaon, the user must enter three parameters via the
uPyxis® Mobile App’s Seng screen:
•Tank Volume (rated volume capacity of the tank)
•Installaon Height (from the boom of the tank to the boom of the LS-202)
•Max Level Height (from the boom of the tank to the liquid surface when lled to the rated capacity)
*NOTE*Max Level Height must be at least 4 inches less than Installaon Height
Figure 23 illustrates these parameters for the tank.
In the Seng screen, the you can also set the Device Name, the Sampling Interval,LCD Display Value,LCD
Screen O Time (in seconds), and the Display Unit. To save the sengs, press Apply Sengs.
*NOTE*The LS-202 sensor must be in Peripheral mode ( P) to change sengs.
Figure 23.

7.6 Datalog Screen
From the Datalog screen, you can view and download the datalogs of the LS-202 sensor. To view the dat-
alogs, click Read Datalog Info, then click either Read Overview Value,Read Recent 100 Datalogs, or Read
All Datalogs. To download the datalogs, click Export. To delete all datalogs, click Clear All Datalogs.
Figure 24.
8 Outputs
8.1 4–20mA Output Setup
The 4–20mA output of the sensor is scaled as:
• 4 mA = (Tank is Empty) = (Level is 0)
• 20 mA = (Tank is Full) = (Level is maximum height or volume)
The 4–20mA analog signal can be converted to one of three values (Level, Volume Remaining, or Volume
Consumed) in the controller receiving the output according to the above scale. For example, a nominal
100-gallon vercal tank, the maximum height is 36 inches. The tank volume is 100 gallons when it is lled
up to the maximum height 36 inches. The controller should be set up to convert 20 mA to 100 gallons, at
which the tank is full and the tank level is 36 inches.
*NOTE*The nominal capacity provided by the tank manufacturer may be greater than the
maximum safe (net or eecve) capacity that can be praccally lled. Please keep this in
mind as you congure your LS-202 sensor for praccal purposes.
8.2 Communicaon Using Modbus RTU
The sensor can be congured as a Modbus slave device via RS-485. In addion to the level, volume, and
distance, many operaonal parameters, including warning and error messages, are available via a Modbus
Other manuals for LS-202
2
This manual suits for next models
3
Table of contents
Other Pyxis Accessories manuals

Pyxis
Pyxis ST-700 Series User manual

Pyxis
Pyxis ST-774 User manual

Pyxis
Pyxis ST-710 User manual

Pyxis
Pyxis ST-565 User manual

Pyxis
Pyxis ST-773 User manual

Pyxis
Pyxis LS-202 User manual

Pyxis
Pyxis LS-200 Troubleshooting guide

Pyxis
Pyxis ST-500W User manual

Pyxis
Pyxis LS-200 User manual

Pyxis
Pyxis ST-730 Series User manual

Pyxis
Pyxis CR Series User manual

Pyxis
Pyxis 53626 User manual

Pyxis
Pyxis LSP-X01 Series User manual

Pyxis
Pyxis ST-500 User manual

Pyxis
Pyxis ST-540 Series User manual

Pyxis
Pyxis ST-772 User manual

Pyxis
Pyxis ST-525 User manual

Pyxis
Pyxis HM-500 Series User manual

Pyxis
Pyxis LT-73 Series User manual

Pyxis
Pyxis LS-202 User manual
