qtran QOM-eLED+DMX User manual

QOM-eLED+DMX
LED POWER SUPPLY 100W–300W
© 2023 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-08-09-23
Utilizes a 100W constant voltage LED Driver from Thomas Research and the LINEARdrive DMX decoder from eldoLED
Designed for outdoor use with its exterior rating
Can accommodate up to 300W of power and control within a single enclosure
Comes prewired with all decoders connected together using terminal blocks
Suitable for connecting RGB or RGBW wires for color control
1
PRODUCT
2
WATTAGE
3
PRIMARY VOLTAGE
4
SECONDARY VOLTAGE
5
CONTROL
6
COLOR
QOM-eLED UNV 24VDC DMX
Sample Part Number: QOM-eLED-100W-UNV-24VDC-DMX-BK
PRODUCT WATTAGE PRIMARY VOLTAGE SECONDARY VOLTAGE
QOM-eLED 100W
200W
300W
UNV Universal (120-277V) 24VDC
CONTROL COLOR
DMX BK Black Powder Coat Finish
SS 316 Marine Grade Stainless Steel
COMPATIBLE LEDS
STATIC WHITE
SW24/1.5-4.0
SW24/5.0, SW-HE, SW-HE+
SD-SW24/1.0-4.0
SD-SW24/6.0
SW-IA
SW-XT
OTHER
DW-HE Tunable Applications
DW-HE Warm Dim Applications
WD
SC
RGB
RGBW, RGBW-HE
SHEETS
Q-SHEETS SW
Q-SHEETS DW Tunable Applications
Q-SHEETS DW Warm Dim Applications
Q-SHEETS RGB
Q-SHEETS RGBW
MICRO 5
MICRO 5-SW
MICRO 5-DW Tunable Applications
MICRO 5-DW Warm Dim Applications
MICRO 5-RGB
1234
5 6

QOM-eLED+DMX
LED POWER SUPPLY 100W–300W
© 2023 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-08-09-23
PRODUCT INFORMATION
Limited output voltage and current, plus isolation for safe operation
Controllable with DMX controller
Control up to 4 LED channels with DMX
DMX dimming down to 0.1%
Fully potted driver(s) for moisture resistance
Primary voltage - universal (120-277V)
Wide operating temperature range: -4˚F to 122˚F
Fits up to (3): 100W 24 VDC driver(s) and DMX decoder module(s)
5 year warranty
Driver has Class A sound rating
Class 2 output
CSA #239924
Low Voltage Lighting Systems
- CSA Class 3425-15 and Class 3425-95
- CSA Standard C22.2 No. 250.0-08 - Luminaires
- ANSI/ UL Standard 2108 - Low Voltage Lighting System
- ANSI/ UL Standard 8750 - Light Emitting Diode (LED) Equipment
for Use in Lighting Products
- CSA Std C22.2 No 250.13-14 - Light Emitting Diode (LED)
Equipment for Lighting Applications
Landscape Lighting Systems
- CSA Class 3402-15 and Class 3402-95
- CSA Standard C22.2 No. 250.7-07 - Extra-Low-Voltage Landscape
Lighting Systems
- ANSI/ UL Standard 1838 - Low Voltage Landscape Lighting
Systems
- ANSI/ UL Standard 8750 - Light Emitting Diode (LED) Equipment
for Use in Lighting Products
- CSA Std C22.2 No 250.13-14 - Light Emitting Diode (LED)
Equipment for Lighting Applications
VOLTAGE DROP CHART
This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved
PRODUCT - DIMENSIONS TECHNICAL INFORMATION
1 2

QOM-eLED+DMX
LED POWER SUPPLY 100W–300W
© 2023 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-08-09-23
HOUSING
18 gauge welded steel enclosure: 15.4"L x 9.22"W x 4.90"D
Door: 14.5"L x 9.27"W
Knockouts: 9
Built-in support bracket incorporated to secure housing for Surface
mounting
PERFORMANCE
Rated for surface mount or outdoor use
Fully rated to operate low voltage load at listed wattage (No derating
required)
Voltage regulation to 2% or less of rated output voltage
The ability to be dimmed using DMX dimming
Universal input range of 120-277 Vrms
Low Voltage Lighting Systems
- CSA Class 3425-15 and Class 3425-95
LED Landscape Lighting System Components
- CSA Class 3402-15 and Class 3402-95
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Over current protection (OCP)
- Live tested by the manufacturer to ensure proper operation
Terminal blocks are made of tin plated copper with a voltage rating of
300V and a current rating of 40A
SPECIFICATIONS PROTECTIONS
Short Circuit Protection
(SCP)Over Voltage Protection
(OVP)Over Current Protection
(OCP)Class 2 Output
COMPLIANCE
EMI Spec
- FCC 47 Part 15
- EN61000-3-2
CSA Certified
- UL-2108
- UL-1838
- UL-8750
- CSA C22.2 No 250.7-07
- CSA C22.2 No 250.0-08
- CSA C22.2 No 250.13-14
COLOR
Black Powder
Coat Finish
316 Marine
Grade
Stainless Steel
6

QOM-eLED+DMX
LED POWER SUPPLY 100W–300W
© 2023 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-08-09-23

QOM-eLED+DMX
LED POWER SUPPLY 100W–300W
© 2023 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-08-09-23
COMPATIBLE CONTROL ACCESSORIES

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-12-08-21
• Must be installed by licensed electrician.
• Installation must be in accordance with DMX512-A standard
• DMX Shield must be grounded to Earth Ground at a single point external to power supply
• Wear rubber shoes and work on a sturdy wooden or fiberglass
ladder.
• This power supply must be installed according to the National
Electric
• Code and local codes and ordinances.
• This power supply is to be installed and serviced only by an licensed
electricians.
• This power supply is to be installed so that it is not likely to be
contacted by people.
• To avoid a hazard to children, account for all parts and destroy all
packaging materials.
LOW VOLTAGE LIGHTING SYSTEM &
LANDSCAPE LIGHTING SYSTEMS
CLASS: 3425-15
3425-95
3402-15
3402-95
COMPLIANT

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-12-08-21

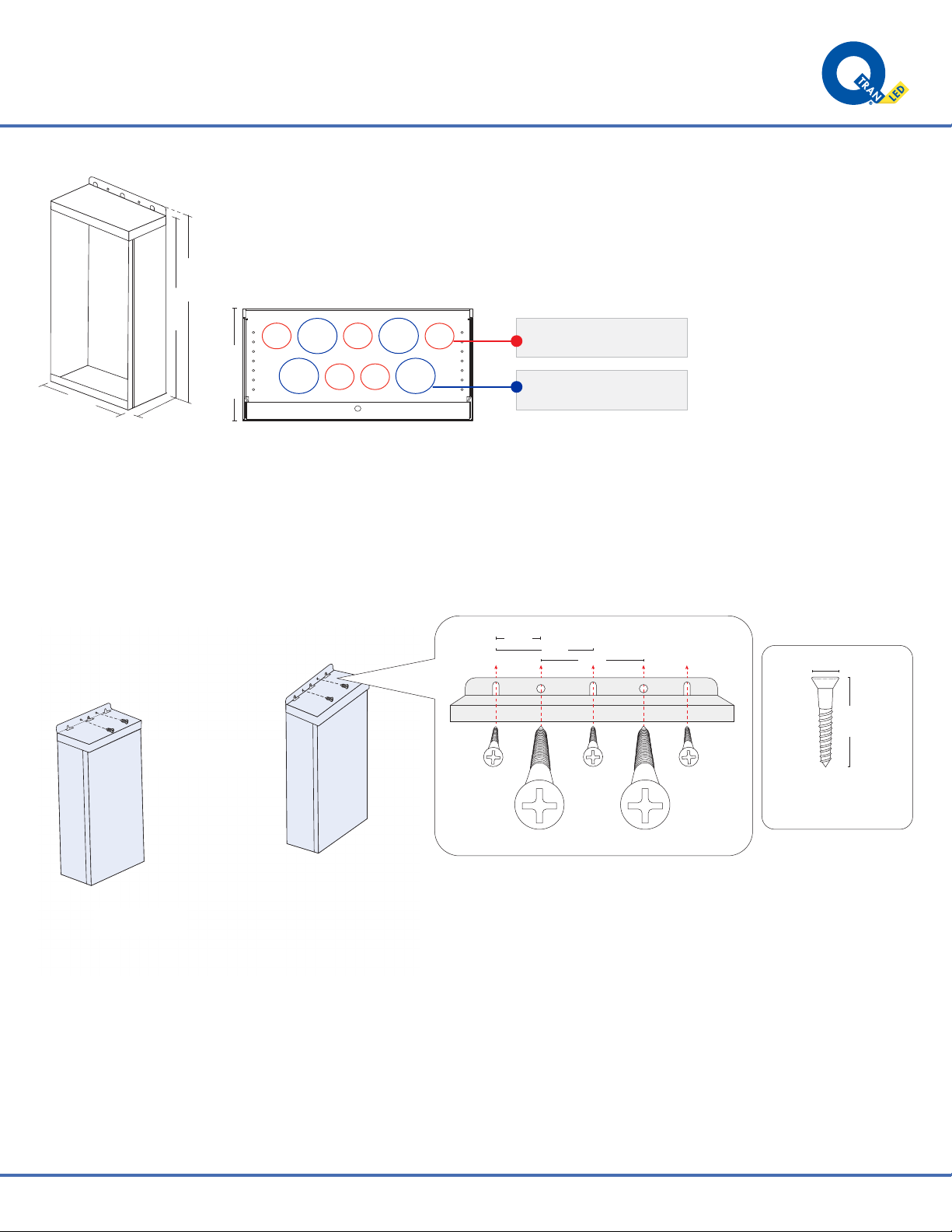

Mounting Options
Housing
BOTTOM VIEW
ISOMETRIC VIEW
1.36" KNOCKOUT 4X
(FOR 1" FITTINGS)
1.07" KNOCKOUT 5X
(FOR 3/4" FITTINGS)
4.90"
14.5"
15.4"
9.22" 4.90"
NOTE: To order additional lengths of wire for connection in the secondary
Please call factory for availability.
: QOM must be installed as shown.
Pole Mount
Surface Wall Mount
2.00"
0.25"
1/4”x2” wood screw or
LAG bolt recommened
1.82"
3.38"
3.14"

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-12-08-21
Connecting and Configuring the LINEARdrive 100D/180D
Primary Wiring
Secondary Wiring Control Wiring
DMX Connections
Commonly Asked Questions
1) How can I verify my installation?
• Apply AC input, verify display turns on : This confirms AC input wiring
• Run “Visual Test Run” : This verifies wiring of LEDs. Make sure LEDs turning on go in same order as the Test Run
2) I don’t have a controller yet, how can I keep my lights on?
• Change the Mode to “COLOR” : This allows to manually set a specific color to be on
• Adjust the Hue or WHITE to achieve the desired color : This sets that specific color
3) My LEDs aren’t coming out the right color. They look like white has been added in
• Verify the Network Resolution “NETW RES” : Default is 8 BT
• Check your DMX Programming. Stick controllers come with RGB programs by default. This will cause RGBW
LEDs to show Pink vs. Red
To DMX Controller
Ext in +
Ext in
DMX in +
DMX in -
DMX in shield
LedSync thru +
LedSync thru -
LedSync shield
LINEARdrive 180D
-
12-28V / 6A Direct voltage controlled LED driver
Ext in +
Ext in
DMX in +
DMX in -
DMX in shield
LedSync thru +
LedSync thru -
LedSync shield
LINEARdrive 180D
-
12-28V / 6A Direct voltage controlled LED driver
DMX in shield LedSync shield
DMX in - LedSync thyu -
DMX in + LedSync thyu +
Blue Wire = Blue LED
Red Wire = Red LED
Green Wire= Green LED
White Wire = White LED
Black Wire = +24V
A C
LED DRIVER 2
(120 - 277V)
B
M
-
+
GND
NEU
SECONDARY
PRIMARY
DMX Shield
DMX -
DMX +
-
+
iQ-LED
Blue = Blue White = White Green = Green Red = Red Black = +24V
R G B W+24
R G B W+24
DMXOUT
iQ-LED
M
-
+
DMX in + DMX in - DMX Shield LedSync thru + LedSync thru - LedSync Shield
DMXIN DMX OUT
HOT
NEU GND HOT
GND
HOT
NEU
LED DRIVER
(120 - 277V)
NEU GND HOT
DMXIN
GND
HOT
NEU
LED DRIVER
(120 - 277V)
NEU
GND
HOT
M
-
+
iQ-LED
TC
1
2
3
Group
Group
Group
Group
LED supply +
LINEARdrive 180D
4
Black Wire = +24V
Red Wire = Red LED
Green Wire = Green LED
Blue Wire = Blue LED
White Wire = White LED
iQ-LED
R G B W+24
Ext in +
Ext in
DMX in +
DMX in -
DMX in shield
LedSync thru +
LedSync thru -
LedSync shield
-
DMX in shield
DMX in -
DMX in +
DMX
WARNING: Risk of electrical shock. May result in serious injury or death. Disconnect power before servicing or installing.
CAUTION: The device may only be connected and installed by a qualified electrician. All applicable regulations, legislation and building codes must be observed.
Incorrect installation of the device can cause irreparable damage to the device and the connected LEDs.
● DMX Shield must be grounded to Earth Ground at a single point external to power supply

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-12-08-21
Manual Configuration
Other Features
1. Select mode of operation: 2. Set LED groups:
3. Standalone Standalone Networked
operation or operation or operation
- Colour*- - Show - - DMX -
M
display off
SHOW
COLR
DMX
(5 sec)
M
+-
/
Set mode
MODE
SET
RGB
RGBW
RGBA
RRGB
RGGB
CCWW
CWWW
1-1L
2-2L
3-3L
4-4L
2-4L
1-4L
M
M
+
+-
/
LED groups
LED
+
OFF
POTM
10V
SWIT
display off
M
+-
/
External input
EXT INP
+-
/
LOG
LIN
Dimming curve
M
DIM CURV
00...20
M
display off
SHOW
M
M
M
-99...99
0...255
+-
/
+-
/
+-
/
Intensity
Speed
Show
SPD
INT
M
HUE
M
HUE
White
WHIT
M
M
+-
/
Intensity
0...255
INT
display off
+-
/
0...1535
+-
/
0...255
M
M
M
+-
/
+-
/
1...512
Network resolution
DMX address
8 BT
16 BT
display off
ADDR
DMX
RES
NETW
M
+-
/
Interpolation
OFF
VID
COLR
WHIT
GLOW
INTERPOL
* The colour menu depends on the LED group settings you have selected in step 2.
Visual test run Locking the configuration: Reset to factory defaults
M
display off
TEST
-
+
Test
+ +
R 1 sec
G 1 sec
B 1 sec
W 1 sec
RGBW 1 sec
R 1 sec
G 1 sec
B 1 sec
W 1 sec
RGBW 1 sec
+-
/
display off
M
LOCK
M
+
Lock driver
+(5 sec)
NO
SOFT
HARD
M
display off
RE - SET
-
+
Reset
+ +
M
(5 sec)
Press menu
PRES MENU

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-12-08-21

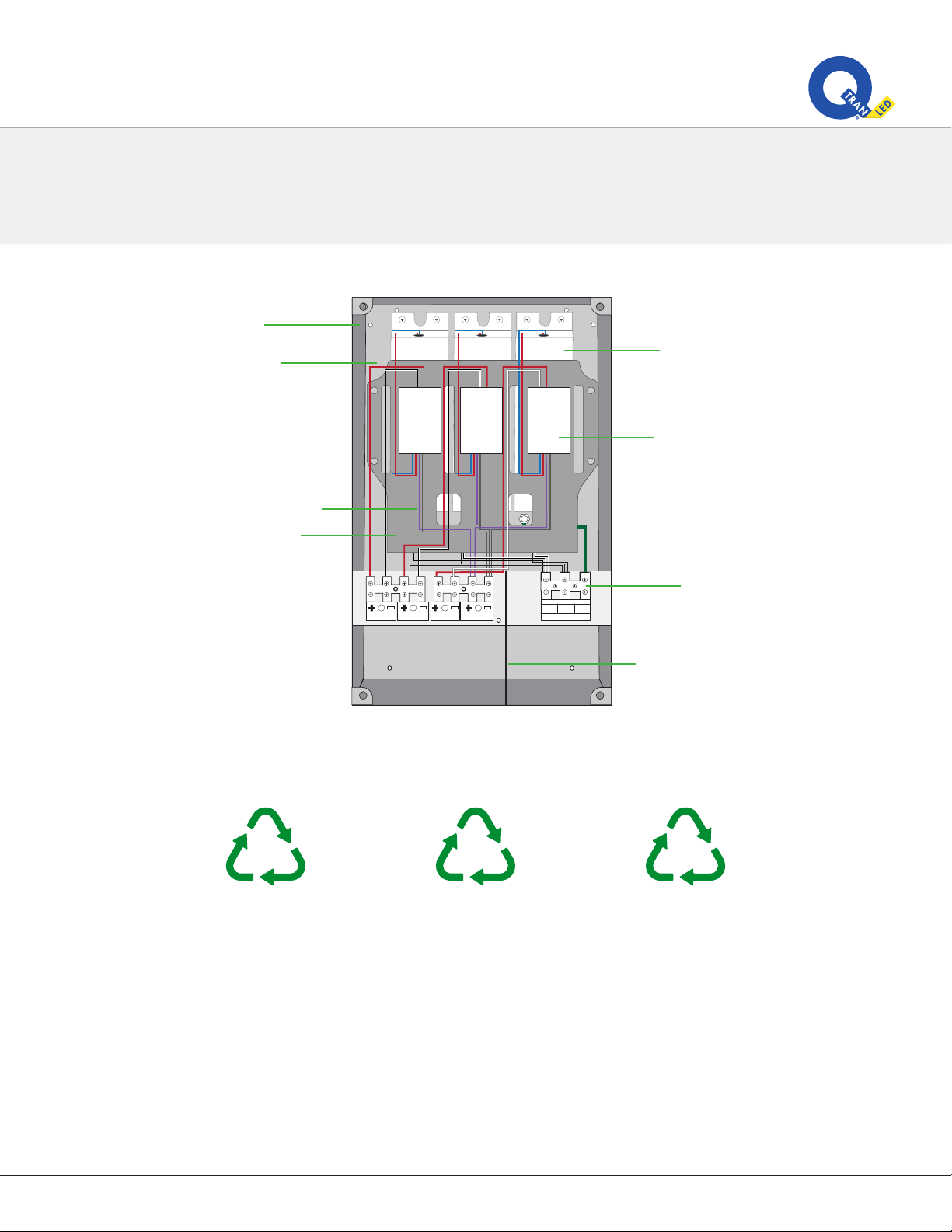

Wiring Installation
QOM-eLED+DMX
: for exterior
Blue Wire = Blue LED
Red Wire = Red LED
Green Wire = Green LED
White Wire = White LED
Black Wire = +24V
A C
LED DRIVER 2
(120 - 277V)
B
LED DRIVER 2
(120 - 277V)
LED DRIVER 2
(120 - 277V)
B
M
-
+
M
-
+
M
-
+
SECONDARY
PRIMARY
DMX Shield
DMX -
DMX +
NEU GND HOT
GND
HOT
NEU
A B C
DMX IN DMXOUT
A B C
GND
DMX +
DMX -
Red
Blue
Green
To next
power supply
LEDLED LED
R G B W+24 R G B W+24 R G B W+24
M
-
+
LED
Blue = Blue White = White Green = Green Red = Red Black = +24V
R G B W +24V

INSTALLATION LED POWER SUPPLY - QOM-eLED+DMX
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-12-08-21
CSA Requirements
• Suitable for indoor and outdoor use
• This power supply must be installed according to the National Electric Code and local codes and ordinances and in
accordance with applicable installation code by a person familiar with the construction and operation of the product and
the hazards involved.
• Wear rubber shoes and work on a sturdy wooden or fiberglass ladder.
• This power supply is to be installed in a location where it is not likely to be contacted by non-electricians.
• To avoid a hazard to children, account for all parts and destroy all packaging materials.
• DMX shield wire must be grounded to earth ground at a single point external to power supply.

MATERIAL RECYCLING
QTM/QOM-eLED
© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-10-24-22
You may be done with your products, but chances are they still have more to give. Follow these instructions to break down
and sort recyclable components. Check with local recycling collection to ensure they accept the materials listed below.
Additionally, Q-Tran offers a Takeback Program. Contact factory for information.
QTM-eLED shown
LED DRIVER 2
(120V - 277V)
LED DRIVER 1
(120V - 277V)
LED DRIVER 3
(120V - 277V)
Output Load Output Load Output Load
Input Load
NEU HOT GND
Dimmer control
0 - 10V
DIM-MOD 1
0 - 10V
DIM-MOD 2
0 - 10V
DIM-MOD 3
Wires
Terminal Blocks
Dimming Modules
LED Drivers
Divider Plate
Dimming Module Plate
Base Plate
Housing
7 E 40
Terminal Blocks
LED Drivers
Dimming Modules
Wires
Housing
Base Plate
Dimming Module Plate
Divider Plate
