qtran QTM-eLED+DALI-DT6 User manual

QTM-eLED+DALI-DT6 LED POWER SUPPLY 100W–300W
© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22
COMPLIANT
Part Number Builder
QTM-eLED+DALI-DT6 is an LED power supply for DALI 2 applications.
It utilizes a 100W constant voltage LED Driver from Thomas Research
and DALI 2 DT-6 Decoders. The unit is available in 100-300 watt
capacity. The power supplies and decoders are all prewired together
along with terminal blocks for power and control wires. The housing
can be recessed or surface mounted.
Technical Information
QTM-eLED UNV 24VDC DALI-DT6
WH (Standard)
BK
100W
200W
300W
2-Wire
3-Wire N/A N/A
2-Wire
3-Wire
2-Wire
3-Wire N/A
2-Wire
3-Wire
2-Wire
3-Wire
2-Wire
3-Wire
1 Size
Size
Max Load
(Watts)
Secondary
Voltage
(12/24VDC)
Max Prim Amps
@ 120V
Max Prim Amps
@ 277V
100W 1x100W 24VDC 0.95A 0.40A
200W 2x100W 24VDC 1.90A 0.80A
300W 3x100W 24VDC 2.85A 1.20A
Voltage Drop Chart
VDC Watts
(W) 10 AWG (5.6mm²) 12 AWG (3.3mm²) 14 AWG (3.0mm²) 16 AWG (1.3mm²) 18 AWG (0.78mm²) 20 AWG (0.50mm²) 22 AWG (0.33mm²) 24 AWG (0.22mm²) 26 AWG (0.13mm²)
24
17
25
40
80
100
897'
567'
309'
130'
84'
564'
356'
194'
82'
53'
355'
224'
122'
51'
33'
223'
141'
77'
32'
21'
140'
88'
48'
20'
13'
88'
56'
30'
13'
8'
55'
35'
30'
8'
5'
35'
22'
12'
5'
3'
22'
14'
7'
3'
*Distances are based on a 5% Voltage drop max.
• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved
Product Prim. V Sec. V Control Color3
Size1Output Wiring 12Output Wiring 22Output Wiring 32
2 Output Wiring Options
2-Wire Light Engines: SW, SW-HE, SW-HE+, SD-SW, SC, WD
3-Wire Light Engines: DW, DW-HE
3 Color
WH: White (Standard)
BK: Black Powder Coat Finish
NOTE:
2-Wire default is 1 address
3-Wire default is 2 addresses
For customization or pre-programming contact a local sales rep.
DALI commissioning to be performed by a third party at time of installation.

QTM-eLED+DALI-DT6 LED POWER SUPPLY 100W–300W
© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22
COMPLIANT
• Limited output voltage and current, plus isolation for safe operation
• Controllable by DALI 2 protocol
• DALI dimming down to 0.2%
• Fully potted driver(s) for moisture resistance
• Suitable for dry and damp locations
• Suitable for surface or recessed mounting use
• Primary voltage - universal (120-277V)
• Wide operating temperature range: -4˚F to 122˚F
• Fits up to (3):100W 24 VDC driver(s) and DALI decoder module(s)
• 5 years warranty
• Driver has Class A sound rating
• Class 2 output
• CSA #239924
Low Voltage Lighting Systems
: CSA class 3425-15 and class 3425-95
: CSA standard C22.2 No. 250.0-08 - Luminaires
: ANSI/ UL standard2108 - Low voltage lighting systems
: CSA standard C22.2 No 250.13-14 - Light emitting diode (LED) equipment for lighting
applications
: ANSI/ UL standard8750 - Light emitting diode (LED) equipment for use in lighting
products

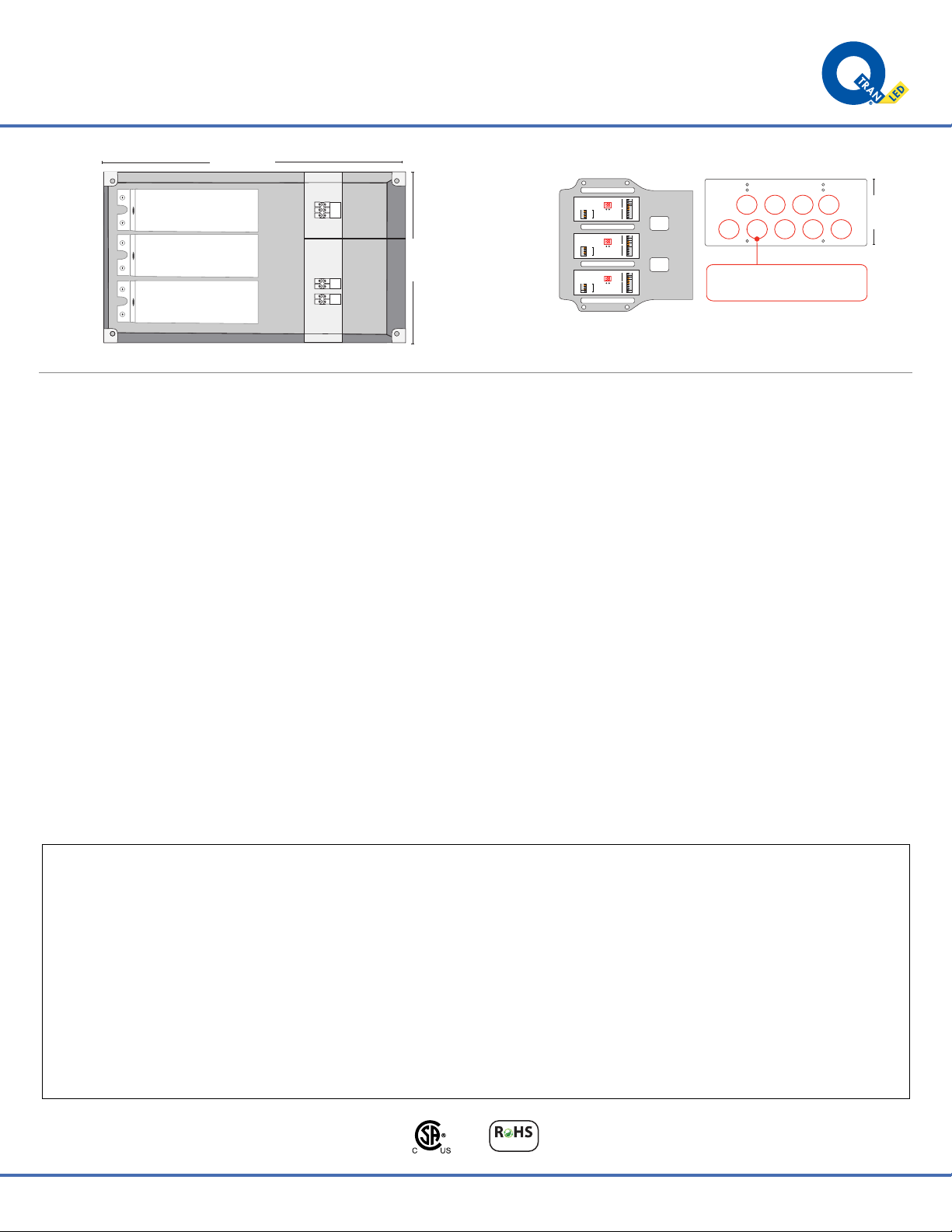

14.5"
8.00"
LED DRIVER
(120V - 277V)
LED DRIVER
(120V - 277V)
LED DRIVER
(120V - 277V)
BOTTOM TRAY
PRIMARYSECONDARY
DALI OUT
NEU
HOT
GND
DALI
IN
TOP TRAY
.875"
4.00"
BOTTOM
NOTE:
16 additional side knockouts
9 Knockouts of 0.875" Hole
for 1/2" fitting
V-
V-
V+
V+
+
12-36VDC INLED groups
D1+
D2+
D1-
D2-
DALI Signal
in/out
1(-)
2(-)
3(-)
4(-)
V-
V-
V+
V+
+
12-36VDC INLED groups
D1+
D2+
D1-
D2-
DALI Signal
in/out
1(-)
2(-)
3(-)
4(-)
V-
V-
V+
V+
+
1(-)
2(-)
3(-)
4(-)
12-36VDC INLED groups
D1+
D2+
D1-
D2-
DALI Signal
in/out
Housing
• 18 gauge welded steel enclosure: 14.5"W x 8.00"H x 4.00"D
• Door: 15.5"W x 9.00"H
• Knockouts: 25
• Built-in support bracket incorporated to secure housing for surface mounting
Performance
• Power Supply
: Rated for surface mount or recessed use
: Fully rated to operate low voltage load at listed wattage (No derating required)
: Voltage regulation to 2% or less of rated output voltage
: The ability to be dimmed using DALI 2 DT-6 dimming
: Universal input range of 120-277 Vrms
• Low Voltage Lighting Systems
: CSA Class 3425-15 and Class 3425-95
: Short circuit protection (SCP)
: Over voltage protection (OVP)
: Over current protection (OCP)
: Live tested by the manufacture to ensure proper operation
: Manufacturer oers a minimum of 5 years warranty
• Terminal blocks is made of tin plated copper
with a voltage rating of 300V and a current
rating of 40A

QTM-eLED+DALI-DT6 LED POWER SUPPLY 100W–300W
© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22
COMPLIANT
Protections
• Short Circuit Protection (SCP)
• Over Voltage Protection (OVP)
• Over Current Protection (OCP)
• Class 2 Output
Compliance
• EMI Spec : FCC 47 Part 15
: EN61000-3-2
• CSA Certified : UL-2108
: UL-8750
: CSA C22.2 No 250.0-08
: CSA C22.2 No 250.13-14
Input 24VDC
Input Voltage (Vrms) 120 230 277
Input Current, max (Arms) 0.98 0.51 0.43
Inrush Current, max*(Apk) --- 20 ---
Input Frequency (Hz) 50/60
Input Power (W) 117
Environmental Min Nom Max
THD (%) --- --- 20
PF (%) 0.90 --- ---
Case Temp (ºC) --- --- 90
*- 200us event
0
20
40
60
80
100
120

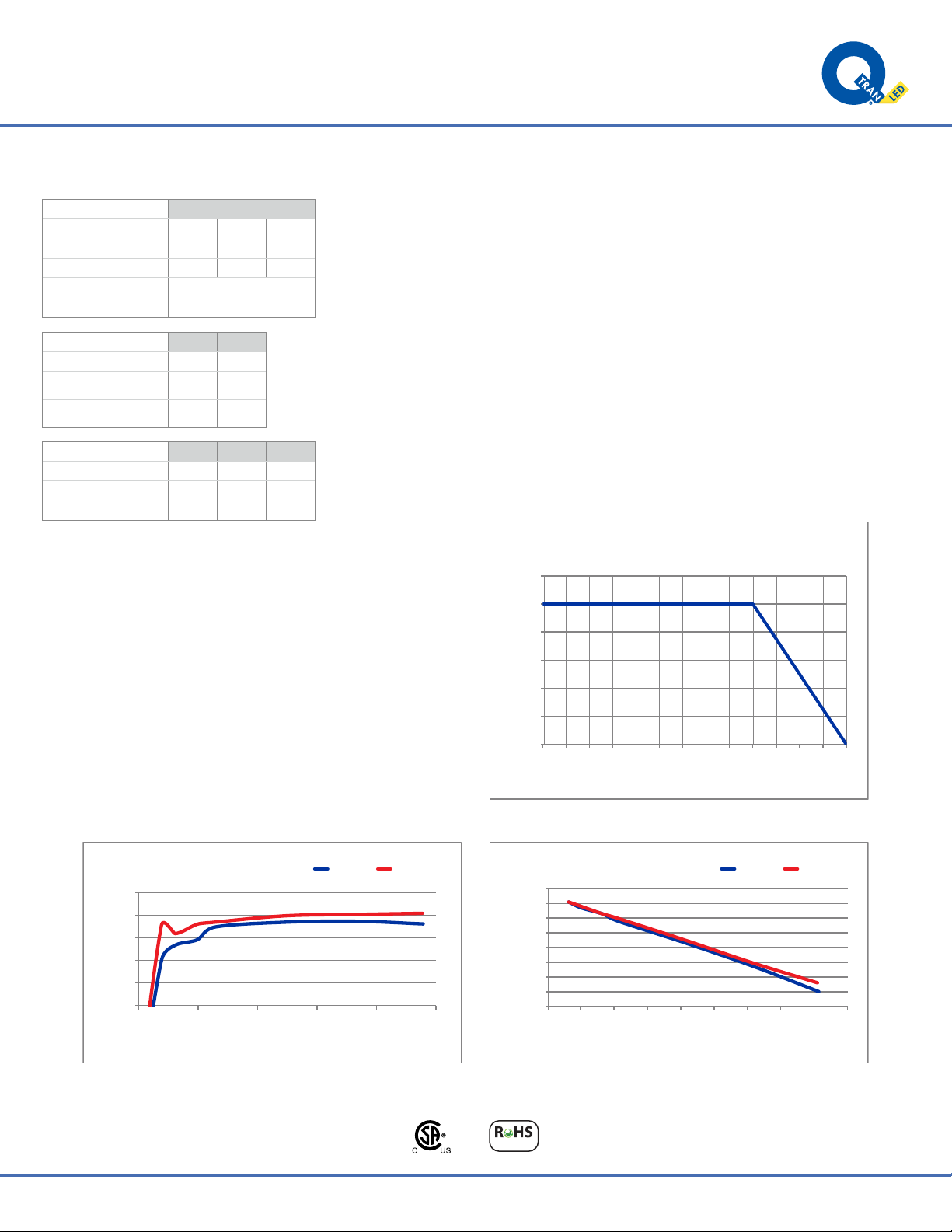

25 30 35 40 45 50 55 60 65 70 75 80 85 90
Life Time (kHrs)
Case Temperature (ºC)
Life Time vs. Case Temperature
Output Current (A)
120Vrms 277Vrms
23.4
23.5
23.6
23.7
23.8
23.9
24
24.1
24.2
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5
Output Voltage (V)
Vout vs. Iout, 24VDC
20 40 60 80 100
% Rated Load
120Vrms 277Vrms
100
90
80
70
60
50
0
Efficiency (%)
Efficiency, 24VDC
Output SW DW
Output Voltage, nom (V) 24 24
Output Current (Amax)
per channel 4 4
Output Power (Wmax)
per decoder 100 100
Specifications (per 100W circuit)

QTM-eLED+DALI-DT6 LED POWER SUPPLY 100W–300W
© 2022 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22
COMPLIANT
12V - 36V DC IN
• To connect the driver to a DC power supply unit (PSU), connect the PSU’s positive voltage supply wire to the VDC+ connector and the
PSU’s negative voltage supply wire to the VDC- connector.
DALI Signal in/out
• Use these connectors when the driver is used in a DALI network. For DALI in, connect the network cable’s DALI+, to the D1+, and D1-
connectors respectively. For DALI out, connect the network cable’s DALI - to the D2+, and D2- connectors respectively.
• Separate DALI Bus power supply required. By others.
LED groups
• Indicates the location of the connectors for your LED groups. 1(-) represents channel 1, 2(-) represents channel 2, 3(-) represents
channel 3 and 4(-) represents channel 4. The default group color allocation can be changed over the 2-button user interface.

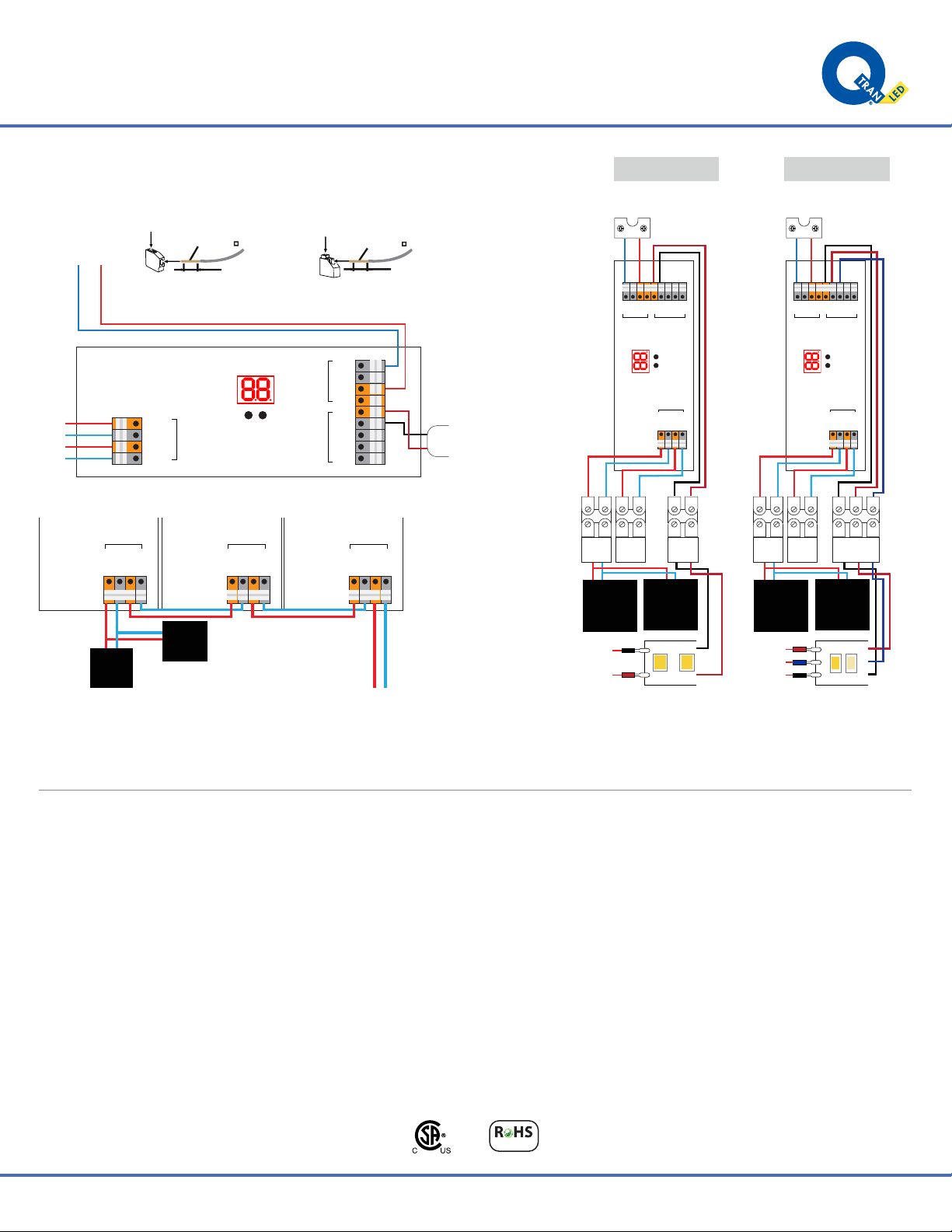

Wiring Diagram
To DALI Controller
V-
V-
V+
V+
+
1(-)
2(-)
3(-)
4(-)
12-36VDC INLED groups
D1+
D2+
D1-
D2-
DALI Signal
in/out
D1+
D2+
D1-
D2-
{
12-36VDC IN
-+2
1
0.2-1.5 mm2
0.35 inch
0.5-1.5 mm2
AWG 20-16
0.35 inch
AWG 24-16
VDC and LED connectors: Other connectors:
LED
V- V- V+ V+
+
1(-) 2(-) 3(-) 4(-)
12-36VDC INLED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
V- V- V+ V+
+
1(-) 2(-) 3(-) 4(-)
12-36VDC INLED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
V- V- V+ V+
+
1(-) 2(-) 3(-) 4(-)
12-36VDC INLED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
DALI
Controller
*By Others
DALI Bus
Power Supply
*By Others
V- V- V+ V+
+
1(-)
2(-) 3(-)
4(-)
12-36VDC IN LED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
DALI
OUT
DALI
IN
DALI
Controller
*By Others
DALI Bus
Power Supply
*By Others
-
+24V
-+
V- V- V+ V+
+
1(-)
2(-) 3(-)
4(-)
D1+ D2+ D1- D2-
12-36VDC IN LED groups
DALI Signal
in/out
DALI
OUT
DALI
IN
DALI
Controller
*By Others
DALI Bus
Power Supply
*By Others
Warm
Cool
+24V
+24V W C
3-Wire2-Wire
2A - 2 Addresses1A - 1 Addresses
NOTE:
2-Wire default is 1 address
3-Wire default is 2 addresses
For customization or pre-programming
contact a local sales rep.
DALI commissioning to be performed by
a third party at time of installation.

INSTALLATION LED POWER SUPPLY - QTM-eLED+DALI-DT6
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22
LOW VOLTAGE LIGHTING SYSTEM
CLASS: 3425-15
3425-95
COMPLIANT
• Wear rubber shoes and work on a sturdy wooden or fiberglass ladder.
• This power supply must be installed according to the National Electric
• Code and local codes and ordinances.
• This power supply is to be installed and serviced only by an licensed
electricians.
• This power supply is to be installed so that it is not likely to be contacted
by people.
• To avoid a hazard to children, account for all parts and destroy all
packaging materials.
• Do not install in wet locations.
• Must be installed by licensed electrician.

INSTALLATION LED POWER SUPPLY - QTM-eLED+DALI-DT6
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22

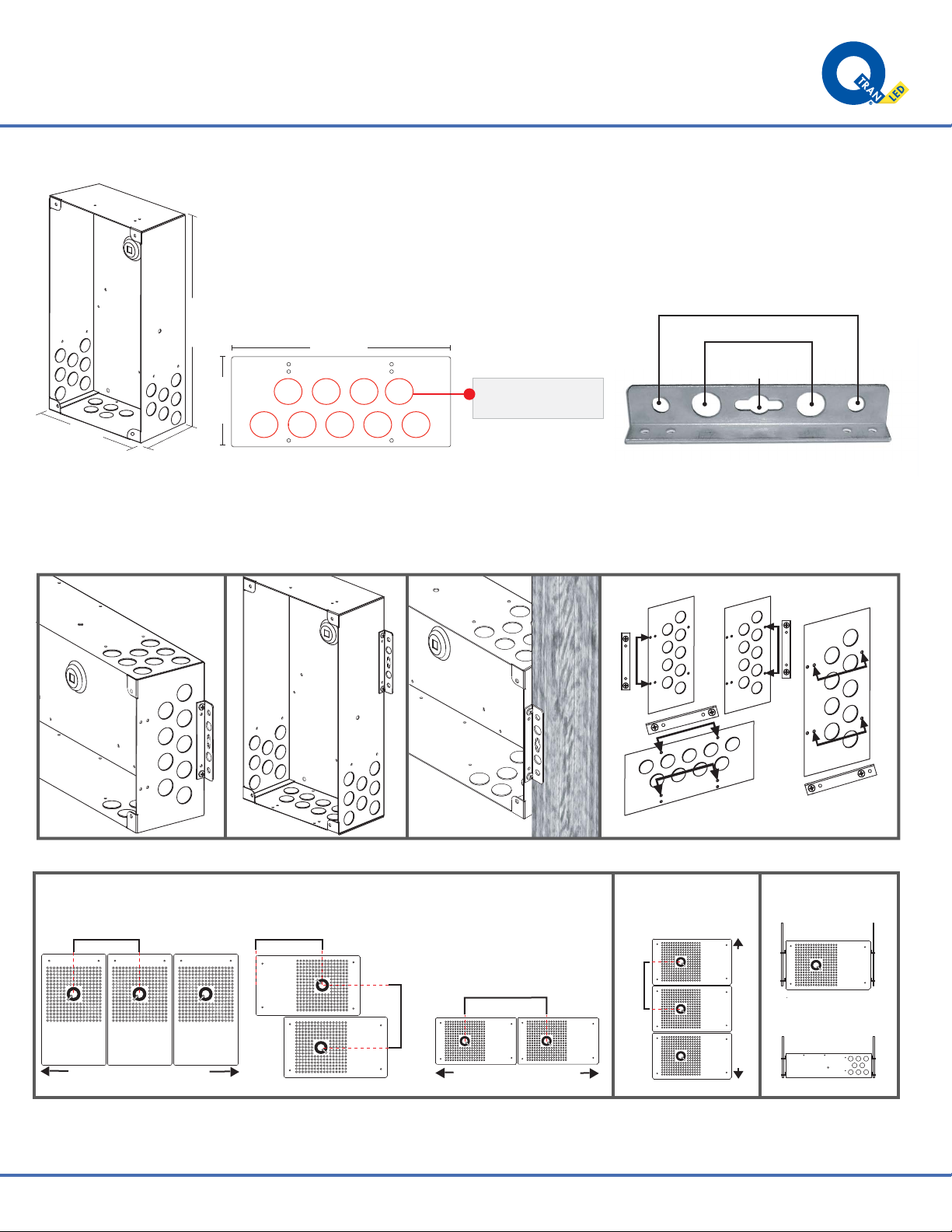

HORIZONTAL VERTICAL RECESSED MOUNT
Plenum Door Required
Horizontal
Vertical
SURFACE SPACING SURFACE STACKING ROD SUSPENSION
9.5" O.C.
16" O.C.
19" O.C.
9.5" O.C.
9.5" O.C.
More Units can be stackedMore Units can be stacked
More Units can be stacked
NOTE: Rods not included.
RECESSED
SURFACE
ROD SUSPENSION
(Horizontal)
ROD SUSPENSION
(Vertical)
Double Sided
Key Hole
1/4" Rod Thru Hole
3/8" Rod Thru Hole
NOTE: Bracket can also be mounted (Top & Bottom)
for Vertical Mounts.
0.875" KNOCKOUT 9X
(FOR 1/2" FITTINGS)
4.00"
BOTTOM VIEW
14.5"
8.00" 4.00"
ISOMETRIC VIEW
8.00"
Mounting Options
Housing

INSTALLATION LED POWER SUPPLY - QTM-eLED+DALI-DT6
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22
WARNING: Risk of electrical shock. May result in serious injury or death. Disconnect power before servicing or installing.
CAUTION: The device may only be connected and installed by a qualified electrician. All applicable regulations, legislation and building codes
must be observed. Incorrect installation of the device can cause irreparable damage to the device and the connected LEDs.
V-
V-
V+
V+
+
1(-)
2(-)
3(-)
4(-)
12-36VDC INLED groups
LED
V-
V-
V+
V+
+
1(-)
2(-)
3(-)
4(-)
12-36VDC INLED groups
LED
Primary Wiring
Control Wiring: DALI Connections
Secondary Wiring
NEU
GND
HOT
LED DRIVER
(120-277V)
V-
V-
V+
V+
+
R-
G-
B-
W-
D1+
D2+
D1-
D2-
LED groups 12-36VDC IN
D2-
D1-
D2+
D1+
V+
V+
V-
V+
V-
B-
R-
G-
W-
LED groups 12-36VDC IN
DALI Signal
in/out
V-
V-
V+
V+
+
R-
G-
B-
W-
D1+
D2+
D1-
D2-
LED groups 12-36VDC IN
DALI Signal
in/out
DALI Signal
in/out
DALI
Controller
D1+
D2+
D1-
D2-
DALI
IN
DALI
OUT
2-Wire default is 1 address 3-Wire default is 2 address
Connecting and Configuring the DALI-DT6 Decoder
To DALI Controller
V-
V-
V+
V+
+
1(-)
2(-)
3(-)
4(-)
12-36VDC INLED groups
D1+
D2+
D1-
D2-
DALI Signal
in/out
D1+
D2+
D1-
D2-
{
12-36VDC IN
-+2
10.2-1.5 mm2
0.35 inch
0.5-1.5 mm2
AWG 20-16
0.35 inch
AWG 24-16
VDC and LED connectors: Other connectors:
LED
V- V- V+ V+
+
1(-) 2(-) 3(-) 4(-)
12-36VDC INLED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
V- V- V+ V+
+
1(-) 2(-) 3(-) 4(-)
12-36VDC INLED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
V- V- V+ V+
+
1(-) 2(-) 3(-) 4(-)
12-36VDC INLED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
DALI
Controller
*By Others
DALI Bus
Power Supply
*By Others
V- V- V+ V+
+
1(-)
2(-) 3(-)
4(-)
12-36VDC IN LED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
DALI
OUT
DALI
IN
DALI
Controller
*By Others
DALI Bus
Power Supply
*By Others
-
+24V
-+
V- V- V+ V+
+
1(-)
2(-) 3(-)
4(-)
D1+ D2+ D1- D2-
12-36VDC IN LED groups
DALI Signal
in/out
DALI
OUT
DALI
IN
DALI
Controller
*By Others
DALI Bus
Power Supply
*By Others
Warm
Cool
+24V
+24V W C
3-Wire2-Wire
2A - 2 Addresses1A - 1 Addresses
NOTE:
2-Wire default is 1 address
3-Wire default is 2 addresses
For customization or pre-programming
contact a local sales rep.
DALI commissioning to be performed by
a third party at time of installation.

INSTALLATION LED POWER SUPPLY - QTM-eLED+DALI-DT6
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22
Other Features
0-6 0-9
1 2
Manual set button
Digital display
1. Set address manually:
(tens) (ones)
00~63
1 2
Press and hold either button
Use the buttons to set address
1 2
Set Address
(5 sec)
2. Set LED groups:
Changing LED group
1A-SW
2A-TW
1 2
Press and hold both button
Use the first button to set the
amount of addresses
(5 sec)
1. Locking the configuration:
Confirm
1 2
Press and hold either button
(5 sec)
2. Reset to factory defaults:
Reset
1 2
1 2
Set Address
Press and hold either button
(5 sec)
Use the buttons to set address
DT6 Dimming Feature:
NOTE: DT6 color type of the dimmer can be SW, WD, or TW.
Manual Configuration

INSTALLATION LED POWER SUPPLY - QTM-eLED+DALI-DT6
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22
C
LED DRIVER 2
(120 - 277V)
B
LED DRIVER 2
(120 - 277V)
LED DRIVER 2
B
NEU GND HOT
DALI
IN
DALI
OUT
V- V- V+ V+
+
1(-)
2(-) 3(-)
4(-)
12-36VDC INLED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
V- V- V+ V+
+
12-36VDC INLED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
V- V- V+ V+
+
12-36VDC INLED groups
D1+ D2+ D1- D2-
DALI Signal
in/out
SECONDARY
PRIMARY
DA -
DA +
Red = +24V
Black = Negative
LEAD WIRE
1(-)
2(-) 3(-)
4(-)
1(-)
2(-) 3(-)
4(-)
NEU
GND
HOT
DA +
DA -
Red
Blue
-+-+-+
To next
power supply
LEDLED LED
DALI
Controller
*By others.
DALI Bus
Power Supply
*By others.
DALI IN
D1+ D1-
NEU GND HOT
LED DRIVER
(120-277V)
Wiring Installation

INSTALLATION LED POWER SUPPLY - QTM-eLED+DALI-DT6
© 2021 Q-Tran Inc. All rights reserved | 155 Hill St. Milford, CT 06460 | 203-367-8777 | [email protected] | www.q-tran.com Specification subject to change. Rev-11-15-22
This product must be installed in accordance with the applicable
installation code by a person familiar with the construction and
operation of the product and the hazards involved.
CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D'INSTALLATION
PERTINENT, PAR UNE PERSONNE QUI CONNAÎT BIEN LE PRODUIT ET
SON FONCTIONNEMENT AINSI QUE LES RISQUES INHÉRENTS.
LOW VOLTAGE
LIGHTING SYSTEM
Q-TRAN, INC.
MILFORD, CT U.S.A.
[phone]
WWW.Q-TRAN.COM
● Type Ic Recessed, Inherently Protected
Type IC ENCASTRE, PROTECTION INHÉRENTE
● For Supply Connections Use Wire Rated for At Least 60C.
Pour les connexions d'alimentation, utilisez des fils
calibrés pour au moins 60C.
● Suitable For Damp Locations
CONVIENT AUX EMPLACEMENTS HUMIDES
● Class 2
Classe 2
CLASS: 3425 - 95
3402 - 95
QTM-eLED-100+DALI
QTM-eLED-200+DALI
QTM-eLED-300+DALI
0.95 / 0.40
1.90 / 0.80
2.85 / 1.20
50/60
50/60
50/60
24
24
24
100
200
300
120 / 277
120 / 277
120 / 277
Model Input Voltage
(V)
Frequency Nominal Output
Voltage (VDC)
Nominal Output
Wattage (W)
Input Current
(A)
120V - 277V
INPUT VOLTAGE OUTPUT VOLTAGE
24V
CONTROL TYPE
DT8
DT6
6.00"
3.15"
QTM-eLED+DALI
QTM-eLED+DALI
C/US
• Suitable for indoor use
• This power supply must be installed according to the National Electric Code and local codes and ordinances and in accordance with
applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
• Wear rubber shoes and work on a sturdy wooden or fiberglass ladder.
• This power supply is to be installed in a location where it is not likely to be contacted by non-electricians.
• To avoid a hazard to children, account for all parts and destroy all packaging materials.
CSA Requirements
