Quadratec QuadraTop 11113.2335 User manual

QuadraTop®Adventure Top
for 2018-2022
4 Door Jeep®Wrangler JLU
Item #11113.2335
Loss of vehicle control involves risk of death or serious injury, particularly to
parts of your body not restrained within vehicle. This product is intended for
weather protection only and should not be relied upon to contain occupants
in the event of an accident or to protect from either ground contact or falling
objects. To reduce risk of accident or injury:
•ALWAYS WEAR SEATBELTS
• Always keep head, arms & body parts within vehicle.
• Fully secure or stow the soft top before driving according to instructions.
Never try to latch or fold soft top while driving. Do not use if damaged or
worn.
• Read and follow all instructions & warnings accompanying this product, in
your vehicle owner’s manual and O󰀨 Road Driving Supplement.
RISK OF EYE INJURY. Safety glasses should be worn at all times while install-
ing or maintaining this product.
PART LIST:
TOP DECK/HEADER AND REAR BOW ASSEMBLY QTY 1
DRIVER SIDE QUARTER WINDOW QTY 1
PASSENGER SIDE QUARTER WINDOW QTY 1
REAR WINDOW QTY 1
CENTER BOW ASSEMBLY QTY 1
DRIVER SIDE DOOR SURROUND QTY 1
PASSENGER SIDE DOOR SURROUND QTY 1
DOOR SURROUND KNOBS QTY 8
TAILGATE BAR QTY 1
REQUIRED TOOLS:
SAFETY GLASSES
SOCKET WRENCH
10MM SOCKET
This Replacement Top kit is designed to t on your 4 Dr Jeep® Wrangler when
the original soft top or hard top has been completely removed. Before begin-
ning your installation of this product, you will need to remove your existing soft
top fabric, hardware or Hard top.
WARNING
CAUTION
NOTICE
TAILGATE BAR CORNER MOUNTS QTY 2
TAILGATE BAR SHORT KNOBS QTY 2
REAR BRACKET SCREWS WITH NUTS QTY 4
BRACKET SCREWS QTY 8
DOOR SURROUND BRACKETS QTY 4
DOOR SURROUND RUBBER QTY 2
4MM ALLEN WRENCH QTY 1

Important Safety information
Your QuadraTop® Fabric Replacement
Top is intended to be used with other
QuadraTop Products to increase the
fair weather enjoyment of your o-road
capable vehicle. Before installation,
please take a moment to review the
following safety information and installa-
tion instructions. Important safety infor-
mation is generally preceded by one of
three signal words indicating the relative
risk of injury.
The signal words mean.
a hazardous situation which, if not avoided, could result in death or serious in-
jury. You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.
WARNING
CAUTION
NOTICE
a hazardous situation which, if not avoided, could result in minor or moderate
injury. You CAN be moderately HURT and also may su󰀨er property damage if
you don’t follow instructions.
Careful attention is required to this instruction or operation but does general-
ly not relate to personal injury. Damage to your Quadratec® product or other
property may result if you don’t follow instructions.
Before you begin Installation:
We are excited that you have chosen
the Adventure Top. This high-quality soft
top is designed to provide protection
from the elements and a stylish look
on your Jeep®. Please note that it is
important that you become familiar with
the installation process of this top by
reading the following instruction sheet
and warnings thoroughly.
For a smooth t and ease of installation, this top should be installed at tem-
peratures above 72 degrees. Below this temperature, the fabric may contract an
inch or more making it di󰀩cult to install. We highly recommend taking the top
out of the package and letting it sit inside a warm place or direct sunlight for
1-2 hours before you install the top. When warm, this top will install quickly.
NOTICE
2
Once the components are removed
from the shipping box, locate the front
and rear door surround components
and accessories as shown in FIG1.
FIG 1
4mm Allen Wrench
Allen Head
Screws for
Door Surrounds
Allen Head
Screws for
Brackets
Door Surround
rear Brackets
Rear Bracket
screws 12mm
with Nuts
Left Right
Left Right
Rubber
Seal
Carefully organize the door surround
components as shown in Fig.1 making
sure the passenger side and driver’s
side components are separated.
When unpacking, carefully check to
make sure all parts are included. If any
part is missing or broken, please call
Quadratec customer service at 800-745-
6037.
Step 1: Un-packing & Organizing the Door Surrounds:
Put on safety glasses. Carefully remove all the contents of the large shipping
box onto a table top or onto the ground on top of a soft towel.
Knobs
Driver Side Door Surround
Passenger Side Door Surround

Step 3: Installing Rear Brackets to
Door Surround
3
FIG 2
Passenger
side Pillar
Assembly
Driver
side Pillar
Assembly
Passenger side Rear Over-
Door Assembly
Rubber
Seal Allen Head Screws
for Door Surround
4mm Allen
Wrench
Passenger Front door surround
Driver Front door surround
Driver side Rear Over-Door Assembly
FIG 3
FIG 5
FIG 4
Step 2: Rear Over Door Surround
Assembly
Allen Head
Screws for
Brackets Rear Brackets
FIG 6
Left
Right Left Right
FIG 7
FIG 9
Line up the Driver’s side rear over-
door assembly and the driver’s side
Pillar assembly, insert the screws into
the two vertical holes and using the
included 4mm Allen wrench, tighten
these screws securing the two pieces
as shown in g 4 & 5. Repeat the above
assembly on the passenger side rear
over door and pillar assemblies.
Insert the two screws on each bracket
and tighten to secure as shown in g. 8.
Locate the driver’s side rear over door
assembly, the rubber seal, the driver’s
side Pillar assembly and the long Allen
head screws/ nuts (Fig 2). Place the
rubber seal on the driver’s side pillar
assembly (Fig 3).
Locate the (4) brackets and (8) Allen
head screws (Fig 6). On the rear driver’s
side door surround, place the bracket
according the same color (door surround
and bracket), making sure the holes line
up. See g. 7.
FIG 8
See g 9 to make sure the brackets are
correctly positioned.
Repeat the assembly on the passenger
side.

4
Step 4: Install Rear Door Surrounds
to Jeep Locate the assembled Driver’s
side rear door surround (Fig 10). On
the bottom of the vertical pillar portion
of the assembled door surround are
two pins that will be inserted into the
body tub as shown in FIG11.
Insert this pin into the body tub as shown
in FIG’s 12 &13. Repeat this procedure
on the passenger side rear door sur-
round.
FIG 10 FIG 11
FIG 12 FIG 13
Step 5: Secure Front & Rear Door
Surrounds to the Roll Bar Locate
the two sets of screw knobs and the
driver’s side front and rear door sur-
rounds. There should be 2 sets of
four knobs. These knobs go in the
front and rear holes of the Brackets
previously installed in step 3 on the
door surrounds.
FIG 15
FIG 14
Line up the front driver’s side door
surround bracket holes with the
vertical holes in the over door
horizontal roll bar. Slip the front two
knobs through the brackets holes in
the front door surround (FIG14)
lining it up with the hole in the top of
the surround bracket on top of the front
horizontal roll bar. If you use a rolling
motion while you push the brackets on
it will be easier to install. Loosely tight-
en each of the knobs securing the front
door surround.
Note: if you have difficult lining up the top of
FIG 13aFIG 13b
the knobs with the upper bracket hole,
rotate the bottom of the door surround pin
out of the body tub slightly towards you and
start the knob. Rotate the pins back into the
tub and tighten knob. You can also remove
the installed top brackets covering the top
hole to get a better view of how the screw
lines up. Fig 13a & 13b. Repeat on the
passenger side of the vehicle.

5
Step 5: Secure Front & Rear Door
Surrounds to the Roll Bar Continued
Line up the rear end of the front door
surround with the front of the rear door
surround as shown in Fig 16. Make
sure the rear door surround seals are
on top of the front Door Surrounds as
shown in Fig 17. Line up the rear
door surround bracket holes with the
vertical holes in the rear horizontal
roll bar. If you use a rolling motion
while you push the brackets on it will
be easier to install.
Slip the two knobs through the brackets
holes in the rear door surround. Loose-
ly tighten the knob securing the front
door surround. Note: if you have difficult
lining up the top of the knobs with the
upper bracket hole, you can remove
the installed top brackets covering the
top hole to get a better view of how the
screw lines up. Repeat on the passenger
side of the vehicle.
FIG 16 FIG 17
Step 6: Installing the Center Bow #1
& #2
Locate the center bow #1 (Fig 18).
Each Bow has been labeled to make
identification easier. Loosen the
screws holding on the top brackets.
With the help of a friend, place the
Quick release end on the bottom of the
bow leg over the second vertical brack-
et (Fig 19). Pull the quick release knob
out and push the bow down mounting
the quick release to the bracket.
The quick release knob is spring load-
ed so you should here a “click” when it
is secure in the bracket (Fig 20). once
the bow is installed, tighten the bow
mount bracket on the door surround.
FIG 18
Center Bow #1
Center Bow #2
FIG 19 FIG 20
Repeat this bow mounting on the other
side of the vehicle and then repeat
the above procedure with center bow
#2 (FIG 18). Tighten down the door
surround knobs on each side of the
vehicle securing the Door surrounds
and the two bows.

6
Step 7: Installing the Rear Bow
The rear bow ships from the factory
bolted onto the Soft Top Deck/Head-
er as shown in Fig 21. Locate the rear
bow screws and nuts in the hardware
kit (4). With the help of a friend you will
need to lay the entire top deck assem-
bly onto the vehicle with the topping
fabric/vinyl facing up, the front header
resting on the windshield and the rear
bow resting on the rear of the back
door surround legs (Fig 22).
The rear bow mounts to the factory
bracket behind the rear door surround
as shown in g 23. Insert the screws
and nuts, using a 10mm socket and
the included 4mm Allen.
Tighten these screws & nuts and secure
as shown in (Fig. 24)
FIG 21 FIG 22
FIG 23 FIG 24
Step 8: Installing the top Deck and
Front Windshield channel
With the rear bow installed and the
front of the Top Deck/ Header assem-
bly resting on the windshield,locate the
two rear bow arms attached to the front
windshield header (see Fig 25).
FIG 25
These bow arms will install to the front
bow mount brackets located on the
top of the door surrounds. Please
go to the next page.

7
Step 8: Installing the top Deck and
Front Windshield channel Continued
Loosen the front bow mount brackets
mounted on the door surround. With
the help of a friend, lift each of the bow
legs over the bow mount bracket (Fig
27).
Repeat the above on the other side of
the vehicle.
FIG 27
Step 9: Installing the top Deck
With the front header folded back
towards the rear of the vehicle (Fig
28), locate the spring assembly at-
tached to the over door cable. Attach
the spring end to the bracket under the
rear door surround as shown in gs 29,
30 & 31.
Important Note: As shown in Fig 31,
the cable when installed should be on
the outside of the door surround.
FIG 28
FIG 30 FIG 31
FIG 29
FIG 32 FIG 32a
In-case the over door cable became disconnected in shipping, you will need
attach it to the bracket on the header, as shown in figures 32 and 32a.
Once lined up with the bow mount
bracket, install the header assembly by
pulling out the quick release knob and
push over the mount until you hear a
“click” (Fig 27). The front header should
now easily rest on top of the wind-
shield when folded down. Tighten the
Bow mount brackets on the front door
surround.

8
Locate the driver side square bracket
on the rear driver door surround as cir-
cled in Fig. 33, Secure the deck to the
bracket by rolling the plastic into the
slot on the bracket. (Fig 34). Repeat
on the passenger side.
Step 9: Installing the top Deck
Continued
Once the deck is secure on the side
brackets, With the help of a friend,
SLOWLY fold the front header down
resting the windshield header on the
windshield. The first time you fold this
header down it will be very tight. Make
sure before you fold down the header
that the front two header corner
packets are in place and not lifted up
over the header. With the header
resting on the windshield, close the
front header latches to secure the front
of the top to the windshield. See FIG’s
35 & 36.
FIG 34
FIG 33
FIG 35
FIG 36
Locate the drivers rear quarter win-
dow. Line up and slide the rear quarter
window into the “C” Channel sewn on
the Top Deck as shown in FIG’s 37 &
38. Repeat this on the passenger side
of the vehicle.
FIG 37
FIG 38
Locate the rear window and line up
and slide the rear window into the “C”
Channel located at the top of the rear
portion of the top deck and slide it
across (FIG's 39 & 40). Go to next
page.
FIG 39
Step 10: Installing the Side and
Rear Windows
FIG 40

9
FIG 41
FIG 42
FIG 43
Step 10: Installing the Side and
Rear Windows Continued
Once both quarter windows and the
upper portion of the rear window are
secured to the top deck, line up the
driver’s side rear zipper on the Quarter
window to the zipper on the rear
window and zip it down a few inches
(FIG 41).
Repeat the above on the passenger
side of the vehicle. You may have to
lift the quarter window up to secure
this second zipper a few inches. Once
both side zippers are attached, zip the
rear window zippers down about half
way (Fig 42).
You will close these zippers
completely at the end of the install.
Go inside the vehicle and locate the
second and third center bow hook and
loop flap sewn into the top deck. Wrap
this flap around the second & third
center bow securing the top deck to
the bows (FIG 43).
When removing the quarter and rear windows from the Top deck be sure to
slide them out completely before pulling down. Disengage the side hook and
loop before sliding the windows out. DO NOT “Peel” the windows out! Failure
to completely disengage the windows from the “C” Channel will damage the
Top and quarter window!
NOTICE
FIG 63
Each Time you remove the windows:
Completely pull the windows out of the “C” Chan-
nel before pulling the windows down!
Do not “Peel” the windows out. See Fig 44.
FIG 44
There may be times when the “P” extrusion may come out of the “C” Channel
ends due to extreme downward pressure. This is normal. If this occurs, slide
the “P” extrusion out of the C channel and re install securing the window back
into the “C” Channel.
NOTICE
The Bow ap over the center speak-
er bar will be dicult to reach. If you
have trouble, release the front header
and fold it back to give yourself more
room to work.

10

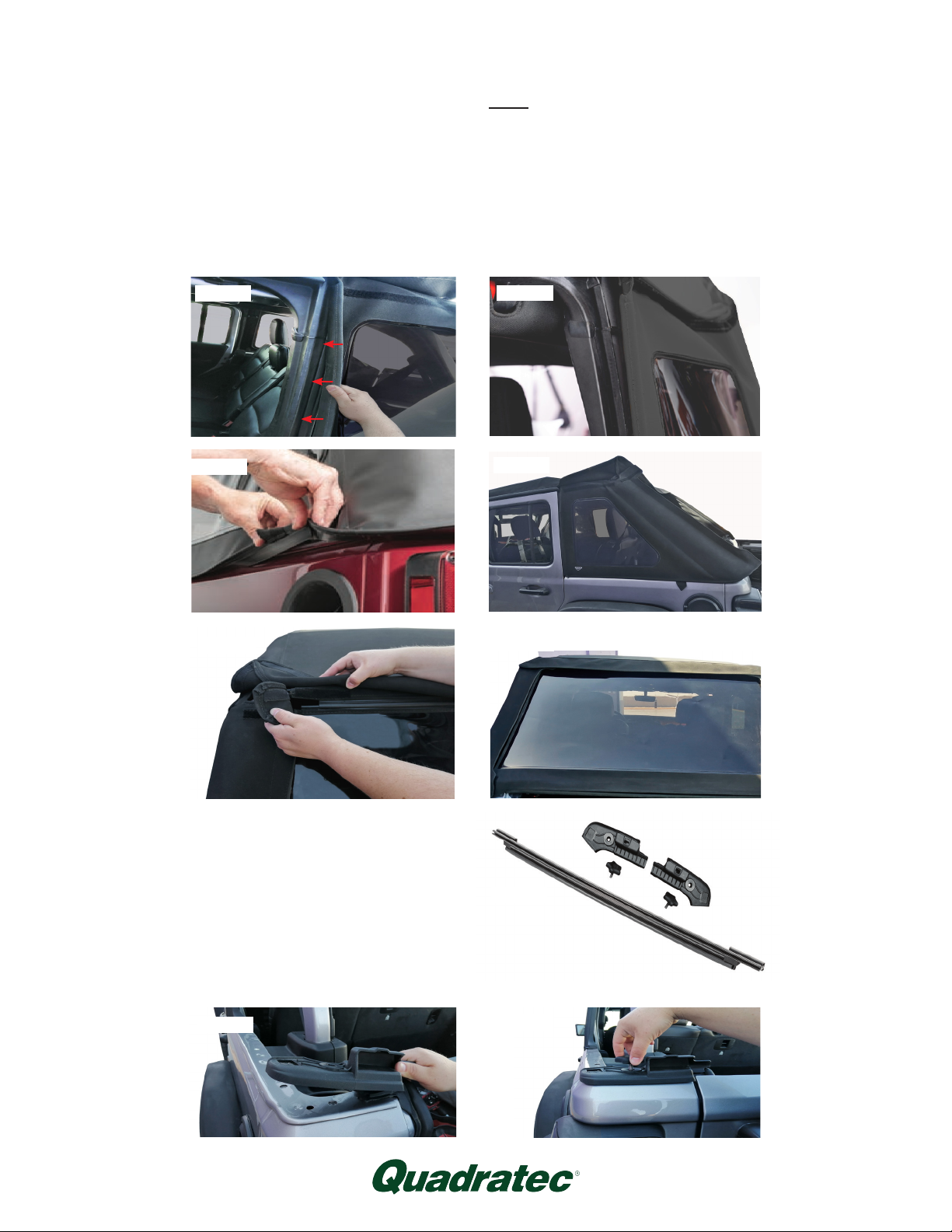

As shown in FIG’s 45 & 46, roll the
vertical plastic strip into the door
surround slot securing it to the door
surround. Next, starting at the driver’s
side front, attach the side belt rail into
the vehicle body by “rolling” the plastic
into the slot (FIG’s47 & 48).
Step 11: Securing the Side and Rear
Windows to the Vehicle
FIG 45 FIG 46
FIG 47 FIG 48
Note: You may have to pull the
corners around towards the front or
back of the vehicle to center the top on
the vehicle. Also, on the first install it
might be easier to release the front
header latches. Repeat this on the
passenger side centering the top over
the rear bow.
Seal hook and loop around windows
(Fig 49 & 50)
FIG 49 FIG 50
Locate the Tailgate bar, corner mounts
and two short knobs (FIG 51). Locate
the driver’s side corner mount and
line up with the corner of the body tub.
With the short knob, secure the corner
mount to the body tube and tighten.
See Fig’s 52 & 53. Repeat this proce-
dure on the passenger side.
Step 12: Attaching the Corner
Mounts and Tailgate Bar
FIG 51
FIG 52 FIG 53

11
Take the tailgate bar and orient the
“C“-Channel with the round seal facing
down and slide the “C” Channel onto
the rear window retainer as shown in
FIG 54 & 55. After sliding the retainer
all the way through the “C” Channel,
roll the tailgate bar into the mounts
with the outside of the fabric facing to-
wards the rear of the Vehicle (Fig 56 ).
Step 13: Securing the tailgate bar &
rear window to the vehicle
Once the Tailgate bar issecure, and
move to the rear driver’s side corner
mounts and “roll” the plastic into the
corner mount as shown in FIG 57.
Lower zippers on both sides of the
rear curtain and then secure the rear
zipper cover flap as shown in Figs 58
& 59. Repeat this procedure on the
passenger side.
FIG 54 FIG 55
FIG 56 FIG 57 FIG 58

Open over the front driver and pas-
senger compartments:
FIG 60
FIG 61
FIG 62
Option #1 & #2
Fully Open Front and Rear Passen-
ger “Sun Roof”:
Option #3 & #4
FIG 63

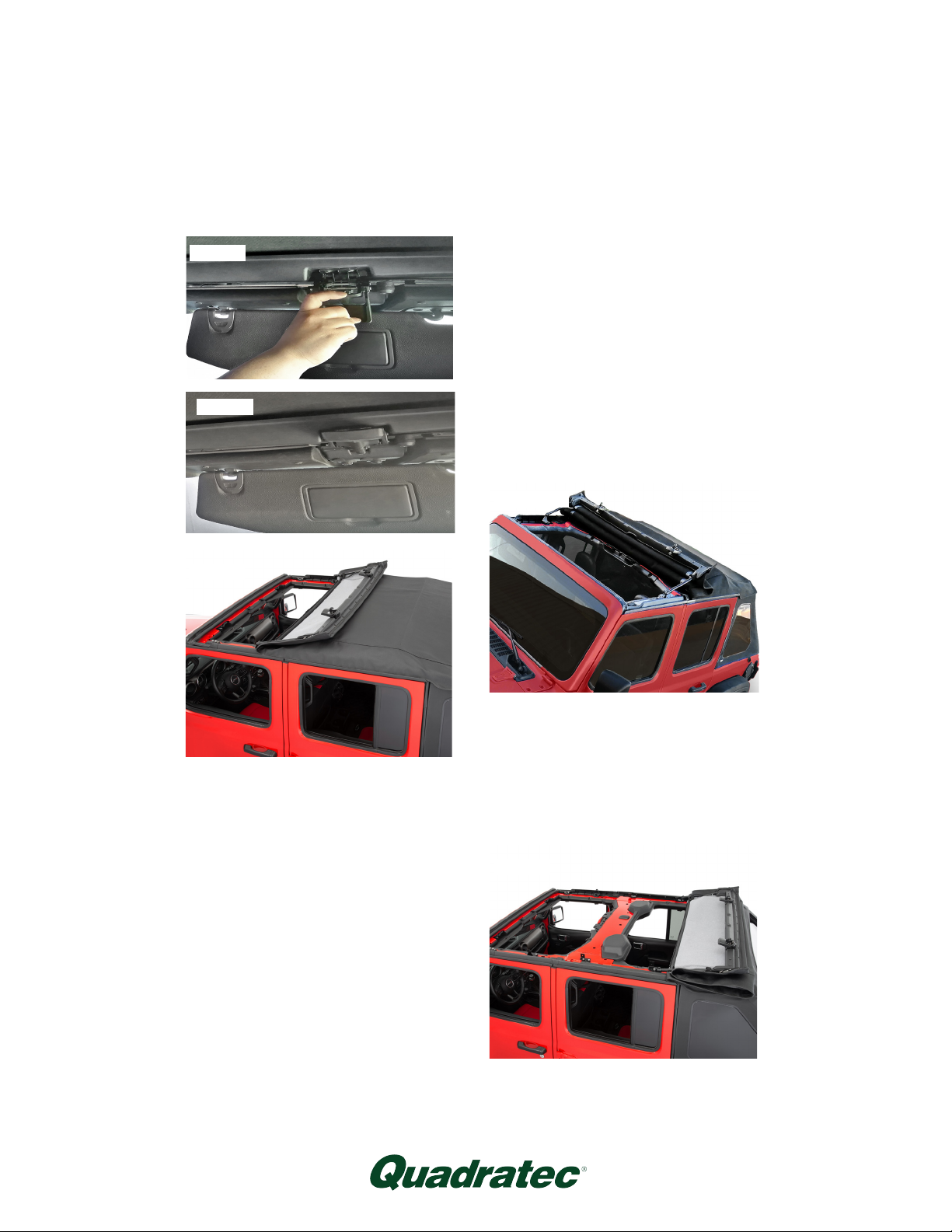

Unlatch the two front Windshield latch-
es (Fig 60 & 61). Push the front head-
er up and over to open the “sunroof”.
When you open the front portion there
will be fabric still hanging down over
your head(Fig 62) This is Option #1
which provides protection from the sun
while opens the “sunroof”. If you push
the fabric up in the center of the folded
back “sunroof” and tuck/ fold it under
the header, this is option #2 which
opens up the “sun roof” completely.
This option is shown in Fig 62A.
These options open both the front cab
and rear cab portions of the top. This
option requires you to remove the front
header arms and the two bows from
the bow mount brackets. Fig 63 shows
the nished look of this “Sun Roof”
option with the front header installed
on the third bow bracket mount and the
header folded all the way back to the
rear of the vehicle. SEE NEXT PAGE
f o r o p t i o n s # 3 & # 4 .
Your Soft top hardware has multiple
front fold back options. Depending
on how much sun and weather you
want to let into the cab determines
the options available to you
Using Your Fastback Soft Top
12
FIG 62A

13
FIG 64
FIG 66
Using Your Fastback Soft Top
Continued
Fully Open Front and Rear Passen-
ger “Sun Roof”:
With the header latches un-latched
and front section open(Fig 64) un-hook
the 2 quick release knobs located on
the end of the header arms as circled
in Fig 65. Next, un-hook the 4 quick
release knobs on bow #1 and bow
#2 (Fig 65) leaving the two rear bows
(Bow #1 & #2) encased in the hook
and loop aps.
Option #3 & #4
Once The front bow arms and two
rear bows are disconnected from the
bow mount brackets, with the help of
a friend, carefully fold back the front
header and two bows layering the top
and bows under the fabric and then
connect the front bow arms quick
release brackets to the rear-most third
bow mount bracket as shown in Fig 66.
This is option # 3. Notice in Fig 67 how
the fabric is “layered back and the front
Bow Mount Brackets are installed to
the rear bow brackets. This is option
#4 with the entire fabric assembly
folded back and secured to the rear
brackets.
FIG 65
FIG 67
The front header arms must be secure to the third bow mount bracket and the
fabric/ bows must be layered back before the vehicle is driven! Failure to secu-
re these bow mounts will cause the top to potentially y o󰀨 the vehicle causing
damage to the top, vehicle and potentially other vehicles on the road.
WARNING

Care and Maintenance:
Your QuadraTop is made of the nest
materials available but to keep it looking
new and for the maximum possible wear,
it will need periodic cleaning and basic
maintenance. The main threats to your
soft top are pollutants, dirt and grime.
By keeping your soft top clean you will
prolong the life of your top.
We recommend the following to keep
your top like new:
Washing: The soft top fabric should be
washed often using a mild soap, warm
water and a soft bristle brush (do not use
the brush on the window glass!). You
can also use special soft top clean- ers
available on our website and shown on
page 15. Make sure that after clean- ing
you rinse with clear water to remove all
traces of soap.
Zippers: Keeping the zipper cleaned
and lubricated with a silicone lubricant
(see Page 15) will help prevent damage
and keep the zippers in a smooth work-

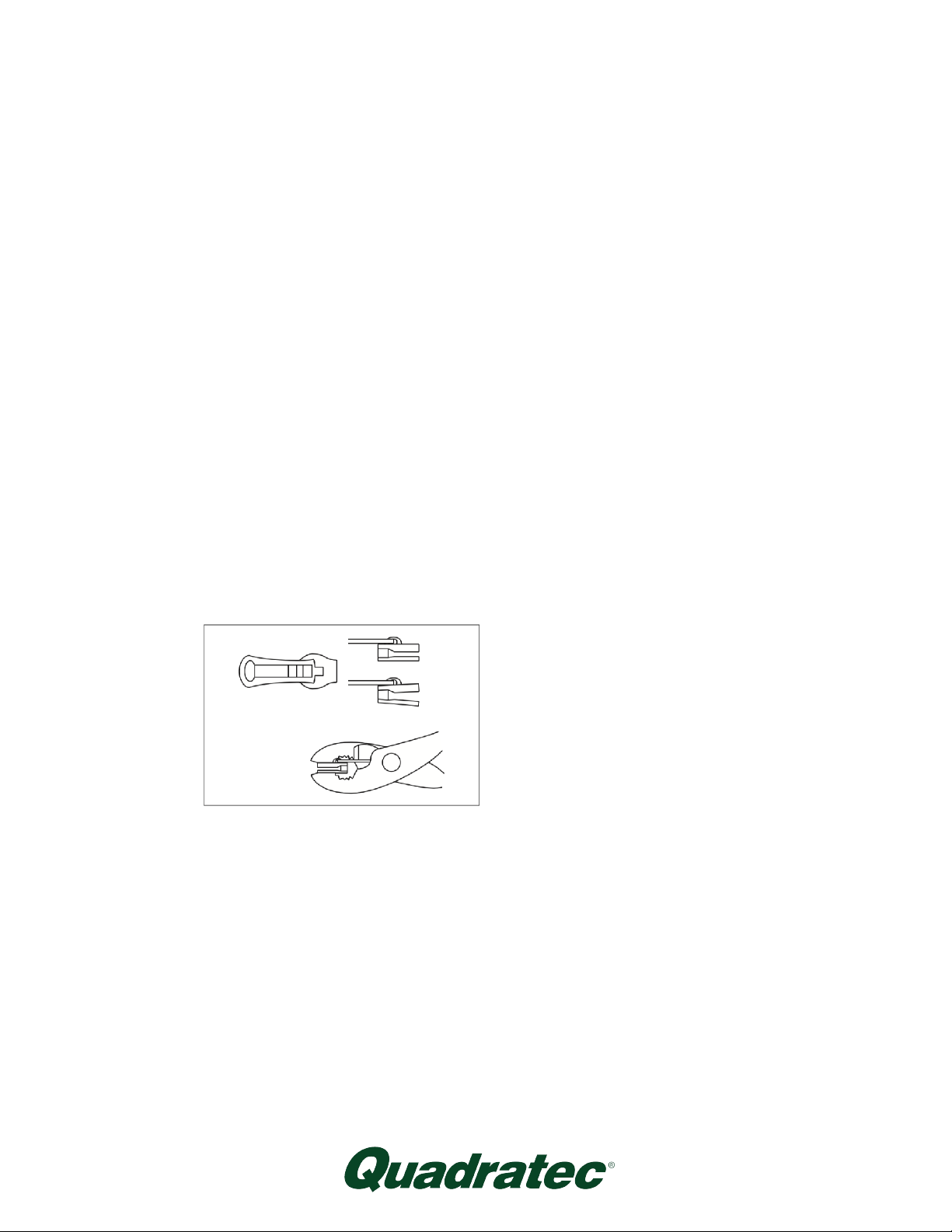

ing condition. If zipper opens behind the
slider, the slider may have been spread
apart. This problem can usually be xed
by using an ordinary pair of pliers to bring the
sides back into parallel. Return slider to the
end of the zipper in the normal Open posi-
tion. Squeeze lightly at rst and test zipper. If
the zipper continues to remain open squeeze
more rmly with pliers and try the zipper
again. Repeat procedure until your zipper
operates correctly.
Windows: It is very important that you keep
your QuadraTop windows clean! Use a mild
soap and water solution to gently clean your
windows. NEVER wipe your windows clean
with a dry cloth! Dust and dirt on a dry cloth
can scratch your windows causing “fog- ging”
and permanent damage. When re- mov-
ing your windows, store them with a towel
between the panels/rear win- dows to protect
them from damage. If frost or ice forms on
the outside of your windows during the win-
ter, DO NOT use an ice scraper to remove
this frost. Over time you will see small micro
scratches in your windows which are natural
wear and tear. These Micro scratches can be
“polished” out using the window polish listed
on page 15 (Available at Quadratec.com).
Water/Fabric: In the event of seeping
through the seams, 3M Scotchgard® may
be applied on the inside of the seams to stop
the see. Rips in the fabric may be repaired
with Bondex® iron on patches. Iron the
patches to the Inside of the top, carefully
following the Bondex® instructions.
Snaps: Keep snaps cleaned and lubricated
with silicone to help prevent snaps from
sticking to the studs. If a snap does become
stuck to a stud, use a screwdriver and GEN-
TLY pry apart to prevent permanent damage
to the snap or the top fabric.
14

Quadratec Limited Warranty
for QuadraTop® Replacement Soft Tops
Your QuadraTop® replacement soft top is
covered by the following Limited Warranty
provided exclusively by Quadratec, Inc. 1028
Saunders Lane, West Chester, PA 19380.
This Limited Warranty is the only warranty
made in connection with purchase. Qua-
dratec neither assumes nor authorizes any
vendor, retailer or other person or entity to
assume for it any other obligation or liability
in connection with this product or Limited
Warranty.
What is Covered:
Subject to the terms, exclusions and limita-
tions herein and with respect only to soft tops
rst sold in the United States, Quadratec
warrants to the initial retail purchaser only
that your QuadraTop soft top shall be free of
defects in material and workmanship for a
period of 3 years from date of initial retail
sale.
All other warranties are hereby disclaimed,
except to the extent prohibited by applicable
law in which case any implied warranty of
merchantabil- ity or tness for a particular
purpose on this prod- uct is limited to 3 years
from date of initial retail sale. Quadratec
reserves the rights to: (a.) require invoice or
other proof your soft top is within the terms
of this Limited Warranty as a condition of
warranty service and, (b.) make future revi-
sions to this product and Limited Warranty
without prior notice or obligation to upgrade
your soft top.
What is Not Covered:
Your Quadratec Limited Warranty does not
cover products or parts Quadratec determi-
nes to have been damaged by or subjec-
ted to: (a.) installation damage, alteration,
modication, failure to maintain or attempted
repair or service by anyone not authorized
by Quadratec, (b.) normal wear and tear,
cosmetic damage or damage from
water immersion, (c.) Acts of God, accidents,
misuse, negligence, inadequate mounting
or impact with vehicle(s), obstacles or other
aspects of the environment, (d.) theft, vanda-
lism or other intentional damage.
Remedy Limited to Repair/Replacement:
The exclusive remedy provided hereun-
der shall, upon Quadratec inspection and
at Quadratec’s option, be either repair or
replacement of product or parts (new or
refurbished) covered under this Limited
Warranty. Customers requesting warranty
consideration on QuadraTop soft top should
rst contact Quadratec to obtain a RGA
number (610-701-3336). All labor, removal,
shipping and installation costs are custo-
mer’s responsibility.
Other Limitations - Exclusion of Damages
- Your Rights Under State Law:
In consideration of the purchase price paid,
neither Quadratec nor any independent
Quadratec distributor/licensee are responsi-
ble for any time loss, rental costs, or for any
incidental, consequen- tial, punitive or other
damages you may have or incur in connec-
tion with any part or product purchased. Your
exclusive remedy hereunder
for covered parts is repair/replacement as
described above.
This Limited Warranty gives you specic
rights. You may also have other rights that
vary from state to state. For example, some
states do not allow limitations of how long an
implied warranty lasts and/or do not allow the
exclusion or limitation of incidental or con-
sequential damages, so the limitations and
exclusions herein may not apply to you.
The terms Quadratec®, QuadraTop®
Essentials® and Essential® are Registered
Trademarks of Quadratec Inc. Registered in
U.S. Patent and Trademark Oce.
©Quadratec, Inc. 2020. All Rights Reserved.
Version 5.26.22
Part # 941068.01
15
