QUADRO VEHICLES Qooder User manual

QOODER User Manual

Dear Customer,
QUADRO VEHICLES thanks you for choosing this scooter, and welcomes you as a customer!
You can help to maintain the efficiency, performance and safety conditions of your scooter with careful maintenance, performed only
by authorised QUADRO VEHICLES dealers or workshops.
Our technicians are committed to producing high quality scooters, the result of our extensive experience, to guarantee you the
pleasure of safe driving over time.
Please read the Use and Maintenance Manual supplied with your QUADRO VEHICLES vehicle carefully, and make sure that all routine and
extraordinary maintenance and any technical servicing is performed exclusively by the specialist staff from our Network of QUADRO
VEHICLES Dealers.
To ensure the safety, reliability and value of your scooter, and to maintain the validity of the warranty, use only original QUADRO VEHICLES
spare parts and recommended lubricants.
Before you begin using the scooter, you must read this Use and Maintenance Manual carefully and follow all instructions it contains
precisely.
The scooter must not be used by persons who have not thoroughly read and understood the instructions contained in
this Use and Maintenance Manual.
This Use and Maintenance Manual contains simple and clear descriptions of the operations necessary to understand and use your
scooter, as well as recommendations for safe use of your scooter in order to avoid personal injury.
It also describes the main maintenance operations and periodic checks which must be performed on the scooter.
The guarantee of correct operation and safety of the scooter strictly requires that all instructions contained in this Use and Maintenance
Manual be applied.
This Use and Maintenance Manual must always be provided together with the scooter if it is resold, hired or lent out.
This Use and Maintenance Manual is an integral part of the scooter and it must therefore be kept in a safe place accessible to all
persons who might need to consult it.
If the Use and Maintenance Manual is lost or damaged, request a new one from your dealer, giving them the scooter specifications.
This Use and Maintenance Manual is an integral and essential part of your scooter.

The text of this publication contains a series of dedicated symbols used to highlight the main requirements and recommendations to be
followed for keeping your scooter and its passengers safe.
The information contained in this Use and Maintenance Manual is provided as a guide only and may not be completely up to date due to
modifications which may be made by Quadro Vehicles at any time for technical and/or commercial reasons, or else to comply with the
legislation of the country in which the scooter is sold.
In order to learn and understand all features and functions of your scooter, you are advised to carefully read the following Use and Maintenance
Manual supplied with the scooter.
SYMBOLS USED
DANGER to persons and to the scooter.
The following symbol indicates that it is prohibited to use/handle flammable substances near the vehicle, lubricate/touch moving
mechanical parts or remove any guards on the scooter. It also invites you to wear appropriate clothing and protection at all times,
both when driving and servicing the vehicle, particularly if there is a possibility of coming into contact with any parts which could
cause burns, electric shocks or irritations.
WARNING which you must pay attention to in order not to risk damage to the scooter.
The following symbol invites you to use only original spare parts or parts specifically type-approved for QOODER and to avoid
all improper modifications which may compromise the scooter's functions, consequently causing the warranty to become null
and void
WARNING with an impact on the environment.
The following symbol invites you to dispose of all products (for example engine oil) and all mechanical and bodywork components
in the disposal and recycling methods laid down by the statutory regulations in force in each country.
NOTE of a general nature.

CONTENTS
SAFETY AND RECOMMENDATIONS
POSITIONING INFORMATIVE STICKERS............................. 6
GENERAL RECOMMENDATIONS
AND REQUIREMENTS......................................................... 9
CLOTHING .......................................................................... 9
REFUELLING THE VEHICLE ................................................ 9
SAFE DRIVING .................................................................. 10
WHEN AT A STANDSTILL.................................................. 12
LOAD LIMITS..................................................................... 12
UNAUTHORISED MODIFICATIONS/ACCESSORIES AND
SPARE PARTS................................................................... 13
RESPONSIBILITIES AND LIMITS OF USE.......................... 13
GETTING TO KNOW YOUR SCOOTER

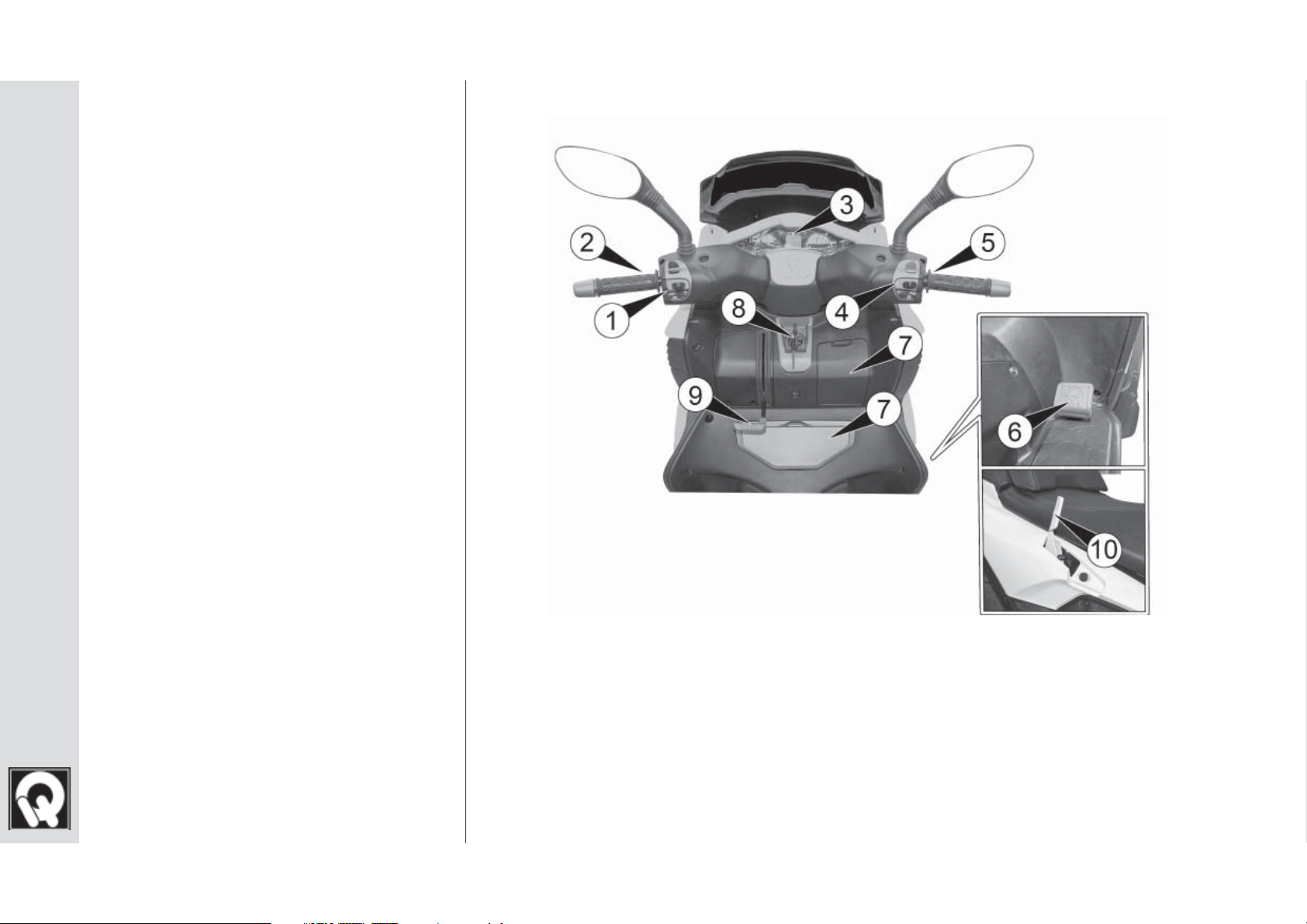

COMPONENT LOCATION ................................................. 16

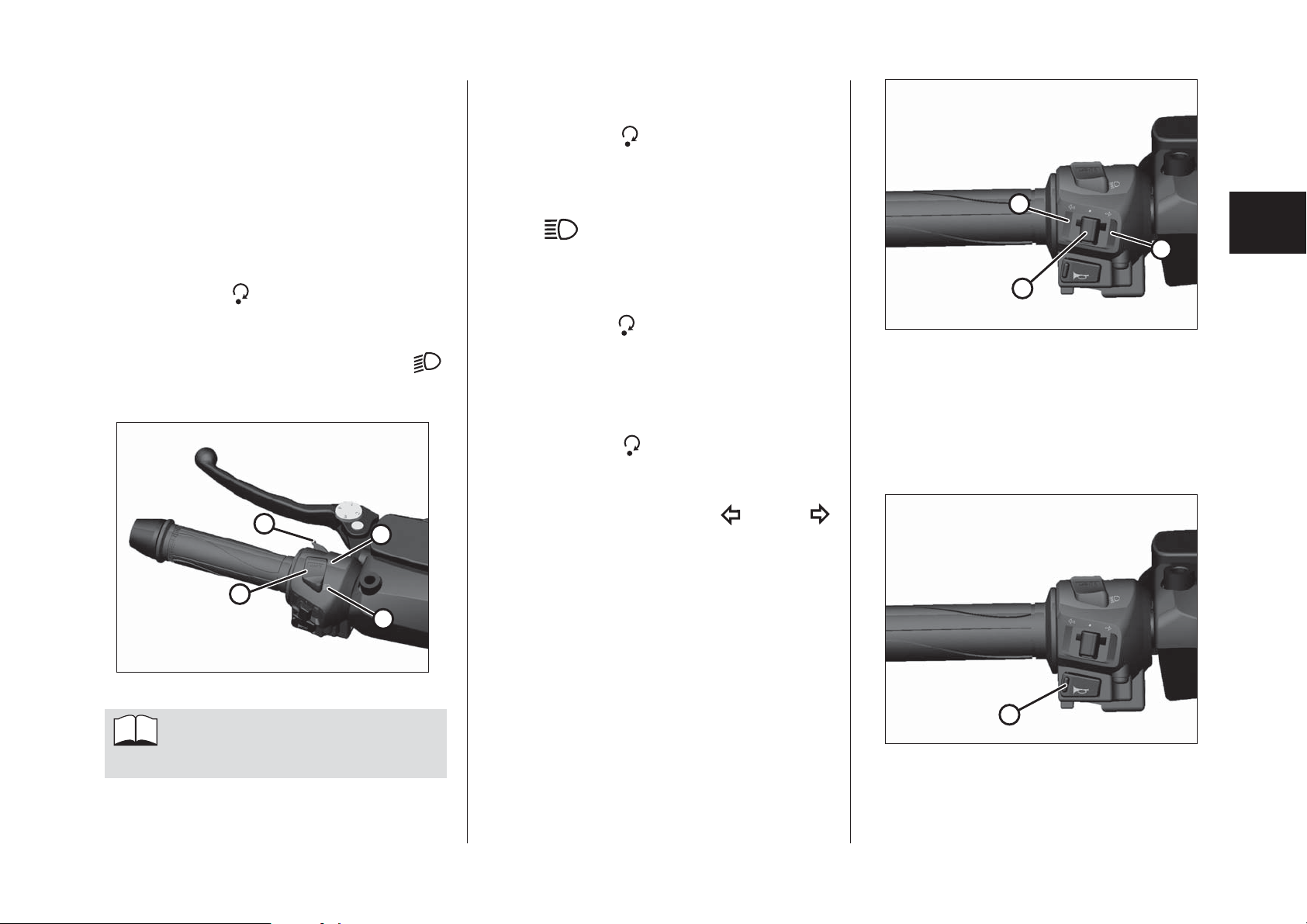

HANDLEBAR CONTROLS, LEFT-HAND SIDE.................... 17
Dipped headlights ........................................................ 17
Full-beam headlights .................................................... 17
Flasher ......................................................................... 17
Turn signals.................................................................. 17
Horn............................................................................. 17
HANDLEBAR CONTROLS, RIGHT-HAND SIDE ................. 18
Hazard warning lights................................................... 18
KEYS................................................................................. 18
STEERING LOCK .............................................................. 18
PARKING BRAKE .............................................................. 19
Engagement................................................................. 19
Disengagement............................................................ 19
HTS (Hydraulic Tilting System)
LOCK/RELEASE LEVER .................................................... 20
Tilting lock.................................................................... 20
Releasing the Tilting Lock............................................. 20
TEMPORARILY STOPPING
THE SCOOTER (WITH DRIVER ON BOARD)...................... 21
STOPPING THE SCOOTER ............................................... 21
INSTRUMENT PANEL........................................................ 22
ON-BOARD COMPUTER................................................... 23
Trip Computer function................................................. 23
Trip Computer Reset .................................................... 23
Clock setting ................................................................ 23
Air temperature unit of measurement............................ 23
INDICATOR LIGHTS ON THE INSTRUMENT PANEL.......... 24
UNIFIED BRAKE PEDAL .................................................... 27
REAR-VIEW MIRRORS ...................................................... 27
REAR FOOTRESTS ........................................................... 27
EQUIPMENT...................................................................... 28
Storage compartments ................................................ 28
Storage compartment below seat ................................ 28
Auxiliary power sockets................................................ 28
USE
IGNITION KEY ................................................................... 30
ENGINE START ................................................................. 30
ENGINE STOP................................................................... 31
PARKING........................................................................... 31
RUNNING IN...................................................................... 31
REFUELLING..................................................................... 32

MAINTENANCE
GENERAL ISSUES............................................................. 34
CHECKS............................................................................ 35
LEVEL CHECK................................................................... 35
Engine oil ..................................................................... 35
Engine coolant ............................................................. 36
Brake oil....................................................................... 37
AIR FILTER......................................................................... 37
CLEANING ........................................................................ 37
PERIODICAL CHECKS ...................................................... 39
DEMANDING USE / PROLONGED INACTIVITY ................. 39
SCHEDULED MAINTENANCE ........................................... 39
PLANNED MAINTENANCE PLAN ...................................... 40
EMERGENCY
FUSES............................................................................... 46
Table of fuses ............................................................... 47
HEAD LIGHT CLUSTER..................................................... 48
Replacing Bulbs ........................................................... 48
TAIL LIGHT CLUSTER ....................................................... 48
Replacing Bulbs ........................................................... 48
NUMBERPLATE LIGHT...................................................... 48
REPLACING TYRES .......................................................... 49
BATTERY........................................................................... 49
Replacement................................................................ 50
Recharging the battery................................................. 51
TROUBLESHOOTING........................................................ 52
INACTIVITY AND LAYING UP
SCOOTER INACTIVITY AND LAYING UP ........................... 54
TECHNICAL DATA
SCOOTER IDENTIFICATION .............................................. 56
Frame number ............................................................. 56
Engine number............................................................. 56
ENGINE CHARACTERISTICS ............................................ 57
PRODUCTS....................................................................... 57
CAPACITY ......................................................................... 57
DIMENSIONS .................................................................... 59
BULBS .............................................................................. 59
BRAKE SYSTEM ............................................................... 60
CLUTCH............................................................................ 60
TRANSMISSION ................................................................ 60
FRAME .............................................................................. 60
SUSPENSION.................................................................... 60
BATTERY........................................................................... 60
WEIGHTS AND LOADS ..................................................... 60
RIMS ................................................................................. 60
TYRES............................................................................... 60
TYRE PRESSURE.............................................................. 60

1
SAFETY AND RECOMMENDATIONS

6
SAFETY AND RECOMMENDATIONS
This chapter contains the main precautions you must take in order to drive your scooter as safely as possible.

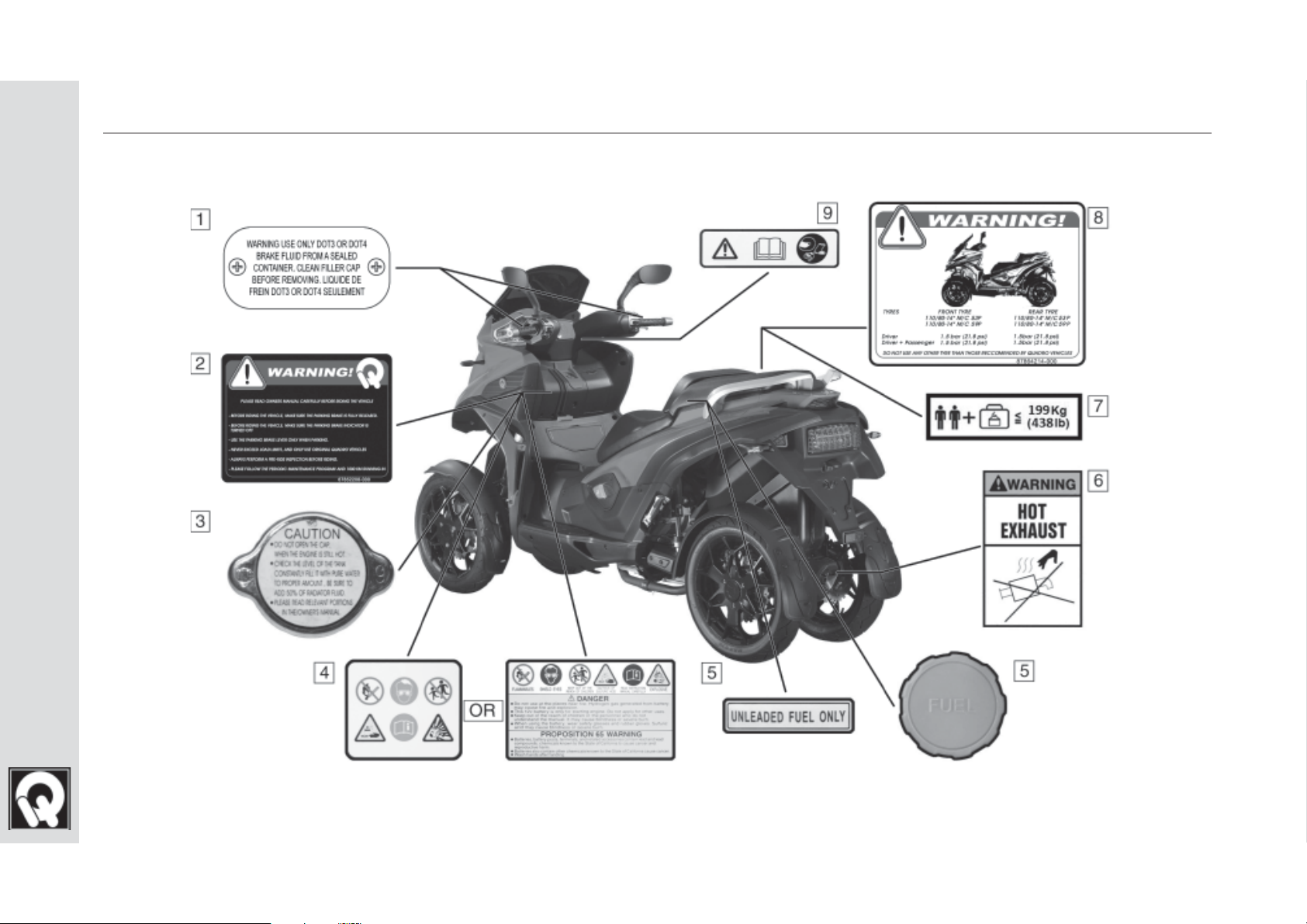

POSITIONING INFORMATIVE STICKERS
fig. 1

1
7
REFER TO
FIGURE 1 TYPE OF STICKER DESCRIPTION
1 Brake fluid Clean the tank cap before use.
Only use DOT 4 brake fluid from a sealed container.
2 General
- Carefully read the Use and Maintenance manual before setting off on the vehicle.
- Before driving off on the vehicle, make sure you have released the parking brake completely.
- Before driving off on the vehicle, make sure that the parking brake tell tale light is off.
- Only use the parking brake when the vehicle is parked.
- Never exceed the payload weight allowed and only use genuine Quadro Vehicles accessories.
- Carry out a rough check of the functions before driving off.
- Always carry out a scheduled servicing and check once you have reached 1000 km.
3 Radiator
- Do not open the radiator cap while the engine is still warm.
- Check the level of the tank constantly and top up with a 50 - 50% water/coolant solution.
- Read the quantities in the Maintenance manual.
4 Battery
- Do not use in places with naked flames present. The hydrogen gas generated by the battery could
cause fires and explosions.
- This 12v battery can only be used to start the motor. Do not use for other purposes.
- Keep out of the reach of children and persons who have not learnt the information from the instruction
manual. It may cause serious burns.
- When touching the battery, wear protective goggles and rubber gloves. Sulphuric acid could cause
blindness and serious burns.
- The battery, the poles of the battery, the terminals and the relative components contain lead and
lead compounds and chemical substances that could cause cancer and damage to the reproductive
system.
- The batteries contain other chemical substances that could cause cancer.
- Wash your hands after handling the battery.
5 Fuel Only use unleaded petrol with less than 10% ethanol and with a minimum octane number 95 (RON).
6 Exhaust terminal High temperature exhaust terminal: danger of serious burns if touched.

8
SAFETY AND RECOMMENDATIONS
REFER TO
FIGURE 1 TYPE OF STICKER DESCRIPTION
7 Maximum payload Do not exceed the maximum load limit allowed (199kg - 438 lb).
8 Tyres
Front tyre: Rear tyre:
Dimensions 110/80 - 14” M/C 53P
or
110/80 - 14” M/C 59P
110/80 - 14” M/C 53P
or
110/80 - 14” M/C 59P
Pressure 1.5 bar (21.8 psi) 1.5 bar (21.8 psi)
Do not use other tyres that are not recommended by Quadro Vehicles.
9 Safety Carefully read the Use and Maintenance Manual and always use adequate technical clothing.

1
9
Using QOODER requires knowledge of
driving techniques for two-wheeled /
four-wheeled vehicles.
Ensure you have learnt and practised
these techniques with a qualified driving
instructor before using the scooter.
QOODER has been designed to offer the
driver and passenger maximum com-
fort and safety, however this can only be
obtained through responsible use of the
scooter.
When necessary, we recommend practising
the scooter functions away from heavily
trafficked areas.
GENERAL RECOMMENDATIONS
AND REQUIREMENTS
Do not drive the vehicle if you
do not have a valid driving licence.
Driving while under the in-
fluence of alcohol and drugs or
medicaments, has a significant
negative effect on reaction times,
decision-making and driving abili-
ties in general; it is also generally
punished in accordance with the
laws of the country in which you
are driving.
The driver and passenger must wear
clothing and safety equipment which
meets applicable legislation in the coun-
try the vehicle is being driven in and pro-
tects them as far as possible in the case
of an accident. We recommend always
wearing a type-approved helmet, visor/
goggles, gloves, overall and boots; you
should always avoid any clothing or
accessories which could get caught in
the moving parts of the scooter and/or
obstruct the driver's view.
While the scooter is being serviced,
wear clothes and protective equipment
that are suitable for the operation being
carried out.
CLOTHING
Wear adequate technical
clothing and safety equipment
that is approved and certified and
that guarantees optimal protec-
tion to the driver and passenger.
You are recommended to always
wear clothing that makes the driver
visible to other road users.
While refuelling the scooter, always turn
off the engine and check that there are
no leaks in order to avoid breathing in
petrol fumes; do not smoke, do not use
naked flames and do not use mobile
telephones, as these may all ignite the
highly explosive fuel vapour, and check
that there are no fuel leaks.
REFUELLING THE VEHICLE
Contact a doctor immediately
if fuel is swallowed or comes into
contact with eyes or skin.
After refuelling, ensure that
the fuel filler cap is closed correctly.

10
SAFETY AND RECOMMENDATIONS
SAFE DRIVING
QOODER has been designed to trans-
port the driver and a maximum of one
passenger. Before driving you must per-
form a general check on the condition of
the scooter, particularly the safety sys-
tems, lights and tyres; if you should no-
tice any serious faults, consult an author-
ised Quadro Vehicles dealer immediately.
While driving, the driver must keep both
hands on the handlebars and the pas-
senger must hold onto the handles at
the sides of the seat. Both the passenger
and driver must keep both feet on the
footrest fig. 2 - fig. 3 while the scooter
is in motion. We therefore advise you do
not transport passengers who are not
able to keep their feet firmly planted on
the footrest.
fig. 2
fig. 3
Both the driver and the passenger must
sit in the right position that allows the
driver to control all the functions of the
vehicle and does not involve an unbal-
ancing of the load that could jeopardise
the stability of the scooter. Always trans-
port the passenger on the rear of the
seat.
Before setting off, allow the scooter to
warm up and anyway do not push it to
its maximum.
When starting off, release the brake le-
ver and turn the throttle handle slowly in
the direction shown by the arrow fig. 4;
to decelerate, release the throttle handle
accompanying it.
fig. 4

1
11
If you open and close the
throttle handle abruptly it could
cause the vehicle to race forward
suddenly and a possible loss of
vehicle control.
Do not attempt to start the
vehicle with the throttle open
as you might lose control of the
scooter.
Comfortable braking is guaranteed by
the gradual and simultaneous use of
both the front and rear brake.
Should it be necessary to brake
in an emergency, do not let the
throttle go abruptly but accompany
it as quickly as possible to the "gas
closed" position.
During a long stretch downhill, release
the throttle handle and brake gently
intermittently. Using the brakes for a long
time continuously could cause them to
overheat thus losing braking efficiency.
In order to avoid possible collisions, you
should:
always make yourself visible to other
drivers, ensuring you do not drive in their
blind spots;
Use appropriate caution when going
through road junctions
Use the direction indicators to signal a
lane change or turning.
QOODER has been designed
and developed primarily for use on
roads; you should therefore avoid
long and/or particularly uneven
stretches of unpaved roads.
If the road surface is wet, drive very
carefully and never brake abruptly as the
wheels might lock as a prevention there-
by increasing the scooter's stopping
distance and time. Always drive over
bumpier road surfaces such as tram rails
or potholes slowly.
In case of strong gusts of wind, drive the
vehicle at a moderate speed.
You should always adapt your speed
on the basis of the current road/traffic/
atmospheric conditions, and must never
in any case exceed the applicable speed
limit.
Do not touch any of the mechanical compo-
nents, as these can reach high temperatures
during operation (for example, the exhaust
pipe).
Do not start the engine in closed and/or
poorly ventilated environments.

12
SAFETY AND RECOMMENDATIONS
When parking your scooter, ensure it is
left in a location where it is not likely to
be hit by other traffic; it is also advisable
not to park the scooter on steep slopes,
uneven surfaces or on leaves, branches
or other flammable materials, as the high
temperature reached by some compo-
nents could ignite them.
The use of the scooter in a
closed and/or poorly ventilated
environment increases the risk of
carbon monoxide poisoning.
WHEN AT A STANDSTILL
When preparing to get off the scooter, al-
ways check you have activated the HTS
system lock and the parking brake. If you
are carrying a passenger, get the him or
her to get off the vehicle first.
The scooter is equipped with
a parking brake; for correct use
when parking/stopping the scooter,
carefully read the “Parking Brake”
section in the “Getting to Know
Your Scooter” chapter.
The scooter is equipped with
a tilting system lock; for correct
use when parking/stopping the
scooter, carefully read the “HTS”
section in the “Getting to Know
Your Scooter” chapter.
LOAD LIMITS
In order not to compromise the stability
of the scooter, it is essential not to ex-
ceed the maximum permissible load,
and to distribute this as uniformly as pos-
sible (refer to the “Technical Data” chap-
ter). You must ensure that any loads are
correctly positioned and/or restrained in
the areas laid out for them. You should
also limit your speed on the basis of the
transported load.
Greater stability can be achieved by
placing loads inside the compartments
provided (the compartment under the
seat and the object compartment).
Furthermore it is advisable always to fix
loads being transported in such a way
that during the journey they do not move
so as to unbalance the weights causing
you to lose control of the vehicle.

1
13
UNAUTHORISED MODIFICATIONS/
ACCESSORIES AND SPARE PARTS
Do not make any type of modification
to the scooter (mechanical components
or bodywork), and always use original
Quadro Vehicles components/accesso-
ries in order not to compromise vehicle
operation and driver/passenger safety.
Never install accessories that require the
electrical system to be modified.
The use of non-original and/
or non-approved parts on your ve-
hicle, even if purchased at author-
ised Quadro Vehicles dealers, may
result in your warranty lapsing
and/or scooter malfunctions.
Never drive the scooter with
removed and/or damaged parts.
The sum of the weight of the
driver, the passenger and the load
transported must never exceed
the maximum specified in chapter
“Technical Data” of this Use and
Maintenance Manual and shown
on the rating plate in the compart-
ment under the seat.
Never transport loads on the
scooter handlebars.
Rims and tyres are the point where the
scooter is in contact with the road sur-
face. The use of rims and tyres with
specifications different from those
indicated in this Use and Maintenance
Manual or not approved could cause
instability or a loss of control of the vehicle.
RESPONSIBILITIES AND LIMITS OF USE
Improper use of the scooter or any work
performed on it which does not conform
to the indications given in this Use and
Maintenance Manual shall relieve the
manufacturer of any responsibility for
vehicle safety and/or operation.

14
Page left intentionally blank

2
GETTING TO KNOW YOUR SCOOTER

16
GETTING TO KNOW YOUR SCOOTER
6 - Integrated brake pedal (front and rear).
7 - Storage compartments.
8 - Ignition key.
9 - Tilting lock/release lever.
10 - Parking brake lever.
This chapter describes the functions
and systems your QOODER is equipped
with.
Carefully reading the following pages will
provide you with the knowledge to make
the most of your scooter's potential.
COMPONENT LOCATION
1 - Handlebar controls, left-hand side.
2 - Integrated brake lever (front and rear).
3 - Instrument panel.
4 - Handlebar controls, right-hand side
5 - Brake lever (front).
fig. 1

2
17
Horn
To sound the horn, press and hold down
button A fig. 4.
Full-beam headlights
With the key in position, turn selector
A fig. 2 to position 1 in order to turn on
the full beam headlights; this is indicated
by the following light on the instrument
panel: .
Flasher
With the key in position, you can flash
the lights by pressing button B fig. 2.
Turn signals
With the key in position, place selec-
tor A fig. 3 in position 1 or position 2 to
operate the right or left turn signals (mo-
mentary positions). The left or right
turn signal indicator light will light up on
the instrument panel depending on the
selector position.
To deactivate the turn signals, press
button A fig. 3 on the selector.
HANDLEBAR CONTROLS, LEFT-
HAND SIDE
The controls on the left-hand side of the
handlebar include: full beam headlights,
flasher, turn signals, horn.
Dipped headlights
With the key in position and selector A
fig. 2 in position 0, the dipped headlights
are turned on; this is indicated by the fol-
lowing light on the instrument panel: .
A
0
1
B
The dipped headlights always
stay on.
A
1
2
fig. 3
A
fig. 4
HANDLEBAR CONTROLS, LEFT-
HAND SIDE
fig. 2

18
GETTING TO KNOW YOUR SCOOTER
HANDLEBAR CONTROLS, RIGHT-
HAND SIDE
The controls on the right-hand side of the
handlebar include: engine stop command,
hazard lights and engine start command.
Hazard warning lights
To activate the hazard lights, place se-
lector A fig. 5 in position 1. The indicator
light on the instrument panel comes
on.
To switch them off, return the selector to
its initial position.
Follow the highway code in
the country in which you are driving
when using the hazard lights.
A
1
fig. 5
KEYS
The scooter is supplied with two identi-
cal keys fig. 6, which allow you to start
the vehicle, engage the steering lock,
engage the parking brake and open the
seat.
fig. 6
STEERING LOCK
Proceed as follows to engage the steering
lock:
• turn the handlebar all the way to the left;
• press and turn the key to the left to
the position;
• remove the key.
The steering lock does not
engage automatically when the
engine is shut off.
We recommend keeping the
spare key in a safe place so it does
not get lost.
The keys are accompanied by a plate
showing their code.
If you need to make a duplicate of the keys,
contact an authorized Quadro Vehicles
dealership and provide the plate with the
code as well as the key.
