Quick BTQ Series User manual

REV 003A
BTQ Series
BTQ 110
BTQ 125
BTQ 140
BTQ 185
BTQ 250
BTQ 300
SINGLE AND DOUBLE PROPELLER - ELECTRIC MOTOR
EN - INSTALLATION AND USER'S MANUAL

BTQ Series EN
INDEX
QUICK BTQSERIES INSTALLATION AND USER’S MANUAL - REV003A
1 - Information about the product 5
1.0 - Technical Data 5
2 - Supply and equipment 7
2.0 - Standard supply and material included in the package 7
2.1 - Tools required for installation 7
2.2 - Recommended Quick®accessories not included 7
3 - Introduction 7
3.0 - Important notes 7
3.1 - Precautions 8
3.2- Precautions for the installer 8
3.3 - Installation requirements 8
4 - Installation 9
4.0 - Propellers 9
4.1 - Tunnel 10
4.2 - Thruster 11
4.3 - BTQ 110/125 Gearleg and motor support flange 12
4.3.0 - BTQ110/125 Propeller assembly 12
4.4 - BTQ 140/185/250/300 Gearleg and motor support flange 13
4.4.0 - BTQ140/185/250/300 Single propeller/double propeller assembly 13

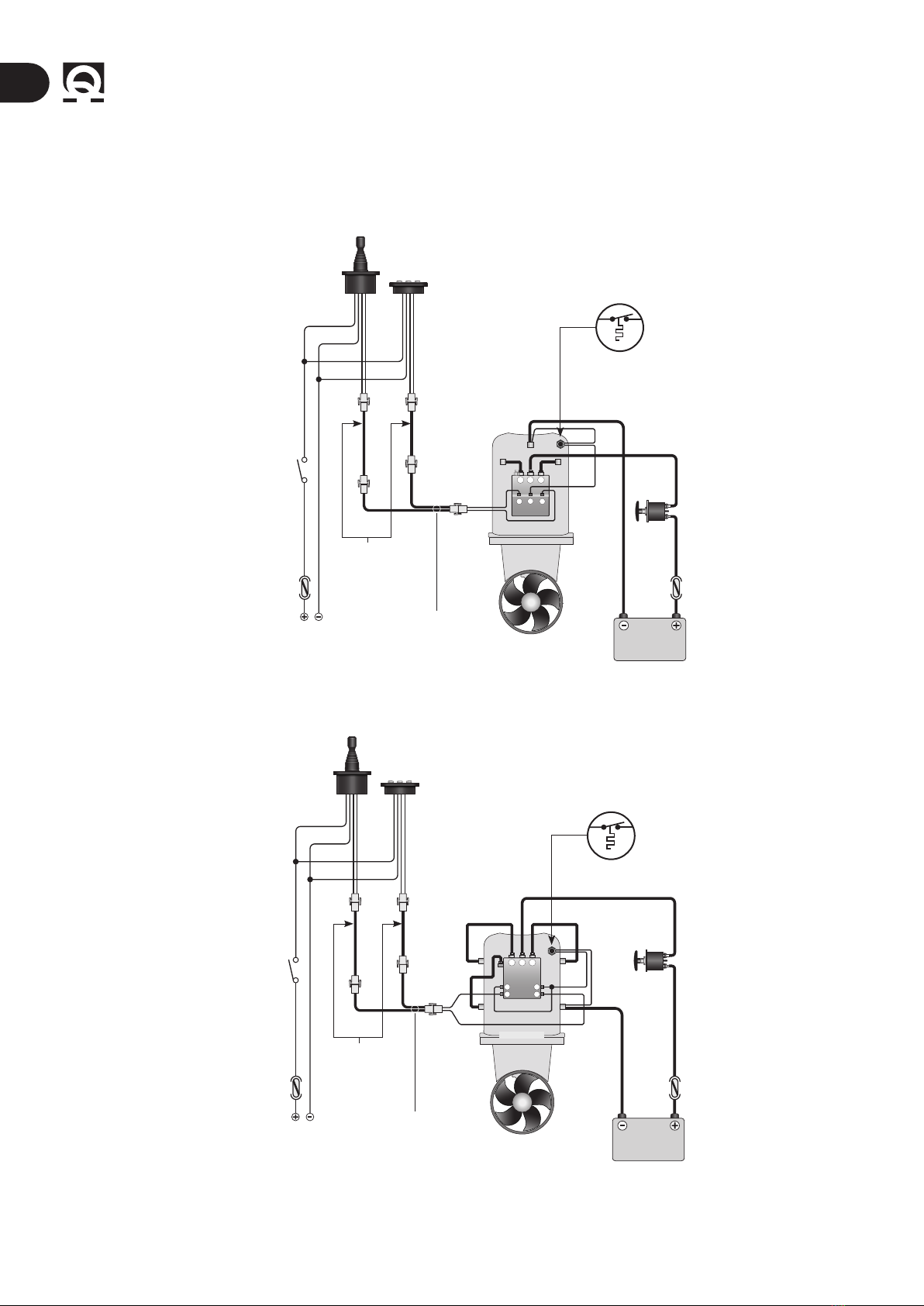

5 - Wiring diagram 14
5.0 - BTQ110 basic system 14
5.1 - BTQ125 basic system 14
5.2 - BTQ140/185/250/300 basic system 15
6 - Cautions & Use 16
6.0 - Important cautions 16
6.1 - Thruster use 16
7 - Maintenance 17
7.0 - Single/double propeller maintenance 17
8 - Product disposal 17
8.0 - Product disposal 17
9 - Spare parts 18
9.0 - BTQ110/125 18
9.1 - BTQ140/185 19
9.2 - BTQ250/300 20
10 - Dimensions 22

BTQ Series EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
5
1.0 - Technical Data
MODELS BTQ 1102512 BTQ 1253012 BTQ 1254012 BTQ 1403012 BTQ 1404012
Propeller type Single (technopolymer)
Tunnel Ø 110 mm
(4” 21/64)
125 mm
(5”)
125 mm
(5”)
140 mm
(5” 33/64)
140 mm
(5” 33/64)
Motor power 1.3 kW 1.5 kW 2.2 kW 1.5 kW 2.2 kW
Voltage 12 V 12 V 12 V 12 V 12 V
Fuse 130 A CNL DIN 225 A CNL DIN 325 A CNL DIN 150 A CNL DIN 225 A CNL DIN
Thrust 25 kgf (55.1 lb) 30 kgf (66.1 lb) 40 kgf (88.2 lb) 30 kgf (66.1 lb) 40 kgf (88.2 lb)
Weight 9.3 kg (20.5 lb) 10.0 kg (22.0 lb) 10.9 kg (24.0 lb) 11.3 kg (24.9 lb) 12.2 kg (26.8 lb)
Tube thickness limit value min. 3 mm - max 6.5 mm (min. 1/8” - max 1/4”) min. 4.5 mm - max 6.5 mm
(min. 11/64” - max 1/4”)
Cable
cross-section
Recommended
(*)
(**)
L < 5 m 35 mm2
(AWG 2)
50 mm2
(AWG 1)
70 mm2
(AWG 2/0)
35 mm2
(AWG 2)
50 mm2
(AWG 1)
5.1 < L < 10 m 50 mm2
(AWG 1)
70 mm2
(AWG 2/0)
2 x 50 mm2
(2 x AWG 1)
50 mm2
(AWG 1)
70 mm2
(AWG 2/0)
10.1 < L < 20 m 70 mm2
(AWG 2/0)
95 mm2
(AWG 3/0)
2 x 70 mm2
(2 x AWG 2/0)
70 mm2
(AWG 2/0)
95 mm2
(AWG 3/0)
MODELS BTQ 1805512 BTQ 1805524 BTQ 1807512 BTQ 1807524 BTQ 1809524 BTQ 1809524
Propeller type Single (technopolymer)
Tunnel Ø 185 mm
(7” 18/64)
185 mm
(7” 18/64)
185 mm
(7” 18/64)
185 mm
(7” 18/64)
185 mm
(7” 18/64)
185 mm
(7” 18/64)
Motor power 3.0 kW 3.0 kW 4.0 kW 4.0 kW 6.0 kW 6.0 kW
Voltage 12 V 24 V 12 V 24 V 12 V 24 V
Fuse 250 A CNL DIN 150 A CNL DIN 350 A CNL DIN 250 A CNL DIN 350 A CNL DIN 250 A CNL DIN
Thrust 55 kgf (121.2 lb) 55 kgf (121.2 lb) 75 kgf (165.3 lb) 75 kgf (165.3 lb) 95 kgf (209.4 lb) 95 kgf (209.4 lb)
Weight 16.7 kg (36.8 lb) 16.9 kg (37.2 lb) 17.0 kg 37.5 lb 19.6 kg 43.2 lb 26.6 kg (58.6 lb) 24.2 kg (53.3 lb)
Tube thickness limit value min. 4.5 mm - max 6.5 mm
(min. 11/64” - max 1/4”)
Cable
cross-section
Recommended
(*)
(**)
L < 5 m 50 mm2
(AWG 1)
35 mm2
(AWG 2)
70 mm2
(AWG 2/0)
50 mm2
(AWG 1)
2 x 50 mm2
(2 x AWG 1)
50 mm2
(AWG 1)
5.1 < L < 10 m 70 mm2
(AWG 2/0)
50 mm2
(AWG 1)
2 x 50 mm2
(2 x AWG 1)
70 mm2
(AWG 2/0)
2 x 70 mm2
(2 x AWG 2/0)
70 mm2
(AWG 2/0)
10.1 < L < 20 m 95 mm2
(AWG 3/0)
70 mm2
(AWG 2/0)
2 x 70 mm2
(2 x AWG 2/0)
95 mm2
(AWG 3/0)
2 x 95 mm2
(2 x AWG 3/0)
95 mm2
(AWG 3/0)
(*) L = positive cable + negative cable
(**) Other solutions are allowed, provided that they are supported by the connecting terminals. Respect minimum area indicated.
READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USING THE PRODUCT. IF IN DOUBT, CONTACT YOUR QUICK®
DEALER.
QUICK®RESERVES THE RIGHT TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE EQUIPMENT AND THE CONTENTS OF THIS MANUAL WITHOUT
PRIOR NOTICE. IN CASE OF DISCORDANCE OR ERRORS IN TRANSLATION BETWEEN THE TRANSLATED VERSION AND THE ORIGINAL TEXT IN THE ITALIAN
LANGUAGE, REFERENCE WILL BE MADE TO THE ITALIAN TEXT.
1 - Information about the product

BTQ Series
EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
6
1 - Information about the product
MODELS BTQ 1806512 BTQ 1806524 BTQ 1808512 BTQ 1808524 BTQ 1810512 BTQ 1810524
Propeller type 2 Counter rotating (technopolymer)
Tunnel Ø 185 mm
(7” 18/64)
185 mm
(7” 18/64)
185 mm
(7” 18/64)
185 mm
(7” 18/64)
185 mm
(7” 18/64)
185 mm
(7” 18/64)
Motor power 3.3 kW 3.3 kW 4.3 kW 4.3 kW 6.3 kW 6.3 kW
Voltage 12 V 24 V 12 V 24 V 12 V 24 V
Fuse 275 A CNL DIN 175 A CNL DIN 400 A CNL DIN 275 A CNL DIN 400 A CNL DIN 275 A CNL DIN
Thrust 65 kgf (55.1 lb) 65 kgf (55.1 lb) 85 Kgf (187.4 lb) 85 Kgf (187.4 lb) 105 Kgf (231.5 lb)105 Kgf (231.5 lb)
Weight 17.6 kg (38.8 lb) 17.8 Kg (39.2 lb) 17.9 kg (39.4 lb) 20.5 kg (45.2 lb) 27.5 kg (60.6 lb) 25.1 Kg(55.3 lb)
Tube thickness limit value min. 4.5 mm - max 6.5 mm (min. 11/64” - max 1/4”)
Cable
cross-section
Recommended
(*)
(**)
L < 5 m 70 mm2
(AWG 2/0)
50 mm2
(AWG 1)
2 x 50 mm2
(2 x AWG 1)
70 mm2
(AWG 2/0)
2 x 70 mm2
(2 x AWG 2/0)
70 mm2
(AWG 2/0)
5.1 < L < 10 m 2 x 50 mm2
(2 x AWG 1)
70 mm2
(AWG 2/0)
2 x 70 mm2
(2 x AWG 2/0)
2 x 50 mm2
(2 x AWG 1)
2 x 95 mm2
(2 x AWG 3/0)
2 x 50 mm2
(2 x AWG 1)
10.1 < L < 20 m 2 x 70 mm2
(2 x AWG 2/0)
95 mm2
(AWG 3/0)
2 x 95 mm2
(2 x AWG 3/0)
2 x 70 mm2
(2 x AWG 2/0)
2 x 120 mm2
(2 x AWG 4/0)
2 x 70 mm2
(2 x AWG 2/0)
MODELS BTQ 2512012 BTQ 2512024 BTQ2514024 BTQ 2524024
Propeller type 2 Counter rotating (technopolymer)
Tunnel Ø 250 mm (9” 27/32 in) 250 mm (9” 27/32 in) 250 mm (9” 27/32 in) 250 mm (9” 27/32 in)
Motor power 6.5 Kw 6.5 Kw 8 Kw 10 Kw
Voltage 12 V 24 V 24 V 24 V
Fuse 500 A CNL DIN 275 A CNL DIN 275 A CNL DIN 500 A CNL DIN
Thrust 120 kgf (265 lb) 120 kgf (265 lb) 140 kgf (308 lb) 240 kgf (529 lb)
Weight 35.5 Kg (78.2 lb) 34.2 Kg (75.4 lb) 34.2 Kg (75.4 lb) 49.1 Kg (108.2 lb)
Tube thickness limit value min. 6.5 mm - max 11 mm (min. 1/4” - max 7/16”)
Cable
cross-section
Recommended
(*)
(**)
L < 5 m 2 x 70 mm2
(2 x AWG 2/0)
70 mm2
(AWG 2/0)
70 mm2
(AWG 2/0)
2 x 50 mm2
(2 x AWG 1)
5.1 < L < 10 m 2 x 95 mm2
(2 x AWG 3/0)
2 x 50 mm2
(2 x AWG 1)
2 x 50 mm2
(2 x AWG 1)
2 x 70 mm2
(2 x AWG 2/0)
10.1 < L < 20 m 2 x 120 mm2
(2 x AWG 4/0)
2 x 70 mm2
(2 x AWG 2/0)
2 x 70 mm2
(2 x AWG 2/0)
2 x 95 mm2
(2 x AWG 3/0)
MODELS BTQ 3025024 BTQ 3027024 BTQ 3030048 BTQ 3030048 NYLON
Propeller type 2 Counter rotating (technopolymer) 2 Counter rotating
(nibral)
2 Counter rotating
(technopolymer)
Tunnel Ø 300 mm (11” 13/16 in) 300 mm (11” 13/16 in) 300 mm (11” 13/16 in) 300 mm (11” 13/16 in)
Motor power 10 Kw 12 Kw 15 Kw 15 Kw
Voltage 24 V 24 V 48 V 48 V
Fuse 400 A CNL DIN 500 A CNL DIN 500 A CNL DIN 500 A CNL DIN
Thrust 250 kgf (551 lb) 270 kgf (595 lb) 300 kgf (661 lb) 300 kgf (661 lb)
Weight 46.7 Kg (102.9 lb) 55.9 Kg (123.2 lb) 66.7 kg (147 lb) 60 kg (132 lb)
Tube thickness limit value min. 9.5 mm - max 13.5 mm (min. 3/8” - max 17/32”)
Cable
cross-section
Recommended
(*)
(**)
L < 5 m 70 mm2
(AWG 2/0)
95 mm2
(AWG 3/0)
95 mm2
(AWG 3/0)
95 mm2
(AWG 3/0)
5.1 < L < 10 m 2 x 50 mm2
(2 x AWG 1)
2 x 95 mm2
(2 x AWG 3/0)
2 x 70 mm2
(AWG 2/0)
2 x 70 mm2
(AWG 2/0)
10.1 < L < 20 m 2 x 95 mm2
(2 x AWG 3/0)
2 x 120 mm2
(2 x AWG 4/0)
2 x 95 mm2
(2 x AWG 3/0)
2 x 95 mm2
(2 x AWG 3/0)
(*) L = positive cable + negative cable
(**) Other solutions are allowed, provided that they are supported by the connecting terminals. Respect minimum area indicated.

BTQ Series EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
7
2.0 - Standard supply and material included in the package
• Thruster
• Drilling template
• Gasket
• O-ring
• Installation and use manual
• Conditions of warranty
2.1 - Tools required for installation
BTQ110/125 • Drill and drill bits Ø 7 mm (9/32”)
• Hollow mill Ø 25 mm (63/64”)
• Male hex.wrenches: 4 mm, 5 mm and 6 mm
• Fork wrench: 10 mm
BTQ140 • Drill and drill bits Ø 7 mm (9/32”)
• Hollow mill Ø 27 mm (1” 1/16)
• Male hex.wrenches: 4 mm, 5 mm and 6 mm
• Fork wrench: 17 mm
BTQ185 • Drill and drill bits Ø 9 mm (3/8”)
• Hollow mill Ø 35 mm (1” 3/8)
• Male hex.wrenches: 5 mm, 6 mm and 8 mm
• Fork wrench: 19 mm
BTQ250 • Drill and drill bits Ø 11 mm (7/16”)
• Hollow mill Ø 46 mm (1” 13/16)
• B00 Hollow mill Ø 82 mm (3” 7/32)
• C00 Hollow mill Ø 120 mm (4” 23/32)
• Male hex.wrenches: 4 mm, 5 mm, 8 mm and 10 mm
• Fork wrench: 24 mm
BTQ300 • Drill and drill bits Ø 15 mm (19/32”)
• Hollow mill Ø 53 mm (2” 3/32)
• Male hex.wrenches: 4 mm, 5 mm, 8 mm and 12 mm
• Fork wrench: 27 mm
2.2 - Recommended Quick®accessories not included
• TCD 2022 remote control
• TCD 2042 remote control
• TCD 2044 remote control
• TCD 2062 remote control (with integrated line switch)
• TSC 2000 integrated line switch control
• TMS line switch
• THF3 - THF6 fuse holder
2 - Supply and equipment
3.0 - Important notes
BEFORE USING THE PRODUCT, PLEASE READ THIS USER’S MANUAL CAREFULLY. IF IN DOUBT, PLEASE CONSULT YOUR QUICK® DEALER.
This manual features Warning and/or Caution symbols that are important for safety.
Please follow the instructions provided.
Warning symbol for dangerous
situations.
Caution symbol to prevent direct or
indirect damage to the product.
This manual provides boat manufacturers and nautical equipment installers with instructions on how to assemble the specied
Quick®product and operate it correctly.

BTQ Series
EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
8
3.1 - Precautions
Quick®Thrusters have been designed and constructed only for nautical use.
• Do not use these products for any other type of operation.
• Quick®shall not be held liable for direct or indirect damage caused by improper use of the product.
• The product is not designed to support loads generated in particular atmospheric conditions (storms).
• Operate the product from a position where it is possible to supervise the work area.
• Always deactivate the product when not being used.
• For improved safety, we recommend installing at least two controls to operate the product in case one is damaged.
• The installer shall bear full responsibility for any problems caused by defective installation of the tunnel.
• This equipment is not intended for use by people (including children) with reduced physical, sensory or mental capabilities.
• Do not install the electric motor near easily inammable objects.
The terminals must be properly tightened.
Secure / hold the inner nut when tightening
MINIMUM TIGHTENING TORQUE IS 11 Nm
3.2- Precautions for the installer
CARRY OUT THE INSTALLATION IN GOOD LIGHTING CONDITIONS.
It is advisable to wear suitable clothing and personal protective equipment (PPE).
The product is not suitable for installation in potentially explosive environments and/or atmospheres.
Installation and subsequent inspection or repair work must only be carried out by qualied personnel.
CARRY OUT INSTALLATION/MAINTENANCE WORK MAKING SURE THAT THE PRODUCT IS DISCONNECTED
FROM THE ELECTRICAL SYSTEM.
Quick®accepts no responsibility for inadequate connection of users to the electrical system and inadequate safety of
the electrical system.
3.3 - Installation requirements
We recommend you entrust preparation and positioning of the tunnel in the hull to a skilled professional.
These are generic instructions and do not give details of the preparatory operations for installing the thruster, since this is the
competence of the boatyard. The installer shall bear full responsibility for any problems caused by defective installation.
Although all the components and mechanical moving parts are of high quality, the correct installation of the driving unit is an
essential basis for the safe and effective use of the boat as well as the driving unit itself.
The installation of such a unit is an operation that requires experience as well as technical skills. It is recommended that the
installation be carried out by competent personnel and that the manufacturer or naval architects be consulted to fully assess
the scope of the work.
3 - Introduction

BTQ Series EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
9
4 - Installation
4.0 - Propellers
The position of the tunnel will depend on the interior
and exterior shape of the boat’s bow.
• FIG. 1 In order to avoid cavitation in the propeller, the
tunnel should be placed as deep as possible. The optimum
tunnel position will be at least 0.75 times the diameter of
the tunnel from the waterline.
B
L1
L2
A
BARYCENTRE
FIG. 2
• FIG. 2 The lever effect in the boat is proportional to
the increase of the distance (L1 and L2) between the
barycentre and the position of the tunnel A and B.
• FIG. 3 For greater lever effect prefer position B.
SINGLE PROPELLER DOUBLE PROPELLER TUNNEL LENGTH
MINIMUM 1.5 TIMES
TUNNEL Ø
MAXIMUM 6 TIMES
TUNNEL Ø
An increase in the length of the tunnel increases the effect of the loss of charge, decreasing the nominal driving
force.
• For a proper use of the thruster, we recommend a length equal to 1.5 to 4 times the tunnel diameter. To limit losing charge, a
ratio of up to 6 times the diameter can be tolerated.
Minimum 0.75
times tunnel Ø
FIG. 1

BTQ Series
EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
10
4 - Installation
4.1 - Tunnel
• The rounded ends of the tunnel limit the creation of turbulence and cavitation, improving performance of the propeller thrust
and reducing noise levels to a minimum.
SINGLE PROPELLER
DOUBLE PROPELLER
• The force produced by the ow of the water when the boat is moving produces resistance on the rear face of the tunnel,
which is an area exposed frontally to the water ow. To limit this phenomenon, prepare an indentation in the rear part of the
tunnel. The indentation will depend on the shape of the hull. Otherwise, create a deector on the front part of the tunnel.
• If the tunnel is near the waterline, it is advisable to t a grating at the end of the tube. The
grating must have as large a vertical mesh as possible to avoid contrasting the propeller thrust.
The vertical mesh prevents the entry of most of the oating objects.

BTQ Series EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
11
4 - Installation
4.2 - Thruster
• The thruster can be installed at any angle within 90º from
the vertical.
• If the electric motor is positioned at an angle of more than
30° from the vertical, an appropriate support (saddle) must be
installed.
SINGLE PROPELLER DOUBLE PROPELLER
• To position the thruster in the tube, nd the half-way point
of the tube and move by the value indicated (left or right, see
box) in the diagram below so that the propeller is positioned
exactly in the middle of the inner length of the tunnel.
• To position the thruster in the tube, nd the half-way point
of the tube and move by the value indicated (left or right, see
box) in the diagram below so that the propeller is positioned
exactly in the middle of the inner length of the tunnel.
10 2 3 4 5 6 7 8 9 10
10 2 3 4
10 2 3 4
BTQ110 50 mm
BTQ125 50 mm
BTQ140 50 mm
BTQ180 50 mm
10 2 3 4 5 6 7 8 9 10
• Use the ange to mark the centre of the holes on the tube.
• Fix the drilling template on the reference points, making
sure they are aligned with precision at the half-way point of
the tube.
N.B. All holes must be exactly aligned with the half-
way point of the tunnel, since tolerance between
propeller and tunnel is minimal.
• Take care that there are no resin residues in the contact
area between ange and tube; this could cause misalignment.
Any resin residues and any other hindrance to correct
contact must be removed with sandpaper.
BTQ Ø110/125 BTQ Ø140/185/250/300
• Insert one O-ring into the special seat inside the ange. • Insert two O-rings into the special seats inside the ange.

BTQ Series
EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
12
4.3 - BTQ 110/125 Gearleg and motor support flange
• Fit the gearleg with the special seal gasket.
SILICONE
• For further protection against the entry of water, apply
silicone for nautical use around the point of contact between
ange and tube.
• Fasten everything with the ange using the special screws
and washers.
• Insert the motor on the ange by coupling the two elastic
coupling halves. Secure with the 4 screws and washers
supplied.
4.3.0 - BTQ110/125 Propeller assembly
• Insert propeller A on the shaft of gearleg B, secure the
propeller with the self-locking nut C, insert anode D and lock it
with the other self-locking nut C.
A
C
CD
B
8
9
7
5
4
6
1
2
3
12
9
8
8
10
WARNING: on conclusion of assembly, make sure
that the propeller is exactly positioned at the central
point of the tunnel.
4 - Installation
ELASTIC
COUPLING
HALVES
ELASTIC
COUPLING
HALVES

BTQ Series EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
13
4 - Installation
4.4 - BTQ 140/185/250/300 Gearleg and motor support flange
• Fit the gearleg with the special seal gasket.
SILICONE
• For further protection against the entry of water, apply
silicone for nautical use around the point of contact between
ange and tube.
• Fasten everything with the ange using the special screws
and washers.
1
• Grease the terminal part of
the gearleg shaft; t the small
key into its seat.
2
• Insert the elastic coupling
in the terminal part of the
gearleg shaft.
3
• Grease the terminal part of
the drive shaft; t the key into
its seat.
4
• Insert the motor onto the
elastic coupling; secure
it with the 4 screws and
washers supplied.
4.4.0 - BTQ140/185/250/300 Single propeller/double propeller assembly
LOCTITE
D
A
B
CDEF
PIN
LOCTITE
A
B
C
D
F
E
C
D
E
F
A
KEY
Propeller(s) assembly
Insert the drive key/pin Aon gearleg B; t the propeller Cto the
gearleg by engaging it to the drive key/pin A; secure the propeller
with the self-locking nut D. Insert anode Eon nut Dand lock it with
screw Fsmeared with threadlocker (loctite type).
WARNING: on conclusion
of assembly, make sure
that the propeller is
exactly positioned at the
central point of the tunnel.

BTQ Series
EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
14
5 - Wiring diagram
5.0 - BTQ110 basic system
5.1 - BTQ125 basic system
Example of connection
Example of connection
M1
A
S
SX
+
DX
-
M2
A
MOTOR
BATTERY
12/24V
BATTERY DISCONNECTION
SWITCH
BLACK
FAST-BLOW
FUSE 4A
FUSE SEE
TABLE ON
PAGE 4
SWITCH
RED
BLACK
RED
TO THE SERVICES
BATTERY
SPLITTER (OPTIONAL)
EXTENSIONS
(OPTIONAL)
*
*
**
TCD
TCD
THERMAL
PROTECTION
M1
A A
S S
SX
+
-
DX
-
M2
MOTOR
BATTERY
12/24V
BATTERY DISCONNECTION SWITCH
BLACK
FAST-BLOW
FUSE 4A
FUSE SEE
TABLE ON
PAGE 4
SWITCH
RED
BLACK
RED
TO THE SERVICES
BATTERY
SPLITTER (OPTIONAL)
EXTENSIONS
(OPTIONAL)
*
*
**
TCD
TCD
THERMAL
PROTECTION
* Common negative for battery groups.
**WARNING: in case of overtemperature, the thermal protection on the motor will open and interrupt the negative contact on
the contactor. Wait for the time needed for reactivation.

BTQ Series EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
15
5.2 - BTQ140/185/250/300 basic system
Example of connection
5 - Wiring diagram
FAST-BLOW
FUSE 4A
SWITCH
M1
A A
S S
SX
+
-
DX
-
M2
MOTOR
BATTERY
12/24/48 V
BATTERY
DISCONNECTION
SWITCH
BLACK
FUSE SEE
TABLE ON
PAGE 4/5
RED
BLACK
RED
TO THE SERVICES
BATTERY
SPLITTER
(OPTIONAL)
EXTENSIONS
(OPTIONAL)
*
*
TCD
TCD
** THERMAL
PROTECTION
* Common negative for battery groups.
**WARNING: in case of overtemperature, the thermal protection on the motor will open and interrupt the negative contact on
the contactor. Wait for the time needed for reactivation.
CONTROL PANEL
For control panel installation, please refer to the "TCD" user’s manuals.

BTQ Series
EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
16
6.1 - Thruster use
Start-up
Start-up happens following activation of a TCD panel.
To use the propeller, refer to the TCD control manual.
6 - Cautions & Use
6.0 - Important cautions
• This thruster is not designed for continuous use. It is equipped with protections which limit its operation at
a maximum time span, as reported on the controls’ manual. It is strongly forbidden to bypass or modify such
protections in order to increase the operating time span, lest voiding the warranty and thus lifting any responsibility
from Quick®SPA.
• Make sure no swimmers or oating objects are in the vicinity before switching on the thruster.
• There must not be ammable materials in the peak or in the area where the Thruster motor is.
• Do not operate the bow thruster out of the water for more than 10 seconds.
• During mooring, it is recommended not to leave in the water any free line, which may be sucked in by the
propellers, thus leading them to break.
SINGLE PROPELLER DOUBLE PROPELLER
NOTE: the bow thruster must be installed with the propeller
to the right of the gearleg (see gure).
NOTE: the bow thruster must be installed with the RH
propeller to the right of the gearleg (see gure).
RH RH
If it is necessary to install the bow thruster in the opposite
position, the connection of the two cables (blue and grey)
of the control cable on the reversing contactor must be
reversed.

BTQ Series EN
BTQ Series
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
17
7 - Maintenance
8 - Product disposal
7.0 - Single/double propeller maintenance
Quick®Thrusters are made in materials that are resistant to the sea environment: in any case, it is indispensable to periodically
remove deposits that form on the outer surfaces to avoid corrosions and obstructions with consequent system inefciency.
WARNING: make sure that the power supply to the hydraulic motor is not switched on when maintenance
operations are carried out.
DEPENDING ON USE, PERIODICALLY CHECK THE TIGHTNESS OF THE OIL SEALS AND REPLACE THEM IF
NECESSARY.
Dismantle once a year, following the points below:
• Clean propeller, tunnel and gearleg.
• Replace the anode (carry out this operation more often if needed).
• Replace the propeller if damaged or worn out.
• Check the tightness of all screws.
• Ensure that there is no water seepage inside.
• Check that all electrical connections are well tightened and oxide-less.
• Check that the batteries are in good conditions.
8.0 - Product disposal
As with installation, at the end of this product life, dismantling must be carried out
by qualied personnel.
This product is made up of various materials, some can be recycled and others must be suitably disposed of; enquire about the
recycling or disposal systems provided for by local regulations for this product category.
Some parts of the product may contain pollutants or hazardous substances that, if dispersed, may be harmful to the
environment and human health.
As indicated by the symbol on the side, it is forbidden to dispose of this product as domestic waste.
Separate the products for disposal in accordance with the regulations in force in your area or return the product to
the seller when purchasing a new equivalent product.
Local regulations may impose severe penalties for the improper disposal of this product.

BTQ Series
EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
18
9 - Spare parts
No. DESCRIPTION CODES
1A OSP MOT 1300W 12V BTQ 110+T FVEMFEL13120000
1B OSP MOT 1500W 12V BTQ 125+T FVEMFEL15120000
1C OSP MOT 2200W 12V BTQ125-140+T FVEMFEL22121400
1D OSP MOTOR 2200W 12V BTQ 125+T FVEMFEL22120000
2OSP REV. CONTACTOR BOX KIT T6411-12 BTQ FVST64111200A00
3A OSP CASING ‘A’ KIT BT BLACK FVSGCARBTQR1A00
3B OSP CASING ‘C’ KIT BT BLACK FVSGCARBTQR1C00
4 OSP COUPLING HALF KIT BTQ 110/125 PL FVSGG110125PA00
5 OSP PROPELLER FLANGE KIT BTQ110-125 FVSGFLBTQ110A00
6A OSP GEARBOX KIT BTQ110 FVSGGBBT1100A00
6B OSP GEARBOX KIT BTQ125 FVSGGBBT1250A00
7A OSP PROPELLER KIT D110 FVSGEL110000A00
7B OSP PROPELLER KIT D125 FVSGEL125000A00
8 OSP PROPELLER ANODE KIT BTQ110-125 FVSGANBTQ110A00
2
4
6
5
7
8
3
RELAYRLYHEAT
PWR ERR
PANEL POWER ISO AUX
9
10
1
ONLY
BTQ125
BTQ 1102512
BTQ 1253012
BTQ 1254012
SINGLE PROPELLER
9.0 - BTQ110/125

BTQ Series EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
19
9 - Spare parts
9.1 - BTQ140/185
SINGLE PROPELLER
BTQ 1403012
BTQ 1404012
BTQ 1805512
BTQ 1805524
BTQ 1807512
BTQ 1807524
BTQ 1809512
BTQ 1809524
DOUBLE PROPELLER
BTQ 1806512
BTQ 1806524
BTQ 1808512
BTQ 1808524
BTQ 1810512
BTQ 1810524
No. DESCRIPTION CODES
1A OSP MOTOR 1500W 12V BTQ 140+T FVEMFEL15121400
1B OSP MOTOR 2200W 12V BTQ 140+T FVEMFEL22121400
1C OSP MOTOR 3000W 12V BTQ185+T FVEMFEL30121800
1D OSP MOTOR 3000W 24V BTQ185+T FVEMFEL30241800
1E OSP MOTOR 3300W 12V BTQ185+T FVEMFEL33121800
1F OSP MOTOR 3300W 24V BTQ185+T FVEMFEL33241800
1G OSP MOTOR 4000W 12V BTQ185+T FVEMFEL40121800
1H OSP MOTOR 4000W 24V BTQ185+T FVEMFEL40241800
1I OSP MOTOR 4300W 12V BTQ185+T FVEMFEL43121800
1J OSP MOTOR 4300W 24V BTQ185+T FVEMFEL43241800
1K OSP MOTOR 6000W 12V BTQ185+T FVEMFEL60121800
1L OSP MOTOR 6000W 24V BTQ185+T FVEMFEL60241800
1M OSP MOTOR 6300W 12V BTQ185+T FVEMFEL63121800
1N OSP MOTOR 6300W 24V BTQ185+T FVEMFEL63241800
2A OSP REV. CONTACTOR BOX KIT 150A 12V FVSGRCT15012A00
2B OSP REV. CONTACTOR BOX KIT 150A 24V FVSGRCT15024A00
3A OSP CASING ‘A’ KIT BT BLACK FVSGCARBTQR1A00
3B OSP CASING ‘B’ KIT BT BLACK FVSGCARBTQR1BA00
4A OSP COUPLING KIT 140 30/40KG S FVSGG141114SA00
4B OSP COUPLING KIT BTQ 185 FVSGG1851414A00
5A OSP FLANGE KIT FOR PROPELLER BTQ140 FVSGFLBTQ140A00
5B OSP FLANGE KIT FOR PROPELLER BTQ185 FVSGFLBTQ185A00
6A OSP GEARBOX KIT BTQ140 FVSGGBBT1400A00
6B OSP GEARBOX KIT BTQ185 FVSGGBBT1850B00
7 OSP GEARBOX KIT BTQ185 DP FVSGGBBT185DA00
8A OSP ANODE KIT FOR PROPELLER BTQ140 FVSGANBTQ140A00
8B OSP ANODES KIT FOR PROPELLERS BTQ185FVSGANBTQ18AA00
9A OSP PROPELLER D185 RH QUICK 5 BLADES BLACK FVSGEL185R05A00
9B OSP PROPELLER D140 RH QUICK 5 BLADES BLACK FVSGEL140R05A00
10 OSP PROPELLER D185 LH QUICK 5 BLADES BLACK FVSGEL185L05A00
8
9
7
5
4
6
1
2
3
12
9
8
8
10

BTQ Series
EN
QUICK BTQSeries INSTALLATION AND USER’S MANUAL - REV003A
20
9 - Spare parts
9.2 - BTQ250/300
BTQ 2512012
BTQ 2512024
BTQ 2514024
BTQ 2524024
BTQ 3025024
BTQ 3027024
BTQ 3030048
No. DESCRIPTION CODES
1A OSP MOTOR BT 6500W 12V BTQ250+T FVEMFEL65122500
1B OSP MOTOR BT 6500W 24V BTQ250 +T FVEMFEL65242500
1C OSP MOTOR BT 8000W 24V BTQ250 +T FVEMFEL80242500
1D OSP MOTOR BT 10KW 24V BTQ250 +T FVEMFEL1K242500
1E OSP MOTOR BT 10KW 24V BTQ300 +T FVEMFEL1K243000
1F OSP MOTOR BT 12KW 24V BTQ300 +T FVEMFEL2K243000
1G OSP MOTOR BT 15KW 48V BTQ300 +T FVEMFEL5K483000
2A OSP REV. CONTACTOR BOX KIT 350A 12V FVSGRCT35012A00
2B OSP REV. CONTACTOR BOX KIT 350A 24V FVSGRCT35024A00
3 OSP CASING ‘B’ KIT BT BLACK FVSGCARBTQR1BA00
4A OSP COUPLING KIT BTQ 250 FVSGG2501919A00
4B OSP COUPLING KIT BTQ 300 FVSGG3001924A00
5A OSP FLANGE KIT FOR PROPELLER BTQ250 FVSGFLBTQ250A00
5B OSP FLANGE KIT FOR PROPELLER BTQ300 FVSGFLBTQ300A00
6A OSP GEARBOX KIT BTQ250 FVSGGBBT2500A00
6B OSP GEARBOX KIT BTQ300 FVSGGBBT3000A00
7 OSP PROPELLER KIT D300 R NIBRAL FVSGEL300RN0A00
8 OSP PROPELLER KIT D300 L NIBRAL FVSGEL300LN0A00
9 OSP PROPELLER D250 RH QUICK 5 BLADES BLACK FVSGEL250R05A00
10 OSP PROPELLER D250 LH QUICK 5 BLADES BLACK FVSGEL250L05A00
11A OSP ANODES KIT FOR PROPELLER BTQ250 FVSGANBTQ250A00
11B OSP ANODES KIT FOR PROPELLER BTQ300 FVSGANBTQ300A00
1
3
2
4
5
6
10
9
7
8
11
11
