Thank you very much for purchasing the PC-4. This handy, personal computer is
excellent for those who are beginning to learn about computers.
With
the PC-4, you can enter the world of computers and start programming using
BASIC language.
CONTENTS
Prior to Operation ..........................................·3
Use Precautions .........................................•. 3
Power
Supply and Battery Replacement ••.••..•..................... 4
Chapter 1Name and Operation of Each Section 5
1·1 Name of Each Section 5
1-2 How
to Read the Display .•................................. 10
Chapter 2Prior to Ca Icu lati ng 11

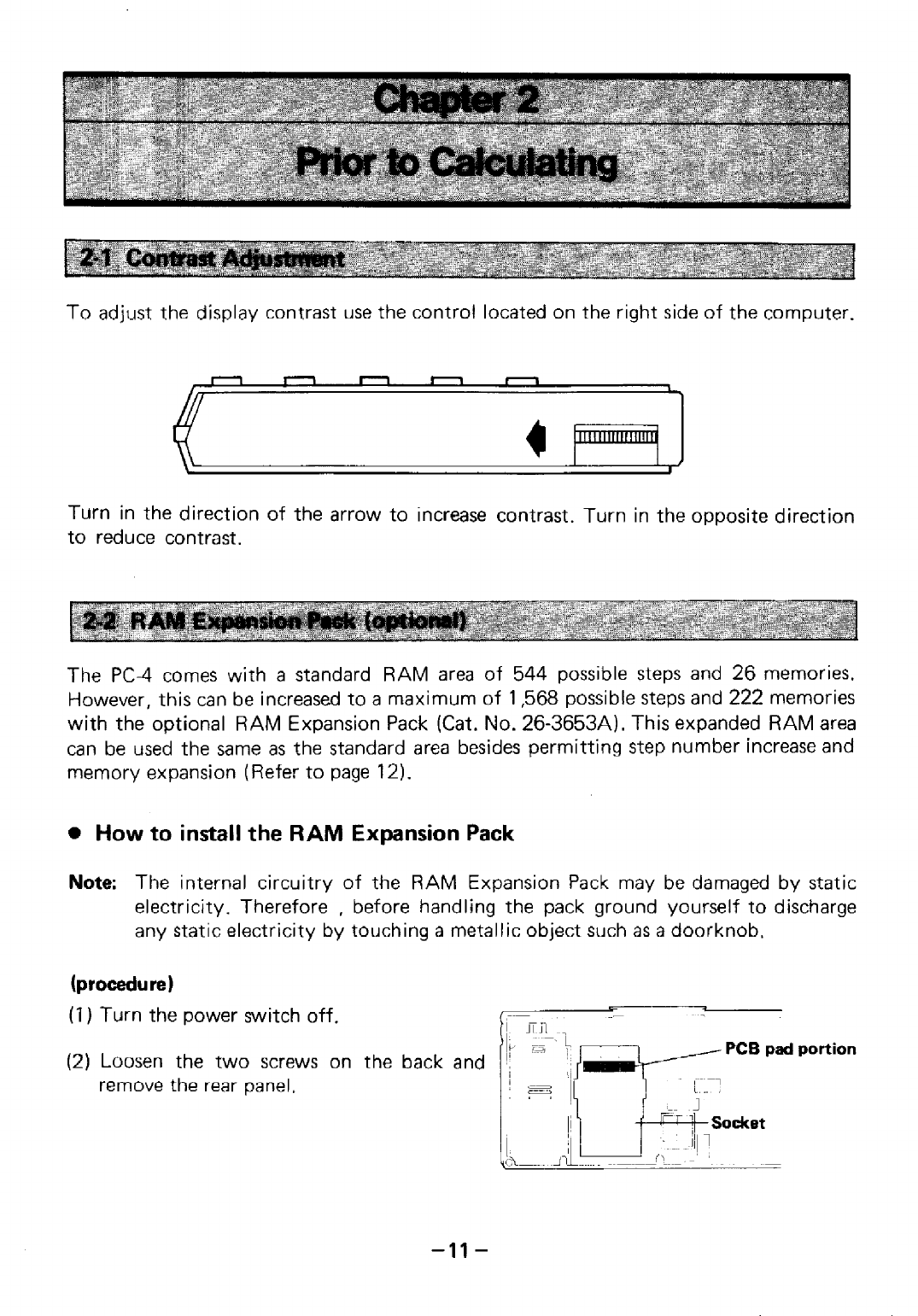

2-1 Contrast Adjustment .........................•............ 11
2-2
RAM Expansion Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 11
2-3 Memory Expansion •.•.....•.• " .•.•.••..................... 12

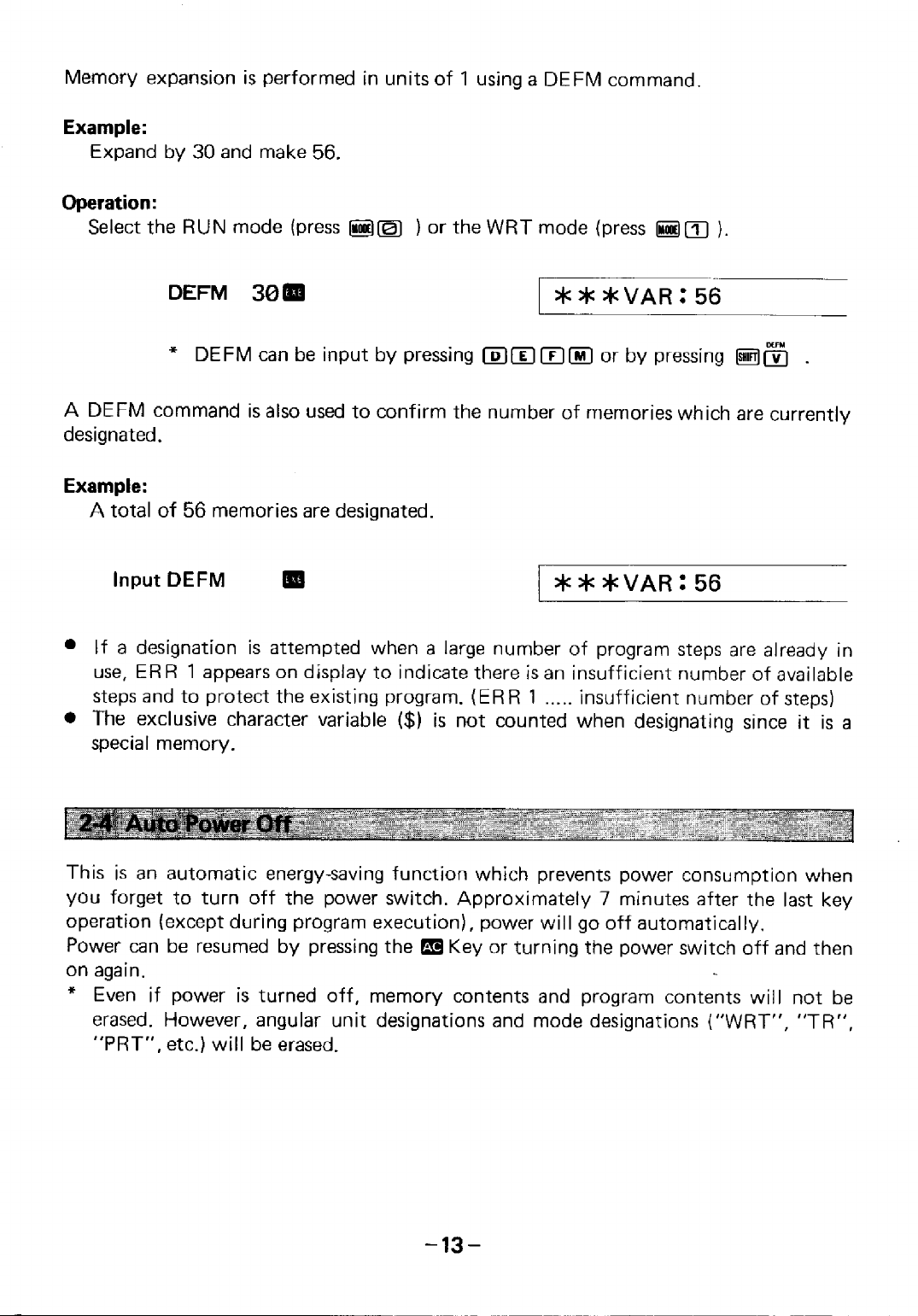

2-4 Auto Power Off '" '" " II • "II II II III '" 13
Chapter 3 How to Ca Icu late 14
3-1 Calculation Priority Sequence 14
3-2 I nput/Output and Operation Number of Positions 14
3-3 How to Perform Fundamental Calculations 15
3-4 Callout of Previous Calculation Result 16
3-5 Error Messages
17
3-6 Key Operation 17
Chapter 4Manual Calculation 20
4-1 What Is Manual Calculation? 20
4-2 Operation Method for Manual Calculation 20
4-3 Manual Calculation Examples
21
4-3-1 How to Perform Fundamental Calculation ................•.•.•... 21
4-3-2 How to Perform Function Calculation 23
4-4 Arrays III II Ii II '" .. '" I- Ii 26

Chapter 5Program Ca I cu lation ...............................27
5-1 Program Outline ............••................. ......•... 27
5-2 Program Fundamentals
...............................•.•... 28
5-2-1 Constants and Variables ...•••....•.•.••.......•..........••••. 28
5-2-2
Substitution Statements •.•..•..........•...................... 29
5·3 Program Writing and Execution ...........................••.. 30
5-3-1 Program Writing ...•.••...••.••••.•...............•...• 30
5-3-2 Program
Execution •...•••...••••....................... 32
5·4 Program Editing .................•.....•.•..••.....•..... 34
5-5
Program Debug "" .. .. .. 40
5-6 Program Commands
.............•••.••..•..•.............. 44
5-6-1
5-6-2
5-6-3
5-6-4
&-6-5
5-6-6
5-6-7
5-6-8
5-6-9
5-6-10
5-6-11
5-6-12
5-6-13
5-6-14
5-6-15
5-6·16
5-6-17
Input Command (INPUT, KEY) 44
Output Command (PRINT, CSR) 45
Jump Command (GOTO) .•.•...•••...•.................• 47
Judgement Command
(IF - THEN) ..•....•...•...•••.•.•.... 48
Loop Command (FOR·NEXT) ....•••.•..•..•.............. 49
SUbroutine Command (GOSUB,
RETURN) ................•....• 51
Multistatement .....•.•.•.•.•••..••...•.•.•.....•••.• 54
Stop Command (STOP) •.•••••...•.•.•.............•.... 54
End Command (END) ...•...•.•...............•.•.•••.. 54
Execute Command (R UN) .•...•.............•.•.•....•.•• 54
List Command (LIST) .........................••••.•... 55
Mode Designation (MODE)
•••.•.................••.•••.•. 55
Output Format (SET) .......•...............•••.•...... 56
Character Functions (LEN, MID, VAL) ...............••••..... 56
Memory Clear (V AC) ..................•.....•....•...•. 57
Program Clear
(CLEAR, CLEAR A) .............•.••.•...•.•. 57
Option Specifications .................................•• 58
Cassette Magnetic Tape
(SAVE, LOAD, SAVE A, LOAD A, PUT, GET, VER). 58
Printer ...................................•••.•• 60
Error Message List It 61
Program Command List I ................................................... •'62
Function Digit Capacity 64
Specifications 65
-2-

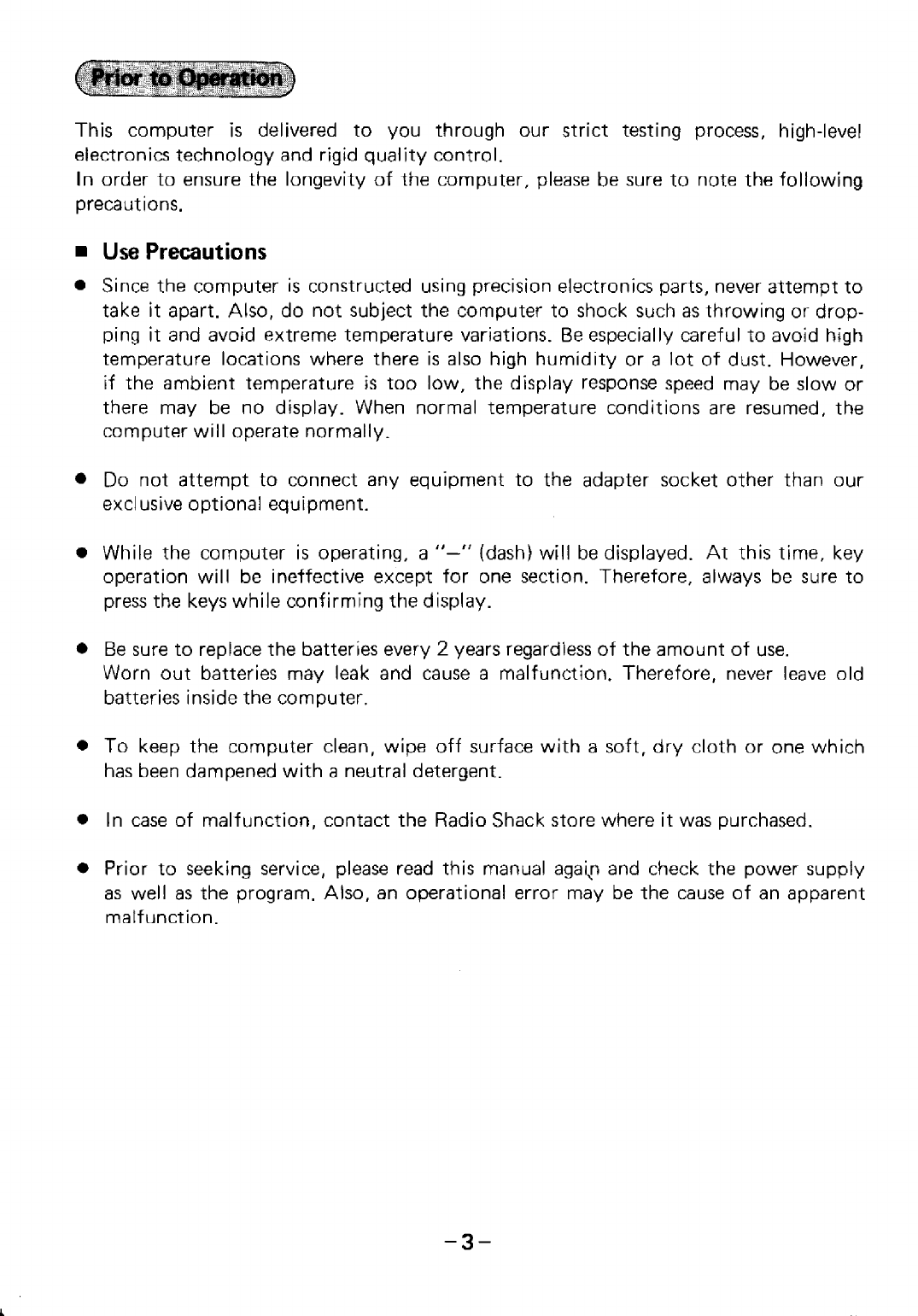

This computer is delivered to you through our strict testing process, high-level
electronics technology and rigid
quality control.
In order to ensure the longevity of the computer, please be sure to note the following
precautions.
•Use Precautions
•Since the computer is constructed using precision electronics parts, never attempt to
take it apart. Also, do not subject the computer to shock such as throwing or drop-
ping
it and avoid extreme temperature variations. Be especially careful to avoid high
temperature locations where there
is also high humidity or a lot of dust. However,
if the ambient temperature is too low, the display response speed may be slow or
there may be no display. When normal temperature conditions are resumed, the
computer
will operate normally_
•Do
not attempt to connect any equipment to the adapter socket other than our
exel usive optional equipment.
•While the
computer is operating, a "_" (dash) will be displayed. At this time, key
operation
will be ineffective except for one section. Therefore, always be sure to
press the keys while confirming the display.
•
Be sure to replace the batteries every 2years regardless of the amount of use.
Worn out batteries may leak and cause a malfunction. Therefore, never leave old
batteries inside the computer.
•
To keep the computer clean, wipe off surface with a soft, dry cloth or one which
has been dampened with aneutral detergent.
•In
case of malfunction, contact the Radio Shack store where it was purchased.
•Prior
to seeking service, please read this manual agaip and check the power supply
as well as the program. Also, an operational error may be the cause of an apparent
malfunction.
-3-

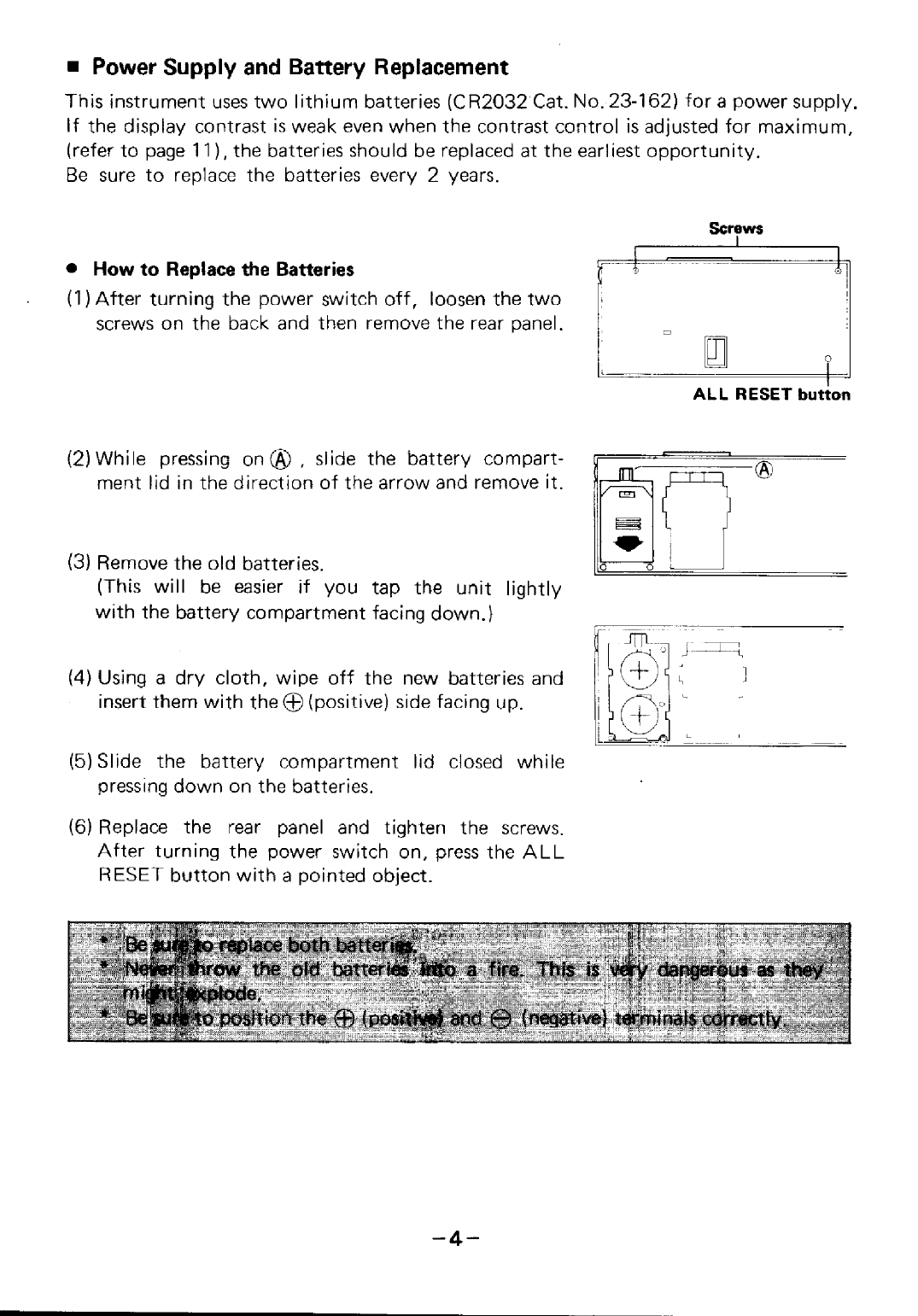

•Power Supply and Battery Replacement
This instrument uses two lithium batteries (CR2032 Cat. No.23-162) for a power supply.
If the display contrast is weak even when the contrast control is adjusted for maximum,
(refer to page 11)Ithe batteries should be replaced at the earliest opportunity.
Be sure to replace the batteries every 2years.
SCrews
I
• How to Replace the Batteries
(1) After turning the power sWitch off, loosen the two
screws on the back and then remove the rear panel.
I
.. -:t.
I
°1
[Q]]
I
ALL RESET button
(2) While pressing on ® ' slide the battery compart-
ment lid in the direction of the arrow and remove it.
(3) Remove the old batteries.
(This
will be easier if you tap the unit lightly
with the battery compartment facing down.)
~Oi
o0
®
(4) Using a dry cloth, wipe off the new batteries and
insert
them with the EEl (positive) side facing up.
(5) Slide
the battery compartment lid closed while
pressing down on the batteries.
(6) Replace the rear panel and tighten the screws.
After turning the power switch on, press the ALL
RESET button with a pointed object.
-4-

®
®
CD ®
T
kID
PAT OM
PAT OFF
CV
£:II:TiS0wm- I;)D)
"S'I'IPRTSTOf'
oo;G
IIAO
I!I GIlA
GOTO
PC-4
WRT TRACE ON IJlTAACEOFF
ON
'NS
~<-
-EXT -MODE
!i
mal PlI
®
~P7-P.-pg-
>
POWER 1I
ummo
4
1[[1] -ON (g) I ¢= I 19> ]m SHFT - P4 PS P6 ,. '-
~
-.1 "-.-$-l-I-?-:-;-~ II g II a
[~) ~ ep (~I cp cp up CD (Q] I ~ I P1 P2 .3 '"
CPCPcjJCPciJ@cpcpcp~~~1J1l
r~j qJ (E~] (7!,l~' I~T) [~) (SPCI (;) I ciJ ma Em
1T

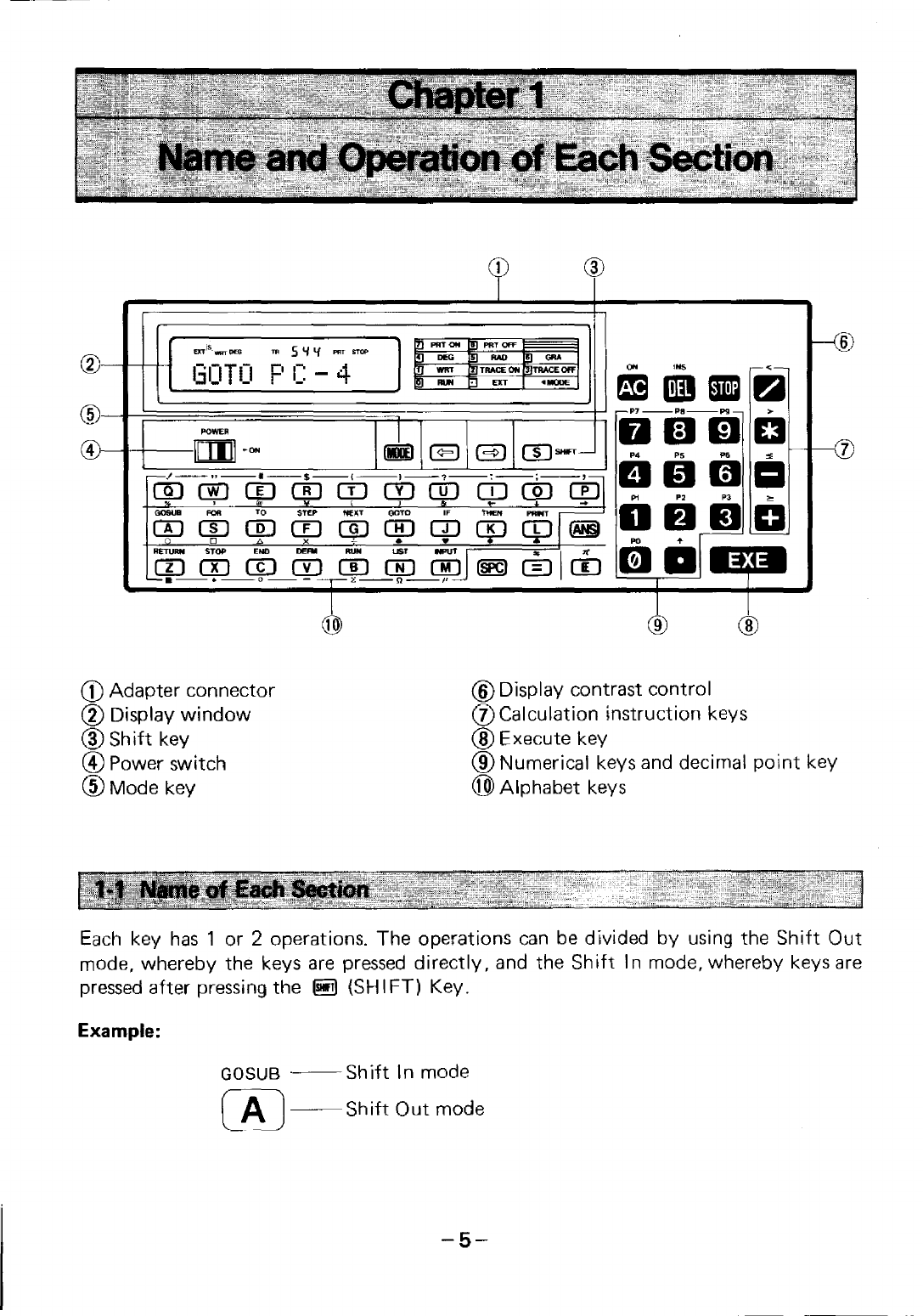

CD Adapter connector
®Display window
® Shift key
@Power switch
@Mode key
®Display contrast control
(j)Calculation instruction keys
@Execute key
®Numerical keys and decimal point key

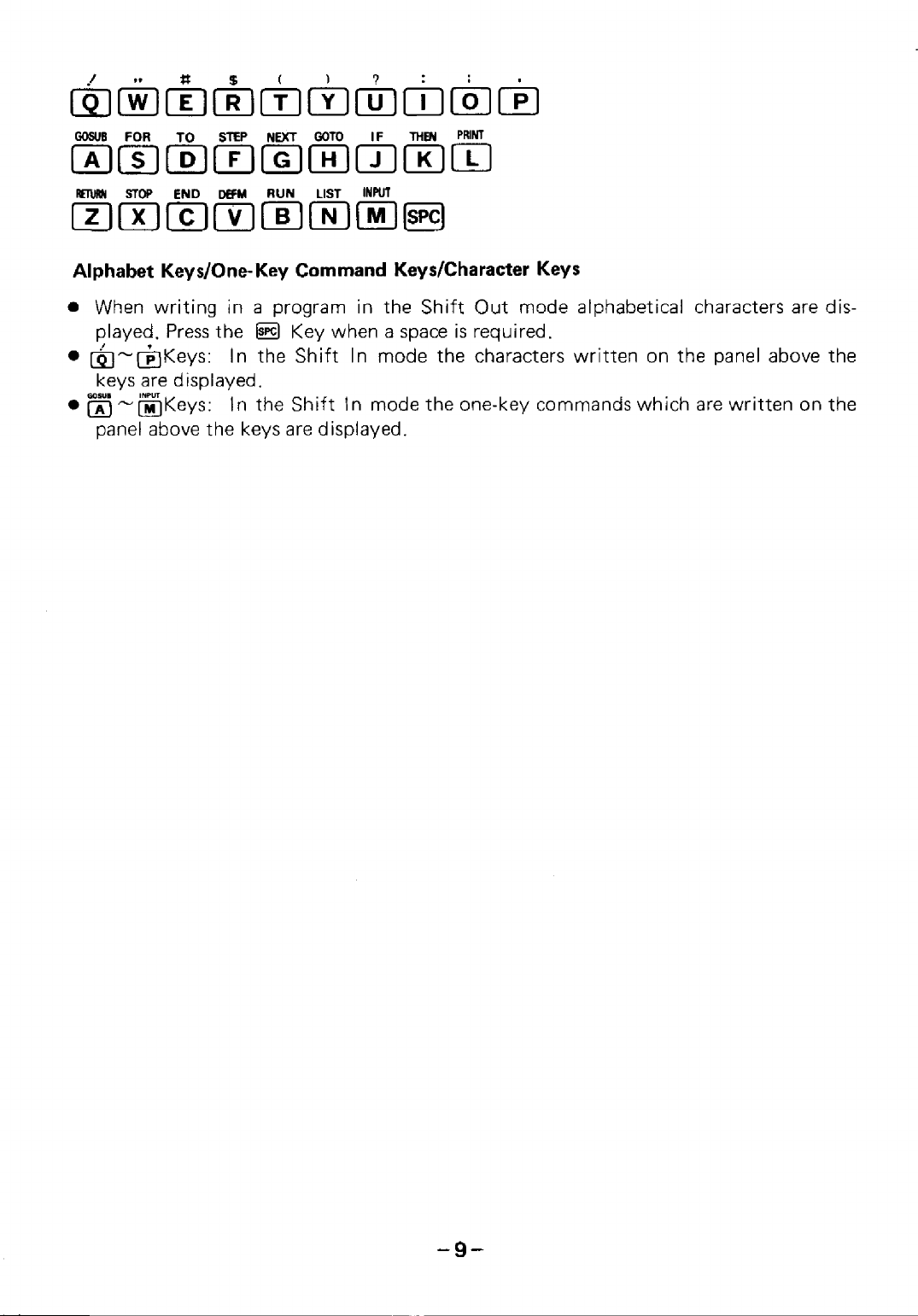

@Alphabet keys
Each key has 1or 2operations. The operations can be divided by using the Shift Out
mode, whereby the keys are pressed directly, and the Shift In mode, whereby keys are
pressed after pressing the ~ (SH IFT) Key.
Example:
GOSUB .~~ Sh ift In mode
OD~-Shift Out mode
-5-

Key operation in the Shift Out mode
IM@@]~[]]
C2JlRJ[[)OO[!J[Y][illO]@][E]
0[[]~[[]@](]JQ][[]w~
000[]JCYJ[[)ffi](MJ~§]OO
Key operation in the Shift In mode
.I .. 1* $ ( ) ? : ; •
C=:lc:::::Jc:::::J~~c:Jc:Jc:lc:lc::::J
GOSUB FOR TO STEP NEXT GOTO IF THEN PRINT (ANsi
c:Jc:lc:Jc:::Jc:::Jc:::Jc:J~c:J
RETURN STOP END DEFM RUN LIST INPUT (SPC) 4: 7r
~c:JC::>c:Jc:Jc::Jc:J c:=lc:J
ma JOEll [STOP] a
[2][aJ~D
~@(§Ja
C1J~@)D
~8[ EXE I
P7 P8 P9 >
c::::J c:=l c:J c:::>
P4 P5 P6 .::S
c:::::J c:Jc:J c:::::J
P1 P2 P3 ::::-
c:::::J c:J c:J c:J
8cSl EXE )
*. In the Shift In mode, the alphabet keys become one-key commands and the
numerical keys become program
area designation keys.
•In addition, using the Extension Mode
(press ~c:::J and "EXT" shows on display),
while in the
Shift In mode results in special symbols displayed for each alphabet
key
that is pressed. Lower case letters will be displayed, however, if the Extension
mode
is used while in the Shift Out mode.
Shift In mode using the extension mode
c=Jc=Jc:=Jc::Jc:::Jc:::Jc=Jc:::Jc:::JD
oD ~ x+ • • • •
c:::Jc:::Jc:::Jc=Jc:::Jc:::Jc:::JDDD
• • 0 - ~ n ft
Shift Out mode using the extension mode
[I]800[!]lIJ0OJ~~
00(]JITJ[]][E]OJ[I)OJD
0000~~8DDD
-6-

WSHIFT Shift Key (Symbolized by ~ hereafter)
If this key is pressed, the Shift In mode is selected (" W" is displayed) and the Shift In
functions on the keyboard can be used. Do not confuse m(red key) with the regular
(]J (letter "S").
1111I1 Mode Key
This is pressed in conjunction with GJ and (el through ~ Keys to designate the
computer's
condition or angular unit in advance.
~8 "EXT" is displayed. The Extension mode is designated and lower case
letters or special symbols can be used, depending on whether the Shift In
or Shift Out modes have been previously selected. To release the Exten-
sion mode
press ~8 again.
I!!!lIDl "R UN" is displayed. Manual calculation and program execution can be
performed.
~lIJ "WRT" is displayed. Program write-in and checking/editing can be per-
formed.
~~ ....... "TR" is displayed. Execution trace can be performed. (See page 43 for
details.)
~~ "TR" disappears from display. This mode disables the execution trace
function( ~~ ).
~~ "DEG" is displayed. The angular unit will be designated as "degree".
1!!!lU2] "RAD" is displayed. The angular unit will be designated as "radian".
~~ "GRA" is displayed. The angular unit will be designated as "gradient".
~l2J "PRT" is displayed. If a printer is connected, printout can be performed.
~(S) -... "PRT" disappears from display. This mode disables the printout function
(~l21 ).
[¢::'Hc:;>! Cursor Keys
Press to move the cursor left or right. If pressed once, cursor moves one character
space. If kept pressed the cursor continues to move automatically.
ON
• All Clear/ON Key
• Press to clear the entire display.
•
If pressed during program execution, program execution will stop.
•When
an error message is displayed, press to clear the error message display.
•When auto power
off is in operation (automatic energy saving function, refer to page
13). and the display is off, press to turn power back on.
INS
IOELI Delete/Insert Key
•Deletes one character at the position of the bl inking cursor.
•In the
Shift In mode, press to open up one character space for character insertion.
-7-
