Cat. No. 49-2570
OWNER’S MANUAL
Please read before using this equipment.
CENTRAL 5000
Monitored Wireless Security Alarm System
MOTION DETECTOR
ARM AC POWERMONITOR BATTERY LOW
ZONES
19
210
3
4
5
6
7
8
11
12
13
14
15
16
BYPASS
ON - LIGHTS - OFF
ZONES 9-16
PANIC
AWAY - ARM - HOME
plug'n power
C O M P A T I B L E
CENTRAL 5000
MONITORED WIRELESS SECURITY ALARM SYSTEM
BATTERY
ARM
DISARM
ON
OFF
PANIC
LIGHTS
PANIC
ARM
HOME
ARM
AWAY
SECURITY
LIGHT
ON OFF
A
I
EM
OC
GK
•
•
••
••
••
INSTANTDELAY
BRIGHT DIM
ENTRY
WIRELESS
SECURITY
SYSTEM
•
AUTOMATIC
MESSAGE
DIALLER
plug'n power
C O M P A T I B L E
DISARM
ON OFF
49-2570.fm Page 1 Wednesday, August 18, 1999 3:59 PM

2
FEATURES
Radio Shack and ORCA, the security monitoring company, are independent of one another.
No warranty or guarantee of performance of the ORCA Monitoring Service Agreement
is provided by Radio Shack.
© 1995 Tandy Corporation. All Rights Reserved.
Radio Shack is a registered trademark used by Tandy Corporation.
ORCA is a registered trademark of ORCA Technology
You can install the Radio Shack Cen-
tral 5000 Monitored Wireless Security
Alarm System anywhere in your home
using existing wiring. The system uses
radio frequencies, so it does not need
more wiring. It includes a handheld re-
mote, a keychain remote, two door/
window sensor transmitters, a motion
detector, and a lamp module so you
can immediately use the system. The
console monitors up to 16 sensor
transmitters (with additional remote
sensor transmitters) and sounds its
built-in alarm and calls ORCA Monitor-
ing Services when a violation occurs.
Here are the system’s features.
Two Door/Window Sensor Trans-
mitters — trigger the console’s built-in
alarm when a secured door or window
opens (additional sensor transmitters,
Cat. No. 49-2585).
Handheld Remote — lets you control
the system plus lights and appliances
connected to Plug ´n Power modules
(additional handheld remotes, Cat. No.
49-2591T).
Ke
y
chain Remote — lets you arm/dis-
arm the system and control lights and
appliances (additional keychain re-
motes, Cat. No. 49-2591).
Lamp Module — lets you turn on/off a
lamp using a remote control. The lamp
also flashes during an alarm (addition-
al lamp modules, Cat. No. 61-2682).
Motion Detector — protects an area
an intruder might enter (additional mo-
tion detectors, Cat. No. 49-2589).
Plu
g
´n Power Compatible Desi
g
n—
lets you add a total of 16 door/window
sensor transmitters, lamp modules,
motion detectors, and other accesso-
ries to customize your system.
Supervised Operation — keeps track
of each door/window sensor transmit-
ter’s status and alerts you if there is a
problem (such as an intrusion or a low
battery).
ORCA-Monitored Securit
y
—means
you get 24-hour monitoring to alert the
police, neighbors, or you at work if the
system detects an unauthorized entry.
Auto Timer—gives your home a
lived-
in
look when you are away by turning
on one module and randomly turning
on and off up to three other modules
from dusk until about 11:30 PM (re-
quires additional modules).
Important: In some areas, you must
get a permit for monitored alarm ser-
vice. We recommend that you contact
your local law enforcement agency
and inquire about local alarm permits.
49-2570.fm Page 2 Wednesday, August 18, 1999 3:59 PM

3
Notes:
• In addition to the parts provided,
you need one 9V alkaline battery
(such as Radio Shack Cat. No.
23-553) to operate the console;
six AAA alkaline batteries (such
as Cat. No. 23-558)—two to oper-
ate the keychain remote control
and four to operate the handheld
remote control; and eight AA alka-
line batteries (such as Cat. No.
23-552)—two in each door/win-
dow sensor transmitter and four to
operate the motion detector.
• The suitability of this system to
perform as a burglar alarm or
emergency service device has not
been evaluated by Underwriters’
Laboratories, Inc.
Warning: To prevent fire or shock haz-
ard, do not expose this product to rain
or moisture.
This symbol is intended to alert you to
the presence of uninsulated dangerous
voltage within the product’s enclosure
that might be of sufficient magnitude to
constitute a risk of electric shock. Do
not open the product’s case.
This symbol is intended to inform you
that important operating and mainte-
nance instructions are included in the
literature accompanying this product.
READ THIS BEFORE
INSTALLATION
Your console’s telephone dialer is de-
signed to conform to federal regula-
tions, and you can connect it to most
telephone lines. However, each tele-
phone or telephone device that you
connect to the telephone line draws
power from the telephone line. We re-
fer to this power draw as the device's
ringer equivalence number, or REN.
The REN is shown on the bottom of the
console.
If you use more than one telephone or
other device on the line, add up all the
RENs. If the total is more than five,
your telephones might not ring. In rural
areas, a total REN of three might im-
pair ringer operation. If ringer opera-
tion is impaired, remove a device from
the line.
Note: You must not connect your con-
sole to:
• Coin-operated systems
• Party-line systems
• Most electronic key telephone
systems
Your console’s telephone dialer com-
plies with Part 68 of
FCC Rules
. You
must, upon request, provide the FCC
registration number and the REN to
your telephone company. Both num-
bers are shown on the bottom of the
console.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICE-
ABLE PARTS INSIDE. REFER SERVIC-
ING TO QUALIFIED PERSONNEL.
CAUTION !
!
49-2570.fm Page 3 Wednesday, August 18, 1999 3:59 PM

4
CONTENTS
Glossar
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
How the S
y
stem Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting Up Monitored Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Plannin
g
Your Securit
y
S
y
stem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Assigning Security Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Reassigning Security Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Quick Installin
g
/Testin
g
Your S
y
stem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting Up the Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing the Keychain Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installing the Handheld Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Initializing the Door/Window Sensor Transmitters . . . . . . . . . . . . . . . . . . . . . 15
Initializing the Motion Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing the Lamp Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Testing the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Mountin
g
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Mounting the Door/Window Sensor Transmitters . . . . . . . . . . . . . . . . . . . . . 19
Mounting the Motion Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Making a Pet Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Testing the Motion Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Arming/Disarming the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Arm Away/Arm Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Instant/Delay Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Trouble Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using the Panic Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Zone Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Viewing the Status of Zones 9-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Other Console Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
During an Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
After an Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Controlling Plug ´n Power Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Turning Modules On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using SECURITY LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Using BRIGHT/DIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Resetting the Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Troubleshootin
g
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
49-2570.fm Page 4 Wednesday, August 18, 1999 3:59 PM

5
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Replacing the Console’s Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Replacing the Remotes’ Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Replacing the Door/Window Sensor Transmitters’ Batteries . . . . . . . . . . . . 34
Intercom Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
FCC Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lightning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Telephone Line Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
49-2570.fm Page 5 Wednesday, August 18, 1999 3:59 PM

6
GLOSSARY
Here are a few terms that will be help-
ful to know as you read this manual.
Arm and Disarm — Terms for on and
off. When you arm the system, you
turn on protection. Disarming the sys-
tem turns off protection.
Awa
y
Mode — Your system’s armed
mode when all sensor transmitters (in-
cluding motion detectors) are armed.
Console — The system’s main control
panel.
Delay Mode—A way of arming the
system so it delays sounding an alert if
a door/window sensor transmitter set
to DELAY reports an intrusion.
Door/Window Sensor Transmitter
— Triggers the alarm when a secured
door or window is opened.
Entr
y
/Exit Dela
y
— A setting on the
handheld remote control that allows
you time while entering and exiting
your house before the system arms or
the alarm trips.
Home Mode — The system’s armed
mode when only doors and windows
are armed (not motion detectors). This
prevents you from accidentally tripping
the motion detector(s) as you move
around the house.
Instant Mode — A way of arming the
system so the alarm immediately trips
if a door/window sensor transmitter set
to INSTANT or the motion detector re-
ports an intrusion.
Note: The keychain remote control
only arms the system in the instant
mode.
Motion Detector — Senses motion by
detecting a change in temperature
when someone walks across its path.
Remote Control — A device that lets
you arm and disarm the system away
from the console.
Violation — An alarm condition, such
as that caused by an opened door or
window, detected by a sensor trans-
mitter.
Zone — The area protected by a door/
window sensor transmitter, a motion
detector, or other sensing/transmitting
device.
49-2570.fm Page 6 Wednesday, August 18, 1999 3:59 PM

7
HOW THE SYSTEM WORKS
After you set up your account with
ORCA Monitoring Services, your sys-
tem calls and reports alarms to ORCA
Monitoring Services’ trained staff of se-
curity professionals. See “During an
Alarm” on Page 26.
The system also automatically calls
ORCA Monitoring Services about once
per month to perform a routine check-
in. This call is made between Midnight
and 6 AM to avoid possible interfer-
ence with other phone calls. If you lift
the handset and hear strange tones,
hang up and wait a few minutes for the
call to end. If ORCA Monitoring Servic-
es does not receive a check-in within
this time, they call you to let you know
of a possible problem with the system.
ORCA Monitoring Services can also
have the system blink the MONITOR
indicator and sound a chirp. If you see
this, call 1-800-FOR-ORCA to deter-
mine the problem.
SETTING UP
MONITORED SERVICE
Important: Your system is not fully op-
erational until ORCA Monitoring Ser-
vices programs the system.
To set up service, you need to:
• Fill out the enclosed monitoring
agreement and mail or fax it to
ORCA Monitoring Services.
• Install the system.
• Call ORCA Monitoring Services
by lifting your phone’s handset
and pressing MONITOR on the
console or by dialing 1-800-FOR-
ORCA (1-800-367-6722) from a
telephone on the same line as
your system.
During the call, ORCA Monitoring
Services instructs you to press
MONITOR on the system and then
hang up the phone. They then
program option settings (listed on
Pages 8–9) into the system. The
preferred settings work best for
most situations. However, you can
ask ORCA Monitoring Services to
change these settings to make the
system work best for you. (If you
do not ask for changes, the pre-
ferred settings are used.)
Note: The system beeps when
programming is complete. To
avoid interrupting system pro-
gramming, do not lift your tele-
phone’s handset until you hear the
beep.
After ORCA Monitoring Services pro-
grams your system, you can begin us-
ing it. However, they do not notify
emergency services of an alert until
they have received and responded to
your monitoring agreement. Allow 24
hours for faxed requests and 5 days for
mailed requests.
Note: Call 1-800-FOR-ORCA at least
5 days before you move to another ad-
dress.
49-2570.fm Page 7 Wednesday, August 18, 1999 3:59 PM

8
Place a check mark next to any settings you want to discuss with ORCA, and refer
to these settings when you call them to set up service.
oHouse Code
Preferred settin
g
:House Code A
Can be any House Code (A-P).
Your system can control all mod-
ules set to the same house code.
oFlashing Alert Unit Code
Preferred settin
g
:Unit Code 16
Can be any Unit Code (1-16). A
light connected to a module set to
the same House and Unit Codes
you select flashes when the alarm
is tripped, and can be controlled
by the SECURITY LIGHT buttons
on the handheld remote. This light
also turns on at dusk and turns off
around 11:30 PM when the sys-
tem is armed in the away mode.
oSilent Alarm
Preferred settin
g
: Audible alarm
Can be set to only call ORCA
Monitoring Services and not
sound the siren at all. If you select
silent alarm, you will hear no indi-
cation that the system has been
tripped.
oLived-In Look Unit Codes
Preferred settin
g
: 2, 3, and 4
You can select any three Unit
Codes. Modules set to the same
House Code and the three Unit
Codes you select turn on and off
at random times after dusk when
you arm the system in the away
mode. This gives your home a
lived-in appearance.
oEntry and Exit Delays
Preferred settin
g
: 60-second exit
delay; 30-second entry delay
Each can be set from 0 to 1000
seconds.
oDial Delay
Preferred settin
g
:40 Seconds
Can be set from 0 to 1000 sec-
onds. This sets how long the con-
sole waits after it has been tripped
before it calls ORCA Monitoring
Services.
49-2570.fm Page 8 Wednesday, August 18, 1999 3:59 PM

9
oTouch-Tone Dialing
Preferred settin
g
:Touch-tone
dialing
Can be set to use rotary dialing if
you do not subscribe to touch-
tone service from your local tele-
phone company.
oAlarm Flash Option
Preferred settin
g
: Flash only the
module set to the House and
Flashing Alert Unit Code you
select
You can have the system flash all
light modules set to the same
House Code or flash no modules
at all.
oPanic Alarm Dial
Preferred settin
g
:Always call
ORCA Monitoring Services when
the panic alarm is tripped
Can be set to only call ORCA
Monitoring Services if the system
is armed when the panic alarm is
tripped.
oLights Off Time
Preferred settin
g
: Turn random
and security lights off at 11:30 PM
Can be set to any time. The secu-
rity light turns on and lived-in
lights randomly turn on and off
around dusk, then turn off at the
time you select here.
49-2570.fm Page 9 Wednesday, August 18, 1999 3:59 PM

10
PLANNING YOUR SECURITY SYSTEM
Before you set up your system, draw a
security plan of your home. This is es-
pecially important if you install sensor
transmitters to protect several different
zones.
If you live in an upstairs apartment, the
front door might be the best place to
mount a door/window sensor transmit-
ter. If you live in a house or downstairs
apartment, you might want to cover a
back door or window.
Your security system has three goals:
• To prevent loss by discouraging
potential intruders.
• To scare intruders away before
they can take your property or
break into your home.
• To alert ORCA that someone is
breaking into your home.
To help accomplish these goals, you
should:
• Post decals on doors and win-
dows stating that your home is
protected by a security system.
Monitored Alarm decals are
included with your system. Addi-
tional decals (Cat. No. 49-507) are
available at your local Radio
Shack store.
• Choose a location for the console
where it is not easily accessible or
seen by intruders.
In addition, most police departments
offer information that might be helpful.
After making a preliminary plan, con-
tact your local police department to
see if they offer guidelines or other ser-
vices for planning a home securitysys-
tem.
Floorplan Goes Here
49-2570.fm Page 10 Wednesday, August 18, 1999 3:59 PM

11
ASSIGNING SECURITY
ZONES
A security zone is an area of protection
covered by a single door/window sen-
sor transmitter, motion detector, or oth-
er sensing/transmitting device. Your
security console monitors up to 16
zones and alerts you if there is a viola-
tion (see “Zone Indicators”).
When you initialize your security sys-
tem’s sensor transmitters, the console
assigns a zone number to the sensor
transmitter (see “Initializing the Door/
Window Sensor Transmitters”). The kit
includes numbered stickers you attach
to each sensor transmitter to show its
zone number.
For your reference, make a record of
which area of your home a zone cov-
ers. For example, using the floorplan
you drew, you could mark the front
door as “Zone 1.”
REASSIGNING
SECURITY ZONES
If you want to remove one accessory,
reassign an accessory to a zone cur-
rently in use, or add an accessory
when all zones are assigned, you must
completely reinitialize the system.
To reinitialize the system, set INSTALL/
RUN 1/RUN 2 to INSTALL. Then press
PANIC, ARM HOME, and ARM AWAY on
the console at the same time. Reinitial-
ize all remote controls, door/window
sensor transmitters, and motion detec-
tors, assigning each accessory to the
desired zone.
49-2570.fm Page 11 Wednesday, August 18, 1999 3:59 PM

12
QUICK INSTALLING/TESTING YOUR SYSTEM
This section describes how to initialize
system accessories so the console
recognizes them and how to test the
system to make sure it works properly.
Perform all the procedures in this sec-
tion, then follow the instructions in “Lo-
cating and Mounting Accessories.”
You can add other separately pur-
chased accessories to the system by
following the appropriate initialization
and testing procedures in this section.
SETTING UP THE
CONSOLE
1. Choose a location for the console
that is:
• Close to a modular phone jack.
• Central to doors/windows you
want to protect so all sensor
transmitters are within 100 feet.
• Positioned where you can eas-
ily check the zone indicators for
problems, but not where an
intruder could easily see it.
2. For backup power in case of an
AC power failure, connect and
place a 9-volt alkaline battery
(Cat. No. 23-553) in the battery
compartment.
3. Plug the console into any stan-
dard AC outlet that is not con-
trolled by an on/off switch, then
fully extend the antenna.

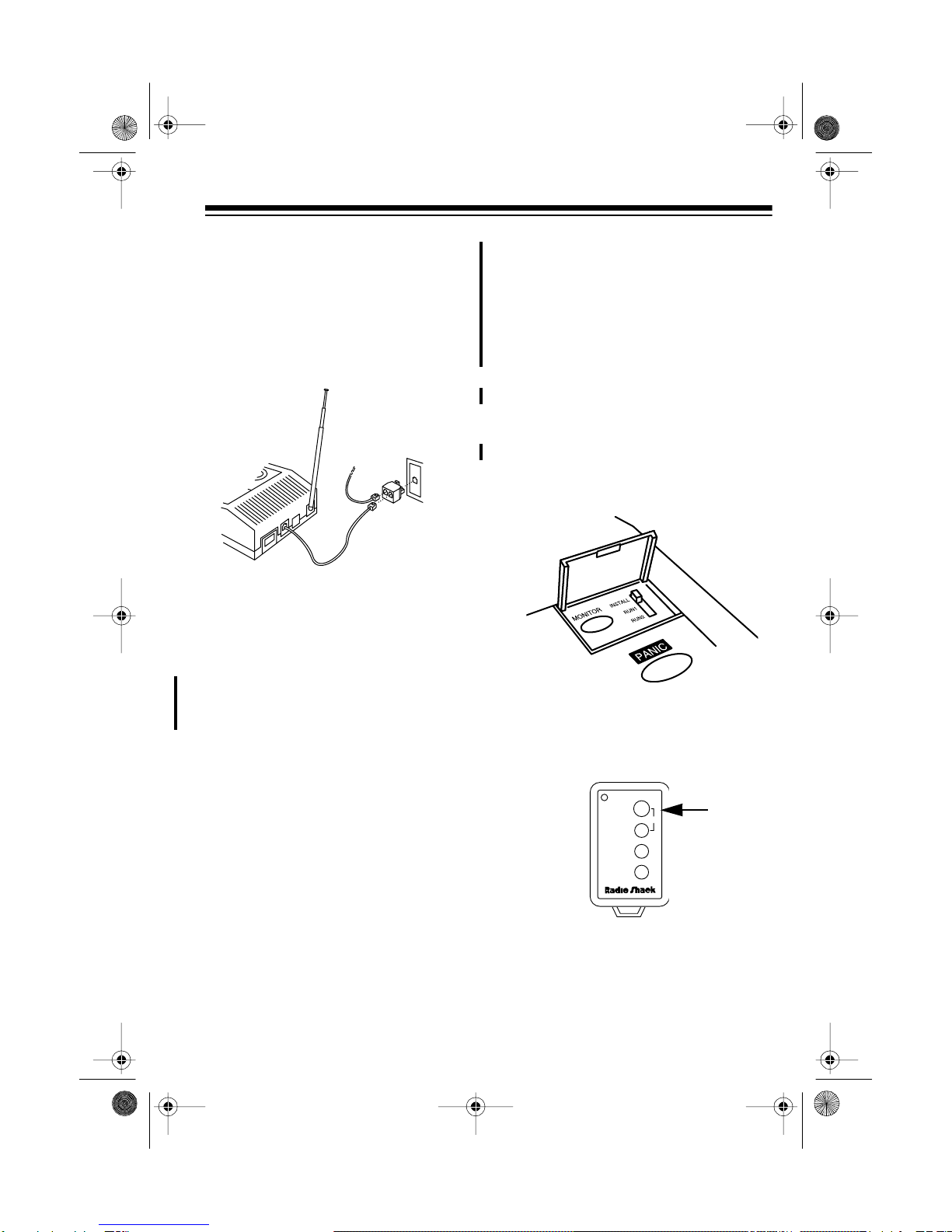

4. Plug the telephone cord into the
console and plug the other end
into a modular phone jack.
49-2570.fm Page 12 Wednesday, August 18, 1999 3:59 PM

13
Notes:
• If you do not have an unused jack,
use the supplied duplex adapter.
For a baseboard jack, plug the
adapter into the jack; for a wall
jack, plug the adapter into the
console.
• If you do not have a modular
phone jack, you can either update
the wiring yourself or have the
phone company do it for you.
Radio Shack stores sell the jacks
and adapters you need. The
phone company charges to install
the jacks. The USOC number of
the jack to be installed is RJ11C
for a baseboard jack or RJ11W for
a wall jack.
INSTALLING THE
KEYCHAIN REMOTE
CONTROL
1. Remove the keychain remote con-
trol’s back cover. Install two AAA
alkaline batteries (Cat. No. No.
23-555) in the battery compart-
ment, according to the polarity
symbols (+ and –) marked inside.
Then replace the cover.
2. Set the console’s INSTALL/RUN 1/
RUN 2 switch to INSTALL.
3. Stand near the console and press
ARM on the remote control. The
console chimes and logs in the
remote control.
4. Leave the console’s switch set to
INSTALL to install other accesso-
ries.
TELEPHONE
CORD
To
Telephone
BATTERY
ARM
DISARM
ON
OFF
PANIC
LIGHTS
49-2570.fm Page 13 Wednesday, August 18, 1999 3:59 PM

14
Notes:
• You can add any combination of
up to eight Plug ´n Power
remote controls.
• When you press a button, the
BATTERY indicator on the
remote control lights to show
the battery is good.
INSTALLING THE
HANDHELD REMOTE
CONTROL

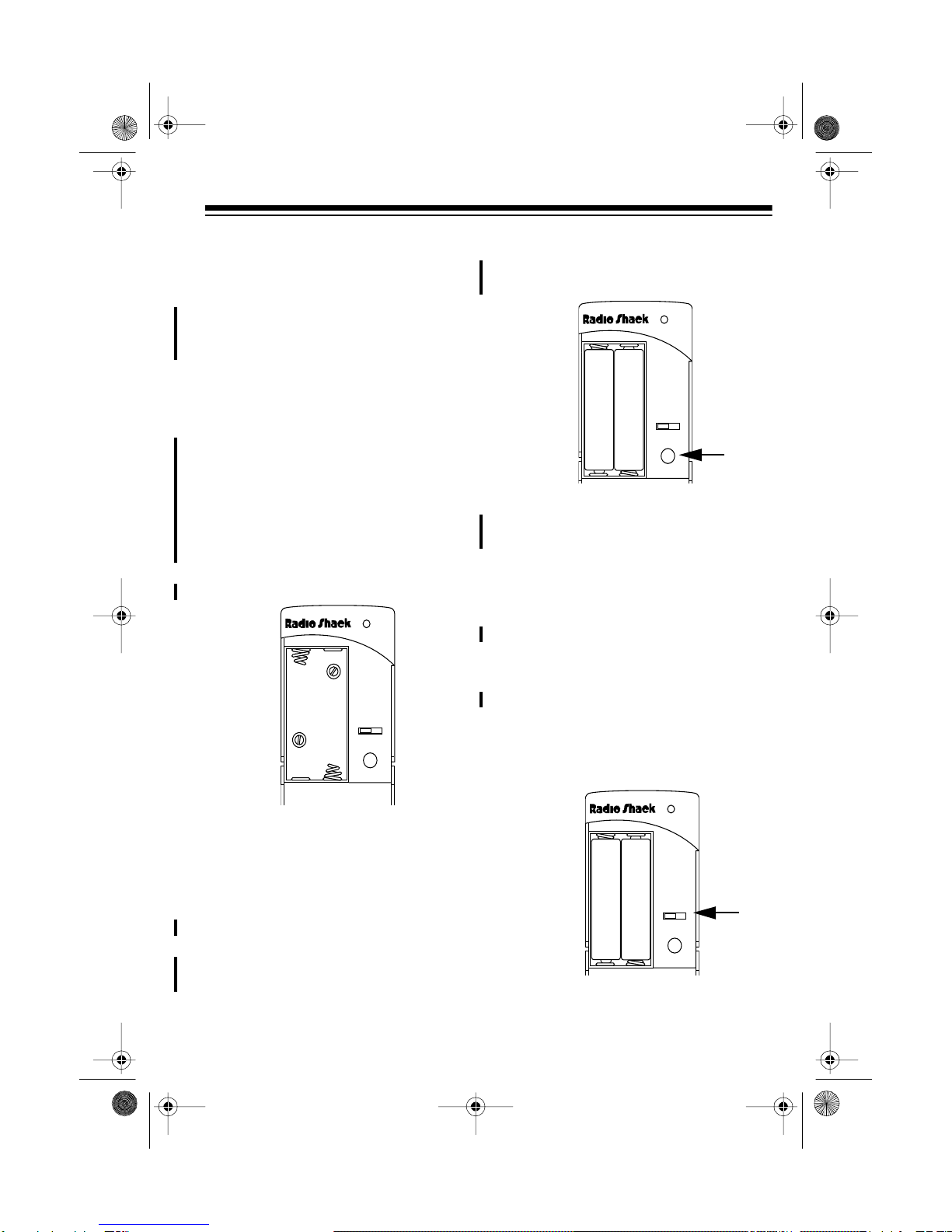

1. Press the tab on the battery com-
partment cover and lift off the
cover.
2. Install four AAA alkaline batteries
(Cat. No. 23-555) in the handheld
remote control’s battery compart-
ment, according to the polarity
symbols (+ and –) marked inside
the compartment.
3. Be sure the console’s INSTALL/
RUN 1/RUN 2 switch is set to
INSTALL.
4. Set the house code on the remote
control to the same letter as you
selected when you set up service.
5. Press ARM HOME or ARM AWAY
on the handheld remote control.
The console sounds a tone.
Note: If you do not hear a tone,
press the button beneath the
remote control’s label with a pen-
cil. Then repeat this step.
A
I
EM
OC
GK
•
•
••
••
••
INSTANTDELAY
BRIGHT DIM
ENTRY
PANIC
ARM
HOME
ARM
AWAY
SECURITY
LIGHT
DISARM
ON OFF
PANIC
ARM
HOME
ARM
AWAY
SECURITY
LIGHT
ON O
F
WIRELESS
SECURITY
SYSTEM
•
AUTOMATIC
MESSAGE
DIALLER
plug'n power
C O M P A T I B L E
DISAR
M
ON O
F
Press
49-2570.fm Page 14 Wednesday, August 18, 1999 3:59 PM

15
6. Leave the console’s switch set to
INSTALL to install other accesso-
ries.
7. Replace the compartment cover.
Note: You can install eight keychain
(Cat. No. 49-2591) or handheld remote
controls (Cat. No. 49-2551T).
INITIALIZING THE DOOR/
WINDOW SENSOR
TRANSMITTERS
1. Open a door/window sensor
transmitter’s battery compartment.
Install two AA alkaline batteries
(Radio Shack Cat. No. 23-557).
2. Be sure the console’s INSTALL/
RUN 1/RUN 2 switch is set to
INSTALL.
3. Stand near the console and press
TEST, located to the right of the
sensor transmitter’s battery com-
partment. The console chimes
and logs in the door/window sen-
sor transmitter. The first available
zone indicator on the console
lights to show which zone the sen-
sor transmitter is assigned to.
Note: If you do not hear a chime,
remove the batteries from the sen-
sor transmitter and then hold
down the TEST button for 3 sec-
onds. Reinstall the batteries and
press TEST again. When the indi-
cator flashes twice, you can initial-
ize the sensor transmitter as
described in Step 3.
4. Set DELAY, located inside the
door/window sensor transmitter’s
battery compartment, to MIN to
protect a window or to MAX to pro-
tect a door. Then replace the bat-
tery compartment’s cover.
TEST
MAX MIN
DELAY
+
–
+
–
TEST
MAX MIN
DELAY
+
–
+
–
TEST
MAX MIN
DELAY
49-2570.fm Page 15 Wednesday, August 18, 1999 3:59 PM

16
5. Place one of the supplied num-
bered stickers on the sensor
transmitter to show its zone num-
ber.
6. Leave the console’s switch set to
INSTALL to install other accesso-
ries.
Repeat these steps for additional door/
window sensor transmitters.
INITIALIZING THE
MOTION DETECTOR
1. Press the four dots on the battery
compartment cover and slide the
cover down to remove it.
2. Install four 1.5V AA alkaline bat-
teries (Cat. No. 23-552) inside the
motion detector’s battery compart-
ment according to the polarity
symbols (+ and –) marked inside.
3. Be sure the console’s INSTALL/
RUN 1/RUN 2 switch is set to
INSTALL.
4. Press TEST on the back of the
motion detector. The console
chimes, and the first available
zone indicator lights to show the
console has logged in the motion
detector.
If you do not hear a chime, press
CODE with a pencil, then press
TEST again.
5. Looking at the back of the motion
detector, set the switch on the left
side to 1(see “Mounting the
Motion Detector”).
6. Place one of the supplied num-
bered stickers on the motion
detector to show its zone number.
7. Leave the console’s switch set to
INSTALL to install other accesso-
ries.
8. Replace the motion detector’s bat-
tery compartment cover.
MOTION DETECTOR
TEST CODE
2
1
49-2570.fm Page 16 Wednesday, August 18, 1999 3:59 PM

17
INSTALLING THE LAMP
MODULE
When the alarm trips, lamps connect-
ed to lamp modules flash on and off for
the duration of the alarm. After 4 min-
utes (or when you disarm the alarm),
the lamps stop flashing and remain on.
If you arm the system with an exit de-
lay, lamp modules set to the same
House and Unit Code as the console
turn on during the exit countdown.
You can also control lamp modules set
to this code using SECURITY LIGHT on
the handheld remote.
Follow these steps to install a lamp
module.
1. Plug a lamp into the supplied lamp
module and plug the module into
an AC outlet that is on the same
electrical circuit as the console.
Note: Do not plug an appliance or
fluorescent lamp into the supplied
module.
2. Be sure the lamp’s switch is on.
3. Set the module’s House and Unit
Code dials to the same codes you
selected when you set up service.
Replace with the actual illustration
49-2570.fm Page 17 Wednesday, August 18, 1999 3:59 PM

18
TESTING THE SYSTEM
After you complete the quick installa-
tion procedures, follow these steps to
test the system.
Note: To avoid alarming neighbors, tell
them you are testing the system.
1. Set INSTALL/RUN 1/RUN 2 on the
console to RUN 2.
2. Place each door/window sensor
transmitter’s magnet next to its
magnetic switch.
3. Place the motion detector on a
counter top within 100 feet of the
console.
4. Move a door/window sensor
transmitter’s magnet away from
the magnetic switch.
When the system is not armed,
the console chimes every time
someone opens a door or window
with the system in the RUN 2
mode. The system does not chime
in the RUN 1 mode.
Replace the magnet next to the
magnetic switch.
5. Press ARM on a remote control,
and then move the magnet away
from the magnetic switch again.
The alarm sounds and the lamp
connected to the lamp module
flashes on and off. Press DISARM
to turn off the alarm, and LIGHTS
OFF to turn off the lamp. Replace
the magnet next to the magnetic
switch.
6. Press ARM on the remote control,
then walk across the path of the
motion detector’s lens. The alarm
sounds and the lamp connected
to the lamp module flashes on and
off. Press DISARM to turn off the
alarm. The console chimes twice.
Press LIGHTS OFF to turn off the
lamp.
WIRELESS SENSOR TRANSMITTER
49-2570.fm Page 18 Wednesday, August 18, 1999 3:59 PM

19
MOUNTING ACCESSORIES
MOUNTING THE DOOR/
WINDOW SENSOR
TRANSMITTERS
You can install any combination of
door/window sensor transmitters (Cat.
No. 49-2585) and motion detectors
(Cat. No. 49-2589), in up to 16 zones.
Follow these steps to mount each
door/window sensor transmitter.
1. Set the DELAY switch on the door/
window sensor transmitter to MIN
to protect a window or to MAX to
protect a door.
Note: The MAX setting lets you
arm a sensor transmitter with a
60-second exit delay and a 30-
second entry delay (see “Instant/
Delay Mode”). When set to MIN,
the sensor transmitter immedi-
ately triggers the alarm if it is trig-
gered after the exit delay.
2. Select a location for the door/win-
dow sensor transmitter. We rec-
ommend that you purchase
enough sensor transmitters to
protect the front and back door
and any windows that are hidden
from view or easily accessible
(including basement windows).

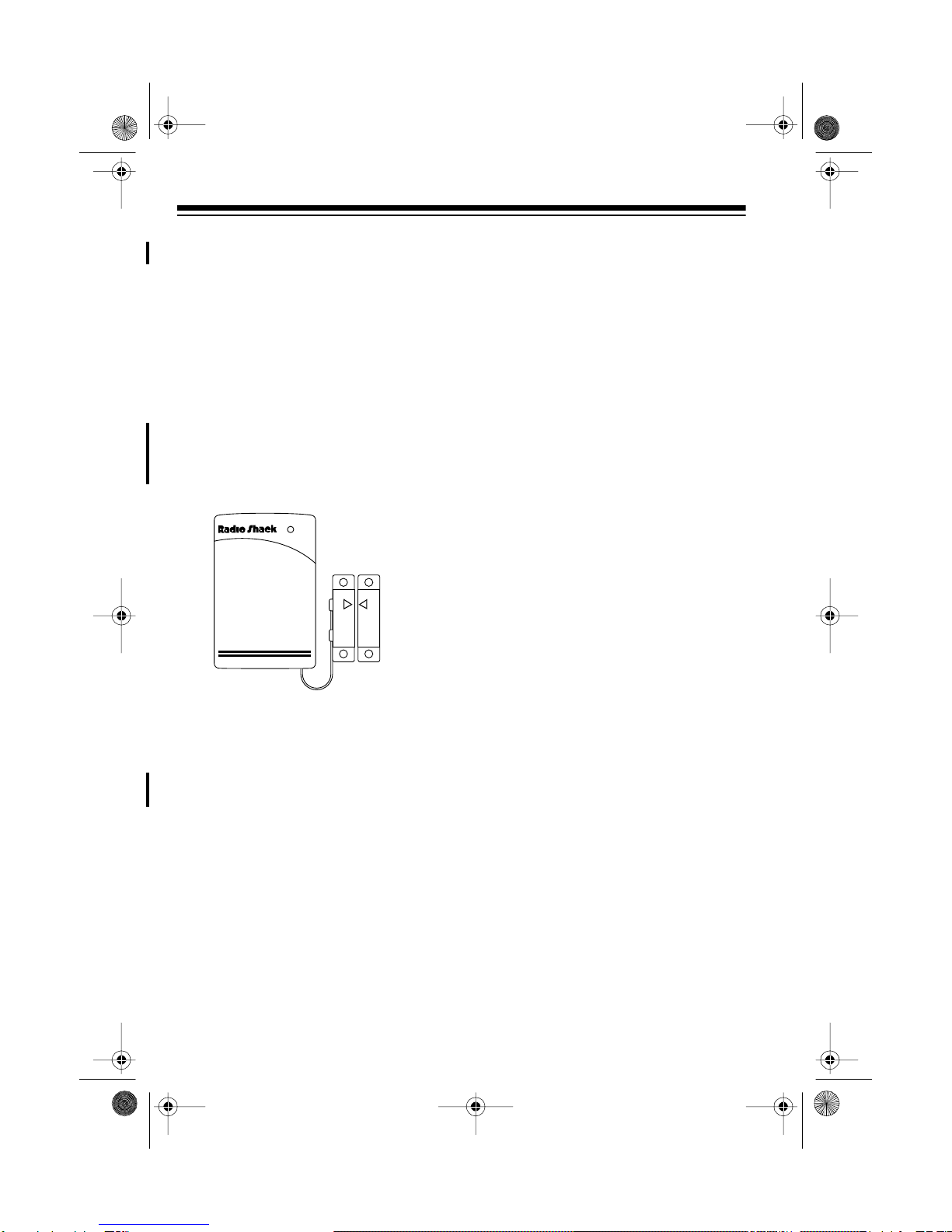

3. The supplied sensor transmitter
and magnet switch are connected.
If the wire is too long, shorten it by
cutting it to the length required,
stripping the ends, and reconnect-
ing it to the magnetic switch.
4. Remove the sensor transmitter’s
batteries and attach it to the wall
using the supplied screws or dou-
ble-sided tape (such as Radio
Shack Cat. No. 64-2361). Then
replace the batteries (if you
removed them) and close the bat-
tery compartment door.

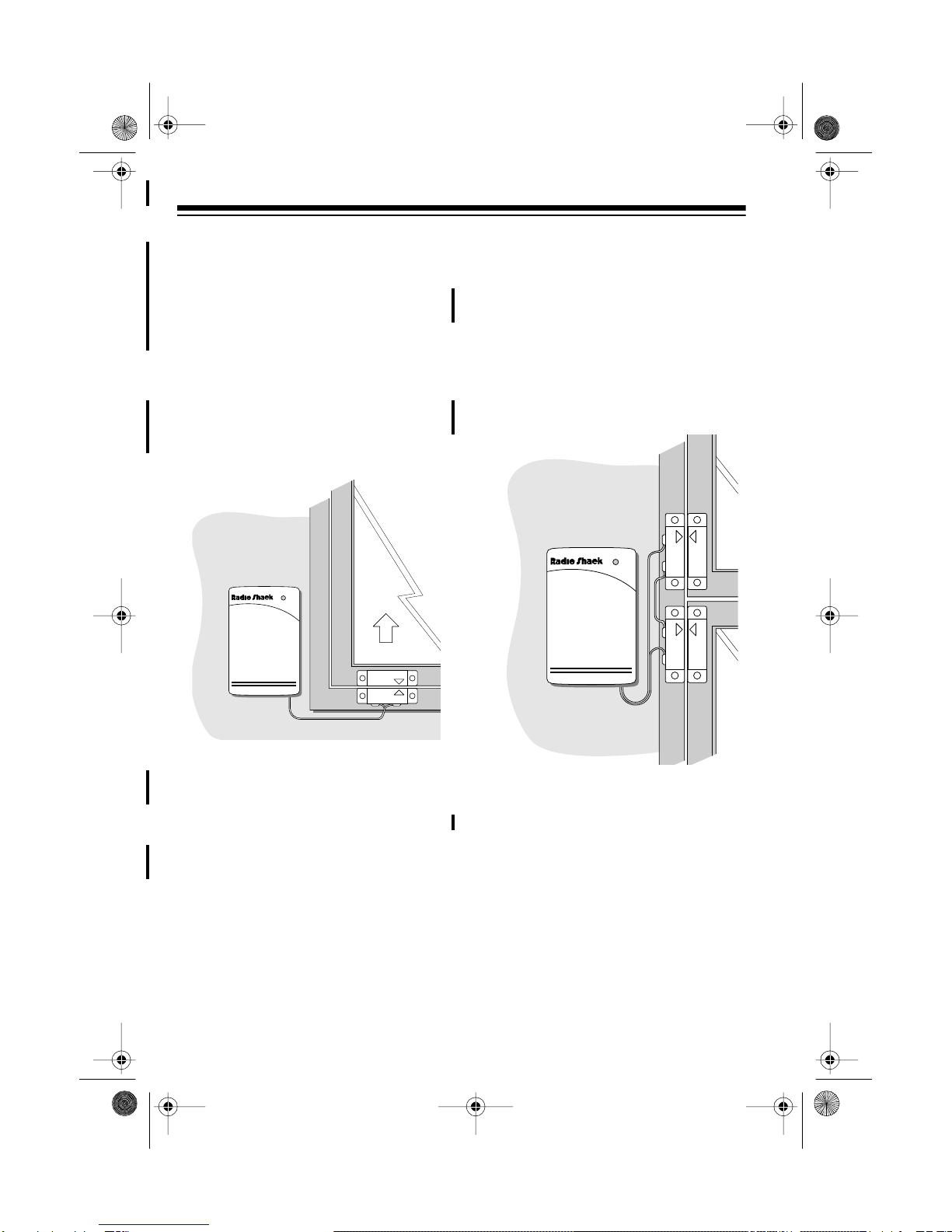

5. Align the arrows on the switch and
magnet, then install the switch
and magnet using the supplied
screws or double-sided tape.
Notes:
• Do not mount the magnet
directly onto a metal surface. If
necessary, use a wood or plas-
tic spacer.
+
–
+
–
–
TEST
MAX MIN
DELAY
WIRELESS SENSOR TRANSMITTER
49-2570.fm Page 19 Wednesday, August 18, 1999 3:59 PM

20
• If you mount magnetic switches
on metal doors or frames,
ensure that they are no more
than 3/16 of an inch apart. On
wooden surfaces, they can be
up to 3/8of an inch apart.
• For sliding doors/windows, it is
best to mount the magnet and
switch so the magnet makes a
clean break
from the switch
when the door or window is
opened.
6. Open the door or window. The
light on the sensor transmitter
turns on each time you open the
door or window.
Repeat Steps 1–6 for any additional
sensor transmitters you want to install
(in up to 16 zones).
Notes:
• To protect more than one door or
window with a single sensor trans-
mitter, use NC (Normally Closed)-
type magnetic switches and loop
them in series from one door or
window to the next using 18-
gauge wire. Then connect both
ends of the loop to the sensor
transmitter.
• You cannot use NO (Normally
Open) magnetic switches with this
sensor transmitter.
WIRELESS SENSOR TRANSMITTER
WIRELESS SENSOR TRANSMITTER
49-2570.fm Page 20 Wednesday, August 18, 1999 3:59 PM
