Raven SmarTrax MD User manual

Case IH Puma and Maxxum, New
Holland 6000 Series, T7.XXX and TS
Series
SmarTrax™ MD Installation Manual
P/N 016-5030-032 Rev B 09/15 E22481
Copyright 2013, 2015

While every effort has been made to ensure the accuracy of this document,
Raven Industries assumes no responsibility for omissions and errors. Nor is any
liability assumed for damages resulting from the use of information contained
herein.
Raven Industries shall not be responsible or liable for incidental or consequential
damages or a loss of anticipated benefits or profits, work stoppage or loss, or
impairment of data arising out of the use, or inability to use, this system or any of
its components. Raven Industries shall not be held responsible for any
modifications or repairs made outside our facilities, nor damages resulting from
inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability
and accuracy of wireless and satellite navigation and correction services (e.g.
GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the
accuracy, integrity, continuity, or availability of these services and cannot
guarantee the ability to use Raven systems, or products used as components of
systems, which rely upon the reception of these signals or availability of these
services. Raven Industries accepts no responsibility for the use of any of these
signals or services for other than the stated purpose.
Disclaimer
©Raven Industries, Inc. 2013

Table of Contents
Manual No. 016-5030-032 Rev. B i
Chapter 1 Important Safety Information................................................. 1
Electrical Safety ........................................................................................................................ 2
Chapter 2 Introduction............................................................................. 3
Preparing for Installation ........................................................................................................... 4
Recommendations .............................................................................................................. 4
Point of Reference ............................................................................................................... 4
Updates ..................................................................................................................................... 4
Kit Contents ............................................................................................................................... 5
Chapter 3 Mechanical Drive Installation ................................................ 9
Disassemble the Mechanical Drive Spline Assembly ................................................................ 9
Remove the Steering Wheel ..................................................................................................... 9
Install the Spine and Ring Gear Assemblies ........................................................................... 11
Reinstall the Steering Wheel ................................................................................................... 13
Install the Anti-Rotation Brackets ............................................................................................ 15
Install the Mechanical Drive ....................................................................................................17
Chapter 4 Node and Wiring Installation ............................................... 19
Install the SmarTrax MD Node ................................................................................................ 19
Node Mounting Locations .................................................................................................. 19
Mount the SmarTrax Node ................................................................................................ 20
Install the Foot Switch ............................................................................................................. 22
Connect the Node Harness to the Mechanical Drive .............................................................. 22
Install the Chassis Cable - SmarTrax MD-Only Systems (If Applicable) ................................. 23
Connect SmarTrax MD to an Existing Chassis Cable (If Applicable) ...................................... 24
Calibrate the SmarTrax MD System ........................................................................................ 24

Table of Contents
ii Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series SmarTrax™ MD Installation Manual

CHAPTER
1
Manual No. 016-5030-032 Rev. B 1
C hapt er 1 Important Safety
Information
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the SmarTrax MD™ system.
•Follow all safety information presented within this manual.
•If you require assistance with any portion of the installation or service of your Raven equipment, contact
your local Raven dealer for support.
•Follow all safety labels affixed to the SmarTrax MD system components. Be sure to keep safety labels in
good condition and replace any missing or damaged labels. To obtain replacements for missing or damaged
safety labels, contact your local Raven dealer.
When operating the machine after installing SmarTrax MD, observe the following safety measures:
•Be alert and aware of surroundings.
•Do not operate SmarTrax MD or any agricultural equipment while under the influence of alcohol or an illegal
substance.
•Remain in the operator’s position in the machine at all times when SmarTrax MD is engaged.
•Disable SmarTrax MD when exiting the operator’s seat and machine.
•Do not drive the machine with SmarTrax MD enabled on any public road.
•Determine and remain a safe working distance from other individuals. The operator is responsible for
disabling SmarTrax MD when the safe working distance has diminished.
•Ensure SmarTrax MD is disabled prior to starting any maintenance work on SmarTrax MD or the machine.
•The machine must remain stationary and switched off during SmarTrax MD installation or maintenance.
NOTICE
WARNING

Chapter 1
2Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series SmarTrax™ MD Installation Manual
Electrical Safety
•Always verify that the power leads are connected to the correct polarity as marked. Reversing the power
leads could cause severe damage to the equipment.
•Ensure that the power cable is the last cable to be connected.
CAUTION

CHAPTER
2
Manual No. 016-5030-032 Rev. B 3
C hapt er 2 Introduction
Congratulations on your purchase of the SmarTrax™ MD system!
SmarTrax MD-assisted steering takes the stress out of driving and makes it quick and easy for you to improve
your operating efficiency and performance. SmarTrax MD is compatible with Cruizer II™ and Cruizer II™ RTK,
Envizio Pro™, Envizio Pro®, Envizio Pro XL™, and Viper Pro™ systems.
The following instructions are designed to assist with the proper installation of the SmarTrax MD system. Refer
to the SmarTrax MD Calibration & Operation Manual (P/N 016-5030-020) for assistance with calibrating the
software and using the SmarTrax MD system.
This manual applies to the following machines:
MAKE: Case IH
MODEL: Puma - 115, 125, 130, 140, 145, 155, 160, 165, 170, 180, 185, 195, 200, 210, 215, 225, and 230
Maxxum - 110, 115, 120, 125, 130, and 140
Maxxum Pro - 110, 120, 125, 130, and 140
Maxxum X - 100, 110, 115, 125, and 140
MAKE: New Holland
MODEL: 6000 Delta - T6010, T6020, T6030, and T6050
6000 Elite - T6020, T6030, T6040, T6050, T6060, T6070, and T6080
6000 Plus - T6020, T6030, T6050, T6060, and T6070
T7.XXX - T7.170, T7.185, T7.200, T7.210, and T7.235
T7000 - T7030, T7040, T7050, T7060, and T7070
TS - 100A, 110A, 115A, 125A, 130A, and 135A
TS Delta - 100A, 110A, 115A, and 130A
TS Plus - 100A, 110A, 115A, 125A, and 135A
FIGURE 1. Case IH Puma 155

Chapter 2
4Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series SmarTrax™ MD Installation Manual
Preparing for Installation
Before installing the SmarTrax MD system, park the machine where the ground is level, clean, and dry. Turn off
the machine and leave it turned off for the duration of the installation process.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.
Recommendations
Raven Industries recommends the following best practices when installing or operating the SmarTrax MD
system for the first time, at the start of the season, or when moving the SmarTrax MD system to another
machine:
•Install the GPS antenna in the recommended location.
•Use part numbers to identify the parts.
•Do not remove the plastic wrap from a part until it is necessary for installation.
•Do not remove plastic caps from a part until it is necessary for installation.
Point of Reference
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.
Updates
Software and manual updates are available on the Raven Applied Technology website:
http://www.ravenhelp.com

2
Manual No. 016-5030-032 Rev. B 5
Introduction
Kit Contents
This section contains a list of the components that are included in the SmarTrax MD kit. Before beginning the
system installation, compare the items in the kit with the components on this list. If you have questions about
the kit, contact your Raven dealer..
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service
we provide. We appreciate the opportunity to see ourselves as our customers see us and are
eager to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an email with the following information to
[email protected]
-Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series
SmarTrax™ MD Installation Manual
-Manual No. 016-5030-032 Rev. B
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback
is valued and extremely important to us.
Thank you for your time.

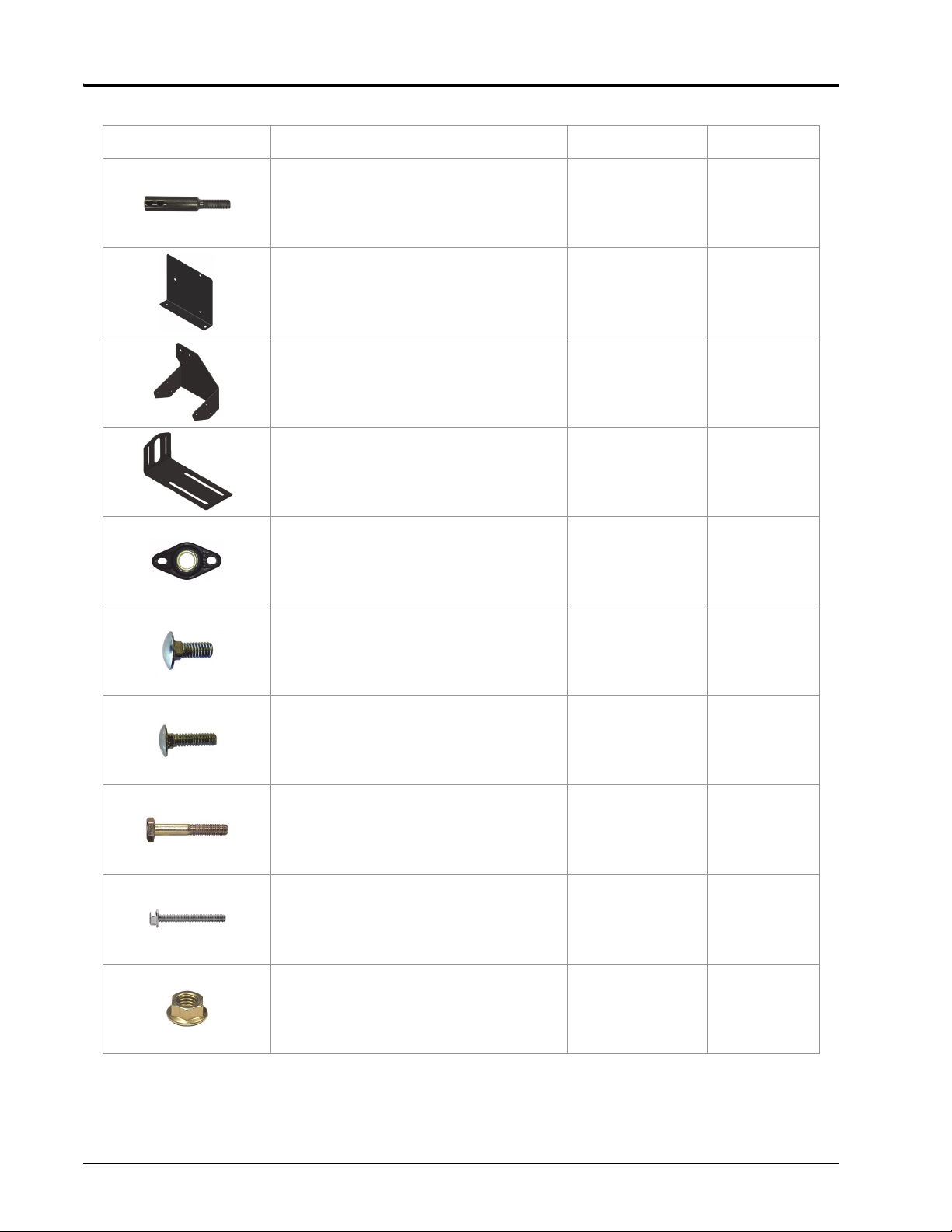

TABLE 1. SmarTrax MD Installation Kit (P/N 117-5030-032)
Picture Item Description Part Number Qty.
Not Pictured
Manual - Case IH Puma and Maxxum, New
Holland 6000 Delta, Elite, Plus and T7.XXX,
T7000, TS, TS Delta, and TS Plus Series
SmarTrax MD Installation
016-5030-032 1
Assembly - Ring Gear 063-4001-011 1
Assembly - Spline Adapter 063-4001-024 1
Trim - Ring Gear Protective 019-0159-590 1

Chapter 2
6Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series SmarTrax™ MD Installation Manual
Assembly - Telescope Adapter 063-4001-023 1
Bracket - Node Mounting 107-0172-033 1
Bracket - U-Shaped with Flange 107-4001-019 1
Bracket - L-Shaped 107-4001-020 1
Bearing - 1/2” Plastic Flanged 325-0000-036 1
Bolt - #10-24 x 3/4” UNC Zinc Carriage 311-0069-082 2
Bolt - 5/16”-18 x 3/4” Grade 2 Zinc Carriage 311-0069-111 2
Bolt - M8 x 1.25 x 40 mm Grade 8 Hex 311-0070-035 2
Bolt - M6 x 1.0 x 20 mm Grade 8 Hex 311-0070-051 6
Nut - 3/8”-16 Zinc Flanged Lock 312-1001-167 3
TABLE 1. SmarTrax MD Installation Kit (P/N 117-5030-032)
Picture Item Description Part Number Qty.

Manual No. 016-5030-032 Rev. B 7
Introduction
Nut - 5/16”-18 Zinc Flanged Lock 312-1001-184 2
Nut - #10-24 Wing 312-3000-013 2
TABLE 2. SmarTrax MD Controller Kit (P/N 117-5030-020)
Picture Item Description Part Number Qty.
Not Pictured Manual - SmarTrax MD Calibration &
Operation 016-5030-020 1
Assembly - SmarTrax MD Mechanical Drive
Unit 063-4001-010 1
Node - SmarTrax MD 063-4001-013 1
Pin - Anti-Rotation 107-4001-004 1
Cable - SmarTrax MD Node Harness 115-4001-157 1
Switch - Foot 063-0173-593 1
TABLE 1. SmarTrax MD Installation Kit (P/N 117-5030-032)
Picture Item Description Part Number Qty.

Chapter 2
8Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series SmarTrax™ MD Installation Manual

CHAPTER
3
Manual No. 016-5030-032 Rev. B 9
C hapt er 3 Mechanical Drive
Installation
Disassemble the Mechanical Drive Spline
Assembly

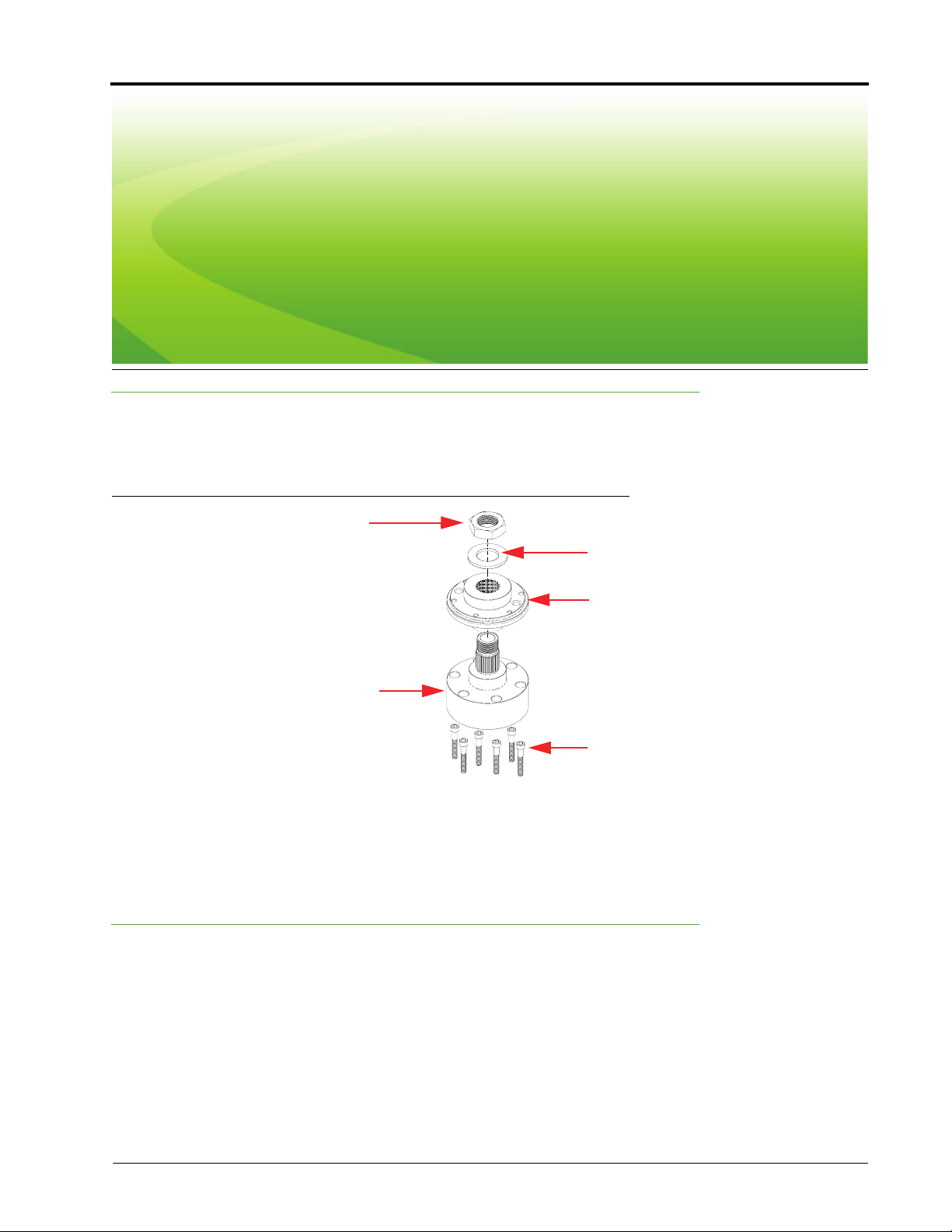

FIGURE 1. Spline Assembly Disassembled
1. Locate the 7/8” 36 tooth spline adapter assembly (P/N 063-4001-024).
2. Disassemble the spline adapter assembly as shown in Figure 1 above.
Remove the Steering Wheel
Note: The steps in this section require use of a steering wheel puller (not supplied). For questions on the
proper procedure for removing the steering wheel, contact your local equipment dealer.
Washer
Female Spline
Adapter
Male Spline
Adapter
Bolts
Nut

Chapter 3
10 Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series SmarTrax™ MD Installation Manual

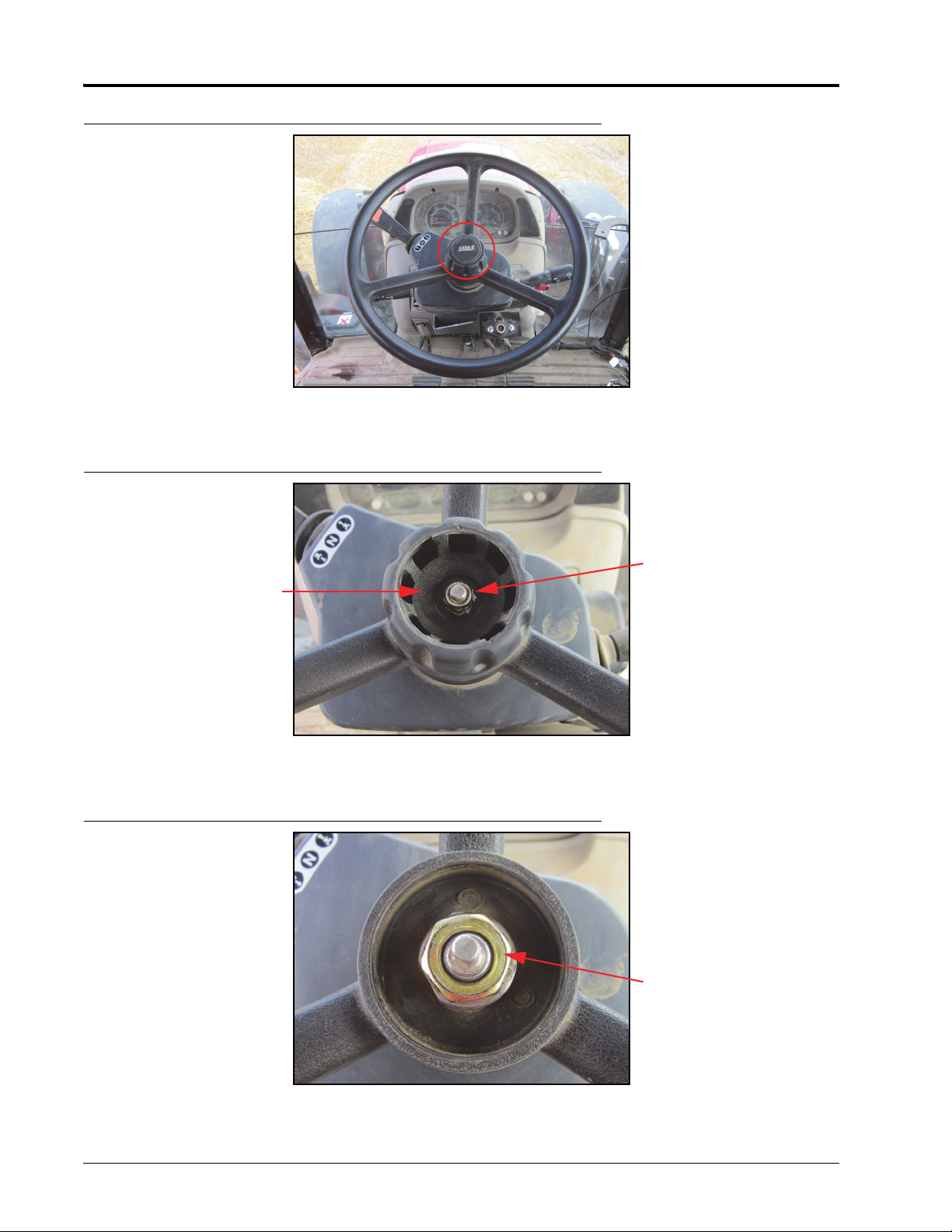

FIGURE 2. Steering Wheel Cap
1. Remove the cap from the center of the steering wheel.
FIGURE 3. Telescope Knob and Nut to be Removed
2. Remove the nut used to secure the telescope knob.
FIGURE 4. Machine’s Telescope Knob Removed
3. Remove the telescope knob.
Telescope Knob
Nut
Steering Wheel Nut

Manual No. 016-5030-032 Rev. B 11
Mechanical Drive Installation
4. Remove the nut used to secure the steering wheel to the steering column.
FIGURE 5. Steering Wheel Nut Removed
5. Measure the distance from the top of the telescope stem to the top of the steering wheel hub.
Note: The measurement will be used later in the installation procedure.
6. Using the steering wheel puller, remove the steering wheel from the steering column.
Install the Spine and Ring Gear Assemblies

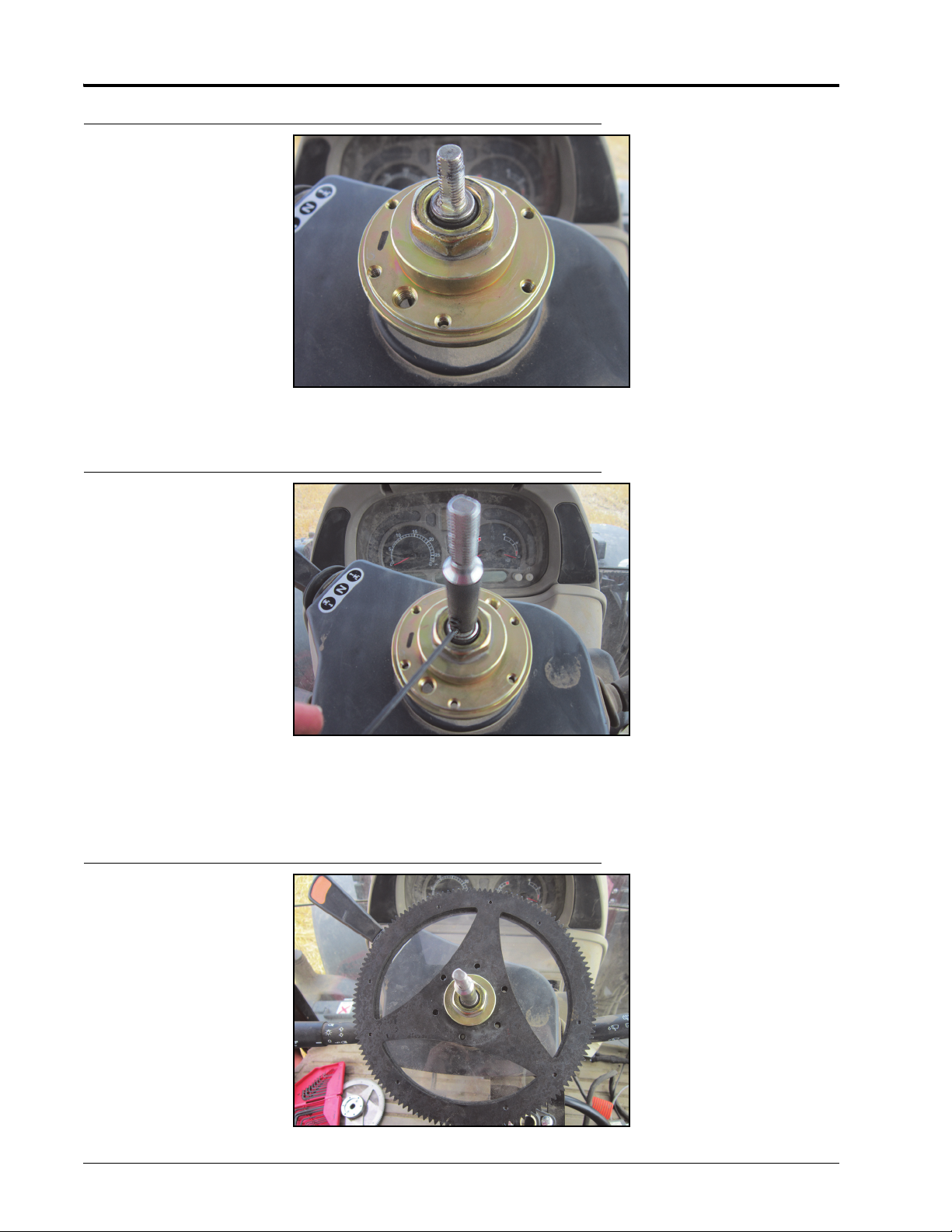

FIGURE 6. Female Spline Adapter Installed on Steering Column
1. Install the female spline on the machine’s steering column.
Measure
Distance

Chapter 3
12 Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series SmarTrax™ MD Installation Manual
FIGURE 7. Machine’s Steering Wheel Nut Installed
2. Install the machine’s steering wheel nut that was removed during the steering wheel removal.
FIGURE 8. Telescope Adapter Assembly Installed
3. Install the telescope adapter assembly (P/N 063-4001-023) on the machine’s telescope rod, aligning the set
screws with the flat part of the stem.
4. Tighten the set screws in the telescope adapter assembly.
FIGURE 9. Ring Gear Assembly Installed

Manual No. 016-5030-032 Rev. B 13
Mechanical Drive Installation
5. Place the ring gear assembly over the female spline adapter with the black ring facing down and the holes
in the ring gear aligned with the holes in the female spline adapter.
FIGURE 10. Male Spline Adapter Installed on Ring Gear Assembly

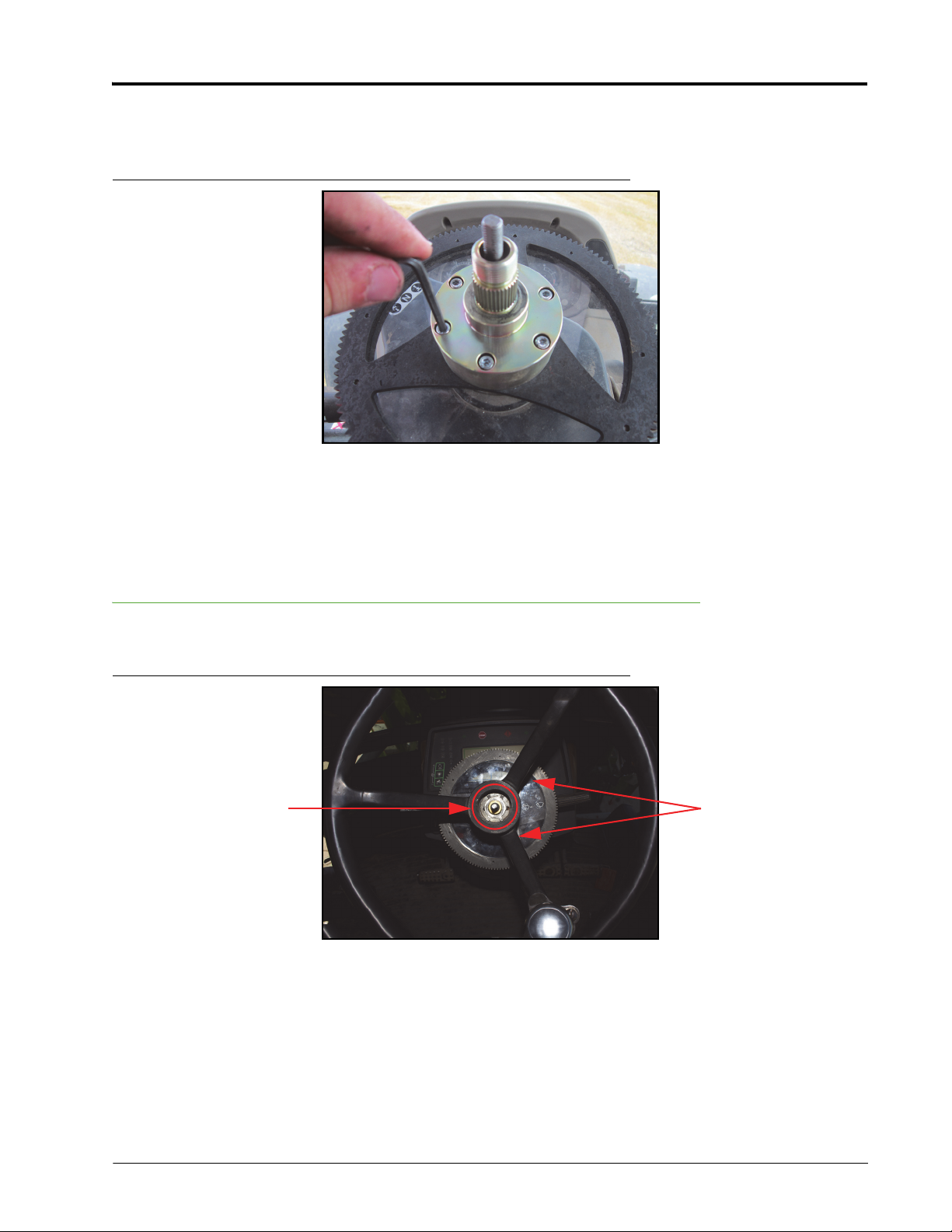

6. Align the bolt holes in the male spline assembly with the holes in the ring gear assembly.
7. Install and tighten the spline assembly bolts to secure the male spline adapter to the ring gear and female
spline adapters.
Reinstall the Steering Wheel
FIGURE 11. Steering Wheel Placement
1. Align the spokes of the machine’s steering wheel with the spokes on the installed ring gear assembly.
2. Install the steering wheel on the male spline adapter.
3. Install the washer and nut on the protruding male spline adapter.
Nut and Washer from
Spline Assembly
Installed
Steering Wheel
Spokes Aligned with
Ring Gear Assembly
Spokes

Chapter 3
14 Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series SmarTrax™ MD Installation Manual
FIGURE 12. Distance Measurement
4. Measure the distance from the top of the telescope stem to the top of the steering wheel hub to verify the
distance is close to the measurement taken when the steering wheel was removed.
Note: If the distance is not close to the first measurement:
1. Remove the spline nut, washer, and assembly bolts.
2. Remove the male spline adapter.
2. Loosen the set screws used to secure the installed telescope adapter.
3. Adjust the placement of the telescope adapter on the machine’s telescope rod, relative to the
distance between the two measurements.
4. Tighten the set screws and reinstall the male spline adapter and assembly bolts.
5. Reinstall the spline washer and nut.
FIGURE 13. Telescope Knob and Nut Reinstalled
5. Reinstall the machine’s steering wheel telescope knob.
6. Reinstall the nut that was removed during the steering wheel removal on the protruding telescope adapter
(P/N 063-4001-023).
Measure
Distance
Telescope Knob
Nut

Manual No. 016-5030-032 Rev. B 15
Mechanical Drive Installation
FIGURE 14. Steering Wheel Cap Reinstalled
7. Replace the steering wheel cap.
Install the Anti-Rotation Brackets
FIGURE 15. Screws to be Removed
1. Remove the three screws from each side of the steering column.

Chapter 3
16 Case IH Puma and Maxxum, New Holland 6000 Series, T7.XXX/T7000 and TS Series SmarTrax™ MD Installation Manual
FIGURE 16. Flanged Bearing and L-Shaped Bracket Installed
2. Install the 1/2” plastic flanged bearing (P/N 325-0000-036) on the short leg of the L-shaped bracket (P/N
107-4000-020) using two #10-24 x 3/4” UNC carriage bolts (P/N 311-0069-082) and two #10-24 wing nuts
(P/N 312-3000-013).
3. Install the L-shaped bracket on the U-shaped anti-rotation bracket (P/N 107-4001-019) using two 5/16”-18 x
3/4” carriage bolts (P/N 311-0069-111) and two 5/16”-18 zinc flanged lock nuts (P/N 312-1001-184).
FIGURE 17. U-Shaped Bracket Assembly Installed
4. Position the holes in the U-shaped anti-rotation bracket over the holes in the steering column.
#10-24 x 3/4” UNC
Carriage Bolts
(P/N 311-0069-082)
1/2” Plastic
Flanged Bearing
(P/N 325-0000-036)
U-Shaped Bracket
(P/N 107-4001-019)
L-Shaped Bracket
(P/N 107-4001-020)
5/16”-18 x 3/4”
Carriage Bolts
(P/N 311-0069-111)
