Raven RS1 User manual

Copyright 2020
RoGator RG900, RG1100,
and RG1300 Model Year
2012-2014 (Steer-Ready) -
RS1/HDU Installation
Manual
016-5033-058 Rev. A 2/2020 E34474

016-0171-686 Rev. A 8/18 E31924
We Solve Great Challenges.
DISCLAIMER
While every effort has been made to ensure the accuracy of this document, Raven Industries assumes no
responsibility for omissions and errors. Nor is any liability assumed for damages resulting from the use of
information contained herein.
Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated
benefits or profits, work stoppage or loss, or impairment of data arising out of the use, or inability to use, this
system or any of its components. Raven Industries shall not be held responsible for any modifications or repairs
made outside our facilities, nor damages resulting from inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability and accuracy of wireless and
satellite navigation and correction services (e.g. GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot
guarantee the accuracy, integrity, continuity, or availability of these services and cannot guarantee the ability to
use Raven systems, or products used as components of systems, which rely upon the reception of these signals or
availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or
services for other than the stated purpose.

Table of Contents
016-5033-058 Rev. A i
Chapter 1 Important Safety Information............................................................................. 1
Electrical ..........................................................................................................................................................................2
General .......................................................................................................................................................................................2
Instructions for Wire Routing ............................................................................................................................................2
Chapter 2 Introduction............................................................................................................. 5
Preparing for Installation ..........................................................................................................................................5
Recommendations .................................................................................................................................................................5
Point of Reference ..................................................................................................................................................................6
Updates ...........................................................................................................................................................................6
Kit Contents ...................................................................................................................................................................7
Chapter 3 Wheel Angle Sensor Installation ........................................................................ 9
Chapter 4 Cab Component Installation.............................................................................. 11
Install the RS1/HDU Harness ................................................................................................................................11
Install the HDU Node ..............................................................................................................................................14
Install the RS1 ........................................................................................................................................................................15
Install the ISOBUS Connection ........................................................................................................................................17
Install the Valve Harness ........................................................................................................................................18
Identify the Resume Switch and Master Switch ............................................................................................19
Chapter 5 Startup Procedures.............................................................................................. 21
Verify the RS1/HDU System Installation ..........................................................................................................21
Calibrate the RS1/HDU System ...........................................................................................................................22

Table of Contents
ii RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation Manual

CHAPTER
1
016-5033-058 Rev. A 1
CHAPTER1 IMPORTANT SAFETY
INFORMATION
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the RS1/HDU system.
• Follow all safety information presented within this manual.
• If you require assistance with any portion of the installation or service of your Raven equipment, contact your
local Raven dealer for support.
• Follow all safety labels affixed to the RS1/HDU system components. Be sure to keep safety labels in good
condition and replace any missing or damaged labels. To obtain replacements for missing or damaged safety
labels, contact your local Raven dealer.
When operating the machine after installing RS1/HDU, observe the following safety measures:
• Be alert and aware of surroundings.
• Do not operate RS1/HDU or any agricultural equipment while under the influence of alcohol or an illegal
substance.
• Remain in the operator’s position or a safe working distance away from the booms at all times when RS1/HDU
is engaged.
• Disable RS1/HDU when exiting from the operator’s seat and machine.
• Do not drive the machine with RS1/HDU enabled on any public road.
• Determine and remain a safe working distance from other individuals. The operator is responsible for disabling
RS1/HDU when the safe working distance has diminished.
• Ensure RS1/HDU is disabled prior to starting any maintenance work on RS1/HDU or the machine.
• When starting the machine for the first time after installing RS1/HDU, be sure that all persons stand clear in
case a hose has not been properly tightened.
NOTICE
WARNING

CHAPTER 1
2 RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation Manual
ELECTRICAL
GENERAL
• Always verify that the power leads are connected to the correct polarity as marked. Reversing the power leads
could cause severe damage to the equipment.
• Ensure that the power cable is the last cable to be connected.
• A minimum of 12 VDC is required for system operation with a maximum of 15 VDC.
INSTRUCTIONS FOR WIRE ROUTING
The word “harness” is used to mean all electrical leads and cables, bundled and unbundled. When installing
harness, secure it at least every 30 cm (12in) to the frame. Follow existing harness as much as possible and use
these guidelines:
Harness should not contact or be attached to:
• Lines and hoses with high vibration forces or pressure spikes
• Lines and hoses carrying hot fluids beyond harness component specifications
Avoid contact with any sharp edge or abrading surfaces such as, but not limited to:
• Sheared or flame cut edges
• Edges of machined surfaces
• Fastener threads or cap screw heads
• Ends of adjustable hose clamps
• Wire exiting conduit without protection, either ends or side of conduit
• Hose and tube fittings
Routing should not allow harnesses to:
• Hang below the unit
• Have the potential to become damaged due to exposure to the exterior environment. (i.e. tree limbs, debris,
attachments)
• Be placed in areas of or in contact with machine components which develop temperatures higher than the
temperature rating of harness components
• Wiring should be protected or shielded if it needs to route near hot temperatures beyond harness component
specifications
Harnessing should not have sharp bends
Allow sufficient clearance from machine component operational zones such as:
• Drive shafts, universal joints and hitches (i.e. 3-point hitch)
• Pulleys, gears, sprockets
• Deflection and backlash of belts and chains
CAUTION

016-5033-058 Rev. A 3
IMPORTANT SAFETY INFORMATION
1
• Adjustment zones of adjustable brackets
• Changes of position in steering and suspension systems
• Moving linkages, cylinders, articulation joints, attachments
• Ground engaging components
For harness sections that move during machine operation:
• Allow sufficient length for free movement without interference to prevent: pulling, pinching, catching or
rubbing, especially in articulation and pivot points
• Clamp harnesses securely to force controlled movement to occur in the desired harness section
• Avoid sharp twisting or flexing of harnesses in short distances
• Connectors and splices should not be located in harness sections that move
Protect harnesses from:
• Foreign objects such as rocks that may fall or be thrown by the unit
• Buildup of dirt, mud, snow, ice, submersion in water and oil
• Tree limbs, brush and debris
• Damage where service personnel or operators might step or use as a grab bar
• Damage when passing through metal structures
IMPORTANT:
• Avoid directly spraying electrical components and connections with high pressure water. High pressure water
sprays can penetrate seals and cause electrical components to corrode or otherwise become damaged. When
performing maintenance:
•Inspect all electrical components and connections for damage or corrosion. Repair or replace
components, connections, or cable as necessary.
•Ensure connections are clean, dry, and not damaged. Repair or replace components,
connections, or cable as necessary.
•Clean components or connections using low pressure water, pressurized air, or an aerosol
electrical component cleaning agent.
•Remove visible surface water from components, connections, or seals using pressurized air or an
aerosol electrical component cleaning agent. allow components to dry completely before
reconnecting cables.

CHAPTER 1
4 RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation Manual

CHAPTER
2
Introduction: Preparing for Installation 5
CHAPTER2 INTRODUCTION
Congratulations on your purchase of the RS1/HDU system! This system is designed to provide cutting-edge,
hands-free steering of the machine via Global Positioning System (GPS) coordinates.
This manual applies to the following machines:
MAKE: AGCO RoGator
MODEL: RG900, RG1100, and RG1300
YEAR: 2012-2014
FIGURE 1. AGCO RoGator RG1100
PREPARING FOR INSTALLATION
IMPORTANT: Ensure C1000 software version is 3.1.2.150512 or greater prior to installation. Contact your equipment
dealer for more information.
Before installing the RS1/HDU system, park the machine where the ground is level, clean, and dry. Turn off the
machine and leave it turned off for the duration of the installation process.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.
RECOMMENDATIONS
Raven Industries recommends the following best practices when installing or operating the RS1/HDU system for
the first time, at the start of the season, or when moving the RS1/HDU system to another machine:

CHAPTER 2
6 RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation Manual
• Install the GPS antenna in the recommended location. Refer to the following table for the machine-specific
antenna mounting location.
• Ensure the machine’s hydraulic filters have been recently changed and there are no issues with the machine’s
hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic hoses, etc.).
• Ensure the machine’s hydraulic system is using fresh oil and debris is flushed from the hydraulic hoses, valves,
and filters.
Raven Industries recommends the following best practices when installing the RS1/HDU system:
• Use part numbers to identify the parts.
• Do not remove the plastic wrap from a part until it is necessary for installation.
• Do not remove plastic caps from a part until it is necessary for installation.
POINT OF REFERENCE
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.
UPDATES
Software and manual updates are available on the Raven Applied Technology website:
http://www.ravenhelp.com
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service we
provide. We appreciate the opportunity to see ourselves as our customers see us and are eager
to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an email with the following information to
[e-mail]
-RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation
Manual
-016-5033-058 Rev. A
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback is
valued and extremely important to us.
Thank you for your time.

2
Introduction: Kit Contents 7
INTRODUCTION
KIT CONTENTS
This section contains a list of the components that are included in the RS1/HDU kit. Before beginning the RS1/HDU
installation, compare the items in the kit with the components on this list. If you have questions about the kit,
contact your Raven dealer.
FIGURE 2. RS1 Installation Kit for Rogator A (P/N 117-5033-058 Rev. A)
7
+
1

1

1

1

1

1
1

1

1

1

+
1
+
1










47<

'(6&5,37,213$57
%2;6+,33,1*/$%(/('%2;2)

:$6+(5)/$70
187)/$1*('/2&.81&
.,7:$6527$5<52*$725$5*
/$%(/('%2;2)
.,7522)56$*&2$33/,&$7256
&$%/(9$/9(6&+'852*$725$
(19(/23(3/$67,&


6+((7:$55$17<+(/3
(&8+<'5$8/,&'5,9(81,7
%5$&.(76&+'852*$725$
&$%/(56+'852*$725$

CHAPTER 2
8 RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation Manual

CHAPTER
3
Wheel Angle Sensor Installation: 9
CHAPTER3 WHEEL ANGLE SENSOR
INSTALLATION
1. Park the machine on a level surface, with the wheels pointing straight ahead.

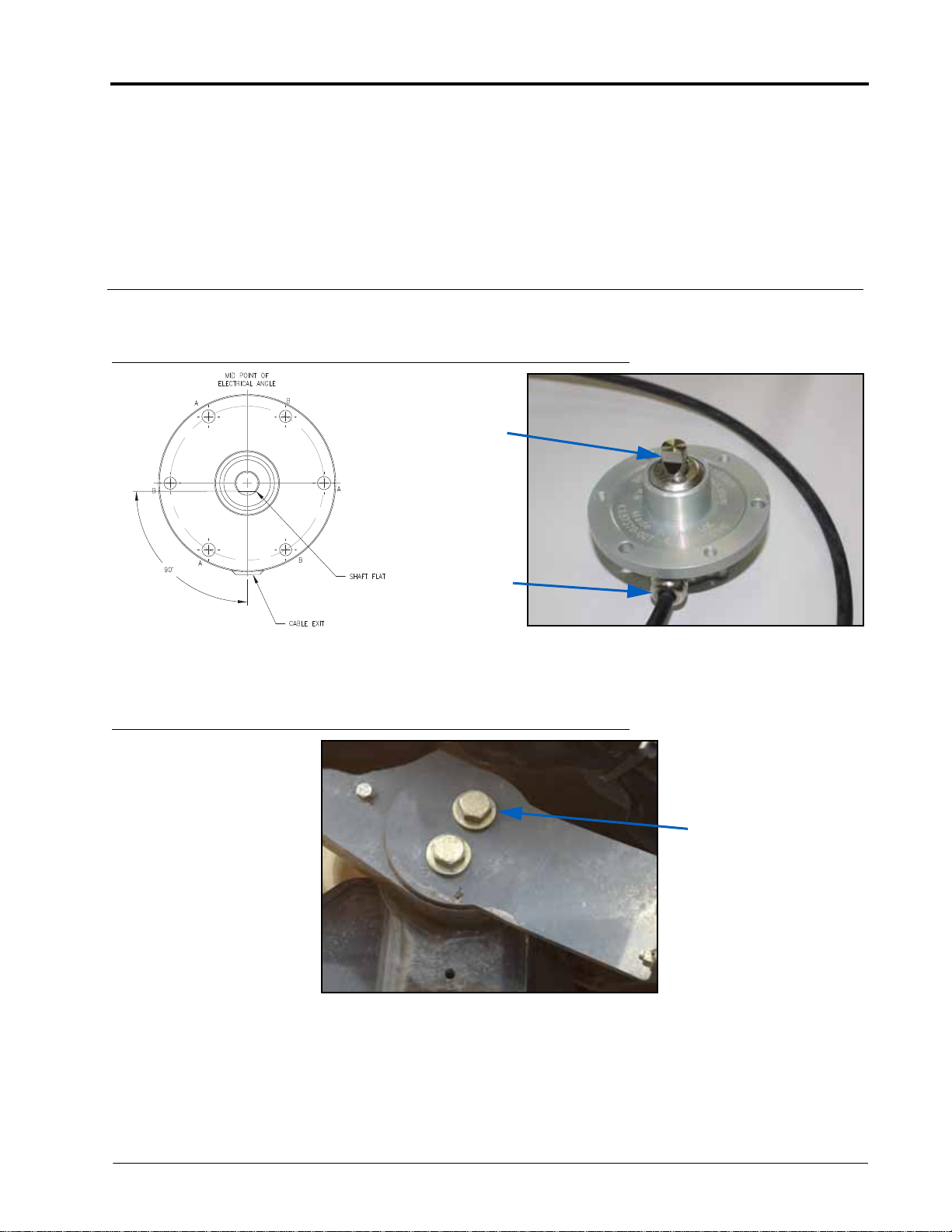

FIGURE 1. Rotary Sensor Assembly Alignment
2. Align the flat side of the shaft on the rotary sensor assembly (P/N 063-0181-024) so that it is parallel with the
cable exit point as shown in the figure above.
FIGURE 2. WAS Installation Location

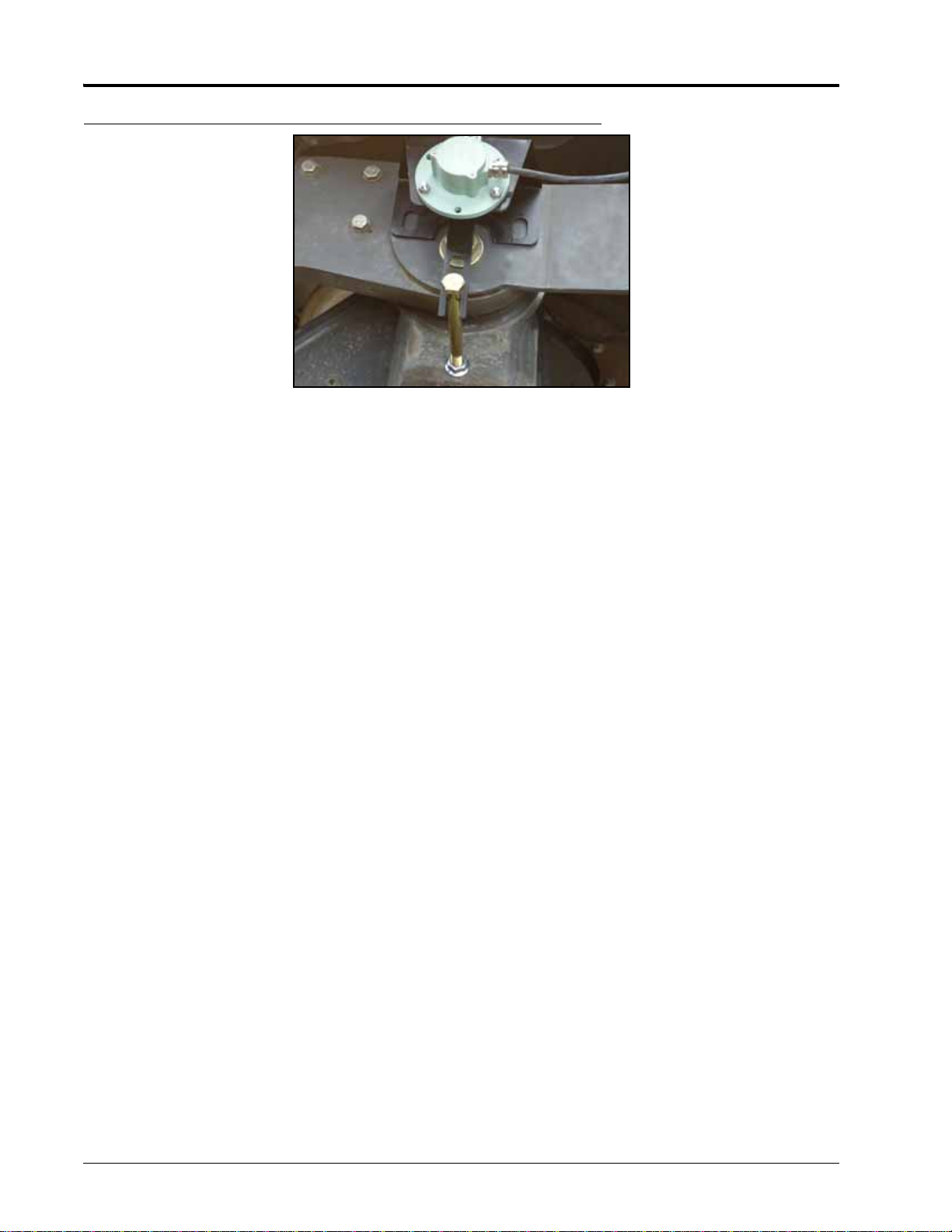

3. Remove the top bolt in the machine’s kingpin on the right side of the axle as shown in Figure 2.
Flat Side
of Shaft
Cable
Exit Point
Existing Bolt
to be
Removed

CHAPTER 3
10 RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation Manual
FIGURE 3. Rotary Sensor Installed
4. Install the rotary sensor assembly on the WAS mounting bracket (P/N 107-0172-228) using the supplied
hardware.
5. Using care to not move the sensor shaft, slide the WAS arm bracket (P/N 116-0159-671) onto the rotary sensor
shaft.
6. Insert the supplied set screw through the hole in the arm bracket, tightening it against the flat spot on the
sensor shaft.
7. Secure the WAS assembly to the machine’s kingpin using the machine’s bolt that was removed in step 3.
8. Install the 1/2”-13 hex nut (P/N 312-1001-166) on the 1/2”-13 x 7” hex bolt (P/N 311-0058-113).
9. Insert the head of the bolt into the slot on the WAS arm bracket and position the end of the bolt over the hole
in the axle.
10. Screw the bolt into the hole in the axle until the head of the bolt rests on the WAS arm bracket.
11. Tighten the nut on the end of the bolt until it is snug against the axle.

CHAPTER
4
Cab Component Installation: Install the RS1/HDU Harness 11
CHAPTER4 CAB COMPONENT
INSTALLATION
INSTALL THE RS1/HDU HARNESS
1. Remove the access panel cover on the outside right-rear corner of the cab.
NOTE: If SmarTrax is installed on the machine, remove the SmarTrax harness.

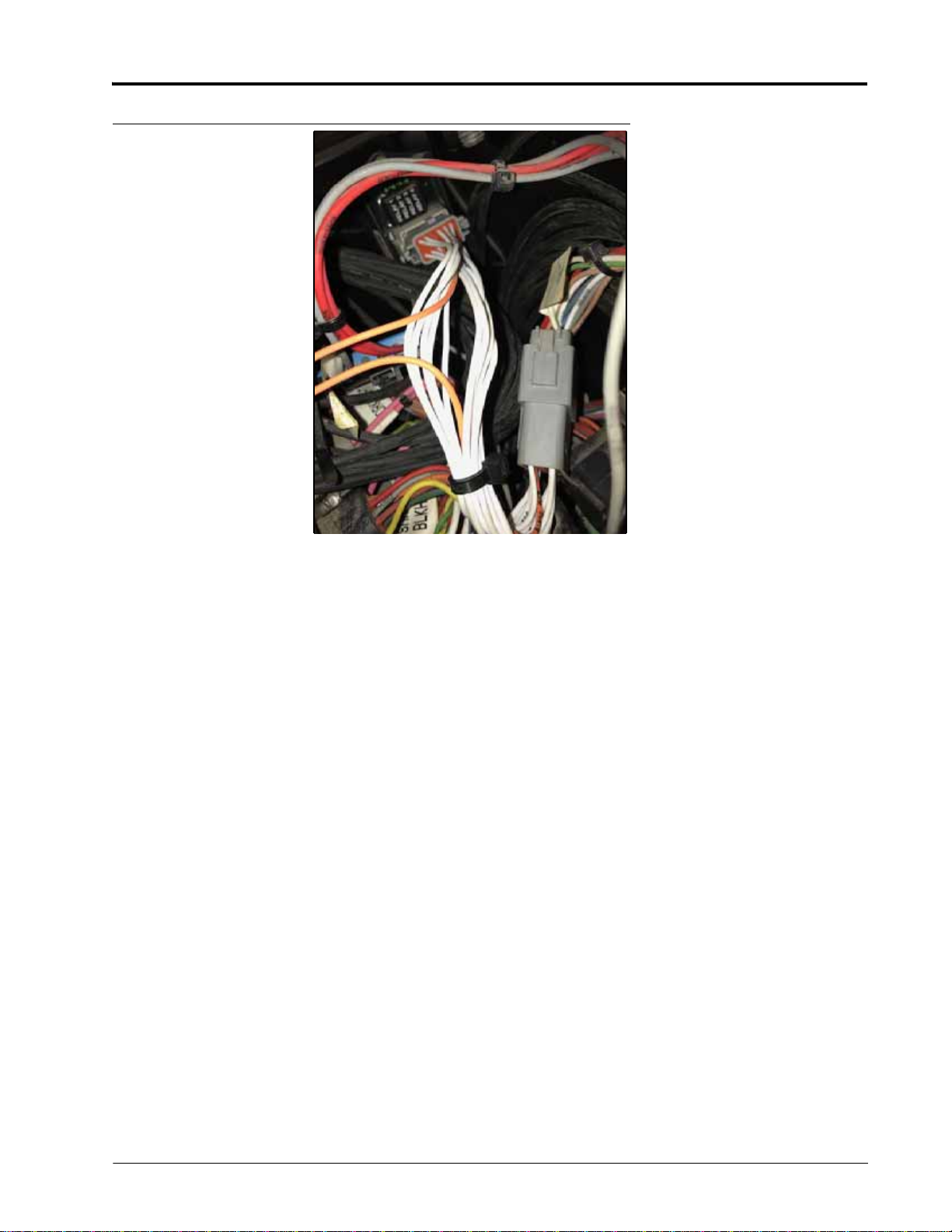

FIGURE 1. SmarTrax Node Harness to be Removed and Machine Access Panel
2. Route the two 12-pin Deutsch connectors labeled “HDU” on the RS1/HDU cable (P/N 115-4010-161) into the
machines cab, through the access hole.
3. Remove the bulkhead plug from the cab floor in the right-rear corner of the cab.

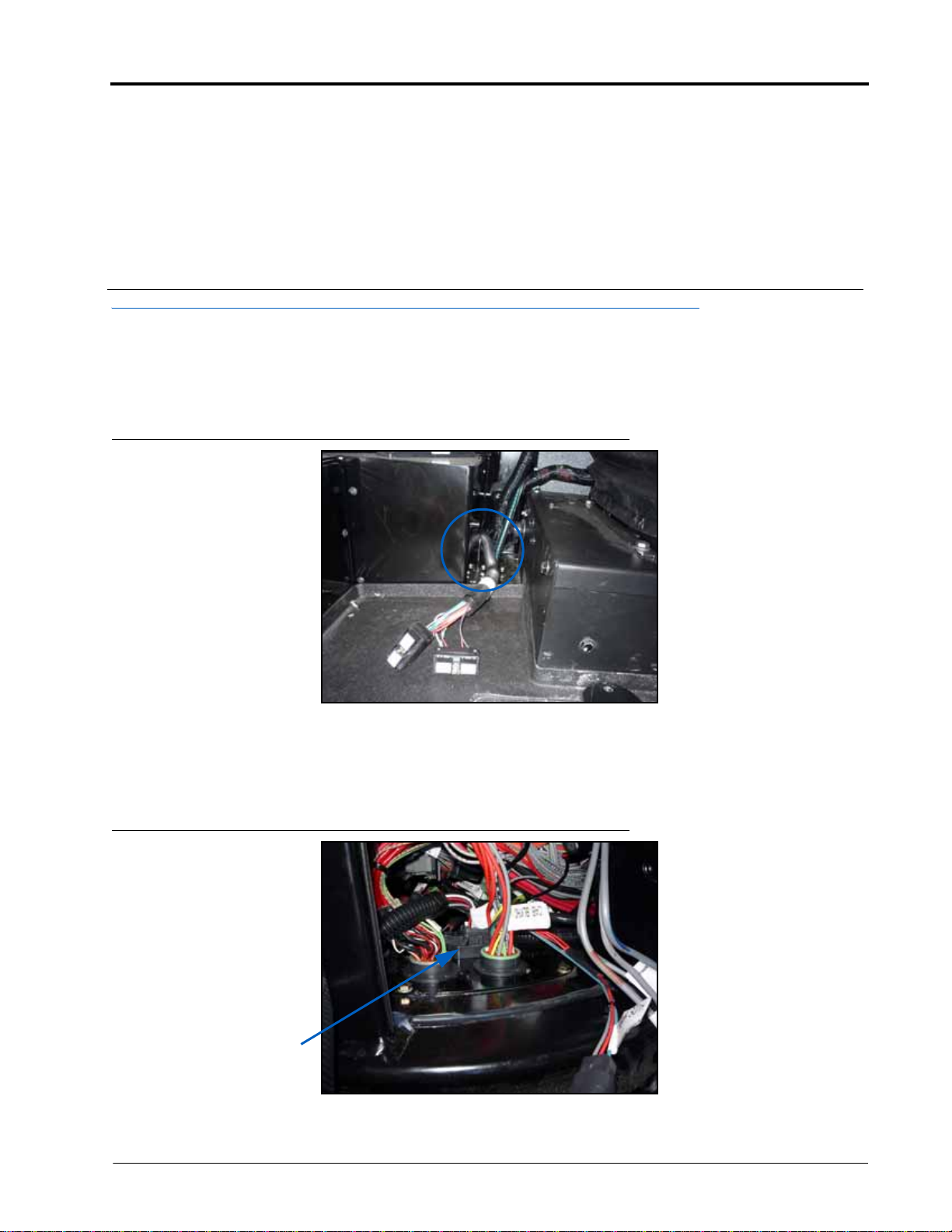

FIGURE 2. STRAX BLKHD Connection
4. Install the Valve Bulkhead connector in the hole.
STRAX BLKHD
Connection

CHAPTER 4
12 RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation Manual
FIGURE 3. CAB HARNESS Connection
5. Connect the CAB HARNESS connector into the machine’s mating bulkhead connector.

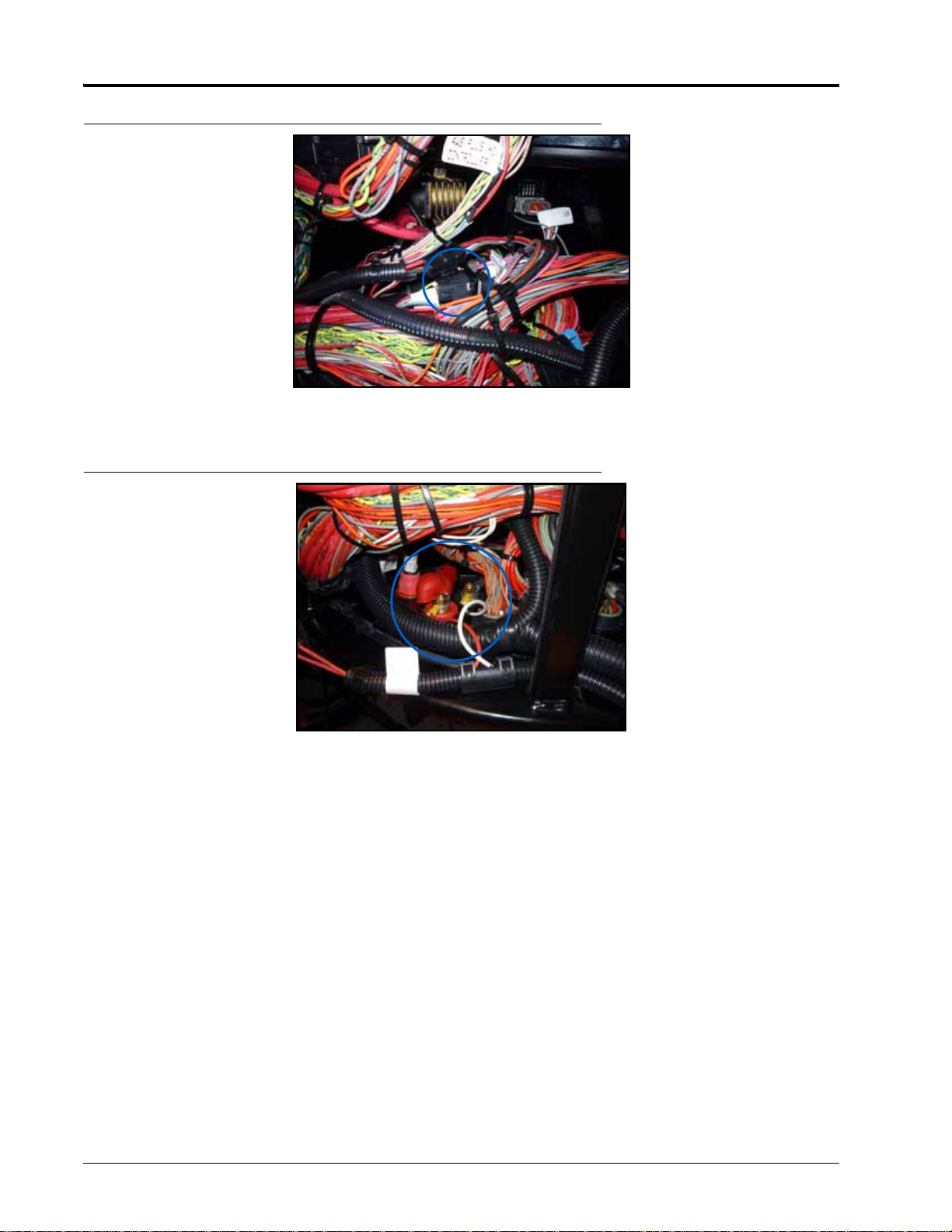

FIGURE 4. Ring Terminals Connected
6. Install the ring terminal connections on the appropriate power terminal studs.
7. Install the ROAD SW Tee connector on the HDU Harness in between the machines hydraulic lockout
connection.

Cab Component Installation: Install the RS1/HDU Harness 13
CAB COMPONENT INSTALLATION
FIGURE 5. ROAD SW Tee Installed

CHAPTER 4
14 RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation Manual
INSTALL THE HDU NODE
HDU INSTALLATION
1. Install the HDU (P/N 063-0173-887) on the HDU mounting plate using the provided 1/4” - 20 nuts .
FIGURE 6. Node Mounting
NOTE: Note the connectors should face the short side of the HDU mounting plate.
2. Locate the HDU mounting location on the right side of the seat base.
3. Remove the two flange bolts on the right side of the seat base.
4. Install the HDU mounting bracket utilizing the bolts removed in the previous step.
FIGURE 7. HDU Mounting
HDU Mounting Plate
HDU
Mounting
Hardware
Flange Bolts
Power/Can ECU Wakeup

Cab Component Installation: Install the HDU Node 15
CAB COMPONENT INSTALLATION
5. Plug the connectors labeled “HDU” on the RS1/HDU harness into the appropriate connectors on the HDU.
6. Route the connector labeled “RS1” up to the rear of the cab roof.
INSTALL THE RS1
1. Assemble the latch, plug, rubber washer, and latch nut through the latch hole on RS1 mounting plate.
FIGURE 8. Latch Assembly
2. Mount the RS1 base plate to the RS1 unit using the four bolts provided. It should be mounted so the mounting
tabs are to the right and the latch is to the left.
FIGURE 9. Mounting RS1 Unit to Mounting Bracket
3. Assemble the four pieces of the RS1 roof bracket (as shown in Figure 10 on page 16). Use the eight provided
3/8” x 1” bolts and lock washers to secure the assembly together.
RS 1 Mounting Plate
Rubber Washer
Latch Hole
Plug
Latch Nut
Latch
Front of RS1
Unit
Mounting Tabs
Mounting Latch

CHAPTER 4
16 RoGator RG900, RG1100, and RG1300 Model Year 2012-2014 (Steer-Ready) - RS1/HDU Installation Manual

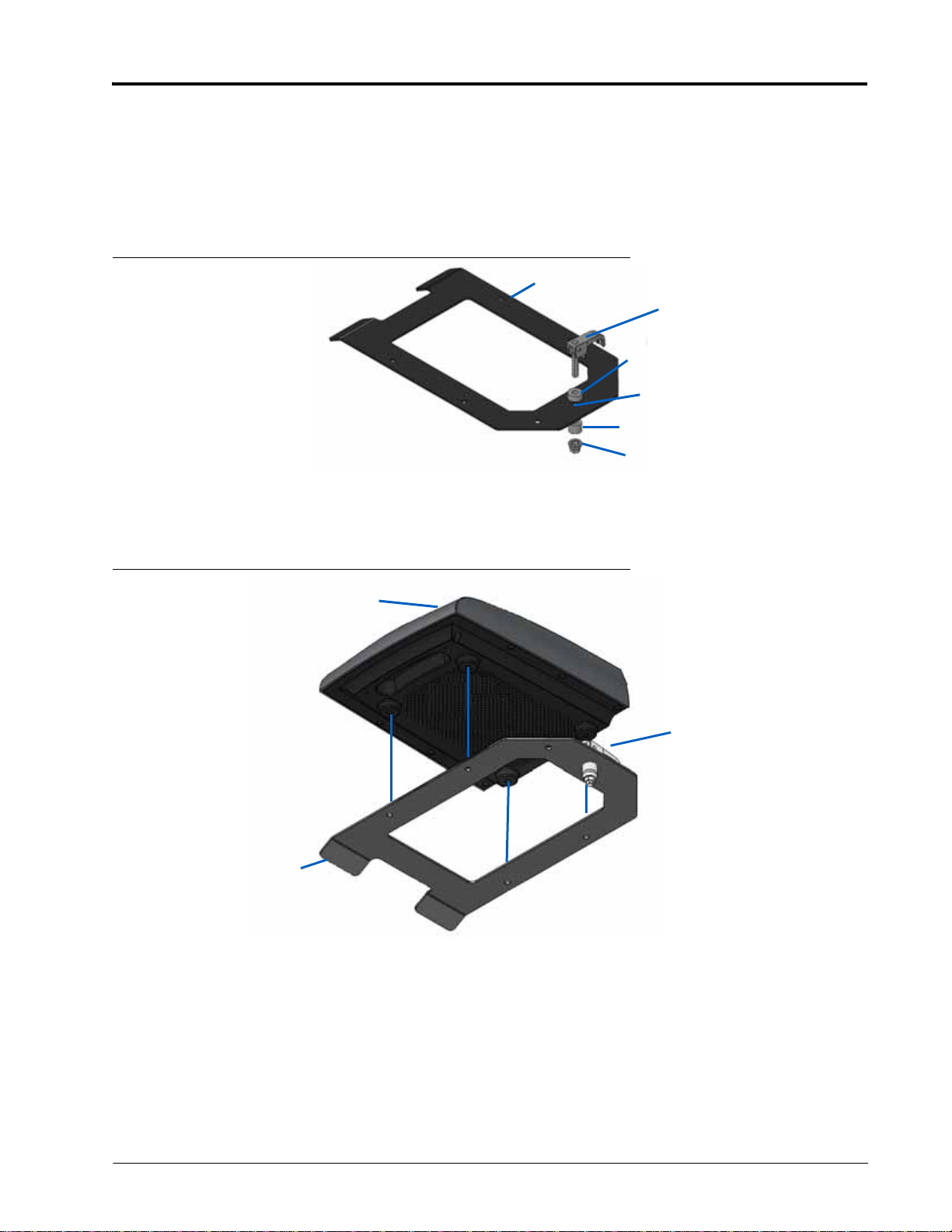

FIGURE 10. RS1 Roof Bracket Assembly
4. Place the RS1 unit roof bracket on the cab with it oriented as shown in Figure 11 on page 16. The holes on the
corners of the roof bracket will line up with existing cab top mounting holes.
FIGURE 11. RS1 Roof Bracket Orientation
5. Secure the roof bracket utilizing the cab’s mounting hardware.
6. Insert the two tabs on the RS1 mounting bracket into the roof bracket slot.
7. Insert the latch into the hole on the roof bracket and secure in place by pressing down on the handle.
NOTE: The latch may need to be adjusted to provide proper compression. To do this, tighten the nut on the
bottom of the latch.
Back Bracket
Notch Bracket
Latch Bracket
Front Bracket
Bolt
Lock Washer
Front of Machine
RS1 Bracket to
Roof Bracket
Slots
Latch Hole
