RAVPower Prime 28W 3-Port Solar Charger

CONTENTS
English
Deutsch
Français
Español
Italiano
日本語
01-08
09-16
17-24
25-32
33-40
41-48

Charging Panel
Hook hole
USB-A Port
LED indicator
Product Diagram
ｖ
ｗ
ｘ
ｙ
EN
Solarmodul
Hakenösen
USB-A-Anschluss
LED-Anzeige
Produktabbildung
ｖ
ｗ
ｘ
ｙ
DE
Panneau de Charge
Trou pour crochet
Port USB-A
Indicateur LED
Description du
Produit
ｖ
ｗ
ｘ
ｙ
FR
Panel de Carga
Agujero del Gancho
Puerto USB-A
Indicador LED
Diagrama del Producto
ｖ
ｗ
ｘ
ｙ
ES
Pannello di Ricarica
Foro per gancio
Porta USB-A
Indicatore LED
Schema del Prodotto
ｖ
ｗ
ｘ
ｙ
IT
充電パネル
フック用ホール
USB-Aポート
LEDインジケーター
製品図
ｖ
ｗ
ｘ
ｙ
JP
ｗ
ｘ
ｙ
ｖ

Package Contents
Thanks for purchasing RAVPower products. Please read this
User Manual thoroughly before use of the product and retain
it for future reference.
1 x RAVPower 28W Solar Charger (Model: RP-PC122)
4 x Stainless Steel Hooks
1 x Micro USB Cable (60 cm / 24 in)
1 x Micro USB Cable (20 cm / 0.8 in)
1 x User Manual
1 x Thank You Card
0201
EN
Specifications
RP-PC122
5V 2.1A Each
5V 5.6A, 28W Max
Folded: 154 x 295 mm / 6.1 x 11.6 in
Unfold: 710 x 295 mm / 27.9 x 11.6 in
682.4g / 24.1oz
Model
iSmart Output
Total Output
Dimensions
Net Weight

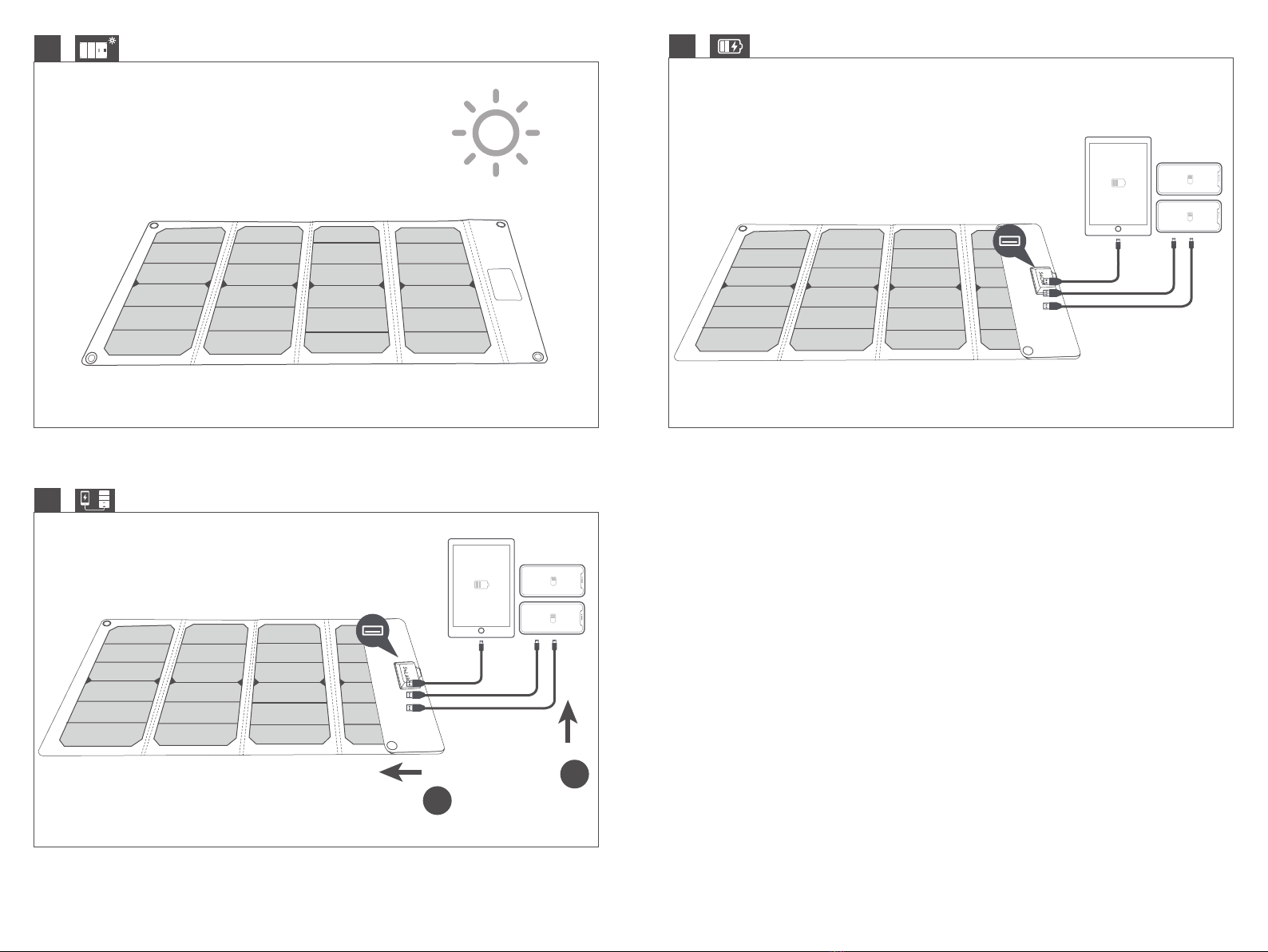

Using Your Solar Charger
Charge Your Device
1. Unfold the charging panels and make sure to place them
under direct sunlight.
Tip: Make sure to expose the panels to as much sunlight as
possible for faster charging.
2. Plug your charging cable into the USB-A port then connect
your device to the solar charger.
3. Charging will start automatically with the LED indicator
staying solid red.
Note:
· The solar charger does not come with power storage
functionality. Only when exposed to direct sunlight can
it charge your device.
· It is not recommended to use your device during charge
for faster charging.
· The LED indicator will flash red when overcurrent or
short circuit occurs.
· The optimum charging time may vary with local
environment.
· Place your device beneath the solar charger or in a
well-ventilated place during charging to avoid
overheating.

0403
Using Environment
1.Optimum working temperature: -10-60°C / 14-140°F.

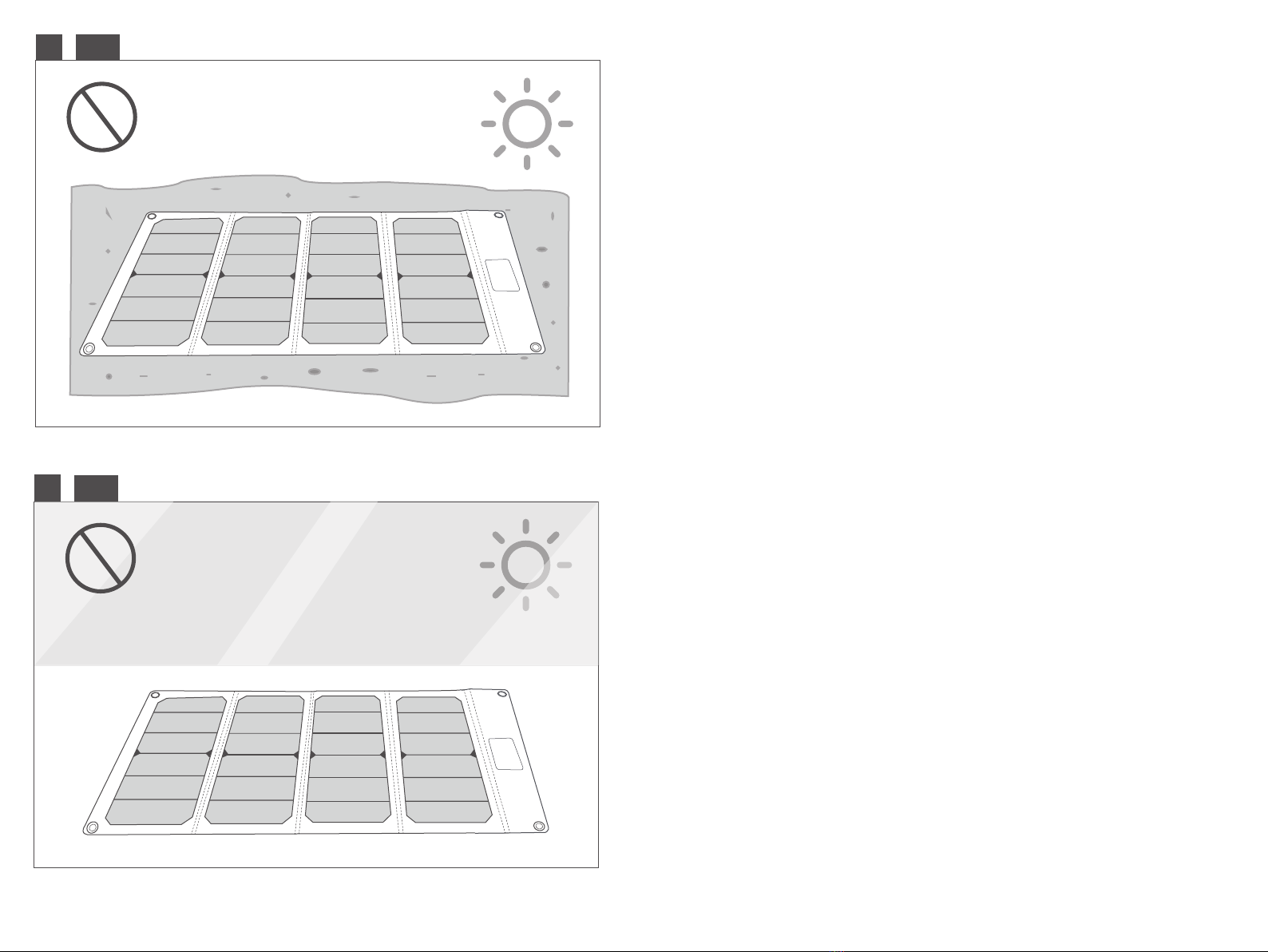

2. Do not place the panels in high temperature places like
sand, cement, rock for a long time (fig. 1).
3. For faster charging, place the panels under direct sunlight.
Do not use the unit behind the windshield / glasses or
indoor (fig. 2).
4. Inadequate sunlight may slow down or pause the charging
process. Device not supported prompt may pop out if you
are charging iPhone or iPad. It is recommended to unplug
your device and charge again when there is enough
sunlight.
Note: It is not recommended to charge three devices at
the same time when sunlight is inadequate.
