Raymarine ST40 Speed User guide

ST40 Speed
Instrument
Owner’s
Handbook
Document number: 81157-3
Date: March 2006
81157_3.book Page 1 Wednesday, March 22, 2006 4:08 PM

Raymarine, ST40 and SeaTalk are trademarks of Raymarine UK Ltd
© Handbook contents copyright Raymarine UK Ltd.
81157_3.book Page 2 Wednesday, March 22, 2006 4:08 PM

Preface i
Important information
Safety notices
WARNING: Product installation & operation
This equipment must be installed and operated in accordance
with the Raymarine instructions provided. Failure to do so could
result in personal injury, damage to your boat and/or poor product
performance.
WARNING: Electrical safety
Make sure you have switched off the power supply before you
start installing this product.
WARNING: Navigation aid
Although we have designed this product to be accurate and
reliable, many factors can affect its performance. Therefore, it
should serve only as an aid to navigation and should never replace
commonsense and navigational judgement. Always maintain a
permanent watch so you can respond to situations as they
develop.
EMC conformance
All Raymarine equipment and accessories are designed to the best industry
standards for use in the recreational marine environment.
The design and manufacture of Raymarine equipment and accessories conform to
the appropriate Electromagnetic Compatibility (EMC) standards, but correct
installation is required to ensure that performance is not compromised.
Waste from Electrical and Electronic Equipment
(WEEE) Directive
The Waste from Electrical and Electronic Equipment (WEEE) Directive requires the
recycling of waste electrical and electronic equipment. Whilst the WEEE Directive
does not apply to some of Raymarine’s products, we support its policy and ask you
to be aware of how to dispose of this product.
The crossed out wheelie bin symbol, illustrated above, and found on our products
signifies that this product should not be disposed of in general waste or landfill.
Please contact your local dealer, national distributor or Raymarine Technical
Services for information on product disposal.
81157_3.book Page i Wednesday, March 22, 2006 4:08 PM

ii ST40 Speed Instrument Owner’s Handbook
Handbook information
To the best of our knowledge, the information in this handbook was correct when
it went to press. However, Raymarine cannot accept liability for any inaccuracies
or omissions it may contain.
In addition, our policy of continuous product improvement may change
specifications without notice. Therefore, Raymarine cannot accept liability for any
differences between the product and the handbook.
81157_3.book Page ii Wednesday, March 22, 2006 4:08 PM

Preface iii
Contents
Important information .......................................................... i
WARNING ......................................................................... i
EMC conformance ............................................................. i
Handbook information ....................................................... i
Preface..................................................................................... v
Parts supplied ................................................................... vi
Chapter 1: Operation ............................................................. 1
1.1 Introduction ................................................................. 1
1.2 Operating procedures .................................................. 1
Adjusting display backlighting and contrast ............... 3
Chapter 2: Maintenance and Fault Finding ........................ 5
2.1 Maintenance ................................................................ 5
Servicing and safety .................................................... 5
Instrument .................................................................... 6
Transducer ................................................................... 6
Cabling ........................................................................ 6
2.2 Fault finding ................................................................ 6
Preliminary procedures ............................................... 6
Fixing faults ................................................................. 6
Assistance .................................................................... 8
Chapter 3: Installation........................................................... 9
3.1 Planning your installation ........................................... 9
EMC installation guidelines ........................................ 9
Suppression Ferrites ........................................... 10
Connections to Other Equipment ......................... 10
Tools required ........................................................... 10
157_2pre.p65 01/05/01, 12:223

iv ST40 Speed Instrument Owner’s Handbook
Site requirements ....................................................... 11
Transducer ........................................................... 11
Instrument ............................................................ 13
3.2 Procedures................................................................. 13
Fitting transducer ....................................................... 13
Running transducer cable .................................... 14
Connections to the instrument ................................... 14
Stand-alone connections ...................................... 15
SeaTalk connections ............................................ 16
Fitting the instrument................................................. 16
3.3 Calibration requirement ............................................ 19
Chapter 4: Calibration ......................................................... 21
4.1 Introduction ............................................................... 21
EMC conformance .................................................... 21
4.2 User calibration ......................................................... 21
4.3 Intermediate calibration ............................................ 23
4.4 Dealer calibration ...................................................... 23
Instrument Specification .................................................... 25
Glossary ................................................................................. 27
Index ...................................................................................... 29
157_2pre.p65 01/05/01, 12:224

Preface v
Preface
Thank you for purchasing a Raymarine product. We are sure your
ST40 instrument will give you many years of trouble-free operation.
This instrument is designed to provide reliable performance, even
under the most demanding conditions.
D4806-2
157_2pre.p65 01/05/01, 12:225

vi ST40 Speed Instrument Owner’s Handbook

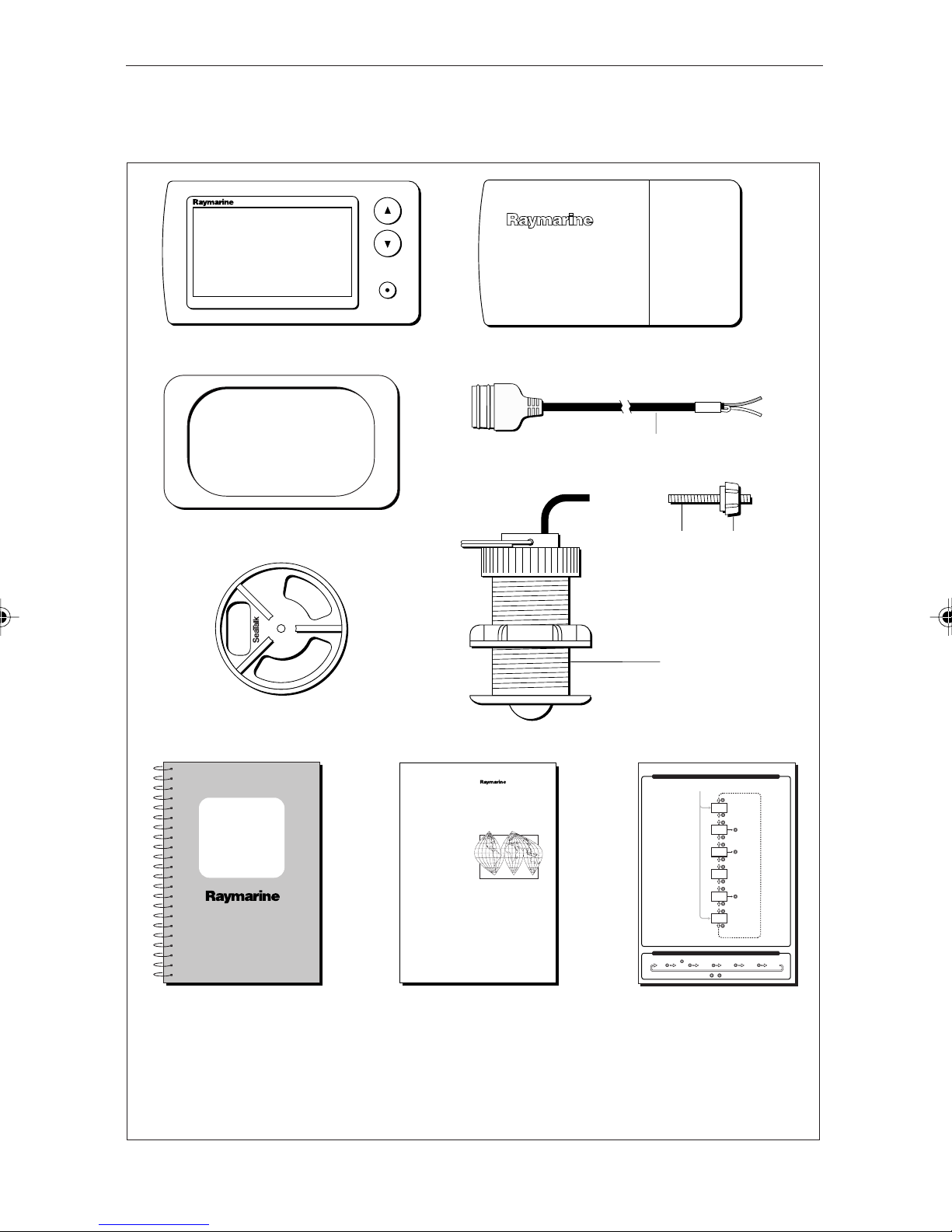

Parts supplied
D4570-2
ST40
Speed
Instrument
Owner's
Handbook
Worldwide
Distributors
Note:
The items shown here are supplied for an ST40 Speed system. If an instrument is purchased separately, a transducer
is not included. If any item is not present, contact your Raymarine Dealer.
ST40 Speed instrument
Fixing
stud
Thumb
nut
Gasket
Speed transducer
Supplied with bung
(not illustrated)
1 m (3 ft) power cable
Instrument Cover
Owner’s Handbook.
Warranty document and fitting
templates included in Handbook
Worldwide Service Centre
Handbook.
Clamping bracket
SPEED
ST40
Quick Reference Guide
Note:
* denotes temporary screens which will
time-out to the previous permanent
screen after 5 seconds.
SWITCH ON
Last permanent screen is displayed
Current
speed
3 seconds
Reset
Maximum
speed
Average
speed
Water
Temp.
Log
Trip
3 seconds
Reset
3 seconds
Reset
Adjusting display backlighting/contrast
Normal operation
ST40 Speed Instrument - quick reference guide
LEVEL 1 LEVEL 1 OFF LEVEL 2LEVEL 3LEVEL 2
To enter adjust mode,press for 1 second to adjust BACKLIGHTING and a further 1 second to adjust CONTRAST
orTo exit adjust mode press or wait for 5 second timeout
157_2pre.p65 01/05/01, 12:226

1
Chapter 1: Operation
Chapter 1: Operation
1.1 Introduction
Your ST40 Speed instrument provides:
• Speed information (current, maximum and average), in either knots
(KTS), miles per hour (MPH) or kilometres per hour (KPH).
• Log and trip information. These are given in either nautical miles
(NM), statute miles (M) or kilometres (KM).
• Water temperature information. This is given in either degrees
Celsius (°C) or Fahrenheit (°F).
Note: The required speed, distance and water temperature units are
selected during User calibration (see Chapter 4, Calibration).
CAUTION
Your instrument is calibrated to factory (default) settings when
first supplied and must therefore be calibrated before use, to
ensure optimum performance on your vessel. Do NOT use the
instrument until the calibration procedures have been
satisfactorily completed, using the procedures in Chapter 4,
Calibration.
Coloured bezel and Desktop Mounting Bracket options are available
for your ST40 instrument. Contact your Raymarine dealer for further
information.
1.2 Operating procedures
Operating information is presented in flow chart form. The flow charts
show the various operating screens and key presses necessary to carry
out the various instrument functions. Key presses are momentary unless
otherwise stated.
Note that:
• The maximum speed reading is reset to zero at power up.
• The average speed reading is reset to zero at power up.
• The Log screen shows the total distance covered by the vessel since
the ST40 Speed instrument was fitted.
• The trip reading is reset to zero at power up.
157_2c01.p65 01/05/01, 12:221

2ST40 Speed Instrument Owner’s Handbook
Current speed
Maximum
speed
Average
speed
Log
Trip
D4571-2
Water
Temperature
Note: Screens annotated with * are temporary
and will time-out to the previous permanent screen
(Current speed or Water temperature)
after 5 seconds.
Switch on
The permanent screen selected at last switch off, is displayed.
(Current speed or Water temperature)
3 seconds
To reset
3 seconds
To reset
3 seconds
To reset
NORMAL OPERATION
Note:
The trip distance can be
reset only if the instrument
is a master, i.e. connected
to a speed transducer.
157_2c01.p65 01/05/01, 12:222

3
Chapter 1: Operation

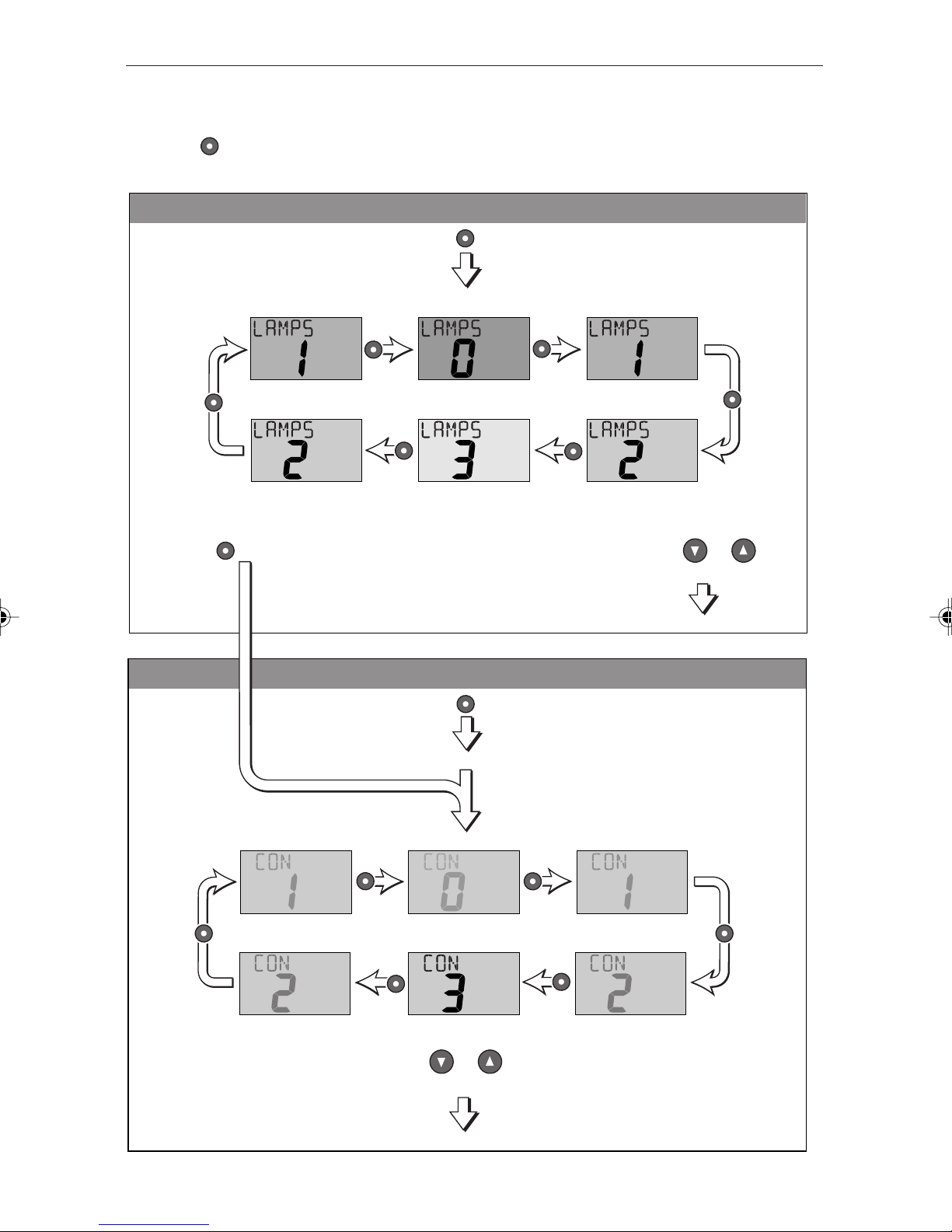

Adjusting display backlighting and contrast
During normal operation, press
During normal operation, press
The current backlighting level is displayed.
for 1 second
Select the required backlighting level then:
Normal operation
ADJUST BACKLIGHTING
or wait for 5 second timeout
or
press
D4845-1
The current contrast level is displayed.
Select the required contrast level then
orpress
Normal operation
ADJUST CONTRAST
or wait for 5 second timeout
Hold down for 1 second to enter Adjust Backlight mode
for 2 seconds to move through Adjust Backlight mode and enter Adjust Contrast mode
via Adjust Backlighting
for 2 seconds
press for 1 second
to adjust contrast, to return to normal operation,
157_2c01.p65 01/05/01, 12:223

4ST40 Speed Instrument Owner’s Handbook
157_2c01.p65 01/05/01, 12:224

Chapter 2: Maintenance and Fault Finding 5
Chapter 2: Maintenance and Fault Finding
2.1 Maintenance
Servicing and safety
•Raymarine equipment should be serviced only by authorised
Raymarine service technicians. They will ensure that service
procedures and replacement parts used will not affect performance.
There are no user-serviceable parts in any Raymarine product.
•Some products generate high voltages, so never handle the cables/
connectors when power is being supplied to the equipment.
•When powered up, all electrical equipment produces
electromagnetic fields. These can cause adjacent pieces of electrical
equipment to interact with one another, with a consequent adverse
affect on operation. In order to minimise these effects and enable
you to get the best possible performance from your Raymarine
equipment, guidelines are given in the installation instructions, to
enable you to ensure minimum interaction between different items
of equipment, i.e. ensure optimum Electromagnetic Compatibility
(EMC).
•Always report any EMC-related problem to your nearest Raymarine
dealer. We will use any such information to improve our quality
standards.
•In some installations, it may not be possible to prevent the
equipment from being affected by external influences. In general
this will not damage the equipment but it can lead to spurious
resetting action, or momentarily may result in faulty operation.
•Always switch off the power to Raymarine equipment before
working on it.
When requesting service, please quote equipment Type, Model
Number, Serial Number and, if possible, Software Release Issue. The
Software Release Issue can be ascertained by means of the
Intermediate Calibration facility, see Chapter 4, Calibration.
157_2c02.p65 01/05/01, 12:225

6 ST40 Speed Instrument Owner’s Handbook
Instrument
Certain atmospheric conditions may cause a small amount of
condensation to form on the instrument window. This will not harm the
instrument and will clear after the instrument has been switched on for a
short period.
Periodically clean your ST40 instrument with a soft damp cloth. Do
NOT use chemical or abrasive materials to clean the instrument.
Transducer
Refer to the Installation and Maintenance instructions supplied with the
transducer.
Cabling
Examine all cables for chafing or other damage to the outer shield and,
where necessary, replace and re-secure.
2.2 Fault finding
Preliminary procedures
If you appear to have a problem, first check the security of the
connections at the rear of the instrument and reconnect any that are
loose.
Changes in the electronic environment may adversely affect the
operation of your ST40 equipment. Typical examples of such changes
are:
•Electrical equipment has recently been installed or moved aboard
your vessel.
•You are in the vicinity of another vessel or shore station emitting
radio signals.
Fixing faults
All Raymarine products are subjected to comprehensive test and
quality assurance programmes prior to packing and shipping. However,
if a fault occurs, the following guidelines may help to identify and
rectify the problem.
157_2c02.p65 01/05/01, 12:226

Chapter 2: Maintenance and Fault Finding 7
Action
Recharge your vessel’s battery as
soon as possible
Action
Transducer paddle wheel may be
fouled.
CAUTION
If you need to remove the transducer
insert, have the transducer bung to
hand and secure it in the transducer
body immediately after the insert
has been removed, to prevent
excessive ingress of water.
Clean the paddle wheel.
SPEED
D4638-1
Action
Check fuse/circuit breaker.
Check power supply.
Check SeaTalk cabling and
connector security.
SPEED
D4639-2
ST40
Action
Check the condition of the transducer
cable and the security of the
connections.
No speed or
water
temperature
information
No speed
information
but water
temperature
information is
present
D4641-2
SPEED
ST40
SPEED
ST40
Low battery
Display blank
D4640-2
SPEED
ST40
SPEED
ST40
157_2c02.p65 01/05/01, 12:227

8 ST40 Speed Instrument Owner’s Handbook
A group of SeaTalk
instruments not
working
Action
Check the security of SeaTalk
connectors between functioning and
non-functioning instruments.
D4642-2
SPEED
ST40
SPEED
ST40
SPEED
ST40
Assistance
If you are unable to rectify any problem, please contact your local
Raymarine Dealer for assistance.
Action
Check security of SeaTalk
connections between instruments.
Check condition of SeaTalk cables.
Isolate faulty instrument by
disconnecting instruments one by one.
SeaTalk
information
not being
transferred
between
instruments
For example, backlighting
level changes implemented
at one instrument do not
affect other instruments
157_2c02.p65 01/05/01, 12:228

Chapter 3: Installation 9
Chapter 3: Installation
This chapter describes how to install the ST40 Speed instrument, and
associated speed transducer. The transducer is fitted in the hull of the
vessel and is connected to the rear of the instrument.
3.1 Planning your installation
Determine the best positions for both transducer and instrument, such
that the EMC installation guidelines and the Site requirements (below)
are satisfied.
EMC installation guidelines
All Raymarine equipment and accessories are designed to the best
industry standards for use in the leisure marine environment.
Their design and manufacture conform to the appropriate
Electromagnetic Compatibility (EMC) standards, but correct
installation is required to ensure that performance is not compromised.
Although every effort has been taken to ensure that they will perform
under all conditions, it is important to understand what factors could
affect the operation of the product.
The guidelines given here describe the conditions for optimum EMC
performance, but it is recognised that it may not be possible to meet all
of these conditions in all situations. To ensure the best possible
conditions for EMC performance within the constraints imposed by
any location, always ensure the maximum separation possible between
different items of electrical equipment.
For optimum EMC performance, it is recommended that wherever
possible:
•All Raymarine equipment and cables connected to it are:
•At least 1 m (3 feet) from any equipment transmitting or cables
carrying radio signals e.g. VHF radios, cables and antennas. In
the case of SSB radios, the distance should be increased to 2 m
(7 ft).
•More than 2 m (7 ft) from the path of a radar beam. A radar beam
can normally be assumed to spread 20 degreesabove and below
the radiating element.
157_2c03.p65 01/05/01, 12:229

10 ST40 Speed Instrument Owner’s Handbook
•The equipment is supplied from a different battery from that used for
engine start. Voltage drops below 10 V in the power supply to our
products, and starter motor transients, can cause the equipment to
reset. This will not damage the equipment, but may cause the loss of
some information and may change the operating mode.
•Raymarine specified cables are used at all times. Cutting and
rejoining these cables can compromise EMC performance and so
must be avoided unless doing so is detailed in the installation
manual.
•If a suppression ferrite is attached to a cable, this ferrite should not
be removed. If the ferrite needs to be removed during installation it
must be reassembled in the same position.
Suppression Ferrites
The following illustration shows typical cable suppression ferrites fitted
to Raymarine equipment. Always use the ferrites supplied by
Raymarine.
D3548-2
Connections to Other Equipment
If your Raymarine equipment is going to be connected to other
equipment using a cable not supplied by Raymarine, a suppression
ferrite MUST always be fitted to the cable close to the Raymarine unit.
Tools required
The tools required for fitting the standard ST40 instrument system are
shown in the following illustration.
157_2c03.p65 01/05/01, 12:2210

Chapter 3: Installation 11
57 mm
(2.25 in)
51 mm
(2.0 in)
D4643-1
Note: If you intend fitting a nonstandard transducer, extra tools may
be required
Site requirements
Transducer
The transducer types required for the various hull types are as follows:
Hull material Transducer type
Glass reinforced plastic (GRP) M78712 Through hull plastic
Steel (supplied as standard)
Aluminium
Wood M78716 Through hull bronze
Other transducer types are also available for specific requirements. For
further details, contact your local Raymarine dealer.
D4446-2
Plastic through hull speed transducer dimensions
14 mm
(0.57 in)
100 mm
(3.95 in)
75 mm (2.94 in)
diameter
51 mm (2.0 in)
diameter
75 mm (2.94 in)
diameter
157_2c03.p65 01/05/01, 12:2211

12 ST40 Speed Instrument Owner’s Handbook
The transducer should:
•Be ahead of the propellers (by a minimum of 10% of the water line
length ).
•Be at least 150 mm (6 in) away from the keel (ideally ahead of the
keel if a sailing yacht).
•Be as near as possible to the centre line of the vessel.
•Be clear of other through-hull fittings or projections.
•Have sufficient clearance inside the hull to fit the nut.
•Have 100 mm (4 in) of headroom to allow for withdrawal.
The transducer should be sited within the clear water flow areas
indicated by the shaded areas in the following diagram.
Sailing vessel
Planing power
vessel
Displacement power
vessel
Transducer siting D4349-1
157_2c03.p65 01/05/01, 12:2212
