Preface
Thank you for purchasing a Raymarine product. We are sure your
ST40 instrument will give you many years of trouble-free operation.
This instrument is designed to provide reliable performance, even
under the most demanding conditions.
D4807-2
159_2pre.p65 01/05/01, 15:145

vi ST40 Bidata Instrument Owner’s Handbook

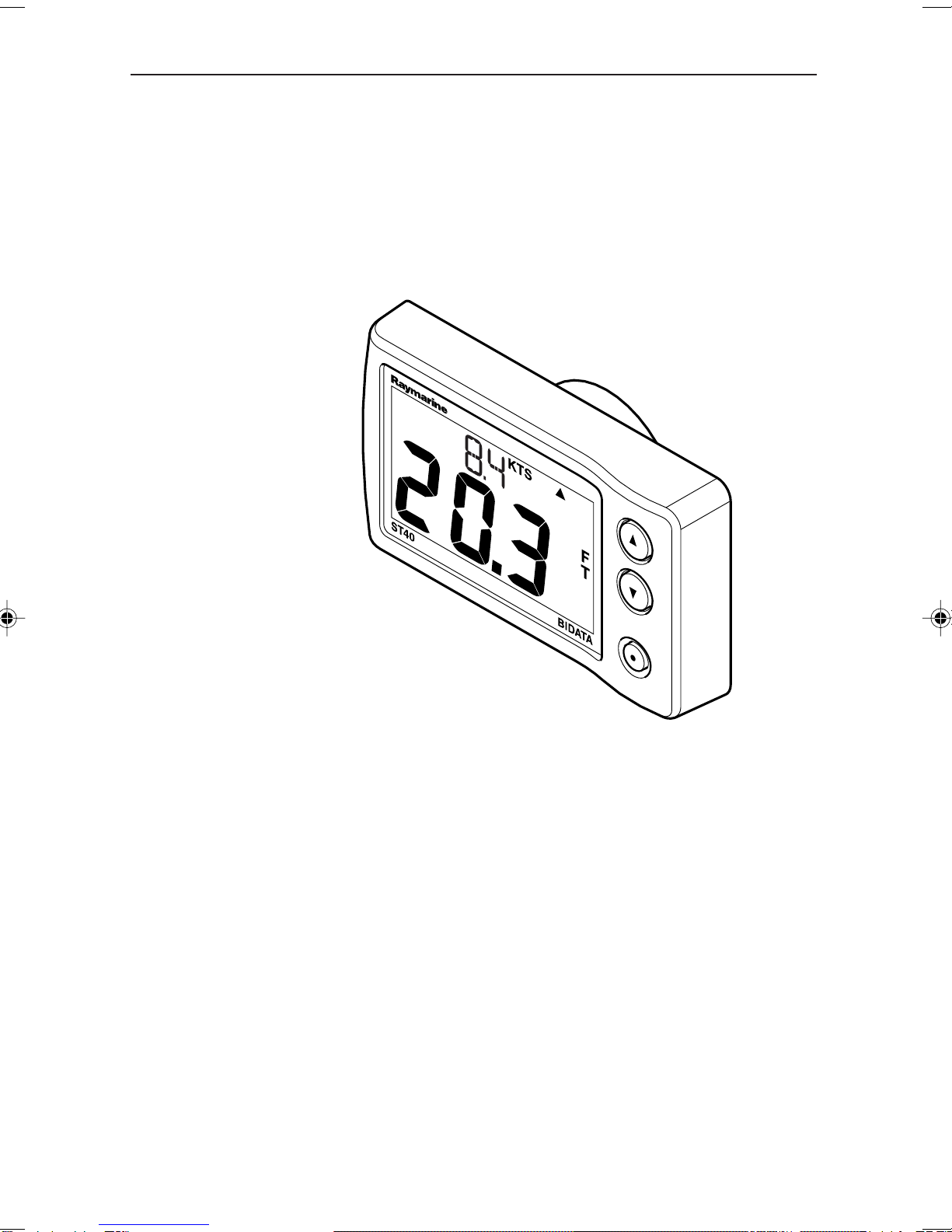

Parts supplied
D4730-2
ST40
Bidata
Instrument
Owner's
Handbook
Worldwide
Distributors
ST40 Bidata instrument
Gasket
Retractable speed transducer
Supplied with bung
(not illustrated)
1 m (3 ft) power cable
Instrument Cover
Owner’s Handbook.
Warranty document and fitting
templates included in Handbook
Worldwide Service Centre
Handbook.
Quick Reference Guide
Clamping bracket
BIDATA
ST40
Depth transducer
Note:
The items shown here are supplied for an ST40 Bidata system. If an instrument is purchased separately, transducers
are not included. If any item is not present, contact your Raymarine Dealer.
Fixing
stud
Thumb
nut
Adjusting display backlighting/contrast
Normal operation
ST40 Bidata Instrument - quick reference guide
orTo exit adjust mode press or wait for 5 second timeout
LEVEL 1 LEVEL 1 OFF LEVEL 2LEVEL 3LEVEL 2
To enter adjust mode,press for 1 second to adjust BACKLIGHTING and a further 1 second to adjust CONTRAST
SWITCH ON
Last permanent
screen is displayed
SPEED DEPTH
Current
speed
3 seconds
Reset
Maximum
speed
3 seconds
Reset
Average
speed
Water
Temp.
Log
Trip 3 seconds
Reset
Depth
Minimum
depth
Shallow
alarm
Deep
alarm
Deep
anchor
alarm
Offset
Shallow
anchor
alarm
3 seconds
Alarm on/off
3 seconds
Alarm on/off
Set
alarm
level
3 seconds
Alarm on/off
3 seconds
Alarm on/off
+
-
Notes:
*denotes temporary screens
which will time-out to the previous
permanent screen after 5 seconds.
On repeater instruments, on;ly the
Speed, Water temperature,
Depth and Minimum depth
screens are available.
With Set alarm level screen displayed,
to save the alarm level and return to
normal operation.
and keys simultaneously
press the
159_2pre.p65 01/05/01, 15:146

Chapter 1: Operation 1
Chapter 1: Operation
1.1 Introduction
Your ST40 Bidata instrument:
• Provides speed information (current, maximum and average), in
either knots (KTS), miles per hour (MPH) or kilometres per
hour (KPH).
• Provides log and trip information. These are given in either nautical
miles (NM), statute miles (M) or kilometres (KM).
• Provides water temperature information. This is given in either
degrees Celsius (°C) or degrees Fahrenheit (°F).
• Provides depth information in either feet (FT), metres (M) or
fathoms (FA).
• Records the minimum depth encountered during the period it is
switched on. You can reset this at any time.
• Enables you to define alarm thresholds for shallow water, deep
water, shallow anchor and deep anchor.
• Enables you to see what offset is applied to the depth reading.
Note: The required speed, distance, depth and water temperature units
are selected during User calibration (see Chapter 4, Calibration).
CAUTION
Your instrument is calibrated to factory (default) settings when
first supplied and must therefore be calibrated before use, to
ensure optimum performance on your vessel. Do NOT use the
instrument until the calibration procedures have been
satisfactorily completed, using the procedures in Chapter 4,
Calibration.
Coloured bezel and Desktop Mounting Bracket options are available
for your ST40 instrument. Contact your Raymarine dealer for further
information.
Display
The ST40 Bidata display comprises upper and lower data areas, each of
which shows either depth or speed information, selected as shown in
the following illustration.
159_2c01.p65 01/05/01, 15:141

2 ST40 Bidata Instrument Owner’s Handbook
Selecting where speed and depth information is displayed D4733-2
DEPTH
SPEED
SPEED
DEPTH
1.2 Operating procedures
Operating information is presented in flow chart form. The flow charts
show the various operating screens and key presses necessary to carry
out the various instrument functions. Key presses are momentary unless
otherwise stated. Note that:
• Up/down depth-trend arrows are displayed, if the seabed is rising or
falling at a significant rate.
• The minimum depth reading is reset to zero at power up.
• The maximum speed reading is reset to zero at power up.
• The average speed reading is reset to zero at power up.
• The Log screen shows the total distance covered by the vessel since
the ST40 Bidata instrument was fitted.
• The trip reading is reset to zero at power up.
Display action
During normal operation (see Normal operation flow charts), the
Speed, Depth and Water temperature screens are permanent
screens, i.e. once one of these is selected, it will remain until another
screen is manually selected. All other screens are temporary and after
5 seconds, will time out to the permanent screen which was last
displayed for 5 seconds or more.
Silencing alarms
To silence an alarm (see the Alarms section, later in this chapter),
momentarily press any one of the instrument keys.
159_2c01.p65 01/05/01, 15:142

Chapter 1: Operation 3
NORMAL OPERATION (sheet 1)
Current
speed
Maximum
speed
Average
speed Log
Trip
D4731-2
Note: Screens annotated with * are temporary and will time-out
to the previous permanent screen after 5 seconds.
Switch on
Previous speed screen is displayed
3 seconds
To reset
3 seconds
To reset
3 seconds
To reset
DEPTH
SPEED
SPEED
DEPTH
See
NORMAL OPERATION
(sheet 2)
Water temp-
erature
Note:
The trip distance can be
reset only if the instrument
is a speed master,
i.e. connected to a speed
transducer.
159_2c01.p65 01/05/01, 15:143

4 ST40 Bidata Instrument Owner’s Handbook
NORMAL OPERATION (sheet 2)
D4732-2
Switch on
DEPTH
SPEED
SPEED
DEPTH
See NORMAL OPERATION (sheet 1)
Depth
Minimum
depth
Shallow
alarm
Notes:
Note: Screens other than the Depth screen,
are temporary and will time-out to the previous
permanent screen after 5 seconds.
3 seconds
To reset
3 seconds
Alarm
on/off
Set Shallow alarm Increase
Decrease
To/from Offset screen (sheet 3)
This diagram shows the operating sequence for
an ST40 Bidata master instrument. On a repeater
instrument, only the Depth, Minimum
depth, Speed and Water temperature
screens are available.
If the Shallow alarm
has been locked during User
calibration, you cannot switch it on
or off or change the threshold value.
To/from
Deep alarm screen
(sheet 3)
+
With any set alarm screen displayed, press the
to save the alarm level and return to
normal operation.
and keys simultaneously
Momentary
159_2c01.p65 01/05/01, 15:144

Chapter 1: Operation 5
NORMAL OPERATION (sheet 3)
D4734-2
To/from Shallow alarm screen
(sheet 2)
Deep anchor
alarm
Offset
Increase
Decrease
Shallow anchor
alarm Set Shallow
anchor alarm
3 seconds
Alarm
on/off
3 seconds
Alarm
on/off
Set Deep
anchor alarm Increase
Decrease
To/from Depth screen
(sheet 2) Note: Screens other than the Depth screen, are temporary and
will time-out to the previous permanent screen after 5 seconds.
(+ve values)
(-ve values)
(offset = 0.0)
Deep
alarm Set Deep alarm
3 seconds
Alarm
on/off
Increase
Decrease
+
+
+
Momentary
Momentary
Momentary
159_2c01.p65 01/05/01, 15:145

6 ST40 Bidata Instrument Owner’s Handbook
Adjusting display backlighting and contrast
During normal operation, press
During normal operation, press
The current backlighting level is displayed.
for 1 second
Select the required backlighting level then:
Normal operation
ADJUST BACKLIGHTING
or wait for 5 second timeout
or
press
D4845-1
The current contrast level is displayed.
Select the required contrast level then
orpress
Normal operation
ADJUST CONTRAST
or wait for 5 second timeout
Hold down for 1 second to enter Adjust Backlight mode
for 2 seconds to move through Adjust Backlight mode and enter Adjust Contrast mode
via Adjust Backlighting
for 2 seconds
press for 1 second
to adjust contrast, to return to normal operation,
159_2c01.p65 01/05/01, 15:146

Chapter 1: Operation 7
1.3 Alarms

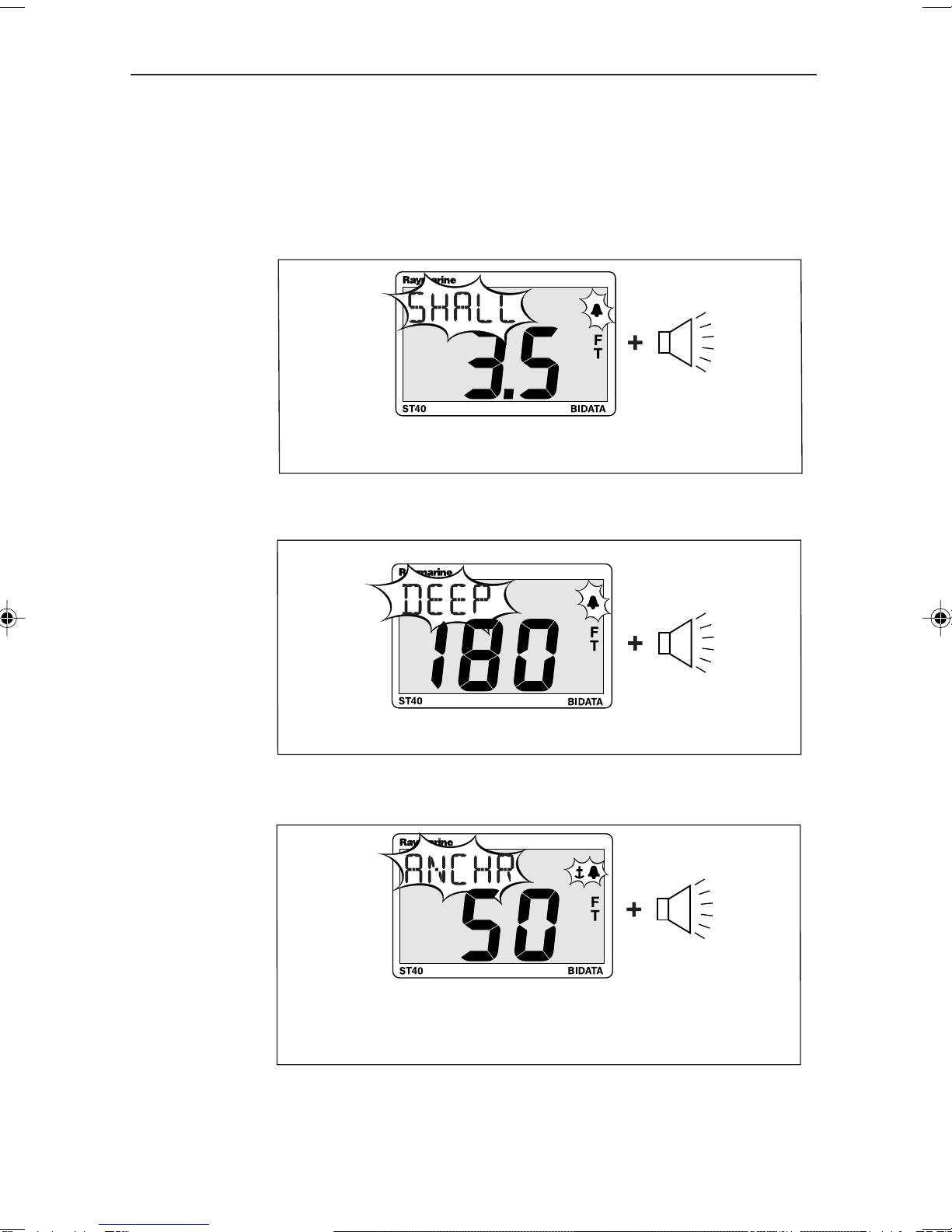

Alarm indications
Shallow alarm
Depth is equal to or less than the shallow alarm threshold.
Alarm continues until cancelled manually.
D4666-2
Deep alarm
Triggered by depths equal to the deep alarm threshold. Continues until cancelled manually.
D4789_2
Anchor alarms
Depth is either:
equal to or less than the shallow anchor alarm threshold
or
equal to or more than the deep anchor alarm threshold
D4790-2
159_2c01.p65 01/05/01, 15:147

8 ST40 Bidata Instrument Owner’s Handbook
Enabling/disabling alarms
You can enable or disable any alarm function (i.e. switch it on or off )
by selecting the relevant alarm screen (see Normal operation) and
holding down the key for 3 seconds (toggle action).
159_2c01.p65 01/05/01, 15:148

Chapter 2: Maintenance and Fault Finding 9
Chapter 2: Maintenance and Fault Finding
2.1 Maintenance
Servicing and safety
•Raymarine equipment should be serviced only by authorised
Raymarine service technicians. They will ensure that service
procedures and replacement parts used will not affect performance.
There are no user-serviceable parts in any Raymarine product.
•Some products generate high voltages, so never handle the cables/
connectors when power is being supplied to the equipment.
•When powered up, all electrical equipment produces
electromagnetic fields. These can cause adjacent pieces of electrical
equipment to interact with one another, with a consequent adverse
affect on operation. In order to minimise these effects and enable
you to get the best possible performance from your Raymarine
equipment, guidelines are given in the installation instructions, to
enable you to ensure minimum interaction between different items
of equipment, i.e. ensure optimum Electromagnetic Compatibility
(EMC).
•Always report any EMC-related problem to your nearest Raymarine
dealer. We will use any such information to improve our quality
standards.
•In some installations, it may not be possible to prevent the
equipment from being affected by external influences. In general
this will not damage the equipment but it can lead to spurious
resetting action, or momentarily may result in faulty operation.
•Always switch off the power to Raymarine equipment before
working on it.
When requesting service, please quote equipment Type, Model
Number, Serial Number and, if possible, Software Release Issue. The
Software Release Issue can be ascertained by means of the
Intermediate Calibration facility, see Chapter 4, Calibration.
Instrument
Certain atmospheric conditions may cause a small amount of
condensation to form on the instrument window. This will not harm the
instrument and will clear after the instrument has been switched on for a
short period.
159_2c02.p65 01/05/01, 15:149

10 ST40 Bidata Instrument Owner’s Handbook
Periodically clean your ST40 instrument with a soft damp cloth. Do
NOT use chemical or abrasive materials to clean the instrument.
Transducers
Refer to the Installation and Maintenance instructions supplied with the
transducers.
Cabling
Examine all cables for chafing or other damage to the outer shield and,
where necessary, replace and re-secure.
2.2 Fault finding
Preliminary procedures
If you appear to have a problem, first check the security of the
connections at the rear of the instrument and reconnect any that are
loose.
Changes in the electronic environment may adversely affect the
operation of your ST40 equipment. Typical examples of such changes
are:
•Electrical equipment has recently been installed or moved aboard
your vessel.
•You are in the vicinity of another vessel or shore station emitting
radio signals.
Fixing faults
All Raymarine products are subjected to comprehensive test and
quality assurance programmes prior to packing and shipping. However,
if a fault occurs, the following guidelines may help to identify and
rectify the problem.
Action
Recharge your vessel’s battery as
soon as possible
D4737-2
BIDATA
Low battery
159_2c02.p65 01/05/01, 15:1410

Chapter 2: Maintenance and Fault Finding 11
Action
Ensure that reading stabilises when clear of disturbed water,
e.g. boat wakes, propeller wash etc.
Action
Check fuse/circuit breaker.
Check power supply.
Check SeaTalk cabling and
connector security.
BIDATA
D4738-2
ST40
Action
Check the condition of the depth transducer cable and the
security of the connections.
Could also be due to weed growing on the transducer face.
No depth information
DD
DD
Depth reading
flashes when
under way
Display blank
D4740-2
OR
1 minute 1 minute
BIDATAST40
BIDATAST40 BIDATAST40
BIDATAST40
OR
D4739-2
BIDATAST40
BIDATAST40
159_2c02.p65 01/05/01, 15:1411
