Raymarine ST60 Tridata User guide

Distributed by
Any reference to Raytheon or
RTN in this manual should be
interpreted as Raymarine.
The names Raytheon and RTN
are owned by the
Raytheon Company.

ST60 Speed
Instrument
Owner’s
Handbook
Document number: 81037-3
Date: 1st April 2001
037_3cov.p65 25/04/01, 16:121

© Copyright Raymarine Limited 2001
037_3cov.p65 25/04/01, 16:122

Introduction i
Contents
Introduction ............................................................................ v
EMC conformance ............................................................ v
Data inputs ....................................................................... vi
SeaTalk ....................................................................... vi
Stand alone operation ................................................. vi
Remote control ................................................................. vi
Mounting options ............................................................ vii
Parts supplied ..................................................................... viii
Chapter 1: Operation ............................................................. 1
1.1 Getting started ............................................................. 1
Displayed information................................................. 1
Calibration requirement .............................................. 1
1.2 Normal operation ........................................................ 1

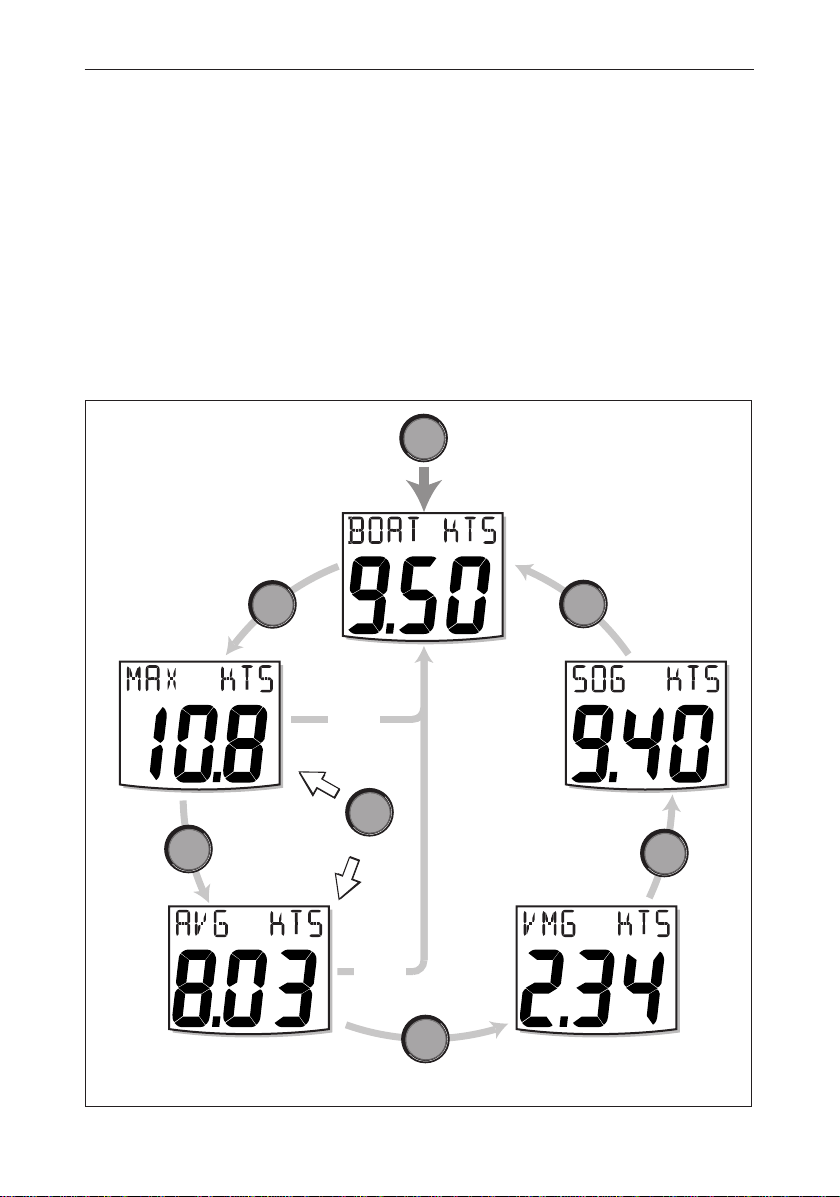

Speed information ....................................................... 1
Current speed ......................................................... 1
Maximum speed .................................................... 2
Average speed ........................................................ 2
Velocity made good (to windward) ....................... 3
Speed over ground ................................................. 3

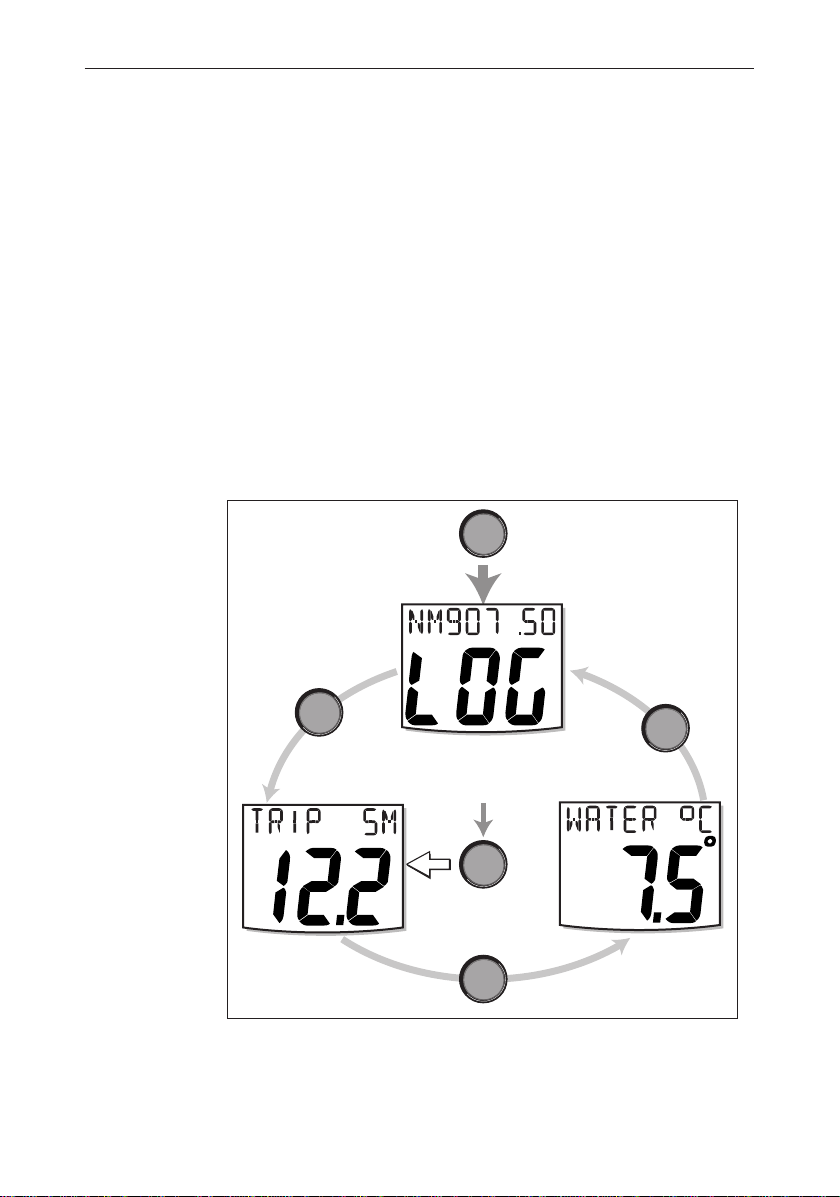

Log, trip and water temperature .................................. 3
Log ......................................................................... 3
Trip ........................................................................ 4
Water temperature .................................................. 4

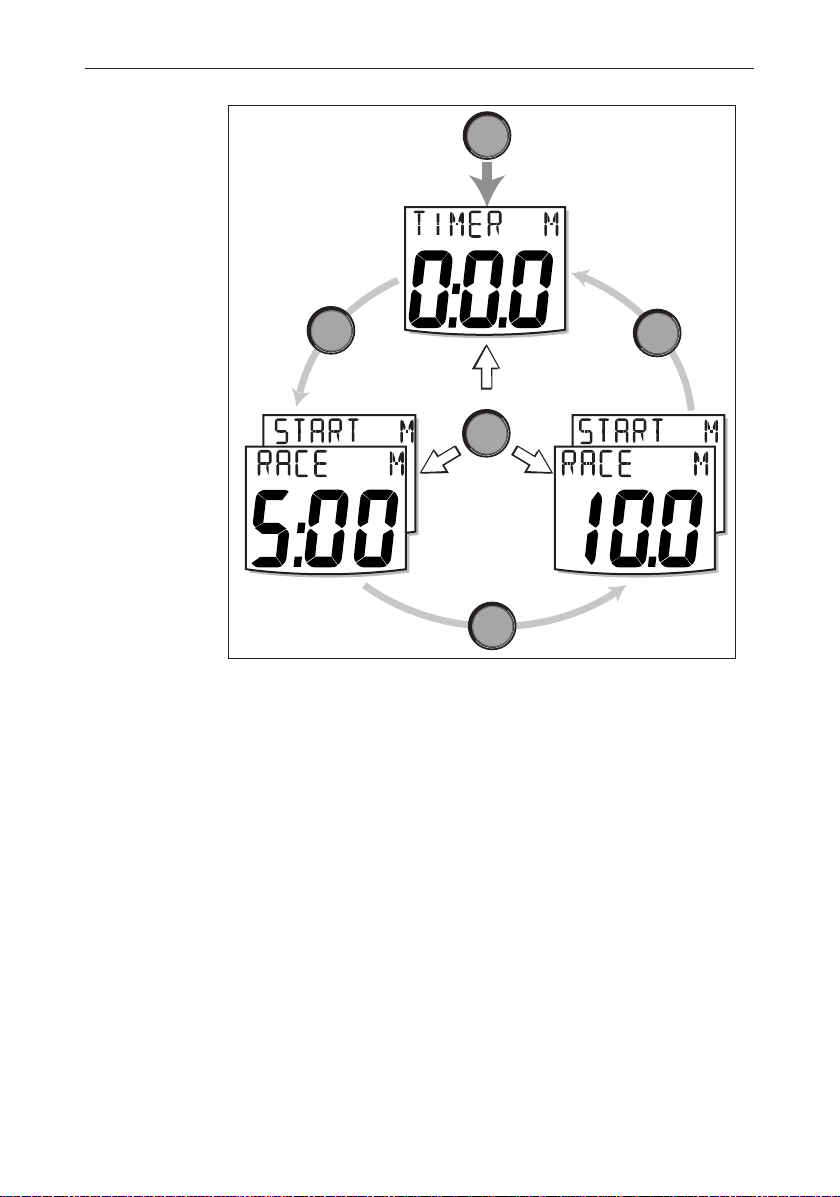

Timers .......................................................................... 4
Race-start timers .................................................... 4
037_3int.p65 25/04/01, 16:121

ii ST60 Speed Instrument Owner’s Handbook
1.3 Display settings ........................................................... 5
Illumination ................................................................. 5
Contrast ....................................................................... 6
1.4 Pop-up Pilot ................................................................ 6
1.5 Remote control............................................................ 6
Chapter 2: Maintenance and Fault Finding ........................ 7
2.1 Maintenance ................................................................ 7
Servicing and safety .................................................... 7
Instrument ................................................................... 7
Transducer ................................................................... 7
Cabling ........................................................................ 7
2.2 Fault finding ................................................................ 8
Preliminary procedures ............................................... 8
Fixing faults ................................................................ 8
Chapter 3: Installation......................................................... 11
3.1 Planning your installation ......................................... 11
Site requirements ....................................................... 11
Transducer ........................................................... 11
Instrument ............................................................ 13
EMC guidelines ......................................................... 14
Suppression ferrites ............................................. 15
Connections to Other Equipment .................. 15
3.2 Procedures................................................................. 15
Unpacking ................................................................. 15
Fitting the instrument ................................................ 16
Surface mounting ................................................ 16
Flush mounting .................................................... 17
Fitting the low-profile bezel........................... 17
Flush mounting procedure ............................. 18
037_3int.p65 25/04/01, 16:122

Introduction iii
Bracket mounting ................................................ 19
Fitting transducer ...................................................... 20
Running transducer cable .................................... 20
Connecting the instrument ........................................ 21
Types of connection ............................................. 21
Signal connections ............................................... 21
Power supply connections ................................... 22
SeaTalk systems ............................................. 22
Stand alone instruments ................................. 23
Chapter 4: Calibration ......................................................... 25
4.1 Introduction .............................................................. 25
EMC conformance .................................................... 25
Speed readings .......................................................... 25
4.2 User calibration ......................................................... 26
Procedure .................................................................. 26
Set speed units ..................................................... 26
Set resolution ....................................................... 26
Set log units ......................................................... 26
Setting the correct speed ...................................... 26
Adjust to SOG ................................................ 27
Cal factor adjust ............................................. 27
Set temperature units ........................................... 27
Temperature calibration ....................................... 27
Timer buzzer ........................................................ 27
Pop-up pilot ......................................................... 30
Leaving User calibration ........................................... 30
4.3 Intermediate calibration ............................................ 30
Speed calibration ....................................................... 31
Leaving Intermediate calibration .............................. 34
037_3int.p65 25/04/01, 16:123

iv ST60 Speed Instrument Owner’s Handbook
4.4 Dealer calibration ...................................................... 34
User calibration on/off .............................................. 34
Response settings ...................................................... 36
Boat show mode ........................................................ 36
Factory defaults ......................................................... 36
Leaving Dealer calibration ........................................ 36
037_3int.p65 25/04/01, 16:124

Introduction v
Introduction
Thank you for purchasing a Raymarine product. We are sure your
ST60 instrument will give you many years of trouble-free operation.
This handbook describes how to install and use the Raymarine ST60
Speed instrument. This instrument provides accurate speed, log, trip
and timer information, on a high quality Liquid Crystal Display
(LCD). The instrument is constructed in a rugged weather-proofed
case to provide reliable performance, even under the most demanding
conditions.
D4322-2
WARNING
Although the ST60 Speed instrument is designed to give accurate
and reliable performance, it should serve only as an aid to
navigation and should never lead to the erosion of good
seamanship. Always maintain a permanent watch and be aware of
situations as they develop.
EMC conformance
All Raymarine equipment and accessories are designed to the best
industry standards for use in the leisure marine environment.
Their design and manufacture conforms to the appropriate
Electromagnetic Compatibility (EMC) standards, but correct
installation is required to ensure that performance is not compromised.
037_3int.p65 25/04/01, 16:125

vi ST60 Speed Instrument Owner’s Handbook
Data inputs
The ST60 Speed instrument receives data either from an appropriate
speed transducer and/or from a SeaTalk instrumentation system.
SeaTalk
SeaTalk enables a number of compatible instruments to operate as a
single, integrated navigational system. Instruments in a SeaTalk
system are linked by means of a single cable, which feeds both power
and data. Instruments can therefore be added to the system by plugging
them into the network. SeaTalk is flexible enough to adapt to any
number of compatible instruments without requiring a central
processor. SeaTalk can also communicate via an interface, with non-
SeaTalk equipment using the internationally-accepted National
Marine Electronics Association (NMEA) protocol.
In a SeaTalk system, each instrument can be either a master or
dedicated repeater unit. A master instrument is directly connected to a
transducer (the device that provides the raw data), and provides data
and control for the service it is providing, to all other equipment on the
SeaTalk network. A slave instrument is not directly connected to a
transducer but repeats information provided by other equipment in the
SeaTalk network.
The ST60 Speed instrument can fulfil both master and repeater roles.
Stand alone operation
In Stand alone operation, the ST60 Speed instrument is connected only
to the relevant transducer and does not display information from, or
provide information to, any other instruments.
Remote control
When connected to SeaTalk, the ST60 Speed instrument can be
controlled remotely by a SeaTalk Remote Keypad Unit, to provide
instant remote access to the various display readouts.
037_3int.p65 25/04/01, 16:126

Introduction vii
Mounting options
If you do not want to surface mount your ST60 instrument, options are
available for:
• Flush mounting. If you have ordered the flush mounting option a
low-profile bezel and four fixing screws are also provided.
• Bracket mounting.
037_3int.p65 25/04/01, 16:127

viii ST60 Speed Instrument Owner’s Handbook

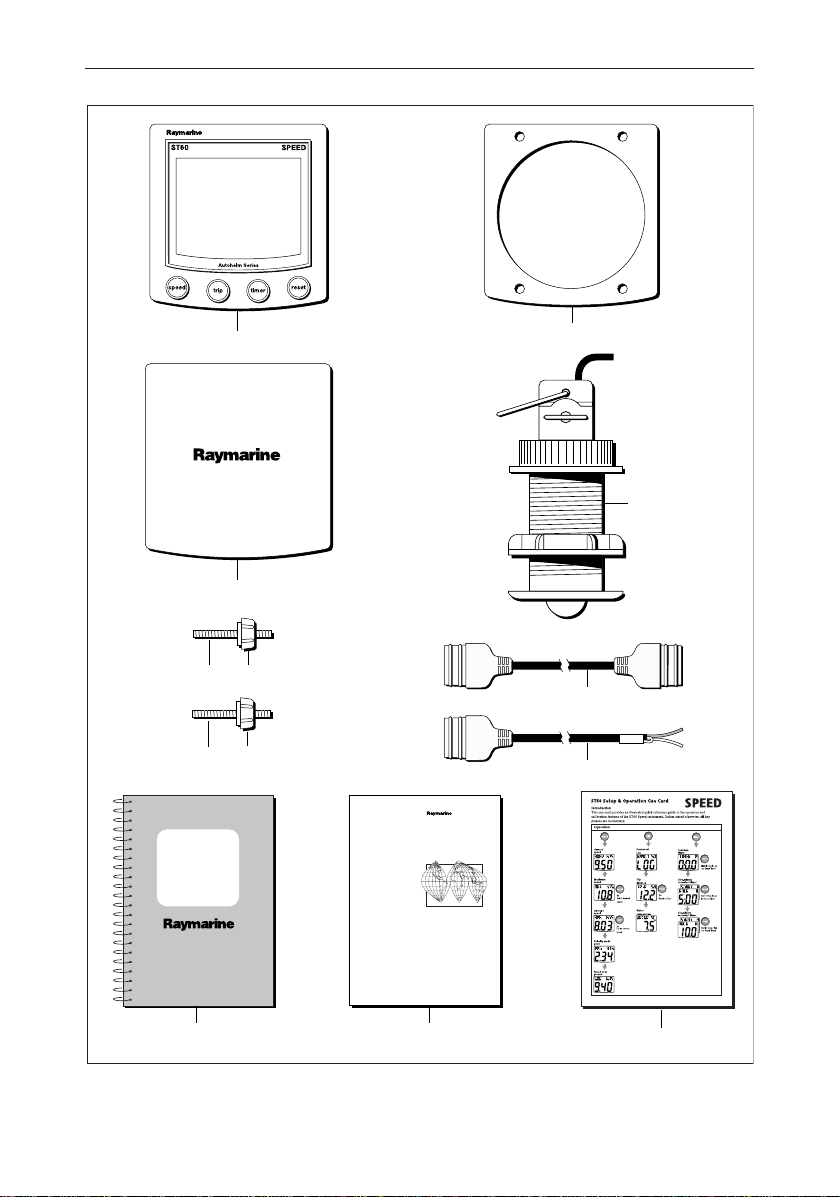

Parts supplied
Unpack your ST60 instrument and check that the following items are
present:
• Item 1, ST60 Speed instrument fitted with standard bezel for
surface mounting.
• Item 2, Fixing studs (2).
• Item 3, Thumb nuts (2).
• Item 4, Gasket.
• Item 5, Speed transducer, plus bung (not illustrated).
• Item 6, SeaTalk interconnection cable.
• Item 7, Power cable.
• Item 8, Instrument Cover.
• Item 9, Owner’s Handbook. A Warranty document and fitting
templates are included in this Handbook.
• Item 10, Worldwide Service Centre Handbook.
• Item 11, Cue Card.
Spare spade terminals are also provided, to re-terminate the transducer
cable if it has to be cut to facilitate installation.
Note: The above packing list is for an ST60 Speed system. Where an
instrument is purchased separately, a transducer is not included.
037_3int.p65 25/04/01, 16:128

Introduction ix
D4439-2
ST60
Speed
Instrument
Owner's
Handbook
Worldwide
Distributors
14
8
32
32
5
6
7
10911
037_3int.p65 25/04/01, 16:129

xST60 Speed Instrument Owner’s Handbook
037_3int.p65 25/04/01, 16:1210

Chapter 1: Operation 1
Chapter 1: Operation
1.1 Getting started
Displayed information
Your ST60 Speed instrument provides the following:
•Speed information.
•Log, trip and water temperature information.
•Count-up and race-start timers.
Calibration requirement
The ST60 Speed instrument is calibrated to factory (default) settings
when first installed and must therefore be calibrated before use, in
accordance with the procedures in Chapter 4, Calibration, to ensure
optimum performance on your vessel.
Do NOT use the instrument until the calibration procedures have
been satisfactorily completed.
1.2 Normal operation
Use the flow charts in this Chapter to operate your ST60 Speed
instrument. The flow charts show the sequence of key presses and
displays for the various operating tasks. All key presses are momentary
unless otherwise stated.
Speed information
The speed key gives access to current speed, maximum speed,
average speed, velocity made good (VMG) and speed over ground
(SOG) information. Refer to the Using speed key flow diagram to
access the information you want.
Current speed
Speed measurement units can be either knots (KTS), miles per hour
(MPH) or kilometres per hour (KMH). The required units are selected
during user calibration (see Chapter 4, Calibration).
037_3c01.p65 25/04/01, 16:121

2ST60 Speed Instrument Owner’s Handbook
Maximum speed
The maximum speed is reset at power up. It can also be reset manually
by pressing the reset key for 3 seconds. The display shows the
maximum recorded speed since the last reset. This screen times-out to
current speed if no user action occurs for 7 seconds.
Average speed
The average speed is reset at power up. It can also be reset manually by
pressing the reset key for 3 seconds. The display shows the average
speed calculated since the last reset. This screen times-out to current
speed if no user action occurs for 7 seconds.
speed
speed
speed
speed
speed
Current
speed
Maximum
speed
Average speed
Velocity made
good
Speed over
ground
7 second
timeout
7 second
timeout
speed
Using the speed key D4363-1
to reset
Press for
3 s
reset
037_3c01.p65 25/04/01, 16:122

Chapter 1: Operation 3
Velocity made good (to windward)
Velocity made good (VMG) information is available if your ST60
Speed instrument is part of a SeaTalk system to which a SeaTalk-
compatible wind instrument is also connected.
Speed over ground
Speed over ground (SOG )information is available if your ST60 Speed
instrument is part of a SeaTalk system to which a suitable GPS
instrument is also connected.
Log, trip and water temperature
The trip key gives access to log, trip and water temperature
information. Refer to the Using trip key flow diagram to access the
information you want.
trip
trip
trip
for 3 s to return
TRIP value to 0
Using trip key
D4364-1
Log
Trip distance
Water
temperature
trip
Press
reset
Log
The Log screen shows the total distance covered by the vessel since the
ST60 Speed instrument was fitted.
037_3c01.p65 25/04/01, 16:123

4ST60 Speed Instrument Owner’s Handbook
Trip
The trip distance is reset at power up and may also be reset manually,
by pressing the reset key for 3 seconds. The display shows the
distance covered since the last reset.
Note: The trip distance can be reset only if the instrument is a master,
i.e. connected to a speed transducer.
Water temperature
The water temperature is shown in either degrees Celsius or
Fahrenheit, as set during calibration (see Chapter 4, Calibration).
Timers
The timer key gives access to a count-up timer and to 5-minute and
10-minute race-start timers. Times are either in seconds (S) or minutes
(M), depending on the counter values.
Refer to the Using timer key flow diagram to display the required
timer. Once you have selected the required timer display, press the
reset key to start the timer running. When a timer is running, the
delimiter (i.e. ‘.’or ‘:’) flashes. For lap timing, press the reset key
momentarily. To stop and reset a timer to the start value, press the
reset key for 1 second.
Once a timer is running, you can leave the timer page and select any
other display. The counter will continue to run in the background.
Race-start timers
If you are using one of the race-start timers and the timer buzzer is
enabled, the buzzer will:
•Double-beep every minute.
•Beep three times at the start of the last 30 seconds.
•Beep once for each of the last 10 seconds.
•Beep for 2 seconds at zero.
The timer buzzer is enabled or disabled as part of the calibration
procedure (see Chapter 4, Calibration).
Note: After a race-start timer has counted-down to zero, it will then
start counting up.
037_3c01.p65 25/04/01, 16:124

Chapter 1: Operation 5
Using timer key
D4365-1
Count-up
timer
Five-minute
race-start timer Ten-minute
race-start timer
timer timer
timer
timer
For 1 s to
reset timer.
Press
momentarily
to start timer,
or for lap time
(when running)
reset
1.3 Display settings
Illumination
When the instrument is first powered up, the display illumination is set
to its lowest (courtesy) level to facilitate initial access to the keys. To
adjust the level of illumination:
1. Hold down the speed key for approximately one second, to enter
the illumination-adjust mode.
2. There are four preset illumination levels. Momentarily press the
speed key to cycle through the these levels until you reach the
level you want.
3. Press any other key to leave the illumination-adjust mode.
Note: The display will time out to normal operation 7 seconds after the
last key press.
037_3c01.p65 25/04/01, 16:125

6ST60 Speed Instrument Owner’s Handbook
Contrast
To adjust the display contrast:
1. Hold down the speed key for approximately two seconds, to
enter the contrast-adjust mode.
2. There are four preset contrast settings. Momentarily press the
speed key to cycle through the these settings until you achieve
optimum display quality.
3. Press any other key to leave the contrast-adjust mode.
Note: The display will time out to normal operation 7 seconds after the
last key press.
1.4 Pop-up Pilot
A Pop-up Pilot facility enables instruments connected to SeaTalk to
constantly monitor any changes to the autopilot mode and to the course
settings. If one of these parameters changes, the new value is
immediately displayed on the ST60 instrument for 5 seconds, after
which time the display reverts to the previous display.
This facility can be enabled or disabled during User calibration (see
Chapter 4, Calibration).
1.5 Remote control
When it is connected to SeaTalk, the ST60 Speed instrument can be
controlled remotely with a SeaTalk Remote Keypad Unit. Remote
control of an instrument is indicated by a REMOTE legend on the
display, to indicate that the keypad has control.
Details on how to use the remote control facility can be found in the
SeaTalk Remote Keypad Owner’s Handbook.
037_3c01.p65 25/04/01, 16:126

Chapter 2: Maintenance and Fault Finding 7
Chapter 2: Maintenance and Fault Finding
2.1 Maintenance
Servicing and safety
•Raymarine equipment should be serviced only by authorised
Raymarine service engineers. There are no user-serviceable parts in
any Raymarine product.
•Some products generate high voltages, and so never handle the
cables/connectors when power is being applied to the equipment.
•Always report any EMC related problem to your nearest
Raymarine dealer. We will use any such information to improve
our quality standards.
When requesting service, please quote equipment Type, Model
Number and, if possible, Software Release Issue. The Software
Release Issue can be ascertained by means of the Intermediate
Calibration facility, see Chapter 4, Calibration.
Instrument
Certain atmospheric conditions may cause condensation to form on
the instrument window. This will not harm the instrument and can be
cleared by increasing the illumination setting to Level 3.
Periodically clean your ST60 instrument with a soft damp cloth. Do
NOT use chemical and abrasive materials to clean the instrument.
Transducer
Refer to the Installation and Maintenance instructions supplied with
the transducer.
Cabling
Examine all cables for chafing or other damage to the outer shield and,
where necessary, replace and re-secure.
037_3c02.p65 25/04/01, 16:127
