RCA RDR4330 User manual

Communications Systems
RDR4300 I.S. Series
Digital Radios QUICK START GUIDE
B4320LI
Li-Ion Battery
(2000 mAh)
CH4301
Desktop Rapid
Charger
PS4301
Power Supply
BC4300
Belt Clip
Antenna
ANH4300U - UHF
ANH4300V - VHF
MIC
RDR4330 (black)
Handheld Radio
RDR4390 (black)
RDR4395 (blue)
Handheld Radio
RDR4360 (black)
RDR4365 (blue)
Handheld Radio
What’s Included:
Attaching the Battery:
Removing the Battery:
Attaching audio accessory / programming cable:
Attaching the Antenna:
Attaching the Belt Clip:
1. While laying flat, put the battery
into the radio as shown,
horizontally push to the top along
the aluminum slot.
2. As shown, push the battery
latch up and slide battery forward
until a click is heard.
1. As shown, hold the radio like
this.
2. As shown, push the battery
latch up with the other hand.
3. Slide the battery as arrow
direction shown.
1. Rotate the screws counter-
clockwise to remove them.
2. Align the screw holes on the
belt clip with those on the
radio’s body, then insert and
tighten the screws clockwise.
Note: To remove the belt clip,
loosen the screws.
1. Open the accessory jack cover.
As shown, align the plug
with the accessory jack, then
connect it.
2. As shown, tighten the screw
clockwise on the plug.
Note: To remove accessories,
loosen the screw counter-
clockwise.
1. Turn the antenna clockwise to
attach it.
Note: To remove the antenna,
rotate it counter-clockwise.
3
3
2
2
2
2
2
2
1
1
1
1
1
1
1P1 Key (hot key) 2PTT Key (transmit key)
3P2 Key (hot key) 4Emergency Call Key
5Antenna 6LED Indicator
7Channel Knob 8Radio On-O/ Volume Knob
9Earpiece (RDR4360/RDR4365/
RDR4390/RDR4395 only) 10 Simplex Microphone (RDR4360/ RDR4365/RDR4390/RDR4395 only)
11 LCD Display (RDR4360/RDR4365/
RDR4390/RDR4395 only) 12 Function Keypad (RDR4360/RDR4365/ RDR4390/RDR4395 only)
13 Speaker 14 Numeric Keypad (RDR4360/RDR4365/
RDR4390/RDR4395 only)
15 Duplex Microphone (RDR4360/
RDR4365/RDR4390/RDR4395 only) 16 Battery Latch
17 Accessory Jack Cover 18 Strap hole
19 Belt Clip 20 Battery
21 Battery Pole Piece 22 Accessory Jack
23 Micro SD Encryption Card
Cover
Product Overview
5
1
2
3
4
16
17
18
19
20
21
22
23
6
7
8
9
10
11
12
13
13
14
15
RDR4330 (black) RDR4360 (black)
RDR4365 (blue)
RDR4390 (black)
RDR4395 (blue)
Programmable Keys
[P1] key, [P2] key, four direction keys, key, can be set as function or
menu shortcut keys by your RCA dealer. The default state of [P1] and [P2]
shortcuts are for high-low power switching. You only need to press the
corresponding shortcut key to quickly access the needed menu or function.
Function/Enter key
Receive/Call key
Back/Option key
Hangup key
Direction key
Function Keypad (RDR4360 / RDR4365 / RDR4390 / RDR4395 models)
Complete User Manual at: RCACommunicationsSystems.com

LED indicator and charging status in charger
LED Indication Charging Status
LED Flashes Red Slowly Standby (no load)
LED Glows Red Charging
LED Glows Orange 85% Charged
LED Glows Green Fully Charged
LED Flashes Red Rapidly Error
STATUS INDICATION IN RADIO (RDR4360 / RDR4365 / RDR4390 / RDR4395 models)
LCD Icon
Icon Name Icon Radio Status
Battery Strength Icons
Low battery power
More bars indicate more battery power
RSSI
No Signal
More bars indicate better signal strength
Message Icons
New message/unread message
Inbox is full
Operation Mode Icons
TMO mode
DMO mode
Analog mode
Power Icons
Transmit with lower power
Transmit with middle power
Transmit with high power
Profiles Icon
Silent mode
Ring
Vibrate
Custom
Audio Accessories Audio accessory has been connected
Call Status Icon On the phone
Group Selection Icon Select talk group
Encryption Icon Encryption ON
Encryption Icon Encryption OFF / Wrong Encryption Key
Radio LED indicator
LED Indication Radio Status
LED Glows Red Transmitting the call
LED Glows Green Receiving the call
LED Glows Red On Both Sides Phone Call
LED Flashes Red Slowly Low Battery Power
LED Flashes Green Slowly Channel is Idle
LED Glows Orange Channel is Busy
Battery indicator
Battery Usage Status Indicator Light Status
Power > 40% Battery indicator light is o
10% < Power < 40% Green light flash
Power < 10% Red light flash
No Power LED indicator light and battery indicator light o
Basic Operations
Turning on/o radio
Rotate the Radio On-O/Volume knob clockwise / counter-clockwise until a
click is heard to turn on/o the radio.
Adjust the volume
After turning the radio on, rotate the Radio On-O/Volume knob clockwise to
increase the volume or counter-clockwise to decrease the volume.
Selecting a channel
Locate the channel number on the Channel Knob rotate it to select the desired
channel. While rotating the knob, there is an automated channel number Voice
prompt.
Mode Switch
Through Channel Selector knob. Each channel of the radio can be set as
analog channel or digital channel by the dealer. The user can set them up
through CPS software.
Call
Group Call
Talk group can be set by the dealer in advance and the operation methods are
the same under DMO mode and TMO mode.
• Transmitting a group call
1. Select the desired talk group through Channel Knob.
2. Hold down [PTT] key to transmit a group call.
• Receiving and replying a group call
You can receive the group call without any key operation. If reply is needed,
please hold down [PTT] key after the speech of the other side and then
speak to microphone.
Care and Cleaning
To guarantee optimal performance as well as a long service life of your radio,
please follow the tips below.
Radio Care
Keep the radio far away from substances that can corrode the electronic
circuit.
Do not hold the radio by its antenna or headset cable directly to prevent
damage to its normal use.
Attach the accessory jack cover when the radio is not in use.
Radio Cleaning
Clean up the dust and fine particles on the radio surface and charging piece
with a clean and dry lint-free cloth or a brush regularly.
Use neutral cleanser and a non-woven fabric to clean the keys, control knobs
and front case after long-time use. Do not use chemical preparations such as
stain removers, alcohol, sprays or oil preparations, so as to avoid surface case
damage. Make sure that the radio is completely dry before use.
NOTE: Turn o the radio and remove the battery before cleaning.

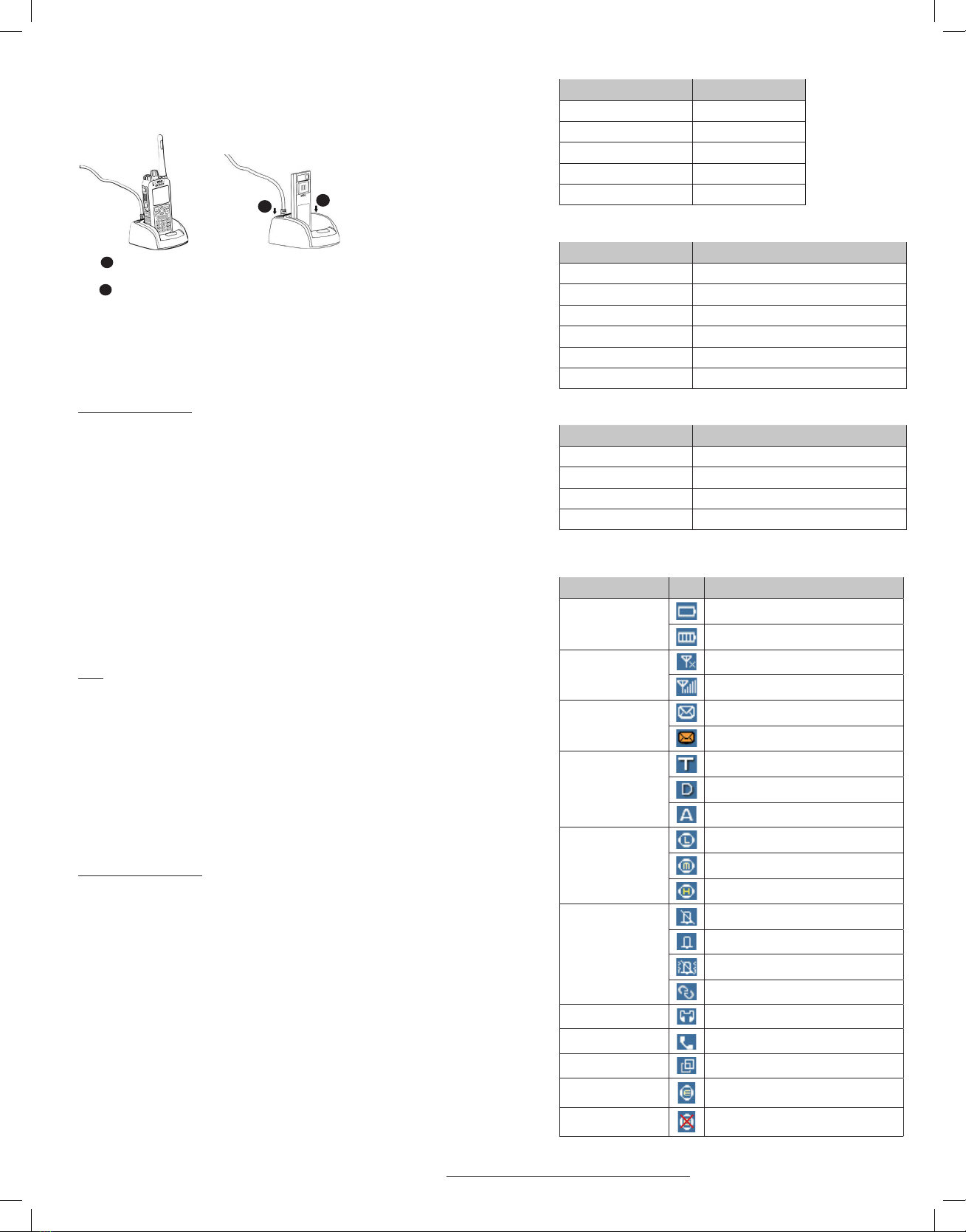

Charging the Battery
Charging Operation Steps
Use only the charger and battery specified by RCA Communications
Systems. Charger LED indicates the changing progress.
1. As shown, connect the power adapter to AC power
socket and the jack at the back of the charger.
2. As shown, insert battery or radio with battery in
the charger, and make sure there is good contact
between battery and charging terminals.
3. The charging process starts when LED glows red.
4. LED glows green to indicate that charging is complete.
NOTE: The standard 2000mAh battery charging normally
takes about 4 hours, for optimal battery performance. Initial
charging for new battery should take up to 5 hours.
2
1
2
1
