FOREWORD
Congratulation on your Power Box Rake purchase. For safe and long-lasting operation of this Power
Box Rake, it is necessary to read and to understand this user manual. It is impossible to work safely
with this machine without complete knowledge of the content of the user manual.
The Power Box Rake is not a machine that works independently. It is the user’s responsibility to use
the correct shovel or other towing vehicle. The user must also check the towing vehicle/Power Box
Rake combination on safety aspects such as noise level, user instructions and risk analysis.
The following pages deal initially with the general safety instructions. Every user should know these
safety instructions and apply them. At the end of this page, a registration card is inserted. This
registration card should be returned to enable us to deal with potential future claims.
All information and technical specifications provided at the moment that this document is published are
the most recent ones. Design specifications may be changed without prior notice.
This document is a translation of the original operating instructions.
Upon request, the original operating instructions are available in Dutch.
WARRANTY CONDITIONS
WITH DELIVERY THIS REDEXIM MACHINE IS GUARANTEED AGAINST MATERIAL DEFECTS.
THIS WARRANTY IS VALID FOR A PERIOD OF 12 MONTHS FROM THE PURCHASE DATE.
REDEXIM WARRANTIES ARE SUBJECT TO THE ‘GENERAL CONDITIONS FOR SUPPLY OF
PLANT AND MACHINERY FOR EXPORT, NUMBER 188’ THAT ARE PUBLISHED UNDER THE
AUSPICES OF THE UNITED NATIONS ECONOMIC COMMISSION FOR EUROPE.
REGISTRATION CARD
For your own information, fill in the table below:
Serial number of the machine
Dealer name
Date of purchase
Remarks

Redexim
4
TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS............................................................................... 5
1.1. Obligations of the user........................................................................... 5
1.2. Maintenance, repairs and adjustments.................................................. 6
1.3. Using the machine................................................................................. 6
2. TECHNICAL DATA ......................................................................................... 7
3. GENERAL DESCRIPTION.............................................................................. 7
4. SAFETY STICKERS........................................................................................ 8
5. FIRST INSTALLATION ................................................................................... 9
6. ATTACHING AND DETACHING THE MACHINE..........................................10
6.1. Attaching the machine......................................................................... 10
6.2. Detaching the machine........................................................................ 11
7. SAFETY WHEN USING THE POWER BOX RAKE.......................................11
8. PROCEDURES...............................................................................................11
8.1. Starting to cultivate.............................................................................. 12
8.2. Starting to cultivate.............................................................................. 13
8.3. Starting to cultivate.............................................................................. 14
9. TRANSPORT..................................................................................................15
10. MAINTENANCE .............................................................................................16
10.1. Tightening torques............................................................................... 16
10.2. Tightening torques............................................................................... 17
11. TROUBLE SHOOTING (PROBLEM ANALYSIS) ..........................................18
12. CHAIN TENSION............................................................................................19

Redexim
5
1. SAFETY INSTRUCTIONS
This machine is designed for safe use. This can only be achieved if you completely follow the safety
instructions described in this manual.
Read and understand the manual before you start using this machine.
If the machine is not used as described in this manual, this can result in injuries and/or damage to the
machine.
This user manual lists instructions that are numbered in sequence. You should follow this sequence. A
is an indication of a safety instruction. A means a tip and/or note.
1.1. Obligations of the user
Treating fields/lawns is the only purpose of the machine. Any other use is improper. The manufacturer
will not accept any liability for damage resulting from improper use. All risks occurring with this are
entirely at the expense of the user.
All persons assigned to operate, maintain and repair the machine by the owner must completely read
and understand the operation manual and in particular the chapter of Safety Instructions.
Modifications to the machine that have a negative impact on the safety must be rectified immediately.
The user is obliged to check the machine for visible damage and defects before using the machine.
For safety reasons it is not permitted to make changes or adjustments to the machine (except those
approved by the manufacturer). If modifications to the machine have been made, then the current CE
marking is cancelled. The person that has made these modifications has to apply for a new CE
marking himself.
Following the use, maintenance and repair instructions prescribed by the manufacturer is also
considered proper use of this machine.
The user is responsible for the safe combination of the machine and the towing vehicle, which comply
with the requirements as described in the Technical Data (see Chapter 2). This entire combination
should be tested for noise, safety, risk and user friendliness. User instructions should also be drafted.
Dress appropriately during work activities with the machine. Wear sturdy shoes with steel
toecaps, long trousers and tie up long hair. Do not wear loose clothing.
The general applicable health & safety (Dutch: ARBO) regulations must also be followed in addition to
the instructions in this user manual.
Relevant traffic regulations also apply in case of using public roads.

Redexim
6
1.2. Maintenance, repairs and adjustments
Keep a record of the repair activities.
When unskilled people use, maintain or repair the machine, this could result in injuries to the user and
to third parties. This should be avoided!
Use only original Redexim parts for maintenance or repairs because of the safety of the machine and
of the user.
Only authorised technical personnel may carry out repairs to the machine.
When carrying out maintenance, adjustments and repairs, it is necessary to block the machine in
order to prevent it from sinking away, driving off and/or sliding off.
If a hydraulic installation is present, you should always make it pressure-free before working on this
installation.
Used oil/grease is harmful to the environment. Dispose of these substances according to the
regulations that apply in your location.
1.3. Using the machine
Attach the machine to the towing vehicle according to the regulations. Pay close attention to the risk of
injury!
Never use the machine in the absence of protective guards and safety stickers.
Check the machine for loose bolts, nuts and components before every operation.
Check whether you have a clear field of vision –both close by and far away –before you start moving.
All persons that are going to operate the machine must be familiar with all the functions and control
elements of the machine before starting any work activities.
Never crawl under the machine! If necessary, tip over the machine to work at the bottom side.
If present, check the hydraulic hoses regularly and replace these when the hydraulic hoses are
damaged or appear old.

Redexim
7
2. TECHNICAL DATA
3. GENERAL DESCRIPTION
The Power Box Rake is designed to carry out various tasks, including cultivating, raking,
levelling and earth-moving.
A heavy rotor with special carbide teeth is mounted on it. The rotor is hydraulically propelled
and can rotate in both directions. The rotor can be adjusted to the left and to the right in order
to move rocks, etcetera to the side. The abridged operation of the various functions is:
-Cultivating
The rotor can be lowered into the ground and grind the soil. The side plates are used
to keep the soil in the machine, to sweep the waste in front of the machine and to
keep the treated soil clean.
-Raking
Rocks / stones can be raked to the side(s) by adjusting the working depth in such a
manner that the rotor teeth just touch the ground and by adjusting the rotor to the
side(s).
-Levelling
You can level the ground accurately by adjusting the machine in such a manner that
the rotor teeth touch the high points in the field and move the soil to lower lying parts
of the field.
Type
Power Box Rake 1500
Recomended voertuig
Minimum 30 Hp with a minimum lift capicity 610mm behind
lifting eyes of 425 Kg (935 lbs)
Working width
1.5 mtr (59”)
Working depth
50 - 100mm (2” –4”)
Drive speed
Maximum 12 Km/h (7.5 mph)
Tyre pressure
1-2 bar
Weight
365 kg (803 lbs)
Dimensions (LxBxH)
1.44 x 1.75 x 1.19 mtr
(56.9” x 68.8” x 46.6”)
3 point system
Cat. 1-2
Grease for bearings
EP 2
Standard components
-Fixing leg
-Adjustable side-screens
-Adjustable set of wheels
-Rotatable 3 point frame

Redexim
8
4. SAFETY STICKERS
Safety stickers are located on both sides of the machine. These safety stickers must always be clearly
visible and legible and must be replaced if they have become damaged.
933.280.402
-In case of maintenance, adjustments and repair, always
switch OFF the engine of the towing vehicle.
-Keep a distance of minimum 4 metres if the machine is
operating (except the operator).
900.280.402
-Prior to using the machine, the operators of the machine
must read the user manual carefully.

Redexim
9
5. FIRST INSTALLATION

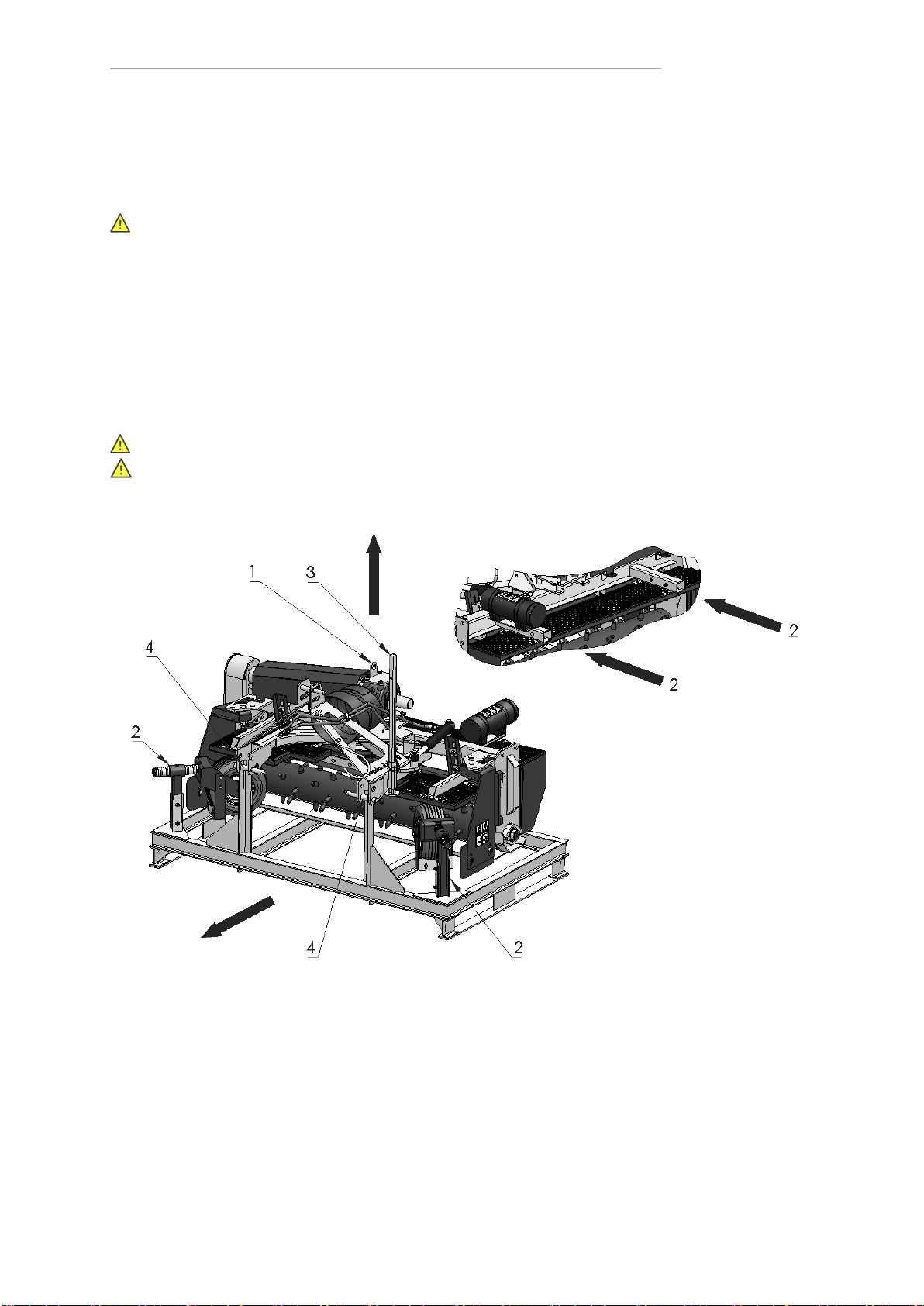

The machine should be prepared for use as follows (Figure 1):
1. Attach cables to the hoisting point (1).
Ensure that the crane and hoisting cable can handle at least the following weights:
POWER BOX RAKE 1500 650 kg (1430 lbs)
2. Remove the wheels (2) from the pallet and mount these at the back of the machine in
the square beams.
3. Lower the front leg (3) and secure this with the clip
4. Lift the machine including the pallet approx. 10 cm (4”) off the ground.
5. Loosen the pallet by removing the 3-point pins (4) at the bottom.
6. Pull the pallet from under the machine.
7. Carefully lower the machine until it stands safely on the ground.
!! KEEP A SAFE DISTANCE. THE MACHINE MAY START TO SLIDE DURING HOISTING !!
!! NEVER CRAWL UNDER THE MACHINE !!
Figure 1

Redexim
10
6. ATTACHING AND DETACHING THE MACHINE
Attaching and detaching the machine has to be done carefully. Follow the instructions below:
Figure 2
6.1. Attaching the machine
Prior to attaching the machine, check the following points:
-Check whether the machine is undamaged and whether it is safe to attach and use
the machine.
-Check for loose bolts and nut, if so tighten these.
-Check whether all safety stickers are on the machine and whether these are
undamaged and easily readable. Never use the machine if it has damaged or
unreadable stickers.
The machine should be attached to the tractor in the following manner:
1. Remove the 3-point pins (1) at the top from the machine (see Figure 2).
2. Carefully drive the tractor backwards until the lifting arms (2) can be attached to the
machine.
!! Make sure that the tractor and the machine cannot move while you are attaching
them !!
!! Switch off the tractor engine before attaching the machine !!
3. Attach the lifting arms (2) to the machine using the 3-point pins (3). Lock the pins
using the R-clips.
4. Set the stabilizer to a sideways stroke of 100 mm.
5. Mount the top rod (4) onto the tractor and attach it to the machine.

Redexim
11
6. Lift the machine above the ground and place the front leg in top position and secure
this with the R-clip.
7. Lower the machine to just above the ground and adjust the top rod in such a manner
that the machine is horizontal.
8. Connect the hydraulic hoses to the tractor.
!! Make sure that the 3-point pins are locked using the R-clips !!
9. Start the tractor and lift the machine off the ground.
6.2. Detaching the machine
The machine should be detached in the following manner (see Figure 2):
1. Drive to a place where the machine can be detached.
2. Place the front leg in the lower position, secure this with the R-clip and lower the machine carefully on
a flat horizontal floor ground.
3. Disconnect the hydraulic hoses.
!! Make sure that the machine and the tractor cannot move while you are detaching
them !!
!! Switch off the tractor engine before detaching the machine !!
4. Loosen the top rod (4) and remove it.
5. Loosen the lowest arms (2).
6. Start the tractor and drive off.
7. SAFETY WHEN USING THE POWER BOX RAKE
Before using the Power Box Rake, you should check the following:
1. Are there slopes? The maximum slope is 20 degrees for this machine. Always go from top to
bottom.
2. Are there hard objects in the ground? If so, use the Power Box Rake at adjusted speed.
3. Is there danger of flying objects (e.g., golf balls) that distract the attention of the driver? If so, the
Power Box Rake CANNOT be used.
4. Is there danger of sinking/sliding away? If so, postpone the treatment.
5. If the soil is frozen or very wet, postpone the activities until conditions improve.
6. Do NOT make sharp curves when the Power Box Rake touches the ground.
8. PROCEDURES
The start procedure is VERY important. Follow the described procedure precisely, because otherwise
the Power Box Rake can get damaged. The rotor can rotate in both directions. It is important to stop
the rotor before reversing the rotating direction. Changing the rotating direction too fast can damage
the hydraulic engine.
!! Redexim does not accept responsibility for damage to the hydraulic engine due to
operating errors by the operator !!

Redexim
12
8.1. Starting to cultivate
The Power Box Rake can cultivate soil effectively at a depth between 50-100mm.
1. Raise the guide plate by loosen the nuts (1) and tighten the nuts. Make sure that there is
minimum 50mm distance between the rotor and the rubber plate (X) (Figure 3).
Figure 3
2. Make sure that the rotor frame is perpendicular to the tractor (Figure 4).
3. Lower the machine until the rotor is just above the ground, but does not touch it.
4. Set the engine of the shovel to approx. 1,200 rpm and engage the rotor. Pay attention: the
rotating direction must be opposite to the driving direction!
5. Increase the number of revolutions of the engine to approx. 2,000 rpm. This ensures that the
number of revolutions of the rotor increases.
Figure 3

Redexim
13
6. Start moving the shovel and lower the Power Box Rake until it touches the ground. It is
essential to drive slowly (1-2 km/h). Soil and rocks will now accumulate in front of the rotor,
they will be forced over the rotor, and this will leave a level condition of the field behind the
machine.
7. To adjust the working depth, the wheels (2) can be put higher or lower by dividing the rings
differently (3). Set the number of rings in the same way for both the left and right wheel.
(Figure 3).
Stopping occurs as follows:
1. Reduce the speed and the number of revolutions of the engine.
2. Lift the machine off the ground.
3. Switch OFF the rotor.
8.2. Starting to cultivate
The Power Box Rake can move soil, rocks, rubble, etc. This can be done by using the machine to pull
the material forward.
1. Lower the guide plate by loosen the nuts (1) and thigten the nuts. Make sure that there is a
minimum distance (X) between the rotor and the rubber plate; make sure that the rubber plate
just does not touch the teeth (Figure 3).
2. Make sure that the rotor frame is perpendicular to the tractor (Figure 4).
3. Both side plates (2) must be placed in such a manner that they point straight forward. This can
be done by placing the locking pins (1) in the rear hole (Figure 5).
Figure 5
4. Make sure that the working depth is set so that the teeth of the rotor do not cut the soil. To
adjust the working depth, the wheels (2) can be put higher or lower by dividing the rings (3)
diffently. Set the number of ringsin the same way for both the left and right wheel (Figure 3).
5. Lower the machine until the rotor is just above the ground, but does not touch it.
6. Set the engine of the shovel to approx. 1,200 rpm and engage the rotor. Pay attention: the
rotating direction must be opposite to the driving direction!
7. Increase the number of revolutions of the engine to approx. 2,000 rpm. This ensures that the
number of revolutions of the rotor increases.

Redexim
14
8. Start moving the shovel and lower the Power Box Rake until it sinks into the ground. Rubble
and rocks will now accumulate at the front of the rotor and shifted forwards. The fine material
will be forces over the rotor and this will leave a level condition of the field behind the machine.
The high parts of the surface are levelled and the lower parts are filled with soil. The machine
pushes large pieces of rubble and rocks forward and by raising the machine slowly, these
pieces can be laid aside at the end of the surface that is treated.
Stopping occurs as follows:
1. Reduce the speed
2. Lift the machine off the ground.
3. Switch OFF the PTO.
8.3. Starting to cultivate
The Power Box Rake can move soil, rocks, rubble, etc. to the side of the surface that is treated. When
the surface to be treated is entirely raked, it is ready for further treatment e.g., sowing grass.
1. Lower the guide plate by loosen the nuts (1) and tighten the nuts. Make sure that there is a
minimum distance (X) between the rotor and the rubber plate; make sure that the rubber plate
just does not touch the teeth (Figure 3).
Figure 6
2. Rotate the rotor by operating the hydraulic cylinder (3) (Figure 6) so that the material is moved
to side.
When the material has to be moved to the right side, turn the rotor to the left and place side
plate (1) maximum turned to the outside (Figure 6). Fix the side plate by using the lock pin and
secure with the R-clip.

Redexim
15
When the material has to be moved to the left side, turn the rotor to the right and place side
plate (2) maximum turned to the outside (Figure 6). Fix the side plate by using the lock pin and
secure with the R-clip.
3. Make sure that the working depth is set so that the teeth of the rotor cut the soil at approx. 10-
15cm. To adjust the working depth, the wheels (2) can be put higher or lower by dividing the
ring differently. (3) (Figure 3).
4. Lower the machine until the rotor is just above the ground, but does not touch it.
5. Set the engine of the shovel to approx. 1,200 rpm and engage the rotor. Pay attention: the
rotating direction must be opposite to the driving direction!
6. Increase the number of revolutions of the engine to approx. 2,000 rpm. This ensures that the
number of revolutions of the rotor increases.
7. Check the treated surface. The surface should be level and without rubble or rocks.
8. To obtain a finer finish, it might be necessary to drive slower or to raise the Power Box Rake.
9. Pay attention that the machine always drives in the same direction. Do NOT drive back and
forth along the same track; otherwise the rocks and rubble are not moved to the side of the
surface.
You can do this by driving in ever-increasing circles.
Or, by starting in the centre of the field and driving back and forth along the already treated
strip, making sure that the machine can move the material outwards.
9. TRANSPORT
The user is responsible for transporting the Power Box Rake in back of the tractor on public roads.
Verify the national legislation regarding the regulations. On open fields while the machine is raised, the
maximum permitted speed is 20 km/h (12.4 mph) due to the weight of the POWER BOX RAKE. A
higher speed can be dangerous for the driver and/or the public and can even damage the machine.
!! When the machine is raised off the ground, the front axle of the tractor has to support
minimum 20% of the tractor’s weight !!

Redexim
16
10. MAINTENANCE
Time schedule
Check / Grease point
Method
Before every use
Check for loose bolts / nuts.
Tighten loose bolts / nuts
with the correct tightening
moment.
Attach the machine to the shovel
and operate the machine for 5
minutes.
Listen and observe any
strange movements /
sounds.
Presence and readability of the
safety stickers (Figure 4)
Replace these if not present
or damaged.
After every use
Clean the rotor.
Remove sand and dirt from
the rotor.
Grease points of the wheel
frame
Use EP2 grease –1 shot
After the first 20 working
hours (new or repaired)
Check for loose bolts / nuts.
Tighten loose bolts / nuts
with the correct tightening
moment.
Attach the machine to the shovel
and operate the machine for 5
minutes.
Listen and observe any
strange movements /
sounds.
After every 50 hours
Check the tension of the drive
chain.
If necessary, tighten the
chain (see Section 12).
Check whether the drive chains
are greased adequately.
Grease the drive chains.
Grease the rotation point of the
frame.
Use EP2 grease –1 shot
After every 100 hours
Top up the lubrication points
with grease.
Use EP2 grease –1 shot
Table 1
10.1. Tightening torques
Table: Tightening torques
8.8
10.9
N.m
N.m
M 6x1,0
11,3
16,5
M 8x1,25
27,3
40,1
M10x1,5
54
79
M12x1,75
93
137
M14x2,0
148
218
M16x2,0
230
338
M18x2,5
329
469
M20x2,5
464
661
M22x2,5
634
904
M24x3
798
1136

Redexim
17
10.2. Tightening torques

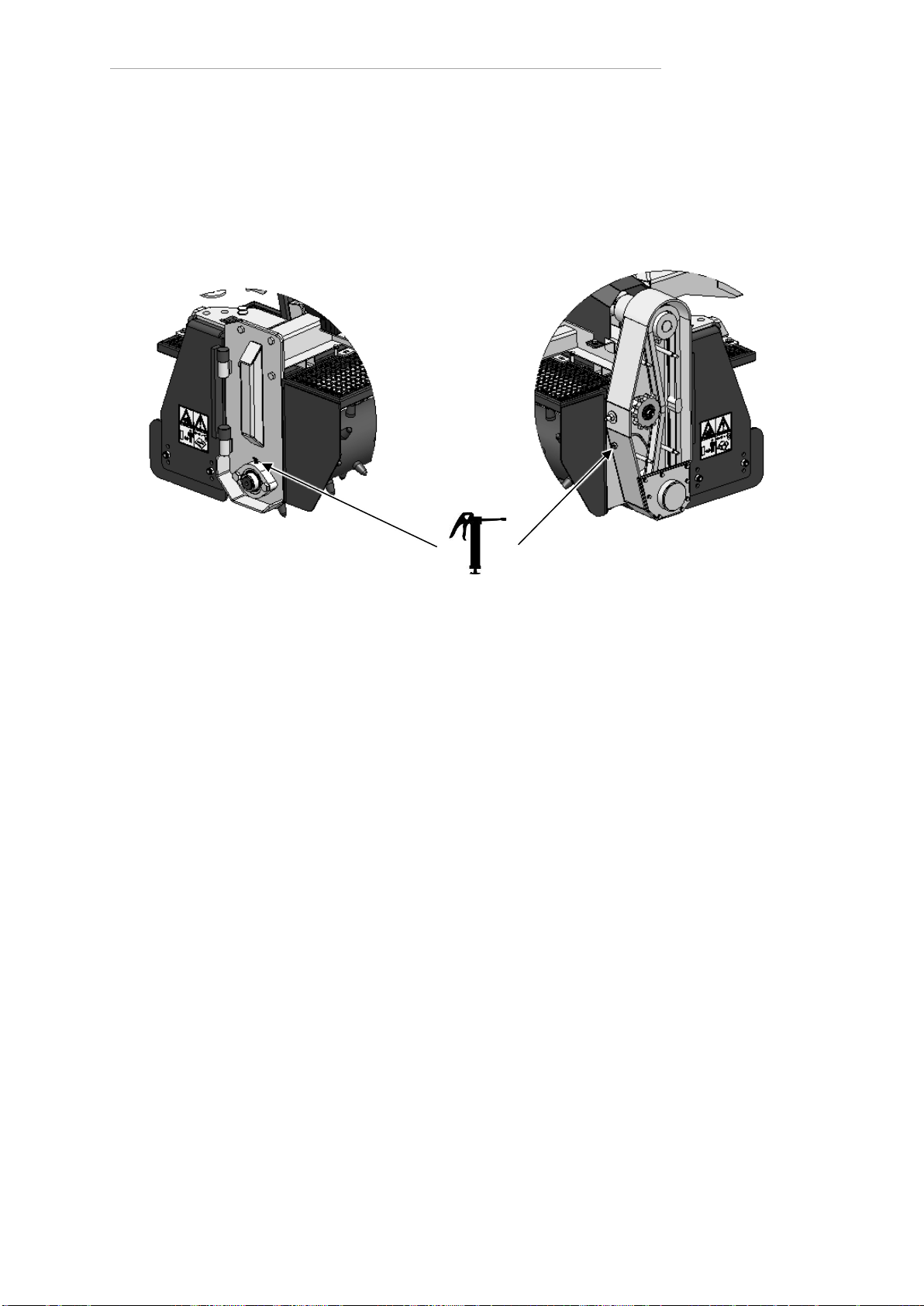

To ensure proper operation of the Power Box Rake, the grease points on both sides of the machine
(see Figure 7) must be greased periodically. Lubricate the points according to table 1.
Figure 7

Redexim
18
11. TROUBLE SHOOTING (PROBLEM ANALYSIS)
Problem
Possible cause
Solution
Too much damage to
the treated ground
−Rotor teeth are damaged.
−Not driving in a straight
line.
−Soil is too wet.
−Machine is adjusted too
deep.
−Mount new teeth.
−Try to drive in a straight line.
−Postpone the work until the
soil is sufficiently dry.
−Adjust the machine to less
depth.
Machine vibrates.
−Obstacle(s) between the
teeth
−Worn or broken teeth
−Rotor is bent.
−Remove the obstacle(s).
−Replace with new teeth.
−Replace the rotor.
Working depth is not
achieved.
−Rear wheels are not
adjusted correctly.
−Subsoil is too hard.
−Driving speed is too high.
−Adjust the rear wheels
correctly.
−Lower the driving speed or
pass over the soil more than
once.
−Reduce the driving speed.
Too small granulating
of the soil
−Driving speed is too low.
−Guide plate is too low.
−Number of revolutions is
too high.
−Increase the driving speed.
−Set the guide plate bar higher.
−Reduce the number of
revolutions.
Too coarse treatment of
the soil
−Driving speed is too high.
−Subsoil is too wet.
−Guide plate is too high.
−Number of revolutions is
too low.
−Reduce the driving speed.
−Wait for better conditions.
−Lower the guide plate.
−Increase the number of
revolutions.
Treated subsoil is not
level.
−Rear wheels are not
adjusted correctly.
−Set both rear wheels to the
same depth; use the indicator.
Rotor is jammed.
−Subsoil is too wet.
−Obstacle(s) between the
rotor and the frame
−Guide plate is too low.
−Driving speed is too high.
−Too much overgrowth
−Wait for better conditions.
−Remove the obstacle(s).
−Adjust the guide bar.
−Reduce the driving speed.
−Cut the overgrowth.

Redexim
19
12. CHAIN TENSION
The chain tension is important and should be checked regularly. It is also important to
regularly clean and lubricate the chain and sprocket wheel when necessary (Figure 8).
1. Remove the protective cover and rubber seeling flap.
!! Make sure that the tractor is blocked well and cannot move on its own
accord !!
!! Switch off the tractor before descending !!
!! Make sure that the Power Box Rake stands firmly on the ground and is
blocked against sliding before descending from the tractor !!
2. You should be able to push in the chain (1) between 5 mm (0.2”) and 10 mm (0.4”). If
this is not possible, you need to adjust the chain tension.
3. Loosen the nuts (2 + 3).
4. Rotate the nuts (2 + 3) until you reach the desired chain tension.
5. Retighten the nuts (2 + 3).
6. Place the rubber sealing flap and protective cover back on the machine.
Figure 8
