5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
5401TMSO Threading Machine
with Self-Oiler
OPERATOR’S MANUAL
REED MANUFACTURING COMPANY
1425 West 8th St. P.O. Box 1321, Erie, Pa 16512 USA Phone: [phone] or 814-452-3691 Fax: [phone] or 814-455-1697
www.reedmfgco.com
0419-55401
The electric-motor-driven REED 5401TMSO Threading Machine with
Self Oiler centers and chucks pipe and conduit and rotates it while
cutting, threading, and reaming operations are performed.
SAVE THESE
INSTRUCTIONS!
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED
INSIDE MAY RESULT IN ELECTRIC SHOCK, FIRE,
AND/OR SERIOUS PERSONAL INJURY.
• Covers 120V and 240V models.
• Includes Footswitch.
• Footswitch cord is 5’ 6” (1676 mm) long.
The 120V models
are approved to the
latest United States
and CSA Canadian
standards.

2
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
TABLE OF CONTENTS
General Safety Information.......................................................................................3
Work Area Safety .....................................................................................................3
Electrical Safety ......................................................................................................3
Personal Safety .......................................................................................................3
Tool Use and Care ....................................................................................................4
Service ................................................................................................................4
Specic Safety Information ...........................................................................................4
Foot Switch Safety ..................................................................................................4
Threading Machine Safety .......................................................................................5
Machine Maintenance ................................................................................................5
Description, Specications, and Accessories ..............................................................5
Description ....................................................................................................5
Specications ...................................................................................................5
Accessories ...................................................................................................5
Operation Using Threading Machine Mounted Tools ............................................6

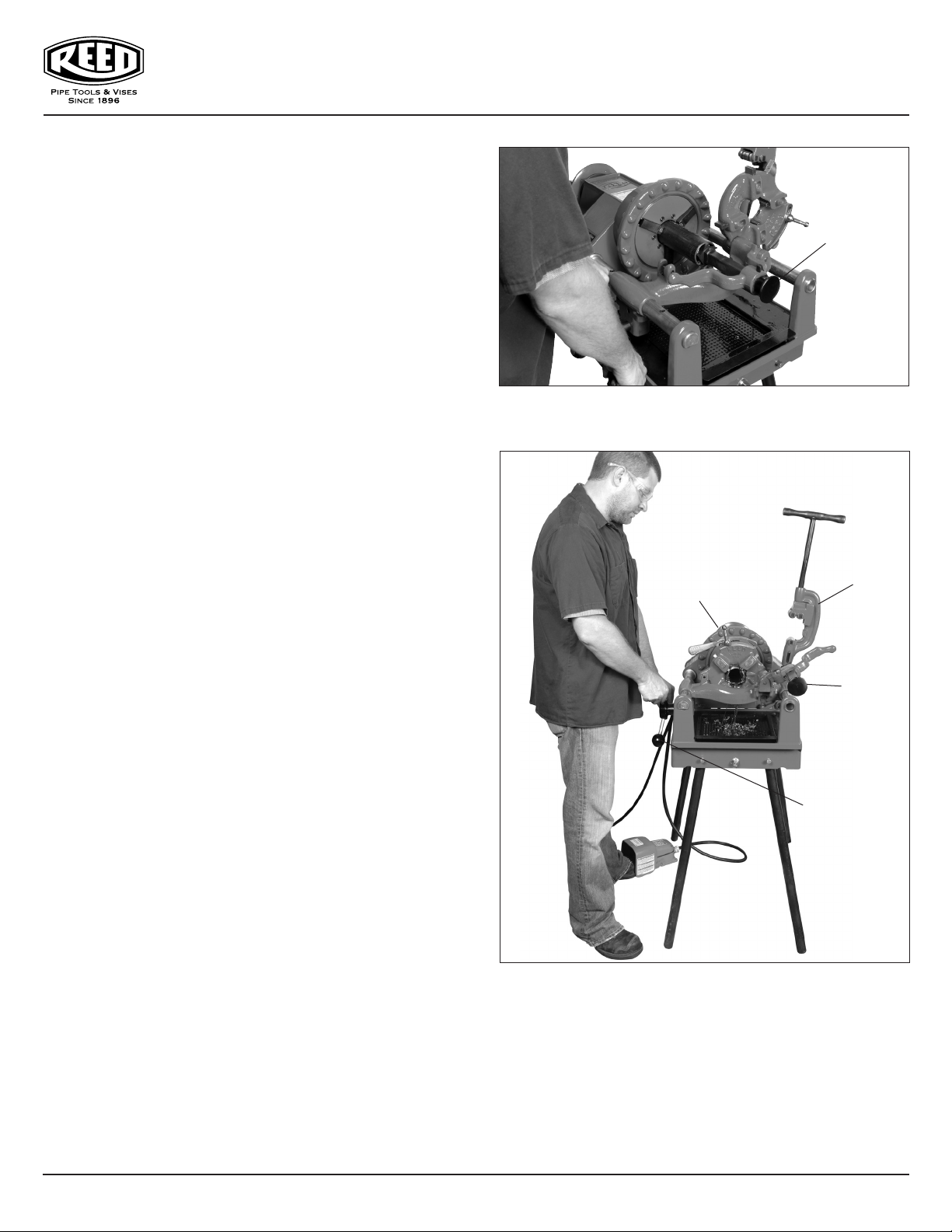

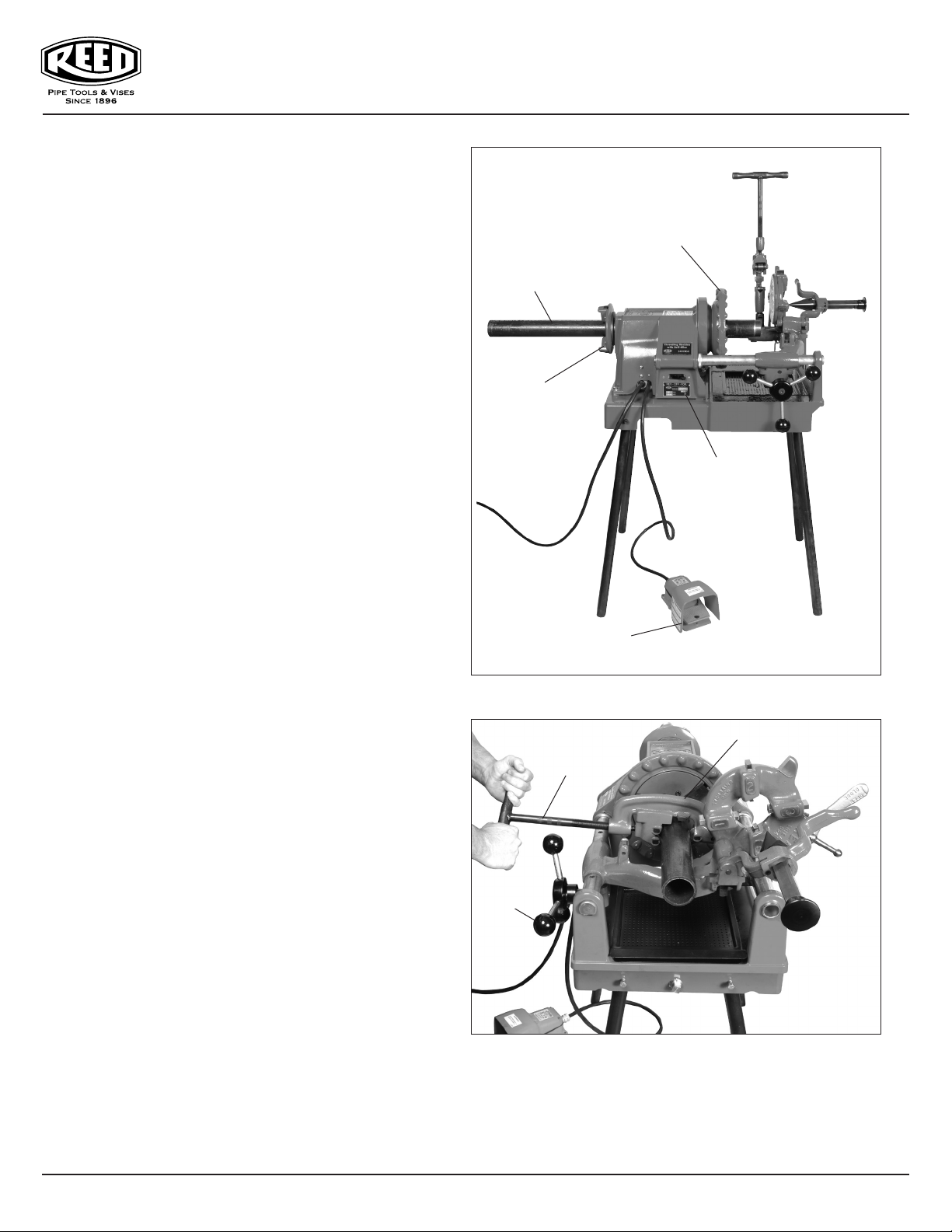

Installing Pipe in Threading Machine.....................................................................6
Cutting Pipe with 05366 Cutter ..................................................................................6
Reaming Pipe with 05308 Reamer ............................................................................7
Threading Pipe with R811 Die Head ..........................................................................7
Installing Dies in R811 Universal Die Head ...........................................................8
Maintenance Instructions............................................................................................8
Jaw Insert Replacement ...............................................................................................8
Lubrication ..............................................................................................................8
Motor Brush Replacement ...........................................................................................8
Motor Replacement ...................................................................................................8
Self-Oiling System ....................................................................................9
Procedure for Installing the Legs ..........................................................................9
Parts Diagrams ..................................................................................................10

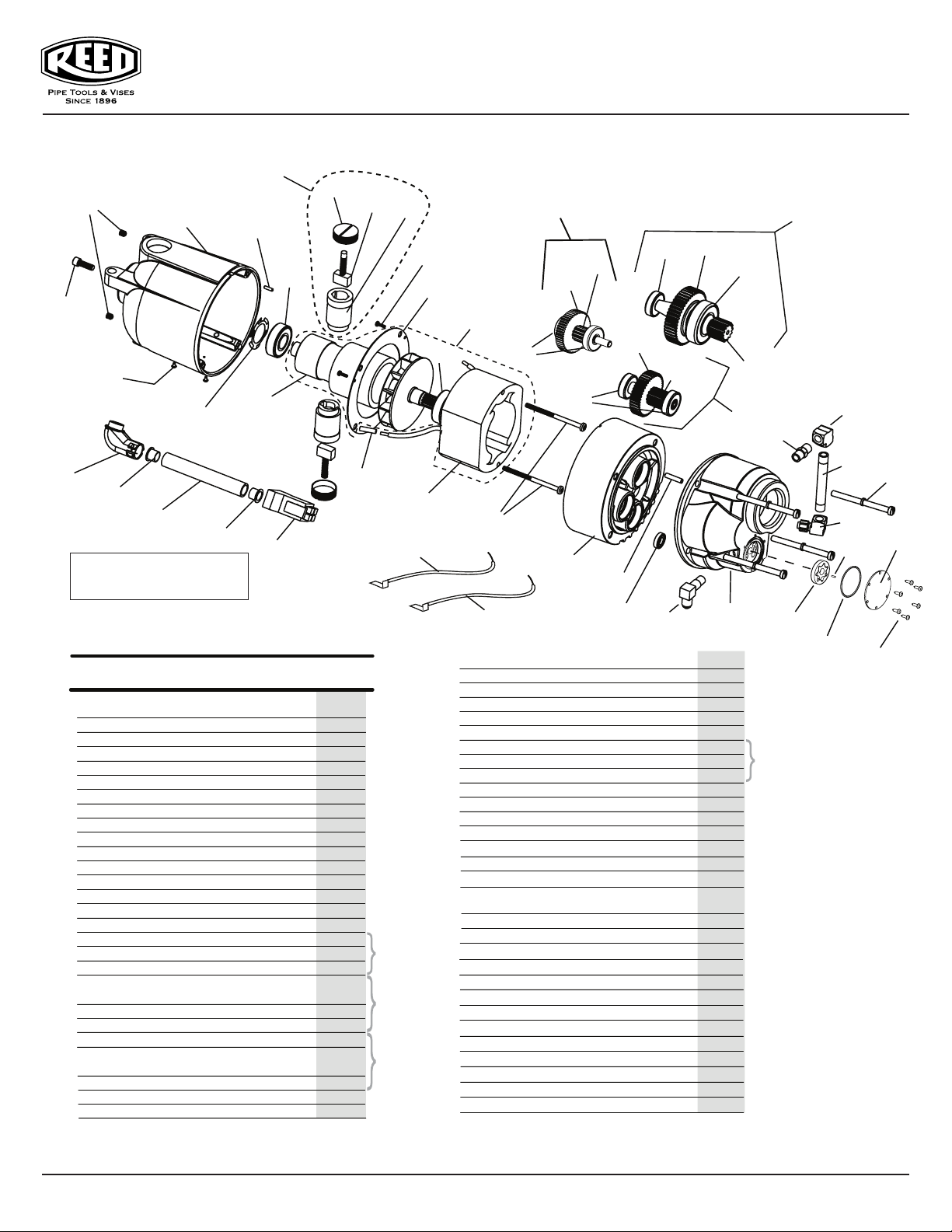

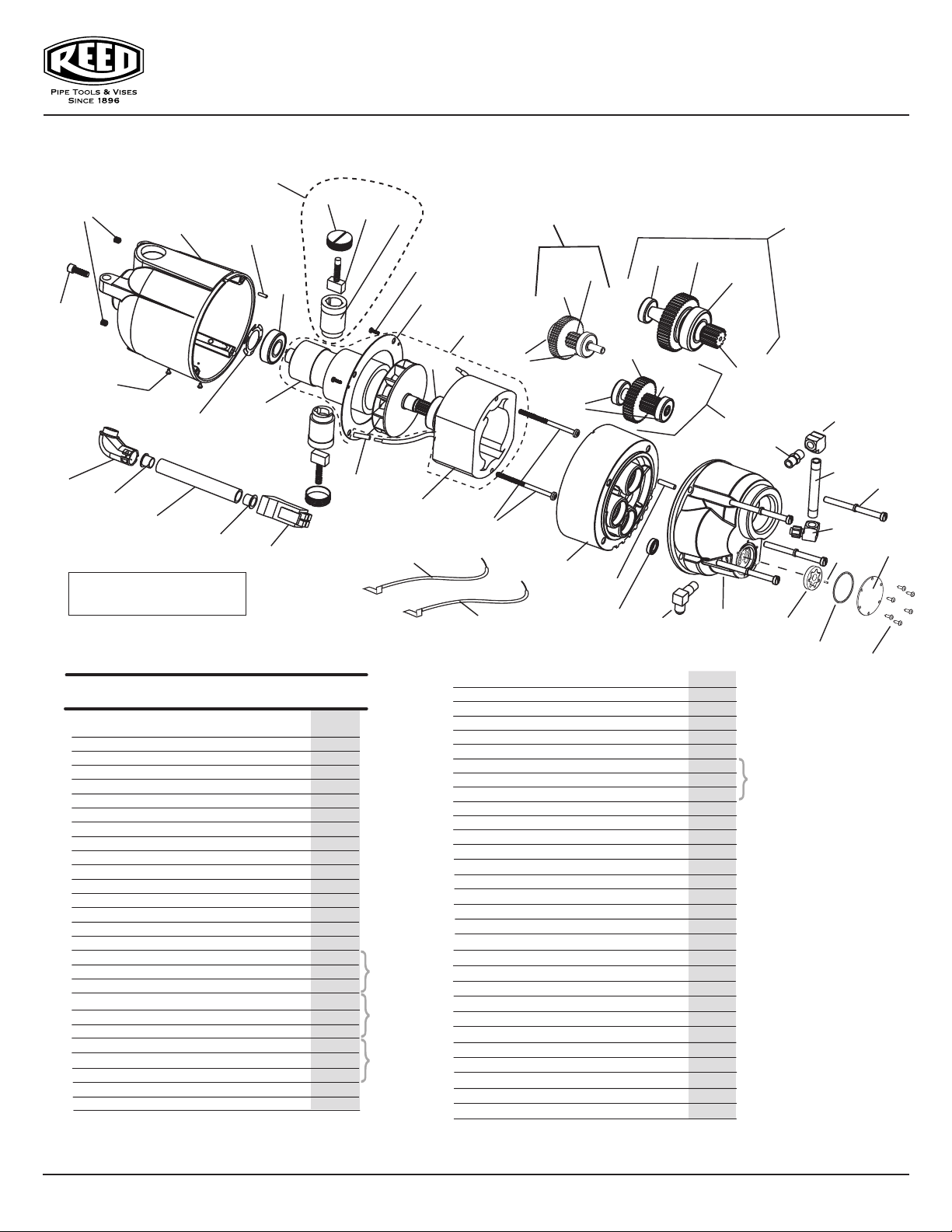

5401TMSO (120V and 240V) Threading Machine ..............................................10
5401TMSO Threading Machine Base ......................................................................11
5401TMSO (120V) Motor Assembly .....................................................................12
5401TMSO (240V) Motor Assembly .....................................................................13
5401TMSO Carriage With Handwheel ...............................................................14

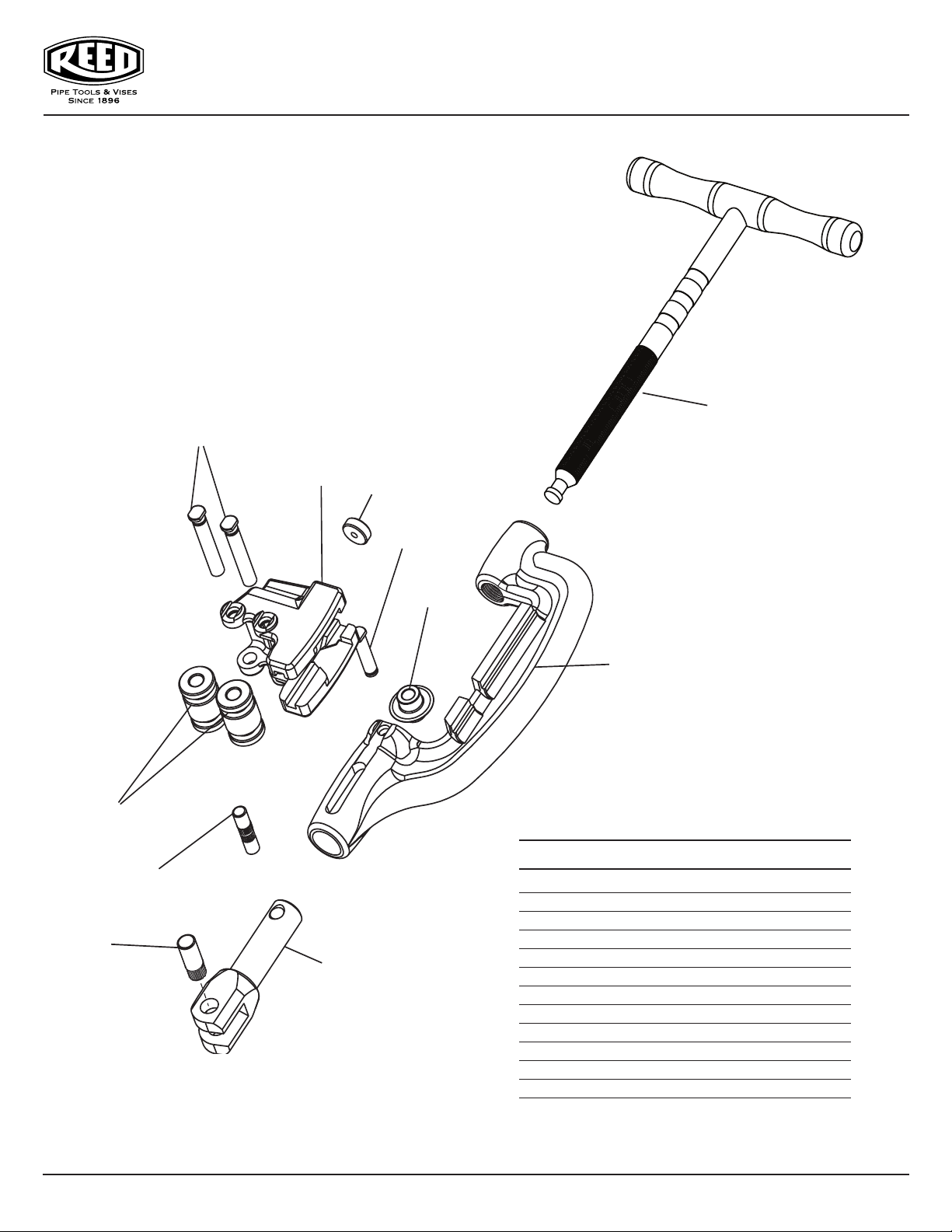

5401TMSO Pipe Cutter ..........................................................................................15

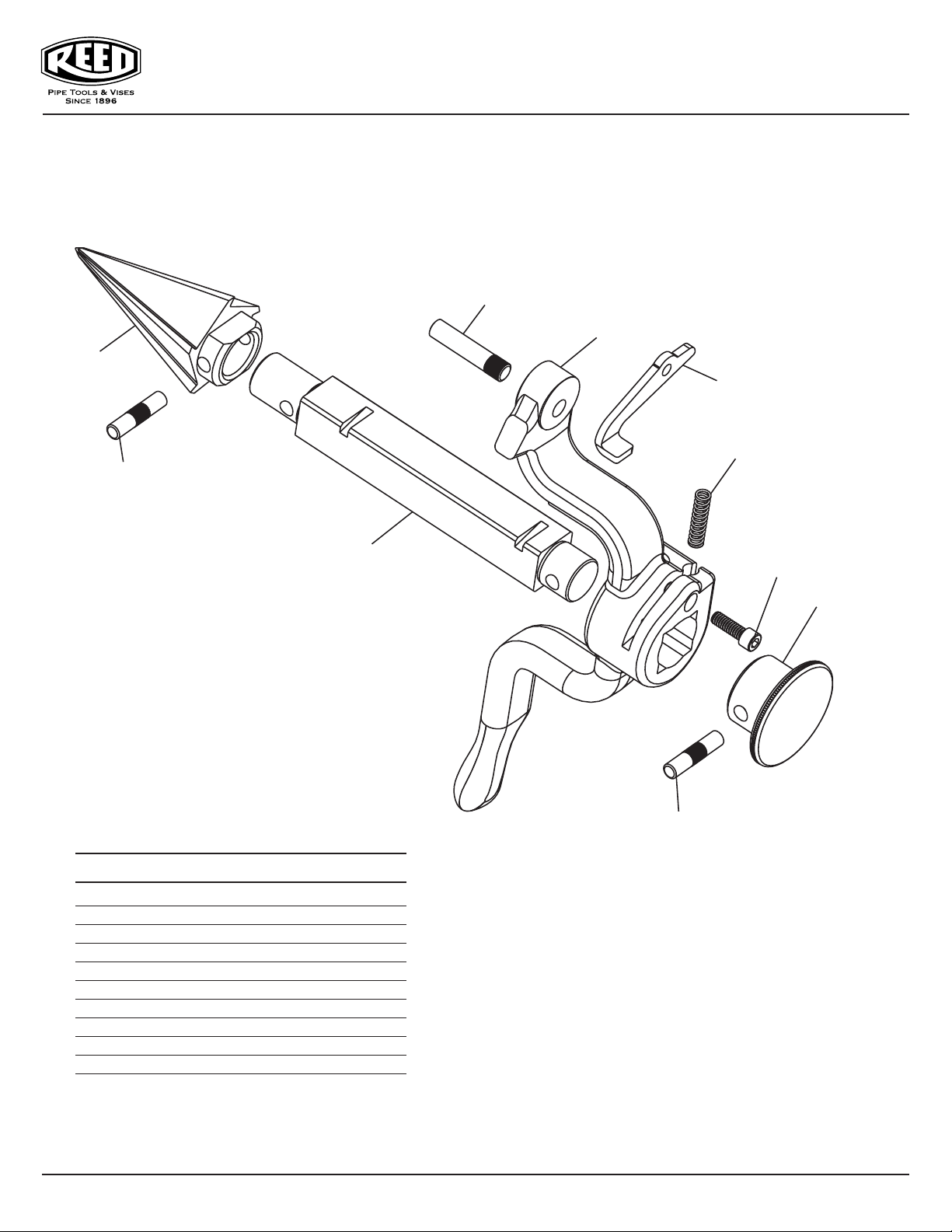

5401TMSO Reamer ................................................................................................16
5401TMSO (120V) Electrical Assembly...............................................................17

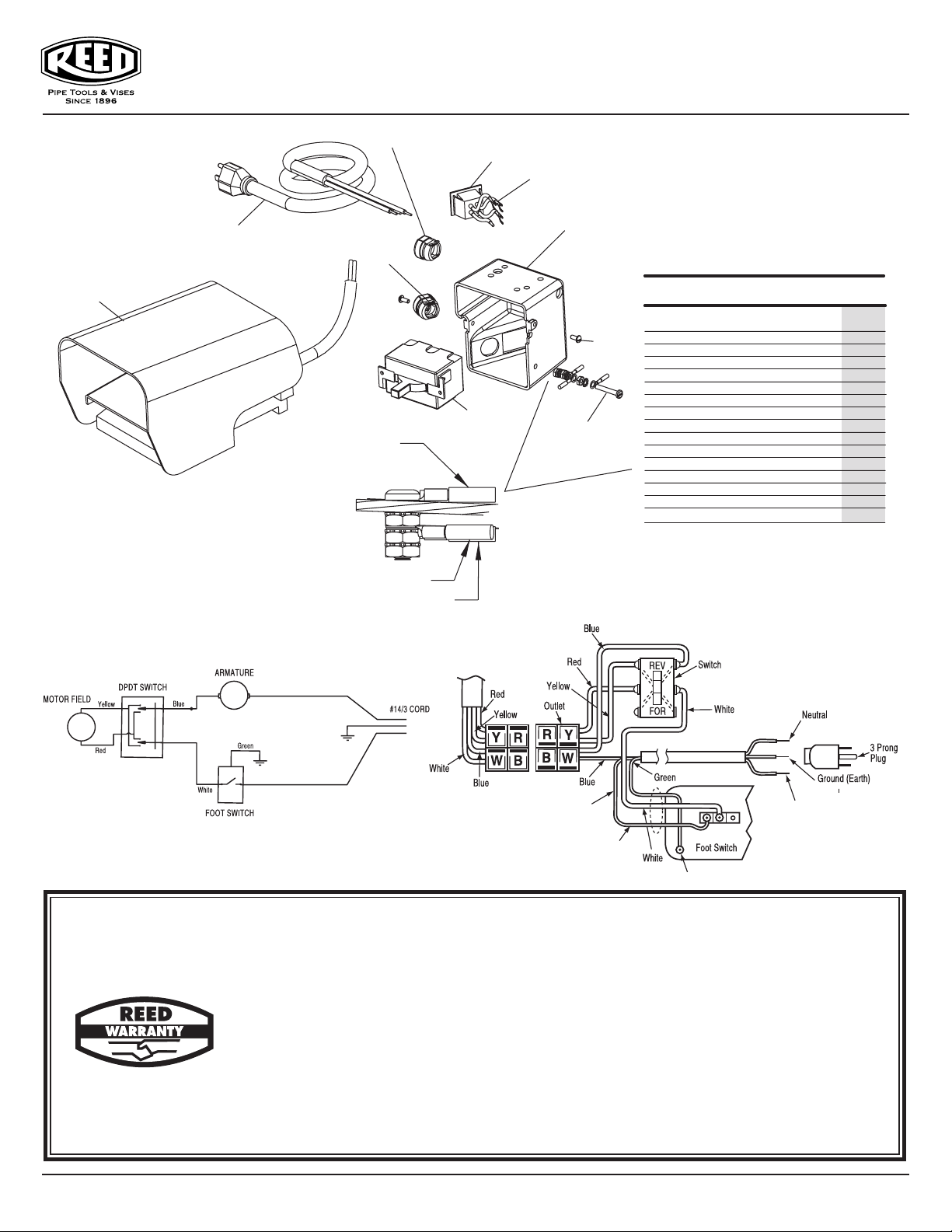

5401TMSO (120V) Wiring Schematic and Wiring Diagram .....................................17
5401TMSO (240V) Electrical Assembly...............................................................18
5401TMSO (240V) Wiring Schematic and Wiring Diagram .................................18
REED Warranty ....................................................................................................18

3
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
6. Connect the tool to an AC power supply that
matches the name plate specication. Incorrect voltage
supply can cause electrical shock or burns.
7. Use only three-wire extension cords which have
three-prong grounding plugs and three-pole receptacle
which accept the tool’s plug. Use of other extension
cords will not ground the tool and increase the risk of
electrical shock.
8. Use proper extension cords (see Chart). Insufcient
conductor size will cause excessive overheating.
9. Keep all extension cord connections dry and off
the ground. Do not touch plugs or tool with wet
hands. Reduces the risk of electrical shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a tool. Do not use tool
while tired or under the inuence of drugs, alcohol, or
medications. A moment of inattention while operating
power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jew-
elry. Contain long hair. Keep hair, clothing, and
gloves away from moving parts. Loose clothes, jewelry,
or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is OFF
before plugging in. Carrying tools with your nger on
the switch or plugging in tools that have the switch on
invites accidents.
4. Do not overreach. Keep proper footing and balance at
all times. Proper footing and balance enables better
control of the tool in unexpected situations.
5. Use safety equipment. Always
wear eye protection. Dust mask,
non-skid safety shoes, hard hat,
or hearing protection must be
used for appropriate conditions.
6. Operate machine from side with REV/OFF/FOR
switch.
GENERAL SAFETY INFORMATION
WARNING: READ AND UNDERSTAND ALL INSTRUC-
TIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS
LISTED MAY RESULT IN ELECTRIC SHOCK, FIRE, AND/
OR SERIOUS PERSONAL INJURY.
SAVE THESE INSTRUCTIONS!
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered benches
and dark areas invite accidents.
2. Do not operate tools in explosive atmospheres,
such as in the presence of ammable liquids, gases,
or dust. Tools create sparks which may ignite the dust
or fumes.
3. Keep by-standers, children, and visitors away while
operating a tool. Distractions can cause you to lose
control.
4. Do not let visitors contact the tool or extension cord.
Such preventative measures reduce the risk of injury.
ELECTRICAL SAFETY
1. Grounded tools must be plugged into an outlet,
properly installed and grounded in accordance
with all codes and ordinances. Never remove the
grounding plug or modify the plug in any way. Do not
use adapter plugs. Check with a qualied electrician
if you are in doubt as to whether the outlet is properly
grounded. If the tool should electrically malfunction
or break down, grounding provides a low resistance
path to carry electricity away from the user.
2. Avoid body contact with grounded surfaces such
as pipes, radiators, ranges and refrigerators. There
is an increased risk of electrical shock if your body
is grounded.
3. Do not expose electrical parts to rain or wet condi-
tions. Water entering a tool will increase the risk of
electrical shock.
4. Do not abuse cord. Never use the cord to carry the
tools or pull the plug from the outlet. Keep cord away
from heat, oil, sharp edges or moving parts. Replace
damaged cords immediately. Damaged cords increase
the risk of electrical shock.
5. When operating a tool outside, use an outdoor
extension cord marked “W-A” Or “W”. These cords are
rated for outdoor use and reduce the risk of electrical
shock.
Minimum Wire Gauge for Cord Set
Nameplate TOTAL LENGTH (IN FEET)
Amps 0 - 25 26 - 50 51 - 100
0 - 6 18 AWG 16 AWG 16 AWG
6 -10 18 AWG 16 AWG 14 AWG
10 - 12 16 AWG 16 AWG 14 AWG
12 - 16 14 AWG 12 AWG NOT
RECOMMENDED

4
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
TOOL USE AND CARE
1. Use clamp or other practical way to secure and
support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable
and may lead to loss of control.
2. Do not force tool. Use the correct tool for your
application. The correct tool will do the job better and
safer at the rate for which it is designed.
3. Do not use tool if switch does not turn it ON or OFF.
Any tool that cannot be controlled with the switch is
dangerous and must be repaired.
4. Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing the tool. Such preventive safety measures
reduce the risk of starting the tool accidentally.
5. Store idle tools out of the reach of children and
other untrained persons. Tools are dangerous in the
hands of untrained users.
6. Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp cutting
edges are less likely to bind and are easier to control.
7. Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by
poorly maintained tools.
8. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool may become hazardous when
used on another tool.
9. Inspect tool and extension cords periodically and
replace if damaged. Damaged cords increase the risk
of electrical shock.
10. Keep handles dry and clean; free from oil and
grease. Allows for better control of the tool.
11. Store tools in dry place. Such measures reduce risk
of electrical shock.
SERVICE
1. Tool service must be performed only by qualied
repair personnel. Service or maintenance performed
by unqualied repair personnel could result in injury.
2. When servicing a tool, use only identical replace-
ment parts. Follow instructions in the Maintenance
section of this manual. Use of unauthorized parts
or failure to follow maintenance instructions may create
a risk of electrical shock or injury.
3. Follow instructions for lubricating and changing
accessories. Accidents are caused by poorly
maintained tools.
SPECIFIC SAFETY INFORMATION
The Operator’s Manual contains specic safety information
and instructions for your protection against serious injuries
including:
• Loss of ngers, hands, arms or other body parts if
clothing or gloves get caught in moving parts;
• Electric shock or burns from contact with wires, motor
or other power drive parts:
• Impact injuries, including broken bones if machine tips
over or workpiece falls;
• Eye injuries, including being blinded by the workpiece
or workpiece chips.
• Read and follow safety labels on machine.
• Know the location and functions of all controls before
using.
FOOT SWITCH SAFETY
The foot switch increases safety. The switch shuts off the
motor upon removing your foot. Clothing caught in a rotating
tool can pull the operator into the machine. Additionally, the
machine’s high torque could crush or break bones should
caught or trapped clothing bind around your arm or other
body parts.
CLOTHING/GLOVES CAN BE CAUGHT IN MOVING PARTS.
FINGERS, HANDS, ARMS OR OTHER BODY PARTS CAN
BE CRUSHED OR BROKEN.
• Make sure switch is in the OFF position before plugging in
power cord.
• Use foot switch.
• Do not wear gloves.
• Keep sleeves and jacket buttoned.
• Do not reach across machine. Clothing can be drawn
into moving parts.
• Operate machine from switch side only.
• Do not block or disconnect foot switch.
• Keep foot switch in working order.
• Make sure you can quickly remove your foot from foot switch.
• Keep hands away from rotating pipe and ttings. Stop
machine when screwing ttings on pipe or wiping threads.
WARNING

5
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
THREADING MACHINE SAFETY
1. Machine is made to thread and cut pipe or bolt.
Follow instructions in Operator’s Manual on machine uses.
Do not use threading machine for other jobs including hole
drilling, winch turning, and making/breaking ttings. Other
uses may increase the risk of injury.
2. Secure machine to bench or stand. This prevents
tipping.
3. Support long heavy pipe with pipe supports. This pre-
vents tipping.
4. Do not wear gloves or loose clothing. Keep sleeves
and jackets buttoned. If clothing should become caught
in the machine, it will continue to wind up, pulling you into
the machine and possibly resulting in serious injury.
5. Do not reach across the machine or pipe. Operating
the machine from the side with rev/off/for switch elimi-
nates reaching across.
6. Do not use machine if foot switch is broken or absent.
The foot switch works as a safety device in preventing
serious injury.
7. Tighten chuck handwheel and engage rear centering
device on the pipe before starting the machine.
8. Keep hands away from rotating pipe and ttings. Let
the machine stop completely before touching the work.
Wipe threads and attach ttings only after the machine stops.
9. Keep covers in place. Exposed moving parts may offer a
chance for clothing or body parts to become caught in
the machinery.
MACHINE MAINTENANCE
1. Use sharp cutting tools.
2. Grease front and rear bearings every 8 hours of use.
3. Inspect machine cord. Replace damaged, frayed, bro-
ken or worn machine cord.
4. Inspect extension cords. Repair or replace damaged,
frayed, broken or worn cords.
5. Keep handles dry and clean. Keep free from oil and
grease.
6. When not being used, store machine in a secured,
locked area, out of reach of children and people
unfamiliar with the threading machine.
7. Keep foot switch in working order.
DESCRIPTION, SPECIFICATIONS
AND ACCESSORIES
DESCRIPTION
The REED 5401TMSO Threading Machine with Self-Oiler
is an electric-motor-driven threading machine which centers
and chucks pipe and conduit and rotates it while cutting,
threading, and reaming operations are performed.
SPECIFICATIONS
T hreading Capacity:
Pipe .................................. 1/8” through 2”
Bolt ................................... 1/4” through 2”
Chuck:............................. Chuck with replaceable jaw inserts.
Rear Centering Device:.. Cam action rotates with chuck
Support Bar (2):.............. Heavy-duty
Switch (REV/OFF/FOR).. Heavy-duty, bump-proof and
reversible
Motor: Universal Type
Horsepower...................... 1/2HP
Volts.................................. 120 VAC single phase 50/60 Hz
240 VAC single phase 50/60 Hz
Spindle Speed:.................. 38 RPM
Oil Pump:......................... Self Priming Gerotor Pump
Foot Switch (ON/OFF):... Oil and water tight
5401TMSO Weight: ......... 175 lbs. (79.4 Kg)
Accessories/Related Products
05380 R811 Universal Die Head
UNIVERSAL DIES
05810 1 - 2” NPT ALLOY
05805 1/2 - 3/4” NPT ALLOY
05870 1 - 2” BSPT HSS
05865 1/2 - 3/4” BSPT HSS
05820 1 - 2” NPT HSS
05815 1/2 - 3/4” NPT HSS
05830 1 - 2” NPT HSS for Stainless
05825 1/2 - 3/4” NPT HSS for Stainless

6
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
OPERATION USING
THREADING MACHINE MOUNTED
TOOLS
WARNING:
OPERATOR SHOULD BE THOROUGHLY FAMILIAR
WITH SAFETY PRECAUTIONS BEFORE ATTEMPTING
TO OPERATE THIS EQUIPMENT.
CORRECT OPERATING POSITION FOR CUTTING,
THREADING AND REAMING IS TO STAND ON THE
SWITCH SIDE OF THE THREADING MACHINE WITH
LEFT FOOT OPERATING FOOT SWITCH.
Installing Pipe in Threading Machine
1. Measure and mark length of pipe being worked.
2. If pipe is long enough to be retained by centering
device, insert pipe through front or rear of machine. If
pipe is short, insert into front of machine.
3. Make certain that pipe is centered in centering device,
if used, and lightly tighten centering device.
4. Tighten CHUCK JAWS with a repetitive, counter-clock
wise snap spin of HANDWHEEL. This hammering ac-
tion tightens jaws on pipe. A clockwise rotation snap
spin releases jaws.
Cutting Pipe with 05366 Cutter
1. Swing reamer and threader back to out-of-way position.
2. Move pipe cutter down onto pipe and move carriage
with carriage handwheel to line up cutter wheel with
mark on pipe (Figure 2).
3. Tighten cutter feed screw handle on pipe.
4. Turn rev/off/for switch to for (reverse) position and
step on foot switch to operate the machine (Figure 1).
Note: Cutting pipe may be done with switch in forward
position but oil will continue to pump, which may be
undesireable.
5. Continuously turn cutter feed screw handle with both
hands until pipe is cut off.
6. Release foot switch and turn rev/off/for switch to OFF
position.
7. Return pipe cutter to out-of-way position.
Centering
Head
Chuck Jaw
Handwheel
Foot
Switch
REV/OFF/FOR
Switch
Pipe
Figure 1 5401TMSO Threading machine with Self Oiler
Figure 2 - Cutting pipe with cutter
Carriage
Handwheel
Feed Screw
Handle
Cutter

7
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
Reaming Pipe with 05308 Reamer
1. Swing die head and cutter back to out-of-the-way
position (Figure 3).
2. Move reamer arm down into reaming position.
3. Extend reamer by pressing latch and sliding knob
toward pipe until latch engages bar.
4. Turn rev/off/for switch to FOR and press the foot
switch to complete reaming by using the carriage
handwheel.
5. Retract reamer bar and return reamer to out-of-way
position.
6. Release foot switch and turn rev/off/for switch
to OFF position.
7. Release speed chuck handwheel and centering head
from pipe.
8. Remove pipe.
Threading Pipe with the R811 Die Head
1. Install die set. Refer to INSTALLING DIES (page 8)
procedure.
2. Swing cutter and reamer to out-of-way position
(Figure 4).
3. Lower die head into threading position.
4. Turn rev/off/for switch to FOR position and step
on foot switch.
5. Engage dies with pipe using carriage handwheel,
keeping slight pressure until the dies have started
engagenent.
6. When thread is complete, raise throwout lever to open
position, retracting the dies on the R811 Universal
Die Head.
7. Release foot switch and turn rev/off/for switch to
OFF position.
8. Move carriage away from pipe end using carriage
handwheel and return die head to up and out-of-way
position.
Reamer
in position
Figure 3
Figure 4 - Threading Pipe with Quick or self-opening die head
Die
Head Cutter
Carriage
Handwheel
Reamer

8
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
Figure 5
MAINTENANCE INSTRUCTIONS
WARNING: ALWAYS UNPLUG POWER CORD BEFORE
SERVICING THREADING MACHINE
Jaw Insert Replacement
IMPORTANT: WHEN TEETH ON JAW INSERTS BECOME
WORN AND FAIL TO HOLD PIPE OR ROD DURING OP-
ERATION, REPLACE ENTIRE SET OF JAW INSERTS.
CLEAN TEETH OF JAW INSERTS DAILY WITH WIRE
BRUSH.
1. Place screw driver in insert slot and turn 90 degrees in
either direction (Figure 5).
2. Place insert sideways on locking pin and press down
as far as possible.
3. Hold insert down rmly with screwdriver, turn teeth
face up.
Lubrication
Proper lubrication is essential to trouble-free operation and
long life of power drive.
Grease main shaft bearing (#95414, #95415) every 2 to 6
months depending on amount of power drive use. Grease
ttings are provided on side base, one at each end of shaft.
Use a good grade of cup grease.
Motor Brush Assembly
Check motor brushes (#95458) every 6 months and replace
when worn to less than 1/2 inch. If commutator (#95420) is
worn, turn outer dimension of commutator and undercut mica
before replacing brushes.
Motor Replacement
WARNING: ALWAYS UNPLUG POWER CORD BEFORE
SERVICING THREADING MACHINE.
1. Remove the Hose Assembly 45376 from the Bulkhead
Union 45377 (using 2 wrenches so that the Bulkhead
Union is kept from rotating).
2. Remove the Poly Tubing 95380 from the 90 deg elbow
45372.
3. Loosen the set screw on each of the Retaining Ring
Assemblies 95880 and slide both support bars out of
the front supports on the Oiler Base 95395.
4. Remove the Carriage from the Support Bars to reduce
weight and ease handling.
5. Separate the Threading Machine from the Threading
Machine base by removing nut 39032 and bolt 30097.
CAUTION must be taken on this step so that no harm
or damage is done.
Installing Dies in the R811 Universal
Die Head
The Universal Die Head requires one set of 4 Universal Dies
to thread pipe ranging from 1/8" thru 2". One set of dies is
required for each of the following pipe size ranges:
1/8"
1/4" and 3/8"
1/2" and 3/4"
1" through 2"
NOTE: BOLT THREADING REQUIRES A SEPARATE
SET OF DIES FOR EACH BOLT SIZE.
1. Lay die head on bench with numbers face up.
2. Flip throwout lever to OPEN position.
3. Loosen clamp lever approximately three turns.
4. Lift tongue of clamp lever washer up out of slot under
size bar. Slide throwout lever all the way to end of slot
in the OVER direction indicated on size bar.
5. Remove dies from die head.
6. Die numbers 1 through 4 must agree with those on die
head.
7. Insert dies to mark on side of die head.
8. Slide throwout lever back so that tongue of clamp lever
washer will drop in slot under size bar.
9. Adjust die head size bar until index line on lock screw
or link is aligned with proper size mark on size bar.
10. Tighten clamp lever. For bolt threads, align index line
with bolt line on size bar.
11. If oversize or undersize threads are required, set the
index line in direction of OVER or UNDER size mark on
size bar.

9
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
INSTALLING THE LEGS ONTO THE
5401TMSO
Insert each of the 4 legs into the leg pocket on the bottom
of the 5401TMSO. After inserting each leg, snug the bolt to
secure the leg in place. (Figure 6)
6. Lay the Threading Machine on its side so that the
motor is accessible and the plumbing on the
underneath side is not bent or damaged.
7. Unplug the motor plug 95454 from the switch box.
8. Remove 2 screws 35411 holding the motor.
9. Loosen lock screw 35403 in body at neck of the motor
and lift motor out.
Self Oiling System
The pump is a self priming gerotor pump.
Fill the oil reservoir with enough oil to maintain the level
above the oil lter. If the lter is not covered with oil the
pump will suck air causing a loss or stop in oil ow.
Tip - On occasion, the oil system may not pump or will
pump with less ow than normal. This is caused by chips
and other ne steel particles collecting on the outside of the
oil lter in the reservoir. If this happens, turn the switch to
the REV position and run the motor for about 10 seconds.
Turn the switch back to the FOR position and the oil should
ow freely. This is especially common if the oil reservoir has
not been drained and cleaned out in a long time. If the loss
or stoppage of oil ow is frequent, drain the oil and clean
out the oil reservoir.
Warning: Never use a threading machine that has a
leaking self-oiling system. Fix the leak prior to any
further use of the machine.
Figure 6 - 5401TMSO Threading machine with self-oiler
Bolts
to secure
legs
Bolts
to secure
legs

10
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
RIDGID® is a registered trademark of RIDGID, Inc. and is not associated with Reed Manufacturing Company
Ref. No.
Description
Item Code
Qty.
Ref. No.
Description
Item Code
Qty.
Ref. No.
Description
Item Code
Qty.
Parts List
1SCREW, SLOTTED 35400 6
2LOCK WASHER 35401 6
3CENTERING HEAD 95400 1
4REAR JAW SET 95882 1
5 BALL BEARING 35406 3
6STEP PIN 95411 3
7SCROLL, REAR 95412 1
8 BACK PLATE 95401 1
9REAR BEARING 95414 1
10 BODY 95571 1
11 GREASE FITTING 40338 1
12 THRUST RING 95419 1
13 SET SCREW 35404 2
14 FRONT BEARING 95415 1
15 DRIVE RING 95427 1
16 SET SCREW 35412 3
17 SET SCREW 35413 3
18 DRIVE DOWEL PIN 35415 3
19 DRIVE SHAFT 95413 1
20 RING GEAR 95409 1
21 HAND WHEEL 95403 1
22 SCROLL, FRONT 954041
23 CAP95405 1
24 BOLT, SHCS 354056
25 JAW SET, FRONT 95552 1
26 JAW INSERT95421 3
27 PIN95422 3
28 COMPRESSION SPRING95451 3
29 SUPPORT BAR 953971
30 SPRING RING95424 2
31 RETAINING RING ASSEMBLY95880 2
32 LOCK WASHER 354291
33 BOLT, SHCS 354031
34 STRAIN RELIEF PLATE 954231
35 SCREW35407 2
36 SCREW354082
37
38
39b
40
41
BOLT, SHCS 35411 2
45
GREASE FITTING 354501
42a
DRIVE SCREW 37710 4
43
NAME PLATE, 240V models 95583 1
44
WARNING STICKER 95578 1BODY BEARINGS AND HARDWARE INCLUDES:
9, 10, 11, 14, 39, 40, 41, 45, 46, 95569 1
1
2
3
4
5
6
7
8
9
11 10
30
29
13
12
31
36
32
33
14
15
19 20
21
22
23
24
25
28 27
26
16 18
17
37
MOTOR ASSEMBLY
42
35
34
40
41
38, 39
ELECTRICAL ASSEMBLY
46
CORD GROMMET, 120V models
954291
43
47
REAR JAW ASSEMBLY 95476 1
46790 6/Pk
40270 6/Pk
43735
46500
45260 5/Pk
44095
43740
46860
45345
33785 5/Pk
30027
45265 3/Pk
45300 5/Pk
30022 3/Pk
44100
30017
89150
—
—
—
—
Ridgid # Ridgid #
43540
43525
45295 6/Pk
44090
44715
44525
44725
—
—
45825
44735 5/Pk
45280
46745 5/Pk
4
6790 6/Pk
40
27
0
6/
Pk
43
7
35
4
6500
45260 5
/
P
k
4
409
5
4374
0
4
686
0
4
53
4
5
33
7
85
5/
P
k
3002
7
45
2
65
3/
P
k
45300 5/P
k
300
22
3/
P
k
4
4
100
300
17
891
5
0
—
—
—
—
Rid
g
id #
Ridgid #
88690
FRONT HANDWHEEL SCROLL / JAW ASSEM.
95484 1
44
30
SUPPORT BAR 953961
BOLT, SHCS 30004 3
GEAR RACK 953841
45 46
47
31
40736
39a NAME PLATE, 120V models 954181
42b 41310 1
CORD GROMMET, 240V models
5401TMSO
(120 and 240 Volt)
Threading Machine

11
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
11
5
6
8
7
10
4
9
1
12
15
13
14
16
2
3
Parts List
Ref. No. Description Item Code Qty. Used
1 Oiler Base 95395 1
2 Top Chip Collection Tray 45392 1
3 Bottom Chip Collection Tray 45391 1
4 Poly Tubing 95380 1
5 Hose Assembly 45376 1
6 Bulkhead Union 45377 1
7 O-Ring 45383 1
8 Bulkhead Lock Nut 45378 1
9 Oil Filter Assembly 95382 1
10 Grommet 45385 1
11 Plug 45387 1
12 3/8-16 Bolt 30097 4
13 3/8” Washer 30011 4
14 3/8” Lock Washer 30033 4
15 3/8-16 Nut 39032 4
16 3/8-16X1-1/2 SHCS 30217 4
5401TMSO
Threading Machine Base

12
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
RIDGID® is a registered trademark of RIDGID, Inc. and is not associated with Reed Manufacturing Company
30
410
34 33 32
37
31
12
35
25, 26
13
11
12
29
3
36
2
36
1
27
28
5
9
6
48
15 23
14
22, 24
19, 21
20
15
15
16
18
17
Ref. No.
Description
Item Code
Qty.
Ref. No.
Description
Item Code
Qty.
Parts List
190° CONNECTOR 95452 1
2CONDUIT 95453 1
3PLUG 95454 1
4MOTOR HOUSING 95406 1
5 FAN HOUSING 95407 1
6 GEAR COVER WITH PUMP CAVITY 95540 1
9DOWEL PIN 95417 1
10 DOWEL PIN 35430 1
11 ARAMATURE W/FAN 95572 1
12 BEARING 98855 2
13 FINGER DISK SPRING 95445 1
14 BEARING 98845 1
15 BEARING 98846 5
16 GEAR SHAFT - 1ST 95595 1
17 SPUR GEAR 98809 1
18 KEY 48807 1
19 GEAR SHAFT - 2ND- 38 RPM 95448 1
21 KEY 48810 1
25 NAME PLATE 95456 1
26
DRIVE SCREW
30133 2
27 FIELD 95573 1
28 FIELD SCREW 98848 2
29 INSULATOR TUBE 98885 2
30 SET SCREW 30018 2
31 FAN PLATE 95474 1
32 BRUSH HOLDER 95455 2
33 BRUSH ASSEMBLY, PAIR 95570 1
34 BRUSH CAP 95459 2
35 LOCK SCREW 35435 1
36 BUSHING PLASTIC 35434 2
37 SCREW 35449 3
20 SPUR GEAR 95447 1
22 GEAR SHAFT - 3RD 95450 1
23 SPUR GEAR - 38 RPM 95449 1
24 KEY 48816 1
BRUSH LEAD, BLUE w/TERMINAL 95580 1
BRUSH LEAD, WHITE w/TERMINAL 95579 1
- 57 RPM 95563
- 57 RPM 95564 1
1
38
39
38
39
40 SHAFT ASSEMBLY 1 95399 1
SHAFT ASSEMBLY 2 - 38 RPM 95479 1
SHAFT ASSEMBLY 3 - 38 RPM
57 RPM
95480 1
41
42
42
40
41
Ridgid #
86690 2/Pk
44555 2/Pk
39770 5/Pk
44540
—
—
—
—
—
—
—
—
—
45005
45370
Ridgid #
46900
46830
43165
96830
48 PUMP COVER 95591 1
49 SCREWS 35594 6
96840
96890
44010
44565
44580
45315
45060
44985
44985
45005
45005
45005
45005
45370
45370
45370
45370
85920 5/Pk
—
—
—
—
—
See
Ref. No. 40
See
Ref. No. 41
See
Ref. No. 42
BRUSH/HOLDER/CAP ASSEMBLY 95585 2
FIELD & ARMATURE 95587 1
43
44
See
Ref. No. 43
43
44
95550 1
49
45
46
47
GEROTOR SET 95592 1
45 96870
DOWEL PIN 35596 1
46 96885
O-RING 355951
47 96875
7 LOCK WASHER 35428 4
8SCREW 35427 4
45150 5/Pk
45075 5/Pk
7, 8
50
51
52
53
54
53 PIPE NIPPLE 45373 1
54 90° ELBOW (POLY/PIPE) 45372 1
90° LONG ELBOW (JIC/PIPE) 45379 1
50
HEX NIPPLE 45375 1
51
90° ELBOW 45374 1
52
55
55 OIL SEAL 45596 1
Complete Motor Assembly
38 RPM 95575
5401TMSO (120 Volt)
Motor Assembly

13
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
30 410
34 33 32
37
31
12
35
25, 26
13 11
12
29
3
36
2
36
1
27
28
5
9
6
48
15 23
14
22, 24
19, 21
20
15
15
16
18
17
Ref. No.
Description
Item Code
Qty.
Ref. No.
Description
Item Code
Qty.
Parts List
190° CONNECTOR 95452 1
2CONDUIT 95453 1
3PLUG 95454 1
4MOTOR HOUSING 95406 1
5 FAN HOUSING 95407 1
6 GEAR COVER WITH PUMP CAVITY 95540 1
9DOWEL PIN 95417 1
10 DOWEL PIN 35430 1
11
ARAMATURE W/FAN AND BEARINGS
95545 1
12 BEARING 98855 2
13 FINGER DISK SPRING 95445 1
14 BEARING 98845 1
15 BEARING 98846 5
16 GEAR SHAFT - 1ST 95595 1
17 SPUR GEAR 98809 1
18 KEY 48807 1
19 GEAR SHAFT - 2ND- 38 RPM 95448 1
21 KEY 48810 1
25 NAME PLATE 95582 1
26 DRIVE SCREW 30133 2
27 FIELD, 240V 95544 1
28 FIELD SCREW 98848 2
29 INSULATOR TUBE 98885 2
30 SET SCREW 30018 2
31 FAN PLATE 95474 1
32 BRUSH HOLDER 95455 2
33 BRUSH ASSEMBLY, PAIR 95542 1
34 BRUSH CAP 95459 2
35 LOCK SCREW 35435 1
36 BUSHING PLASTIC 35434 2
37 SCREW 35449 3
20 SPUR GEAR 95447 1
22 GEAR SHAFT - 3RD 95450 1
23 SPUR GEAR - 38 RPM 95449 1
24 KEY 48816 1
BRUSH LEAD, BLUE w/TERMINAL 95580 1
BRUSH LEAD, WHITE w/TERMINAL 95579 1
38
39
38
39
40 SHAFT ASSEMBLY 1 95399 1
SHAFT ASSEMBLY 2 - 38 RPM 95479 1
SHAFT ASSEMBLY 3 - 38 RPM 95480 1
41
42
42
40
41
Ridgid #
44555 2/Pk
39770 5/Pk
—
—
—
—
—
—
—
—
—
45005
45370
Ridgid #
46900
46830
43165
96830
48 PUMP COVER 95591 1
49 SCREWS 35594 6
96840
96890
44565
44580
45315
45060
44985
44985
45005
45005
45005
45370
45370
45370
85920 5/Pk
—
—
—
—
—
See
Ref. No. 40
See
Ref. No. 41
See
Ref. No. 42
BRUSH/HOLDER/CAP ASSEMBLIES 95543 1
FIELD/ARMATURE SET W/BEARINGS 95546 1
43
44
See
Ref. No. 43
43
44
49
45
46
47
GEROTOR SET 95592 1
45 96870
DOWEL PIN 35596 1
46 96885
O-RING 35595 1
47 96875
7 LOCK WASHER 35428 4
8 SCREW 35427 4
45150 5/Pk
45075 5/Pk
7, 8
50
51
52
53
54
53 PIPE NIPPLE 45373 1
54 90° ELBOW (POLY/PIPE) 45372 1
90° LONG ELBOW (JIC/PIPE) 45379 1
50
HEX NIPPLE 45375 1
51
90° ELBOW 45374 1
52
55
55 OIL SEAL 45596 1
—
—
—
5401TMSO (240 Volt)
Motor Assembly
RIDGID® is a registered trademark of RIDGID, Inc. and is not associated with Reed Manufacturing Company
Complete Motor Assembly
38 RPM 95586

14
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
11
12
13
3
14
7
10
1
5
8
6
9
4
2
15
16
17
18
Ref. No. Description Item Code Qty. Used
1 Carriage Body 95381 1
2 Stop Bolt Assembly 95881 1
3 Ball Retainer Kit 95883 1
4 Handwheel Bracket 95394 1
5 Idler Shaft 95387 1
6 Handwheel Shaft 95389 1
7 Flat Socket Head Cap Screw 35294 1
8 Handwheel Hub 95388 1
9 Handwheel Spoke 95390 3
10 Ball Knob 40054 3
11 Bronze Bushing 40461 4
12 Gear 95386 2
13 1/4-20 X 5/8 SHCS 30105 2
14 Spirol Pin 30233 2
15 1/4” Ferrule 45719 1
16 Bent Tube 45370 1
17 Tube Retainer Block 95590 1
18 3/8-16 X 1-1/2L Bolt 35590 1
CARRIAGE #05367
5401TMSO Carriage
with Handwheel
Parts List

15
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
39
7
5
1
11
8
10
4
6
2
5401TMSOCUTTER #05366
5401TMSO Pipe Cutter
Parts List
Ref. No. Description Item Code Qty. Used
1 Body 95488 1
2 Screw Assembly 95383 1
3 Slide 95489 1
4 Roller 95490 2
5 Cutter Wheel 03612* 1
6 Pin 95491 2
7 Cutter Wheel Pin 93310 1
8 Yoke 95468 1
9 Trust Washer 93679 1
10 Knurled Pin 95560 1
11 1/ 2 x 1-1/4 Pin 95561 1
*Use optional Cutter Wheel #03613 to have a heavy duty
wheel for cutting steel and stainless steel.

16
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
2
5
6
1
7
9
8
4
5
3
Reamer #05308
Parts List
Ref. No. Description Item Code Qty. Used
1 Arm 95487 1
2 Reamer 95492 1
3 Bar 95493 1
4 Knob 95494 1
5 Pin 95495 2
6 Hinge Pin 95496 1
7 Latch 95497 1
8 1/4 x 3/4” Pin 30004 1
9 Spring 95451 1

17
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
Ref. No.
Description
Item Code
Qty.
Parts List
1SWITCH BOX 95430 1
2SWITCH 95557 1
3SCREW 30106 2
4OUTLET JUMPER ASSY. 95556 1
5RING TONGUE TERMINAL 98859 3
6SCREW (GROUND) 30159 1
7LOCK WASHER 35423 3
8HEX NUT 30117 3
9GROUND WIRE 95438 1
10 SCREW 35431 1
11 LINE CORD W/PLUG 95432 1
12 FOOT SWITCH W/CORD 95574 1
13 CORD GROMMET95429 3
11
13
4
1
3
6, 7, 8
12
14 SPADE TERMINAL 35436 4
14
2
Service Cord Ground
Foot Switch Ground
Jumper Wire on Base
Ground Screw Detail
Ground Screw
Ridgid #
36642
—
46735
46740
—
46985 5/Pk
44505
—
—
—
—
—
—
—
5401TMSO (120 Volt)
Wiring Schematic
5401TMSO (120 Volt)
Wiring Diagram
5401TMSO (120 Volt)
Electrical Assembly
RIDGID® is a registered trademark of RIDGID, Inc. and is not
associated with Reed Manufacturing Company

18
5401TMSO Threading Machine with Self-Oiler Operator’s Manual
0419-55401
See also RP #104
REED Limited Warranty
REED will repair or replace tools with any defects due to faulty materials or workmanship for one (1) year or five (5) years from the date of
purchase, as applicable. This warranty does not cover part failure due to tool abuse, misuse, or damage caused where repairs or modifications
have been made or attempted by non REED authorized repair technicians. This warranty applies only to REED tools and does not apply to
accessories. This warranty applies exclusively to the original purchaser.
One (1) year warranty: Power units for pneumatic, electric, hydraulic and battery-powered tools have a one year warranty. This includes, but
is not limited to REED pumps, universal pipe cutter motors, power drives, power bevel tools, threading machines, cordless batteries and chargers.
Five (5) year warranty: Any REED tool not specified under the one (1) year warranty above is warrantied under the REED five (5) year
warranty.
NO PARTY IS AUTHORIZED TO EXTEND ANY OTHER WARRANTY. NO WARRANTY FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE SHALL APPLY.
No warranty claims will be allowed unless the product in question is received freight prepaid at the REED factory. All warranty claims are
limited to repair or replacement, at the option of REED, at no charge to the customer. REED is not liable for any damage of any sort, including
incidental and consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary by state,
province or country.
Ref. No.
Description
Item Code
Qty.
Parts List
1SWITCH BOX 954301
2SWITCH 955571
3SCREW 301062
4OUTLET JUMPER ASSY. 955561
5RING TONGUE TERMINAL 98859 3
6SCREW (GROUND) 301591
7LOCK WASHER 354233
8HEX NUT 301173
9GROUND WIRE 95438 1
10 SCREW 354311
11 LINE CORD W/PLUG 954611
12 FOOT SWITCH W/CORD 955741
13 CORD GROMMET 95429 1
11
13 4
1
3
6, 7, 8
12
14 CORD GROMMET 413101
15
2
Service Cord Ground
Foot Switch Ground
Jumper Wire on Base
Ground Screw Detail
Ground Screw
Ridgid #
36642
—
46735
—
46985 5/Pk
44505
—
—
—
—
—
—
—
14
15 SPADE TERMINAL 35436 4 —
—
5401TMSO (240 Volt)
Electrical Assembly
RIDGID® is a registered trademark of RIDGID, Inc. and is not
associated with Reed Manufacturing Company
Brown
Green/ Yellow
Blue
5401TMSO (240 Volt)
Wiring Schematic
Brown
Brown
Green/ Yellow
Brown
Green/ Yellow
Blue
5401TMSO (240 Volt)
Wiring Diagram
