Regalo 4022AX User manual

Accessory Side Bed Rail - Assembly Instructions
Accessoire de barrière latérale de lit - Directives d’assemblage
Instrucciones de montaje para la barandilla lateral accesoria
Modèles : Modelo:Model :
4022AX & 5022AX
...........................................................................
Regalo International, LLC. www.regalo-baby.com
3200 Corporate Center Drive,
Suite 100, Burnsville,
MN 55306-9803, USA
Toll Free: 866-272-5274
Made in China
3200 Corporate Center Drive,
Suite 100,Burnsville,
MN 55306-9803, É.-U.
Numéro sans frais: 866-272-5274
Fabriqué en Chine
3200 Corporate Center Drive,
Suite 100, Burnsville,
MN 55306-9803, EE. UU.
Llame gratis al: 866-272-5274
Hecha en China
07/24/2013_DC

1
WARNING:
-SUFFOCATION AND STRANGULATION HAZARD.
-Gaps in and around bed rails have entrapped young children
and killed infants.
-NEVER use with children younger than 2 years old. Use
ONLY with older children who can get in and out of adult bed
without help. NEVER use in place of crib.
-NEVER use unless bed rail is tight against mattress, without
gaps, and at least 9 in. from headboard and footboard. Do not
fill gaps with pillows, blankets, or other items that can suffocate
children.
-NEVER use on toddler bed, bunk bed, water bed, or bed with
inflatable mattress.
-Use ONLY on adult bed.
-Use ONLY on adult bed with box spring and mattress.
-Use ONLY on a bed ranging in size from twin size to queen size.
- THIS BED RAIL IS NOT RECOMMENDED TO BE USED ON A
PLATFORM STYLE OR SIMILAR STYLE BED
-Discontinue use if damaged, broken or if parts are missing.
IMPORTANT ! KEEP FOR FUTURE REFERENCE !
• Failure to follow these instructions for the assembly and use of your
bed rail could result in serious injury or death.
• This bed rail is intended for use with children 2 years to 5 years of age.
WARNING:
4 - 10...25

2
IMPORTANT! CONSERVER POUR CONSULTATION FUTURE!
• Négliger les instructions de ce guide de montage et d’utilisation
de la barrière pourrait entraîner de graves blessures ou la mort.
• L’utilisation de cette barrière est réservée à des enfants de 2 à 5 ans.
AVERTISSEMENT :
AVERTISSEMENT :
-DANGER DE SUFFOCATION ET D'ÉTRANGLEMENT.
-De jeunes enfants se sont coincés dans l’écart à l’intérieur
et autour des barrières du lit, et des nourrissons en sont morts.
-NE JAMAIS utiliser avec des enfants de moins 2 ans. Utiliser
UNIQUEMENT avec des enfants capables de se coucher dans
un lit pour adulte et d’en sortir seuls, sans aide. NE JAMAIS
utiliser à la place d’un lit de bébé.
-NE JAMAIS utiliser si la barrière n’est pas appuyée fermement
contre le matelas, sans aucun écart, et éloignée d’au moins 23
cm (9 po) de la tête et du pied de lit. Ne pas combler l’écart avec
des oreillers, des couvertures ou d’autres articles risquant
d’étouffer l’enfant.
-NE JAMAIS utiliser sur un lit pour tout-petit, un lit superposé, un
lit d’eau ou un lit avec un matelas gonflable.
-Utiliser UNIQUEMENT sur un lit pour adulte.
-Utiliser uniquement sur un lit d'adulte avec sommier et matelas.
-Utiliser uniquement sur un lit de dimension lit simple à grand lit.
-
L'UTILISATION DE CETTE BARRIÈRE EST DÉCONSEILLÉE SUR
UN LIT À PLATEFORME OU DE STYLE SIMILAIRE
-Ne plus utiliser en cas de pièces endommagées, cassées ou
manquantes.
11 - 17...25

3
ADVERTENCIA:
¡IMPORTANTE! ¡CONSERVE ESTA
INFORMACIÓN COMO REFERENCIA FUTURA!
• El no seguir estas instrucciones de montaje y uso de la barandilla
podría causar lesiones graves o letales.
• Esta barandilla está diseñada para usarse con niños de 2 a 5 años
de edad.
ADVERTENCIA:
-PELIGRO DE ASFIXIA Y ESTRANGULACIÓN.
-Las separaciones en y alrededor de las barandillas han
atrapado a niños pequeños y causado la muerte a bebés.
-NUNCA use la barandilla con niños menores de 2 años. Úsela
SOLAMENTE con niños mayores que puedan subirse y bajarse
de una cama para adultos sin ayuda. NUNCA la use en lugar de
la cuna.
-NUNCA la use a menos que esté firmemente apretada contra el
colchón, si no hay separaciones y está a por lo menos a 9 pulg.
(23 cm) de la cabecera o el pie de cama. No cubra las
separaciones con almohadas, sábanas ni otros artículos que
puedan asfixiar a los niños.
-NUNCA la use en una cama para niños, litera, cama de agua
ni cama con colchón inflable.
-Úsela SOLAMENTE en una cama para adultos.
-Use solamente en una cama para adultos que tenga base y
colchón.
-Use solamente en una cama de tamaño individual o tamaño
“queen”.
-NO SE RECOMIENDA USAR ESTA BARANDILLA EN UNA CAMA
ESTILO PLATAFORMA O DE ESTILO SIMILAR.
-
Suspenda su uso si está dañado, roto o si hay piezas faltantes.
18 - 25

4
PART LIST :
1 - Bed Rail Mesh Cover Wall
2 - Left Upper Support Bar
3- Right Upper Support Bar
4- Left Bottom Support Bar
5- Right Bottom Support Bar
3
2
45
1

5
Step 1 : Remove bed rail from packaging and ensure that you have all parts included
in the parts list.
Step 3 : Repeat Step 2 directions to assemble the right side of the bed rail.
(Diagram A2)
Step 2 : Insert the Left Upper Support Bar into the Left Bottom Support Bar. Make sure the
spring pin fits securely into opposing hole so that the two pieces cannot pull apart.
(Diagram A1)
BED RAIL ASSEMBLY AND SET UP
Step 4 : With the left and right sides of the bed rail assembled, connect the two
sides. (Diagram A3)
NOTE : Make sure that the spring pins are secured into the opposing holes so that
the bed rail cannot pull apart.
(Diagram A1)
(Diagram A2)
(Diagram A3)

6

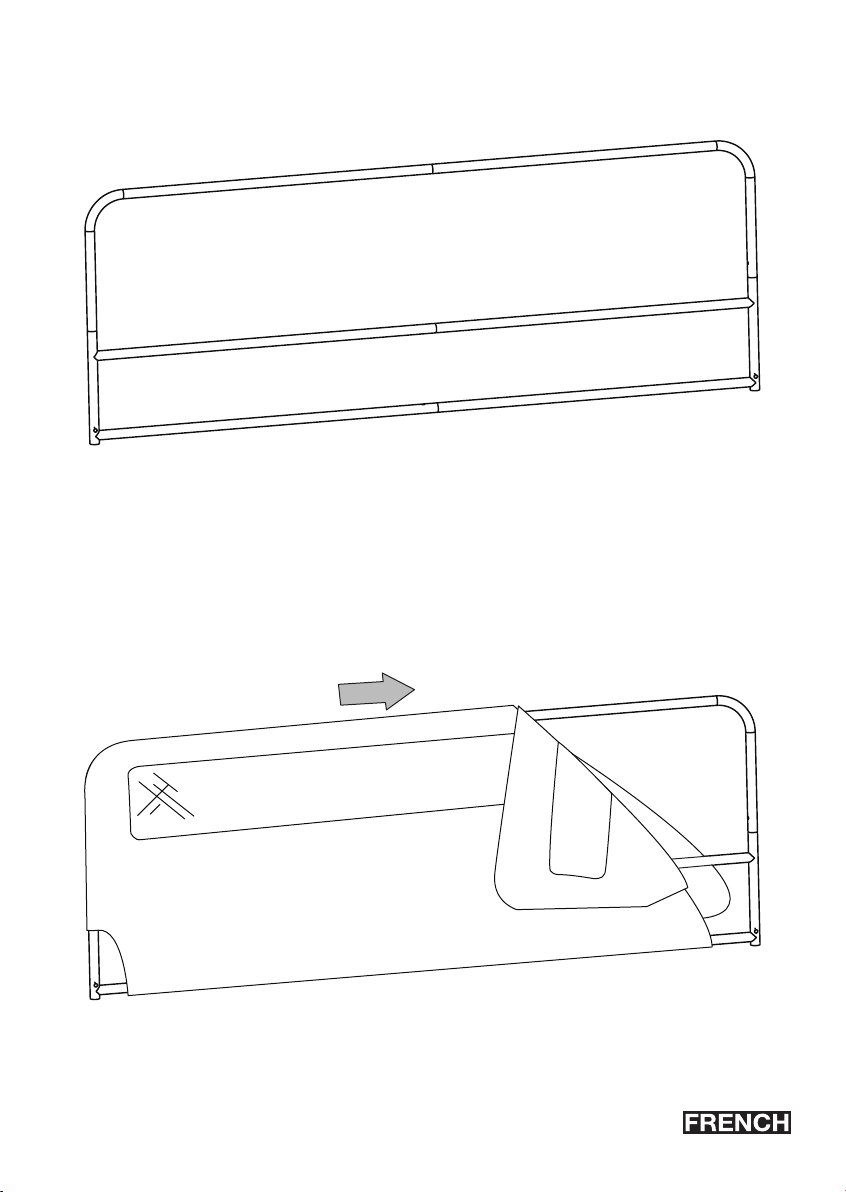

Frame assembly should look like the image below. (Diagram A4)
(Diagram A4)
(Diagram B1)
Step 5: Slide the fabric cover over the metal frame assembly. Zip the cover
around the frame to complete the bed rail wall assembly. (Diagram B1)
NOTE : Make sure the mesh wall is pulled completely to the bottom of the bed rail
frame. If zipper is diffcult to close, make proper adjustments before attempting
closure again.

Step 1 : Locate the “L” shaped anchors on your existing bed rail (model # 4022HD and 5022HD
only), and ensure the short arms of the anchors are pointing upward. These are the points
where you will connect your new accessory side bed rail. (Diagram C1)
You may need to release the strap locking buckles located on the under side of the Guide Bar
Assemblies of the existing bed rail. The anchoring straps should not be twisted. If twisted, the
anchoring straps will not tighten properly. (Diagram C2)
7
Note : In some situations, it might be beneficial to remove the top mattress before
continuing installation. This may require the help of a secondary person.
MOUNTING THE ACCESSORY SIDE
TO YOUR EXISTING BED RAIL
(Diagram C2)
(Diagram C1)

Step 2: Locate and remove the plastic end-caps attached to each anchor by pressing in
the spring locking button. These parts should be saved in case you decide to remove
your accessory side bed rail in the future. (Diagram C3)
Step 3: Connect the fully assembled accessory side wall to the vertical components of
the existing bed rail anchors by compressing the metal spring pins. Ensure the parts are
securely connected and will not pull apart before moving on to the next step.
(Diagram C4)
8
(Diagram C3)
(Diagram C4)

9
Step 5 : If the strap does not pull through smoothly, the strap may be twisted under
the mattress. Correct this before continuing with the installation.
Once you have taken the slack out of the straps, give one final pull on the strap end,
hold it, and lock the locking tab on the locking buckle by pushing up on the thumb
tab. Use the same procedure for each side to properly secure the bed rail.
IMPORTANT : After locking both buckles, check to make sure that the mesh walls of
the bed rail are firmly up against the sides of the mattress. There should be NO GAPS.
If the mesh walls are not firmly against the sides of the mattress, check to make sure
the locking buckle is functioning properly and that the strap is not twisted beneath
the mattress. Once this has been checked and corrected if needed, unlock the
buckle, pull on the end of the strap to tightly and lock the buckle again.
NOTE : Store the excess anchoring strap material by tucking it under the mattress.
WARNING : In order for the bed rail fabric wall to be firmly held against the side of
the mattress you MUST properly tighten the anchoring straps. Please follow the
directions below very carefully.
Step 4 : Tighten the straps to bring the bedrail into it’s proper position. To tighten
the straps, first release the strap locks located on the under side of the Guide Bar
Assemblies. Pull the straps towards you until all the excess slack has been pulled out from
under the mattress. (Diagram D1)
CAUTION: When using this bed rail on a foam mattress with little or no internal structure,
make sure not to over tighten the mounting straps. If over-tightened, the mattress will
likely fold or buckle in the middle and this will cause the bed rail to not provide your child
with the highest level of safety. Make slight adjustments to find the best level of tightness
on your mattress. The bed rail must be tight but the mattress should not buckle or fold.
(Diagram D1)
