Reliable F156 Series User manual

Model F1-56 UprightModel F1-56 Pendent
Model F1-56
Horizontal Sidewall
Model F1-56 Vertical Sidewall
Note: Not all versions of the product are shown.
F1-56 Series Sprinklers Summary
Sprinkler
Model
K-Factor gpm/psi1/2
(lpm/bar1/2)Orientation Listings & Approvals Max. Working Pressure
psi (bar)
Sprinkler
Identication
Number (SIN)
F1-56 5.6 (80)
Upright
Intermediate Upright
cULus, FM, LPCB,
VdS, EC
175 (12)
250 (17) (cULus only) RA1325
Pendent cULus, FM, LPCB,
VdS, EC
175 (12)
250 (17) (cULus only) RA1314
Horizontal Sidewall cULus, FM 175 (12)
250 (17) (cULus only) RA1335
Vertical Sidewall cULus, FM, LPCB 175 (12) RA1385
Table A
Note: This bulletin may contain information on New and Legacy
sprinklers that reflects a dimensional change only.
Sprinkler Identication Number (SIN), application, performance,
and listings/approval are not otherwise affected. Sprinklers with
New frames will include the sufx “N” in the order.
Features
• Standard coverage standard-response sprinklers
• Upright, pendent, horizontal sidewall, and vertical sidewall
deflectors
• Low prole, compact design
• Available in a wide variety of nishes
• Available as Intermediate Level Sprinklers
Product Description
Reliable Model F1 series sprinklers are standard-response
standard spray automatic re sprinklers utilizing a 5.0 mm glass
bulb thermal element.
Pendent and horizontal sidewall sprinklers may be installed
exposed or surface mounted using escutcheons such as the
Reliable Models B, C, or HB (reference Technical Bulletin 204).
When installed recessed, the Model F1-56 series sprinklers
are specically listed with and may only be installed with listed
Reliable escutcheons. Refer to the technical information on the
following pages for specic listings for recessed installations and
refer to Figures 7 and 8 for dimensional information.
When tted with an approved water shield, these sprinklers may
considered intermediate sprinklers for use in racks, below grated
walkways, and other areas where intermediate level sprinklers are
required.
Table A provides a summary of the approvals and availability
of specic Model F1 series sprinkler congurations. Additional
technical information for each sprinkler model is provided on the
following pages.
www.reliablesprinkler.com
K-factor 5.6 (80)
F1-56 Series
Standard-Response Sprinklers
Bulletin 071 October 2022

Model F1-56 Upright Sprinkler SIN RA1325
Technical Specications
Style: Upright, Intermediate Upright
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure:
175 psi (12 bar)
250 psi (17 bar) (cULus only)
Material Specications
Thermal Sensor: 5.0mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Standard response
Temperature Ratings
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
360°F (182°C)
500°F (260°C)
Guards & Shields (New Frames)
Factory Water Shield (cULus, FM)
F-1 Guard (cULus, FM)
F-3 Guard with Shield (cULus, FM)
Guards and Shields (Legacy Frames)
Factory Water Shield
C-1 Guard (FM)
C-3 Guard with Shield (cULus, FM)
D-1 Guard (cULus)
D-3 Guard with Shield (cULus)

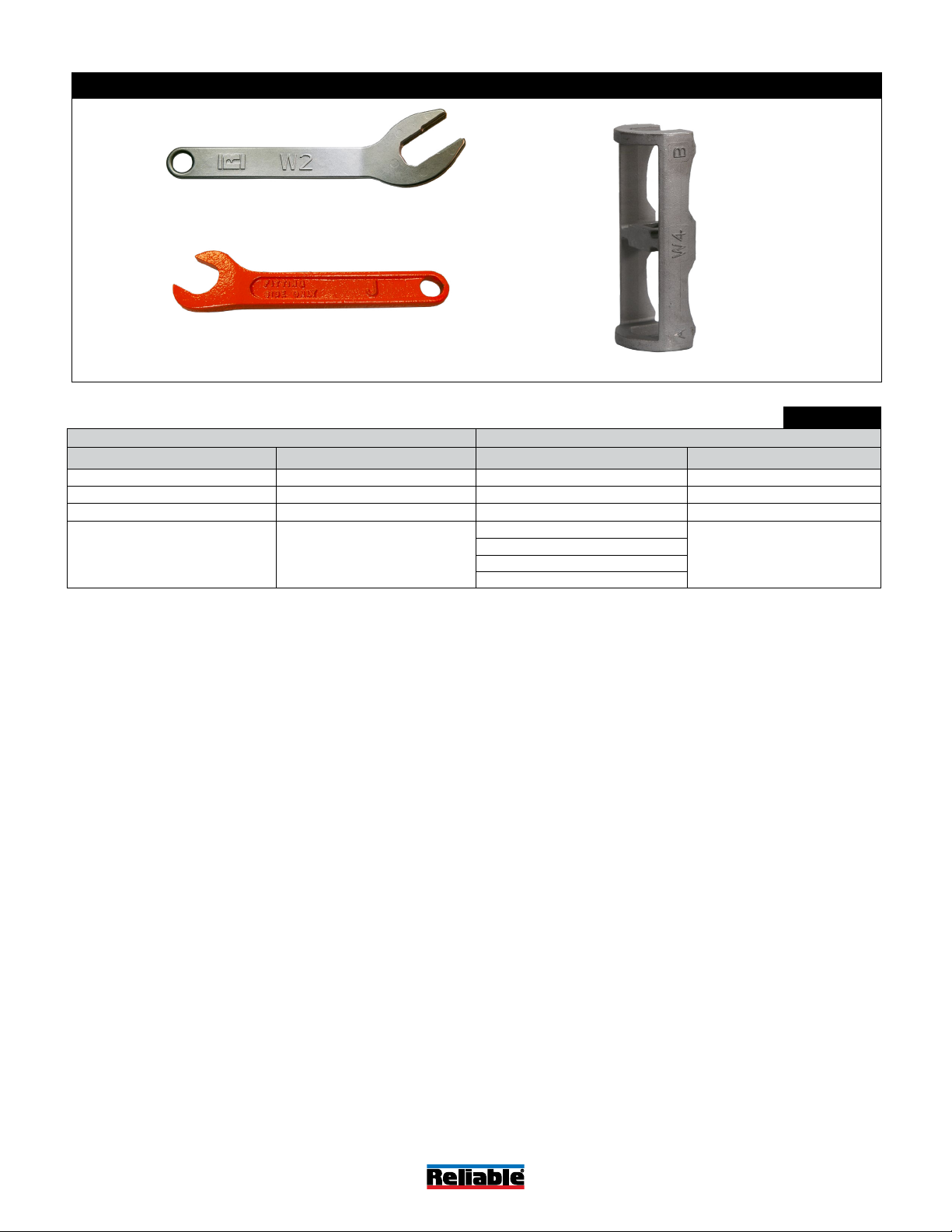

Sprinkler Wrench
Model W2
Model J (New frame with guard installed)
Model JD (Legacy frame with guard
installed)
Listings and Approvals
cULus Listed
FM Approved
LPCB
VdS
EC
Model F1-56 Upright Sprinkler Components and Dimensions Figure 1
Deflector
Glass Bulb
(5 mm)
Wrench Flat
Threads
1 3/8" [33mm]
3 1/4" [83mm]
Cap/Seal Assembly
Load Screw
2 1/4" [58mm]
F1_HALF_UPR_SHIELD
Shown with Optional
Factory Installed Water Shield
( Intermediate Upright)
Bulletin 071
October 2022
Page 2 of 9
www.reliablesprinkler.com

Model F1-56 Pendent Sprinkler SIN RA1314
Technical Specications
Style:
Pendent
Recessed Pendent
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure:
175 psi (12 bar)
250 psi (17 bar) (cULus only)
Material Specications
Thermal Sensor: 5.0mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Standard response
Temperature Ratings (1)
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
360°F (182°C)
500°F (260°C)
Recessed Escutcheons
Model F1 (cULus, LPCB, VdS, CE)
Model F2 (cULus, FM, LPCB, VdS, CE)
Model FP (cULus, VdS, CE)
Guards & Shields(New Frames)(2)
F-1 Guard (FM)
F-5 Guard/Shield Kit (FM)
F-7 Guard (cULus)
F-8 Guard/Shield Kit (cULus)
S-1 Shield (cULus, FM)
Guards & Shields (Legacy Frames)(2)
C1 Guard (FM)
C5 Guard/Shield Kit (FM)
D1 Guard (cULus, FM)
D4 Guard/Shield Kit (FM)
D5 Guard/Shield Kit (cULus, FM)
S-1 Shield (cULus, FM)
Sprinkler Wrenches
Model W2 (pendent)
Model W4 (recessed)
Model J (with guard installed)
Listings and Approvals(3)
cULus Listed
FM Approved
LPCB
VdS
EC
Notes:
1. 286°F (141°C) and higher temperature rated sprinkler not listed for recessed use.
2. Not suitable for used with recessed pendent installations
3. When used surface mounted or exposed. See Recessed Escutcheon and Cover Plate section for specic approvals when installed
recessed or concealed.
Model F1-56 Pendent Sprinkler Components and Dimensions Figure 2
F1_HALF_PEND_INT
Deflector
Glass Bulb
(5 mm)
Wrench Flat
Threads
3 1/4" [83mm]
2 1/4" [57mm]
1" [25mm]
Load Screw
Cap/Seal
Assembly
Shown with Optional S-1 Water
Shield (Ordered Separately)
Note: Please refer to Figure 7 for recessed installation.
Bulletin 071
October 2022
Page 3 of 9
www.reliablesprinkler.com

Model F1-56 Horizontal Sidewall Sprinkler SIN RA1335
Technical Specications
Style: Horizontal Sidewall
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure:
175 psi (12 bar)
250 psi (17 bar) (cULus only)
Material Specications
Thermal Sensor: 5.0mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Standard response
Temperature Ratings (1)
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
360°F (182°C)
Recessed Escutcheons(2)
Model F1 (cULus, FM)
Model F2 (cULus, FM)
Model FP (cULus)
Guards & Shields (New Frames)(3)
F-4 Guard (FM)
F-7 Guard/Shield Kit (cULus)
Guards & Shields (Legacy Frames)(3)
F-4 Guard (FM)
F-7 Guard/Shield Kit (cULus)
Sprinkler Wrenches
Model W2 (horizontal)
Model W4 (recessed)
Model J (New frame with guard installed)
Model JD (Legacy frame with guard
installed)
Listings and Approvals
cULus Listed
FM Approved(4)
Notes:
1. 286°F (141°C) and higher temperature rated sprinkler not listed for recessed use.
2. cULus Listed for Light and Ordinary Hazard when installed exposed or surface mounted. Listed for Light Hazard ONLY when
installed recessed.
3. Not suitable for recessed horizontal sidewall installations.
4. FM Approved for Light Hazard ONLY.
Model F1-56 Horizontal Sidewall Sprinkler Components and Dimensions Figure 3
Bulletin 071
October 2022
Page 4 of 9
www.reliablesprinkler.com
F1_HALF_HSW
2 3/4" [70mm]
1 1/8" [28mm]
Threads
Cap/Seal Assembly
Load ScrewDeflector
Glass Bulb
(5 mm)
Wrench Flat
Frame
Note: Please refer to Figure 7 for recessed installation.

Model F1-56 Vertical Sidewall Sprinkler SIN RA1385
Technical Specications
Style:
Upright Vertical Sidewall
Pendent Vertical Sidewall
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure: 175 psi (12 bar)
Material Specications
Thermal Sensor: 5.0mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Standard response
Temperature Ratings
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
360°F (182°C)
Guards & Shields (New Frames)
F-2 Guard (FM)
Guards & Shields (Legacy Frames)
F-2 Guard (FM)
Sprinkler Wrenches
Model W2
Model J (New frame with guard installed)
Model JD (Legacy frame with guard
installed)
Listings and Approvals(1)
cULus Listed
FM Approved
LPCB(2)
Notes:
1. Listed and approved for Light Hazard ONLY.
2. LPCB approved for use in pendent position ONLY.
Model F1-56 Vertical Sprinkler Components and Dimensions Figure 4
Bulletin 071
October 2022
Page 5 of 9
www.reliablesprinkler.com
F1_HALF_VSW
2 1/4" [57mm]
1 1/2" [38mm]
Threads
Cap/Seal Assembly
Load ScrewDeflector
Glass Bulb
(5 mm)
Wrench Flat
Frame

Models F1 & F1FR Pendent Sprinkler
with Model F1 Recessed Escutcheon
3/4" (19mm) Nominal Adjustment
2-7/8" (72 mm) Dia.
1-3/4"
(44 mm)
2-1/4"
(57 mm) Dia.
Hole in Ceiling
1-15/16"
(49 mm) Dia.
Minimum
Recess
Maximum
Recess
1"
(25 mm)
Face of Fitting
to Face of Ceiling
1-1/8" (29 mm) at
Max. Recess
3/8" (10 mm) at
Min. Recess
Models F1 & F1FR Pendent Sprinkler
with Model FP Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
1"
(25 mm)
2-5/16"
(59 mm) Dia.
Minimum
Recess Maximum
Recess
1/2"
(12 mm)
3-3/16" (78 mm) Dia.
Face of Fitting
to Face of Ceiling
1-1/2" (38 mm) at
Max. Recess
1" (25 mm) at
Min. Recess
2-7/8" (72 mm) Dia.
1-3/4"
(44 mm)
Minimum
Recess
Maximum
Recess
1-1/4"
(32 mm)
Face of Fitting
to Face of Ceiling
7/8" (22 mm) at
Max. Recess
3/8" (10 mm) at
Min. Recess
2-1/4"
(57 mm) Dia.
Hole in Ceiling
1-15/16"
(49 mm) Dia.
2-1/2"
(64 mm) Dia.
Hole in Ceiling
Models F1 & F1FR Pendent Sprinkler
with Model F2 Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
F1_REC_PEND
Reducing
Fitting
Reducing
Fitting
Reducing
Fitting
Note: Model FP recessed assemblies may not be used where the
pressure in the space above the ceiling is positive with respect to
the protected area. Ensure that the openings in the Model FP cup
are unobstructed following installation.
Vented Cup
Recessed Installation: Pendent Sprinklers Figure 5
FP Escutcheon F1 Escutcheon
(F2 Similar)
F1 Escutcheon
(F2 Similar)
Bulletin 071
October 2022
Page 6 of 9
www.reliablesprinkler.com

2-1/4"
(57 mm)
Dia.
Hole
1-15/16"
(49 mm)
Dia.
2-1/4"
(57 mm)
Dia.
Hole
1-15/16"
(49 mm)
DIA.
2-7/8"
(73 mm)
Dia.
2-7/8"
(73 mm)
Dia.
2-1/8" (54 mm) Minimum Recess
1-5/8" (42 mm) Maximum Recess
2 1/8" (54 mm) Minimum Recess
1-3/8" (35 mm) Maximum Recess
2-5/8"
(67 mm)
Dia
Hole.
2-5/16"
(58 mm)
Dia.
3-1/4"
(83 mm)
Dia.
1-1/4" (32 mm)
+/- 1/4" (6 mm)
Face of fitting
to face of wall
1-3/8" (35 mm) Minimum Recess
7/8" (22 mm) Maximum Recess
3/8" (16 mm)
+/- 1/4" (6 mm)
Face of fitting
to face of wall
1/2" (12 mm)
+/- 3/8" (10 mm)
Face of fitting
to face of wall
4" - 12"
(102 mm - 305 mm)
Deflector to ceiling
F1FR_REC_HSW
Reducing
Fitting
Reducing
Fitting
Reducing
Fitting
9/16" [14mm]
Model F1FR Horizontal Sidewall Sprinkler
with Model FP Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
Model F1FR Horizontal Sidewall Sprinkler
with Model F2 Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
Model F1FR Horizontal Sidewall Sprinkler
with Model F1 Recessed Escutcheon
3/4" (19mm) Nominal Adjustment
F2 Recessed escutcheon
1/2" (13 mm) Adjustment
F1 Recessed escutcheon
3/4" (19 mm) Adjustment
4" - 12"
(102 mm - 305 mm)
Deflector to ceiling
9/16" [14mm]
4" - 12"
(102 mm - 305 mm)
Deflector to ceiling
9/16" [14mm]
Note: Model FP recessed assemblies may not be used where the
pressure in the space behind the sprinkler is positive with respect
to the space in the protected area. Ensure that the openings in
the Model FP cup are unobstructed following installation.
Vented Cup
Recessed Installation: F1-56 Horizontal Sidewall Sprinklers Figure 6
Bulletin 071
October 2022
Page 7 of 9
www.reliablesprinkler.com

Installation
Model F1 Series sprinklers must be installed in accordance with
NFPA13 and the requirements of all applicable authorities having
jurisdiction. Model F1 Series sprinklers must be installed with the
Reliable sprinkler installation wrench identied in the Design and
Installation Information table in this Bulletin. Any other wrench may
damage the sprinkler. A leak tight sprinkler joint can be obtained
with a torque of 8 to 18 lb-ft (11 to 24 N.m). Do not tighten
sprinklers over the maximum recommended installation torque.
Exceeding the maximum recommended installation torque may
cause leakage or impairment of the sprinkler.
Glass bulb sprinklers have orange bulb protectors or protective
caps to minimize bulb damage during shipping, handling and
installation. Reliable sprinkler installation wrenches are designed
to install sprinklers with bulb protectors in place. Remove the bulb
protector at the time when the sprinkler system is placed in service
for re protection. Removal of the bulb protector before this time
may leave the bulb vulnerable to damage. Remove bulb protectors
by undoing the clasp by hand. Do not use tools to remove bulb
protectors.
Standard Finishes Special Application Finishes
Sprinkler F1, F2 and FP(2) Escutcheons Sprinkler F1, F2 and FP(2) Escutcheons
Bronze (Unnished) Brass Electroless Nickel PTFE(3)(4) Bright Brass
Chrome Chrome Bright Brass(5) Satin Chrome
White Polyester(3)(8) White Polyester Stain Chrome Custom Color Polyester
Custom Color Polyester(3)(6)(8)
Lead Plated(3)
Wax Coated(3)(7)
Wax Over Lead(3)(7)
Notes:
1. Paint or any other coating applied over the factory nish will void all approvals and warranties.
2. Model FP escutcheons utilize a galvanized steel cup with a nished trim ring.
3. cULus Listed as corrosion resistant.
4. FM Approved as corrosion resistant.
5. For 200°F (93°C) maximum temperature rated sprinklers only.
6. LPCB and VDS approved for SIN RA1314 and RA1325.
7. Clear wax used on ordinary temperature rated sprinklers; brown wax used on intermediate temperature rated sprinklers. Brown wax may be used on
high temperature rated sprinklers where the ambient temperature does not exceed 150°F (66°C).
8. Not available for 500°F (260°C) temperature rated sprinklers.
Sprinkler and Escutcheon Finishes(1) Table B
Maintenance
Reliable Model F1 series sprinklers should be inspected and the
sprinkler system maintained in accordance with NFPA 25, as well
as the requirements of any Authorities Having Jurisdiction.
Prior to installation, sprinklers should remain in the original
cartons and packaging until used. This will minimize the potential
for damage to sprinklers that could cause improper operation or
non-operation.
Do not clean sprinklers with soap and water, ammonia liquid or
any other cleaning fluids. Remove dust by gentle vacuuming
without touching the sprinkler.
Replace any sprinkler which has been painted (other than factory
applied). A stock of spare sprinklers should be maintained to
allow quick replacement of damaged or operated sprinklers.
Failure to properly maintain sprinklers may result in inadvertent
operation or non-operation during a re event.
Wrenches
Model W2 (upright, pendent)
Model J (New frame with guard installed)
Model JD (Legacy frame with guard installed, similar but with zinc nish)
Model W4
(recessed pendent)
Bulletin 071
October 2022
Page 8 of 9
www.reliablesprinkler.com

P/N 9999970620
Bulletin 071
October 2022
Page 9 of 9
www.reliablesprinkler.com
Guarantee
For the guarantee, terms, and conditions, visit www.
reliablesprinkler.com.
Ordering Information
Specify the following when ordering:
Model
• F1-56
Deflector/Orientation
• Upright
• Intermediate Upright
• Pendent
• Horizontal Sidewall
• Vertical Sidewall
Temperature Rating
• See sprinkler technical specications
Sprinkler Finish
• See Table B
Recessed Escutcheon(1)(2)
• F1
• F2
• FP
Escutcheon Finish
• See Table B
Sprinkler Wrench
• Model W2 (upright and pendent)
• Model W4 (recessed)
• Model J (New frame with guard installed)
• Model JD (Legacy frame with guard installed)
Notes:
1. 286°F (141°C) sprinklers are not listed to be used recessed.
2. For FM, recessed sprinklers must use the Model F2 escutcheon.
