Reliable F1FR56-300 Series User manual

Model F1FR56-300 UprightModel F1FR56-300 Pendent
Model F1FR56-300
Horizontal Sidewall
Note: Not all versions of the product are shown.
F1FR56-300 Series Sprinklers Summary
Sprinkler
Model
K-Factor gpm/psi1/2
(lpm/bar1/2)Orientation Listings & Approvals Max. Working Pressure
psi (bar)
Sprinkler
Identication
Number (SIN)
F1FR56-300 5.6 (80)
Upright
cULus 300 (20.7)
RA2625
Pendent RA2614
Concealed Pendent RA2614
Horizontal Sidewall RA2634
Concealed Sidewall RA2634
Table A
Note: This bulletin may contain information on New and Legacy
sprinklers that reflects a dimensional change only. Sprinkler Iden-
tication Number (SIN), application, performance, and listings/
approval are not otherwise affected. Sprinklers with New frames
will include the sufx “N” in the order.
Features
• Standard coverage quick-response sprinklers
• 300 psi (20.7 bar) rated
• Upright, pendent, and horizontal sidewall deflectors
• Low prole, compact design
• Available in a wide variety of nishes
Product Description
Reliable Model F1FR56-300 series sprinklers are 300 psi
(20.7 bar) rated, quick-response standard spray automatic re
sprinklers utilizing a sensitive 3.0 mm glass bulb thermal element.
Pendent and horizontal sidewall sprinklers may be installed
exposed or surface mounted using escutcheons such as the
Reliable Models B, C, or HB (reference Technical Bulletin 204).
When installed recessed or concealed, Model F1FR56-300 series
sprinklers are specically listed with and may only be installed
with listed Reliable recessed escutcheons and cover plates. Refer
to the technical information on the following pages for specic
listings for recessed and concealed installations and refer to
Figures 6 and 7 for dimensional information.
When tted with an approved water shield, these sprinklers may
considered intermediate sprinklers for use in racks, below grated
walkways, and other areas where intermediate level sprinklers are
required.
Table A provides a summary of the approvals and availability
of specic Model F1 series sprinkler congurations. Additional
technical information for each sprinkler model is provided on the
following pages.
www.reliablesprinkler.com
K-factor 5.6 (80)
F1FR56-300 Series
Quick Response Sprinklers
Bulletin 077 October 2022

Model F1FR56-300 Upright Sprinkler SIN RA2625
Technical Specications
Style: Upright
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure: 300 psi (20.7 bar)
Material Specications
Thermal Sensor: 3 mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Quick response
Temperature Ratings
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
Guards & Shields (New Frames)
F-1 Guard
F-3 Guard with Shield
Guards and Shields (Legacy Frames)
C-3 Guard with Shield
D-1 Guard
D-3 Guard with Shield
Sprinkler Wrench
Model W2
Model J (new frame with guard installed)
Model JD (legacy frame with guard
installed)
Listings and Approvals
cULus
Model F1FR56-300 Upright Sprinkler Components and Dimensions Figure 1
Deflector
Glass Bulb
(3 mm)
Wrench Flat
Threads
1 3/8" [33mm]
Cap/Seal Assembly
Load Screw
2 3/8" [60mm]
F1_HALF_UPR
Bulletin 077
October 2022
Page 2 of 8
www.reliablesprinkler.com

Model F1FR56-300 Pendent Sprinkler SIN RA2614
Technical Specications
Style:
Pendent
Recessed Pendent
Concealed Pendent
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure: 300 psi (20.7 bar)
Material Specications
Thermal Sensor: 3 mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Quick response
Temperature Ratings(1)
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
Recessed Escutcheons
Model F1
Model F2
Model FP
Cover Plate
Model CCP
Guards & Shields (New Frames)(2)
F-1 Guard
F-8 Guard with Shield
S-1 Shield
Guards and Shields (Legacy Frames)(2)
D-1 Guard
D-5 Guard with Shield
S-1 Shield
Sprinkler Wrenches
Model W2 (non-recessed)
Model W4 (recessed or concealed)
Model J (new frame with guard installed)
Model JD (legacy frame with guard
installed)
Listings and Approvals
cULus Listed
Notes:
1. 286°F (141°C) temperature rated sprinkler not listed for recessed or concealed use.
2. Not suitable for recessed or concealed pendent installation.
Model F1FR56-300 Pendent Sprinkler Components and Dimensions Figure 2
F1FR_HALF_PEND_INT
Deflector
Glass Bulb
(3 mm)
Wrench Flat
Threads
3 1/4" [83mm]
2 1/4" [57mm]
1" [25mm]
Load Screw
Cap/Seal
Assembly
Shown with Optional S-1 Water
Shield (Ordered Separately)
Note: Please refer to Figure 4 for recessed and concealed installation.
Bulletin 077
October 2022
Page 3 of 8
www.reliablesprinkler.com

Model F1FR56-300 Horizontal Sidewall Sprinkler SIN RA2634
Technical Specications
Style:
Horizontal Sidewall
Recessed Horizontal Sidewall
Concealed Horizontal Sidewall (1)
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure: 300 psi (20.7 bar)
Material Specications
Thermal Sensor: 3 mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Quick response
Temperature Ratings
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)(2)
Recessed Escutcheons
Model F1
Model F2
Model FP
Cover Plates
Model SWC
Guards & Shields (New Frames)(3)
F-7 Guard
Guards & Shields (Legacy Frames)(3)
D-1 Guard
Sprinkler Wrenches
Model W2 (non-recessed)
Model W4 (recessed or concealed)
Model J (new frame with guard installed)
Model JD (legacy frame with guard
installed)
Listings and Approvals
cULus Listed(4)
Notes:
1. Concealed horizontal sidewall (SWC) available in 135°F (57°C) and 155°F (68°C) temperature ratings ONLY.
2. 286°F (141°C) temperature rated sprinkler not listed for recessed or concealed use.
3. Not suitable for recessed or concealed horizontal sidewall installations.
4. cULus Listed for light and ordinary hazards only.
Model F1FR56-300 Horizontal Sidewall Sprinkler Components and Dimensions Figure 3
Bulletin 077
October 2022
Page 4 of 8
www.reliablesprinkler.com
F1FR_HALF_HSW
2 3/4" [70mm]
1 1/8" [28mm]
Threads
Cap/Seal Assembly
Load ScrewDeflector
Glass Bulb
(3 mm)
Wrench Flat
Frame
Note: Please refer to Figure 5 for recessed installation.

Models F1 & F1FR Pendent Sprinkler
with Model F1 Recessed Escutcheon
3/4" (19mm) Nominal Adjustment
2-7/8" (72 mm) Dia.
1-3/4"
(44 mm)
2-1/4"
(57 mm) Dia.
Hole in Ceiling
1-15/16"
(49 mm) Dia.
Minimum
Recess
Maximum
Recess
1"
(25 mm)
Face of Fitting
to Face of Ceiling
1-1/8" (29 mm) at
Max. Recess
3/8" (10 mm) at
Min. Recess
Models F1 & F1FR Pendent Sprinkler
with Model FP Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
1"
(25 mm)
2-5/16"
(59 mm) Dia.
Minimum
Recess Maximum
Recess
1/2"
(12 mm)
3-3/16" (78 mm) Dia.
Face of Fitting
to Face of Ceiling
1-1/2" (38 mm) at
Max. Recess
1" (25 mm) at
Min. Recess
2-7/8" (72 mm) Dia.
1-3/4"
(44 mm)
Minimum
Recess
Maximum
Recess
1-1/4"
(32 mm)
Face of Fitting
to Face of Ceiling
7/8" (22 mm) at
Max. Recess
3/8" (10 mm) at
Min. Recess
2-1/4"
(57 mm) Dia.
Hole in Ceiling
1-15/16"
(49 mm) Dia.
2-1/2"
(64 mm) Dia.
Hole in Ceiling
Models F1 & F1FR Pendent Sprinkler
with Model F2 Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
Reducing
Fitting
Reducing
Fitting
Reducing
Fitting
Note: Model FP recessed assemblies may not be used where the
pressure in the space above the ceiling is positive with respect to
the protected area. Ensure that the openings in the Model FP cup
are unobstructed following installation.
Vented Cup
Model F1FR56 CCP Conical Concealed Sprinkler
1/2" (13mm) Nominal Adjustment
(Nominal Cover Plate Projection is 1" (25 mm))
1"
(25 mm)
2-5/16"
(59 mm) Dia.
Minimum
Recess Maximum
Recess
1/2"
(12 mm)
3-5/16" (84 mm) Dia.
Face of Fitting
to Face of Ceiling
1-1/2" (38 mm) at
Max. Recess
1" (25 mm) at
Min. Recess
2-1/2"
(64 mm) Dia.
Hole in Ceiling
F1_REC_PEND_CCP
Reducing
Fitting
Note: Model CCP concealed assemblies may not be used where
the pressure in the space above the ceiling is positive with
respect to the protected area. Ensure that the openings in the
Model CCP cup are unobstructed following installation.
Vented Cup
Recessed and Concealed Installation: Pendent Sprinklers Figure 4
FP Recessed Escutcheon
F1 Recessed Escutcheon
(F2 Similar) CCP Cover Plate
Bulletin 077
October 2022
Page 5 of 8
www.reliablesprinkler.com

2-1/4"
(57 mm)
Dia.
Hole
1-15/16"
(49 mm)
Dia.
2-1/4"
(57 mm)
Dia.
Hole
1-15/16"
(49 mm)
DIA.
2-7/8"
(73 mm)
Dia.
2-7/8"
(73 mm)
Dia.
2-1/8" (54 mm) Minimum Recess
1-5/8" (42 mm) Maximum Recess
2 1/8" (54 mm) Minimum Recess
1-3/8" (35 mm) Maximum Recess
2-5/8"
(67 mm)
Dia
Hole.
2-5/16"
(58 mm)
Dia.
3-1/4"
(83 mm)
Dia.
1-1/4" (32 mm)
+/- 1/4" (6 mm)
Face of fitting
to face of wall
1-3/8" (35 mm) Minimum Recess
7/8" (22 mm) Maximum Recess
3/8" (16 mm)
+/- 1/4" (6 mm)
Face of fitting
to face of wall
1/2" (12 mm)
+/- 3/8" (10 mm)
Face of fitting
to face of wall
4" - 12"
(102 mm - 305 mm)
Deflector to ceiling
F1_REC_HSW_SWC
Reducing
Fitting
Reducing
Fitting
Reducing
Fitting
9/16" [14mm]
Model F1FR Horizontal Sidewall Sprinkler
with Model FP Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
Model F1FR Horizontal Sidewall Sprinkler
with Model F2 Recessed Escutcheon
1/2" (13mm) Nominal Adjustment
Model F1FR Horizontal Sidewall Sprinkler
with Model F1 Recessed Escutcheon
3/4" (19mm) Nominal Adjustment
4" - 12"
(102 mm - 305 mm)
Deflector to ceiling
9/16" [14mm]
4" - 12"
(102 mm - 305 mm)
Deflector to ceiling
9/16" [14mm]
Note: Model FP recessed assemblies may not be used where the pressure in the space behind
the sprinkler is positive with respect to the space in the protected area. Ensure that the
openings in the Model FP cup are unobstructed following installation.
Vented Cup
1-1/4" (32 mm)
+/- 1/4" (6 mm)
Face of Fitting to
face of wall
1 9/16" (40 mm) NOMINAL PROJECTION
2-5/8"
(67 mm)
Dia
Hole.
2-5/16"
(58 mm)
Dia.
Reducing
Fitting
Vented Cup
9/16" [14mm]
4" - 12"
(102 mm - 305 mm)
Deflector to ceiling
3 5/16" [84mm]
Model F1FR Horizontal Sidewall Sprinkler
with Model SWC Concealed Cover Plate
1/2" (13mm) Nominal Adjustment
Note: Model SWC concealed assemblies may not be used where the pressure in the space
behind the sprinkler is positive with respect to the space in the protected area. Ensure that the
openings in the Model SWC cup are unobstructed following installation.
Recessed and Concealed Installation: Horizontal Sidewall Sprinklers Figure 5
SWC Cover Plate
Bulletin 077
October 2022
Page 6 of 8
www.reliablesprinkler.com

Installation
Model F1FR Series sprinklers must be installed in accordance
with NFPA13 and the requirements of all applicable authorities
having jurisdiction. Model F1FR56-300 Series sprinklers must be
installed with the Reliable sprinkler installation wrench identied
in this Bulletin. Any other wrench may damage the sprinkler. The
Models W2 and W4 wrenches have two sets of jaws. Use the
smallest set of jaws that t on the wrench flats of the sprinkler.
A leak tight sprinkler joint can be obtained with a torque of 8
to 18 lb-ft (11 to 24 N.m). Do not tighten sprinklers over the
maximum recommended installation torque. Exceeding the
maximum recommended installation torque may cause leakage
or impairment of the sprinkler.
Glass bulb sprinklers have orange bulb protectors or protective
caps to minimize bulb damage during shipping, handling and
installation. Reliable sprinkler installation wrenches are designed
to install sprinklers with bulb protectors in place. Remove the
bulb protector at the time when the sprinkler system is placed in
service for re protection. Removal of the bulb protector before
this time may leave the bulb vulnerable to damage. Remove bulb
protectors by undoing the clasp by hand. Do not use tools to
remove bulb protectors.
Maintenance
Reliable Model F1FR56-300 series sprinklers should be
inspected and the sprinkler system maintained in accordance
with NFPA 25, as well as the requirements of any Authorities
Having Jurisdiction.
Prior to installation, sprinklers should remain in the original
cartons and packaging until used. This will minimize the potential
for damage to sprinklers that could cause improper operation or
non-operation.
Do not clean sprinklers with soap and water, ammonia liquid or
any other cleaning fluids. Remove dust by gentle vacuuming
without touching the sprinkler.
Replace any sprinkler which has been painted (other than factory
applied). A stock of spare sprinklers should be maintained to
allow quick replacement of damaged or operated sprinklers.
Failure to properly maintain sprinklers may result in inadvertent
operation or non-operation during a re event.

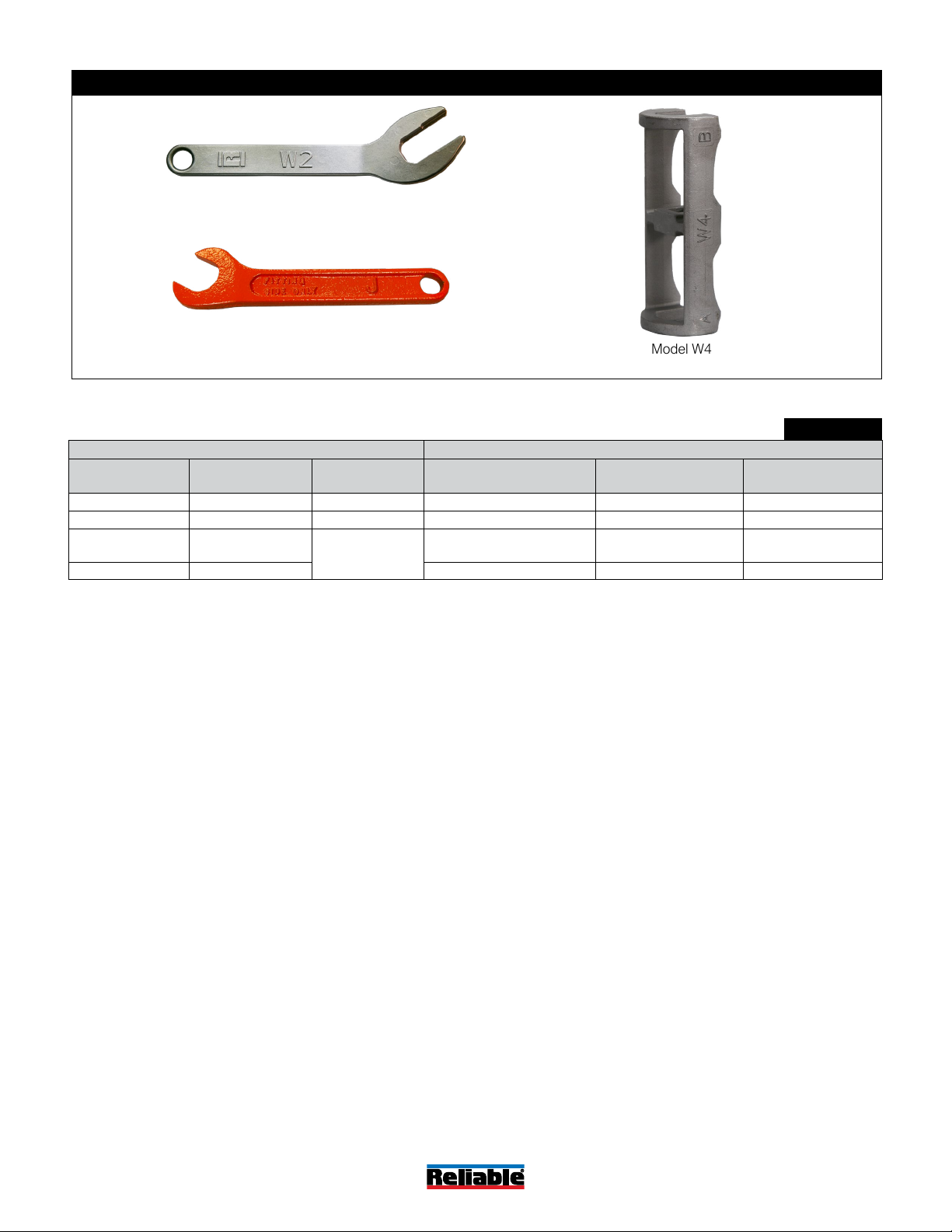

Wrenches
Model W2 (upright, pendent)
Model J (New frame with guard installed)
Model JD (Legacy frame with guard installed, similar but with zinc nish) Model W4
(recessed, concealed pendent)
Notes:
1. Paint or any other coating applied over the factory nish will void all approvals and warranties.
2. Model FP escutcheons, Model CCP sprinklers, and Model SWC sprinklers utilize a galvanized steel cup with a nished trim ring or cover plate.
3. cULus Listed as corrosion resistant.
4. For 200°F (93°C) maximum temperature rated sprinklers only.
Finishes(1) Table B
Standard Finishes Special Application Finishes
Sprinkler F1, F2 and FP(2)
Escutcheons
CCP & SWC
Cover Plates(2) Sprinkler F1, F2 and FP(2) Escutcheons
CCP & SWC
Cover Plates(2)
Bronze Brass Chrome Electroless Nickel PTFE(3) Bright Brass Bright Brass
Chrome Chrome White Paint Bright Brass(4) Satin Chrome Satin Chrome
White Polyester(3) White Polyester Satin Chrome Custom Color
Polyester Custom Color Paint
Custom Color Polyester(3)
Bulletin 077
October 2022
Page 7 of 8
www.reliablesprinkler.com

P/N 9999970626
Bulletin 077
October 2022
Page 8 of 8
www.reliablesprinkler.com
Guarantee
For the guarantee, terms, and conditions, visit www.
reliablesprinkler.com.
Ordering Information
Specify the following when ordering:
Model
• F1FR56-300
Deflector/Orientation
• Upright
• Pendent
• CCP Concealed Pendent
• Horizontal Sidewall
• SWC Concealed Horizontal Sidewall
Temperature Rating
• See sprinkler technical specications
Sprinkler Finish
• See Table B
Recessed Escutcheon*
• F1
• F2
• FP
Escutcheon Finish
• See Table B
CCP or SWC Cover Plate Temperature Rating
• 135°F (57°C) [For use with 135°F (57°C)
and 155°F (68°C) sprinklers.]
• 165°F (74°C) [For use with 175°F (79°C)
and 200°F (93°C) sprinklers.]
CCP or SWC Cover Plate Finish
• See Table B
Sprinkler Wrench
• Model W2 (upright, non-recessed pendent)
• Model W4 (recessed & concealed pendent)
• Model J (new frame with guard installed)
• Model JD (legacy frame with guard installed)
*Note: 286°F (141°C) sprinklers are not listed to be used recessed or concealed.
