Renishaw XM-60 multi-axis calibrator User manual

#renishaw
www.renishaw.com/xm60
XM-60 and XM-600 multi-axis calibrator

2XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
This page is intentionally left blank.

3www.renishaw.com/xm60XM-60 and XM-600 multi-axis calibrator
Contents
Legal information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safety labelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mechanical safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Laser optical safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electrical and power safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Battery safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Fibre optic safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Principles of measurement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
XM multi-axis calibrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
System components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
XM-60 system kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
System components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
XM-600 system kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Laser / Launch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CARTO Software suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
XC-80 environmental compensator . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Fixturing kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Other accessories for use on CMMs . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting up a test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Testing precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
System set-up using CARTO software. . . . . . . . . . . . . . . . . . . . . . . . 26
Test overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
XM system set-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
XC-80 set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Basic rules of alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Alignment overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Visual axis alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fine axis alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Receiver alignment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Data capture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Data analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Diagnostics and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Laser LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Receiver LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Battery charger LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
System troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Measurement troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Care and handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Conduit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Optics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
System specications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Performance specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Operating and storage environment. . . . . . . . . . . . . . . . . . . . . . . . . . 50
Radio communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
PICS connector (XM-600 only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

4XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
Receiver battery and charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Power supply unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Dimensions (laser unit). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Dimensions (launch unit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Dimensions (receiver unit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Replacing the receiver battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Appendix B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Using the 90 degree bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Appendix C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Sign detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Appendix D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Machine tool xturing kit good practice guide . . . . . . . . . . . . . . . . . . 60
Appendix E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Example XM system set-ups on CMM . . . . . . . . . . . . . . . . . . . . . . . . 65
Appendix F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Straightness measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Angular errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
XM set-up best practice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

5www.renishaw.com/xm60XM-60 and XM-600 multi-axis calibrator
Legal information
Warranty
Equipment requiring attention under warranty must be returned to your
equipment supplier.
Unless otherwise specically agreed in writing between you and Renishaw,
if you purchased the equipment from a Renishaw company, the warranty
provisions contained in Renishaw’s CONDITIONS OF SALE apply.
You should consult these conditions in order to nd out the details of your
warranty but, in summary, the main exclusions from the warranty are if the
equipment has been:
• neglected, mishandled or inappropriately used; or
• modied or altered in any way except with the prior written agreement
of Renishaw.
If you purchased the equipment from any other supplier, you should contact
them to nd out what repairs are covered by their warranty.
Patents
Features of the XM multi-axis calibrator, and other similar Renishaw products,
are subject of one or more of the following patents and/or patent applications:
CN 101715540 US 2016/0169710
CN 105637326 US 5975744
EP 3028011 US 6473250
GB 2337339 US 6597505
IN WO2015/015213 US 7304815
JP 2015/015213 US 8368887
JP 4499924

6XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
Legal information
International regulations and conformance
EC and UKCA compliance
Renishaw plc declares that the XM system complies with the applicable
directives, standard and regulations. A copy of the full EC Declaration of
Conformity is available upon request.
In compliance with BS EN 61010-1:2010 the product is safe to use in the
following minimum environmental conditions:
• Indoor use only
• Altitude up to 2000 m
• Maximum relative humidity (non-condensing) of 80%
for temperatures up to 31 °C decreasing linearly to
50% relative humidity at 40 °C
• Pollution Degree 2
USA and Canadian regulations
FCC
Information to the user (47CFR:2001 part 15.19)
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
Information to the user (47CFR:2001 part 15.105)
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not used in
accordance with this user guide, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case you will be required to correct the
interference at your own expense.
Information to the user (47CFR:2001 part 15.21)
The user is cautioned that any changes or modications not expressly
approved by Renishaw plc or authorised representative could void the user’s
authority to operate the equipment.
Special accessories (47CFR:2001 part 15.27)
This unit was tested with shielded cables on peripheral devices. Shielded
cables must be used with the unit to ensure compliance.

7www.renishaw.com/xm60XM-60 and XM-600 multi-axis calibrator
Legal information
Canada – Industry Canada (IC)
This device complies with RSS 210 of Industry Canada. Operation is subject
to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of this device.
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes:
(1) il ne doit pas produire d’interference et (2) l’utilisateur du dispositif doit étre
prêt à accepter toute interference radioélectrique reçu, même si celle-ci est
susceptible de compromettre le fonctionnement du dispositif.
REACH regulation
Information required by Article 33(1) of Regulation (EC) No. 1907/2006
(“REACH”) relating to products containing substances of very high concern
(SVHCs) is available at: www.renishaw.com/REACH
RoHS compliance Compliant with EC directive 2011/65/EU (RoHS)
Packaging
Packaging component Material 94/62/EC
code
94/62/EC
number
Outer box Cardboard - 70% recycled content PA P 20
Inserts Cardboard - 70% recycled content PA P 20
Bags Low density polyethylene LDPE 4
Disposal of waste electrical and electronic
equipment
The use of this symbol on Renishaw products and/or
accompanying documentation indicates that the product
should not be mixed with general household waste upon
disposal. It is the responsibility of the end user to dispose of
this product at a designated collection point for waste electrical
and electronic equipment (WEEE) to enable reuse or recycling.
Correct disposal of this product will help to save valuable
resources and prevent potential negative effects on the
environment. For more information, contact your local waste disposal service
or Renishaw distributor.
Disposal of batteries
Please see the relevant battery manufacturers’ website for
further information: (Varta) https://www.varta-storage.com/
produkte/power/cellpac-lite/
The use of this symbol on the batteries, packaging or
accompanying documents indicates that used batteries
should not be mixed with general household waste. Dispose
of the used batteries at a designated collection point. This
will prevent potential negative effects on the environment
and human health which could otherwise arise from inappropriate waste
handling. Contact your local authority or waste disposal service concerning
the separate collection and disposal of batteries. All lithium and rechargeable
batteries must be fully discharged or protected from short circuiting prior to
disposal.

8XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
Legal information
Radio communication
The wireless communication module used within the XM system is pre-
approved in a number of regions including EU, EFTA countries, USA and
Canada.
Module manufacturer: Laird plc
Part number: TRBLU23-00200
FCC ID: FCC ID PI401B
Module ID No: 1931 B-BISMII
For details of national radio approvals for this device, see the Compliance with
radio device regulations document on the Calibration product quality and
conformance web pages.
Further radio approval country specic statements can be found below:
Singapore
Reg. No. N1116-17
Complies with
IDA Standards
DA104642
Mexico
La operación de este equipo está sujeta a las siguientes dos condiciones:
1. es posible que este equipo o dispositivo no cause interferencia
perjudicial y
2. este equipo o dispositivo debe aceptar cualquier interferencia,
incluyendo la que pueda causar su operación no deseada.
Taiwan
低功率電波輻性電機管理辦法
第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者
均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有
干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，
指依電信規定作業之無線電信。低功率射頻電機須忍受合法通信或工業、科學
及醫療用電波輻射性電機設備之干擾。

9www.renishaw.com/xm60XM-60 and XM-600 multi-axis calibrator
Safety information
WARNING: Use of controls or adjustments or performance of procedures
other than those specied herein may result in hazardous radiation exposure.
Ensure that you read and understand the XM system user guide before
using any XM system.
The XM system can be used in a variety of environments and applications.
To ensure the safety of the user and other personnel in the vicinity it is
therefore paramount that a comprehensive risk assessment is carried out
for the machine under test before using the XM system. It is the responsibility
of the user to esnure the system is safe to use.
This should be carried out by qualied users (requiring machine
competency, applicable technical knowledge and a trained risk assessor)
with consideration for the safety of all personnel. The risks identied must
be mitigated prior to using the product. The risk assessment should pay
particular attention to machine, manual handling, mechanical, laser, electrical,
power and bre optic safety.
Based on current research, the wireless devices used in this product
would not seem to pose a signicant health problem for the vast majority of
pacemaker wearers. However, people with pacemakers may want to ensure
a minimum distance of 3 cm between the XM system and the pacemaker.

10 XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
Safety labelling
WARNING: There are no user-serviceable parts inside the XM
system. Do not remove any part of the housing; to do so could
expose the user to high voltages and/or Class 3R laser radiation.
COMPLIES WITH 21 CFR 1040.10
AND 1040.11 EXCEPT FOR
CONFORMANCE WITH IEC 60825-1 ED. 3.,
AS DESCRIBED IN LASER NOTICE NO. 56,
DATED MAY 8, 2019.
CAUTION: Ensure that you read and understand the XM system
user guide before using any XM system.

11www.renishaw.com/xm60XM-60 and XM-600 multi-axis calibrator
Mechanical safety
• When setting up and mounting Renishaw XM and XC-80 systems
beware of pinch and/or crush hazards that may be created, for example,
due to magnetic mounting bases.
• Beware of trip hazards that may be created when using the XM and
XC-80 systems, for example, due to trailing cables.
• Exercise caution if components are to be mounted to moving or rotating
machinery. Beware of cables becoming entangled.
• Exercise extreme caution if XM and XC-80 system components are to
be mounted to machinery that may accelerate rapidly or move at high
speed, which could lead to items colliding or being ejected.
• If it is necessary to operate the machine with the guards or any
safety feature removed or disabled, it is the responsibility of the
operator to ensure that alternative safety measures are taken in
line with the machine manufacturer’s operating instructions or
relevant codes of practice.
• If you are using a part program or error correction parameters
generated by the Renishaw software, it is your responsibility to validate
these at low feedrate and be prepared to operate the emergency stop
button if necessary.
• The XM system weighs approximately 24 kg in the case (31 kg with the
machine tool xturing kit attached). Users should exercise caution and
follow local manual handling guidelines.
Laser optical safety
• In accordance with (IEC) EN60825-1, XM systems are
Class 2M lasers and safety goggles are not required
(under normal circumstances the eye will blink and look
away before damage can occur).
• Do not stare directly into the laser beams or view them with optical
equipment such as telescopes, convergent mirrors or binoculars as
permanent retinal damage could occur. Do not direct the beam at
other people or into areas where people unconnected with laser work
might be present. It is safe to view a diffuse-reected beam during
system alignment.
• Complies with 21 CFR 1040.10 and 1040.11 except for conformance
with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated
May 8, 2019.

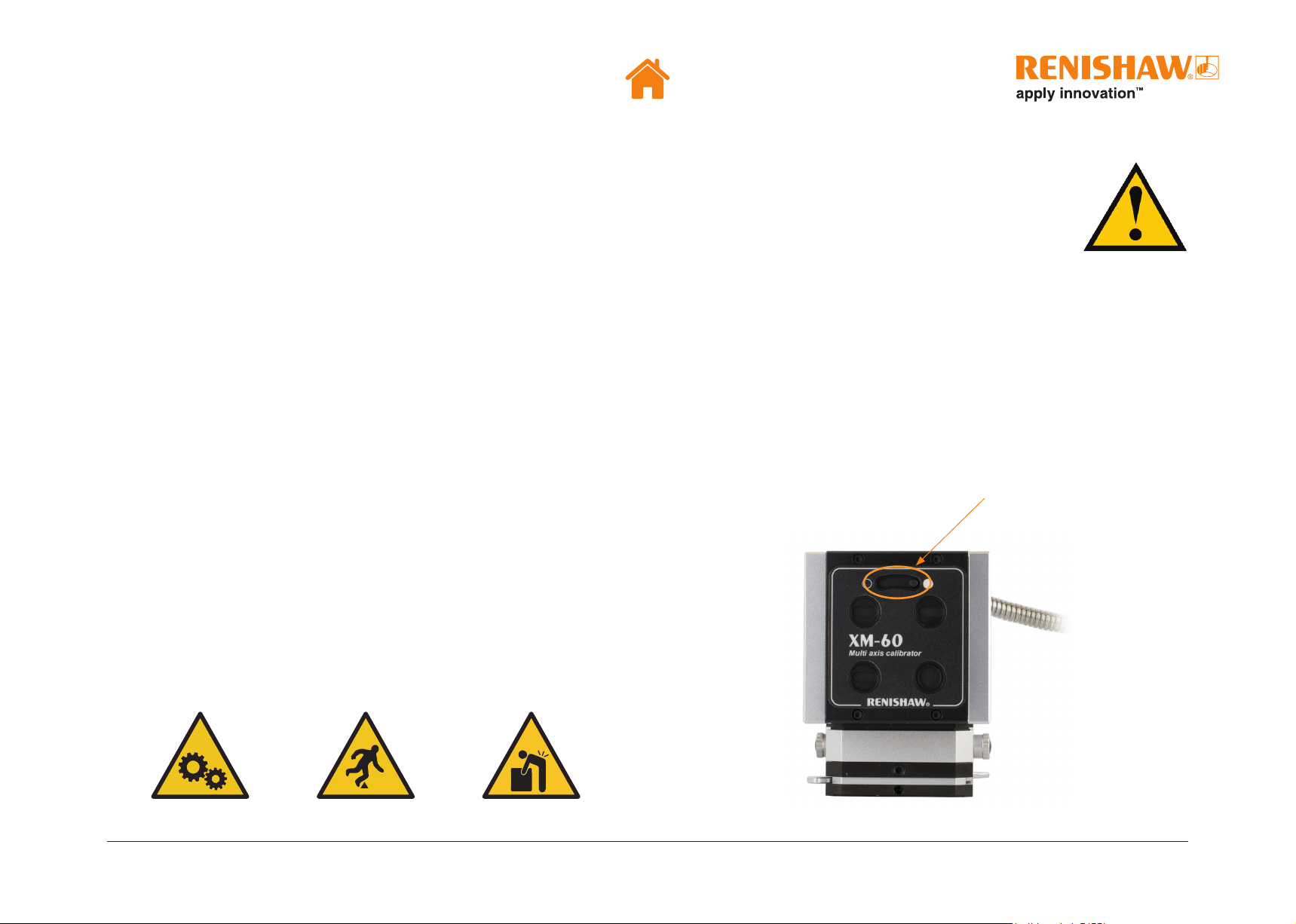

Rotating the shutter to the closed position (the right-hand position on the
picture) ensures no beam is emitted.

12 XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
Electrical and power safety
• The power supply unit must not come into contact with
uids, for example, coolant on the oor.
• The power supply unit must not be positioned inside
the machine volume.
• The XM system has been qualied for use with the
power supply unit supplied with the system. A specication for this power
supply unit can be found on page 53.
• In the event of damage to the single-phase mains cabling section of
the power supply (power lead), all power must be isolated from the
equipment before any other action is taken.
• In the event of a fault with the XM system, switch it off immediately using
the ‘ON/OFF’ switch, or by disconnecting the ‘Power connector’, or by
disconnecting the mains power supply.
• Ensure the XM system is positioned in such a way that the power can
be easily disconnected by the operator.
• Never connect the system to devices not intended to be used with the
XM system.
Battery safety
The XM multi-axis calibrator is supplied with rechargeable
batteries.
• Once depleted, recharge the battery in the charger
provided: do not attempt to charge the battery by
other means.
• For specic battery operating, safety and disposal guidelines, please
refer to the battery manufacturers’ literature.
• Replace the batteries only with the specied type.
• Ensure that all batteries are inserted with the correct polarity.
• Do not store batteries in direct sunlight.
• Do not heat or dispose of batteries in a re.
• Do not short-circuit or force discharge the batteries.
• Do not disassemble, pierce, deform or apply excessive pressure
to the batteries.
• Do not swallow the batteries.
• Keep the batteries out of the reach of children.
• Do not get batteries wet.
• If a battery is damaged, exercise caution when handling it.

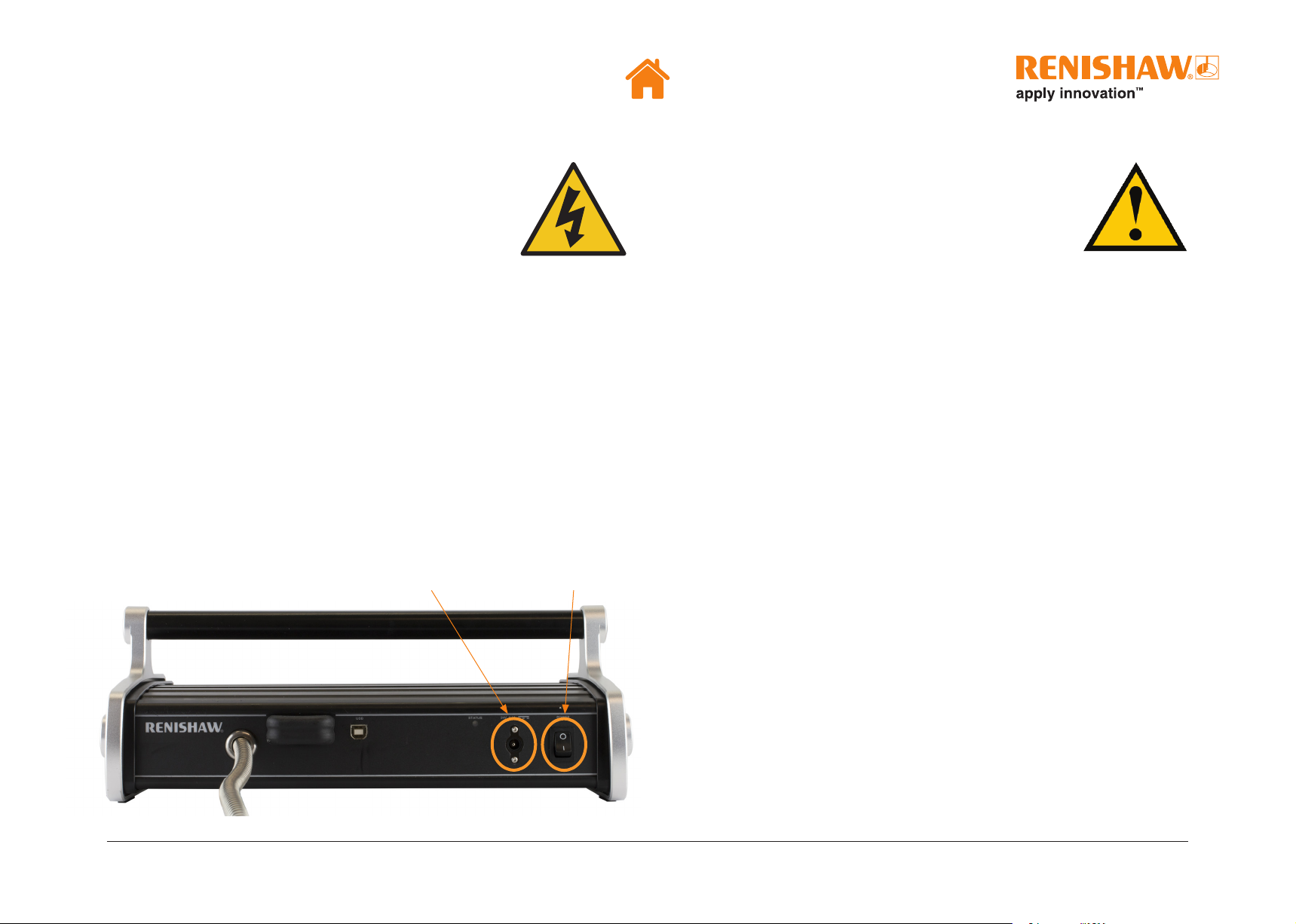

Power connector On/off switch

13www.renishaw.com/xm60XM-60 and XM-600 multi-axis calibrator
Battery safety
Transportation
Ensure that you comply with international and national
battery transport regulations when transporting batteries
or XM system kits.
The XM system uses a Lithium-ion battery. Lithium batteries are classied as
dangerous goods and strict controls apply on their shipment by air. To reduce
the risk of shipment delays, should you need to return the XM system to
Renishaw for any reason, do not return any batteries.
The operation of wireless appliances on aircraft is forbidden by many airlines
to prevent interference with communications systems. Remove the battery
from the receiver unit when boarding an aircraft to ensure it cannot be
switched on inadvertently.
Fibre optic safety
The XM system contains bre optics. In the unlikely event
that the exible steel conduit is cut or severed, bre optic
splinters may be produced.
Fibre optic splinters can be very small and extremely sharp.
Should any bre optic splinter become embedded in the skin,
medical attention should be sought immediately.
Should the bre optic become damaged, the following procedure should
be followed (be aware that the affected area might contain splinters of
unattached bre optic which can present a hazard):
• Immediately power down the XM system.
• Wear eye protection and protective gloves when handling damaged
or exposed bre optics.
• Carefully remove the XM system from the machine and package in a
suitable thick-walled cardboard box, clearly marked ‘Caution: exposed
bre optics, handle with care’ on the outside of the box.
• Return the unit to the nearest Renishaw ofce.
No attempt should be made to repair or dismantle the bres from the laser unit.
NOTE: Fibre optic splinters do not show up on X-rays.

14 XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
System
Diagnostics
Hardware
Specifications
Operation
Principles of measurement
XM multi-axis calibrator
The XM multi-axis calibrator is a laser measurement system capable
of measuring six degrees of freedom:
• Along a linear axis
• In any orientation
• From a single set-up
The measured errors are:
• Linear positioning of the axis
• Angular rotation in the vertical plane (pitch)
• Angular rotation in the horizontal plane (yaw)
• Straightness deviation in the vertical plane
• Straightness deviation in the horizontal plane
• Roll about the linear axis of travel
System

15www.renishaw.com/xm60XM-60 and XM-600 multi-axis calibrator
System
Diagnostics
Hardware
Specifications
Operation
The fourth (diode source) beam is used to measure straightness and roll.
Straightness
The vertical and horizontal straightness error is measured
using a position sensor within the receiver and transmitted
back to the laser via wireless communication.
Roll
Roll measurement is performed optically using a roll
detector inside the receiver. Roll measurements are
absolute between the launch and the receiver.
1
2
3
4
The XM system uses three laser beams (1, 2 and 3) to measure the linear,
pitch and yaw errors using interferometry. The light emitting diode (LED) beam
(4) is used for straightness and roll measurements.
The basic measurement concept is:
Angular
The three interferometric beams provide a linear
measurement of the separation between launch and
receiver. Because the distance between these beams is
known, angular errors of pitch and yaw can be determined
by the system.
Linear
Using the pitch and yaw measurements, the linear error is
determined based on the combination of beams 1, 2 and 3
to calculate the linear error at the position of beam 4.
System

16 XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
System
Diagnostics
Hardware
Specifications
Operation
1Laser / Launch
2Receiver
3Magnetic base
4M8 pillars × 4
590 degree bracket
6Battery Li-Polymer 3.7 V × 3
7Battery charger
8Clamp blocks × 2
9Beam shroud
10 Spirit level
11 Cable clamps × 3
12
Beam blocker (for rotary applications, see the XR20
rotary axis calibrator user guide (Renishaw part no.
F-9950-0400)
6
98
3
2
5
4
10
12
11 7
1
System components
XM-60 system kit
Hardware

17www.renishaw.com/xm60XM-60 and XM-600 multi-axis calibrator
System
Diagnostics
Hardware
Specifications
Operation
8
10 9
3
2
5
6
4
11
7
12
13
1

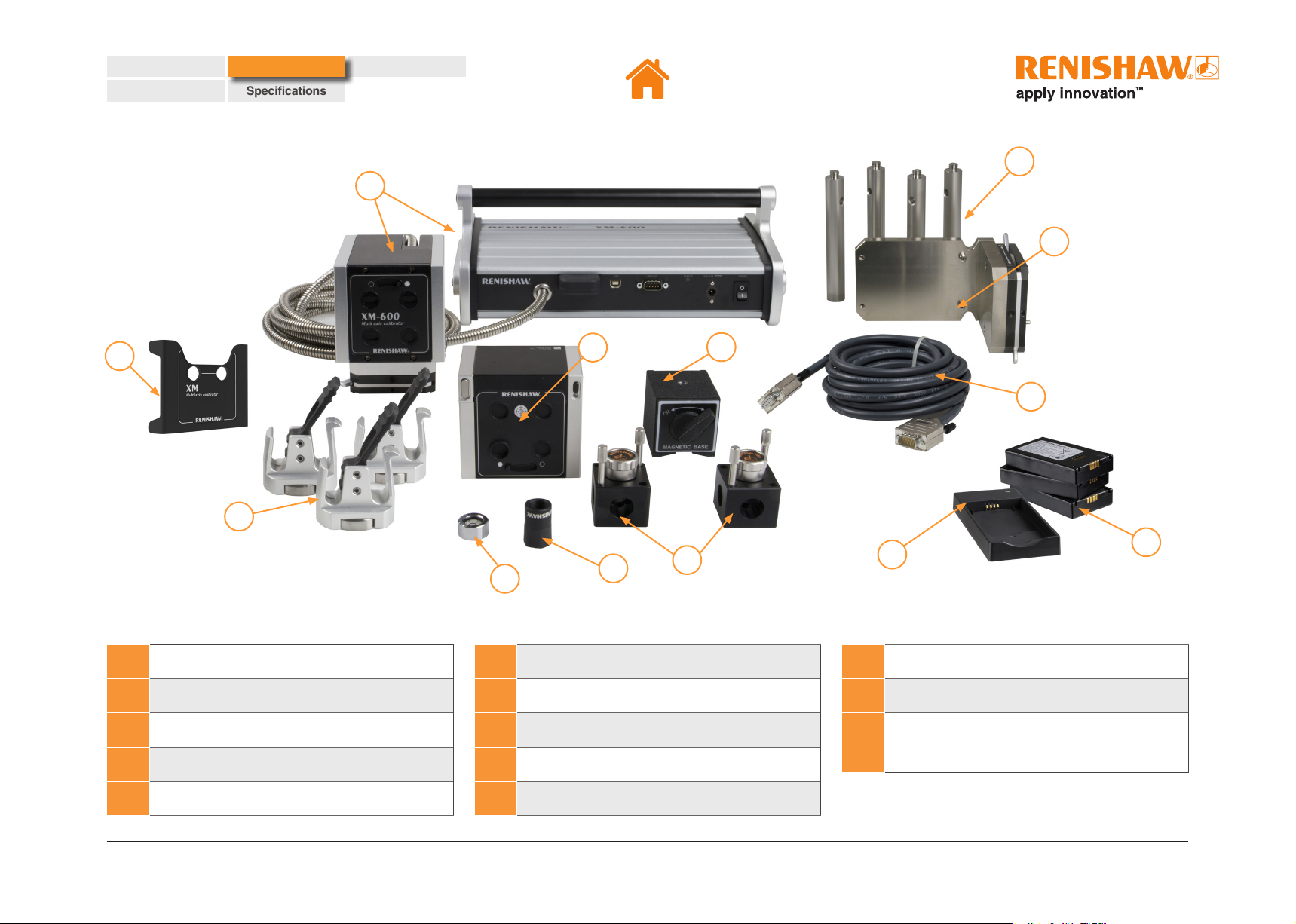

System components
XM-600 system kit
1Laser / Launch
2Receiver
3Magnetic base
4M8 pillars × 4
590 degree bracket
6PICS cable
7Battery Li-Polymer 3.7 V × 3
8Battery charger
9Clamp blocks × 2
10 Beam shroud
11 Spirit level
12 Cable clamps × 3
13
Beam blocker (for rotary applications, see the XR20
rotary axis calibrator user guide (Renishaw part no.
F-9950-0400)
Hardware

18 XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
System
Diagnostics
Hardware
Specifications
Operation

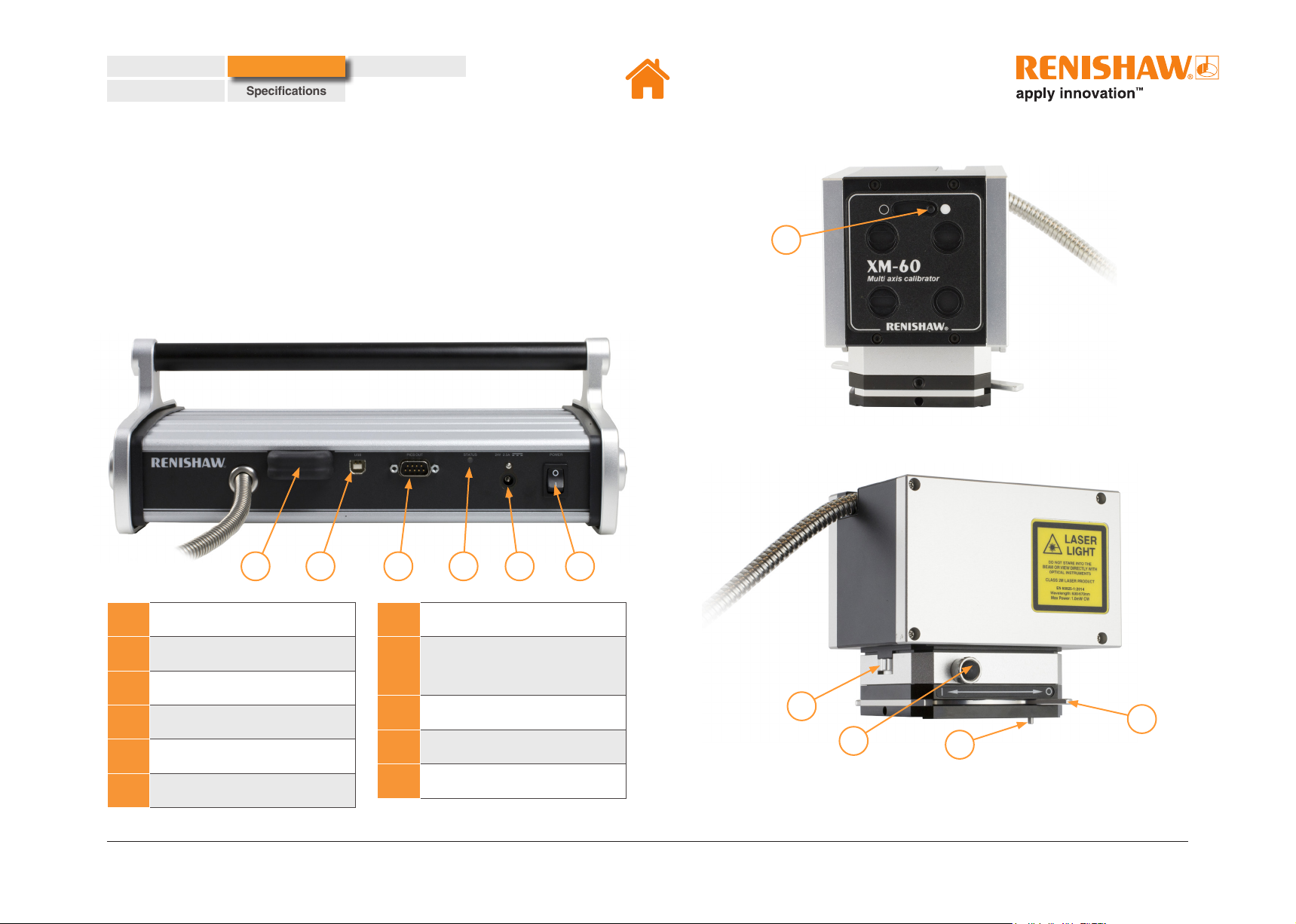

Laser / Launch
The laser contains a Helium-Neon (HeNe) laser tube providing laser beams
to the launch via bre optics. In addition, the laser contains signal processing
electronics.
The laser beam is split into three in the launch for linear and angular
measurements. It also houses a diode beam source for roll and straightness
measurements.
1Wireless communication module
2USB connection port
3PICS connector (XM-600 only)
4System status LED
5Power connector
6Power on/off switch
7Laser safety shutter
8
Magnetic mount safety pin
(prevents accidental
magnet operation)
9Magnetic clamp on/off lever
10 Pitch adjuster
11 Yaw adjuster
8
9
10
7
11
1264 53
Hardware

19www.renishaw.com/xm60XM-60 and XM-600 multi-axis calibrator
System
Diagnostics
Hardware
Specifications
Operation

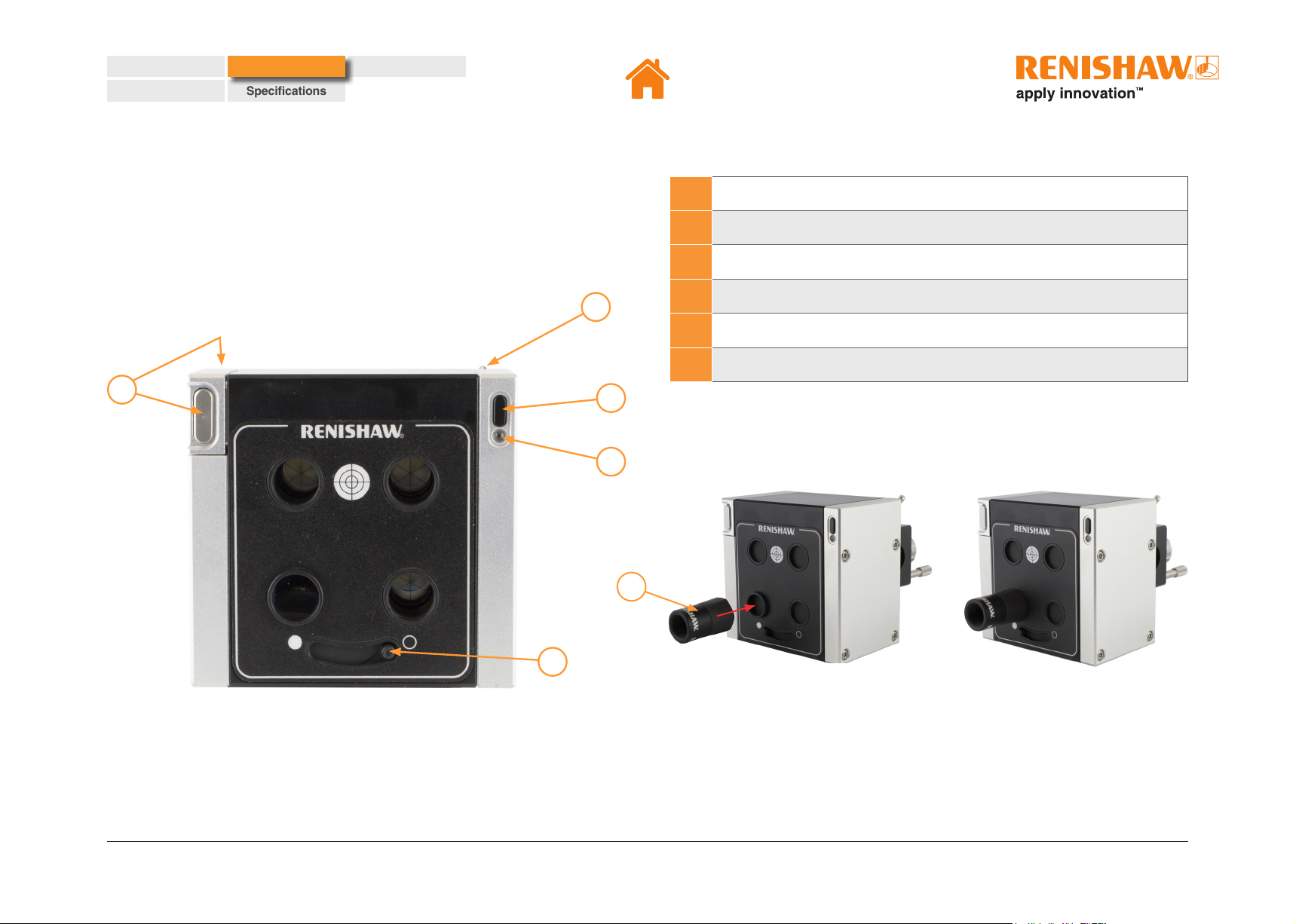

Receiver
The receiver contains three retro-reectors for the interferometric laser
beams. It also contains a straightness and roll sensor for the diode beam.
Data from this sensor is transmitted to the laser via wireless communication.
1Beam shroud
2Roll adjuster
3Shutter
4Battery release buttons
5Power button
6Receiver/battery status LED
5
2
6
3
1
4
The beam shroud is attached by a ‘push-t’ on to the receiver roll aperture.
Hardware

20 XM-60 and XM-600 multi-axis calibrator www.renishaw.com/xm60
System
Diagnostics
Hardware
Specifications
Operation
CARTO Software suite
The XM system is used with the CARTO software suite. This is made up
of three applications; Capture to collect laser interferometry data, Explore
to provide powerful analysis and Compensate to provide semi-automatic
error correction.
www.renishaw.com/carto
NOTE: The XM-600 supports additional functionality
when used on a CMM which is equipped with Renishaw’s
UCC system. This functionality is accessed using UCC
Assist, which is part of UCC Suite – a software package
for the CMM controller. The XM-600 is supported from
UCC Suite V5.4.
UCC Assist enables additional features which are unique to the XM-600,
and contains support information on how to use the XM-600 to calibrate a
UCC-equipped CMM.
Hardware
