Healthbox®3.0
Introduction
This manual consists of 2 parts:
• Part 1 - User: guide to the operation of the device
• Part 2 - Installer: guide for performing a correct installation
General safety regulations
Always follow the safety regulations, warnings, comments and instructions from this
manual. If these safety regulations, warnings, comments and instructions are not followed, it could
lead to damage to the Healthbox 3.0 or to personal injury, for which RENSON®NV cannot be
held responsible.
• Installation of the Healthbox 3.0 must be performed in accordance with the general and locally
applicable regulations regarding construction, safety and installation requirements of the
municipal/urban and/or other bodies.
• Only a qualified electrician (or supported by a qualified installer) should install, connect,
commission and maintain Healthbox 3.0 differently than as described in this manual.
• All wiring must be done by a qualified person.
• Please ensure that the electrical power supply for Healthbox 3.0 corresponds to the
requirements in this guide.
• If the power cord is damaged, it must be replaced by the manufacturer, its service
representative or similar qualified persons to avoid danger.
• Healthbox 3.0 is constructed so that in normal use, and without deliberate action, it is not
possible to come into contact with moving or live parts.
• The device must be mounted in a touch-proof manner. This means that, under normal operating
conditions, no one can come into contact with moving or live parts of the fan unit without a
deliberate action such as:
– Disassembling the cover plate (and motor plate).
– Disconnecting an air duct and/or protective cover on the suction points during normal use.

98
en Healthbox®3.0
Specific measures
• Ensure that the Healthbox 3.0 remains easily accessible at all times, so that maintenance and
service can be done easily.
• Healthbox 3.0 meets the legal requirements for electrical devices.
• Modifications to the Healthbox 3.0 are not allowed.
• The fan unit may only be used with appropriate RENSON®accessories.
• Use RENSON®air ducts and a RENSON®roof guide to minimize the pressure drop.
Thisresults in lower energy consumption and lower noise fan noise.
• The installer must ensure that the air extraction of the fan unit is placed at sufficient distance
from the drainage and supply of the boiler.
• The possibility of touching the fan must be excluded. Therefore, an air duct network must
always be connected to Healthbox 3.0 before putting it in to service. The minimum channel
length is 0.5 m.
• When Healthbox 3.0 is combined with products for compartmentalisation to reduce the
distribution risk of fire:
Ensure that the fire valve/butterfly valve/sleeve/... has sufficient free air passage to minimize
pressure loss. Choosing the wrong type may lead to non-functioning of the Healthbox 3.0.
• DO NOT install Healthbox 3.0 in areas where the following items are present or may be
present:
– An excessively fat-laden atmosphere
– Corrosive or flammable gases, liquids or vapours
– Room air temperature above 50°C or lower than -10°C
– Relative humidity higher than 90% or outside
– Healthbox 3.0 should not be used in places where it may be subject to possible water jets

99
en
Healthbox®3.0
The following specific safety measures must be taken:
• Always ensure that before commencing work activities, the power supply is disconnected by
unplugging the power cord from the wall socket or by switching off the fuse. (ensure that this
has actually happened!)
• Always wait for a minimum of 30 seconds to reconnect the power supply.
• Use appropriate/suitable tools for performing work on mounting the Healthbox 3.0.
• Use the device only for applications for which it was designed, as stated in the manual.
Privacy Statement
If this unit is connected to the internet, it sends various unit information automatically to Renson.
For more information about this data processing, see www.renson.eu/privacy.
PLEASE NOTE:
The fan unit has to function permanently, i.e. the Healthbox 3.0 should never
be turned off. [legal obligation according to NBN D50-001 Chapter 4.2. System C)
If Air quality sensor data is used to display graphics (historical) to the user.
Asan installer you are not automatically entitled to access this sensor data of a
Healthbox 3.0 that you installed, conform General Data Protection Regulation
(GDPR).
If a customer’s Healthbox 3.0 is connected to your own account via a user app,
we recommend that you disconnect this connection to your account (via the user
app or web portal for users) before the customer takes the property into use.

100
Healthbox®3.0
en
User
PART 1 • USER
1 • Introduction
Congratulations on your purchase of Healthbox 3.0!
We are convinced that you have made the right choice. With Healthbox 3.0, your home is
correctly ventilated in an energy efficient way, giving you a healthy indoor climate:
• Protection against excessive moisture concentrations
• Supplied with good air quality
By automatically adjusting the ventilation level according to your living habits, heating leakage
is drastically reduced. If you chose the SmartZone option, you can also enjoy demand-controlled
extraction in the bedroom(s).
Via the SmartConnect connection, Healthbox 3.0 can be connected to the internet. This allows
Healthbox 3.0 not only to communicate with the user through a free app, but also with other
smart devices in smart home management systems.
Follow RENSON®and discover all innovations about mechanical ventilation!
www.fb.com/rensonworldwide
@rensonworldwide
@rensonworldwide
www.pinterest.com/rensonworldwide
www.youtube.com/user/RensonMarketing
2 • Healthbox 3.0 operation
Healthbox 3.0 was specifically developed for integration in residential homes and apartments,
but can also be used in the non-residential sector such as residential care centres, studios, etc. It is
a compact device, which means that it does not require a lot of installation space.
Proper functioning of the demand-controlled ventilation system is only guaranteed if the following
three pillars are adapted to one another:
• Supply: self-regulating RENSON®window ventilation class P3 or P4.
• Throughput: door grille or crack under the door.
• Drainage: Healthbox 3.0 demand-controlled fan unit.

101
Healthbox®3.0 en
User
2.1 • Demand-controlled ventilation
The demand-controlled ventilation system from Renson®is successful due to its comfort, energy
efficiency and ease of maintenance. The home is optimally ventilated according to the living
habits of the residents.
Healthbox 3.0 monitors the air quality 24 hours a day for CO2or moisture and/or VOCs (odour)
per connected room. The ventilation level is hereby intelligently fully automatically adjusted in
function of the measured air quality. This is done based on sensors in the control module. As long
as the air quality in a room is good, the ventilation level remains limited, which is very interesting
regarding energy in terms of heat savings and electricity consumption.
2.2 • Fan control
The fan is controlled via an active variable pressure control. This is a smart control that
continuously adjusts the fan speed to achieve the required ventilation air flows at the lowest
possible pressure level. This ensures extremely quiet operation as well as the lowest power
consumption.
2.3 • Breeze function
Healthbox 3.0 is standard equipped with a Breeze function. The Breeze function helps to limit the
risk of overheating inside the home.
What is the Breeze function?
When outside temperatures rise considerably during the day in summer, Healthbox 3.0 helps to
let in the fresh air at night.
The Breeze function becomes active to extract the warm indoor air more quickly in all rooms with
an increased flow rate and thus supply cooler outdoor air.
As a result, the Healthbox 3.0 contributes to the natural cooling of the residence.
Activating the Breeze function
Breeze control is automatic, but can only be active at night (between 0h and 6h) if the average
indoor temperature (measured on all control modules) is higher than the minimum temperature
(e.g. 24°C). The minimum temperature is freely adjustable in the app. The Breeze function must
be active for at least one hour.

102
Healthbox®3.0
en
User
3 • SmartConnect
With the SmartConnect connection, Healthbox 3.0 can be connected to the home network*.
This offers the occupant the following benefits:
• Home network connected to the
internet:
– The app (section 3.2) can be
used to visualise data about
the measured air quality from
the device and if necessary, to
temporarily manually adjust the
ventilation level where necessary.
– The Lio web portal can be
consulted (section 3.3).
– Healthbox 3.0 can be incorporated
into a smart home, to be integrated
into a home management system in order to communicate with other smart devices.
Allpossibilities for interaction can be fully used (section 3.4).
• Home network not connected to the internet:
– Healthbox 3.0 can be incorporated into a smart home to communicate with other
smart devices in a home management system. Interaction possibilities are rather limited
(section3.4).
3.1 • Connecting Healthbox 3.0 to the home network
To use the app and the web portal, the home network to which Healthbox 3.0 is connected must
be connected to the Internet. This way, it is possible to read out all data from the ventilation
system on the app, in order to adjust Healthbox 3.0 with the app, ...
NOTE:
Healthbox 3.0 always works completely autonomously, even if there is no
connection to the home network.
* private and secure network
Quick access to
instructional video

103
Healthbox®3.0 en
User
3.1.1 • Possible ways to connect Healthbox 3.0 to the home network
3.1.1.1 • Network cable
Instructions: connect Healthbox 3.0 directly to the router via a network cable.
3.1.1.2 • Ethernet-over-Power (EoP)
Instructions: connect both Healthbox 3.0 and router via network cable with a powerline ethernet
adapter.
Home network
router
Home network
router
Powerline ethernet
adapter
Powerline ethernet
adapter
Internet
Internet

104
Healthbox®3.0
en
User

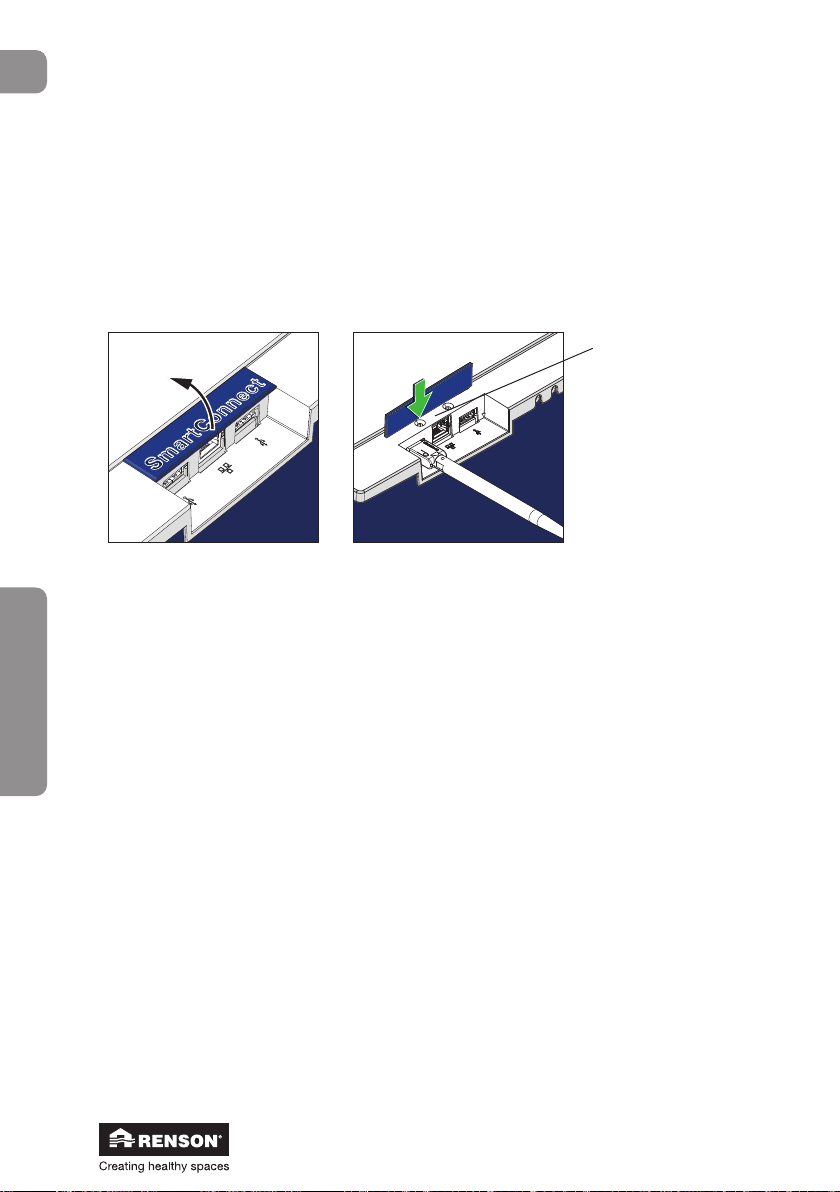

3.1.1.3 • Wi-Fi dongle
Healthbox 3.0 is compatible to connect to secure Wi-Fi networks (WEP/WPA/WPA2).
Instructions: Insert the Renson Wi-Fi dongle into any USB connection of the SmartConnect zone (if
not already connected).
3.1.2 • Steps to connect Healthbox 3.0 to the app
First download the app (section 3.2.1) and start the app up until the Log in/Register screen. The
next steps to follow depend on how Healthbox 3.0 is connected to the home network:
1. Connection via network cable or Ethernet-over-Power (EoP)
2. Connection via Wi-Fi dongle
Wi-Fi dongle
Option: Use a Wi-Fi
repeater if there is
a bad Wi-Fi range
OR
Home network
router
Internet
If Healthbox 3.0 is live, Healthbox 3.0 must be disconnected from the power
supply after plugging in the Wi-Fi dongle. Wait for 30 seconds and put the
Healthbox 3.0 back on power.

105
Healthbox®3.0 en
User
3.1.2.1 • Connection via network cable or Ethernet-over-Power (EoP)
1. First, connect Healthbox 3.0 to the network via network cable or Ethernet-over-Power
(seesection 3.1.1).
2. Using the Wi-Fi settings of your smartphone, select the network (with internet) to which
Healthbox 3.0 is connected.
3. The connection between Healthbox 3.0 and the app must be made using the app.
Start the app and create an account by registering:
Router
network ‘x’
Router
network ‘y’
Network cable
or EoP
Wi-Fi settings
Network ‘x’
Network ‘y’
…
Internet

106
Healthbox®3.0
en
User
4. The app then searches for the Healthbox 3.0 devices that are connected to the selected
network.

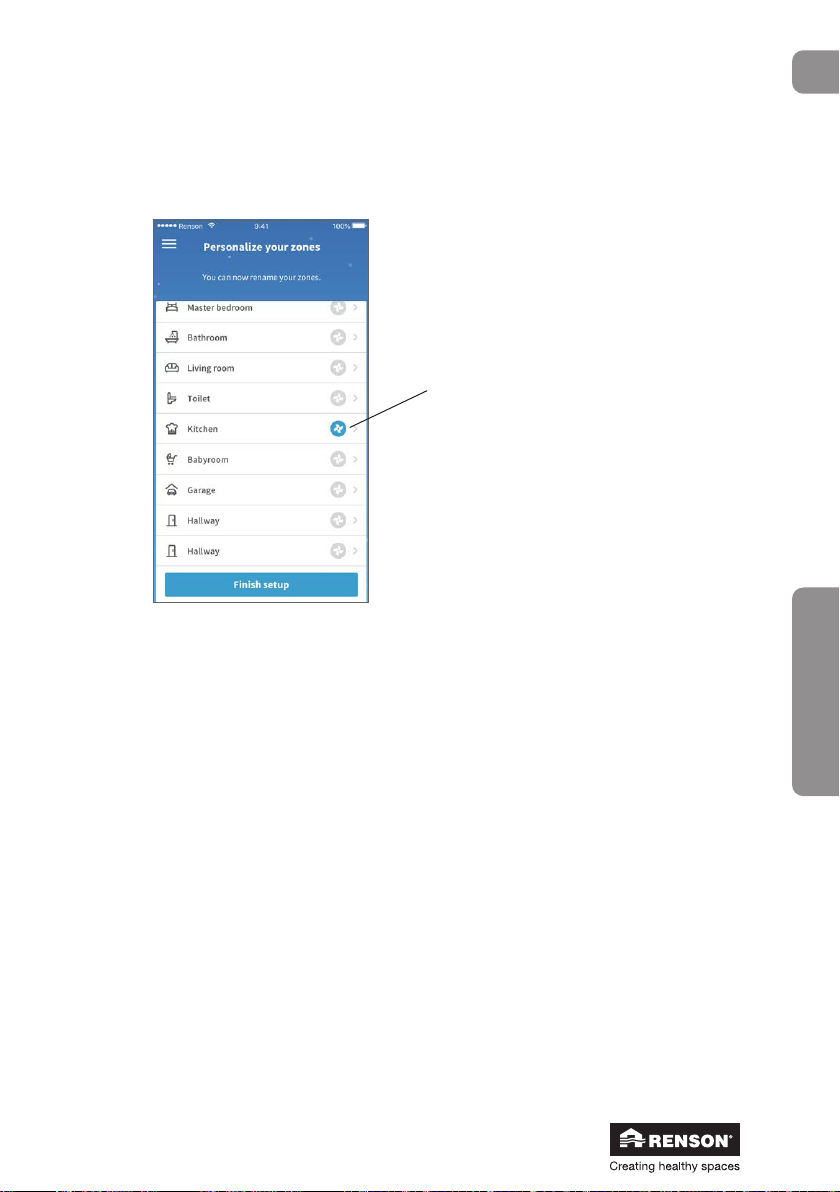

5. Add Healthbox 3.0 to your account
• 1 device found in the network
Select ‘Add device to your account’.
• Multiple devices in the same network
The devices found will all be displayed in the list. Each Healthbox 3.0 has a unique serial
number, which can be found on the ID label on the bottom of the fan unit. Select the
Healthbox 3.0 that you want to connect to (first). Any additional Healthbox 3.0 can be
connected via the Settings menu in the app (see section 3.2.2).
1 device found in the network Multiple devices found in the network
NOTE:
– If several Healthbox 3.0 devices in different networks must be connected to
the same app/account: follow the step-by-step plan (from step 1) for each
Healthbox 3.0 again.
– To add Healthbox 3.0 to your account, the home network must be connected to the
Internet. If the selected network is not connected to the Internet, connect Healthbox 3.0
to another network connected to the Internet (repeat the step-by-step plan from step 2).
Serial number
Healthbox 3.0

107
Healthbox®3.0 en
User
6. Identifying the connected rooms (optional)
In the final phase of the set-up, a name can be assigned to each room where there is
ventilation.
To verify whether each room has been assigned a name:
– Tap the fan icon next to a room. If this is the correct room, you will hear the fan
temporarily accelerate (see above).
– Hold your hand beneath the extraction vent for the particular room. If you feel suction,
the room has been assigned the correct name.
Temporarily very high
level of ventilation

108
Healthbox®3.0
en
User
3.1.2.2 • Connection via Wi-Fi dongle
1. First, set up the Healthbox 3.0 to connect it to the network via Wi-Fi dongle
(section3.1.1.3).
2. Activate the Healthbox 3.0 network
Lift the SmartConnect rubber flap so that the two slots are visible. To activate the Wi-
Fi dongle, insert a small object into the corresponding slot and briefly press until the
corresponding LED starts flashing. Look into the hole to see the LED.
Healthbox 3.0 enters into the so-called “Access Point Mode” and temporarily acts
(4hours) as a local network that can be found by a smartphone. This local area
network is characterized by the serial number of the Healthbox 3.0
(form: HB3_ABC012345678901). Every Healthbox 3.0 has a unique serial number
which can be found on the blue ID label at the bottom of the ventilation unit.
Wi-Fi dongle
activation on
port 1

109
Healthbox®3.0 en
User
3. Launch the app
Connect Healthbox 3.0 to the app. Open the app and register by creating an account:
The ‘Searching…’ screen is then displayed (the app is searching for the Healthbox3.0
device in the network), followed by the screen ‘No devices found’ (because no device is
connected to the app yet).

110
en Healthbox®3.0
Go to your phone’s Wi-Fi settings and
search for the Healthbox 3.0 network
(format: HB3_ABC012345678901).
Make sure that your smartphone and
Healthbox 3.0 are within close proximity to
each other so that your phone can detect
the emitted Wi-Fi signal.
Next, select this network.
Wi-Fi settings
Network ‘x’
Network ‘y’
HB3_ABC012345678901
…
Then tap ‘Try again’ at the bottom of the ‘No devices found’ screen of the app.
4. The app will now show the ‘Device found’ screen. Select the Healthbox3.0 device that is
displayed.
Select the Healthbox3.0 device

111
en
Healthbox®3.0
5. Add Healthbox 3.0 to your account
The following screen “Link to home Wi-Fi” shows all Wi-Fi home networks that are within
reach of the Healthbox 3.0 Wi-Fi signal. Select the right network on your smartphone
(make sure you’re connected to the internet). Follow the steps on the ‘Linking your
device...’ screen and establish the connection.
Router
network ‘x’
Router
network ‘y’
Wi-Fi
Wi-Fi settings
Network ‘x’
Network ‘y’
…
Internet
The device is linking to network ‘y’

112
Healthbox®3.0
en
User
6. Identifying the connected rooms (optional)
In the final phase of the set-up, a name can be assigned to each room where there is
ventilation.
To verify whether each room has been assigned a name:
– Tap the fan icon next to a room. If this is the correct room, you will hear the fan
temporarily accelerate (see above).
– Hold your hand beneath the extraction vent for the particular room. If you feel suction,
the room has been assigned the correct name.
Temporarily very high
level of ventilation
NOTE:
– To add Healthbox 3.0 to your account, the home network must be
connected to the Internet. If the selected network is not connected to the
Internet, connect Healthbox 3.0 to another network that is connected to
the Internet. Reset the Wi-Fi dongle (section 13) and repeat the step-by-
step plan starting with step 2.
– See section 3.2.3 in case any other Healthbox 3.0 devices have to be
connected to the same app/account.

113
Healthbox®3.0 en
User
3.2 • Healthbox 3.0 app
3.2.1 • Download
The Healthbox 3.0 app can be downloaded for free from the App Store
(Apple) or Google Play (Android). Register to create an account and discover
all the benefits of this demand-controlled system. Please note that the Healthbox
3.0 must be connected to a home network (with internet) to use the app.
Healthbox 3.0
Download
The 4 main ventilation actions
of the past 24 h
Colour indication of
air quality in the home
Total ventilation level in the
home the past 24 h
(1) If the app is connected to several Healthbox 3.0 devices.
Select the device (1)
3.2.2 • Overview of the different screens
• General dashboard

114
Healthbox®3.0
en
User
• Overview per room/zone: clear view of the air quality and the corresponding ventilation level
thanks to clear colour indication.
– Blue: good air quality
– Orange: moderate air quality
– Red: substandard air quality
Colour indication of
air quality in the home
Colour indication of
air quality by room/zone
Profile per room
• History of the air quality in the home and per room/zone (both on a daily and weekly basis).
The occupant can effectively see how Healthbox 3.0 adjusts the ventilation level accordingly.
Slider to read out
the graphic values
Customizable profile
of the room/zone
Air quality measured
by the available sensors
Ventilation level

115
Healthbox®3.0 en
User
• Manual mode: the occupant can manually set a higher or lower ventilation level for a certain
duration. This can be done either per room/zone or for the entire home. The manual mode
(temporarily) disregards the sensor(s) and overrides all other settings.
• Customizable profile: the ventilation level per room/zone is fully automatically adapted to your
living habits, but can also be customised to suit the resident.
Duration time manual
mode
All profiles are based on demand control:
The Eco profile prioritizes the energy efficient
aspect where the polluted air is discharged with a
lower ventilation level over a longer period of time.
The Health profile ensures healthy indoor air and
is energy efficient due to the demand-controlled
ventilation system (normal setting).
The Intense profile ensures that contaminated
air is discharged more quickly via an intensified
ventilation level.
Temporarily increase or decrease
the ventilation level
