ResMed Swift FX Nano User manual

Swift™FX Nano
Swift™FX Nano for Her
nasal Mask
User Guide
English

i
i
Swift™FX Nano
Swift™FX Nano for Her
nasal mask/ 鼻面罩/ 鼻面罩
Fitting/ 配戴步骤/ 配戴步驟
32
1
6
45

ii
iii
Removal/ 取下面罩/ 取下面罩
Disassembly/ 拆卸/ 拆卸
2
1a b

ii
iii
Reassembly/ 重新组装/ 重新組裝
1
2
45 3
67

iv
v
C
D E
A
5
9
11
12
10
8
6
1
2
3
7
4
B

iv
v

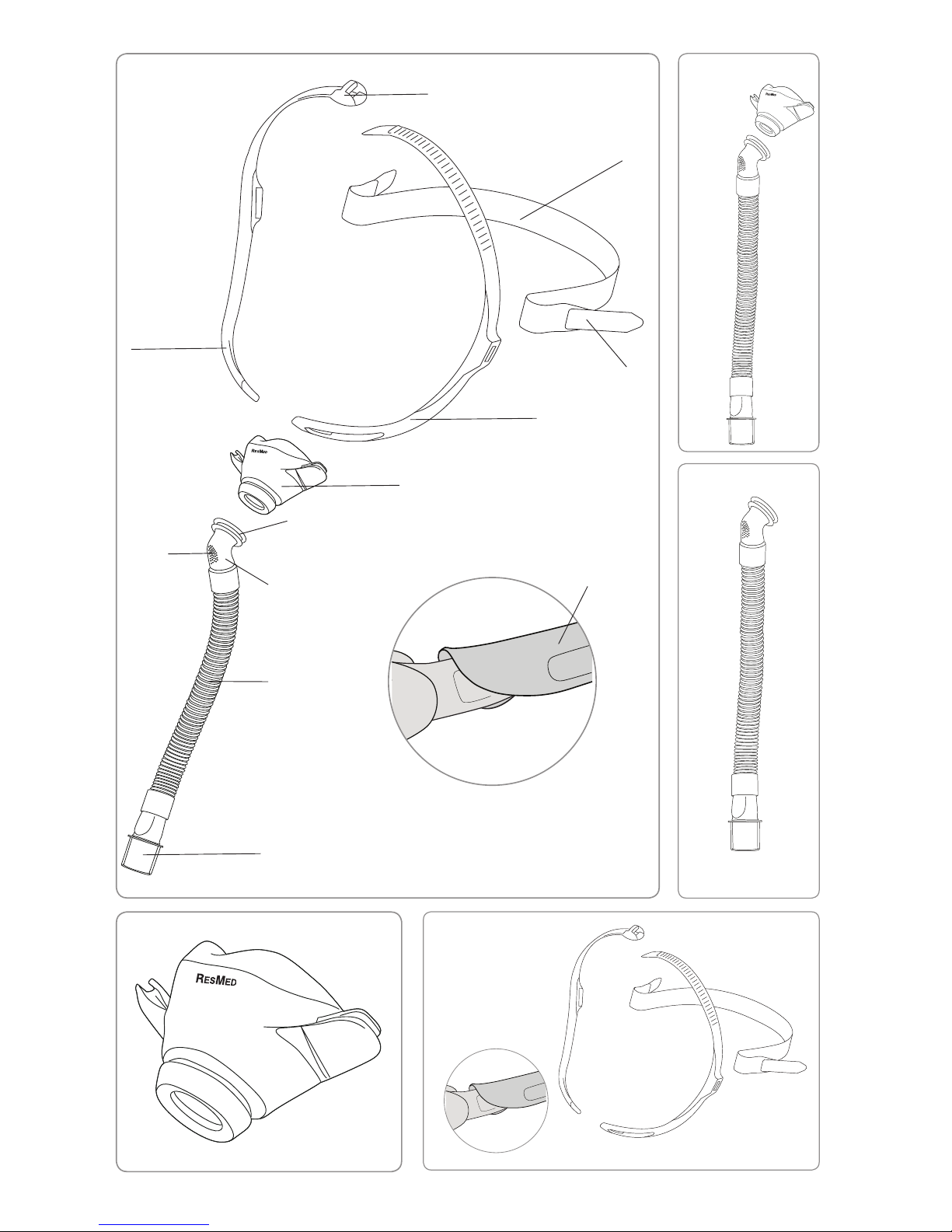

Mask components/ 面罩组件/ 面罩組件
Item/
产品/
產品
Description/ 描述/ 描述
Part number/
配件编号/ 配件編號
Swift FX
Nano
Swift FX
Nano for Her
(女用 / 女用)
1 Headgear right/ 右头带/ 右頭帶
2 Top buckle/ 上端搭扣/ 上端搭扣
3 Back strap/ 后束带/ 後束帶
4 Back strap fastener/ 后束带扣钩/
後束帶扣鉤
5 Headgear left/ 左头带/ 左頭帶
6 Mask cushion/ 面罩护垫/ 面罩護墊
7 Soft wraps/ 软包巾/ 軟包巾 61530 (2 x G) 61544 (2 x P)
8 Short tube/ 短管/ 短管
9 Swivel/ 万向轴/ 萬向軸
10 Vent/ 通气孔/ 通氣孔
11 Elbow/ 弯头/ 彎頭
12 Swivel ring/ 万向轴环圈/ 萬向軸環圈
A Complete system/ 完整系统/
完整系統
APAC:
62216 (Std)
62218 (W)
ANZ:
62208 (Std)
62259 (W)
APAC:
62217 (S)
ANZ:
62209 (S)
B Frame system/ 框架系统/ 框架系統 62220 (Std)
62271 (W
62221 (S)
C Short tube assembly/ 短管组合/
短管組合
62236 (1)
62237 (10)
62244 (1)
62245 (10)
D Mask cushion/ 面罩护垫/ 面罩護墊 62230 (Std)
62281 (W)
62231 (S)
E Headgear/ 头带/ 頭帶 62238 62248

vi
vi
S: Small /小型/ 小型
Std: Standard/ 标准/ 標準
W: Wide/ 宽/ 寬型
G: Gray/ 灰色/ 灰色
P: Pink/ 粉色/ 粉色

English
1
English
Swift™FX Nano
Swift™FX Nano for Her
NASAL MASK
Thank you for choosing the Swift FX Nano / Swift FX Nano for Her.
Please read the entire manual before use.
Intended Use
The Swift FX Nano / Swift FX Nano for Her channels airflow
noninvasively to a patient from a continuous positive airway pressure
(CPAP) or bilevel device.
The Swift FX Nano is:
to be used by patients >30 kg for whom positive airway
pressure has been prescribed
intended for single-patient re-use in the home environment and
multipatient re-use in the hospital/institutional environment.
GENERAL WARNINGS
The vent holes must be kept clear.
The mask should only be used with CPAP or bilevel devices
recommended by a physician or respiratory therapist.
The mask should not be used unless the device is turned on.
Once the mask is fitted, ensure the device is blowing air.
Explanation: CPAP and bilevel devices are intended to be
used with special masks (or connectors) which have vent
holes to allow continuous flow of air out of the mask. When
the device is turned on and functioning properly, new air
from the device flushes the exhaled air out through the
mask vent holes. However, when the device is not
operating, insufficient fresh air will be provided through the
mask, and the exhaled air may be rebreathed. Rebreathing
of exhaled air for longer than several minutes can, in some

2
circumstances, lead to suffocation. This applies to most
models of CPAP or bilevel devices.
Follow all precautions when using supplemental oxygen.
Oxygen flow must be turned off when the CPAP or bilevel
device is not operating, so that unused oxygen does not
accumulate within the device enclosure and create a risk of
fire.
Oxygen supports combustion. Oxygen must not be used
while smoking or in the presence of an open flame. Only
use oxygen in well ventilated rooms.
At a fixed rate of supplemental oxygen flow, the inhaled
oxygen concentration varies, depending on the pressure
settings, patient breathing pattern, mask, point of
application and leak rate. This warning applies to most
types of CPAP or bilevel devices.
The technical specifications of the mask are provided for
your clinician to check that they are compatible with the
CPAP or bilevel device. If used outside specification or if
used with incompatible devices, the seal and comfort of the
mask may not be effective, optimum therapy may not be
achieved, and leak, or variation in the rate of leak, may
affect the CPAP or bilevel device function.
Discontinue using this mask if you have ANY adverse
reaction to the use of the mask, and consult your physician
or sleep therapist.
Using a mask may cause tooth, gum or jaw soreness or
aggravate an existing dental condition. If symptoms occur,
consult your physician or dentist.
As with all masks, some rebreathing may occur at low CPAP
pressures.
Refer to your CPAP or bilevel device manual for details on
settings and operational information.
Remove all packaging before using the mask.

English
3
Using your mask
When using your mask with ResMed CPAP or bilevel devices that
have mask setting options, refer to the Technical specifications
section in this user guide for mask selection options.
For a full list of compatible devices for this mask, see the
Mask/Device Compatibility List on www.resmed.com on the
Products page under Service & Support. If you do not have internet
access, please contact your ResMed representative.

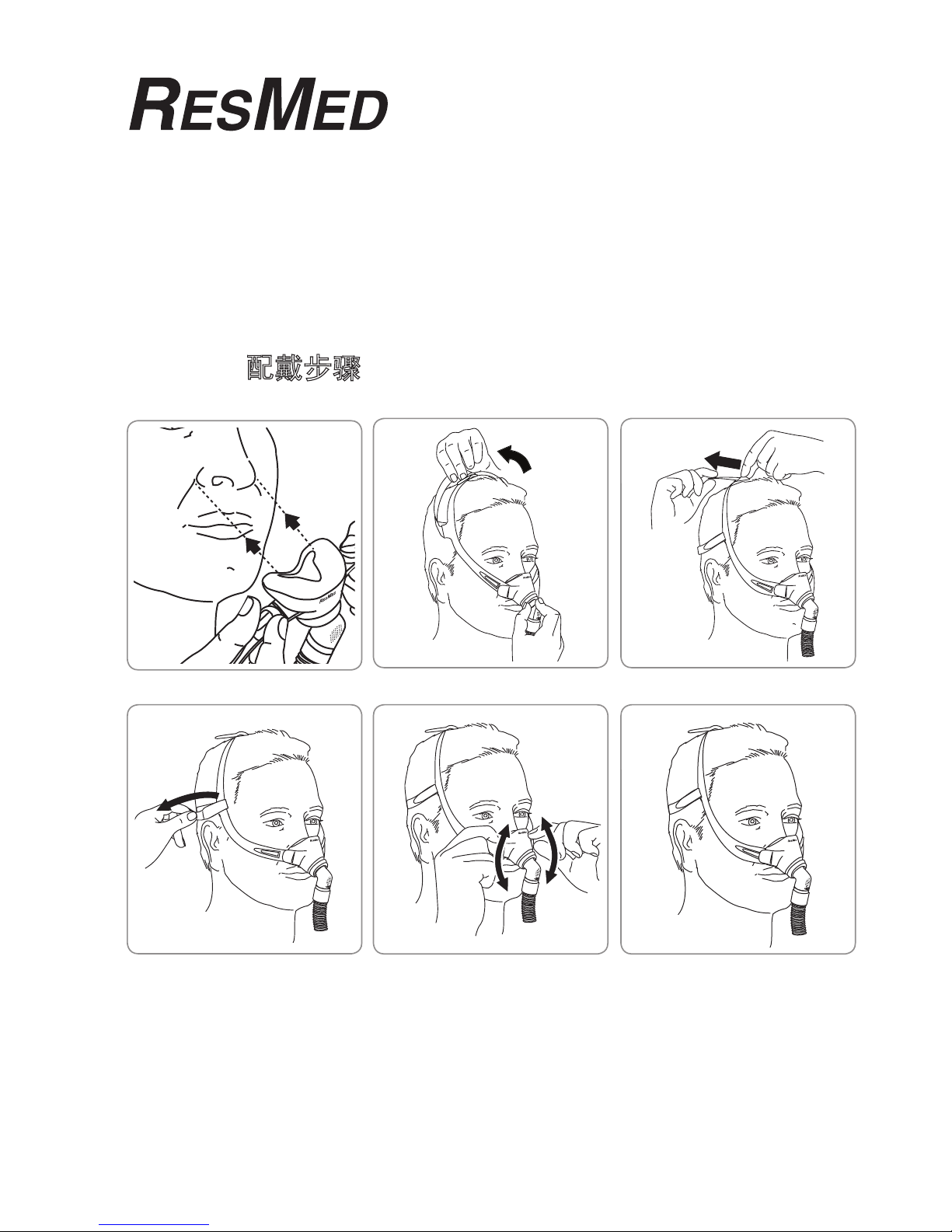

Fitting
The fitting illustrations in this user guide show the sequence for
obtaining the best fit and comfort when using your mask. A diagram
showing the names of parts can be found in the Mask Components
diagram near the beginning of this guide.
Fitting steps
1. Ensure that the bottom of the cushion opening is aligned with
the bottom of your nose. Place the mask over your nose.
2. Pull the headgear over your head. The buckle on the top strap
should sit on top of your head and the fabric back strap should go
around the back of your head.
3. Adjust the top strap by pulling the strap through the buckle, one
notch at a time. Do not overtighten. The mask should sit
comfortably over your nose and the back strap should sit just
above your ears.
4. Adjust the fasteners on the fabric back strap until the mask is
comfortably sealed. The fabric back strap can be positioned over
or under the hair.
5. Adjust the mask cushion until it sits comfortably on your nose.
6. Finally, connect the free end of the short tube assembly to the
device air tubing. If the mask leaks, readjust the fabric back strap
before the top strap.

4

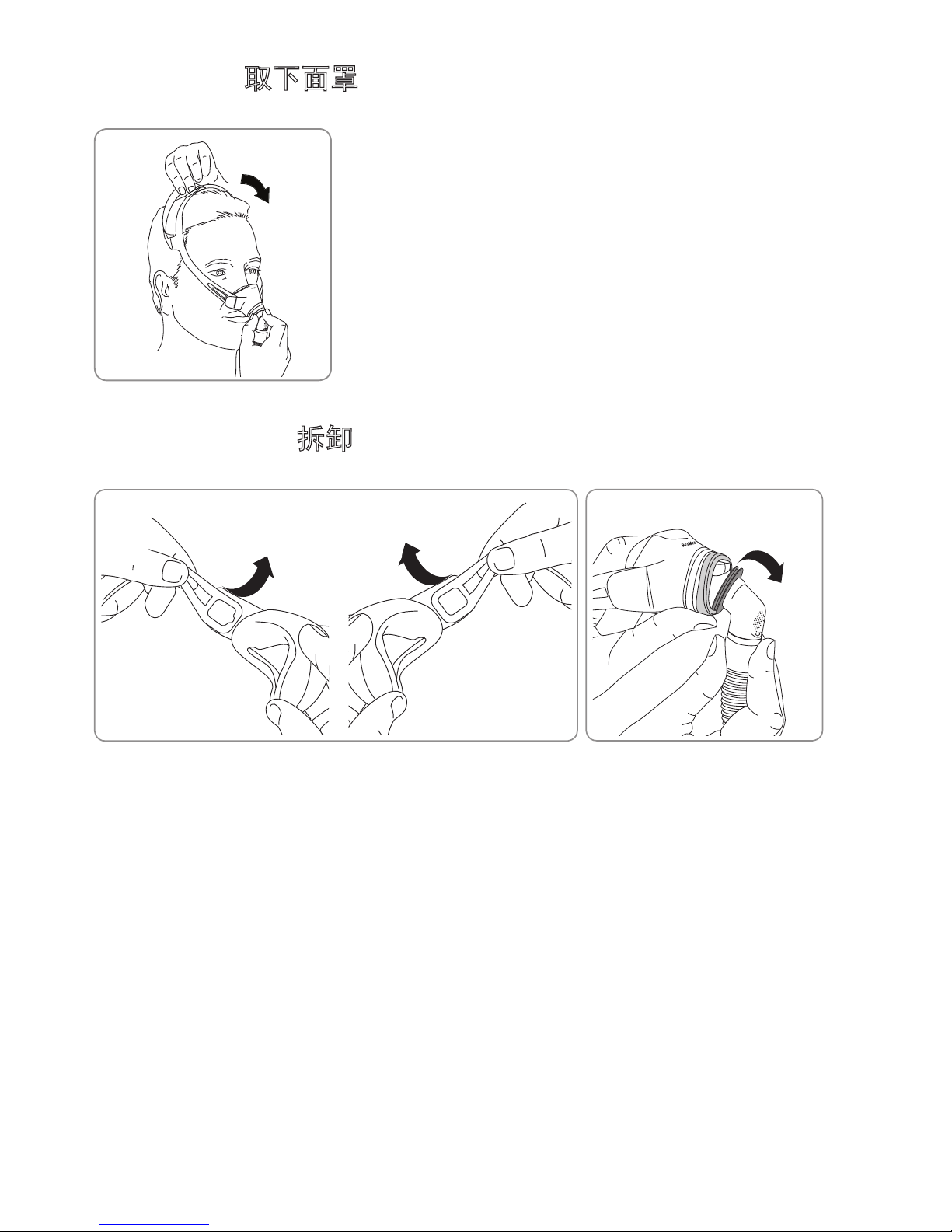

Removing your mask
To remove your mask pull the mask and headgear by the fabric back
strap up and over your head.
Disassembly
Refer to the disassembly illustrations in this user guide. A diagram
showing the names of parts can be found in the Mask Components
diagram near the beginning of this guide.
Disassembly steps
1. Remove the headgear by slightly twisting each headgear arm
and pulling away from the node on the mask cushion.
2. Peel the mask cushion away from the swivel ring.
Note: The headgear straps are not intended to be disassembled and can
be washed together.
Reassembly
Refer to the reassembly illustrations in this user guide. A diagram
showing the names of parts can be found in the Mask Components
diagram near the beginning of this guide.
Reassembly steps
1. Using your forefinger and thumb to stretch the inside of the
mask cushion, insert the swivel ring into the mask cushion.
2. Allow the mask cushion to sit in the groove on the swivel ring.
The mask cushion is correctly positioned when it is located in the
swivel ring groove with no gaps. Ensure that the swivel ring is
not pushed all the way into the mask cushion.
3. Rotate the elbow to ensure it moves freely in the swivel ring.
4. Thread the top strap through the top buckle with the notches
facing up.
5. Hold the headgear arm with the opening facing you. Latch the
headgear arm onto the node on the mask cushion. Make sure
that the text on the headgear lines up with the text on the mask
cushion.

English
5
6. Repeat the previous step with the other headgear arm. Ensure
that the headgear straps are not twisted.
7. Thread the fabric back strap through each side of the headgear,
then fold over to secure. Ensure that the fastener is on the
outside with the ResMed logo facing out.
Cleaning your mask in your home
Your mask and headgear should only be handwashed by gently
rubbing in warm (approximately 30°C) water using mild soap. All
components should be rinsed well with drinking quality water and
allowed to air dry out of direct sunlight.
WARNING
Do not use aromatic-based solutions or scented oils (eg,
eucalyptus or essential oils), bleach, alcohol or products that
smell strongly (eg, citrus) to clean any of the mask components.
Residual vapours from these solutions can be inhaled if not
rinsed thoroughly. They may also damage the mask, causing
cracks.
CAUTION
If any visible deterioration of a system component is
apparent (cracking, crazing, tears etc), the component
should be discarded and replaced.
Avoid connecting flexible PVC products (eg, PVC tubing)
directly to any part of the mask. Flexible PVC contains
elements that can be detrimental to the materials of the
mask, and may cause the components to crack or break.
Daily/After each use:
To optimize the mask seal, facial oils should be removed from
the cushion after use.
Handwash the separated mask components (excluding
headgear).

6
If the vent or rotating parts such as the swivel, swivel ring or
ball joint require cleaning, use a soft bristle brush.
Weekly:
Handwash the headgear. It may be washed without being
disassembled.
Reprocessing the mask between patients
This mask should be reprocessed when used between patients.
Cleaning, disinfection and sterilization instructions are available from
the ResMed website, www.resmed.com/masks/sterilization. If you
do not have internet access, please contact your ResMed
representative.
Troubleshooting
Problem/possible cause Solution
Mask is too noisy.
Vent is blocked or partially
blocked.
If the vent requires cleaning, use a
soft bristle brush.
Elbow inserted incorrectly. Remove the elbow from the mask
and then reassemble according to
the instructions.
Ensure that the swivel ring on the
elbow has not been inserted too far
into the cushion.
Mask is leaking. Refit or reposition your mask.
Readjust the back strap to bring the
mask closer to the face and improve
your seal.
Check that your mask is assembled
correctly.

English
7
Problem/possible cause Solution
Mask leaks around face.
Mask is not positioned correctly. Check that the ResMed logo is
facing upward on the top of the
cushion across the bridge of your
nose.
Mask may have been fitted
incorrectly.
Pull the mask away from your face
and reposition, ensuring that the
lower corners of the mask fully
enclose your nose. If necessary,
readjust the top strap to keep the
mask in the right place.
Cushion membrane is creased or
folded.
Remove and refit your mask
according to the fitting instructions.
Ensure you position the cushion
correctly over your nose before
pulling the headgear over your head.
Do not slide the mask down your
face during fitting as this may lead
to folding or curling of the cushion.
Mask is not tightened correctly. Ensure that the headgear straps are
not overtightened or loose.
Readjust the back strap to bring the
mask closer to the face and improve
your seal.
Check that the headgear is not
twisted.
Mask may be the wrong size. Talk to your clinician.

8
Problem/possible cause Solution
Mask does not fit properly.
Mask is incorrectly assembled. Disassemble the mask, then
reassemble according to the
instructions. Ensure that the swivel
ring on the elbow has not been
inserted too far into the cushion.
Check that the printing on the left
headgear strap (Swift FX) aligns to
the printing on the cushion arm
(Nano).
Mask may be the wrong size. Talk to your clinician.
Cushion may be dirty. Clean cushion according to the
instructions.
Technical Specifications
Pressure-flow curve The mask contains passive venting to protect
against rebreathing. As a result of
manufacturing variations, the vent flow rate
may vary.
Pressure
(cm H2O)
Flow
(L/min)
420
829
12 37
16 43
20 49
22.5 52
30 61
Dead space
information
Physical dead space is the empty volume of the mask to the
end of the swivel. Using the wide cushions it is 125 mL.
Therapy
pressure
4 to 30 cm H2O
Resistance Drop in pressure measured (nominal)
at 50 L/min: 0.5 cm H2O
at 100 L/min: 2.0 cm H2O

English
9
Environmental
conditions
Operating temperature:
+5°C to +40°C
Operating humidity:
15% to 95% relative humidity non-condensing
Storage and transport temperature:
-20°C to +60°C
Storage and transport humidity:
15% to 95% relative humidity non-condensing
Sound DECLARED DUAL-NUMBER NOISE EMISSION VALUES in
accordance with ISO 4871. The A-weighted sound power
level of the mask is 25 dBA, with uncertainty of 3 dBA. The
A-weighted sound pressure level of the mask at a distance
of 1 m is 17 dBA, with uncertainty of 3 dBA.
Gross
dimensions
Small:
430 mm (H) x 100 mm (W) x 75 mm (D)
Standard:
430 mm (H) x 104 mm (W) x 75 mm (D)
Wide:
430 mm (H) x 114 mm (W) x 75 mm (D)
Mask fully assembled with short tube assembly (no
headgear)
Mask setting
options
For S9: Select 'Pillows'
For other devices: Select 'SWIFT' (if available), otherwise
select 'MIRAGE' as the mask option.
Storage
Ensure that the mask is thoroughly clean and dry before storing it for
any length of time. Store the mask in a dry place out of direct
sunlight.
Disposal
This mask does not contain any hazardous substances and may be
disposed of with your normal household refuse.

10
Symbols
Read instructions before use; Batch code;
Catalogue number; Temperature limitation; Humidity
limitation; Does not contain natural latex rubber; Manufacturer;
Indicates a Warning or Caution and alerts you to a possible injury or
explains special measures for the safe and effective use of the device;
Keep away from rain; This way up; Fragile, handle with care;
European Authorized Representative
Limited warranty
ResMed Ltd (hereafter ’ResMed’) warrants that your ResMed mask
system (including mask frame, cushion, headgear and tubing) shall
be free from defects in material and workmanship from the date of
purchase for the period of 90 days or in the case of disposable
masks the maximum use period. This warranty is only available to
the initial consumer. It is not transferable. If the product fails under
conditions of normal use, ResMed will repair or replace, at its option,
the defective product or any of its components. This limited warranty
does not cover: a) any damage caused as a result of improper use,
abuse, modification or alteration of the product; b) repairs carried out
by any service organization that has not been expressly authorized by
ResMed to perform such repairs; and c) any damage or
contamination due to cigarette, pipe, cigar or other smoke. Warranty
is void on product sold, or resold, outside the region of original
purchase.
Warranty claims on defective product must be made by the initial
consumer at the point of purchase.
This warranty replaces all other expressed or implied warranties,
including any implied warranty of merchantability or fitness for a

English
11
particular purpose. Some regions or states do not allow limitations on
how long an implied warranty lasts, so the above limitation may not
apply to you.
ResMed shall not be responsible for any incidental or consequential
damages claimed to have resulted from the sale, installation or use
of any ResMed product. Some regions or states do not allow the
exclusion or limitation of incidental or consequential damages, so the
above limitation may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which vary
from region to region. For further information on your warranty
rights, contact your local ResMed dealer or ResMed office.

Manufacturer:
ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia
Distributed by:
ResMed Corp 9001 Spectrum Center Boulevard San Diego CA 92123 USA
ResMed (UK) Ltd 96 Milton Park Abingdon Oxfordshire OX14 4RY UK
See www.resmed.com for other ResMed locations worldwide.
For patent information, see www.resmed.com/ip
Swift is a trademark of ResMed Ltd and is registered in U.S. Patent and
Trademark Office. Velcro is a trademark of Velcro Industries B.V.
© 2013 ResMed Ltd.

Swift FX Nano for Her
TM
NASAL MASK
1
3
5
2
4
6
