ReSound RT961-DRW User manual

Technical Manual
RS CAMBRIDGE RIE Platform GN ReSound A/S
Global Technical Operations
https://gto.gnresound.com
Lautrupbjerg 7
DK-2750 Ballerup
Denmark

Doc 0371130 rev. F
Page 2 of 22
Not subject to issue control when printed
Table of Contents
Form-Factor-Matrix & Product Information...................................................................................... 3-4
Part list.................................................................................................................................................5
Part list - HSG parts......................................................................................................................... 6-8
Part list - SureFit receiver tubes ..........................................................................................................9
Part list - SureFit domes....................................................................................................................10
Part list - SureFit accessories............................................................................................................11
Disassembling procedure for size 312 & 13 DRW models.......................................................... 12-13
Replacing TOP HSG ASM (61-DRWC) .............................................................................................14
Replacing rec tube.............................................................................................................................15
Replacing wax guard/lter in rec tube ......................................................................................... 16-17
For internal GN Operations only........................................................................................................18
Part list - test equipment....................................................................................................................19
Test equipment ..................................................................................................................................20
HI testing ...........................................................................................................................................21
Wireless test......................................................................................................................................22

Doc 0371130 rev. F
Page 3 of 22
Not subject to issue control when printed
Form-Factor-Matrix & Product Information - OMNIA
The HIs are available with 4 selectable receiver power levels: Low Power (LP), Medium Power (MP),
High Power (HP) & Ultra Power (UP). The HI ts SureFit 3, 8 pin receiver tubes and the SureFit 3, 8
pin receiver M&RIE tubes
Platform CAMBRIDGE RIE C6 Product Model DATA SHEET
Wireless programming & HI test
Batt 312 zinc air
OMNIA
RU961-DRW
401872000 RIE&RHI
401876000 M&RIE
RU761-DRW
RU561-DRW
RU461-DRW
Wireless programming & HI test
Batt 13 zinc air
RU962-DRW
RU762-DRW
RU562-DRW
RU462-DRW
Wireless programming & HI test
Integrated Batt - rechargeable
RU961-DRWC
RU761-DRWC
RU561-DRWC
RU461-DRWC
RU61-DRWC:
Note that the TOP HSG ASM is the only HSG part which can be replaced. Due to the construction of
the HI, the BOT HSG must not be replaced
HIs are available in these colours:
Gold (GLD)
Warm Grey (WRM GRY)
Espresso (ESP)
Deep Black (DP BLK)
Bronze (BRNZ)
Champagne (CHMPN)
Sparkling Silver (SPK SIL)
Graphite (GRPH)
See also Data Sheets for more tech info
312 13RHI

Doc 0371130 rev. F
Page 4 of 22
Not subject to issue control when printed
Form-Factor-Matrix & Product Information - ONE
The HIs are available with 4 selectable receiver power levels: Low Power (LP), Medium Power (MP),
High Power (HP) & Ultra Power (UP). The HI ts SureFit 3, 8 pin receiver tubes and the SureFit 3, 8
pin receiver M&RIE tubes
Platform CAMBRIDGE RIE C6 Product Model DATA SHEET
Wireless programming & HI test
Batt 312 zinc air
ONE
RT961-DRW
401304000 RIE&RHI
401361000 M&RIE
RT761-DRW
RT561-DRW
RT461-DRW
Wireless programming & HI test
Batt 13 zinc air
RT962-DRW
RT762-DRW
RT562-DRW
RT462-DRW
Wireless programming & HI test
Integrated Batt - rechargeable
RT961-DRWC
RT761-DRWC
RT561-DRWC
RT461-DRWC
RT61-DRWC:
Note that the TOP HSG ASM is the only HSG part which can be replaced. Due to the construction of
the HI, the BOT HSG must not be replaced
HIs are available in these colours:
Gold (GLD)
Warm Grey (WRM GRY)
Espresso (ESP)
Deep Black (DP BLK)
Bronze (BRNZ)
Champagne (CHMPN)
Sparkling Silver (SPK SIL)
Graphite (GRPH)
See also Data Sheets for more tech info
312 13RHI

Doc 0371130 rev. F
Page 5 of 22
Not subject to issue control when printed
Description Part No
PIN,0.60X2.50
(module pin sound outlet end,61-DRW) 20810100
PIN,0.60X6.60 (module pin BAT DR end,62-DRW) 15344300
PIN,0.60X4.85,W/3GROOVES
(BAT DR pin,61-DRW) 20649700
PIN,0.60X5.45,W/3GROOVES
(BAT DR pin,62-DRW) 19069900
PIN,0.60X6.80 (TOP HSG pin,61-DRW) 16949100
PIN,0.60X7.25 (TOP HSG pin,62-DRW) 16059800
PIN,0.60X7.35 (TOP HSG pin,61-DRWC) 21370600
Cleaning brush, black
17435000
Magnet
Cleaning
loop
Part List
SERV PIN TOOL ASM,BLK
21161685
(orange proto type tool is shown)
Description Part No
CLEANING BRUSH, BLK 17435000
PIN REMOVAL TOOL. PACKED (white tool) 15502500
AUTOPHONE MAGNETS 17294600
KIT,COLOR MARKERS,CAMBR RIE 13/312 20809900
COLOUR MARKER,BERLIN,RED 13/312 18924900
COLOUR MARKER,BERLIN,BLU 13/312 18924901
KIT,COLOR MARKERS,CRHI 20992600
SERVICE PIN TOOL ASM,BLK (61-DRWC) 21161685
KIT,REC CHANGE TOOL,SF3 (tool & guide) 21944100
The pin for the TOP
HSG is attached un-
der the transp cap
PIN REMOVAL TOOL
15502500
Colour mrk location (red circle)
312 & 13
Colour mrk location
(red circle)
RHI
The rec has a red
or blue conn lock
which will also in-
dicate R or L side
on all models
REC CHANGE TOOL
(shown from both sides)
Packed in a plastic bag
together with a guide

Doc 0371130 rev. F
Page 6 of 22
Not subject to issue control when printed
Part List - HSG Parts 61-DRW (BAT 312)
WRM GRY ESP DP BLK BRNZ CHMPN SPK SIL GRPHGLD
TOP HSG, mic lters & PB BAT DR & Retention bat
COLOUR TOP HSG ASM BOT HSG
(PTD with di󰀨erent logo)
BAT DOOR ASM
(di󰀨 PFF PTD)
RT61-DRW RU61-DRW RT61-DRW RU61-DRW
GOLD 21512570 21512670 22324270 21512770 22324370
WARM GREY 21512571 21512671 22324271 21512771 22324371
ESPRESSO 21512572 21512672 22324272 21512772 22324372
DEEP BLACK 21512573 21512673 22324273 21512773 22324373
BRONZE 21512574 21512674 22324274 21512774 22324374
CHAMPAGNE 21512575 21512675 22324275 21512775 22324375
SPARKLING SILVER 21512576 21512676 22324276 21512776 22324376
GRAPHITE 21512577 21512677 22324277 21512777 22324377

Doc 0371130 rev. F
Page 7 of 22
Not subject to issue control when printed
Part List - HSG Parts 62-DRW (BAT 13)
TOP HSG, mic lters & TGL
All HSG parts are nano coated
COLOUR TOP HSG ASM BOT HSG
(PTD with di󰀨erent logo as shown on previous page)
BAT DOOR
(di󰀨 PFF PTD)
RT62-DRW RU62-DRW RT62-DRW RU62-DRW
GOLD 21512870 21513170 22324470 21513070 22324570
WARM GREY 21512871 21513171 22324471 21513071 22324571
ESPRESSO 21512872 21513172 22324472 21513072 22324572
DEEP BLACK 21512873 21513173 22324473 21513073 22324573
BRONZE 21512874 21513174 22324474 21513074 22324574
CHAMPAGNE 21512875 21513175 22324475 21513075 22324575
SPARKLING SILVER 21512876 21513176 22324476 21513076 22324576
GRAPHITE 21512877 21513177 22324477 21513077 22324577

Doc 0371130 rev. F
Page 8 of 22
Not subject to issue control when printed
Part List - HSG Parts 61-DRWC (RHI)
All HSG parts are nano coated
TOP HSG, mic lters & PB
If the mic lters are damaged (they are mounted inside the TOP
HSG) or the TOP HSG is damaged, the TOP HSG ASM can be
replaced. Choose either the TOP HSG ASM or a FILTER REPL
KIT.
Due to the mechanical construction of the HI and a sealing inside
the HI, the BOT HSG must not be replaced. If it is damaged and
needs to be replaced, the complete HI should be returned for
repair/replacement.
COLOUR TOP HSG ASM FILTER REPL KIT
GOLD 21513270 21618870
WARM GREY 21513271 21618871
ESPRESSO 21513272 21618872
DEEP BLACK 21513273 21618873
BRONZE 21513274 21618874
CHAMPAGNE 21513275 21618875
SPARKLING SILVER 21513276 21618876
GRAPHITE 21513277 21618877
FILTER REPL KIT:
Pin tool with pin,
TOP HSG ASM
Filter repl guide

Doc 0371130 rev. F
Page 9 of 22
Not subject to issue control when printed
Part List - SureFit 3 & 3B Rec Tubes (8 pin)
SUREFIT 3 (8 pin)
SIZE LP MP HP (SF3B)
0L 21384100 21385100 21879200
0R 21384200 21385200 21879201
1L 21384300 21385300 21879202
1R 21384400 21385400 21879203
2L 21384500 21385500 21879204
2R 21384600 21385600 21879205
3L 21384700 21385700 21879206
3R 21384800 21385800 21879207
4L 21384900 21385900 21879208
4R 21385000 21386000 21879209
SUREFIT 3B (8 pin)
M&RIE
SIZE
0L 21878800
0R 21878801
1L 21878802
1R 21878803
2L 21878804
2R 21878805
3L 21878806
3R 21878807
4L 21878808
4R 21878809
M&RIE: Rec with mic attached

Doc 0371130 rev. F
Page 10 of 22
Not subject to issue control when printed
Part List - SureFit (SFDomes
SUREFIT (SF) - STD, OPEN & CLOSED DOMES
Description Bag (10 pcs)
DOME,REC,STD,BAG,10PC 21432300
DOME,OPEN,REC,SM,BAG,10PC 21432400
DOME,OPEN, REC,MDM,BAG,10PC 21432500
DOME,OPEN, REC,LGE,BAG,10PC 21432600
DOME,CLOSED,REC,SM,BAG,10PC 21432000
DOME,CLOSED,REC,MDM,BAG,10PC 21432100
DOME,CLOSED,REC,LGE,BAG,10PC 21432200
SUREFIT (SF) - POWER DOMES
DOME,PWR REC,SM,BAG,10PC 21432700
DOME,PWR REC,MDM,BAG,10PC 21432800
DOME,PWR REC,LGE,BAG,10PC 21432900
Large petal
The dome must be correct mounted. Check
that the collar completely covers the ribbed
end rec tube. Push the large petal forward
Push the largest petal back, then
press the STD/tulip dome over
the ribbed end of the rec tube
Ensure that the large petal on the STD
(tulip) dome is outside the small petal

Doc 0371130 rev. F
Page 11 of 22
Not subject to issue control when printed
Part List - SureFit Access
Description Part No
FITTING KIT,M&RIE,SF3B 22125800
MIC FILTER,M&RIE,BAG,8 21536500
FITTING KIT,REC,SF3B 21997400
FILTER,GN WAXGUARD,BOX,8PCS 20439700
MEASUREMENT TOOL,MINI BTE 15200800
SPORT LOCK,SF3 LP,BAG,10 21410800
SPORT LOCK,SF3 MP,BAG,10 21410900
SPORT LOCK,SF3 HP,BAG,10 21411000
SPORT LOCK,SF3 M&RIE,BAG,10 21502600
GN WAXGUARD
20439700
MIC FILTER,M&RIE (8pcs)
21536500
Filter
Filter removal
Sports lock to be mounted as shown:
Sports lock
M&RIE
Sports lock
M&RIE
Sports lock
LP/MP/HP
MEASUREMENT TOOL
(for both L & R sides)
15200800
Sports lock
sizes LP/MP/HP available

Doc 0371130 rev. F
Page 12 of 22
Not subject to issue control when printed

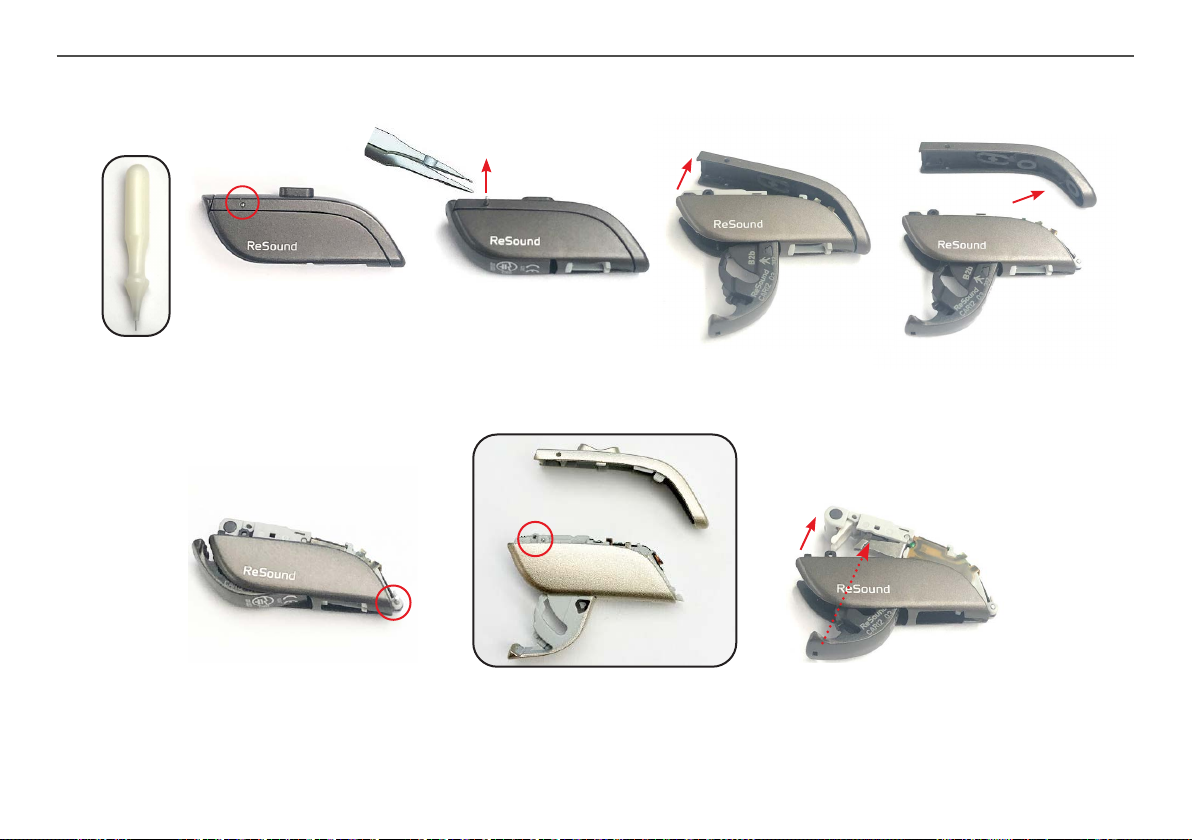

Disassembling Procedure for size 312 & 13 DRW models
For 61-DRW 312: Locate the module pin in the sound outlet end and push it out with a pin removal tool. Pull it out
with a tweezers. For 62-DRW 13: Locate the module pin (in the BAT end) and push it out with a pin removal tool.
Pull it out with a tweezer. For both models: Gently lift up the module and BAT DR from BOT HSG
Locate the TOP HSG pin and push it out using a pin removal tool. Pull the pin complete out using a tweezers. Gently lift o󰀨 the TOP HSG as shown
PIN REMOVAL TOOL
15502500
312 13

Doc 0371130 rev. F
Page 13 of 22
Not subject to issue control when printed

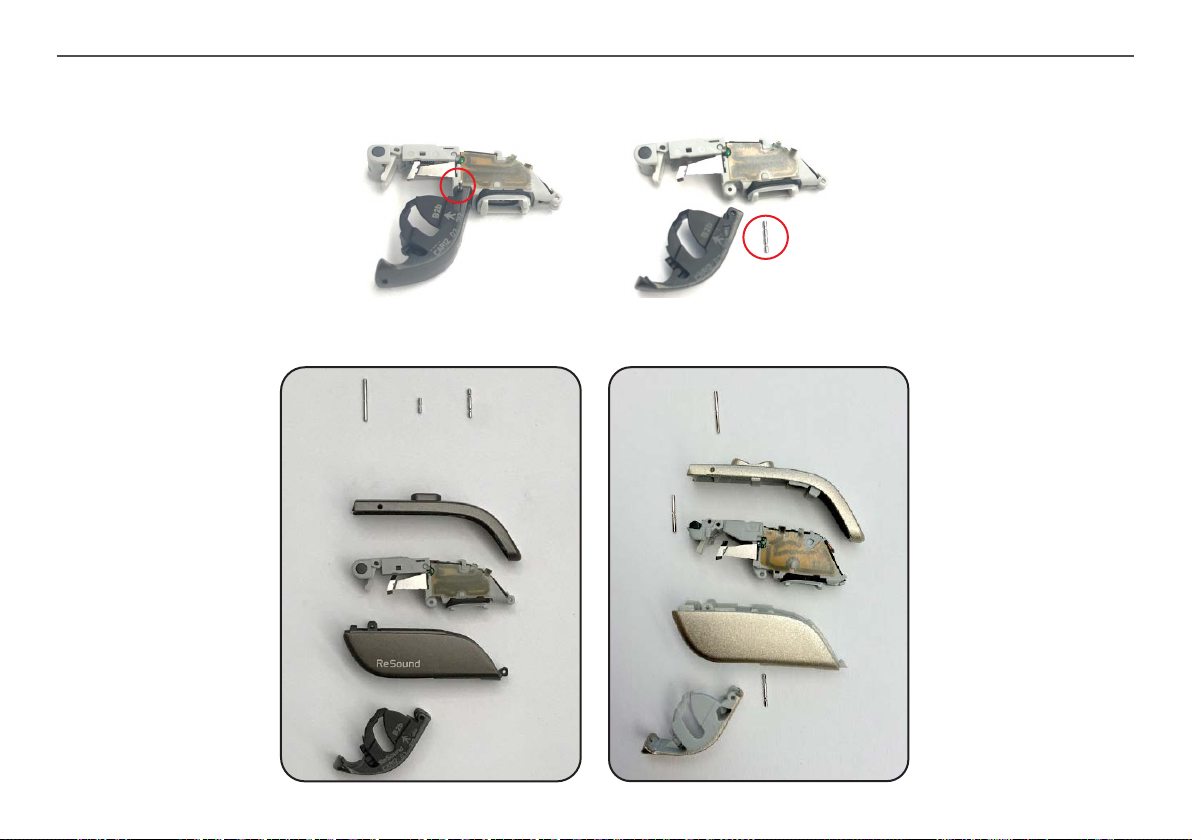

Locate the BAT DR pin and push it out with a pin removal tool. Pull it
out using a tweezers
Disassembling Procedure for for size 312 & 13 DRW models
63-DRW 1361-DRW 312

Doc 0371130 rev. F
Page 14 of 22
Not subject to issue control when printed
Replacing TOP HSG ASM, 61-DRWC / RHI
Locate the pin for the TOP HSG ASM and push it out using the SER-
VICE PIN TOOL ASM
Attach a new TOP HSG ASM. Remove the protection cap from the
pin tool to reveal the new TOP HSG pin. Insert the new pin into TOP
HSG by pushing in the tool
Pull back the pin tool and the pin will be pre-mounted. Complete the pin inserting
by using the tool to push in the new pin
Pull out the pin tool. The TOP HSG is now released from the BOT HSG. Lift
up the TOP HSG as shown and discard it as it must not be reused
If the mic lters are blocked, the complete TOP HSG ASM must be replaced.
The black SERVICE PIN TOOL can be used (p/n 21161685). The tool is delivered with the correct pin for xing the TOP HSG - use of the tool is shown
in below pics. Note that the TOP HSG ASM is the only HSG part which can be replaced on a 61-DRWC. Due to the construction of the HI, the BOT HSG
must not be replaced.
1
2
3
1
2

Doc 0371130 rev. F
Page 15 of 22
Not subject to issue control when printed
Replacing Rec Tube
Use a ngernail to slide the receiver lock towards the bat end of the HI (red rec lock for right side is shown here). The receiver lock will unlock the receiver
and it will pop out. Pull the receiver away from the HI
Connect a new receiver by sliding it into the HI as shown. Press to click it in place using e.g. a nger. Check that the rec is correct in place
Pop out
Click
Remove the rec
Use either the removal procedure described here or use the rec removal tool - see instr in the guide which is enclosed the rec removal tool kit
Connect the rec

Doc 0371130 rev. F
Page 16 of 22
Not subject to issue control when printed
Replacing Filter in Rec Tube
Remove the used wax lter:
Box of 8 wax lter tools. The wax lter
tool has two functions:
A removal tip to collect the used l-
ter, and a replacement tip with a new
white lter
Insert the removal tip into the used wax lter and then pull the tool straight
out. It is important to pull it straight and not on an angle
Insert the other end of the tool into
the sound outlet (the end with the re-
placement lter)
Insert the new wax lter:
Gently press the replacement lter
straight into the sound outlet until the
outer ring is touching the sound outlet
Pull the tool straight out – your new wax
lter will remain in place. Re-attach your
dome or a replacement dome
If a dome is mounted, remove
it before starting replace the
wax lter

Doc 0371130 rev. F
Page 17 of 22
Not subject to issue control when printed
Replacing Mic Filter in M&RIE Rec Tube
Locate the mic lter at the back of the rec tube. Use the lter removal end of the mic lter pin to remove the defective lter. Make sure the pin is pushed
all the way in to get the best grip on the defective lter (see red circle)
Pull back the pin with the defective lter. In the other end of the lter pin, the new lter is attached. Push it into the hole/mic sound inlet. Make sure the lter
is correct in place. Turn the pin clockwise until the new lter is released
Filter
No lter
New
lter
Pull back the pin. Check that the lter is correct in place
Filter
removal

Doc 0371130 rev. F
Page 18 of 22
Not subject to issue control when printed
The remaining part of the Technical Manual is for internal GN operations only

Doc 0371130 rev. F
Page 19 of 22
Not subject to issue control when printed
Description Part No
BATTERY PILL 13+ (62-DRW) 17449400
BATTERY PILL 312+ (61-DRW) 17449300
NOAHLINK WL CPD-1 20310800
FOAM,LUXOR RHI 20878000
FRAME
(BLK test frame for ATC4000 sound chamber) 16902800
TEST JIG,CAMBRIDGE RHI&13 21570100
TEST JIG,CAMBRIDGE 312 21628300
ASM TEST REC UP SF3,DSA6000 21571500
DSA ADAPTOR 20011800
THREAD CAP 20011900
RUBBER WASHER 20012000
CONE RECEIVER,SF3,DSA6000 21571300
Part List - Test Equipment
Please nd pics of test equipment parts on the next pages
DSA ADAPT
20011800
RUB WASH
20012000
ASM TEST REC UP SF3,DSA6K
p/n 21571500
THREAD CAP
20011900
CONE REC SF3
21571300
With mic
See the test instr page concerning how
to place the mic correct on the test jig

Doc 0371130 rev. F
Page 20 of 22
Not subject to issue control when printed
2cc coupler
p/n 30-4838800 can
be ordered with GTO
Dept / HQ DK
Test Equipment for the DSA6000
COUPL MIC,TM-12,
MEASURED
p/n 18220700
NOAHLINK WL CPD-1
p/n 20310800
Test frame
p/n 16902800
TEST JIG,CAMBRIDGE
RHI&13
p/n 21570100
ASM TEST REC UP SF3,DSA6K
p/n 21571500
Bat pill must be used
during test, models
RT61 & 62-DRW
p/n 17449400 size 13
p/n 17449300 size 312
TEST JIG,CAMBRIDGE 312
p/n 21628300
FOAM,LUX RHI
p/n 20878000
support for
test rec & coupler
See the test instr page concerning how
to place the mic correct on the test jig
