Ricoh Aficio SG 3110DN User manual

1
Notes for Wireless LAN Users
This manual explains how to connect the machine to the network via a wireless LAN interface.
• Ad hoc mode is not supported.
• Ethernet and wireless LAN settings cannot be enabled at the same time.
Checking Your Wireless Network Environment
• Before configuring the wireless LAN settings, configure the machine's IP address.
For details about configuring the machine's IP address, see "Connecting the Computer and
Installing the Software (Network Connection)", "2. Preparing for Printing", User Guide .
• Check that the access point is operating.
CHV600
• Plug the wireless LAN cable into the Ethernet port before configuring the wireless LAN set-
tings.
CHV602

2

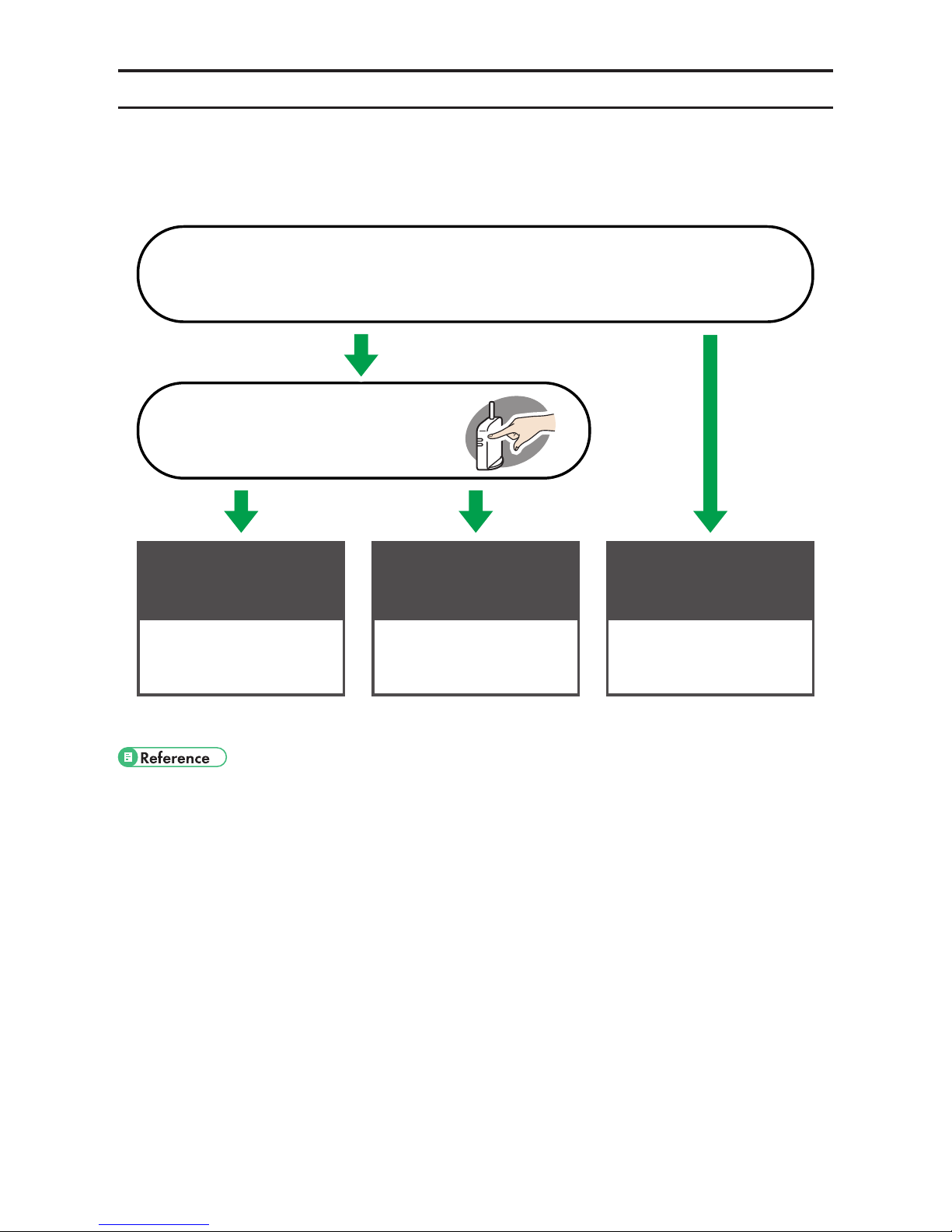

Selecting the Configuration Method
The configuration method depends on the access point being used.
"Easy Setup" is a function for automatically configuring the wireless LAN settings. The actual
name of the function may vary depending on the access point being used. See the access point
manual.
Page 3
”Easy Setup Using the
WPS Button”
Page 7
”Manual setting”
Easy Setup
“PBC Method”
Easy Setup
“PIN Method” Manual setting
Does the access point support "Easy Setup" of the wireless LAN?
Is there a push button
on the access point?
Page 5
”Easy Setup Using a
PIN Code”
Yes No
Yes No
CHV626
• Manual setting: Page 7 "Configuring Settings Using Web Image Monitor"
• Manual setting: Page 12 "Configuring Settings Using the Control Panel"

3
Easy Setup Using the WPS Button

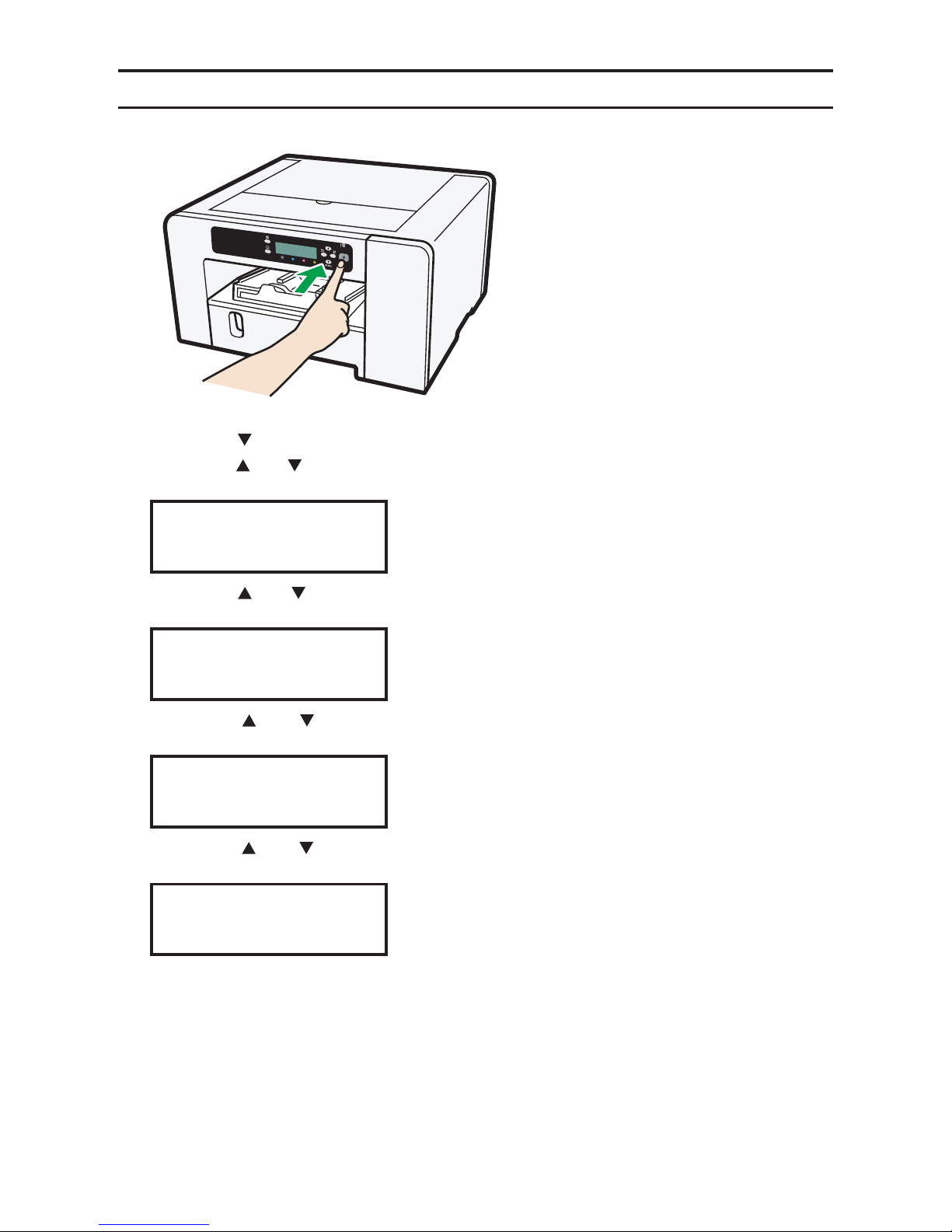

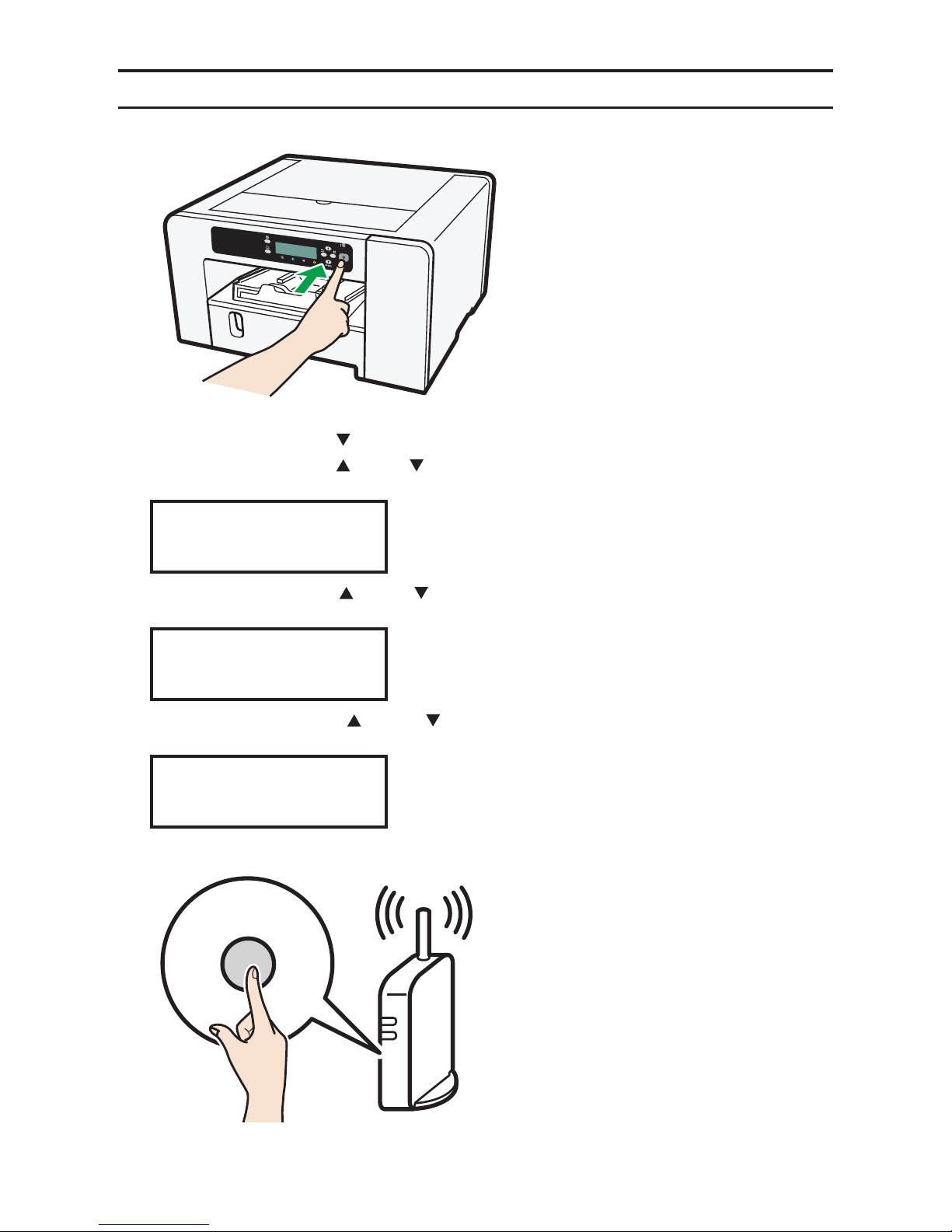

1. Turn the machine on.
CHV606
2. Press the [ /Menu] key.
3. Press the [ ] or [ /Menu] key to display the [Host Interface] menu, and then press the
[#Enter] key.
Menu:
Host Interface
4. Press the [ ] or [ /Menu] key to display [Wireless LAN], and then press the [#Enter]
key.
Host Interface:
Wireless LAN
5. Press the [ ] or [ /Menu] key to select [Easy Setup], and then press the [#Enter]
key.
Wireless LAN:
Easy Setup
6. Press the WPS button on the access point.
WPS
CHV607

4
7. Press the [ ] or [ /Menu] key to select [PBC Method], and then press [#Enter] key.
Easy Setup:
PBC Method
If the access point cannot be detected within 120 seconds, the search session expires.
If the connection attempt has failed, press the [#Enter] key again. If the problem persists,
check whether the access point is working properly.
Configuration is complete when connection to the access point is confirmed.
8. After you have made all the settings, press the [Escape] key.
9. Print the configuration page to check whether the machine has successfully con-
nected to the access point.
If the wireless LAN signal is reported as being unavailable (0%) on the configuration page,
the machine is not connected to the access point.
How to print the configuration page
the [ /Menu] key [List/Test Print] [Config. Page] [#Enter]

5
Easy Setup Using a PIN Code
1. Turn the machine on.
CHV606
2. Press the [ /Menu] key.
3. Press the [ ] or [ /Menu] key to display the [Host Interface] menu, and then press the
[#Enter] key.
Menu:
Host Interface
4. Press the [ ] or [ /Menu] key to display [Wireless LAN], and then press the [#Enter]
key.
Host Interface:
Wireless LAN
5. Press the [ ] or [ /Menu] key to select [Easy Setup], and then press the [#Enter]
key.
Wireless LAN:
Easy Setup
6. Press the [ ] or [ /Menu] key to select [Display PIN], and then press the [#Enter]
key.
Easy Setup:
Display PIN
7. Check the machine's PIN.

6

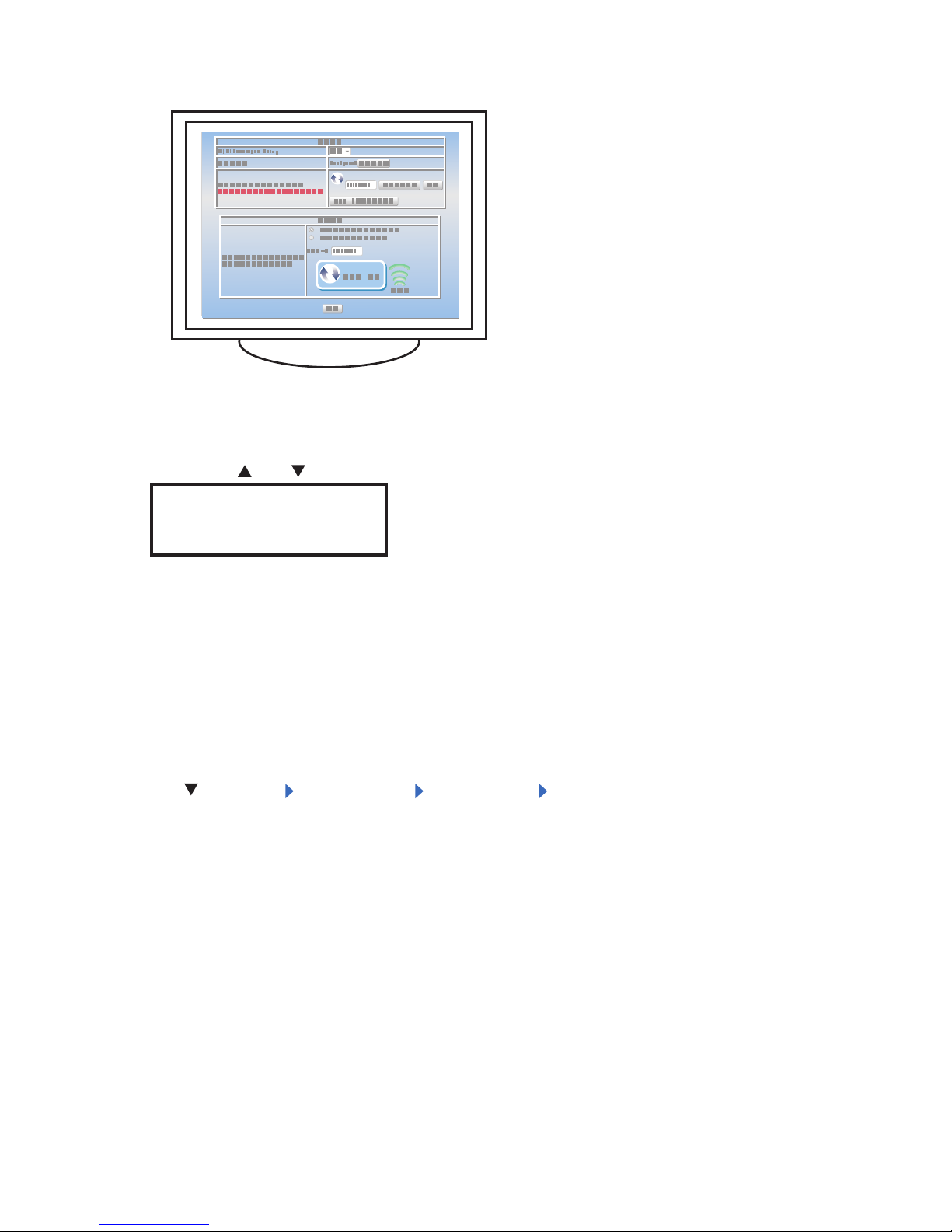

8. Enter the machine's PIN on the access point web page.
CHV609
For details, see the manual supplied with the wireless LAN access point.
9. Execute WPS (PIN system) from the access point's web page.
10. Press the [Escape] key.
11. Press the [ ] or [ /Menu] key to select [PIN Method], and then press [#Enter] key.
Easy Setup:
PIN Method
If the connection attempt has failed, press the [#Enter] key again. If the problem persists,
check whether the access point is working properly.
Configuration is complete when connection to the access point is confirmed.
12. After you have made all the settings, press the [Escape] key.
13. Print the configuration page to check whether the machine has successfully con-
nected to the access point.
If the wireless LAN signal is reported as being unavailable (0%) on the configuration page,
the machine is not connected to the access point.
How to print the configuration page
the [ /Menu] key [List/Test Print] [Config. Page] [#Enter]

7
Manual Setting
If you cannot confirm the settings of the access point being used or the access point does not
support WPS, configure the wireless LAN settings manually.
You can configure the settings using Web Image Monitor or the control panel. This manual mainly
explains configuration using Web Image Monitor.
Configuring Settings Using Web Image Monitor
• Connect the machine and computer with an Ethernet cable before configuring the settings.
CHV620
• Check the security method employed by the access point being used.
• Check the machine's IP address.
the [ /Menu] key [Host Interface] [Network Setup] [IPv4 Address]
1. Launch the Web browser.
2. In the address bar, enter "http://(machine's IP address or host name)/".
3. Click [Administrator Login].
CHV621
A dialog box for entering the user name and password appears.
4. Enter the user name and password, and then click [OK].
If this is the first time to log in, enter "admin" as the user name and leave the password
blank.

8
5. In the menu area, click [Settings].
6. Click [Wireless LAN Settings].

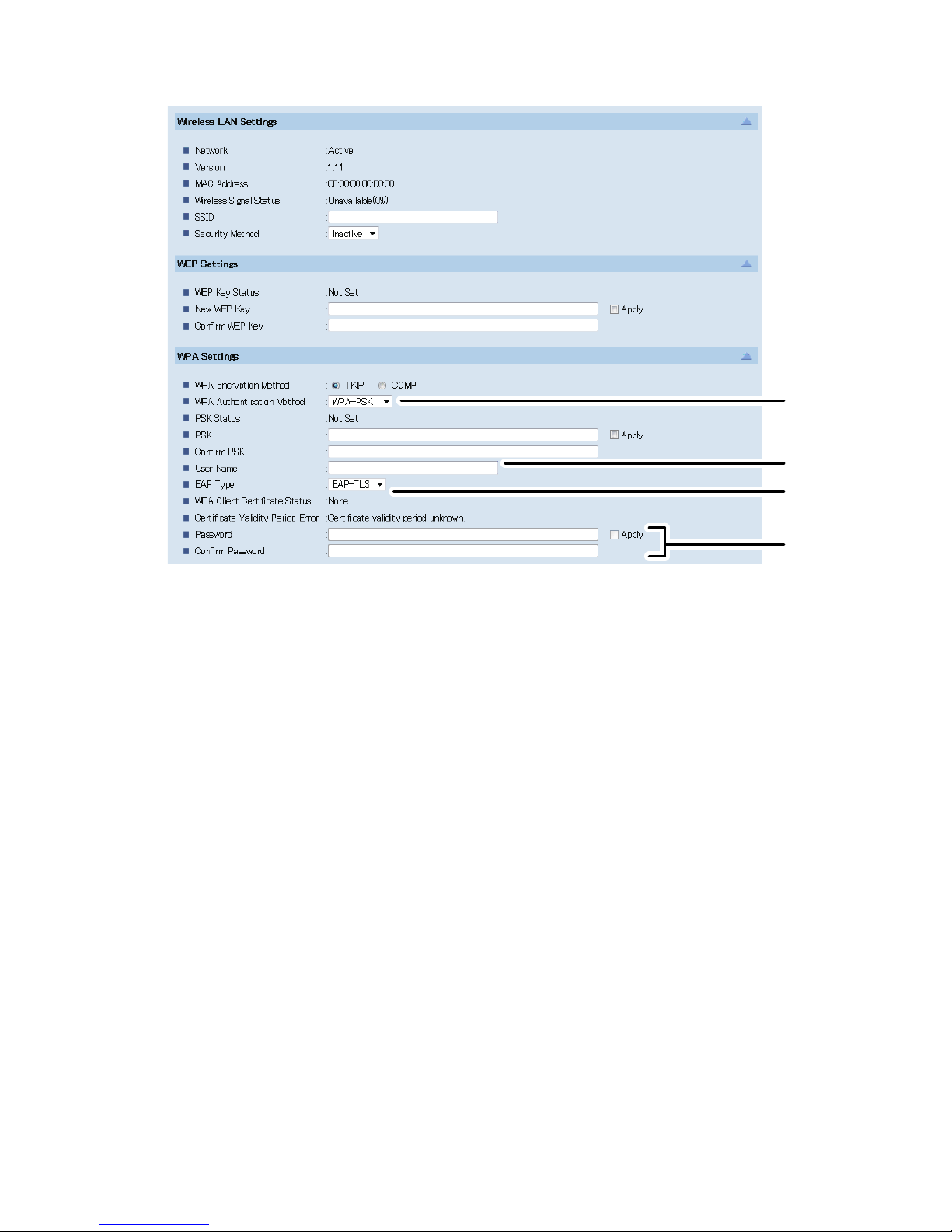

7. Specify the wireless LAN settings.
If the security method is WEP
1
2
3
CHV622
1. Enter the network name of the access point.
2. Select [WEP].
3. Enter the password for the access point, and then select the [Apply] check box.

9
If the security method is WPA
1
2
CHV623
1. Enter the network name of the access point.
2. Select [WPA].

10

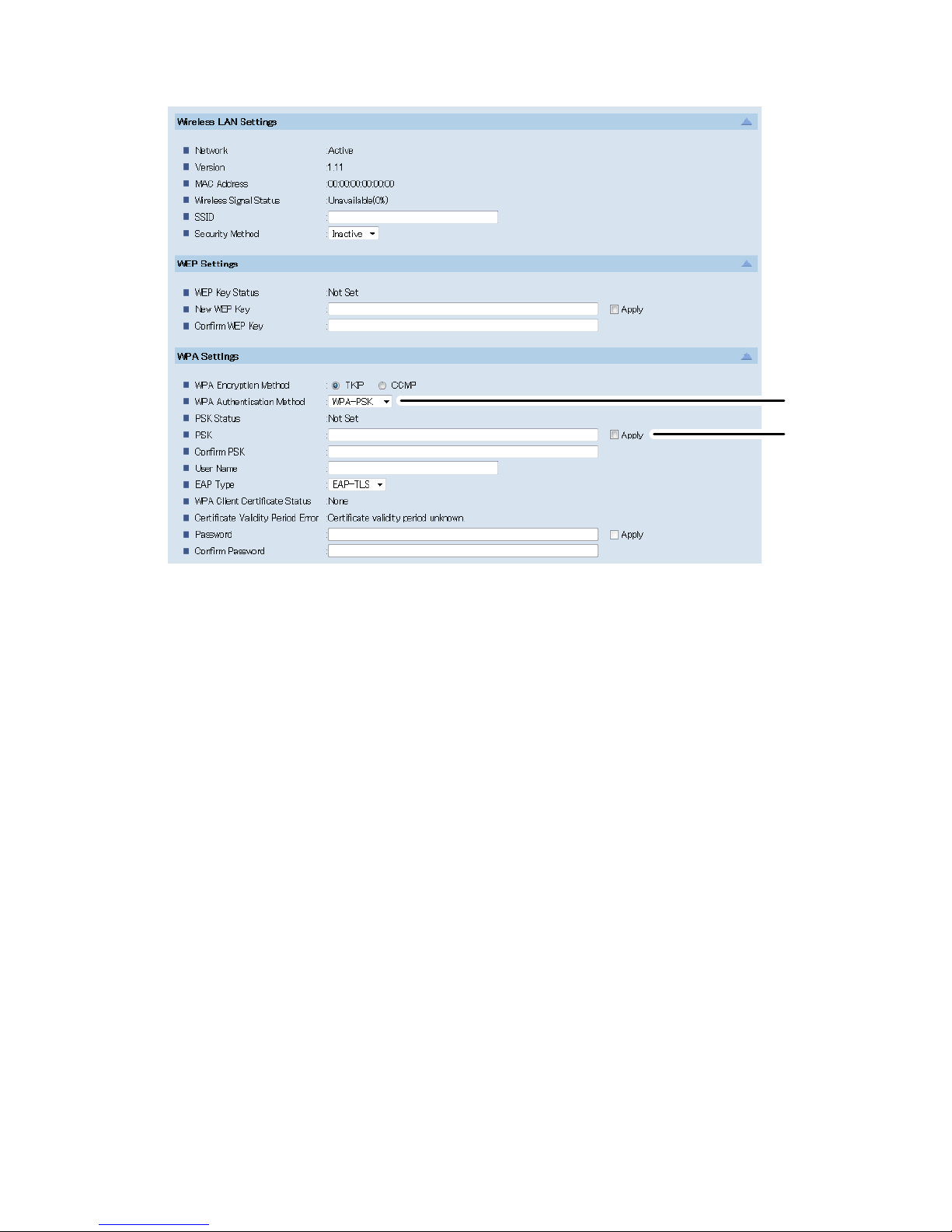

• If the WPA authentication method is WPA-PSK or WPA2-PSK
1
2
CHV624
1. Select [WPA-PSK] or [WPA2-PSK].
2. Enter the PSK (Pre-Shared Key), and then select the [Apply] check box.
Configure other settings if needed.
