Rinnai INFINITY 16 Installation instructions

-How to
Water
Rinnai
Infinity 16
Customer
tipage 2
Installer
*page 14
use vour
Heaier
Features < 2
Safety Points < 3
Remote Controls Explained 5
<
Turning System ON < 7
Adjusting Temperature < 8
Turning System OFF < 8
Optional Remote Control < 9
Transfer Function <
10
About Hot Water <
11
Error Messages <
13

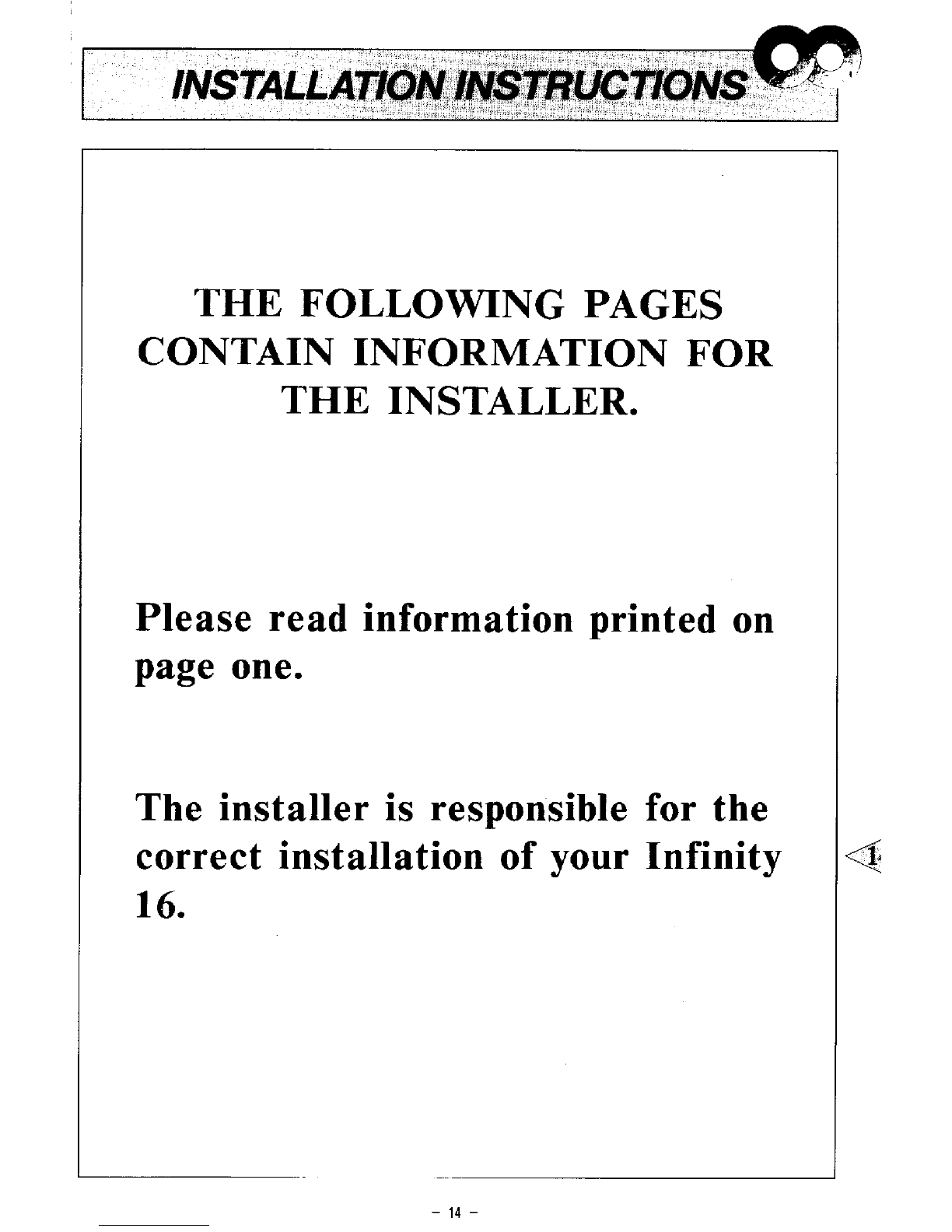

Installation <
14
Service Contacts <
27

This appliance shall be installed in accordance
with:
l Manufacturer’s Instructions
l Local Authority Building Codes
l NZS 5261 Installation Code for Gas Burning
Equipment
l Any other relevant Statutory Regulation
This appliance must be installed, serviced and
removed by an authorised person.
This Infinity 16 must be installed correctly by an authorised person. The installation
of gas, water, and electricity must conform to local regulations.
The installation must also comply with the instructions supplied by Rinnai.
Your Infinity 16 has been approved by the Australian Gas Association.
A.G.A. Approval Number 5112.
Please keep this instruction booklet in a safe place for future reference.
All dimensions referred to in these instructions are in millimetres,
unless otherwise specified.
-l--l-

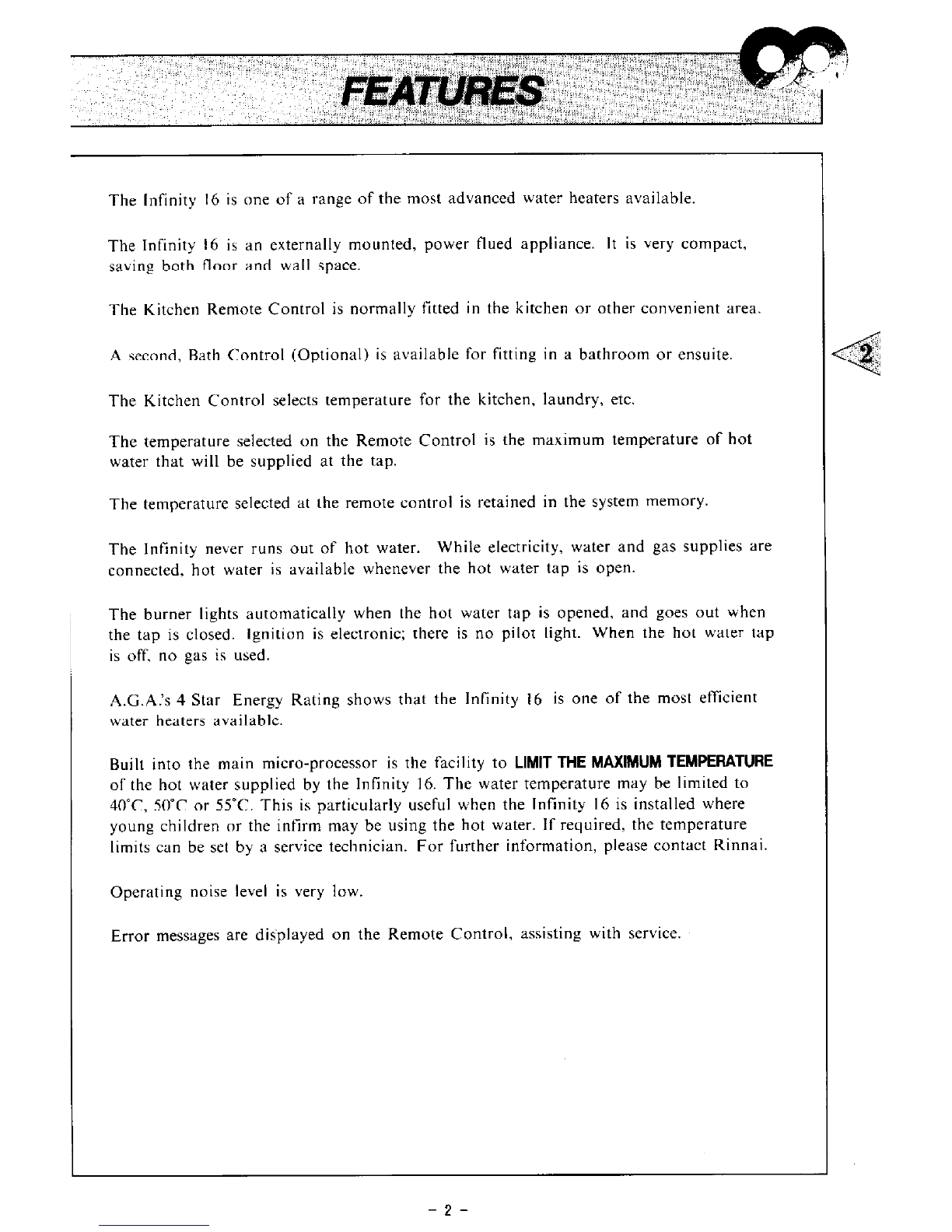

The Infinity 16 is one of a range of the most advanced water heaters available.
The Infinity 16 is an externally mounted, power flued appliance. It is very compact,
saving both floor and wall space
The Kitchen Remote Control is normally fitted in the kitchen or other convenient area.
A second, Bath Control (Optional) is avsailable for fitting in a bathroom or ensuite.
The Kitchen Control selects temperature for the kitchen, laundry, etc.
The temperature selected on the Remote Control is the maximum temperature of hot
water that will be supplied at the tap.
The temperature selected at the remote control is retained in the system memory.
The Infinity never runs out of hot water. While electricity, water and gas supplies are
connected. hot water is available whenever the hot water tap is open.
The burner lights automatically when the hot water tap is opened, and goes out when
the tap is closed. Ignition is electronic; there is no pilot light. When the hot water tap
is off, no gas is used.
A.G.A.‘s 4 Star Energy Rating shows that the Inlinity 16 is one of the most efficient
water heaters available.
Built into the main micro-processor is the facility to LIMITTHE MAXIMUMTEMPERATURE
of the hot water supplied by the Infinity 16. The water temperature may be limited to
40-C, 5O’C or 55°C. This is particularly useful when the Infinity I6 is installed where
young children or the infirm may be using the hot water. If required, the temperature
limits can be set by a service technician. For further information, please contact Rinnai.
Operating noise level is very low.
Error messages are displayed on the Remote Control, assisting with service.
-2-
1

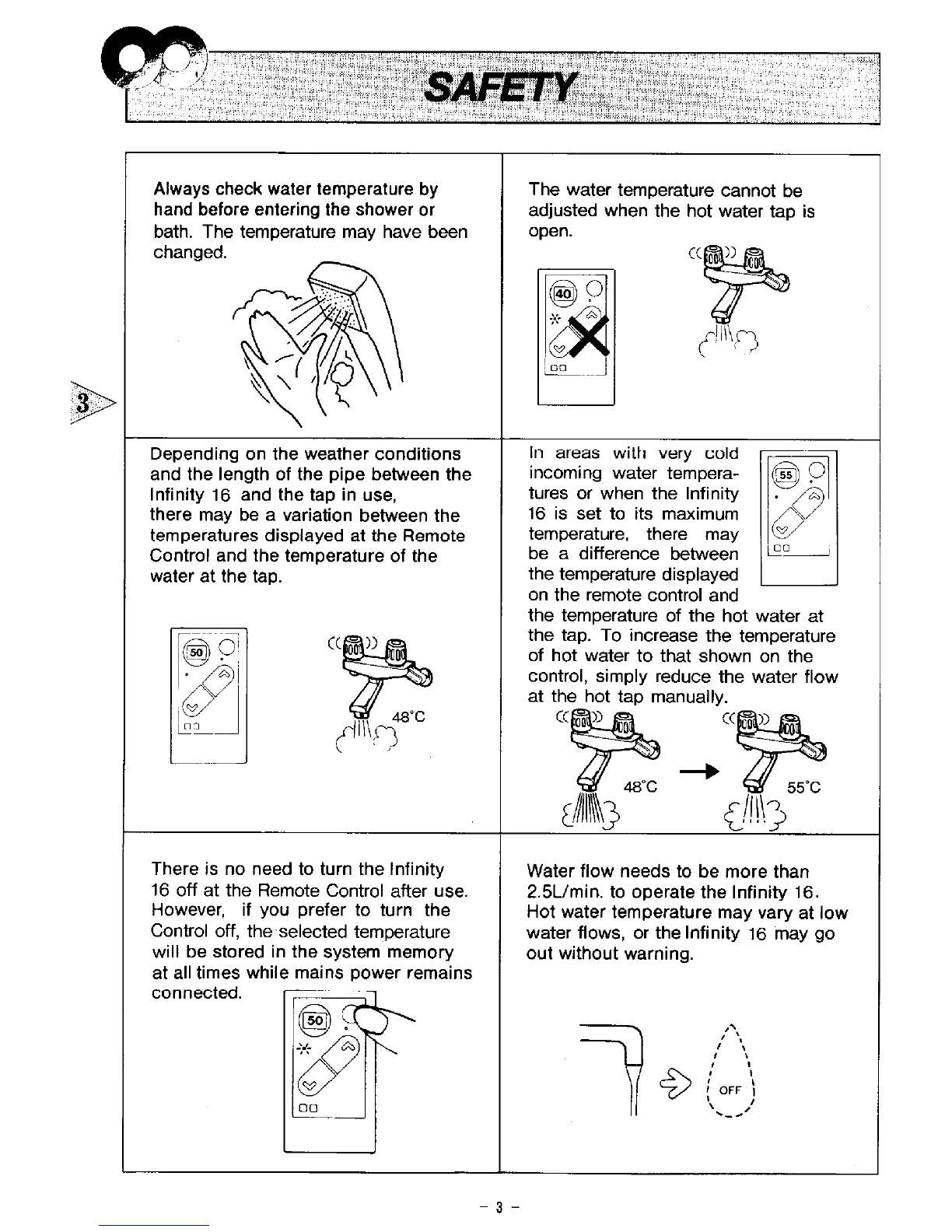

Always check water temperature by
hand before entering the shower or
bath. The temperature may have been
The water temperature cannot be
adjusted when the hot water tap is
Depending on the weather conditions
and the length of the pipe between the
Infinity 16 and the tap in use,
In areas with very cold
incoming water tempera-
there may be a variation between the
temperatures displayed at the Remote
Control and the temperature of the
water at the tap.
temperature, there may
be a difference between
the temperature displayed
on the remote control and
the temperature of the hot water at
the tap. To increase the temperature
of hot water to that shown on the
control, simply reduce the water flow
at the hot tap manually.
There is no need to turn the Infinity
16 off at the Remote Control after use.
However, if you prefer to turn the
Water flow needs to be more than
2.5L/min. to operate the Infinity 16.
Hot water temperature may vary at low
water flows, or the Infinity 16 ‘may go
will be stored in the system memory
at all times while mains power remains
connected.
out without warning.
-3-

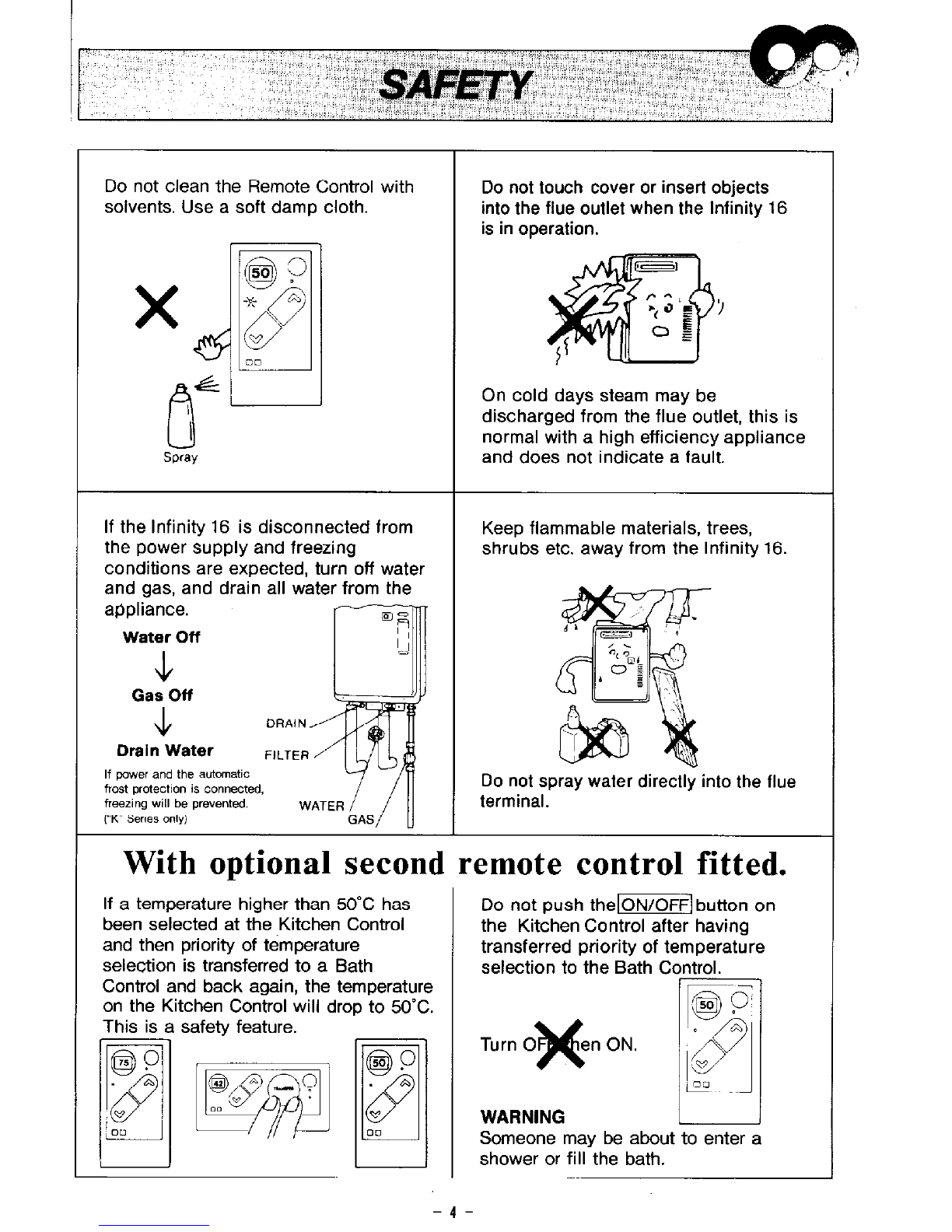

Do not clean the Remote Control with Do not touch cover or insert objects
solvents. Use a soft damp cloth. into the flue outlet when the Infinity 16
is in operation.
‘,
On cold days steam may be
discharged from the flue outlet, this is
normal with a high efficiency appliance
Spray and does not indicate a fault.
If the Infinity 16 is disconnected from Keep flammable materials, trees,
the power supply and freezing shrubs etc. away from the Infinity 16.
conditions are expected, turn off water
and gas, and drain all water from the
appliance.
Water Off
\1
Gas Off
&
Drain Water
Ifpaverandmeautcmatic
frost protection is connected,
freezing will be prevented. terminal.
(Y Series onlY)
With optional second remote control fitted.
If a temperature higher than 50°C has Do not push the-1 button on
been selected at the Kitchen Control the Kitchen Control after having
and then priority of temperature transferred priority of temperature
selection is transferred to a Bath selection to the Bath Control.
Control and back again, the temperature
on the Kitchen Control will drop to 5O’C.
This is a safety feature.
-4-

This remote control is supplied with
the Infinity 16.
selected. Error message
es in the event of a
contra 1s m cmtro 0
temperature, when thr
optional second remote
*This remote control is also suitable for installation in laundry areas.
-5-

This remote control is available as
an option for the Infinity 16.
selected. Error code flashes
I of the hot water. ndlcates which remote control
is in control of adjusting water
Refer to page 9 for operating
instructions with the optional
remote control fitted.
control as for use in
the bathroom.
-6.

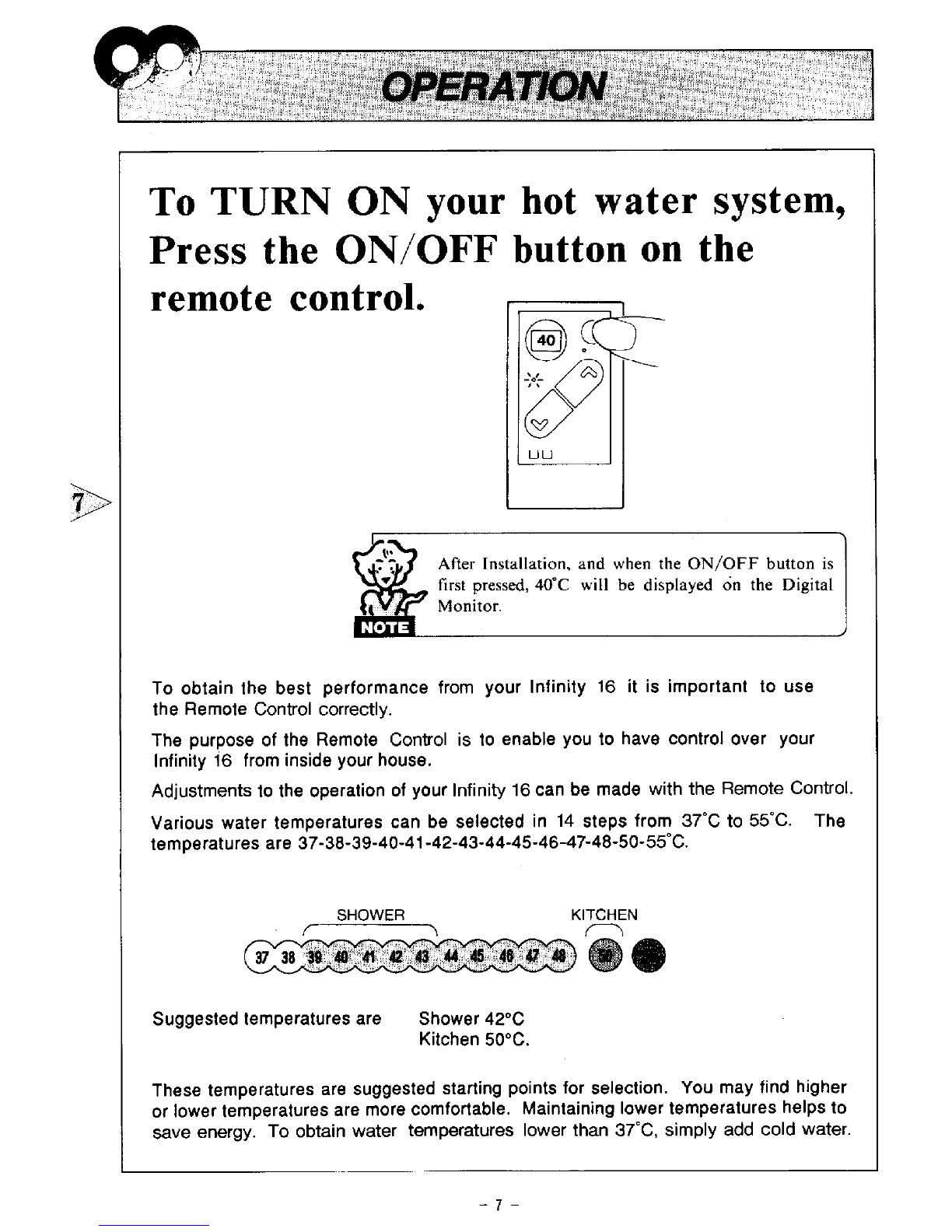

To TURN ON your hot water system,
Press the ON/OFF button on the
remote control.
After Installation, and when the ON/OFF button is
To obtain the best performance from your Infinity 16 it is important to use
the Remote Control correctly.
The purpose of the Remote Control is to enable you to have control over your
Infinity 16 from inside your house.
Adjustments to the operation of your Infinity 16 can be made with the Remote Control.
Various water temperatures can be selected in 14 steps from 37°C to 55°C. The
temperatures are 37-38-3%40-41-42-43-44-4546-47-48-50-55-C.
SHOWER KITCHEN
/ , I
Suggested temperatures are Shower 42°C
Kitchen 50°C.
These temperatures are suggested starting points for selection. You may find higher
or lower temperatures are more comfortable. Maintaining lower temperatures helps to
save energy. To obtain water temperatures lower than 37°C simply add cold water.
-7-

The yellow ON indicator will glow on
the Remote Control.
This indicates that the Infinity 16 is
ready to supply hot water as soon as
a tap is opened.
I
required temperature is displayed
on the Digital Monitor.
CHECK WATER TEMPERATURE
BEFORE ENTERING SHOWER
OR BATH.
*Always testthe watertemperature
in bath before a child gets in.
This is best done by the parent
placing their elbow in the water.
HOT COLD
OPERbTlON
To operate the Infinity 16 simply
turn any hot water tap on. This
will automatically light the burner,
providing hot water up to the
temperature displayed on the
Digital Monitor.
The red operation indicator will
glow on the remote control.
When the tap is turned off, the
burner goes out automatically.
0
I To TURN OFF
Simply press the -1 button
on any Remote Control.
This will shut the Infinity 16 down.
The ON indicator will go out.
If hot water taps are opened when
the Infinity 16 is OFF; cold water
will flow,from the taps.
-0-

Additional SAFETY features
The Transfer button on the Bath Control enables you to select and lock the preferred
temperature for shower or bath water. When locked in. this selected temperature cannot
be overridden by the Kitchen Control.
While the hot water tap is open,
the following safety features apply.
*Temperature selection cannot be
transferred. (When optional Bath
Control is fitted.)
l Water temperature cannot be altered.
*The Remote Control cannot be
turned ON.
The temperature of outgoing hot water is constantly monitored by a built in
sensor. If the temperature of the outgoing hot water rises to more.than 3’C
above the selected temperature shown on the Digital Monitor, the burner will
automatically go out. The red operation lamp will also go out. The burner
will ignite again once the outgoing hot water temperature falls to that shown
on the Digital Monitor.
UsingtheInfinity16 withOptionalControl
To TURN ON your hot water system,
Press the ON/OFF button on either
remote control.
After Installation, and when the ON/
be displayed on the Digital Monitor.
ADJUSTING
TEMPERATURE
The temperature can only be
adjusted on the Remote Control
where the ON indicator is
glowing, and the same
temperature will be displayed
on all Controls.
-9-

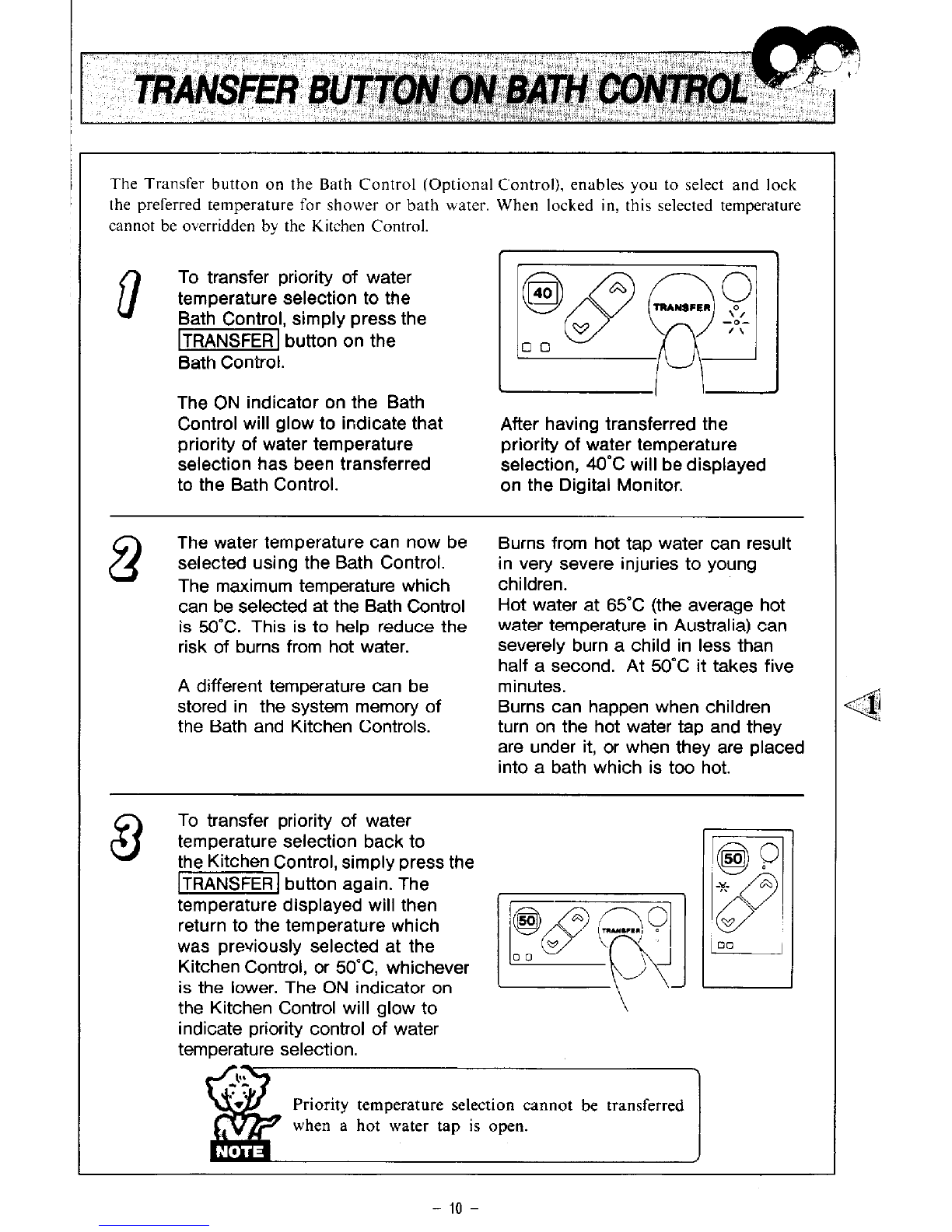

The Transfer button on the Bath Control (Optional Control), enables you to select and lock
the preferred temperature for shower or bath water. When locked in, this selected temperature
cannot be overridden by the Kitchen Control.
To transfer priority of water
temperature selection to the
Bath Control, simply press the
ITRANSFER I button on the
Bath Control.
The ON indicator on the Bath
Control will glow to indicate that After having transferred the
priority of water temperature priority of water temperature
selection has been transferred selection, 40°C will be displayed
to the Bath Control. on the Digital Monitor.
a The water temperature can now be
selected using the Bath Control.
The maximum temperature which
can be selected at the Bath Control
is 50%. This is to help reduce the
risk of burns from hot water.
A different temperature can be
stored in the system memory of
the Bath and Kitchen Controls.
Burns from hot tap water can result
in very severe injuries to young
children.
Hot water at 65’C (the average hot
water temperature in Australia) can
severely burn a child in less than
half a second. At 50°C it takes five
minutes.
Burns can happen when children
turn on the hot water tap and they
are under it, or when they are placed
into a bath which is too hot.
8
To transfer priority of water
temperature selection back to
the Kitchen Control, simply press the
m button again. The
temperature displayed will then
return to the temperature which
was previously selected at the
Kitchen Control, or 5O’C, whichever
is the lower. The ON indicator on
the Kitchen Control will glow to
indicate priority control of water
temperature selection.
Priority temperature selection cannot be transferred
when a hot water tap is open.
- 10 -

Excessively hot water is dangerous, especially for young
children and the infirm. The Infinity 16 allows you to
control the temperature of your hot water to‘safe levels.
Do stay with children whenever they are
in the bathroom. (Take the phone off the
hook).
Do take them out of the bathroom if you
need to answer the phone or door.
Do test the temperature of the water with
your elbow before placing your child in
the bath.
Do make sure that the tap is turned off
tightly.
Do consider setting your Infinity at a
maximum temp of SO’C.(Contact Rinnai.)
Do install a child proof tap cover OR,
Do install a child resistant tap.
Water temperature over 50% can cause
severe burns instantly or death from
scalds.
Children, disabled, and the elderly are at
highest risk of being scalded.
Feel water before bathing or showering.
Don’t leave a toddler in the care of
another small child. The older child may
not have set the water temperature to a
safe level.
*Consider child-resistant taps or
inexpensive tap covers, both of
which prevent a small hand
being able to turn on the tap.
*Consider reducing the
temperature of the water
coming from the hot tap to
50°C.
This approach can be extremely
valuable because it requires a
one time action for a long-term
reduction in the risk of scalds.
This type of automatic protection
is important during times when a
parent or carer has been
distracted.
- 11 -

1. REMOVE CLOTHING
Remove all wet clothing quickly, as clothing retains the heat.
2. APPLY COLD WATER FOR 30 MINUTES
Immediately submerge the burnt area in cold water for SO minutes to reduce the
heat in the skin, preventing deeper burning.
Never use butter, oils, ointments to cover the burn as they may retain the heat.
Never use ice. Children can be dangerously chilled in iced water.
3. KEEP THE CHILD WARM
Place a blanket around your child.
4. SEEK MEDICAL ADVICE
Seek medical advice if the scald involves the face or hands or is larger than
your palm.
DEAR CUSTOMER
THANK YOU FOR PURCHASING THIS RINNAI APPLIANCE. WE ARE PLEASED TO ADVISE THAT
RINNAI PRODUCTS ARE NOW COVERED BY A 2 YEAR. GUARANTEE: FREE PARTS AND
LABOUR FOR THE FIRST YEAR AND PARTS ONLY FOR THE SECOND YEAR.
- THIS GUARANTEE IS IN ADDITION TO ANY GUARANTEES WHICH
CONSUMERS MAY HAVE UNDER THE CONSUMER GUARANTEES ACT -
SHOULD YOU HAVE ANY QUERIES REGARDING THIS GUARANTEE PLEASE CONTACT YOUR
LOCAL RINNAI AGENT.
Please record below the following information for your own records.
Your Retailer:
Address: Phone:
Date of Purchase:
Your Installer: Installer’s Licence No.
Address: Phone:
Dale of Installation:
- 12 -

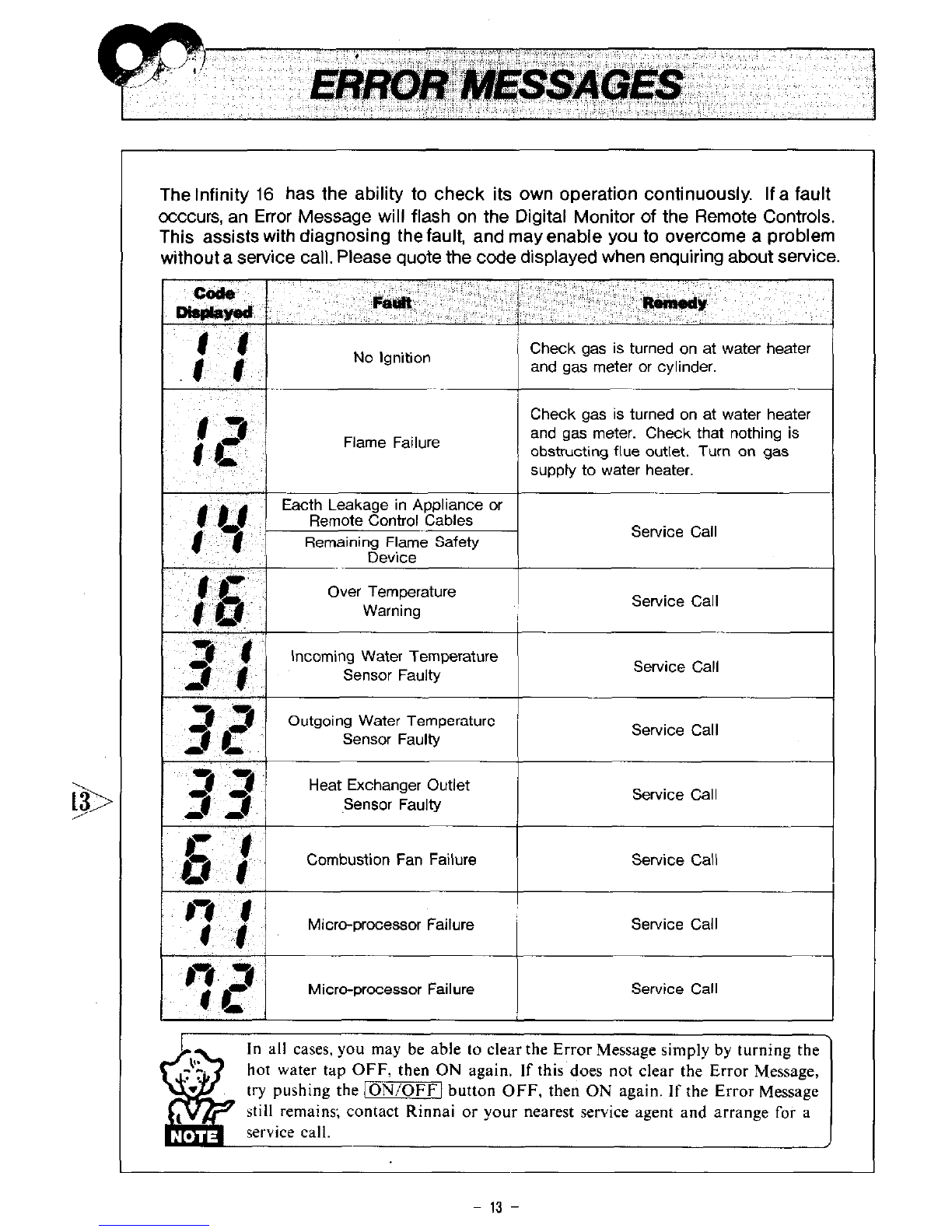

The Infinity 16 has the ability to check its own operation continuously. If a fault
occcurs, an Error Message will flash on the Digital Monitor of the Remote Controls.
This assists with diagnosing thefault, and may enable you to overcome a problem
without a service call. Please quote the code displayed when enquiring about service.
Flame Failure
I
Eacth Leakage in Appliance or
Remote Control Cables
Remaininge;;zy Safety
~’
Over Temperature
Warning
Incoming Water Temperature
Sensor Faulty
Outgoing Water Temperature
Sensor Faulty
Heat Exchanger Outlet
,Sensor Faulty
61 Combustion Fan Failure
Check gas is turned on at water heater
and gas meter or cylinder.
Check gas is turned on at water heater
and gas meter. Check that nothing is
obstructing flue outlet. Turn on gas
supply to water heater.
Service Call
Service Call
Service Call
Service Call
Service Call
Service Call
Service CallMicro-processor Failure
Micro-processor Failure Service Call
In all cases, you may be able to clear the Error Message simply by turning the
hot water tap OFF, then ON again. If this does not clear the Error Message,
try pushing the loN/OFFI button OFF, then ON again. If the Error Message
still remains, contact Rinnai or your nearest service agent and arrange for a
- 13 -

THE FOLLOWING PAGES
CONTAIN INFORMATION FOR
THE INSTALLER.
Please read information printed on
page one.
The installer is respofisible for the
correct installation of your Infinity
16.
c
E
-- 1414 --

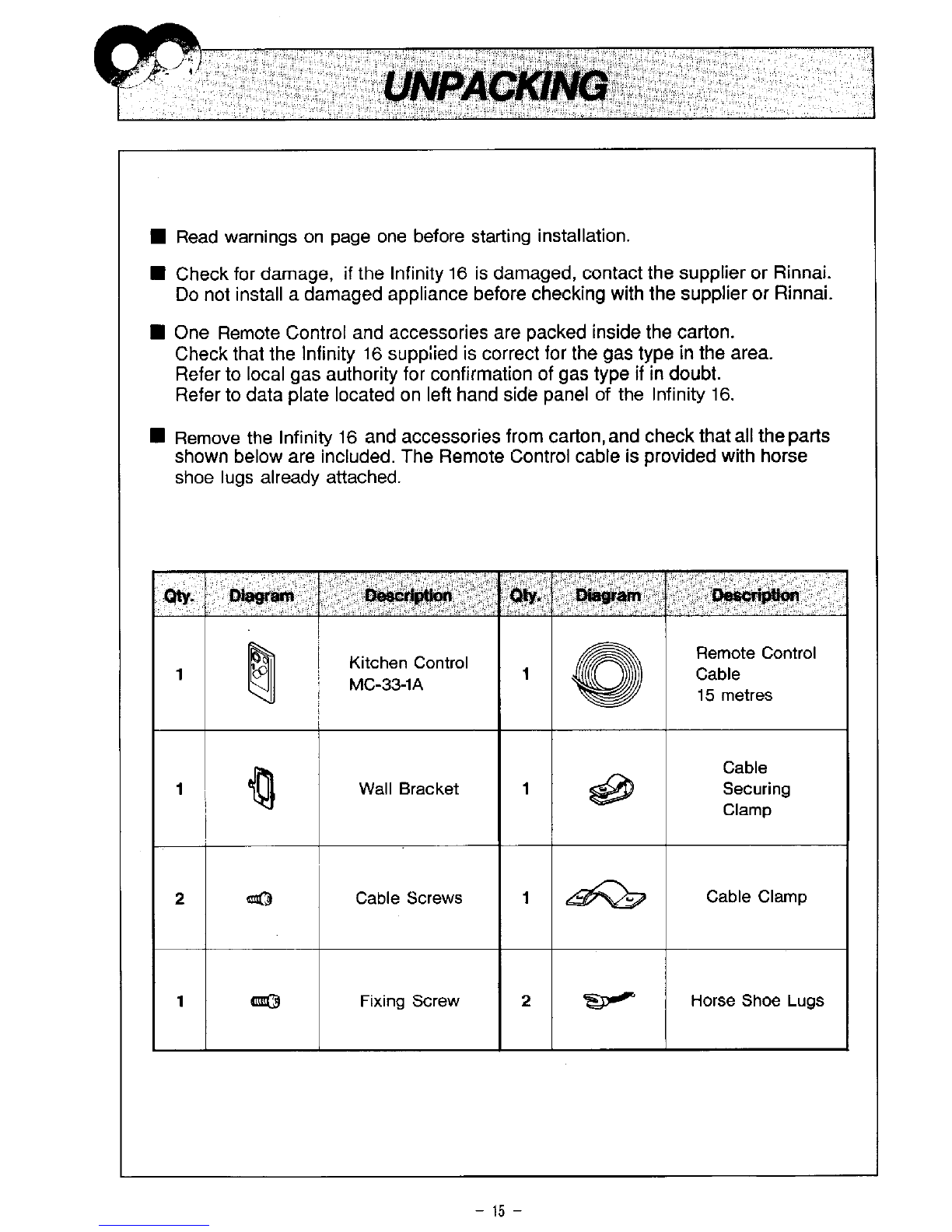

n Read warnings on page one before starting installation.
H Check for damage, if the Infinity 16 is damaged, contact the supplier or Rinnai.
Do not install a damaged appliance before checking with the supplier or Rinnai.
n One Remote Control and accessories are packed inside the carton.
Check that the Infinity 16 supplied is correct for the gas type in the area.
Refer to local gas authority for confirmation of gas type if in doubt.
Refer to data plate located on left hand side panel of the Infinity 16.
n Remove the Infinity 16 and accessories from carton, and check that all the parts
shown below are included. The Remote Control cable is provided with horse
shoe lugs already attached.
Remote Control
Wall Bracket
Cable Screws
Horse Shoe Lugs
- 15-

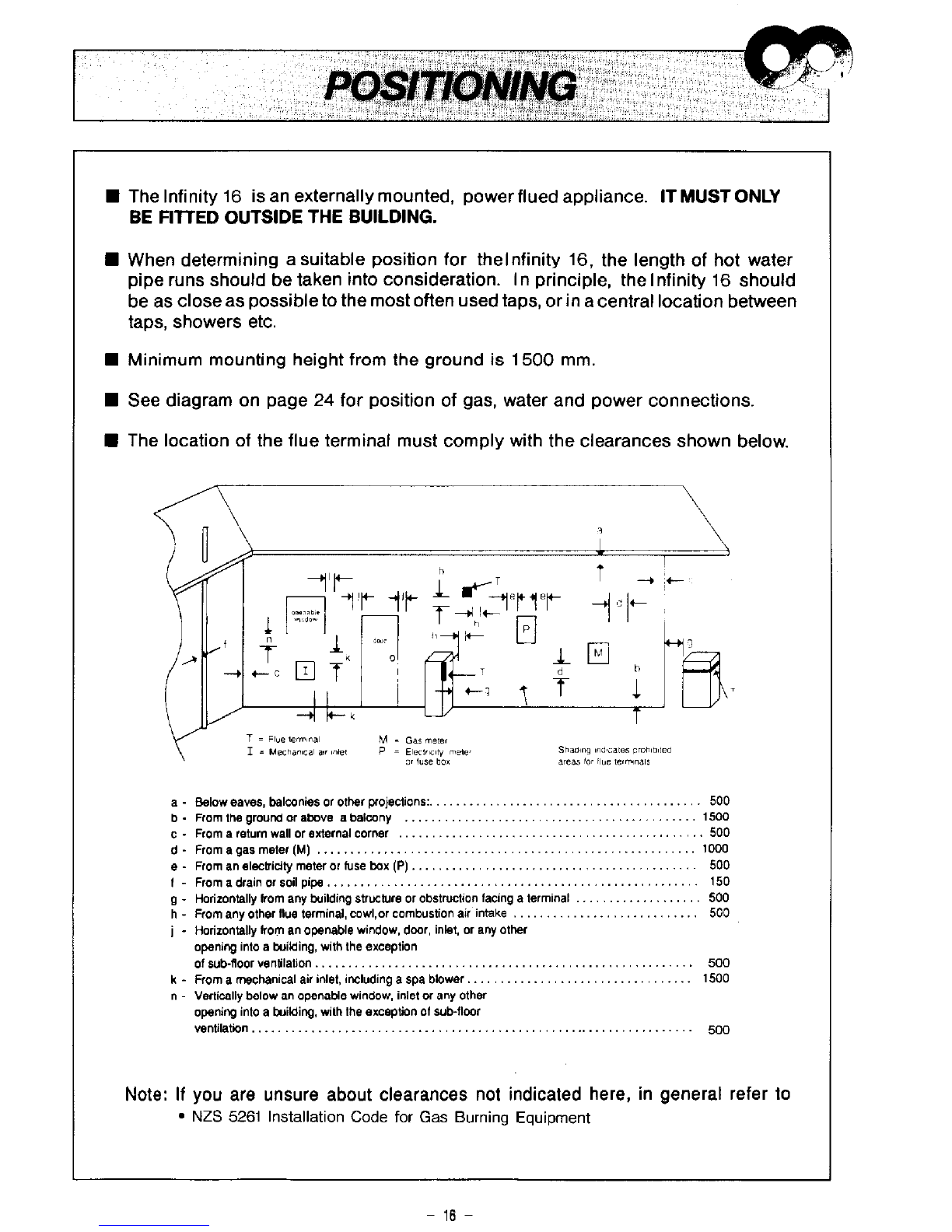

n The Infinity 16 is an externally mounted, power flued appliance. IT MUST ONLY
BE FITTED OUTSIDE THE BUILDING.
w When determining a suitable position for thelnfinity 16, the length of hot water
pipe runs should be taken into consideration. In principle, the Infinity 16 should
be as close as possible to the most often used taps, or in acentral location between
taps, showers etc.
n Minimum mounting height from the ground is 1500 mm.
n See diagram on page 24 for position of gas, water and power connections.
n The location of the flue terminal must comply with the clearances shown below.
a-
b-
c-
d-
*-
I -
B-
h-
i -
k-
“-
Below eaves, balconies or other projections:. 500
Framthegroundorabove abalcOny . . .._...._........................... 1500
From a return wall or external corner 500
Fromagasmeter(M) . . . . . . . . . . . . . . . . . . . . . . .._._........_..................... 1000
Fromaneleckidtymeterarfusebox(P) . . . . .._...._...... 500
Fromadrainorsoflpipe . . . . . . . . 150
Horizontally kom any building strwhlre or obstruction lacing a terminal 500
,.
From any other llue twminaf. cowl,or combustion au mtake 500
Horizontally horn an openable window, dwr, inlet, or any Other
opening into a building, with the exception
ofsub-floorvenblat~on......................................................... 500
From a mechanical air inlet, including a spa blower.. 1500
Vertically below an open&Se window. inlet or any other
opening into a building. with the exception 01 sub-flwr
vsntllatan................................................................... 500
Note: If you are unsure about clearances not indicated here, in general refer to
l NZS 5261 Installation Code for Gas Burning Equipment
- 16 -

PIPESIZING IS IMPORTANT.
This guide will help you IO size the gas pipe for this appliance correctly.
Calculate the length of pipework and total load in MJA.
Shaded boxes indicate MJlh capacity of pipe.
- 17 -

W INFINITY 16
A 230V weatherproof earthed power point is required within 1500 mm of the
infinity 16.
The Infinity 16 weighs 15 kg, and the wall on which it is lo be mounted must be
capable of supporting it and the pipework. Ensure that suitable fixing screws or
bolls are used to secure the Infinity 16 to the wall. Bracket and fixing hole locations
are shown on page 24.
The top bracket has a keyhole slot so that the Infinity 16 can be positioned by
hanging it on one screw, then the other screws can be secured.
After determining the most suitable position, fix the Infinity 16 to the wall.
Connect hot and cold water pipes. An approved gate valve MUST BE FITTED to
the cold water inlet. In areas where the waler pressure is over 1000 kPa, a
pressure limiting valve must also be fitted.
Water connections are P&/15. Locations are shown on page 24.
Connect the gas. CHECK PIPE SIZING REQUIREMENT USING AN APPROVED
PIPE SIZING CHART.
The Infinity 16 uses 125 MJh of gas. IF THE GAS PIPE SIZE IS INSUFFICIENT,
THE CUSTOMER WILL NOT GET THE FULL PERFORMANCE BENEFIT. An
approved isolation valve MUST BE FITTED to the gas inlet. Connection size is
FP/4/20. This is not an indication of the size of pipe required.
The Infinity 16 waler heater is not suitable for use as a pool heater.
n REMOTE CONTROL
The Remote Control enables the customer to control the functions of the Infinity 16
from inside the house. Before fitting the Remote Control, determine the most
convenient position for installation where the customer will benefit the most.
The MC-33-1A Kitchen Control is intended to be fitted in the kitchen or other
convenient area where the majority of hot water is being used.
An optional BC-451A Bath Control is intended to be fitted conveniently close
to the shower, in the bathroom, en-suite or other area where the customer
requires priority over water temperature selection.
The BC-451A Bath Control enables the person in the shower/bath area to lock in
the selected water temperature, so that the temperature cannot be changed from
the MC-33-1A Kitchen Control.
- I8 -

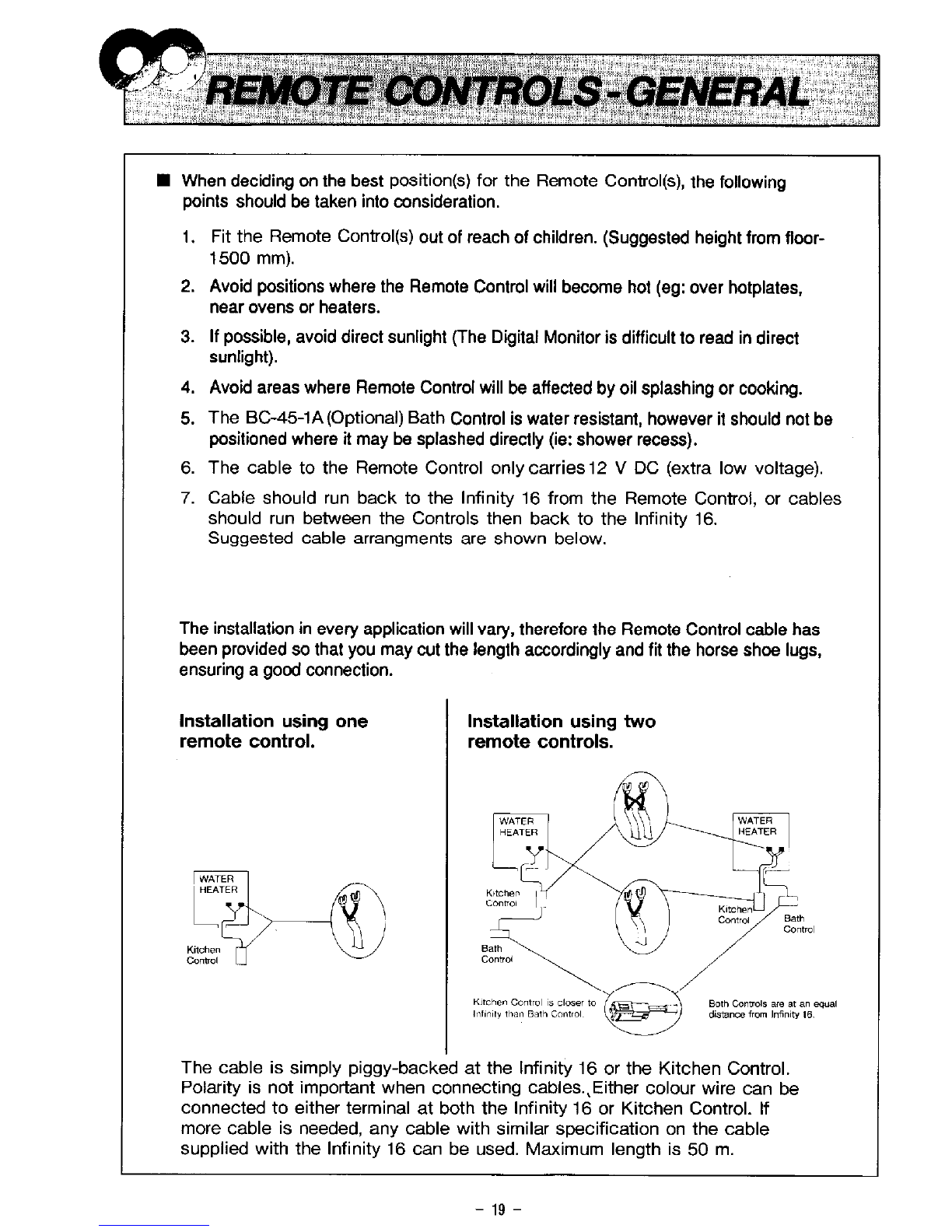

H When deciding on the best position(s) for the Remote Control(s), the following
points should be taken into consideration.
1. Fit the Remote Control(s) out of reach of children. (Suggested height from floor-
1500 mm).
2. Avoid positions where the Remote Control will become hot (eg: over hotplates,
near ovens or heaters.
3. If possible, avoid direct sunlight (The Digital Monitor is difficult to read in direct
sunlight).
4. Avoid areas where Remote Control will be affected by oil splashing or cooking.
5. The BC-451A(Optional) Bath Control is water resistant, however it should not be
positioned where it may be splashed directly (ie: shower recess).
6. The cable to the Remote Control only carries12 V DC (extra low voltage),
7. Cable should run back to the Infinity 16 from the Remote Control, or cables
should run between the Controls then back to the Infinity 16.
Suggested cable arrangments are shown below.
The installation in every application will vary, therefore the Remote Control cable has
been provided so that you may cut the length accordingly and fit the horse shoe lugs,
ensuring a good connection.
Installation using oneInstallation using one
remote control.remote control. Installation using twoInstallation using two remote controls.remote controls.
The cable is simply piggy-backed at the Infinity 16 or the Kitchen Control.The cable is simply piggy-backed at the Infinity 16 or the Kitchen Control.
Polarity is not important when connecting cables.,Either colour wire can bePolarity is not important when connecting cables.,Either colour wire can be
connected to either terminal at both the Infinity 16 or Kitchen Control. Ifconnected to either terminal at both the Infinity 16 or Kitchen Control. If
more cable is needed, any cable with similar specification on the cablemore cable is needed, any cable with similar specification on the cable
supplied with the Infinity 16 can be used. Maximum length is 50 m.supplied with the Infinity 16 can be used. Maximum length is 50 m.
- 19 -
