Fan Convector Heaters
FC510 (RCE-391A) FC824 (RCE-691TA)

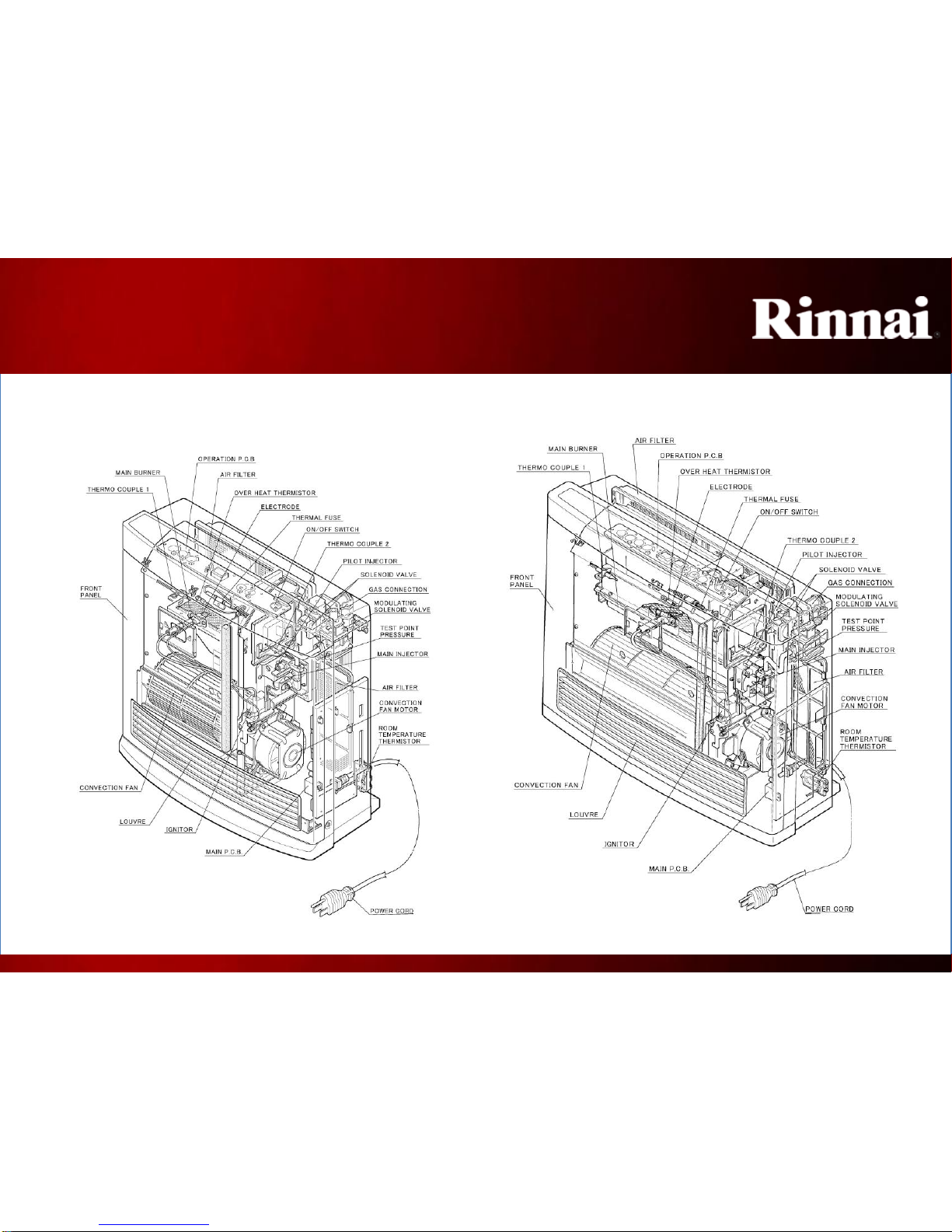

Internal Components
FC510 (RCE-391A) FC824 (RCE-691TA)

Specifications
Model Gas Type
Input Rating
Btu/hr. HIGH
Input Rating
Btu/hr. LOW
Gas Inlet Pressure
Manifold Pressure
HI/LO Inches W.C.
(mm)
Fan Motor
CFM HI/LO
Fuse
(Amps)
FC510N
(RCE-391AN) Natural Gas 10,000 5,500 3.5 –10.5
inches W.C
(89 –267 mm W.C)
1.8 / 0.64 inches W.C.
(47 / 16.3 mm W.C.) 67.8 Low
97.8 High 5
FC510P
(RCE-391AP) Propane Gas 10,000 5,600 8.0 -
13.0 inches W.C.
(203 - 330 mm W.C.
3.2 / 1.12 inches W.C.
(82 / 28.6 mm W.C.)
67.8 Low
97.8 High
5
FC824N
(RCE-691TAN) Natural Gas 24,000 8,400 5.0 –10.5
W.C
(127 - 267 mm W.C)
3.4 / 0.52 inches W.C.
(87 / 13 mm W.C.) 109.5 Low
215.4 High
5
FC824P
(RCE-691TAP) Propane Gas 22,000 8,000 8.0 -
13.0 inches W.C.
(203 - 330 mm W.C.)
6.3 / 1.00 inches W.C
(161 / 25.5 mm W.C.)
109.5 Low
215.4 High
5
Product specifications

FC510 (RCE-391A) FC824 ( RCE-691TA)
Gas Connection 1/2" Male NPT 1/2" Male NPT
Gas Control Electronic Electronic
Burners Ceramic Burner Ceramic Burner
Temperature Control Electronic Thermostat Electronic Thermostat
Ignition Sdystem Electronic Spark Ignition Electronic Spark Ignition
Electrical Connection AC 120V, 60 Hz., 19 Watts AC 120V, 60 Hz., 29 Watts
Weight 22.1 Lbs. (10kg) 26.5 Lbs. (12kg)
Dimensions
Height: 19.4 Inches (492 mm)
Width: 19.2 inches (487 mm)
Depth: 9.6 inches (244 mm)
Height: 19 Inches (482 mm)
Width: 24 inches (610 mm)
Depth: 9.4 inches (239 mm)
Efficiency 99.90% 99.90%

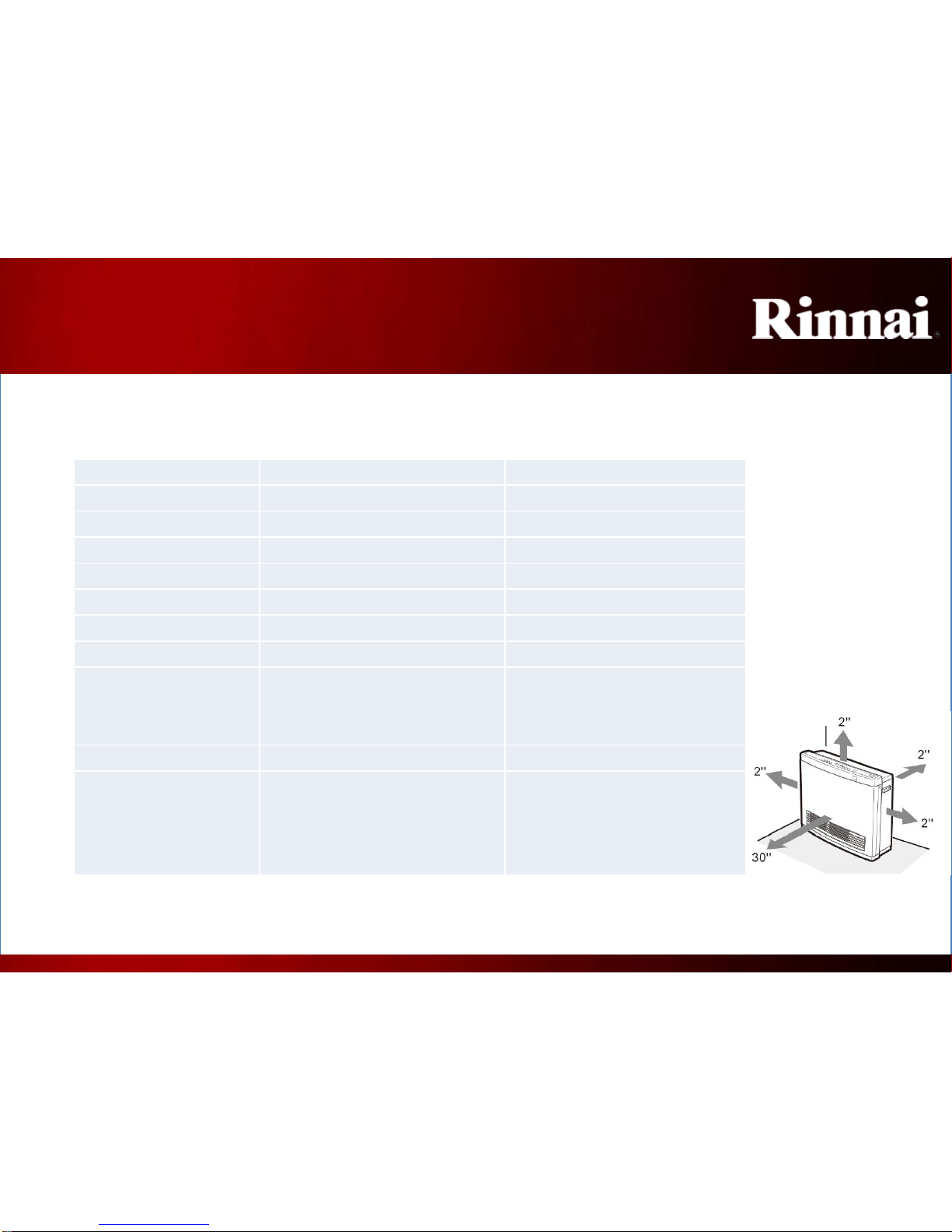

Clearances
Front 2"
Side 2"
Top 2"
Back 2"
Front 2"
Side 2"
Top 2"
Back 2"
Specifications
Component/Clearance Specifications

•The letters “RCE” indicates this is a “Rinnai Convection Export” heater.
•The numbers “510 & 824” indicate the model number of heater.
•The letter “T” indicates duel timers on 824 model, no “T” indicates single timer on 510 model.
•The letter “A” indicates this is an American version.
•The “FC” indicates Fan Convertor Heater.
•These units are not suitable for use in bathrooms or bedrooms. Vent-free heaters installed in
bathrooms and/or bedrooms must be wall mounted. This product can not be wall mount at the
present time.
•Product warranty –3 year parts, no labor.
Ledger Plate Explanation & Warranty

1. Convection fan starts, drawing air in through
the back of the cabinet and across the heat
exchanger / burner chamber and out into the
space. The PCB verifies fan rotation.
2. Once the fan is running at the proper speed,
spark ignition begins.
3. After spark begins, the gas valve solenoids
open allowing gas into the burner.
4. Ignition occurs and flame develops across the
burner.
5. The PCB will verify flame with thermocouples
and turn off the sparker.
6. Warm air then begins to flow into the space.
7. PCB will determine gas input and fan speed
settings based on the room temperature
measurement from the room thermistor.
8. When thermostat set point is reached the gas
valve solenoids close. The combustion fan will
continue to run to cool down the unit.
9. When the room temperature drops below the
set point, the process will start again.
Sequence of Operation
Spark
Electrode
P
C
B
Room
Temperature
Thermistor
POV SV1
Thermocouple 2
Convection
Fan Assembly
Thermocouple 1
Gas Valve
Solenoids
Combustion
Chamber

8
•Variable speed technology –Modulating gas and air based on the heat loss at that moment
74°
72°
70°
68°
66°
74°
72°
70°
68°
66°

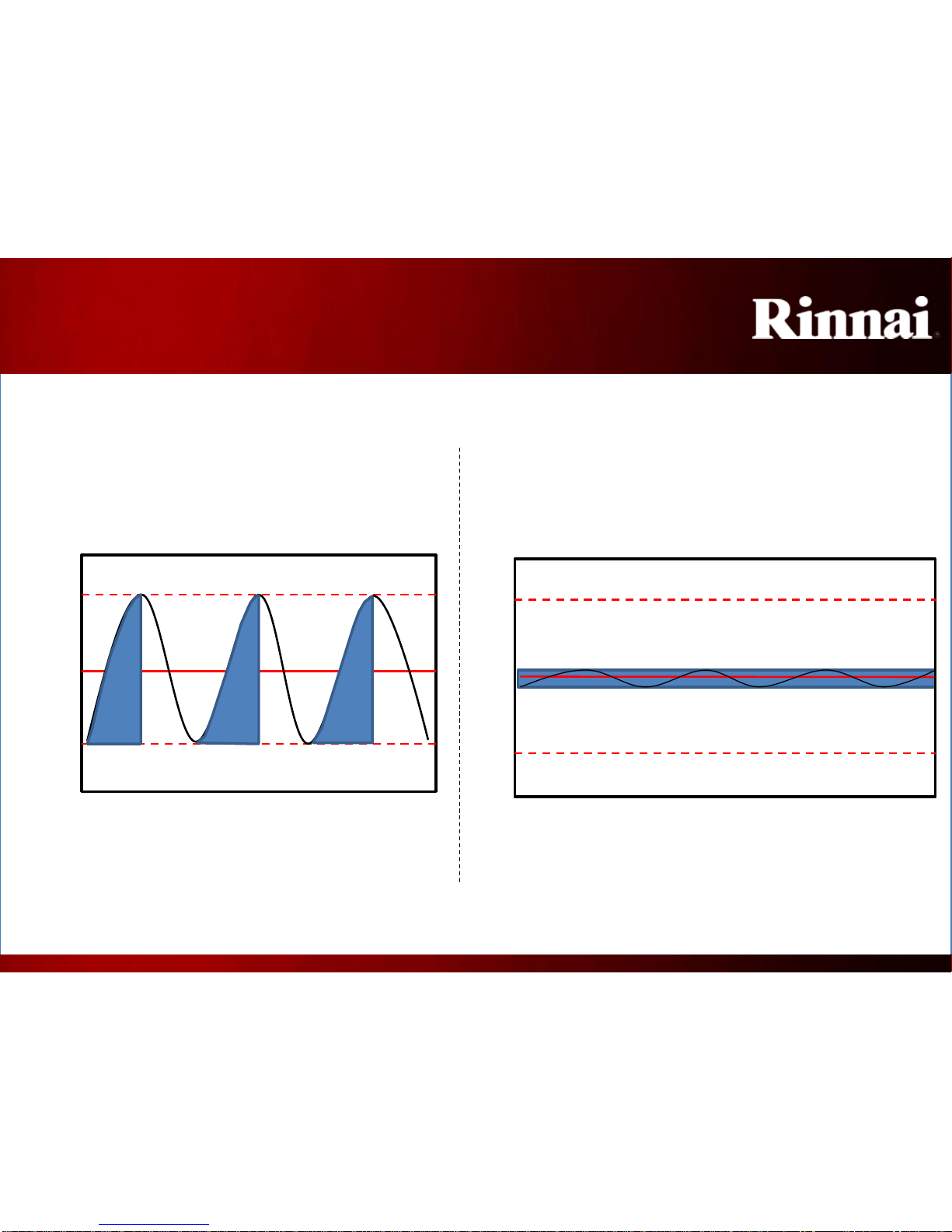

On / Off Single Stage Heating Appliance Continuous-Run Modulating Technology
Gas
Usage
Gas
Usage
Gas
Usage Continuous gas usage but at much lower levels
•With on/off single stage operation, gas usage
can be high due to alternating periods between
maximum flame and no flame at all
•The Fan Convector modulating technology has the
ability to replace only the heat escaping the
structure by continuously operating at heating levels
based on the demand at that moment
•This results in different layers of temperatures
throughout the structure leading to a less than
comfortable living environment
•This leads to lower gas usage and higher levels of comfort.
Modulating Technology
Note; if the “Auto Off” function is not selected the unit will
run continuously no matter what the room temperature is.

•Do not install this appliance above 2,000ft.
•Do not block the warm air discharge.
•Do not allow anyone to sleep directly in front of the appliance.
•Do not insert items into the louvers.
•Do not place clothing or other flammable material on or near the appliance
•Do not spray aerosols near the appliance while it is operating. Most aerosols contain butane gas
which is flammable.
•Do not install this appliance in areas where spray painting or plating is taking place, or in places such
as hair salons where there may be large amounts of dust, chemical residue, or debris. Using the
appliance in such areas may result in strong odors or irritated eyes and sinuses.
•Do not sit on the appliance.
Installation Instructions

•Do not unplug the appliance while it is operating or while the fan is on.
•Do not use a plug in type timer with this appliance.
•Do not install in a windy area such as facing a window or a door leading to the outside.
•Do not recess this appliance or mount it directly in a wall
•If the flooring is carpet, tile, or other combustible material other than wood, then the appliance
must be installed on a metal or wood panel extending the full width and depth of the appliance.
•This appliance discharges a large volume of warm air next to the floor. Any particles in the air
such as cigarette smoke, lint, dust, or debris could cause discoloration in nylon carpets
containing dyes or vinyl surfaces.
•Rinnai suggests that a dedicated electrical circuit with a 120VAC, 60 hz, 10 amp power source be
used.
•The flow of combustion and ventilation air shall not be obstructed.
•Note that in some regions, an unvented gas heater will increase the amount of humidity in the
room.
Installation Instructions

11
•Check Federal, State and/or local codes in your state before using vent-free products. Some
areas of the country do not allow vent-free products.
•International Fuel Gas Code Standard 620-6 under “Prohibited Use” states that; “One or more
unvented room heaters shall not be used as a sole source of comfort heating in any dwelling
unit”. Refer to the International Fuel Gas Code and International Fuel Gas Standard, Charter 6,
section 6-11, standard 620-2 for conformation of the above statement.
•Code pertaining to bathroom installations. Refer to the 2000 International Fuel Gas Code,
section 303.3 “Prohibited locations”. under Exception 3. for prohibited use when installing
unvented heaters in a bathroom. It states, “A single wall mounted unvented room heater
equipped with an oxygen depletion safety shutoff system and installed in a bathroom
provided that the input rating does not exceed 6000 Btu per hour (1.76kW) and the bathroom
is not a confined space”.
•Code pertaining to bedroom installations. Refer to the 2000 International Fuel Gas Code,
section 303.3 “Prohibited locations”. under Exception 4. for prohibited use when installing
unvented heaters in a bedroom. It states, “A single wall mounted unvented room heater
equipped with an oxygen depletion safety shutoff system and installed in a bedroom provided
that the input rating does not exceed 10,000 Btu per hour (2.93kW) and the bedroom is not a
confined space”.
•The contractor installing this equipment has the responsibility to ensure the product being
installed meets all local and State building codes. Please check with your local code officials if
you have any questions related to vent-free products.
Code Limitations

Servicing Fan Convector
There’s very little service required on the Fan Convector heaters. Below you will find three items that
can be checked and/or cleaned in the event you are experiencing problems with you appliance.
NOTE; ALL Service must be performed by a qualified installer, service agency or gas technician.
1. Gas control valve –The gas valve can be checked by verifying the manifold gas pressures are properly set. The
manifold gas pressure setting procedures can be found in the technical data sheet under the unit’s front cover.
2. Burner Assembly –The burners are ceramic type burners and should never fail if the unit is not over fired
for any reason, dropped or abused. I would recommend that the burner compartment be blown out with
compressed air (120 psi) at least annually. This will clear out any foreign matter that has been drawn into the
combustion chamber. Low pressure blowers do not generate enough air pressure to properly clean the burner. See
the parts breakdown in the Owner’s manual for directions on how to remove the burner’s top plate in order to
access the burner.
3. Annual Cleaning –Rinnai recommends that you blow out all compartments inside the unit. In addition, blow out
the squirrel cage fan. Care should be taken when blowing out the fan. Keep the air nozzle at least twelve inches
away from the fan when blowing it out. Otherwise, high pressure air will cause damage to the fan blades.

Maintenance

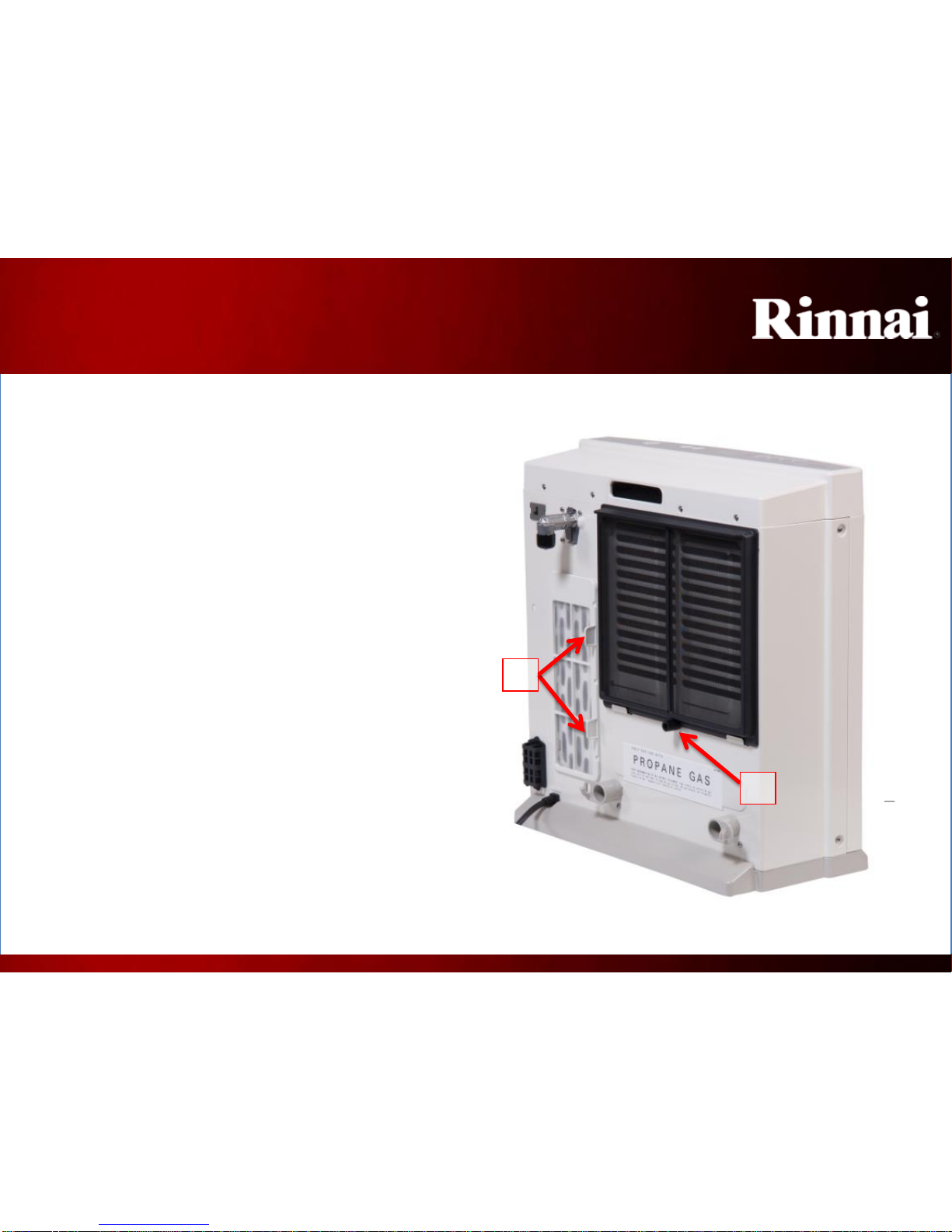

Cleaning Air Filters:
Both air filters should be cleaned frequently
during the heating season.
1. Unscrew the black cap (Phillips screw in the
center of large filter) securing the air filter.
Pull the filter up and away from the unit.
2. Remove the small filter simply by pulling the
two tabs away from the unit.
3. Place both filters in warm water and wash
all dust and dirt out the filter.
4. Dry filter with a soft cloth. Make sure they
are dried completely before reinstalling in
the reverse order as above.
1
2

Error Codes
&
Troubleshooting
14

15
ERROR FAULT REMEDY
00 Power Failure - Press ON/Off button and allow unit to cycle on.
03 Tilt Switch Activated - Return unit to the upright position. Restart heater using the “ON” power button.
11
ODS #1
Missed Ignition
Burner Sensor
Pilot Sensor
- Verify the gas supply is turned on to the appliance, gas meter, or tank
- Ensure gas type and inlet gas pressures are correct
- Bleed all air from gas lines
- Ensure gas line, meter, and / or regulator is sized properly
- Ensure appliance is properly grounded
- Verify ODS #1 and ODS #2 are producing the proper milli-voltage when unit fires.
- Inspect all wiring harnesses /connectors for loose, damage or broken connections .
- Replace defective ODS sensor
12
ODS #1
ODS #2
Flame Failure
Burner ODS #1 & Pilot ODS #2
13
ODS #1
Overheat - Burner ODS #1 - ODS #1 left hand side of burner has sensed an over heat condition. Check filter
for blockage first. Then check fan for bad bearing, improper operation or hertz.
- Replace ODS #1 Sensor
14
No Ignition
(No flame inside burner assembly)
Overheat Sensor
Thermo fuse
- Verify air filter is in place and not clogged.
- Verify proper clearances around the appliance for air flow. Remove any obstructions.
- Check gas type of unit and ensure it matches gas type being used
- Verify low and high fire manifold gas pressures are properly set.
- Ensure DIP switches are set to the proper position on the PC board
- Check burner chamber for signs of heat stress, cracks and/or separations
- Check burner assembly for damage.
- Measure resistance of safety circuit
16 Room Overheat –Verify unit was sized properly for space being heated.
–Check for restrictions in air flow around unit.
18 Thermocouple #1
–Check thermocouple wiring for damage, loose or broken wires.
–Measure resistance of thermocouple
–Replace thermocouple
An error code will flash on the unit’s display when a fault occurs. Refer to the list of error codes below for details on your unit’s
fault code. All troubleshooting and repairs should be made by a licensed contractor.
Fault Codes

31 Room Temperature Thermistor –Check thermistor wiring for damage, loose or broken connections or wires.
–Measure resistance of thermistor
–Replace Sensor
32 Room Temperature Thermistor
–Short circuit, replace thermistor
33 Overheat Thermistor
–Check thermistor wiring for damage, loose or broken connections or wires
–Measure resistance of thermistor
–Replace Sensor
34 Overheat Thermistor
–Short Circuit, replace thermistor
62 Combustion Fan Failure
–Ensure fan will turn freely
–Check wiring harness to motor for damaged and/or loose connections
–Measure resistance of motor windings
–Replace fan motor
70 ON/OFF Switch Faulty –Check wiring harness from control panel to P.C board for loose or damaged wires or
connections.
–Replace control panel
71 Solenoids or Modulating Valve Circuit
–Check to ensure all gas solenoids or plugged into the solenoid valves.
–Check to ensure they are plugged into the correct solenoid valve.
–Check resistance value of all gas solenoid valves
–Replace defective solenoid.
–Replace P.C. board.
72
ODS #1
ODS #2
Burner ODS #1 & Pilot ODS #2 initial
value abnormal –Verify low and high fire gas pressures were properly set. –Replace defective ODS Sensor
73 P.C Board abnormal –Press the ON/Off button twice to reset heater
Fault Codes

Wiring Diagram

Electrical Components Values
Diagnostic Points
Components Mark Wire Colors Value
Pin #
Convection Fan Motor CFM
Blue - Brown 10 - 12 VDC 3 & 4
Blue - Yellow
2,000 -
5,000 Pulses/Min.
(33 -
84 Hz)
2K - 10 KΩ
1 & 3
Blue - Red 11 -
14 VDC
0.1K - 1 K 2 & 3
Modulation Gas Valve POV White - Red 1 -
14 VDC
65 - 90Ω 9 & 10
Oxygen Depletion Sensor #1 (TC1) ODS1 Yellow - Blue See next slide for details 5 & 7
Oxygen Depletion Sensor #2 (TC2) ODS2 Yellow - Blue See next slide for details 1 & 2
Sparker (IG) IG White - White 96 - 144 VAC 1 & 2
Gas Solenoid Valves
SV1
SV2 Blue - Brown 11 -
14 VDC
35 - 53Ω
1 & 2
4 & 5
Room Temperature Thermistor TH Black - Black
50°F (10°C) = 58K - 73K
Ω
68°F (20°C) = 33K - 44K
Ω
104°F (40°C) = 9K - 19K
Ω
1 & 2
Over Heat Thermistor OH.TH. Black - Black
68°F (20°C) = 70K - 85K
Ω
104°F (40°C) = 25K - 40K
Ω
158° (70°C) = 8K - 15KΩ
3 & 4
Thermo-fuse TF White - White Below 1Ω6 & 8

Warnings
There are a number of (live) tests that are required when fault finding this product. Extreme care should be used
At all times to avoid contact with energized components inside the heater. Only trained and qualified service
Technicians should attempt to repair this product. Before checking for resistance readings, disconnect the power
Source to the unit and isolate the item from the circuit (unplug it).
Follow the steps below prior to servicing or replacing any components within the heater in order to protect yourself from harm:
•Turn off the electrical power supply by unplugging the power cord or by turning off the electricity at the circuit breaker. (The
product’s on/off switch does not control the electrical power).
•Turn off the gas at the manual gas valve, usually located behind the unit or within six foot of the appliance.

Failure to correctly assemble the components according to the instructions contained within this presentation
May result in a gas leak or explosion
Inspect all gaskets/packings for signs of damage or corrosion. Gaskets/packings found to contain damage or that
Appear questionable MUST BE REPLACED. Failure to replace damage or questionable gaskets may result in gas
leak or explosion.
Warnings
