As an example, you wish to purchase a Slimfire 25 flame fire, live in the ‘Cool’ zone,
and have an area to heat of 65m2. The recommended ‘Heats up to’ capacity for this
model is 68m2, however you also have no wall insulation and a house built on stumps.
The heat loss total percentage is -15% (-7% + -8% = -15%) which is deducted from
the 68m2(the capacity of your heater) as a % to reduce it to 58m2. This will no longer
heat your desired 65m2. The next model up is the Royale Manual Inbuilt with a ‘Heats
up to’ capacity of 93m2, less the 15% heat loss = 79m2, which will adequately heat
the area.
step 1 climate
Pictured on the right is a climate map of
Australia that shows four winter climate
zones relevant to Rinnai Heaters;
Mild, Cool, Cold and Very Cold. It is
important that you choose the correct
zone that suits your application, as it
directly relates to the performance of
your heater. Detailed State maps can
be found on the ‘heater selector’ page
of our website: www.rinnai.com.au.
step 2 heating area
It is also important that you consider the
size of the heating area. This includes
adjacent rooms through permanently
open doorways and hallways. In this
brochure, on the back page, is the
approximate maximum area that the
unit will heat based on the climate
zones (ie. Step 1).
step 3 heat loss
Not all homes will have all of the
features listed in the table to the right.
Consequently, this will affect the heating
capacity. Place a alongside each of
the design features if they are relevant
to your home. Everywhere there is a
, an adjustment to the ‘Heats up to’
capacity will need to be made.
Please note that this is only a guide and
individual house designs and locations
may vary.
Contact the Rinnai Helpline
if you require further assistance
1300 366 388.
www.rinnai.com.au
calculate on-line
in 3 easy steps
Your area should be less than the Adjusted Capacity
Calculate your selected Rinnai Heater’s Capacity
1. Selected Heater
4. ‘Heats up
to’ Capacity
(see back page)
2. Area/Zone
5. Less
Heat Loss
(see table below)
3. Total area you
are going to heat
(length x width)
6. Adjusted
Capacity
m2
m2
m2
%
Heat Loss Factors Deduct Example
No Ceiling Insulation -15% ______ %
No Wall Insulation -7% ______ % -7%
House built on stumps (not a slab) -8% ______ % -8%
No carpets on floors -5% ______ %
No drapes on windows -10% ______ %
Window area exceeding 15.0m2-15% ______ %
Ceiling area exceeding 2.4m2
If Yes, height 2.5 - 2.8m -3% ______ %
2.8 - 3.0m -6% ______ %
3.0m + -9% ______ %
Reversible Ceiling Fan (positive) +5% ______ % ______
HEAT LOSS FACTOR TOTAL ______ % -15%

FLAME FIRES
RINNAI FLAME FIRES OFFER THE LOOK AND FEEL OF TRADITIONAL
HEARTH FIRES, ADDING AMBIENCE AND WARMTH TO YOUR HOME.
FLAME FIRES
3
ASPIRATION 4  5
State of the art technology including full electronics, power flueing, convenient
timers, temperature control and design options.
CONSTELLATION 6  7
Traditional design open convector flame fire providing a nostalgic look but with
inbuilt modern technology.
ROYALE ETR & MANUAL 8  9
Classic design featuring both freestanding and inbuilt models with electronic
timers and remote control operation or manual operation.
SLIMFIRE 25 10  11
A compact slim line flame fire ideal for homes with smaller rooms or heating
requirements.

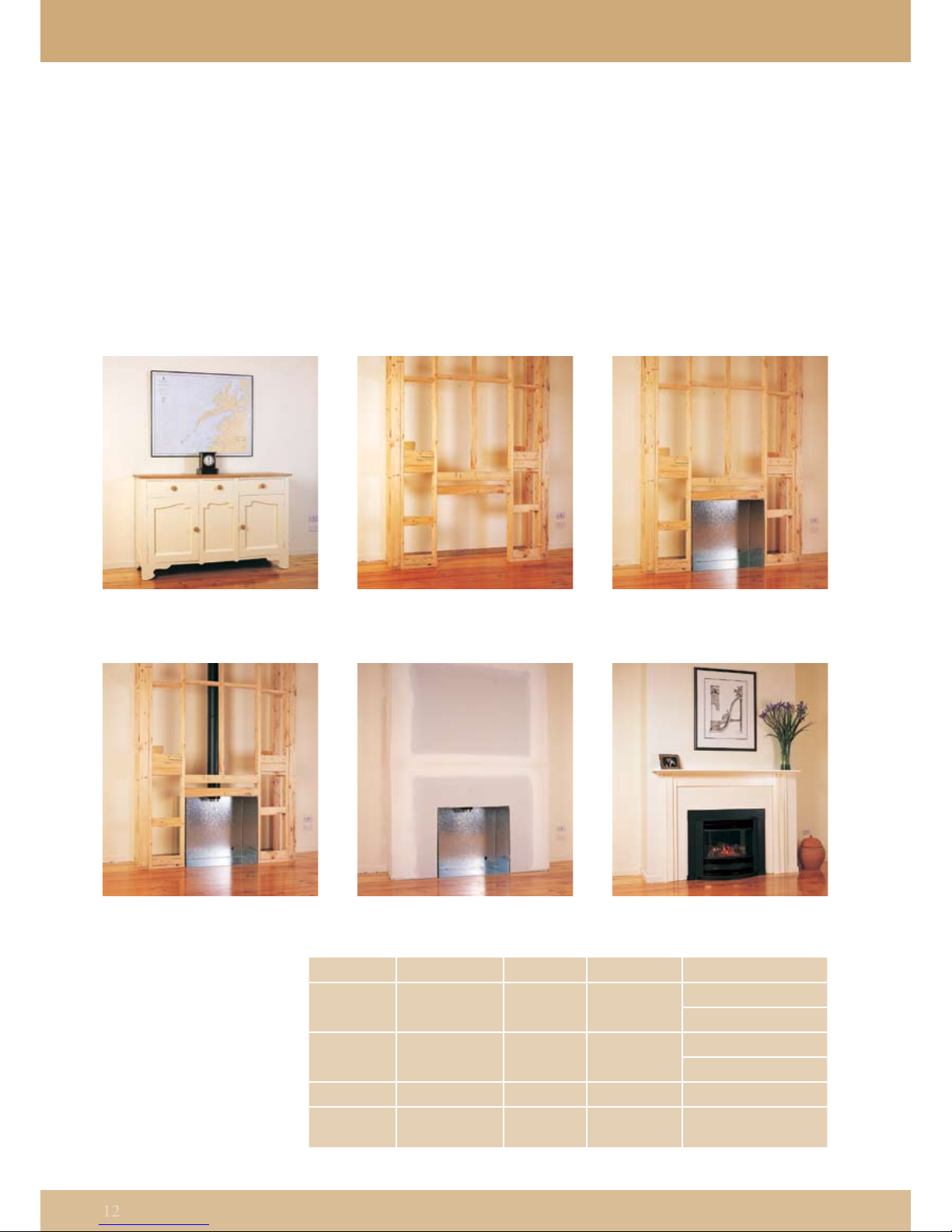

INSTALLATION FLEXIBILITY 12
FIREPLACE PACKAGES 13

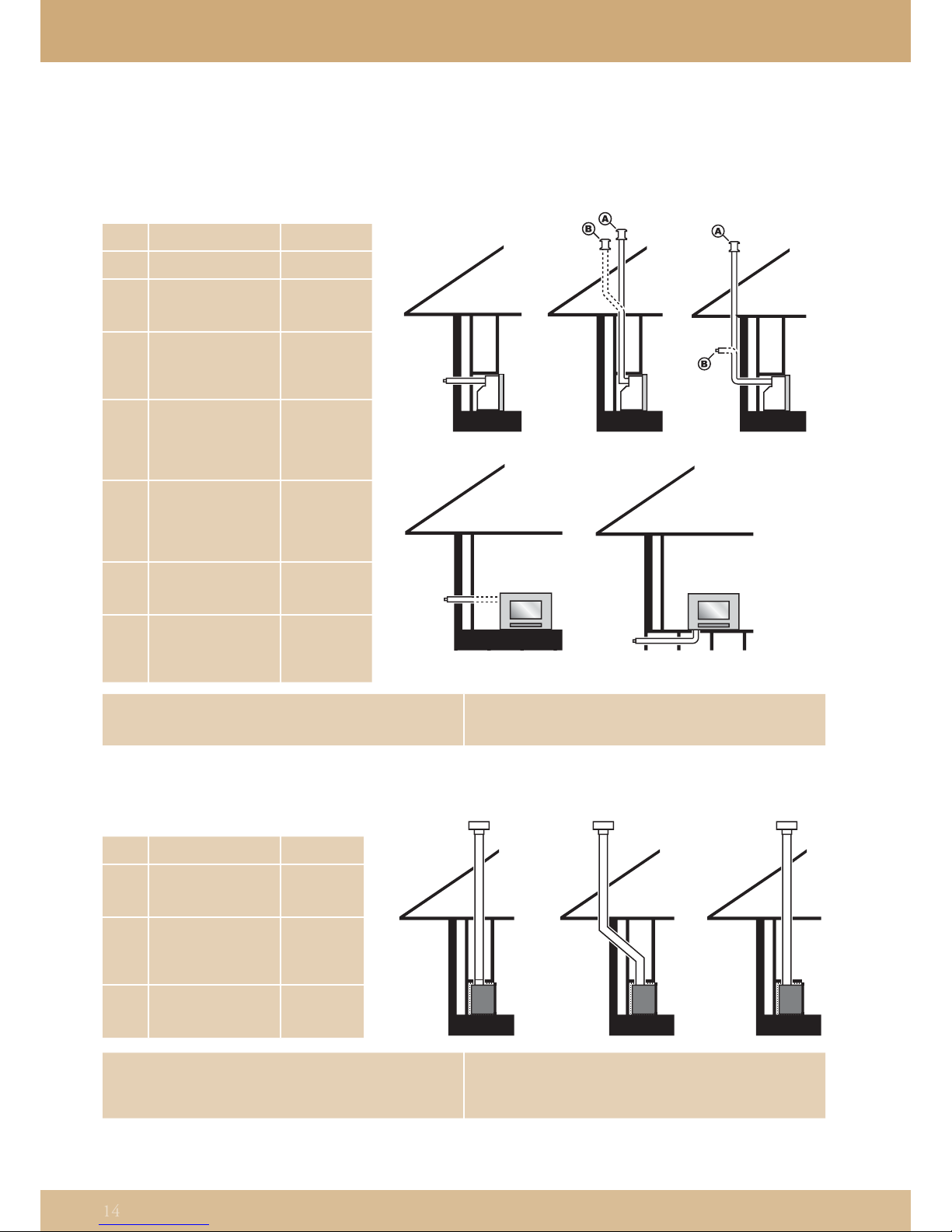

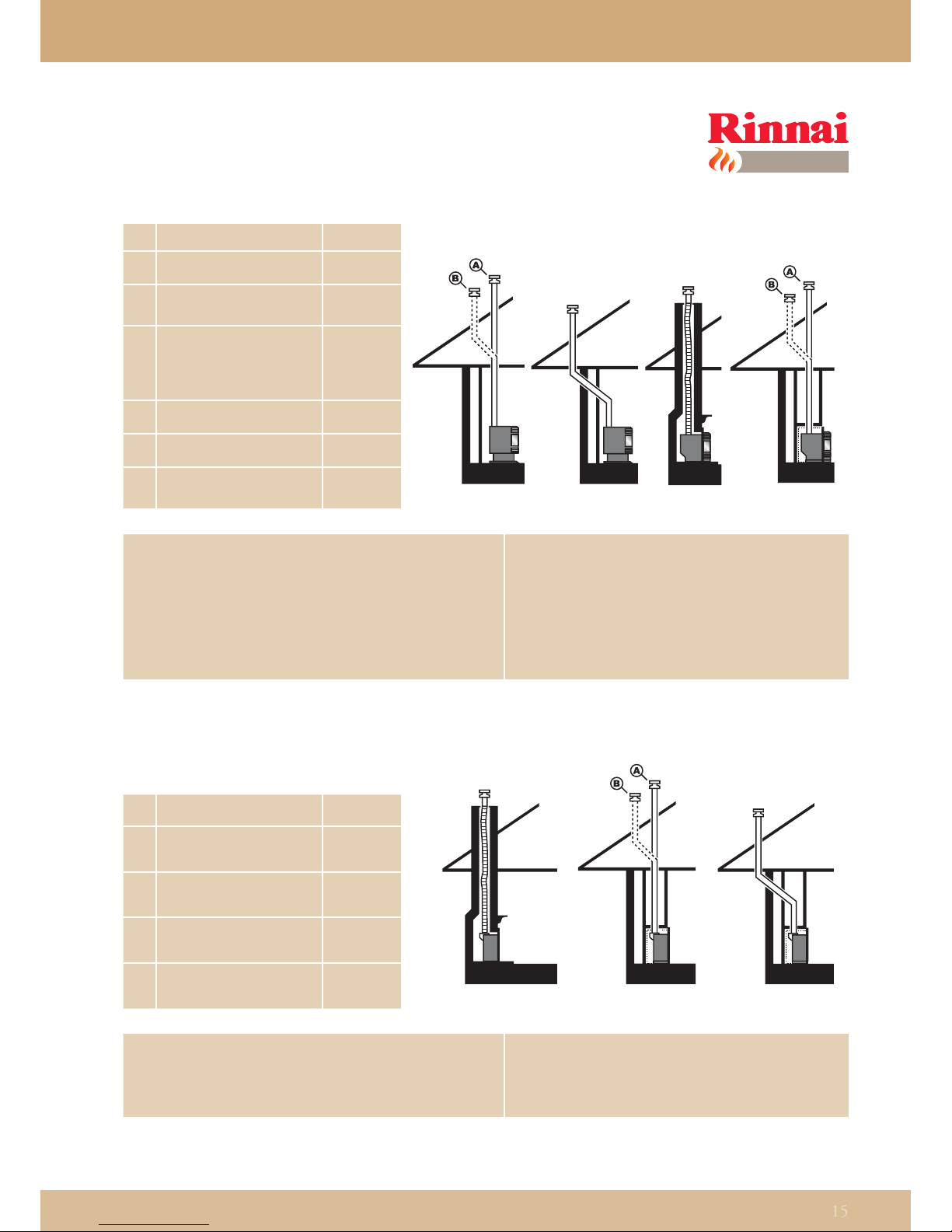

FLUEING & ACCESSORIES 14  15
SPECIFICATIONS 16

WHEN ONLY THE BEST WILL DO, THE RINNAI ASPIRATION FLAME FIRE IS YOUR ONLY CHOICE.
COMPRISING MANY FEATURES UNIQUE TO THE AUSTRALIAN MARKET, THE ASPIRATION
EMBODIES STATE OF THE ART TECHNOLOGY WITH GREAT AESTHETICS. THESE INCLUDE FULL
ELECTRONIC THERMOSTATIC OPERATION, HIGH EFFICIENCY HEATING UTILISING RINNAI’S
FLEXIBLE POWER FLUEING SYSTEM AND EVEN A CHOICE OF MODERN FASCIA DESIGNS AND
FINISHES.
ASPIRATION
4

FLAME FIRES
BENEFITS
• Power Flueing. For flexibility of flueing installation options including
through wall, under-floor, through ceiling and out the side whilst
reducing installation costs (see page 14).
• Dual Digital Timers. e convenience to program when you want
your appliance to operate throughout the whole week, mornings and
evenings.
• Pre-Heat Mode. Ensures the room is at your desired temperature by the
time programmed into the timer. No need to program an earlier time...
it’s automatic!
• ermostatically Controlled. e added convenience of set’n’forget
operation.
• 7 Different Flame Patterns. Flame function overrides the thermostat and
maintains a constant flame picture when you just want the ambience of a
fire.
• 3 Speed Fan. For added comfort and even temperature distribution.
• Inbuilt Zero Clearance. Provides heat protection to surrounding
structures allowing greater flexibility and reduced installation costs.
• Remote Control. Featuring on/off function, temperature control and
flame picture control.
MODEL OPTIONS
e Aspiration flame fire is available with a choice of fascias and finishes:
• Slimline Metal Fascias – Metallic Black or Stainless Steel
• Radius Full Glass Fascias – Black or Silver tint
Dress guards are also available as an accessory for added peace of mind.
Slimline Metal Fascia
Stainless Steel
Radius Full Glass Fascia
Black
Must be installed with a Rinnai flue system (sold separately - see page 14).
Full Function Remote Control
5

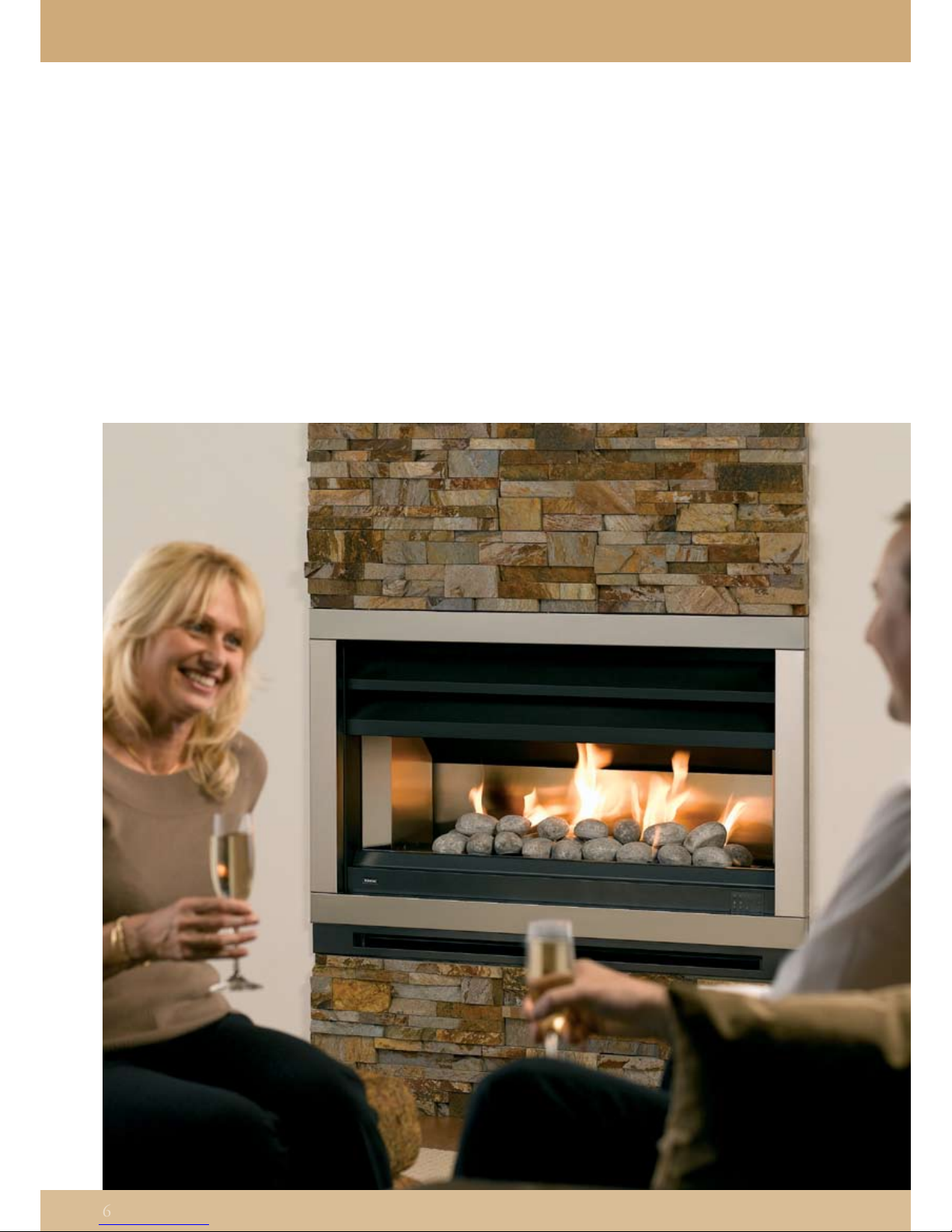

THE NOSTALGIC IMAGE OF FIREPLACES IS BROUGHT TO LIFE WITH THE RINNAI
CONSTELLATION FLAME FIRE. IN A TRIBUTE TO YESTERYEAR, RINNAI HAVE DESIGNED THIS
OPEN CONVECTOR DECORATIVE FIRE WITH A CHOICE OF BURN MEDIUMS AND FASCIAS
WHICH CAN BE MIXED AND MATCHED TO YOUR NEEDS. COMPLETE WITH THE LATEST
ELECTRONIC TECHNOLOGY, YOU CAN ENJOY THE AMBIENCE AND ROMANCE OF AN OPEN
FIRE AT THE TOUCH OF A BUTTON  THE BEST OF BOTH WORLDS!
CONSTELLATION
6

FLAME FIRES
BENEFITS
• Ceramat Burner. Unique to Rinnai, assists in the creation of gentle
flickering flames adding realism and ambience to the fire.
• Flame Modulation. Allows you to adjust the flame picture to your needs
between low and high.
• 2 Speed Fan. For added comfort and even heat distribution.
• Electronic Ignition. Provides simple one touch operation for ease of use.
• Inbuilt Memory. Records your previous setting and automatically
commences at that level each time until reset.
• Timer Function. Allows the appliance to shut off 30 minutes after the
timer button is pushed on the remote control.
• Partial-Installation Option. Allows the flueing for the appliance to
be installed during the building and framing stage. Installation of the
actual fire is at completion, minimising potential mess or damage to the
appliance.
• Inbuilt Zero Clearance. Provides heat protection to surrounding
structures allowing greater flexibility and reduced installation costs.
• Remote Control. Lets you enjoy the ambience of your flame fire without
leaving the comfort of your chair.
MODEL OPTIONS
e Constellation flame fire is available in two standard configurations:
• Metallic Black with Black Coals
• Stainless Steel with River Stones
Should you ever wish to change the look of your Constellation flame fire, both
the coals and river stones, as well as both fascias can be ordered separately.
Rock Panels kindly supplied by Norstone Pty Ltd.
For further information please visit www.norstone.com.au or phone [phone].
Ceramat is a registered trademark of Schott AG (Germany).
Must be installed with a Rinnai flue system (sold separately - see page 14).
®
®
7
Metallic Black Fascia
with Black Coals
Stainless Steel Fascia
with River Stones
Remote Control

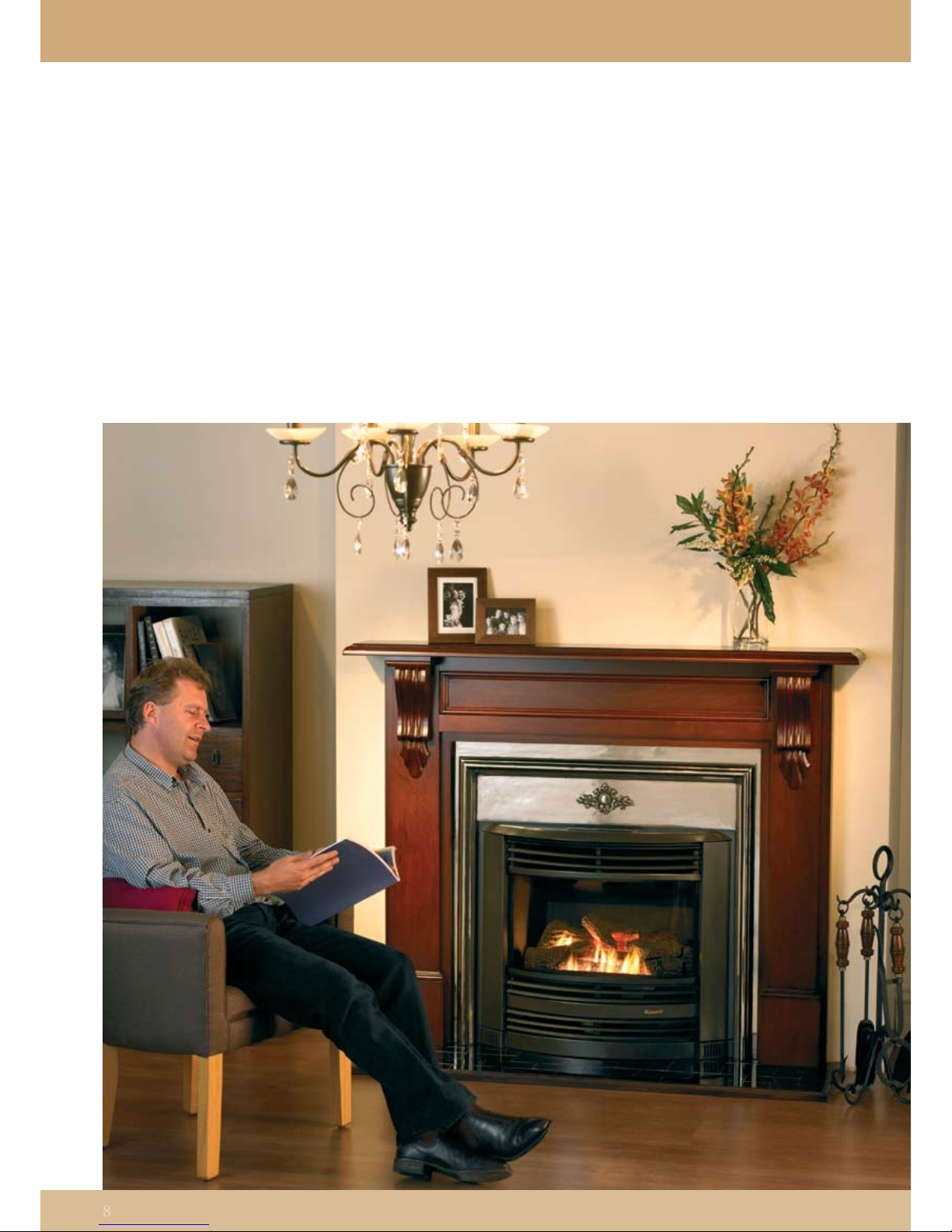

ROYALE ETR & MANUAL
THE ROYALE ETR IS ONE OF THE MOST TECHNOLOGICALLY ADVANCED FLAME FIRES IN
THE WORLD TODAY. IT BOASTS MANY FEATURES UNIQUE TO RINNAI AS WELL AS OTHER
STANDARD FEATURES THAT OTHERS CHARGE FOR AS OPTIONS IF AVAILABLE. THE ROYALE
MANUAL IS THE ULTIMATE IN EASY OPERATION COMPLETE WITH PUSH BUTTON IGNITION, 3
HEAT SETTINGS AND 2 SPEED FAN.
8

FLAME FIRES
ROYALE ETR BENEFITS
• Powerful Heat Output. An even spread of fan forced warm air throughout
the room.
• Dual Digital Timers. e convenience to program when you want
your appliance to operate throughout the whole week, mornings and
evenings.
• Flame Function. Overrides the thermostat and maintains a constant
flame picture when you just want the ambience of a fire.
• Electronic Ignition. Provides simple one touch operation for ease of use.
• ermostatically Controlled. e added convenience of set’n’forget
operation.
• Child Lock. For added safety and peace of mind.
• Remote Control. Lets you enjoy the comfort and ambience of your flame
fire from your armchair.
MODEL OPTIONS
• Inbuilt - Metallic Black or Titanium
• Freestanding - Metallic Black or Titanium
ROYALE MANUAL BENEFITS
• Inbuilt or Freestanding Configurations. Depending on your installation
requirements.
• Powerful Heat Output. An even spread of fan forced warm air throughout
the room.
• Electronic Ignition. Provides simple one touch operation for ease of use.
• Radius Glass Fascia. Provides a panoramic view of the flame for added
ambience.
• 2 Speed Fan. For added comfort and even temperature distribution.
• 3 Heat Settings. Allows you to adjust comfort levels whilst always
maintaining a flame picture.
MODEL OPTIONS
• Inbuilt - Metallic Black
• Freestanding - Metallic Black
Clearances (Freestanding) 100mm from rear wall. 400mm from a corner.
400mm from sides and top. 1000mm directly in front.
Mandatory dress guards not shown for flame illustration purposes.
Must be installed with a Rinnai flue system (sold separately - see page 15).
9
Freestanding
Royale ETR Titanium
Royale ETR Controls
Electronic with Timers and Remote
Inbuilt Royale ETR Titanium
with an Agnews Fireplace Package

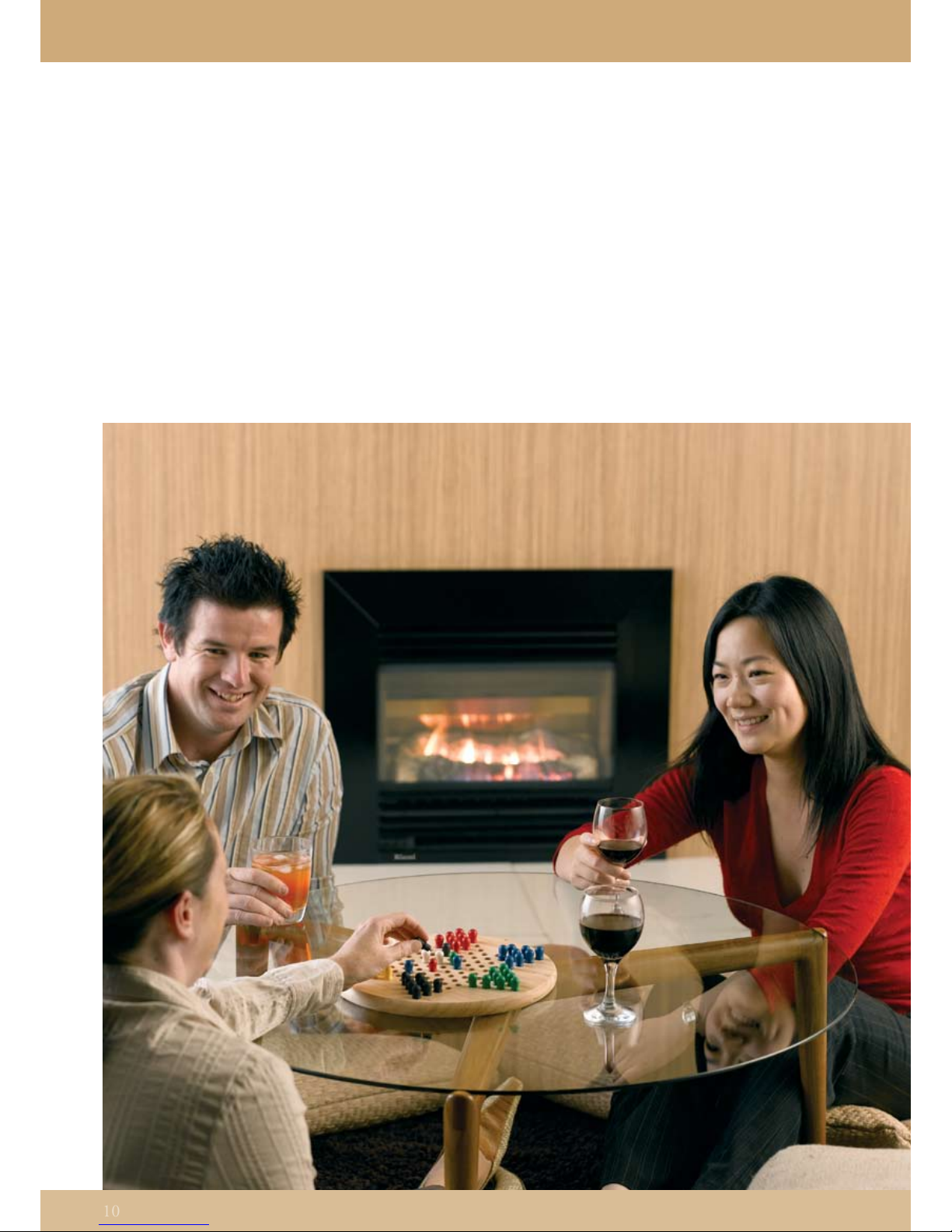

A TRUE SUCCESS STORY, THE RINNAI SLIMFIRE 25 WAS DESIGNED SPECIFICALLY TO MEET
AUSTRALIAN CONDITIONS AND LIFESTYLES. COMPLETE WITH A SLIMLINE FLAT GLASS FRONT
AND REALISTIC FLAME AND LOG APPEARANCE, THIS CONTEMPORARY FLAME FIRE IS AN EASY
WAY TO UPGRADE THE LOOK OF YOUR EXISTING LIVING AREA, OR A GREAT ADDITION TO
A NEW HOME. RINNAI ALSO HAVE A RANGE OF 3 AND 4 SIDED MANTLES AND FASCIAS TO
FURTHER ENHANCE YOUR DÉCOR.
SLIMFIRE 25
10

FLAME FIRES
Mandatory dress guards not shown for flame illustration purposes.
BENEFITS
• Powerful Heat Output. Ideal for small to medium sized lounge or family
rooms.
• No Additional Flue Required. When installed into an existing and
sound masonry fireplace saving installation costs. A complete flue kit is
also available for other applications.
• Electronic Ignition. Provides simple one touch operation for ease of use.
• 2 Speed Fan. For added comfort and even temperature distribution.
• 3 Heat Settings. Allow you to adjust comfort levels whilst always
maintaining a flame picture.
MODEL OPTIONS
• Metallic Black
• Stainless Steel
RENOVATORS DELIGHT!
e Slimfire is the perfect product for renovations. Specifically designed to
replace old 70’s space heaters, the Slimfire rear flue usually enables a straight
swap over.
e Slimfire is also great for older homes fitted directly into a masonry fireplace
often with no flue required.
CONSOLE KIT
Designed for convenience, the Slimfire Console is ideal for situations where a
false fireplace is not desired or where there is no masonry fireplace, providing
flexibility and reduced installation costs.
Perfect as a replacement for older style gas space heaters, the Slimfire Console
may be able to utilise existing in-wall flueing.
e console kit is available as an optional accessory with the Slimfire 25. e
flue required is a conventional 10 x 2 inch twin skin, plus a wall connection
elbow and housing available from plumbing stores.
Slimfire Console Kit
Metallic Black Fascia
11
Electronic Ignition
Stainless Steel Fascia

12
INSTALLATION FLEXIBILITY
NO FIREPLACE, NO PROBLEM
Not all households have an existing masonry fire place, but this doesn’t mean you can’t install a Rinnai flame fire. Royale Inbuilt,
Slimfire 25 and Constellation models can be installed into decorative fireplaces as demonstrated in the photos below.
Due to it’s advanced flue system design, the Aspiration can be installed just about anywhere, whether a fireplace exists or not.
THE FINISHING TOUCH
BEFORE BUILD A FRAME SLIP IN THE ZERO BOX
DROP IN THE FLUE PLASTER AND PAINT
Height Width Depth Zero Box Order Code
Royale Inbuilt 745mm 810mm 440mm (min.)
ZEROR1 (Metallic Black)
ZEROR2T (Titanium)
Slimfire 25 675mm 685mm 370mm (min.)
ZEROS (Metallic Black)
ZEROS2 (Stainless Steel)
Aspiration 600mm 860mm 450 or 500mm* Not Required
Constellation 665mm +
Hearth Height 1000mm 450mm Not Required
FRAME DIMENSIONS
*Depth depends on flueing option, see
installation instructions for full details
Royale Inbuilt in Decorative Fireplace

FLAME FIRES
13
INSPIRATION MANTLES
e new Inspiration mantles and fascias enable you to maximise the impact of
your Rinnai Slimfire. Easy to install, the mantles come standard in beech or
dark cherry finish. Our 3-sided fascias allow you to position the unit directly
into a fireplace or at floor level, while the 4-sided fascia raises the unit from
floor level. Both fascias are designed to be used with and without mantles,
and are sold separately. e Inspiration packages are stocked and distributed
by Rinnai Stockists.
Height Width Colour Order Code
Inspiration Mantle 1150mm 1360mm
Dark Cherry INSPMC
Beech INSPMB
Inspiration 3-sided Fascia 970mm 970mm
Duracote™
(Polished Silver) INSP3FD
Black INSP3FB
Inspiration 4-sided Fascia 970mm 970mm
Duracote™
(Polished Silver) INSP4FD
Black INSP4FB
Note: If not installing with a Zero Clearance box option,
a separate 50mm plinth must also be ordered (see Page 15).
Inspiration 4-sided Duracote™ Fascia
and Dark Cherry Mantle
Inspiration 4-sided
Duracote™ Fascia
Inspiration 3-sided Black Fascia
and Beech Mantle
FIREPLACE PACKAGES
Inspiration 3-sided Black Fascia
and Dark Cherry Mantle

FLUEING & ACCESSORIES
ASPIRATION - FLAME FIRE
1.
4.
2. 3.
5.
1. 2. 3.
< false
wall
< false
wall
< false
wall
< false
wall
< false
wall
CONSTELLATION - OPEN CONVECTOR
Please note: Minimum flue length required is 3.6 metres
*includes condensate trap
#order lengths as required
Description Order Code
1Direct Flue Kit ASPDFK
2A
Vertical ‘On Wall’ Kit*
Co-Ax Pipe 900mm#
Roof Cowl
ASPKIT03
ESPIPE900
ESROOFCOWL
2B
Vertical ‘On Wall’ Kit*
Co-Ax Pipe 900mm#
Bend (2 x 45º)
Roof Cowl
ASPKIT03
ESPIPE900
ESBEND
ESROOFCOWL
3A
Direct Flue Kit
Co-Ax Pipe 900mm#
Bend (2 x 45º)
Condensate Trap
Roof Cowl
ASPDFK
ESPIPE900
ESBEND
ESCONDK
ESROOFCOWL
3B
Direct Flue Kit
Co-Ax Pipe 900mm#
2 Sets of Bends (2 x 45º)
CondensateTrap
Wall Terminal Kit
ASPDFK
ESPIPE900
ESBEND x 2
ESCONDK
ESWTKIT
4
Vertical ‘On Wall’ Kit*
Co-Ax Pipe 900mm#
Wall Terminal Kit
ASPKIT03
ESPIPE900
ESWTKIT
5
Vertical ‘On Wall’ Kit*
Co-Ax Pipe 900mm#
Bend (2 x 45º)
Wall Terminal Kit
ASPKIT03
ESPIPE900
ESBEND
ESWTKIT
Fascias
Slimline Metallic Black Fascia
Slimline Stainless Steel Fascia
Order Code
FLFASPFFB
FLFASPFFSS
Fascias
Radius Glass Black Fascia
Radius Glass Silver Fascia
Order Code
FLFASPFRBG
FLFASPFRSG
Description Order Code
1
Installation Kit (3.6m)
includes Adaptor, Cowl &
Gal. Flue Pipe 900mm
OFKIT
2
Installation Kit (3.6m)
includes Adaptor, Cowl &
Gal. Flue Pipe 900mm
Bend (2 x 45º)
OFKIT
OFBEND
3
Installation Kit (3.6m)
includes Adaptor, Cowl &
Gal. Flue Pipe 900mm
OFKIT
Fascias
Metallic Black Fascia
Stainless Steel Fascia
Order Code
FLFCONFB
FLFCONFSS
Accessories
Black Coals
River Stones
900mm Twin Skin Flue
Order Code
FLFCOALS
FLFSTONES
OFPIPE900
min. 300mm vertical clearance
from base of flue terminal
14

FLAME FIRES
SLIMFIRE 25 - FLAME FIRE
ROYALE ETR & MANUAL - FLAME FIRES
1. 2. 3. 4.
1.
Freestanding Inbuilt
< false
wall
< masonry
fireplace
< masonry
fireplace
< false
wall
< false
wall
2. 3.
zero clearance
zero clearancezero clearance
*Nominate Metallic Black or Titanium
#Nominate Metallic Black or Stainless Steel
Description Order Code
1A Vertical Twin Skin Flue Kit (3.6m) FLFKIT05*
1B Vertical Twin Skin Flue Kit (3.6m)
Twin Skin Offset
FLFKIT05*
FLFBEND*
2
Thru-wall Twin Skin Flue Kit (3.6m)
inc. 1x900mm Powder Coated &
3x900mm Galvanised Twin Skin
Flues, Cowl & Wall Penetration Kit
FLFKIT03*
3Flexiliner Flue Kit (5.0m) FLEXLINER05
4A Vertical Twin Skin Flue Kit (3.6m) FLFKIT05B
4B Vertical Twin Skin Flue Kit (3.6m)
Twin Skin Offset
FLFKIT05B
FLFBENDB
Freestanding Accessories
450mm Twin Skin Flue
900mm Twin Skin Flue
45ºTwin Skin Offset
900mm Galvanised Flue Ext Twin Skin
Order Code
FLF0450M*
FLF0900M*
FLFBEND*
FLFEXT03
Inbuilt Accessories
Flue Adaptor Plate
50mm Plinth
45ºTwin Skin Offset
40mm Ext Top Surround (Black Only)
Order Code
FLFAD
FLFRP*
FLFBENDB
FLFRSEXTB
For Thru-Wall double storey applications, please order the 3.6 metre Thru-Wall
Twin Skin Kit (FLFKIT03) and additional lengths of 900mm Galvanised Flue
Extensions (FLFEXT03) as required.
Description Order Code
1Flexiliner Flue Kit FLEXLINER03
2A Vertical Twin Skin Flue Kit FLFKIT05
2B Vertical Twin Skin Flue Kit
Twin Skin Offset
FLFKIT05
FLFBEND
3Vertical Twin Skin Flue Kit
Thru-wall Twin Skin Flue Kit
FLFKIT05
FLFKIT03
15
Fascias & Console Kits
Metallic Black Fascia
Stainless Steel Fascia
Metallic Black Console Kit
Stainless Steel Console Kit
Order Code
FLFSFB
FLFSFSS
FLFSCB
FLFSCSS
Accessories
Fluebox Adaptor
50mm Plinth (Masonry Fireplaces only)
90mm Ext Top 3-sided Surround (Black only)
Order Code
FLFAD1
FLFSP#
FLFSBEXT

Phone 13 14 19 for a free brochure on the products listed below.
• Continuous Flow Hot Water • Solar Hot Water • Electric Hot Water • Commercial Hot Water
• Outdoor Entertaining • Space Heating • Portable Heating • Gas Clothes Dryers
Alternatively visit our website: www.rinnai.com.au or e-mail: [e-mail]
FLAME FIRE SPECIFICATIONS
Model
Dimensions
(mm)
Inbuilt Fireplace
Dimensions
Min-Max (mm) Star Rating
AS4553 Colours
Gas Input
- MJ/h kW
Out-
put
‘Heats up to’
Capacity (m2)
Very
Cold Cold Cool Mild
H W D H W D Low High
Aspiration
Slimline Metal 680 900 450 660 860 450*
Metallic Black
8 31.5†6.0 47 56 74 85
Stainless Steel
Aspiration
Radius Glass 680 900 480 660 860 450*
Black
8 31.5†6.0 47 56 74 85
Silver
Constellation
Black Coals 680 1025 422 665 1000 450
N/A
Metallic Black 24 38 N/A N/A N/A N/A N/A
Constellation
River Stones 680 1025 432 665 1000 450 Stainless Steel 24 38 N/A N/A N/A N/A N/A
Royale ETR
Freestanding 755 650 560 N/A N/A N/A
Metallic Black
8 35 7.4 66 79 106 122
Titanium
Royale ETR
Inbuilt 695 910 565 595-
675
600-
800
Min.
405
Metallic Black
8 33 6.6 58 69 93 109
Titanium
Royale Manual
Freestanding 755 650 560 N/A N/A N/A Metallic Black 16 35 7.1 66 79 106 122
Royale Manual
Inbuilt 690 910 565 595-
675
600-
800
Min.
405 Metallic Black 16 33 6.8 58 69 93 109
Slimfire 25
Inbuilt 645 750 385 550-
630
595-
700
Min.
360
Metallic Black
7.7 25 5.0 42 50 68 77
Stainless Steel
35/07_MAR
Please note: 240V power is required on all models. A power cord and plug is fitted.
If hardwiring is required, consult a licensed electrician.
Dimensions are subject to production tolerances and may vary slightly from those given.
Rinnai Australia Pty. Ltd. reserves the right to make modifications
and change specifications without notice.
2.8
2.5
2.6
2.1
2.6
#Heat exchanger: full replacement parts cost in the first year, reducing 10% per year thereafter.
*Suitable for direct, vertical or horizontal flueing. 500mm required for down and out applications. See installation instructions for full details.
†Installed with a direct flue with extended flueing, 24.5 MJ/h input but with a higher efficiency.
4.0
10-11 Walker Street Braeside VIC 3195
ABN 74 005 138 769 telephone facsimile
Technical HelpLine & Spare Parts National (Mon-Fri 8.00am to 6.00pm EST) 1300 366 388 1300 300 141
Product Sales & Service National 1300 555 545 1300 555 655
Brochure Request Line National (Mon-Sun) 13 14 19
Showrooms Sydney (Mon-Fri) 62 Elizabeth Street Wetherill Park NSW 2164
Melbourne (Mon-Fri) 10 - 11 Walker Street Braeside VIC 3195
Adelaide (Mon-Fri) 40 - 42 Tikalara Street Regency Park SA 5010
Perth (Mon-Sun) Home Base Expo 55 Salvado Road Subiaco WA 6008
RINNAI AUSTRALIA PTY. LTD.
WARRANTY
Free Parts Free Labour
Heat Exchanger 10 Years pro-rata#1 Year
Fan 2 Years 1 Year
All Other Parts 1 Year 1 Year
