Risco lightsys 2 User manual

LightSYS2
User Manual

Page 2
.
Register with RISCO Cloud (if enabled)
Registering with RISCO Cloud enables you to monitor and control your LightSYS™2 system.
Note: Registration and connection of your system to www.riscocloud.com may depend on your
installer.
1. Go to www.riscocloud.com/register.
2. Enter your first name and last name.
3. Enter your email address as Login Name (required for 1st time activation).
4. Define password (minimum of 6 characters and at least one digit) and confirm.
5. Enter in the 15 digits Panel ID as it appears: on the postcard that arrived with
the panel or supplied by the installer (also available in the keypad menu as
described below)
6. Complete registration form and click Register.
7. To complete registration open the email message received on the email account
you defined as Login Name.
Login to RISCO Cloud
1. Go to www.riscocloud.com.
2. Enter User Name and Password (same as supplied during the registration
process).
3. Enter Passcode/PIN (LightSYS™2 User Code).
4. Click Enter.
iRISCO – RISCO’s Smartphone Application
Homeowners can now enjoy the iRISCO Smartphone app for smart and easy control of
their LightSYS™2 system from any location.
Download the iRISCO app from the Apple App store or Android Play Store (Search for
“iRISCO”).
Locating Panel ID in Keypad
1. From the main display press .
2. Enter master code (default code 1234) followed by .
3. Scroll to the option “View” and press .
4. Scroll to “Service Info” and press

Page 3
5. Scroll to “Panel ID” and press . 15 digit Panel ID is now displayed.

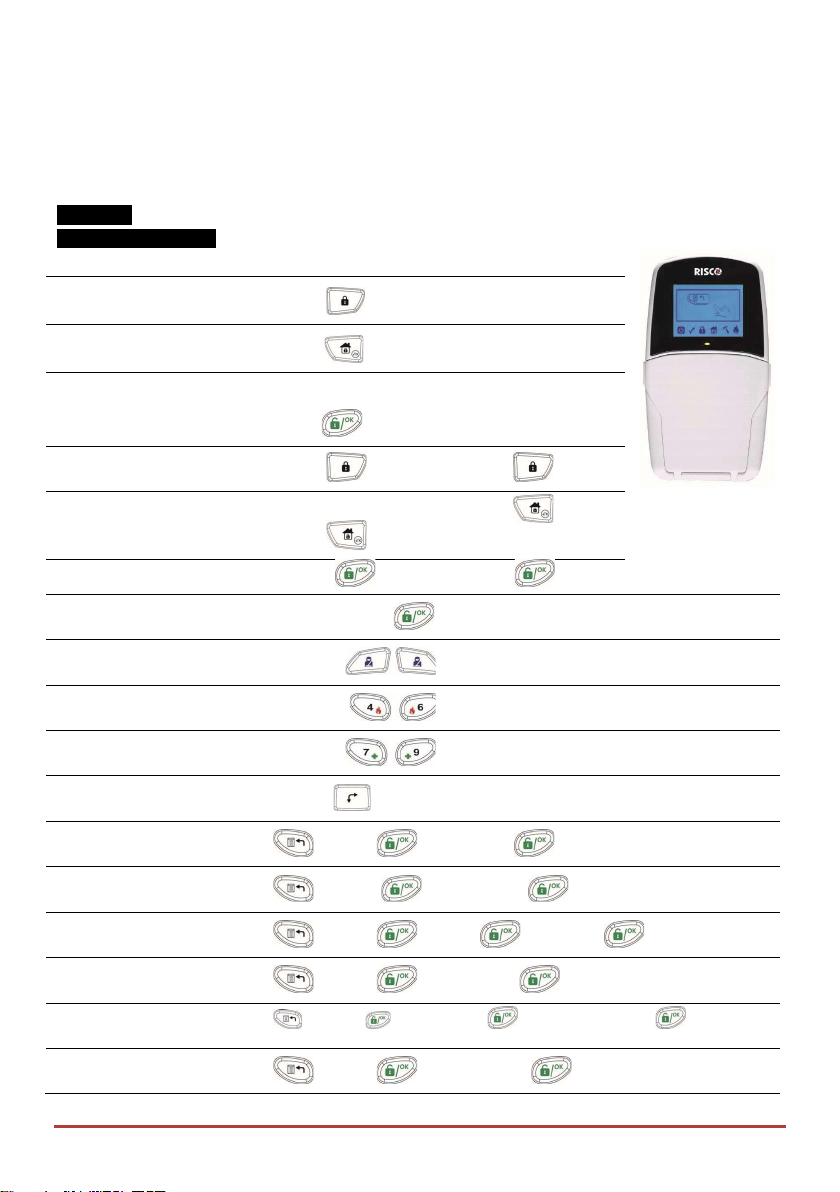

Interface:
LCD Keypad (432KP)
Full (Away) Arm Code >
Part (Stay) Arm Code >
System Disarm and
Silence an Alarm Code>
Partition Away Arm Code > > Partition No. >
Partition Stay Arm
Code >
> Partition No. >
Partition Disarm Code> > Partition No. >
Duress Unset Duress Code >
Panic Alarm Pressing simultaneously for 2 seconds
Fire Alarm Pressing simultaneously for 2 seconds
Medical Alarm Pressing simultaneously for 2 seconds
Quick Zones Bypass Code > [Zone No.]
Activate Output [Code] [Activities] [Util Output Num]
Define Follow-Me >[Code] [Follow Me] [Define]
View Trouble [Code] [View] [Trouble]
View Event Log [Code] [Event Log]
Keypad Chime On/Off [Code] [Activities] [Keypad sound] [Chime]
Edit User Code [Code] [Codes/Tags] [Define]

Page 4
Press for 2 seconds to view 2 to view
followed by code
LED display of system status (see
LED display of system
Indicators below) status (see Indicators below)
Output Control Press 1/2/3 for 2 seconds Press 1/2/3 for 2 seconds
followed by code2
Wake up keypad Press
Status Request
Press for 2 seconds

Page 5
2-way Remote Control keyfob
Notes:
1. Consult your
installer for the operations defined with a code.
2. The proximity tag can be used instead of code.
Operation Quick
High Security Mode
1
Full Arm
> [Code]
Partial
Arm*
> [Code]
Full
Disarm
[Code > ]
System
Status for 2 seconds
for 2 seconds >
Code
Output Control A/B/C for 2
seconds
for 2
seconds > [Code]
Panic Alarm simultaneously for 2 seconds
Clear Operation
*For Part setting with no entry delay, press and hold for two seconds

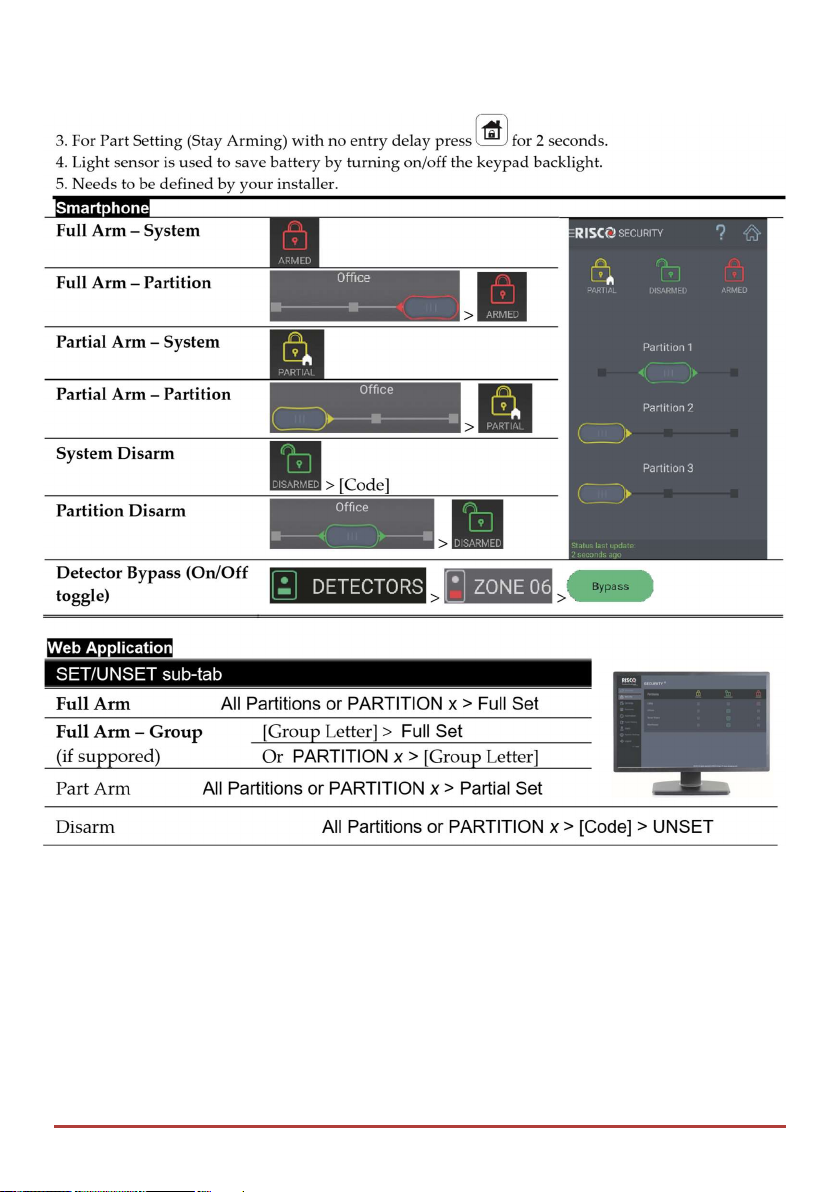

Page 6

Page 7
SETTINGS sub-tab
System user and codes Edit, Delete and ADD NEW USERs
Web interface users and codes EDIT user fields and access credentials
Change Password Enter Old/New/Confirm > SET NEW PASSWORD
Quick Zone Bypass Select ZONE xx > Omit > Update
Change Appearance Select Color Scheme
Alerts/Add New Contact Enter Name, Email/Mobile phone #.
Select Alert Language, Partition association
,
and toggle Set/Unset Email and SMS
Time Zone Select system time zone
HISTORY sub-tab
Review activity log and export
AUTOMATION sub-tab
SMS For a full list of SMS operations, refer to
Appendix D
–
SMS
Operation.

Page 8
Utility
Outputs
Toggle
ON/OFF >
Update
1-way Remote Control keyfob
Full Arm Press
Disarm Press the  button. All partitions
assigned to the button will be disarmed
Stay Arm Press  button or button 4 (if defined)
Partition Arm Press  button or button 4 (if defined)
Full Arm [Code][A], example, 1234A
Full Disarm [Code][D], example, 1234D
Stay Arm [Code][H], example, 1234H
Partition Arm [Code][A] [Partition No.] examples:
To arm partitions 1: 1234A1
To arm partitions 1 and 2: 1234A12
Partition Disarm [Code][D] [Partition No.] Example 1234D1

Page 9

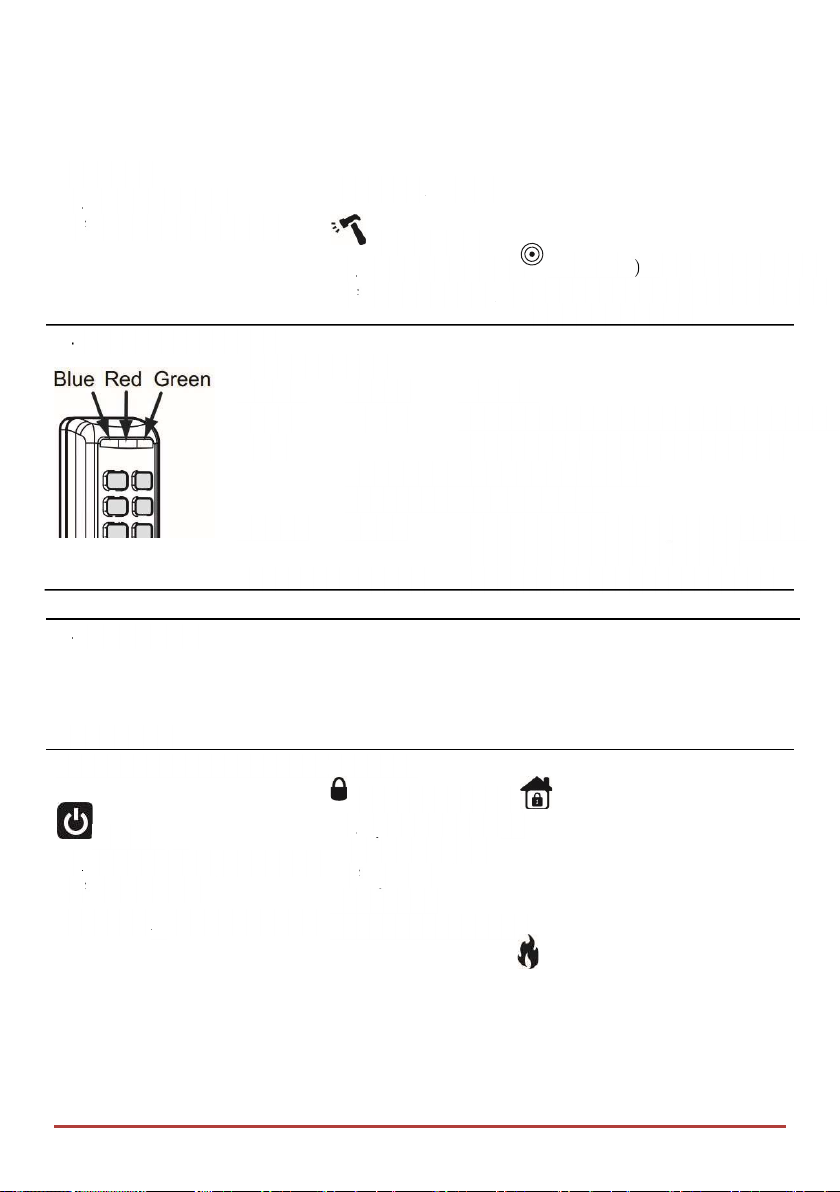

is in Exit Delay
Slow Flash: Ready to arm with
open Exit/Entry zone
( Stay / Bypass): On: System armed at Stay /
Bypass zones in the system
Off: No bypass zones
(Fire):
On: Fire alarm
Off: No fire alarm
(Ready):
On Ready to arm :
Off : Not ready to arm
Rapid Flash
:
Alarm
(Tamper) :
On Tamper alarm :
Off No tamper alarm :
) ( Proximity
[ Touchscreen only]
Flashing: Indicates keypad has a
proximity reader
2- way Slim Keypad
LED Indicator
State Status Color
Blue Blink During communication with the panel
Red On
Slow flash
Rapid flash
System fully or partially armed
During exit delay
During alarm
Blink Green Trouble indication in the system
while the system is unset*
Green/Red
Waiting for code to be entered Toggle
2- way Keyfob
Indicators:
LCD and Touchscreen Keypads
(Power):
On : Power OK, No troubles
Off : No power
Rapid Flash
:
System trouble
(Arm) / RED LED
On : System armed
( Away or Stay)
Off : System
disarmed
Slow Flash: System

Page 10
Flash: Fire trouble
Operation LED* (Send command) LED* (Receive Status)
Full Setting (Away) Green Red
Part Set (Stay Arm) Green Orange
Unset (Disarm) Green Green
Alarm Green Flash LED
* If the LED changes to orange, it indicates a low battery condition.
