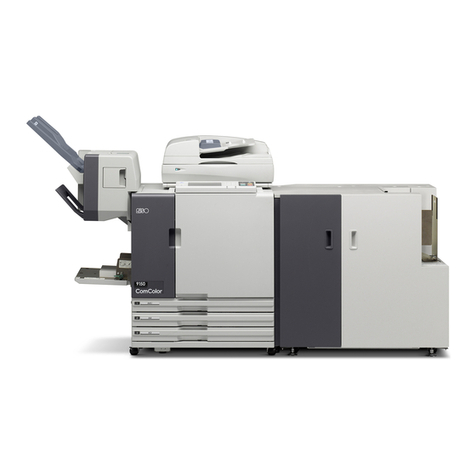

Riso Comcolor Series User manual

Riso Comcolor Series
Geƫng Started Guide
Making Copies
Riso (UK) Limited
Copy Mode V. 1

2). A4 / A3 Producing a Copy
3). Enlarging A4 to A3
4). Reducing A3 to A4
5). Producing Double Sided (Duplex) Copies
6). Mul-up
7). Stapling (OpƟonal Finisher Unit required)
8). General Machine Care
9/10). Operaonal Panel Layout
Contents
Please Note
This publication is intended as a brief introduction to the basic Copy Mode
functions of the Riso Comcolor printer.
For full instructions please refer to the user guides supplied with
the Riso machine.

Load the original(s) in the ADF of the Comcolor
scanner in the following orientaƟon:
The “Copy Mode” panel will now appear:
1). The “Color Mode” should be set to “Auto”
This can be changed to “Black” if you want to convert
colour documents to black and white
2). “Feed Tray” should be set to “Auto”
In this seƫng the output paper size will be matched to your
original size.
A
C
B
2
A4 / A3 Producing a Copy
Select number of copies required.
1). Press green “Start” buon
2). Press red “Pause” buon to pause job if required
D
A4 A3
Select “Copy” Mode
Please note login may be required.
Please note: Comcolor models 3050 and 3010 will not print full A3 size as they have a
maximum print width of 210mm. Model 3010 is equipped with a single paper feed tray

The “Copy Mode” panel will now appear:
1). The “Color Mode” should be set to “Auto”
This can be changed to “Black” if you want to convert
colour documents to black and white
2). Select “Reproducon Size”
Choose: 141% A4 - > A3
Select OK
3). Select “Feed Tray”
4). Choose the Feed Tray containing A3 size
(normally Feed Tray 3)
Select OK
3
Enlarging A4 to A3
Load the A4 original(s) in the ADF of the Comcolor
scanner in the following orientaƟon:
A
C
B
Select “Copy” Mode
Please note login may be required.
Select number of copies required.
1). Press green “Start” buon
D
Please note: Comcolor models 3050 and 3010 will not print full A3 size as they have a
maximum print width of 210mm. Model 3010 is equipped with a single paper feed tray

4
Reducing A3 to A4
The “Copy Mode” panel will now appear:
1). The “Color Mode” should be set to “Auto”
This can be changed to “Black” if you want to convert
colour documents to black and white
2). Select “Reproducon Size”
Choose: 71% A3 - > A4
Select OK
3). Select “Feed Tray”
4). Choose a Feed Tray containing A4 size
Load the A3 original(s) in the ADF of the Comcolor
scanner in the following orientaƟon:
A
C
B
Select “Copy” Mode
Please note login may be required.
Select number of copies required.
1). Press green “Start” buon
D

3). For duplex originals and/or copies specify how pages are
turned in “Paging Direcon”
A). B).
Select “LeŌ/ Right” Select “Top / BoƩom”
4). Press “OK”
Producing Double Sided Copies
Firstly complete secƟons A to C as shown on page 2
1) Select “Duplex / Simplex”
The “Duplex / Simplex” panel will appear:
1). In the “Original” secon one of the following:
A). “Simplex” if your originals are sigle sided
B). “Duplex” if your originals are duble sided.
A
B
2). In the “Output” secon one of the following:
A). “Simplex” if you require sigle sided copies
B). “Duplex” if you require double sided copies.
5

2). In “Mul-up” select one of the following:
A). “Plural” to copy mulple images of different
pages onto a single sheet
B). “Single” to copy mulple images of the same
original onto a single sheet.
Firstly complete secƟons A to C as shown on page 2
1) Select “Funcons” Tab
1). In “Funcons” select “Mul-up”
A
B
3). In “Pages / Sheet” specify how many images to be placed
on one sheet:
A). Select 2, 4, or 8 images per sheet
B). “Output Image show a preview of the image
with current sengs applied.
4). Press “OK”
MulƟ-up
6

Firstly complete secƟons A to C as shown on page 2
1) Select “Funcons” Tab
1). In “Funcons” select “Staple / Punch”
A
B
2). In the “Mul-up” secon:
A). In “Binding Side” select side of sheet(s) to be
stapled.
Choose “LeŌ, Right or Upper”
B). In “Staple” select stapling opon:
Choose “1 Posion” or “2 Posion”
3). Press “OK”
Stapling (OpƟonal finishing unit required)
1 Position
2 Position
7

General Machine Care
Cleaning the Scanner Glass
Ensure both secons of scanner glass (shown here in
blue) are kept clean to avoid marks on copies
Using the Scanner
When using the scanner place originals face up and as
far into the document feeder as possible
Ensure side guides are firm against the originals
Loading Paper
Always ensure the guides on the paper tray are firm
against the paper
The locking levers must be in the down posion
Paper
When reloading paper stock always use complete
reams of fresh paper.
DO NOT USE any of the following
Paper that is damp or curled
Glossy or coated papers
Film or transparencies
8

OperaƟonal Panel Layout
Wake up Key
Lights up when the machine is in the backlight OFF or sleep
status.
Main power Lamp
Lights up when the main power is “ON”.
Sub power Key
Use to turn the power ON and OFF. Lights up when the
power is ON. To switch to OFF, press and hold.
Interrupt Lamp
Lights up during copy interrupt.
RESET Key
Interrupt Key
Press to temporarily stop the copying that is in progress and
erent copy job.
STOP Key
Press to stop the job that is in progress.
START Key
Start Lamp
Lights up when the START key is ready to be used.
9

Error Lamp
Flashes in red when an error occurs.
Clear Key
Data receive Lamp
Flashes in green when data is being received.
Numeric Keys
Press to enter numbers.
Touch Panel
Counter Key
Press to display the total number of copy or print sheets.
Use as shortcut keys for moving to the mode by registering
MODE Key
Press to switch to the mode screen.
10

Service Helpdesk 020 8236 5832 Supplies (Ink & Staples) 0800 783 2086 Head Office 020 8236 5800
RISO (UK) Limited
UKMM-0250 (Part 1)
