Robustel R3000 LG User manual

User Guide
R3000 LG
Industrial LoRaWAN Gateway
Low Power Consumption & Long Rang Communication
User Guide
Guangzhou Robustel LTD
www.robustel.com

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 2/133
About This Document
This document provides hardware and software information of the Robustel R3000 LG, including introduction,
installation, configuration and operation.
Copyright© 2018 Guangzhou Robustel LTD
All rights reserved.
Trademarks and Permissions
、are trademarks of Guangzhou Robustel LTD. All other trademarks and trade
names mentioned in this document are the property of their respective owners.
Disclaimer
No part of this document may be reproduced in any form without the written permission of the copyright owner.
The contents of this document are subject to change without notice due to continued progress in methodology,
design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use
of this document.
Technical Support
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.robustel.com

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 3/133
Important Notice
Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data
may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare
when wireless devices such as the gateway is used in a normal manner with a well-constructed network, the
gateway should not be used in situations where failure to transmit or receive data could result in damage of any kind
to the user or any other party, including but not limited to personal injury, death, or loss of property. Robustel
accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received
using the gateway, or for failure of the gateway to transmit or receive such data.
Safety Precautions
General
The gateway generates radio frequency (RF) power. When using the gateway, care must be taken on safety
issues related to RF interference as well as regulations of RF equipment.
Do not use your gateway in aircraft, hospitals, petrol stations or in places where using cellular products is
prohibited.
Be sure that the gateway will not be interfering with nearby equipment. For example: pacemakers or medical
equipment. The antenna of the gateway should be away from computers, office equipment, home appliance,
etc.
An external antenna must be connected to the gateway for proper operation. Only uses approved antenna with
the gateway. Please contact authorized distributor on finding an approved antenna.
Always keep the antenna with minimum safety distance of 20 cm or more from human body. Do not put the
antenna inside metallic box, containers, etc.
RF exposure statements
1. For mobile devices without co-location (the transmitting antenna is installed or located more than 20cm
away from the body of user and nearby person)
FCC RF Radiation Exposure Statement
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and human body.
Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open.
Gateway may be used at this time.
Using the Gateway in Vehicle
Check for any regulation or law authorizing the use of cellular devices in vehicle in your country before installing
the gateway.
The driver or operator of any vehicle should not operate the gateway while driving.
Install the gateway by qualified personnel. Consult your vehicle distributor for any possible interference of
electronic parts by the gateway.
The gateway should be connected to the vehicle’s supply system by using a fuse-protected terminal in the
vehicle’s fuse box.
Be careful when the gateway is powered by the vehicle’s main battery. The battery may be drained after
extended period.

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 4/133
Protecting Your Gateway
To ensure error-free usage, please install and operate your gateway with care. Do remember the following:
Do not expose the gateway to extreme conditions such as high humidity / rain, high temperature, direct sunlight,
caustic / harsh chemicals, dust, or water.
Do not try to disassemble or modify the gateway. There is no user serviceable part inside and the warranty
would be void.
Do not drop, hit or shake the gateway. Do not use the gateway under extreme vibrating conditions.
Do not pull the antenna or power supply cable. Attach/detach by holding the connector.
Connect the gateway only according to the instruction manual. Failure to do it will void the warranty.
In case of problem, please contact authorized distributor.

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 5/133
Regulatory and Type Approval Information
Table 1: Directives
2011/65/EC
Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011
on the restriction of the use of certain hazardous substances in electrical and
electronic equipment (RoHS)
2012/19/EU
Directive 2012/19/EU the European Parliament and of the Council
of 4 July 2012 on waste electrical and electronic equipment (WEEE)
Table 2: Standards of the Ministry of Information Industry of the People’s Republic of China
SJ/T
11363-2006
“Requirements for Concentration Limits for Certain Hazardous Substances in Electronic
Information Products” (2006-06).
SJ/T
11364-2006
“Marking for Control of Pollution Caused by Electronic Information Products”
(2006-06).
According to the “Chinese Administration on the Control of Pollution caused
by Electronic Information Products” (ACPEIP) the EPUP, i.e., Environmental
Protection Use Period, of this product is 20 years as per the symbol shown here, unless otherwise
marked. The EPUP is valid only as long as the product is operated within the operating limits
described in the Hardware Interface Description.
Please see Table 3 for an overview of toxic or hazardous substances or elements that might be
contained in product parts in concentrations above the limits defined by SJ/T 11363-2006.
Table 3: Toxic or Hazardous Substances or Elements with Defined Concentration Limits
Name of the Part
Hazardous Substances
(Pb)
(Hg)
(Cd)
(Cr (VI) )
(PBB)
(PBDE)
Metal parts
o
o
o
o
o
o
Circuit modules
x
o
o
o
o
o
Cables and cable assemblies
o
o
o
o
o
o
Plastic and polymeric parts
o
o
o
o
o
o
o:
Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement in SJ/T11363-2006.
x:
Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials for this
part might exceed the limit requirement in SJ/T11363-2006.

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 6/133
Document History
Updates between document versions are cumulative. Therefore, the latest document version contains all updates
made to previous versions.
Date
Firmware Version
Document Version
Change Description
16 Oct., 2017
1.0.0
v.1.0.0
Initial release
20 Dec., 2017
1.0.0
v.1.0.1
Updated model and certification info
Added the image for GPS antenna
10 Apr., 2018
1.0.0
v.1.0.2
Added new LoRa standard 433-434 MHz (Europe)
Updated LoRa interface information
28 Jun., 2018
1.0.0
v.1.0.3
Revised the company name
19 Jul., 2018
1.0.0
v.1.0.4
Revised the product name

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 7/133
Contents
Chapter 1 Product Overview ........................................................................................................................... 9
1.1 Key Features ............................................................................................................................................... 9

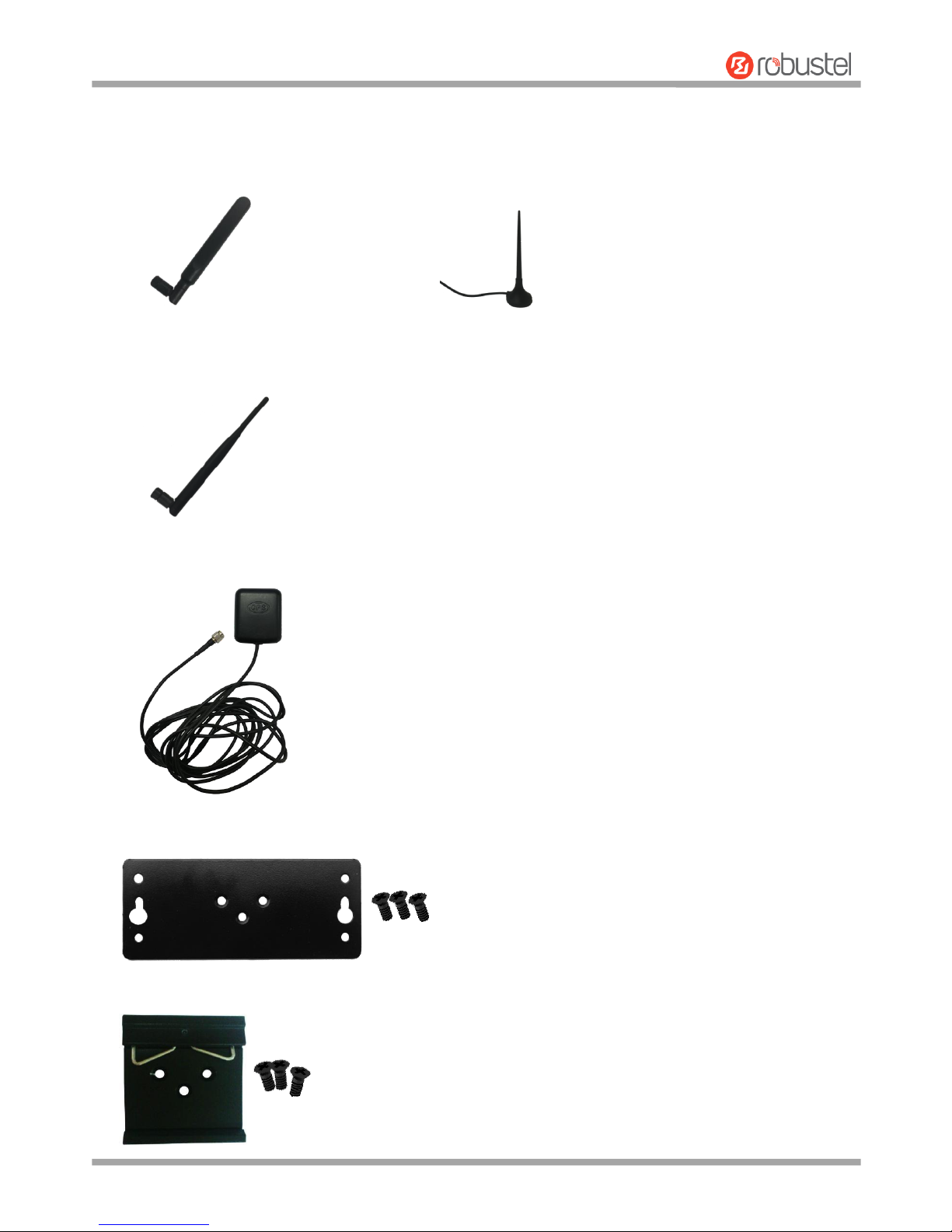

1.2 Package Contents ..................................................................................................................................... 10
1.3 Specifications ........................................................................................................................................... 12

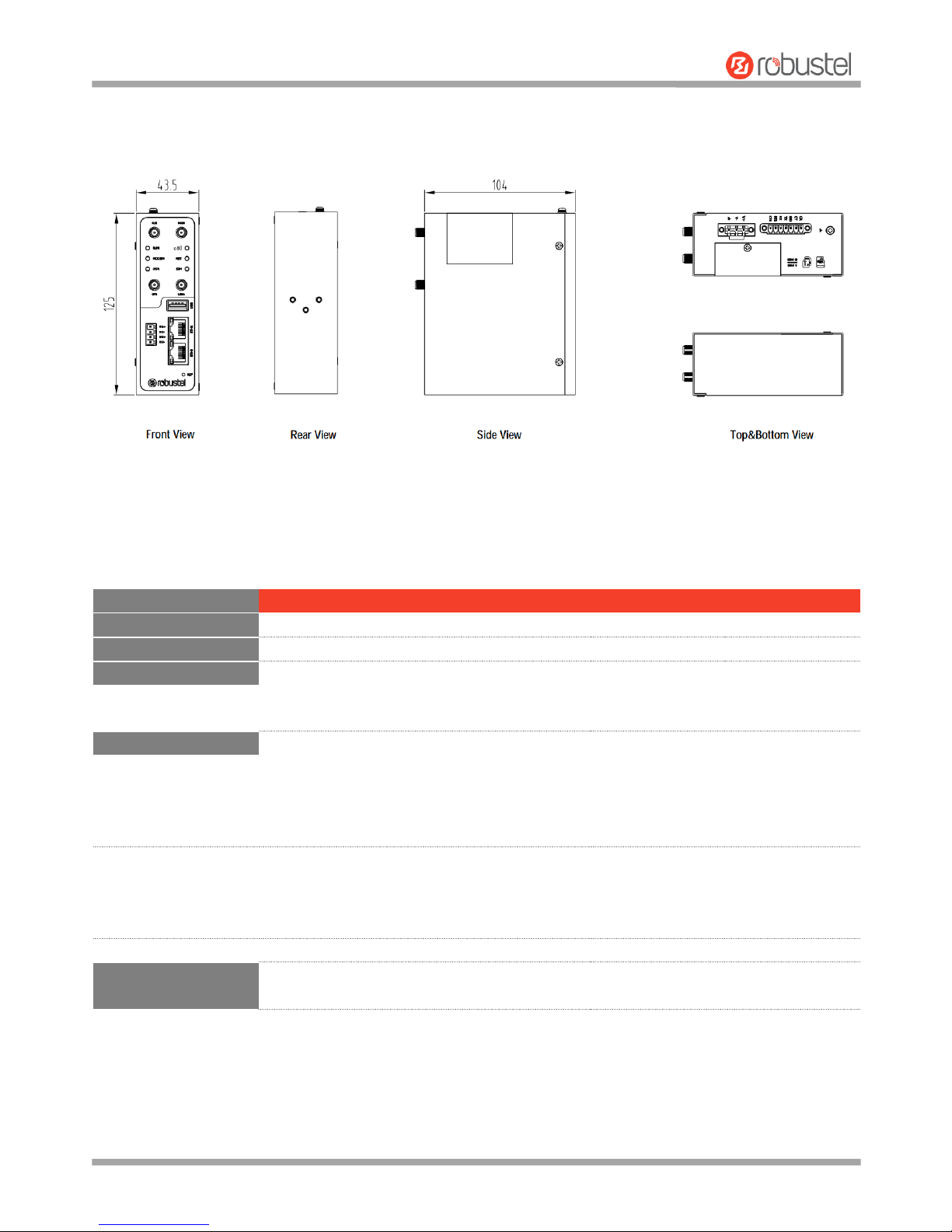

1.4 Dimensions............................................................................................................................................... 15
1.5 Ordering Information ...............................................................................................................................15
Chapter 2 Hardware Installation.................................................................................................................... 16
2.1 PIN Assignment ........................................................................................................................................ 16

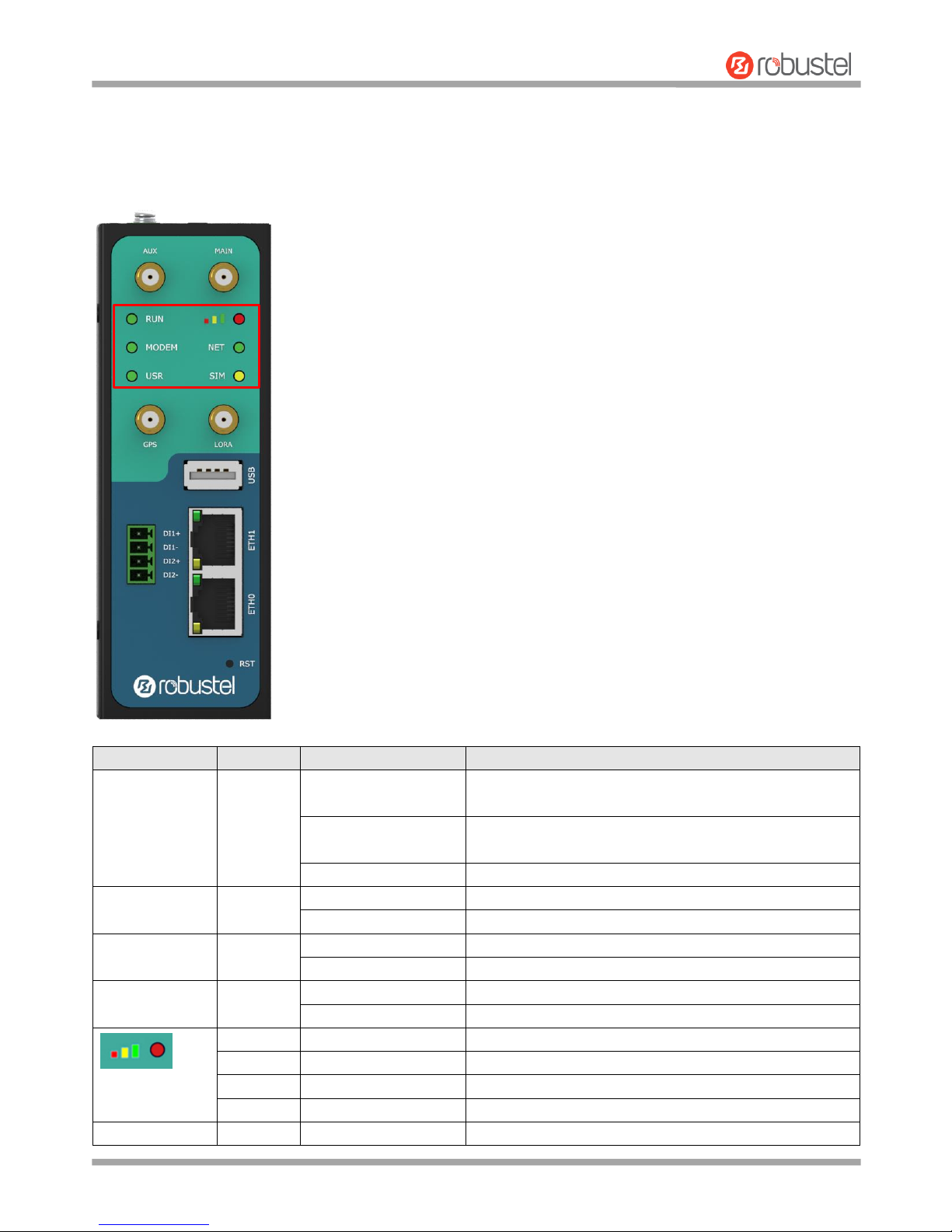

2.2 LED Indicators...........................................................................................................................................17
2.3 USB Interface............................................................................................................................................ 18
2.4 Reset Button............................................................................................................................................. 19
2.5 Ethernet Port............................................................................................................................................20
2.6 Insert or Remove SIM Card/Micro SD Card..............................................................................................21
2.7 Attach External Antenna (SMA Type)....................................................................................................... 22
2.8 Mount the Gateway .................................................................................................................................23
2.9 Ground the Gateway ................................................................................................................................ 24
2.10 Power Supply............................................................................................................................................25
Chapter 3 Initial Configuration ...................................................................................................................... 26
3.1 Configure the PC.......................................................................................................................................26
3.2 Factory Default Settings ........................................................................................................................... 29
3.3 Log in the Gateway...................................................................................................................................29
3.4 Control Panel............................................................................................................................................ 30
3.5 Status........................................................................................................................................................ 31
3.6 Interface > Link Manager ......................................................................................................................... 33
3.7 Interface > LAN......................................................................................................................................... 41
3.8 Interface > Ethernet .................................................................................................................................46
3.9 Interface > Cellular ................................................................................................................................... 47
3.10 Interface > USB......................................................................................................................................... 51
3.11 Interface > DI............................................................................................................................................52
3.12 Interface > Serial Port...............................................................................................................................54
3.13 Interface > LoRa........................................................................................................................................ 59
3.14 Network > Route ...................................................................................................................................... 63
3.15 Network > Firewall ...................................................................................................................................65
3.16 Network > IP Passthrough ........................................................................................................................70
3.17 VPN > IPsec...............................................................................................................................................70
3.18 VPN > OpenVPN .......................................................................................................................................77
3.19 VPN > GRE ................................................................................................................................................85
3.20 Services > Syslog.......................................................................................................................................86
3.21 Services > Event........................................................................................................................................87
3.22 Services > NTP ..........................................................................................................................................90
3.23 Services > SMS.......................................................................................................................................... 91
3.24 Services > Email........................................................................................................................................92
3.25 Services > DDNS ....................................................................................................................................... 93
3.26 Services > SSH........................................................................................................................................... 94

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 8/133
3.27 Services > GPS .......................................................................................................................................... 95
3.28 Services > Web Server.............................................................................................................................. 98
3.29 Services > Advanced.................................................................................................................................99
3.30 System > Debug...................................................................................................................................... 101
3.31 System > Update .................................................................................................................................... 102
3.32 System > App Center .............................................................................................................................. 102
3.33 System > Tools ........................................................................................................................................ 103
3.34 System > Profile...................................................................................................................................... 105
3.35 System > User Management ..................................................................................................................106
Chapter 4 Configuration Examples............................................................................................................... 108
4.1 Interface .................................................................................................................................................108
4.1.1 Console Port ...................................................................................................................................108
4.1.2 Digital Input .................................................................................................................................... 109
4.1.3 RS-232.............................................................................................................................................109
4.1.4 RS-485.............................................................................................................................................110
4.2 Cellular ................................................................................................................................................... 110
4.2.1 Cellular Dial-Up............................................................................................................................... 110
4.2.2 SMS Remote Control....................................................................................................................... 112
4.3 Network.................................................................................................................................................. 114
4.3.1 IPsec VPN ........................................................................................................................................ 114
4.3.2 OpenVPN ........................................................................................................................................ 118
4.3.3 GRE VPN.......................................................................................................................................... 120
Chapter 5 Introductions for CLI.................................................................................................................... 122
5.1 What Is CLI.............................................................................................................................................. 122
5.2 How to Configure the CLI ....................................................................................................................... 123
5.3 Commands Reference ............................................................................................................................129
Glossary........................................................................................................................................................... 130

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 9/133
Chapter 1 Product Overview
1.1 Key Features
Robustel R3000 LG is an industrial-grade LoRaWAN gateway, integrated with LoRaWAN wireless communication
technology and cellular network technology, to provide users with wireless long-distance data transmission services.
R3000 LG allows access to various types of LoRa application nodes, and supports wired Ethernet and wireless
4G/3G/2G access to the cloud platform, mainly for LoRaWAN data transmission between LoRa node and cloud
platform.
LPWAN technologies is a type of wireless telecommunication wide area network technologies designed to lower
costs and better power consumption. LoRaWAN is a MAC protocol used for creating large-scale public networks. It is
an open LPWAN standard allowing users to run customized protocols over the Internet. With the fully bi-directional
feature, this protocol allows for reliable data transmission including end-to-end encryption and over-the-air
registration.
Supporting global LoRaWAN frequency bands
Compatible with LoRaWAN and private protocols
Compatible with any LoRaWAN cloud server
Up to 8 channels supporting receive data simultaneously
Supporting Packet Forwarder Version 2.2.1 and Packet Forwarder Protocol Version 1
RobustOS + SDK
TPH6700 Housing optional
Backhaul option supporting 3G, 4G and Ethernet
Supporting dual SIM
Robust industrial design (9 to 60V DC, -40 to +75 °C)

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 10/133
1.2 Package Contents
Before installing your R3000 LG, verify the kit contents as following.
Note: The following pictures are for illustration purposes only, not based on their actual sizes.
1 x Robustel R3000 LG Industrial LoRaWAN Gateway
1 x 3-pin 5 mm male terminal block with lock for power supply
1 x 7-pin 3.5 mm male terminal block with lock for serial and console port
1 x 4-pin 3.5 mm male terminal block for digital input interface
1 x Quick Start Guide with download link of other documents or tools
Note: If any of the above items is missing or damaged, please contact your Robustel sales representative.

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 11/133
Optional Accessories (sold separately)
3G/4G SMA cellular antenna (stubby/magnet optional)
Stubby antenna Magnet antenna
RP-SMA LoRa stubby antenna
GPS antenna
Wall mounting kit
35 mm DIN rail mounting kit

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 12/133
Ethernet cable
AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)
1.3 Specifications
LoRa Interface
Number of antennas: 1
Connector: SMA female with 50 ohms impedance
Standards: 433-434 MHz (Europe)
863-870 MHz (Europe)
470-510 MHz (China)
915-927 MHz (Australia)
902-928 MHz (North America)
920-928 MHz (Japan)
Transmitted power: +24.5 dBm
Sensitivity: -142 dBm
Reception capacity: Supporting 8 channels, and each channel can receive data simultaneously
Supporting 1 MHz bandwidth demodulation
Communication range: 15 km
Cellular Interface
Number of antennas: 2 (MAIN + AUX)
Connector: SMA female
SIM: 2 (3.0 V & 1.8 V)
Standards: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA
1X/EVDO)/FDD LTE/TDD LTE
GSM: max DL/UL = 9.6/2.7 Kbps
GPRS: max DL/UL = 86 Kbps
EDGE: max DL/UL = 236.8 Kbps

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 13/133
WCDMA/TD-SCDMA: max DL/UL = 2.8 Mbps/384 Kbps
EVDO: max DL/UL = 5.4 Mbps/14.7 Kbps
HSPA+: max DL/UL = 21/5.76 Mbps, fallback to 2G
DC-HSPA+: max DL/UL = 42/5.76 Mbps, fallback to 2G
FDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
TDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
Ethernet Interface
Number of ports: 2 x 10/100 ports, 2 x LAN or 1 x LAN + 1 x WAN
Magnet isolation protection: 1.5 KV
GPS/GLONASS Interface (Optional)
Number of antennas: 1
Connector: SMA female with 50 ohms impedance
Acquisition sensitivity: GPS: greater than -148 dBm
GLONASS: greater than -145 dBm
Navigation sensitivity: GPS: greater than -163 dBm
GLONASS: greater than -157 dBm
Tracking sensitivity: GPS: greater than -165 dBm
GLONASS: greater than -161 dBm
Horizontal position accuracy: GPS: 2.5 m
GLONASS: 2.6 m
Protocol: NMEA-0183 v4.10
Serial Interface
Number of ports: 1 x RS-232 or 1 x RS-485
Connector: 7-pin 3.5 mm female socket with lock
ESD protection: ±15 KV
Baud rate: 300 bps to 230400 bps
Parameters: 8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1
RS-232: TxD, RxD, RTS, CTS, GND
RS-485: Data+ (A), Data- (B)
Digital Input
Number of ports: 2 x DI (dry contact)
Connector: 4-pin 3.5 mm female socket
Isolation: 3KVDC or 2KVrms
Absolute maximum VDC: “V+” +5V DC (DI)
Absolute maximum ADC: 300 mA
Others
1 x RST button
1 x Micro SD interface
1 x USB 2.0 host up to 480 Mbps
1 x CLI interface
LED indicators - 1 x RUN, 1 x MODEM, 1 x USR, 1 x RSSI, 1 x NET, 1 x SIM

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 14/133
Built-in RTC, Watchdog, Timer
Software (Basic features of RobustOS)
LoRaWAN protocols: V1.0 Class A/Class C and V1.0.2 Class A/Class C
Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP,
Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnel: IPsec, OpenVPN, GRE
Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management: Web, CLI, SMS
Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
App Center (Available Apps for RobustOS)
Apps*: L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink
*Request on demand. For more Apps please visit www.robustel.com.
Power Supply and Consumption
Connector: 3-pin 5 mm female socket with lock
Input voltage: 9 to 60V DC
Power consumption: Idle: 100 mA@12 V
Data link: 400 mA (peak) @12 V
Physical Characteristics
Ingress protection: IP30
Housing & Weight: Metal, 570 g
Dimensions: 125 x 104 x 43.5 mm
Installations: Desktop, wall mounting and 35 mm DIN rail mounting
Certifications
Approvals & Certificates: WEEE, RoHS

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 15/133
1.4 Dimensions
1.5 Ordering Information
Model
R3000-LG4LA
R3000-LG4LB
R3000-LGNUA
R3000-LGNUB
Gateway Type
LTE Gateway
LTE Gateway
--
--
Serial Port Type
RS-232
RS-485
RS-232
RS-485
Air Interface
GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/
HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA
1X/EVDO)/FDD LTE/TDD LTE
--
Frequency Bands
AU: B1/B3/B5/B7/B8/B28, B40
EU: B1/B3/B7/B8/B20/B28/B31, B38/B40
US: B2/B4/B5/B13/B17/B25, B41
JP: B1/B3/B8/B9/B18/B19/B21/B28, B41
CN: B1/B3, B38/B39/B40/B41
--
4G*
3G
WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+:
B1/B2/B5/B6/B8/B9/B19
TD-SCDMA: B34/B39
CDMA (CDMA 1X/EVDO): R0/A BC0/BC1/BC10
--
2G
850/900/1800/1900 MHz
--
Operating
Environment
-40 to +75 °C
5 to 95% RH
-40 to +75 °C
5 to 95% RH
*For more information about 4G frequency bands in different countries, please contact your Robustel sales
representative.

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 16/133
Chapter 2 Hardware Installation
2.1 PIN Assignment
PIN
Debug
RS-232
RS-485
Direction
1
CR
--
--
Gateway Device
2
CT
--
--
Gateway Device
3
GND
GND
GND
--
4
--
TXD
Data+(A)
Gateway Device
5
--
RXD
Data+(B)
Gateway Device
6
--
RTS
--
Gateway Device
7
--
CTS
--
Gateway Device
PIN
Polarity
8
Positive
9
Negative
10
GND
PIN
DI
Direction
1
DI1+
Gateway Device
2
DI1-
Gateway Device
3
DI2+
Gateway Device
4
DI2-
Gateway Device

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 17/133
2.2 LED Indicators
The R3000 LG has been designed to be placed on a desktop. Below is the front view of the R3000 LG.
Name
Color
Status
Description
RUN
Green
On, fast blinking
(250 mSec blink time)
Gateway is powered on
(System is initializing)
On, blinking
(500 mSec blink time)
Gateway starts operating
Off
Gateway is powered off
MODEM
Green
On, solid
Link connection is working
Off
Link connection is not working
USR-OpenVPN
Green
On, solid
OpenVPN connection is established
Off
OpenVPN connection is not established
USR-IPsec
Green
On, solid
IPsec connection is established
Off
IPsec connection is not established
Green
On, solid
High Signal strength (21-31) is available
Yellow
On, solid
Medium Signal strength (11-20) is available
Red
On, solid
Low Signal strength (1-10) is available
/
Off
No signal
NET
Green
On, solid
Connection to 4G network is established

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 18/133
Note: You can choose the display type of USR LED. For more details, please refer to 3.29 Service > Advanced.
2.3 USB Interface
Yellow
On, solid
Connection to 3G network is established
Red
On, solid
Connection to 2G network is established
/
Off
Connection to network is not established or establishing
SIM
Green
On, blinking
Backup card is being used
Off
Main card is being used
Function
Operation
Firmware
upgrade
USB interface is used for batch firmware upgrading, but cannot be
used for sending or receiving data from slave devices which
connected to it. You can insert a USB storage device into the
gateway’s USB interface, such as a U disk or a hard disk. If there
have a supported configuration file or a gateway firmware in this
USB storage device, the gateway will automatically update the
configuration file or the firmware. For more details, see 3.10
Interface > USB.

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 19/133
2.4 Reset Button
Function
Operation
Reboot
Press and hold the RST button for 2 to 7 seconds under the
operating status.
Restore to
factory default
settings
Wait for 3 seconds after powering up the gateway, press and
hold the RST button until all six LEDs start blinking one by one,
and release the button to return the gateway to factory
defaults.

Robustel R3000 LG User Guide
RT_UG_R3000 LG_v.1.0.4 19 Jul., 2018 20/133
2.5 Ethernet Port
There are two Ethernet ports on R3000 LG, including ETH0 and ETH1. Each Ethernet
port has two LED indicators. The yellow one is a link indicator, while the green one is
a speed indicator. For details about status, see the table below.
Indicator
Status
Description
Link indicator
On, solid
Connection is established
On, blinking
Data is being transferred
Off
Connection is not established
Speed indicator
On, solid
100 Mbps mode
Off
10 Mbps mode
