1 Safety Information
The R&S RTB2000 digital oscilloscope is designed for measurements on circuits
that are only indirectly connected to the mains or not connected at all. It is not
rated for any measurement category.
The instrument is rated for pollution degree 2 - for indoor, dry location use where
only non-conductive pollution occurs. Temporary conductivity caused by conden-
sation is possible.
The instrument must be controlled by personnel familiar with the potential risks of
measuring electrical quantities. Observe applicable local or national safety regula-
tions and rules for the prevention of accidents.
Safety information is part of the product documentation. It warns you about the
potential dangers and gives instructions how to prevent personal injury or dam-
age caused by dangerous situations. Safety information is provided as follows:
●The "Basic Safety Instructions" in different languages are delivered as a prin-
ted brochure with the instrument.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
Risk of injury
Use the instrument in an appropriate manner to prevent electric shock, per-
sonal injury, or fire:
●Do not open the instrument casing.
●Do not use the instrument if you detect or suspect any damage of the
instrument or accessories.
●Do not operate the instrument in wet, damp or explosive atmospheres.
●Make sure that the instrument is properly grounded.
●Do not use the instrument to ascertain volt-free state.
●Do not exceed the voltage limits given in Chapter 4.1.1, "Input Connec-
tors", on page 16.

Safety Information
R&S®RTB2000
6Getting Started 1333.1605.02 ─ 06
Risk of instrument damage due to inappropriate operating conditions
An unsuitable operating site or test setup can damage the instrument and
connected devices. Before switching on the instrument, observe the infor-
mation on appropriate operating conditions provided in the data sheet. In
particular, ensure the following:
●All fan openings are unobstructed and the airflow perforations are unim-
peded. The minimum distance from the wall is 10 cm.
●The instrument is dry and shows no sign of condensation.
●The instrument is positioned as described in the following sections.
●The ambient temperature does not exceed the range specified in the
data sheet.
●Signal levels at the input connectors are all within the specified ranges.
●Signal outputs are connected correctly and are not overloaded.

Documentation Overview
R&S®RTB2000
7Getting Started 1333.1605.02 ─ 06
2 Documentation Overview
This section provides an overview of the R&S RTB2000 user documentation.
2.1 Manuals and Instrument Help
You find the manuals on the product page at:
www.rohde-schwarz.com/manual/rtb2000
Getting started manual
Introduces the R&S RTB2000 and describes how to set up the product. A printed
English version is included in the delivery.
User manual
Contains the description of all instrument modes and functions. It also provides
an introduction to remote control, a complete description of the remote control
commands with programming examples, and information on maintenance and
instrument interfaces. Includes the contents of the getting started manual.
The online version of the user manual provides the complete contents for immedi-
ate display on the internet.
Instrument help
The help offers quick, context-sensitive access to the functional description
directly on the instrument.
Basic safety instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
Instrument security procedures manual
Deals with security issues when working with the R&S RTB2000 in secure areas.
Manuals and Instrument Help

Documentation Overview
R&S®RTB2000
8Getting Started 1333.1605.02 ─ 06
Service manual
Describes the performance test for checking the rated specifications, module
replacement and repair, firmware update, troubleshooting and fault elimination,
and contains mechanical drawings and spare part lists. The service manual is
available for registered users on the global Rohde & Schwarz information system
(GLORIS, https://gloris.rohde-schwarz.com).
2.2 Data Sheet and Brochure
The data sheet contains the technical specifications of the R&S RTB2000. It also
lists the options with their order numbers and optional accessories. The brochure
provides an overview of the instrument and deals with the specific characteristics.
See www.rohde-schwarz.com/brochure-datasheet/rtb2000
2.3 Calibration Certificate
The document is available on https://gloris.rohde-schwarz.com/calcert. You need
the device ID of your instrument, which you can find on a label on the rear panel.
2.4 Release Notes and Open Source Acknowledg-
ment
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation. The open source
acknowledgment document provides verbatim license texts of the used open
source software.
See www.rohde-schwarz.com/firmware/rtb2000. The open source acknowledg-
ment documant can also be read directly on the instrument.
Release Notes and Open Source Acknowledgment

Preparing for Use
R&S®RTB2000
9Getting Started 1333.1605.02 ─ 06
3 Preparing for Use
3.1 Unpacking and Checking the Instrument
1. Inspect the package for damage.
If the packaging material shows any signs of stress, notify the carrier who
delivered the instrument.
2. Carefully unpack the instrument and the accessories.
3. Check the equipment for completeness. See section "Delivery contents"
on page 9.
4. Check the equipment for damage.
If there is damage, or anything is missing, immediately contact the carrier as
well as your distributor. Make sure not to discard the box and packing mate-
rial.
Packing material
Retain the original packing material. If the instrument needs to be transpor-
ted or shipped later, you can use the material to protect the control ele-
ments and connectors.
Delivery contents
The delivery package contains the following items:
●R&S RTB2000 digital oscilloscope
●R&S RT-ZP03 probes (2x for R&S RTB2002; 4x for R&S RTB2004)
●Country-specific power cable
●Printed "Getting Started" manual
●Printed "Basic Safety Instructions" brochure
Unpacking and Checking the Instrument

Preparing for Use
R&S®RTB2000
10Getting Started 1333.1605.02 ─ 06
3.2 Positioning the Instrument
The instrument is designed for use under laboratory conditions. It can be used in
standalone operation on a bench top or can be installed in a rack.
For standalone operation, place the instrument on a horizontal bench with even,
flat surface. The instrument can be used in horizontal position, or with the support
feet on the bottom extended.
The instrument can be installed in a 19" rack mount using a rack mount kit. The
order number of the rack mount kit is given in the data sheet. The installation
instructions are part of the rack mount kit.
Risk of injury if feet are folded out
The feet can fold in if they are not folded out completely or if the instrument
is shifted. This can cause damage or injury.
●Fold the feet completely in or out to ensure stability of the instrument.
Never shift the instrument when the feet are folded out.
●When the feet are folded out, do not work under the instrument or place
anything underneath.
●The feet can break if they are overloaded. The overall load on the fol-
ded-out feet must not exceed 200 N.
Fmax
Positioning the Instrument

Preparing for Use
R&S®RTB2000
11Getting Started 1333.1605.02 ─ 06
Risk of instrument damage due to overheating
An insufficient airflow can cause the R&S RTB2000 to overheat, which can
impair the measurement results, disturb the operation, and even cause
damage.
●Ensure that all fan openings are unobstructed and that the airflow perfo-
rations are unimpeded. The minimum distance to a wall is 10 cm.
●When placing several instruments side by side, keep a minimum dis-
tance of 20 cm between the instruments. Ensure that the instruments do
not draw in the preheated air from their neighbors.
●When mounting the instrument in a rack, observe the instructions of the
rack manufacturer to ensure sufficient airflow and avoid overheating.
3.3 Starting the Instrument
3.3.1 Powering On
The R&S RTB2000 can be used with different AC power voltages and adapts
itself automatically to it.
The nominal ranges are:
●100 V to 240 V AC at 50 Hz to 60 Hz
●0.95 A to 0.5 A
●max. 60 W
Risk of injury
Connect the instrument only to an outlet that has a ground contact.
Do not use an isolating transformer to connect the instrument to the AC
power supply.
Starting the Instrument

Preparing for Use
R&S®RTB2000
12Getting Started 1333.1605.02 ─ 06
1. Connect the power cable to the AC power connector on the rear panel of the
R&S RTB2000.
2. Connect the power cable to the socket outlet.
3. Switch the main power switch at the rear of the instrument to position I.
The [Standby] key lights up. The key is located in the bottom left corner of the
front panel.
You can leave the main power switch on to preserve your last instrument settings.
To disconnect from power supply, power off the instrument.
3.3.2 Starting Up and Shutting Down
To start up the instrument
1. Make sure that the R&S RTB2000 is connected to the AC power supply and
the main power switch on the rear panel is in position I.
2. Press the [Standby] key. The key is located in the bottom left corner of the
front panel.
The instrument performs a system check and starts the firmware. If the previ-
ous session was terminated regularly, the oscilloscope uses the last settings.
Table 3-1: Colors of the [Standby] key
Green Instrument is on: firmware is working
Yellow Standby: instrument is off, main power switch is on
Warm-up and prepare the instrument
Make sure that the instrument has been running and warming up before
you start the self-alignment and the measurements. The minimum warm-up
time is about 20 min.
To shut down the instrument to standby state
► Press the [Standby] key.
All current settings are saved, and the software shuts down. Now it is safe to
power off the instrument.
Starting the Instrument

Preparing for Use
R&S®RTB2000
13Getting Started 1333.1605.02 ─ 06
3.3.3 Powering Off
Powering off is required only if the instrument must be disconnected from all
power supplies.
1. If the instrument is running, press the [Standby] key on the front panel to shut
down the instrument.
2. Switch the main power switch at the rear of the instrument to position 0.
3. Disconnect the AC power cable from the AC power supply.
Risk of losing data
If you switch off the running instrument using the rear panel switch or by
disconnecting the power cord, the instrument loses its current settings. Fur-
thermore, program data can be lost.
Press the Standby key first to shut down the application properly.
3.3.4 EMI Suppression
Electromagnetic interference (EMI) may affect the measurement results.
To suppress generated electromagnetic interference (EMI):
●Use suitable shielded cables of high quality. For example, use double-shielded
RF and LAN cables.
●Always terminate open cable ends.
●Note the EMC classification in the data sheet.
3.4 Replacing the Fuse
The instrument is protected by a fuse. You can find it on the rear panel between
the main power switch and AC power supply.
Type of fuse: Size 5x20 mm, 250V~, T2.5H (slow-blow), IEC60127-2/5
Replacing the Fuse

Preparing for Use
R&S®RTB2000
14Getting Started 1333.1605.02 ─ 06
Risk of electric shock
The fuse is part of the main power supply. Therefore, handling the fuse
while power is on can lead to electric shock. Before opening the fuse
holder, make sure that the instrument is switched off and disconnected from
all power supplies.
Always use fuses supplied by Rohde & Schwarz as spare parts, or fuses of
the same type and rating.
1. Pull the fuse holder out of its slot on the rear panel.
2. Exchange the fuse.
3. Insert the fuse holder carefully back in its slot until it latches.
Replacing the Fuse

Instrument Tour
R&S®RTB2000
15Getting Started 1333.1605.02 ─ 06
4 Instrument Tour
4.1 Front Panel
Figure 4-1 shows the front panel of the R&S RTB2000. The function keys are
grouped in functional blocks to the right of the display.
Figure 4-1: Front panel of R&S RTB2004 with 4 input channels
1 = Display
2 = Horizontal and vertical setup controls
3 = Trigger settings, action and analysis controls
4 = Analog input channels (2 channels at R&S RTB2002, 4 channels at R&S RTB2004)
5 = External trigger input
6 = Logic probe connectors (option R&S RTB-B1)
7 = Connectors for probe compensation and optional pattern generator (R&S RTB-B6)
8 = USB connector
9 = Aux Out connector
10 = [Standby] key
Front Panel

Instrument Tour
R&S®RTB2000
16Getting Started 1333.1605.02 ─ 06

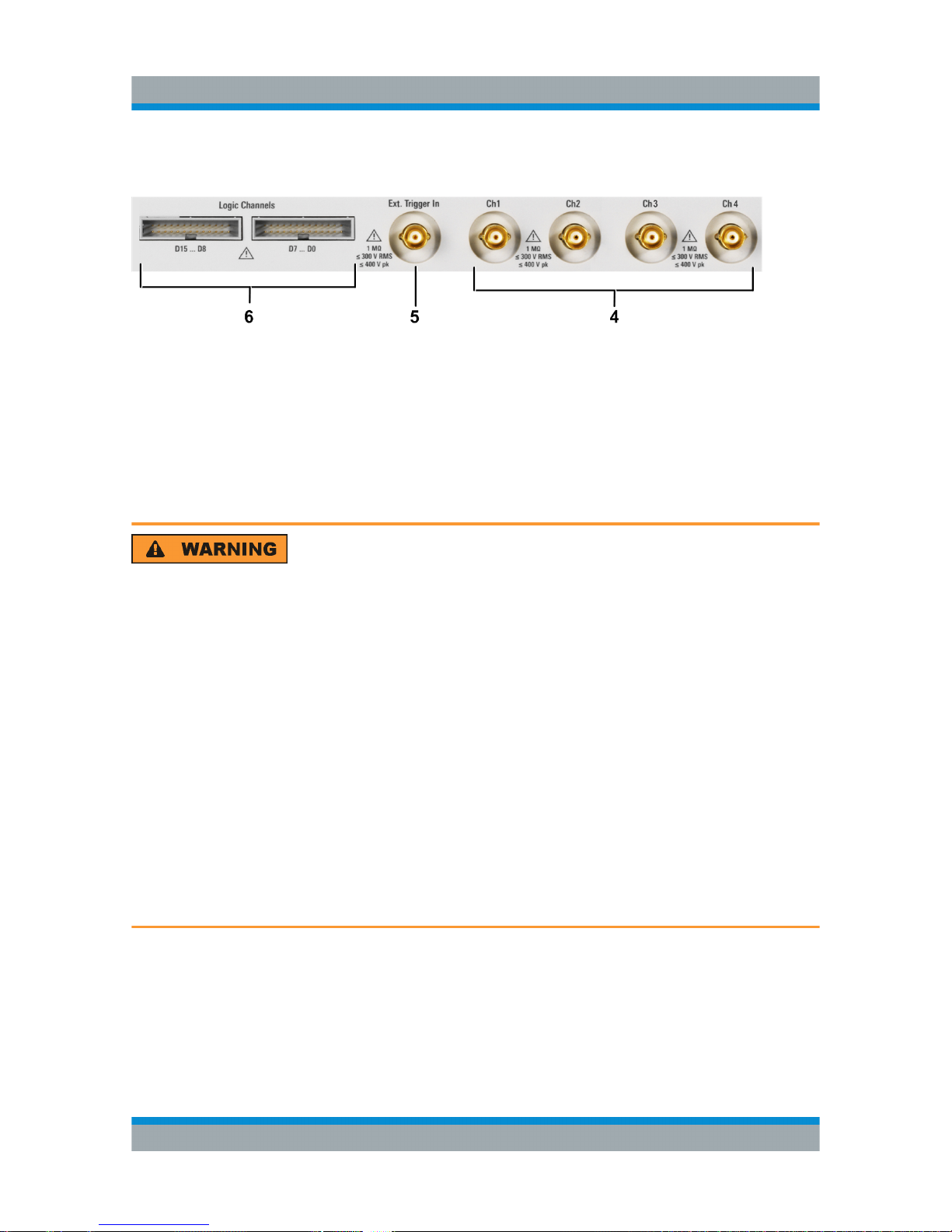

4.1.1 Input Connectors
BNC inputs (4 and 5)
The R&S RTB2000 has two or four channel inputs (4) to connect the input sig-
nals. The external trigger input (5) is used to control the measurement by an
external signal. The trigger level can be set from -5 V to 5 V.
The input impedance of all BNC inputs is 1 MΩ.
Risk of electrical shock - maximum input voltages
The maximum input voltage on channel inputs must not exceed
400 V (peak) and 300 V (RMS).
For the external trigger input, the maximum input voltage is 400 V (peak)
and 300 V (RMS).
Transient overvoltages must not exceed 400 V (peak).
Voltages higher than 30 V (RMS) or 42 V (peak) or 60 V DC are regarded
as hazardous contact voltages. When working with hazardous contact vol-
tages, use appropriate protective measures to preclude direct contact with
the measurement setup:
●Use only insulated voltage probes, test leads and adapters.
●Do not touch voltages higher than 30 V (RMS) or 42 V (peak) or
60 V DC.
Front Panel

Instrument Tour
R&S®RTB2000
17Getting Started 1333.1605.02 ─ 06
Risk of injury and instrument damage
The instrument is not rated for any measurement category. When measur-
ing in circuits with transient overvoltages of category II, III or IV circuits,
make sure that no such overvoltages reach the R&S RTB2000 input. There-
fore, use only probes that comply with DIN EN 61010-031. When measur-
ing in category II, III or IV circuits, always insert a probe that appropriately
reduces the voltage so that no transient overvoltages higher than
400 V (peak) are applied to the instrument. For detailed information, refer to
the documentation and safety information of the probe manufacturer.
Explanation: According to section AA.2.4 of EN 61010-2-030, measuring
circuits without any measurement category are intended for measurements
on circuits which are not directly connected to the mains.
Logic probe (6)
The connectors for logic channels can be used if the Mixed Signal Option
R&S RTB-B1 is installed. The option provides connectors for two logical probes
with 8 digital channels each (D0 to D7 and D8 to D15).
The maximum input voltage is 40 V (peak) at 100 kΩ input impedance. The maxi-
mum input frequency for a signal with the minimum input voltage swing and
medium hysteresis of 800 mV (Vpp) is 300 MHz.

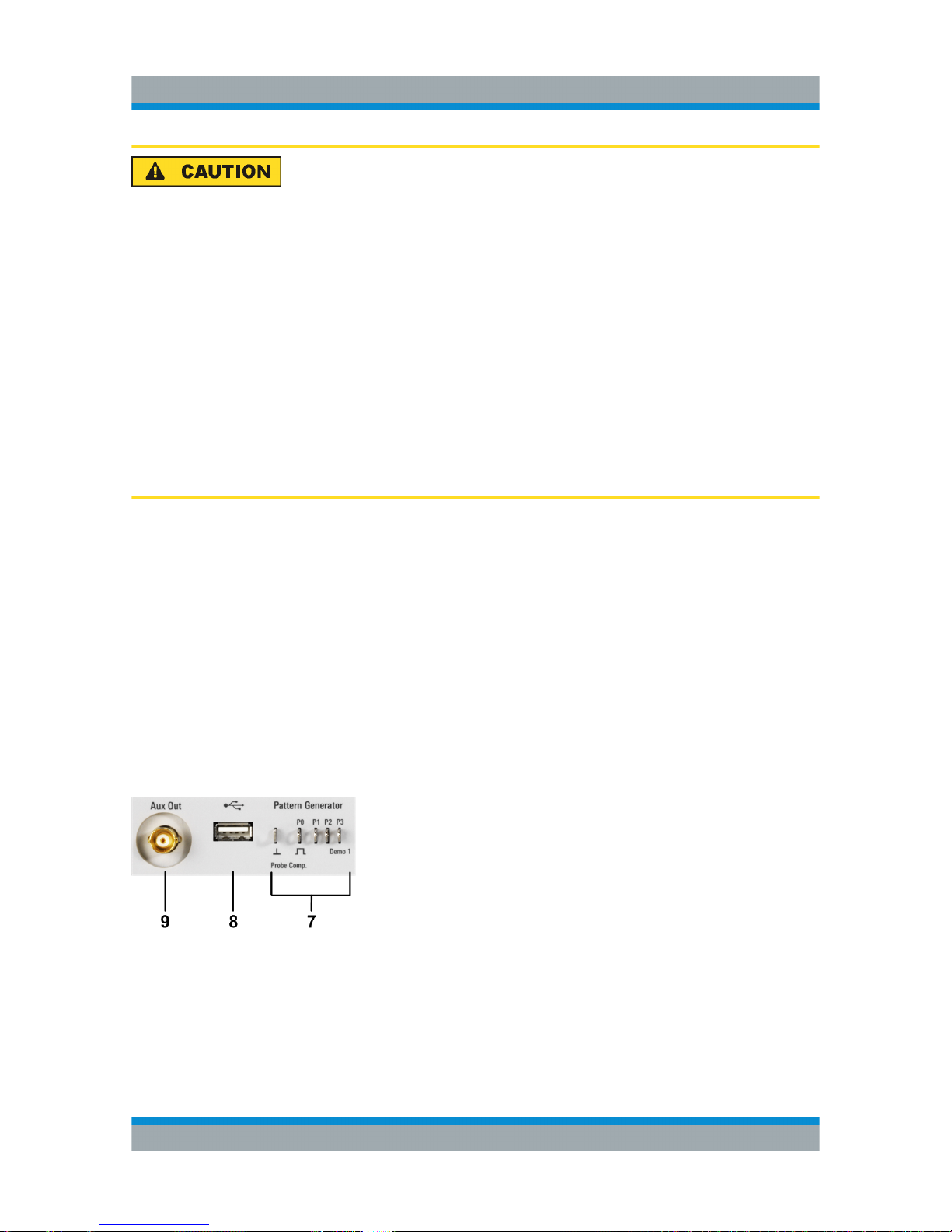

4.1.2 Other Connectors on the Front Panel
[Pattern Generator] (7)
Connectors for the pattern generator P0, P1, P2, P3.
The "Demo 1" signal is intended for demonstration purposes.
Front Panel

Instrument Tour
R&S®RTB2000
18Getting Started 1333.1605.02 ─ 06
[Probe Comp.] (7)
Probe compensation terminal to support adjustment of passive probes to the
oscilloscope channel.
Square wave signal for probe compensation.
Ground connector for probes.
[USB] type A (8)
USB 2.0 type A interface to connect a mouse or a keyboard, or a USB flash drive
for storing and reloading instrument settings and measurement data, and to
update the firmware.
[Aux Out] (9)
Multi-purpose BNC output that can function as pass/fail and trigger output, output
of 10 MHz reference frequency, and as waveform generator (with option
R&S RTB-B6).
4.2 Rear Panel
Figure 4-2 shows the rear panel of the R&S RTB2000 with its connectors.
Rear Panel

Instrument Tour
R&S®RTB2000
19Getting Started 1333.1605.02 ─ 06
Figure 4-2: Rear panel view of R&S RTB2000
1 = LAN connector
2 = USB connector, type B
3 = AC power supply connector and main power switch
4 = Kensington lock slot to secure the instrument against theft
5 = Loop for lock to secure the instrument against theft
6 = not used
[LAN] (1)
8-pin connector RJ-45 used to connect the instrument to a Local Area Network
(LAN). It supports up to 1 Gbit/s.
[USB] type B (2)
USB 2.0 interface of type B (device USB) for remote control of the instrument.
Note: Electromagnetic interference (EMI) can affect the measurement results. To
avoid any impact, use only USB connecting cables with a maximum length of
1 m.
AC supply: mains connector and main power switch (3)
The instrument supports a wide range power supply. It automatically adjusts to
the correct range for the applied voltage. There is no line voltage selector.
The AC main power switch disconnects the instrument from the AC power line.
Rear Panel
