Rohde & Schwarz RTP-K110 User manual

R&S®RTP-K110
HDMI Compliance Test
User Manual
1179319602
Version 01
(;ÝOî2)

This document describes the HDMI compliance test procedures of the following option:
●R&S®RTP-K110 (1802.9467.02)
© 2021 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1179.3196.02 | Version 01 | R&S®RTP-K110
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g. R&S®ScopeSuite is indicated as
R&S ScopeSuite.

Contents
R&S®RTP-K110
3User Manual 1179.3196.02 ─ 01
Contents
1 R&S ScopeSuite Overview....................................................................5
2 Preparing the Measurements................................................................7
2.1 Test Equipment..............................................................................................................7
2.2 Installing Software and License.................................................................................. 7
2.3 Setting Up the Network.................................................................................................8
2.4 Starting the R&S ScopeSuite....................................................................................... 8
2.5 Connecting the R&S RTP............................................................................................. 9
2.6 Report Configuration.................................................................................................. 10
3 Performing Tests..................................................................................12
3.1 Starting a Test Session...............................................................................................12
3.2 Configuring the Test................................................................................................... 13
3.2.1 General Test Settings....................................................................................................14
3.3 Initiating the Test.........................................................................................................16
3.4 Getting Test Results....................................................................................................16
3.5 Starting HDMI Tests.................................................................................................... 17
3.6 Test Configuration for HDMI.......................................................................................17
4 HDMI 1.4 Tests......................................................................................20
4.1 Test Equipment............................................................................................................20
4.2 Clock Tests.................................................................................................................. 20
4.2.1 All Clock Tests...............................................................................................................20
4.2.2 Voltage Off Tests........................................................................................................... 22
4.3 Data Tests.................................................................................................................... 23
4.3.1 Single-Ended Tests....................................................................................................... 23
4.3.2 Voltage Off Tests........................................................................................................... 25
4.3.3 Differential Timing Tests................................................................................................ 26
4.3.4 Jitter Mask Tests........................................................................................................... 27
4.3.5 Inter-Pair Skew..............................................................................................................28
5 HDMI 2.1 TMDS Tests...........................................................................30
5.1 Test Equipment............................................................................................................30
5.2 Clock Tests.................................................................................................................. 30

Contents
R&S®RTP-K110
4User Manual 1179.3196.02 ─ 01
5.2.1 All Clock Tests...............................................................................................................30
5.2.2 Measurements.............................................................................................................. 31
5.3 Data Tests.................................................................................................................... 33
5.3.1 Single-Ended Tests....................................................................................................... 33
5.3.2 Differential Timing Tests................................................................................................ 34
5.3.3 Differential Voltage Mask Tests..................................................................................... 35
5.3.4 Jitter Mask Tests........................................................................................................... 36
5.3.5 Inter-Pair Skew..............................................................................................................37

R&S ScopeSuite Overview
R&S®RTP-K110
5User Manual 1179.3196.02 ─ 01
1 R&S ScopeSuite Overview
The R&S ScopeSuite software is used with R&S RTP oscilloscopes. It can be installed
on a test computer or directly on the oscilloscope. For system requirements, refer to
the Release Notes.

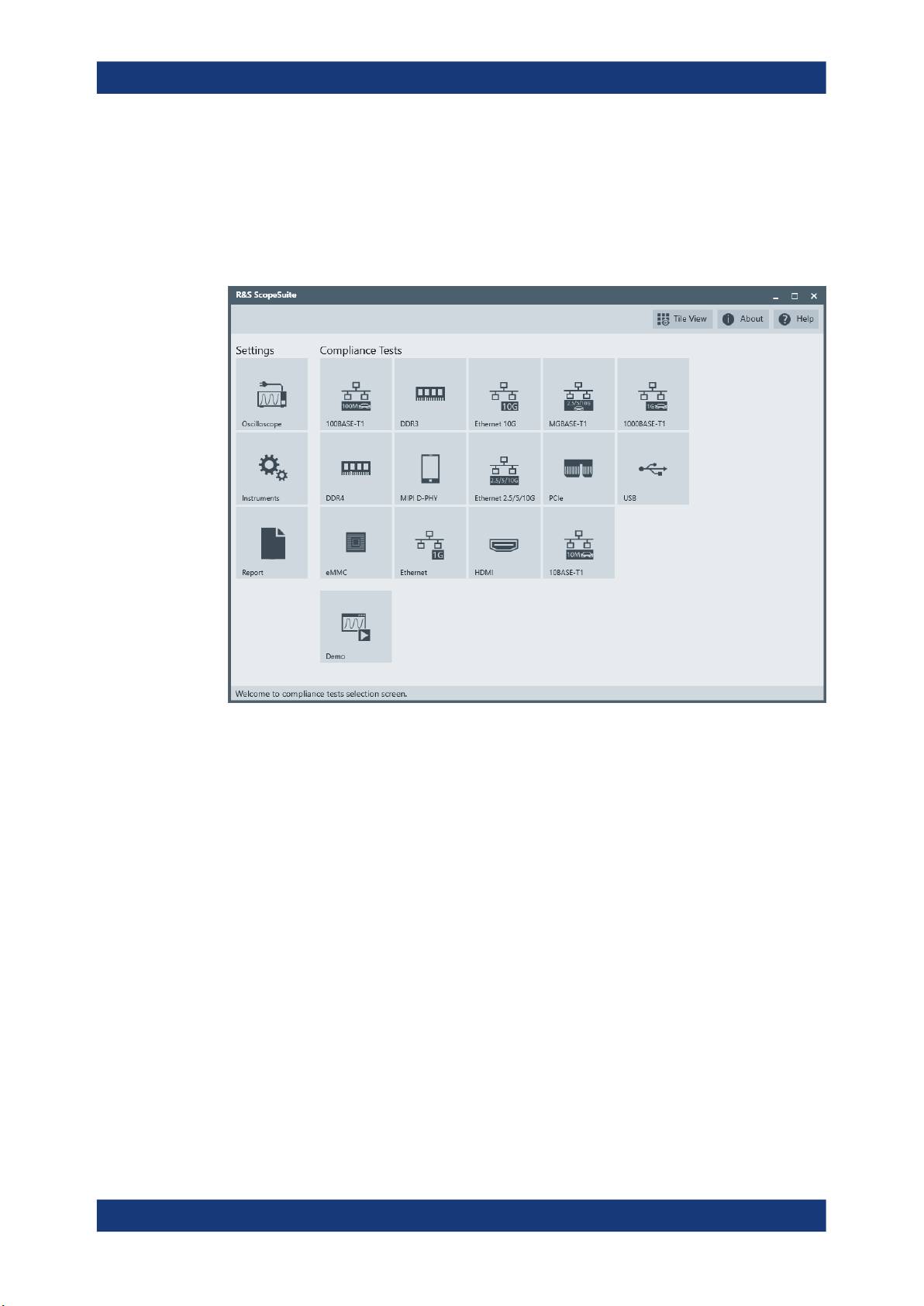

The R&S ScopeSuite main panel has several areas:
●"Settings": connection settings to oscilloscope and other instruments also default
report settings
●"Compliance Tests": selection of the compliance test
●"Demo": accesses demo test cases that can be used for trying out the software
without having a connection to an oscilloscope
●"Help": opens the help file, containing information about the R&S ScopeSuite con-
figuration
●"About": gives information about the R&S ScopeSuite software
●"Tile View": allows a personalization of the compliance test selection
You can configure which tests are visible in the compliance test section and which
are hidden, so that only the ones you use are displayed.
► To hide a test from the "Compliance Tests" view, do one of the following:

R&S ScopeSuite Overview
R&S®RTP-K110
6User Manual 1179.3196.02 ─ 01
a) Right-click on the compliance test you want to hide.
The icon of the test changes, see Figure 1-1. Now with a left click you can hide
the test.
Figure 1-1: Unpin icon
b) Click on "Title View" to show a list of the available test cases. By clicking a test
case in the show list, you can pin/unpin it from the main panel.

Preparing the Measurements
R&S®RTP-K110
7User Manual 1179.3196.02 ─ 01
2 Preparing the Measurements
2.1 Test Equipment
For HDMI compliance tests, the following test equipment is needed:
●R&S RTP with 4 channels and minimum 8 GHz bandwidth
●R&S RTP-K101 HDMI compliance test option (required option, installed on the
R&S RTP)
●2 modular probes, R&S ZM160 with 9 GHz bandwidth.
●2 modular probe tips R&S RT-ZMA40
●HDMI Termination Module and a HDMI TPA adapter
●EDID Emulator
●The free-of-charge R&S ScopeSuite software, which can be installed on a com-
puter or directly on the R&S RTP.
2.2 Installing Software and License
The preparation steps are performed only once for each computer and instrument that
are used for testing.
Uninstall older versions of the R&S ScopeSuite
If an older version of the R&S ScopeSuite is installed, make sure to uninstall the old
version before you install the new one. You can find the version number of the current
installation in "Help" menu > "About". To uninstall the R&S ScopeSuite, use the Win-
dows " Control Panel" > "Programs".
For best operation results, we recommend that the installed firmware versions of the
R&S ScopeSuite and the oscilloscope are the same.
To install the R&S ScopeSuite
1. Download the latest R&S ScopeSuite software from the "Software" section on the
Rohde & Schwarz R&S RTP website:
www.rohde-schwarz.com/product/rtp.html
www.rohde-schwarz.com/product/rto.html
2. Install the R&S ScopeSuite software:
● On the computer that is used for testing, or
● On the R&S RTP.
For system requirements, refer to the Release Notes.
Installing Software and License

Preparing the Measurements
R&S®RTP-K110
8User Manual 1179.3196.02 ─ 01
To install the license key on the R&S RTP
► When you got the license key of the compliance test option, enable it on the oscil-
loscope using [Setup] > "SW Options".
For a detailed description, refer to the R&S RTP user manual, chapter "Installing
Options", or to the online help on the instrument.
2.3 Setting Up the Network
If the R&S ScopeSuite software runs on a test computer, the computer and the testing
oscilloscope require a LAN connection.
There are two ways of connection:
●LAN (local area network): It is recommended that you connect to a LAN with DHCP
server. This server uses the Dynamic Host Configuration Protocol (DHCP) to
assign all address information automatically.
If no DHCP server is available, or if the Tabor WX2182B or WX2182C is used for
automatic testing, assign fixed IP addresses to all devices.
●Direct connection of the instruments and the computer or connection to a switch
using LAN cables: Assign fixed IP addresses to the computer and the instruments
and reboot all devices.
To set up and test the LAN connection
1. Connect the computer and the instruments to the same LAN.
2. Start all devices.
3. If no DHCP server is available, assign fixed IP addresses to all devices.
4. Ping the instruments to make sure that the connection is established.
5. If VISA is installed, check if VISA can access the instruments.
a) Start VISA on the test computer.
b) Validate the VISA address string of each device.
See also:
●Chapter 2.5, "Connecting the R&S RTP", on page 9
2.4 Starting the R&S ScopeSuite
To start the R&S ScopeSuite on the test computer or on the oscilloscope:
► Double-click the R&S ScopeSuite program icon.
Starting the R&S ScopeSuite

Preparing the Measurements
R&S®RTP-K110
9User Manual 1179.3196.02 ─ 01
To start the R&S ScopeSuite on the instrument, in the R&S RTP firmware:
► In the "Apps" dialog, open the "Compliance" tab.
2.5 Connecting the R&S RTP
If the R&S ScopeSuite is installed directly on the instrument, the software detects the
R&S RTP firmware automatically, and the "Oscilloscope" button is not available in the
R&S ScopeSuite.
If the R&S ScopeSuite software runs on a test computer, the computer and the testing
oscilloscope require a LAN connection, see Chapter 2.3, "Setting Up the Network",
on page 8. The R&S ScopeSuite software needs the IP address of the oscilloscope to
establish connection.
1. Start the R&S RTP.
2. Start the R&S ScopeSuite software.
3. Click "Settings" > "Oscilloscope".
4. Enter the IP address of the oscilloscope.
To obtain the IP address: press the Rohde & Schwarz logo at the top-right corner
of the oscilloscope's display.
5. Click "Get Instrument Information".
The computer connects with the instrument and gets the instrument data.
Connecting the R&S RTP

Preparing the Measurements
R&S®RTP-K110
10User Manual 1179.3196.02 ─ 01
If the connection fails, an error message is shown.
2.6 Report Configuration
In the "Report Configuration" menu, you can select the format of the report and the
details to be included in the report. You can also select an icon that is displayed in the
upper left corner of the report.
Also, you can enter common information on the test that is written in the "General Infor-
mation" section of the test report.
Report Configuration

Preparing the Measurements
R&S®RTP-K110
11User Manual 1179.3196.02 ─ 01
Report Configuration

Performing Tests
R&S®RTP-K110
12User Manual 1179.3196.02 ─ 01
3 Performing Tests
3.1 Starting a Test Session

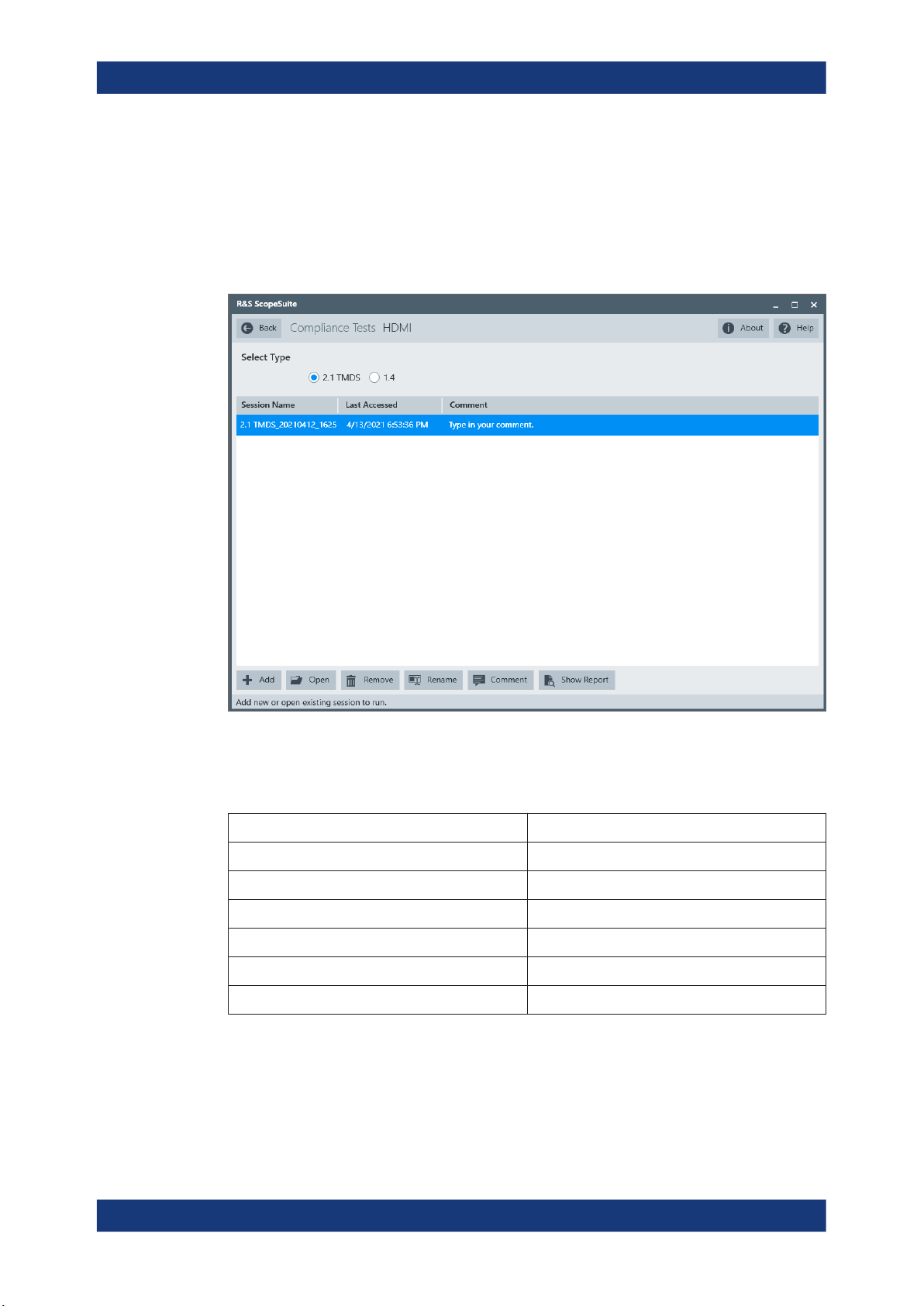

After you open a compliance test, the "Session Selection" dialog appears. In this dia-
log, you can create new sessions, open or view existing report.
The following functions are available for handling test sessions:
Function Description
"Add" Adds a new session
"Open" Opens the selected session
"Remove" Removes the selected session
"Rename" Changes the "Session Name"
"Comment" Adds a comment
"Show report" Generates a report for the selected session
To add a test session
1. In the R&S ScopeSuite window, select the compliance test.
2. In the "Session Selection" dialog press "Add".
3. If necessary change the "Session Name"
Starting a Test Session

Performing Tests
R&S®RTP-K110
13User Manual 1179.3196.02 ─ 01
To open a test session
1. In the R&S ScopeSuite window, select the compliance test.
2. In the "Session Selection" dialog, select the session you want to open and double
click on it.
Alternatively, select the session and press "Open".
To show a report for a test session
1. In the R&S ScopeSuite window, select the compliance test.
2. In the "Session Selection" dialog, select the session you want the report for and
press "Show report".

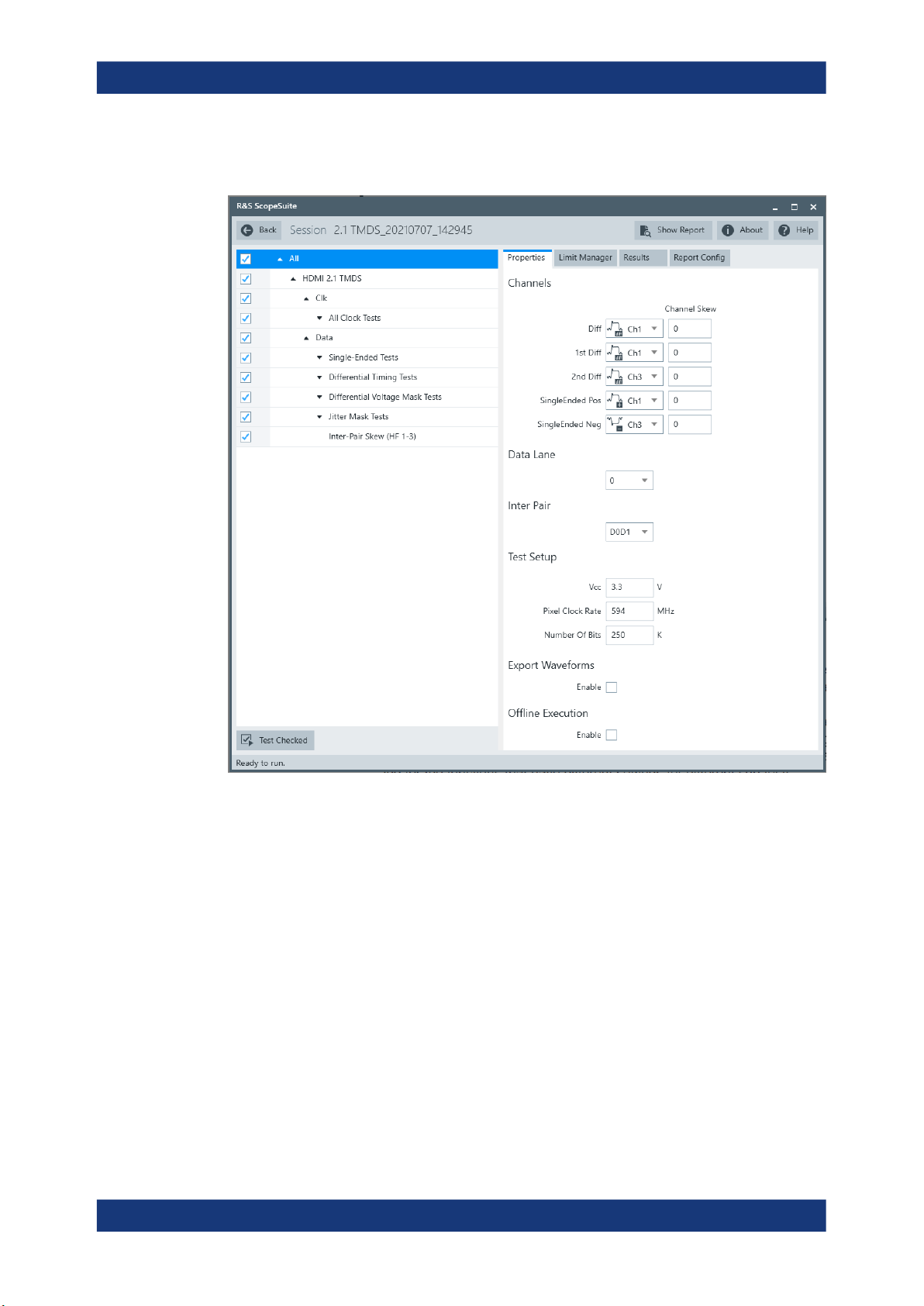

3.2 Configuring the Test
1. In the R&S ScopeSuite window, select the compliance test to be performed:
● "HDMI"
2. Open a test session, see Chapter 3.1, "Starting a Test Session", on page 12.
3. Adjust the "Properties" settings for the test cases you want to perform.
4. Click "Limit Manager" and edit the limit criteria, see Chapter 3.2.1.1, "Limit Man-
ager", on page 15.
5. If you want to use special report settings the "Report Config" tab to define the for-
mat and contents of the report. Otherwise the settings defined in "RSScopeSuite" >
"Settings" > "Report" are used. See Chapter 2.6, "Report Configuration",
on page 10.
6. Click "Test Checked"/"Test Single" and proceed as described in the relevant test
case chapter.
Configuring the Test

Performing Tests
R&S®RTP-K110
14User Manual 1179.3196.02 ─ 01
3.2.1 General Test Settings
Each session dialog is divided into several sections:
●"Properties": shows the settings that can be made for the test case selected on the
left side of the dialog. You can differentiate between the "All" and the sub test prop-
erties
In the "All" > "Properties" tab you can configure the settings for all test cases in the
current session. Once you change and save a setting in this tab, the changes will
be done for all test in the sessions. At the same time, there will be a special mark-
ing for the functions that have different settings for different sub tests.
●"Limit Manager": sets the measurement limits that are used for compliance testing,
see Chapter 3.2.1.1, "Limit Manager", on page 15.
●"Results": shows an overview of the available test results for this session.
●"Instruments": defines instruments settings for connecting to external devices, that
are specific for this test session.
When a session is first created the global settings ("RSScopeSuite" > "Settings" >
"Instruments") are copied to the session. This "Instruments" tab can be used to
change those copied defaults.
Configuring the Test

Performing Tests
R&S®RTP-K110
15User Manual 1179.3196.02 ─ 01
●"Report Config": defines the format and contents of the report for this session.
When a session is first created the global settings ("RSScopeSuite" > "Settings" >
"Report") are copied to the session. This "Report Config" tab can be used to
change those copied defaults.
●"Test Checked"/ "Test Single": starts the selected test group.
3.2.1.1 Limit Manager
The "Limit Manager" shows the measurement limits that are used for compliance test-
ing.
Each limit comprises the comparison criterion, the unit, the limit value A, and a second
limit value B if the criterion requires two limits.
You can set the values to defaults, change the values in the table, export the table in
xml format, or import xml files with limit settings.
► Check and adjust the measurement limits.
Configuring the Test

Performing Tests
R&S®RTP-K110
16User Manual 1179.3196.02 ─ 01
3.3 Initiating the Test
To perform compliance tests, the device under test is connected to the test board in a
test-specific way. Using a probe, the test board is connected with the R&S RTP. The
probe connections are test-specific. The R&S ScopeSuite guides you step-by-step
through the connection setup and the test sequence.
1. Set the test setup on a nonconductive, static-approved work surface.
2. In the R&S ScopeSuite window, select the compliance test.
3. Open a test session, see Chapter 3.1, "Starting a Test Session", on page 12.
4. Check the test configuration settings and adjust, if necessary. See: Chapter 3.2,
"Configuring the Test", on page 13.
5. Click "Test Checked" for starting all checked test cases or "Test Single" for starting
only the selected test case.
The R&S ScopeSuite test wizard explains the following individual setup steps. A
detailed test description can be found in the following chapters:
●Chapter 4, "HDMI 1.4 Tests", on page 20
●Chapter 5, "HDMI 2.1 TMDS Tests", on page 30
3.4 Getting Test Results
If you resume an existing session, new measurements are appended to the report,
new diagrams and waveform files are added to the session folder. Existing files are not
deleted or replaced. Sessions data remain until you delete them in the "Results" tab of
the session.
The report format can be defined in "RSScopeSuite" > "Settings" > "Report" for all
compliance tests (see also Chapter 2.6, "Report Configuration", on page 10). If you
want to use special report settings for a session, you can define the format and con-
tents of the report in the "Report Config" tab of the session.
All test results are listed in the "Results" tab. Reports can be provided in PDF,
MSWord, or HTML format. To view and print PDF reports, you need a PDF viewer, for
example, the Acrobat Reader.
The test report file can be created at the end of the test, or later in the "Session Selec-
tion" dialog.
To show a test report
1. In the R&S ScopeSuite window, select the compliance test to be performed.
2. Select the session name in the "Session Selection" dialog and click "Show report".
The report opens in a separate application window, depending on the file format.
You can check the test results and print the report.
Getting Test Results

Performing Tests
R&S®RTP-K110
17User Manual 1179.3196.02 ─ 01
To delete the results, diagrams and waveform files of a session
1. In the "Session Selection" dialog select the session and open it.
2. In the "Results" tab, select the result to be deleted.
3. Click "Remove".
3.5 Starting HDMI Tests
Before you run the test, complete the following actions:
●LAN connection of the oscilloscope and the computer running the R&S Scope-
Suite, see Chapter 2.5, "Connecting the R&S RTP", on page 9
1. Select "HDMI" in the R&S ScopeSuite start window.
2. In the "Session Selection" dialog, set the "Select Type" standard. The following
"Types" are available:
● "2.1 TDMS":
● "1.4":
3. Add a new test session.
4. Open the session. For details, see Chapter 3.1, "Starting a Test Session",
on page 12.
5. Check the test configuration settings. Adjust, if necessary. See:
●Chapter 3.6, "Test Configuration for HDMI", on page 17
●Chapter 3.2.1.1, "Limit Manager", on page 15
6. Select/check the test cases you want to run and click "Test Single"/"Test checked".
7. A step-by step guide explains the following individual setup steps. When you have
finished all steps of the step-by-step guide, the compliance test runs automatically.
3.6 Test Configuration for HDMI
The test configuration consists of some test-specific configuration settings. The values
for the settings in this tab depend on the selected version of the standard.
Test Configuration for HDMI

Performing Tests
R&S®RTP-K110
18User Manual 1179.3196.02 ─ 01
Figure 3-1: Configuration for HDMI compliance tests
Data Lane
Selects the data lane that is tested.
Inter Pair
Selects the used inter pair skew. You can select "D0/D1", "D1/D2", "D0/D2".
Vcc
Voltage of the common collector.
Pixel Clock Rate
Sets the pixel clock rate. The pixel clock rate is a set of predefined values depending
on the DUT settings.
For available pixel clock rates, refer to HDMI compliance test specification.
Number of Bits
Sets the number of bits.
Test Configuration for HDMI

Performing Tests
R&S®RTP-K110
19User Manual 1179.3196.02 ─ 01
Export Waveforms
Enables you to export a waveform. You can later load the waveforms to run the tests in
the offline mode, see Offline Execution.
You can define an export directory, or use the default one:
MyDocuments\Rohde-Schwarz\RSScopeSuite\<Version>\Waveforms\
<ComplianceTest>\<SubTest>\<Speed>\<SessionName>
For example:
MyDocuments\Rohde-Schwarz\RSScopeSuite\5.00.0\Waveforms\HDMI\
2.1 TMDS\HDMI_21_20210114_144116
Offline Execution
If enabled, allows you to use exported waveforms as a source for the execution of the
compliance test.
You can select one waveform for each needed signal.
Test Configuration for HDMI

HDMI 1.4 Tests
R&S®RTP-K110
20User Manual 1179.3196.02 ─ 01
4 HDMI 1.4 Tests
4.1 Test Equipment
The following equipment is needed for performing HDMI 1.4 compliance tests.
Item Description, model Quantity
Rohde & Schwarz oscilloscope R&S RTP with 4 channels and minimum bandwidth 8
GHz
1
Modular probes R&S ZM160 2
Modular probe tips R&S RT-ZMA40 2
HDMI TPA adapter - 1
HDMI termination module - 1
EDID emulator - 1
DUT HDMI 1.4 device that supports the selected type 1
4.2 Clock Tests
4.2.1 All Clock Tests
4.2.1.1 Performing the Tests
1. Start the test as described in Chapter 3.5, "Starting HDMI Tests", on page 17.
2. Select "1.4" > "Clock" > "All Clock Tests".
Clock Tests
