Rohnson R-028 User manual

PANEL GLASS CONVECTION HEATER
WITH Wi-Fi
INSTRUCTION MANUAL
MODEL: R-028
This product is only suitable for well insulated spaces or occasional use.

Introduction
To get the most out of your new heater, please read through these instructions and the
attached safety regulations before use. Please also save the instruction manual in case you
need to remind yourself of the heater’s functions at a later date.
Technical Specification
Details
R-028
Voltage
220-240V~
Frequency
50Hz
Power
1000/2000W
IP Waterproof
IP24
Important
Before plugging the unit into the mains, ensure by visual inspection that the unit is intact
and has not suffered any damage during transit.
Caution
The appliance must be always placed on a flat and stable surface.
In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance
must not be supplied through an external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by the utility.
For your own safety
1. Read all instruction before using the heater.
2. Only connect the heater to a single-phase socket with a mains voltage as specified on
the rating plate.
3. Do not leave your home while the appliance is in function: ensure that the switch is in
OFF (0) position and the thermostat is in minimum position. Always unplug the
appliance.
4. Keep combustible material such as furniture, cushions, bedding, paper, clothes,
curtains etc. at least 100cm away from the heater.
5. Do not hand anything on or in front of the heater.
6. Always use the heater in an upright position.
7. Do not place the heater against walls, furniture, curtains, etc.
8. Do not use the appliance in rooms less than 4m² area.
9. Always unplug the heater when not in use. Do not pull the cord to unplug the heater.
10. Keep the air inlet and outlet free from objects at least 1m in front and 50cm behind the
heater.

11. Do not install the heater immediately below a socket- outlet.
12. Do not let animals or children touch or play with the heater. Pay attention the air outlet
gets hot during operation.
13. Do not cover. If covered, there is the risk of overheating.
14. Do not use this heater in the vicinity of showers, bath tubs, wash basins or a swimming
pool etc.
15. Do not use the heater in the rooms containing explosive gas inflammable solvents,
varnish or glue.
16. Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust
opening as this may cause electric shock, or fire or damage to the heater.
17. If the heater has been dropped or damaged it should not be used until it has been
inspected by a qualified service center.
18. Close supervision is necessary when the heater is being used by or near children,
persons suffering from any physical impairment or pets.
19. Do not use to dry clothes or any fabric.
20. Do not use the heater to dry your laundry. Never obstruct the intake and outlet grilles
(danger of overheating).
21. Do not move the appliance while it is functioning in order to avoid overheating with the
additional risk of fire.
22. If any part of the heater or supply cord becomes damaged, it must be replaced by a
qualified electrician. In order to avoid a hazard.
23. The heater must not be located immediately below a socket- outlet.
24. Do not use this heater with a programmer, timer or any other device that switches the
heater on automatically, since a fire risk exists if the heater is covered or positioned
incorrectly.
25. Do not leave the heater switched on when leaving your home or going to sleep.
26. Children should be supervised to ensure that they do not play with the appliance.
27. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience or knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
28. Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
29. Children of less than 3 years should be kept away unless continuously supervised.
30. Children aged from 3 years and less than 8 years shall only switch on/off the appliance
provided that it has been placed or installed in its intended normal operating position
and they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
31. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean
the appliance or perform user maintenance.
32. Do not leave unattended when plug in to the mains supply.
33. The maximum radioelectric power in the frequency bands in which the radio equipment
operates is 18dBm and 2,4GHz.

SPECIFICATION
Model: PN2000G WIGI / R-028
Standard: IEEE 802.11 b/g/n
Antenna Type: PCB Antenna
Frequency WIFI: 2.4GHz
Maximum Transmitted Power: 18dBm Max
Dimension: 920*240*430(mm)
Operation Temperature: 0°C~45ºC / 32ºF~113ºF
Operation Humidity: 10%~85%
Power lnput: 220-240V AC, 50/60Hz
Producer: Ningbo Panel Electric Appliance Co., Ltd
Address: No.255, Lvyuan 1st Road, Chongshou Town, Cixi, 315334 Ningbo, China
Tel: [phone], Fax: [phone]
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Ningbo Panel Electric Appliance Co., Ltd, declares that the radio equipment type of
R-077 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
www.vassilias.gr / www.rohnson.cz
Caution
Some parts of the heater can become very hot and cause burns. Do not touch hot surfaces.
Particular attention has to be given where children and vulnerable people are present.
Note
These heaters are intended for domestic use only. They can be used as both portable
appliance and wall mounting appliance.
Installation (While use on the floor as portable appliance)
Please attach the feet on the heater’s housing and fixing them with supplied
ST12x4mm(8pcs) screws.

Wall mounting (While use the heater as fixed appliance)
Please note that the product must be installed at least 15 cm from the floor and 50
cm from the ceiling.
-For wall mounting study scheme
1.Uninstall the bracket from the body,see the image1
2.Drill the holes at each sides on the wall,then insert the plastic expanded plugs within,
Fix the bracket in the wall with screw,see the image2
3.Fit the heater into suitable position ensuing that the holes align with bracket.see image3
4.Tight the screw on the top of bracket to catch steady
Operation
Insert the plug into a suitable socket outlet on an A.C. power supply having the same
voltage as that shown on its rating label.
The touch screen buttons located on the product are the following:

Power function
Before you working the heater, your should turn on the switch in side.
Press “ ” to set functions. The upper part of the display shows the room temperature
The heater is working at low power heating conditions.
Mode
Press “ ” to regulate low , or high temperature power
Temperature
Internal temperature is displayed every time the appliance is started up. The temperature
can be set when the appliance is in stand-by or heating. When the room temperature
reaches the set level, the high temperature power stops and the low temperature power
remains active. When room temperature is 2 degrees over the set temperature, both the
high and lower temperature powers will stop operating. The machine will begin operating
again only when temperature decreases 2 degrees with respect to the set temperature. The
error of display temperature and real room temperature ≤ 4 degree.
Temperature selection
Press "+" or "-" button to select the desired temperature from a range of 5°-40°C. The
temperature indicator will remain lit for a long time.
Timer
Press the timer button” ”, to select the desired range between 1 hour to 24 hours.
The remaining time will appear.
1. Display
2. Temperature“+” button
3. Temperature“-“ button
4. Power button
5. Mode button
6. Timer button
7. Receiver
8. Child clock button
1
2
3
4
5
6
7
8

Child clock
Press the child clock button 3 seconds,” ” will be display on the screen, so you cannot
make any operate and same ways to touch to delete the child clock function.
Please scan QR code for download Please download Rohnson APP from
Rohnson APP for Android as below. APP Store for IOS mobile device.
Connection by WIFI
1.Use your phone to scan the QR code below or search “Rohnson”App in
Play store or App store. Download and install the Rohnson App.
2.Select your country code, enter the cellphone number and tap “Get”to get a message
containing verification on code.
3.Enter the verification on code in the message and tap“Login”to login the App.
4. Press the safety switch at the side of the unit, then press the on/off switch to switch on
the product and make sure the product is in WIFI covered environment. The indicator light
will rapidly blinks. If the indicator light do not rapidly blinks, please press“ ” button for

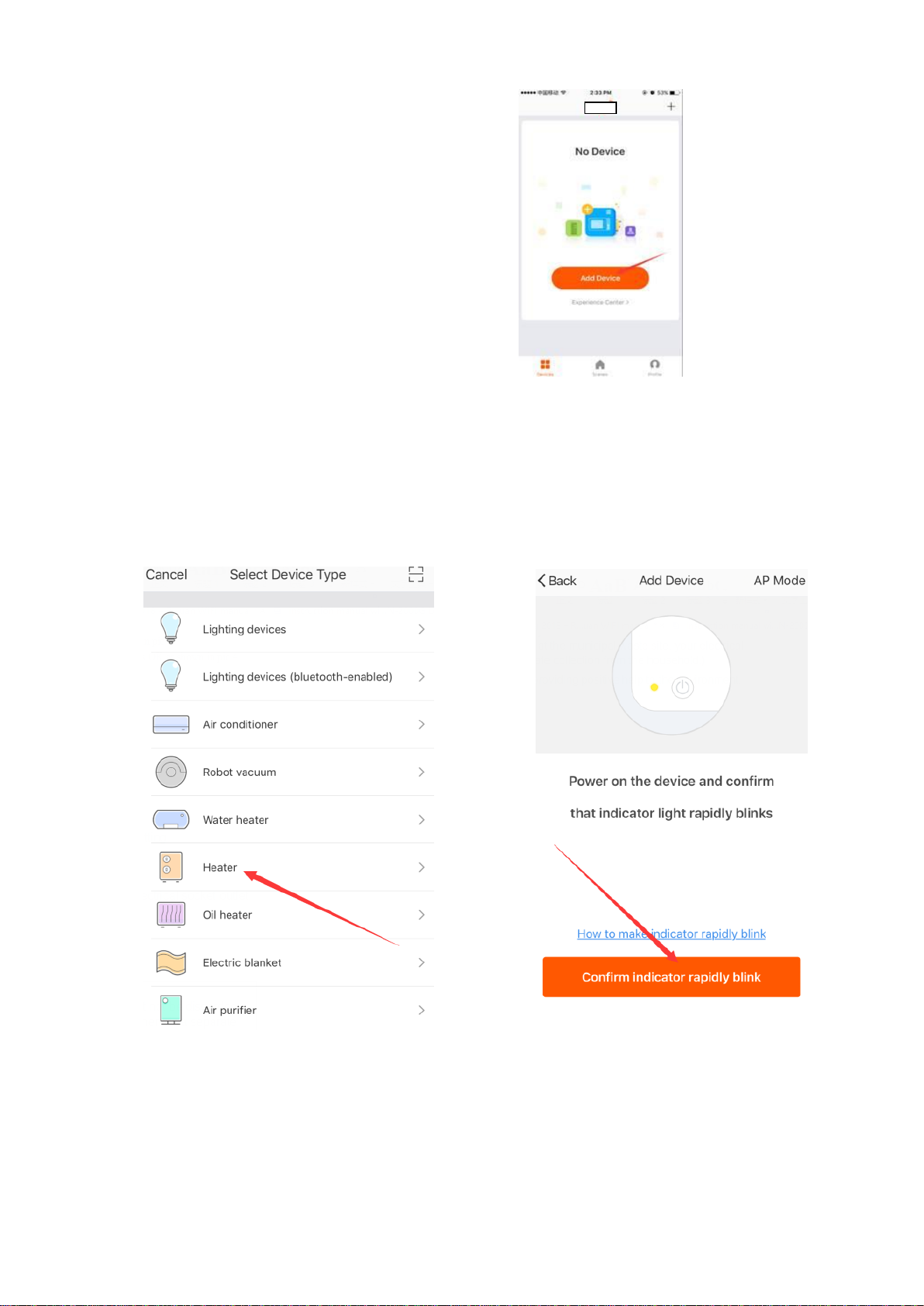

5 seconds and the product will have “bi”sound, then go to the App, tap “add device”
at the bottom, as shown in the picture 1,

Pic 1
A) Choose “Heater”, as shown in pic 2
B) Press the “confirm indicator rapidly blinks” when the indicating light on device
rapidly blinks, as shown in pic 3
C) Input password of WIFI and then confirm, as shown in pic 4
D) Wait for the APP to connect with the device until it is connected successfully .as
shown in pic 5
Pic 2 Pic 3

Pic 4 Pic 5
Operation by WIFI
1. You can operate the device by mobile under WIFI or 4G LTE environment, as shown in
the picture 6,
Pic 6 Pic 7

Pic 8 Pic 9
2.Select “Weekly timer”button to operation:
Press the “Add timer”, as shown in pic 7
You can choose the weekly and timer what you want, pls note that you must keep the set
temperature higher the currently temperate when ON the power as shown in pic 8
Press the “Save”button in top right corner to save this during “stop or start”weekly timer
operation, as shown in pic 9.
Once again operation to set the next during “stop or start”weekly timer.
Press the “back”button in top left corner to check the record what you set.
Long time touch the record you can make choice to cancel.
Operating sound
The appliance emits a beep upon each operation setting.
Cleaning and maintenance
Before cleaning always remove the plug from the electrical socket outlet.
Clean the air inlet and outlet grilles frequently.
Never use abrasive powders or solvents.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH
EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special
local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a
household appliance separately avoids possible negative consequences for the environment and health, deriving
form inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in
energy and resources. As a reminder of the need to dispose of household appliances separately, the product is
marked with a crossed-out wheeled dustbin.
Model Number:R-028
Item
Symbol
Value
Unit
Item
Unit
Heat output
TypeofheatInput,forelectric storage local
space heaters only (select one)
Nominal heat output
Pnom
2.0
kW
Manual heat charge control, with
integrated thermostat
[no]
Minimum heat output
(indicative)
Pmin
0,001
kW
Manual heat charge control with
room and/or outdoor temperature
feedback
[no]
Maximum continuous
heat output
Pmax,c
2.0
kW
Electronic heat charge control with
room and/or outdoor temperature
feedback
[no]
Auxiliary electricity
consumption
Fan assisted heat output
[no]
Atnominal heatoutput
elmax
0
kW
Type of heat output/room temperature
control (select one)
At minimum heat
output
elmin
0
kW
Single stage heat output, no room
temperature control
[no]
In standby mode
elsb
0,001
kW
Two or more manual stages, no
room temperature control
[no]
With mechanical thermostat room
temperature control
[no]

With electronic room temperature
control
[no]
electronic room temperature control
plus day timer
[no]
electronic room temperature control
plus week timer
[yes]
Other control options (multiple selections
possible)
Room temperature control with
presence detection
[no]
Room temperature control with open
window detection
[no]
With distance control option
[yes]
With adaptive start control
[no]
With working time limitation
[no]
With black bulb sensor
[no]
Contact details:
VASSILIAS S.A.
