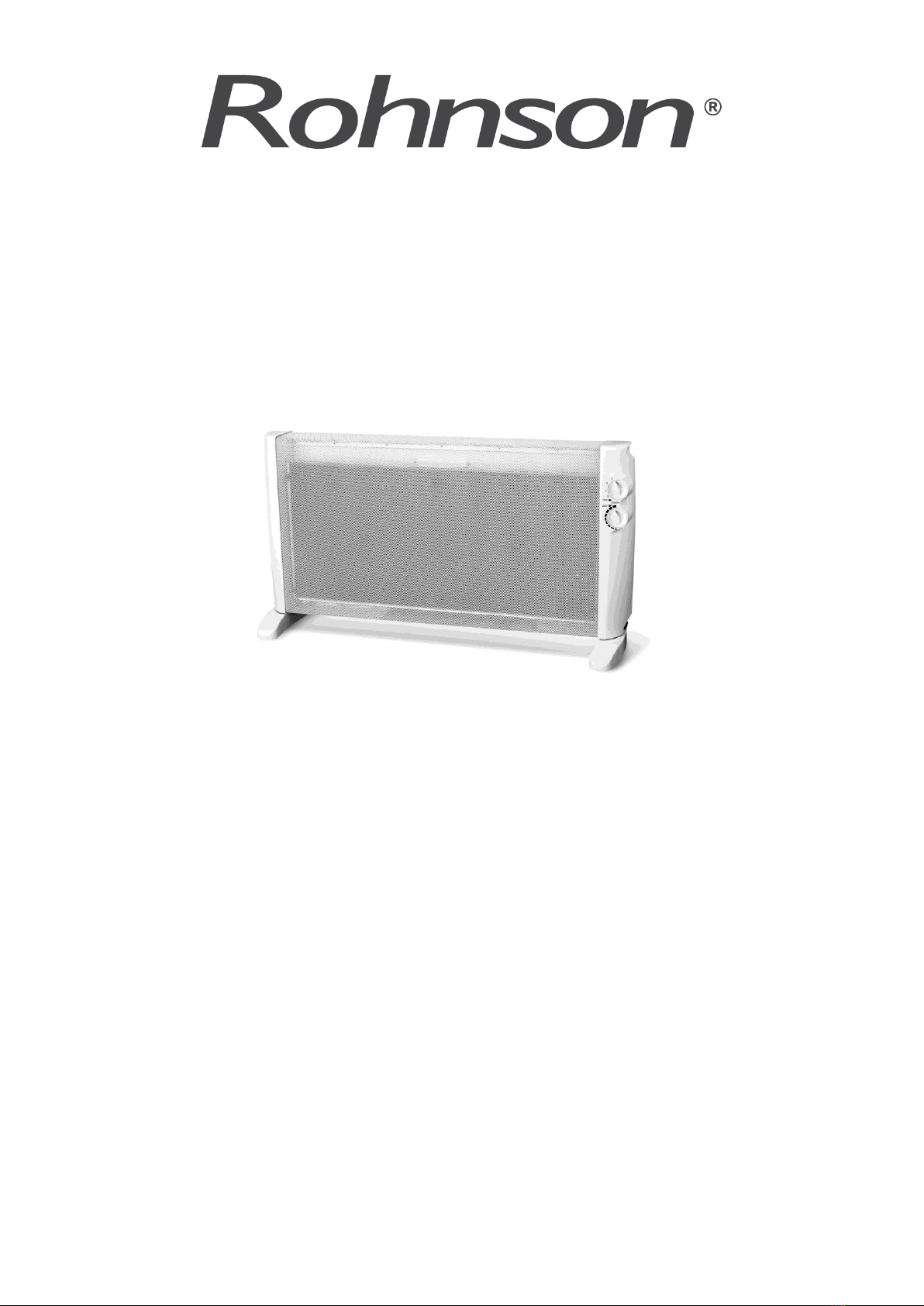

Rohnson R-072 User manual

PORTABLE MICA HEATER
MODEL : R-072
INSTRUCTION MANUAL
CAREFULLY READ THESE INSTRUCTIONS AND KEEP THEM
This product is only suitable for well insulated spaces or occasional use

SAFETY RECOMMENDATIONS
1. Read the instructions before using the appliance for the first time.
2. The appliance must be installed following national regulations for use.
3. It is necessary to be vigilant and supervise the appliance while children are close
by.
4. This appliance is only designed for domestic and indoor use. Do not use
outdoors. Use the heater only as indicated in the instructions.
5. Any other use that does not conform to the supplier's instructions may cause
material damage or personal injury
Any other use not in accordance with manufacturer's instructions may result in
property damage or personal injury. Do not use this appliance for other
purposes than intended by the manufacturer.
6. Use this appliance in a well aerated and ventilated room. Do not cover the
appliance or air flow.
7. Never try to open the product, remove the control knobs, push objects into the
ventilation. The manufacturer cannot be held responsible.
8. Do not leave this appliance unsupervised while it is on. When not being used,
always ensure that the product is securely in the 'Off' position (O) and unplugged
from the socket.
9. Great care must be taken when being used by or in the presence of children of
older persons.
10. If the power cable is damaged, it must be replaced by the manufacturer, their
after-sales service or a similarly qualified person to avoid any hazards.
11. Do not place the cable under a carpet or any heavy object, and do not cover.
12. To avoid accidents, keep away from areas where people may trip. Do not place
on unstable surfaces
13. To avoid any risk of fire or electric shock, it is essential that the appliance not be
exposed to rain or moisture, and not be opened. The appliance contains electric
parts that may electrocute or burn you.
14. Do not place this appliance close to flammable fabrics, surfaces or liquids in
order to avoid any risk of fire. Keep it well away from any source at risk of causing
hazards and maintain it at a safe distance
(whether this is the front, rear or sides). Do not use this appliance in locations
such as garages, warehouses etc. where dangerous or flammable products are
stored (paint, fuel, alcohol etc.).
15. The appliance must not be placed just underneath an electric socket.
16. This product is hot when it is on. To avoid any injuries or burns, do not touch it
directly and use gloves or other means.
17. Do not use this heating appliance close to a bath, shower or swimming pool
18. Check that the voltage corresponds to that of the power supply (230v mains
socket) To avoid any risk of electric shock, plug the appliance in with the pins fitted
correctly into the socket.
19. In the event that you need an extension cable, ensure that it is suitable for the
appliance's power level.

20. While the appliance remains plugged into the socket (wall socket) it is not
disconnected from the power supply, even if it is switched off. The appliance must
be completely unplugged before cleaning, services, maintenance or even moving
from one place to another.
21. WARNING: To avoid overheating, do not cover the heater.
22. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
23. It is advisable that you supervise children to ensure they do not play with the
appliance.
24. Appliances are not designed to be used in conjunction with a separate timer or
with a control system used at a distance.
25. This appliance is designed to be used for domestic and indoor use only.
26. WARNING: To avoid overheating, do not cover the heater.
This symbol means that you must not cover the appliance
27. Children of less than 3 years should be kept away unless continuously
supervised.
28. Children aged from 3 years and less than 8
years shall only switch on/off the appliance provided that it has been placed or
installed in its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
29. Children aged from 3 years and less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.
30. The heater must not be wall mounted and used as a wall mounted heater.
31. Regarding detailed information on how to attach the feet to the heater, refer to
the section "ASSEMBLY".
32. For cleaning and maintenance instruction, refer to the corresponding section
33. User instructions should be provided with the device so that it can be used
safely.
34. The heater must not be wall mounted and used as a wall mounted heater.
CAUTION —Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present”
Warning: Plug the appliance in correctly and do not leave within reach of
children without supervision.

DESCRIPTIONS
A –ON/OFF switch with power settings
B- Thermostat
ASSEMBLY
Unpack the heater and the
accessories.
A. Turn the radiator upside-down
B. Fix the 2 feet to the base of the
radiator and fix them with 2
screws
C. Turn the radiator upright
Only operate the radiator in normal
upright position with feet assembled
attached to the bottom
Do not install the product on the wall
TECHNICAL SPECIFICATIONS
Model N° :
R-072
Power 1 :
750 W
Description :
Portable mica heater
Power 2 :
1250 W
Voltage :
220-240V~ 50Hz
Power 3 :
2000 W
IP24

OPERATING:
PRECAUTIONS FOR USE
1. Before using this appliance, ensure that it is placed on a flat, stable surface. This unit
is equipped with an anti-tilt switch which stops the machine in case it fall down or if it is
not placed on a stable surface.
2. Place the heater at least 100cm from the wall, furniture or curtains.
3. Check that the voltage corresponds to that of the power supply (230v mains socket)
4. Leave the heater to cool and unplug it before moving it and use the handle to move it.
USING THE HEATER
1. Place the product in an upright position on a flat, steady, stable, heat-resistant surface.
Make sure there is nothing flammable or heat sensitive within 1 meter. Operating the
product in any other position could cause a hazard.
2. Take out the power cord from the cable storage, and insert the mains plug into a suitable
wall socket.
3. Turn the heater to one of the following position :
-Power (1) : 750 W
-Power (2) : 1250 W
-Power (3) : 2000 W
4. The ambient temperature can be set with the thermostat. Turn the thermostat knob in the
direction of clockwise to increase temperature, or counterclockwise to decrease it, until the
desired temperature.
5. When not using the heater, put those 2 buttons to their original position « 0 » and «MIN. »,
and then unplug it.
6. The heater has a protection system against overheating.
7. Do not cover or place any object on the heater when in use.
Frost protection function
With the thermostat switch set on the position and one of the power levels selected, the
appliance maintains room temperature at about 5°C preventing freezing.
Note: When not in use, please turn the mechanical power switch off
and disconnect from mains wall socket.
CLEANING AND MAINTENANCE
1.Always unplug the appliance and keep it away from any socket before cleaning.
2.Use a vacuum cleaner to remove dust on grilles.
3.To clean the outer surface of the appliance, use a lightly damp cloth. Then, dry it thoroughly
with a soft, dry cloth before using again.
4.Do not use any cleaning or chemical products of any kind. Do not let water enter the openings
on the heater. Do not use wax or products that create a shine as they can react to heat and
cause discoloration.
5.When the appliance is not being used for prolonged periods, ensure that it is fully unplugged
from the socket and store in its packaging for simple storage and later use. Clean your radiator
as mentioned above and remove the feet.

When not in use, the power cord can be wound on the cable holder.
Pull out the cable holder Wind the power cord on the cable holder
.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE
WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a
special local authority differentiated waste collection centre or to a dealer providing this service. Disposing
of a household appliance separately avoids possible negative consequences for the environment and health,
deriving form inappropriate disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to dispose of household appliances
separately, the product is marked with a crossed-out wheeled dustbin.
Model Number: R-072
Item
Symbol
Value
Unit
Item
Unit
Heat output
TypeofheatInput,for electric storage local
space heaters only (select one)
Nominal heat output
Pnom
2,4
kW
Manual heat charge control, with
integrated thermostat
no
Minimum heat output
(indicative)
Pmin
0,9
kW
Manual heat charge control with
room and/or outdoor temperature
feedback.
no
Maximum continuous
heat output
Pmax
2,4
kW
Electronic heat charge control with
room and/or outdoor temperature
feedback.
no
Auxiliary electricity
consumption
Fan assisted heat output
no
Atnominal heatoutput
elmax
2,503
kW
Type of heat output/room temperature
control (select one)

At minimum heat
output
elmin
1,122
kW
Single stage heat output, no room
temperature control.
no
In standby mode
elSB
N/A
W
Two or more manual stages, no
room temperature control.
no
With mechanical thermostat room
temperature control.
Yes
With electronic room temperature
control.
no
Electronic room temperature
control plus day timer.
no
Electronic temperature control plus
week timer.
no
Other control options (multiple selections
possible)
Room temperature control with
presence detection.
no
Room temperature control with
open window detection.
no
With distance control option.
no
With adaptive start control.
no
With working time limitation.
no
With black bulb sensor.
no
Contact details
