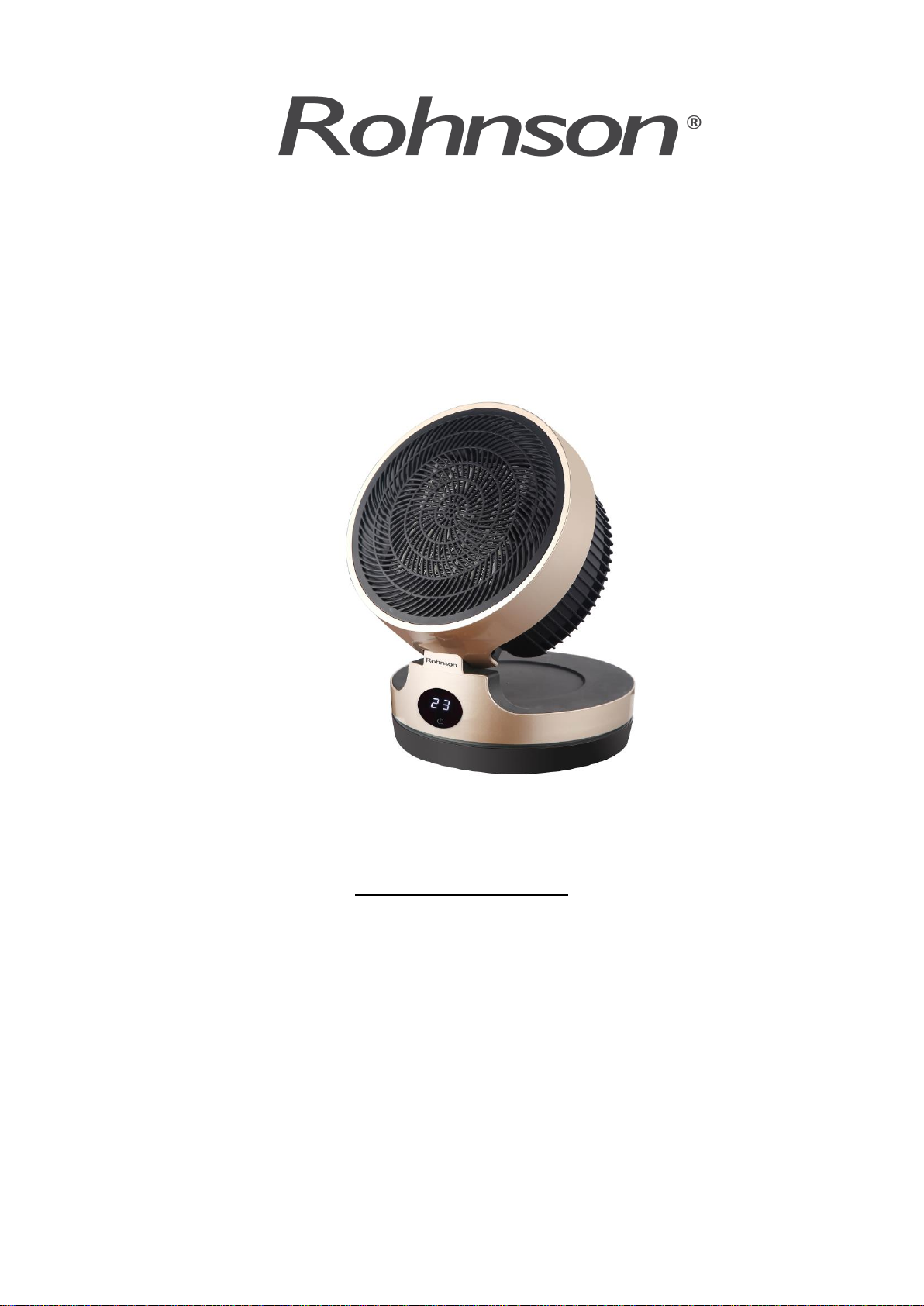

Rohnson R-8070 User manual

3 in1 Fan Heater, Convector & Fan with remote control
MODEL NO: R-8070
INSTRUCTION MANUAL
This product is only suitable for well insulated spaces or occasional use.

Introduction
•Please read this guidance carefully before using your fan heater, so that you can use it
correctly.
•Please keep well with this guidance.
Brief Introduction of the product:
The fan heater of these series adopts heating technology of PTC, it has a high heating
efficiency, centralized heat and extensive usage.
Notes:
1. Read all instructions before using the heater.
2. Strictly prohibit to plug-in or off the plug instead of turn on or off the power switch.
3. Do not use this fan heater in the immediate surroundings of a bath, a shower or a swimming
pool.
4. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or
a similar qualified person in order to avoid a hazard.
5. Strictly prohibit use the same socket-outlet with other big power appliance.
6. Please put off the plug when nobody is nearby.
7. Strictly prohibit use the heater in where be easy shocked or be toppled.
8. If there is something wrong with the heater, please turn off the machine and put off the plug
immediately and send to service agent.
9. Warning: In order to avoid overheating, do not cover the heater.
10. The meaning of figure in marking is “WARNING: DO NOT COVER”.
11.The heater must not be located immediately below a socket-outlet.
12.There is slight sound when turned on or off, which is normal due to the material expanding
when heated and contract when cooled, please do not be worried.
13.The used heating element treated by a special way, it has a long using life, please do not use
any other heating element instead of it.
14.Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains, etc.
At least 100cm away from the heater.
15.Keep the air inlet and outlet free from objects: at least 1 m in front and 50 cm behind the
heater.
16.Only connect the fan heater to a single-phase socket with a main voltage as specified on the
rating plate.
17.Do not leave your home while the appliance is in function: ensure that the switch is in OFF(0)
position and the thermostat is in minimum position. Always unplug the appliance.
18.WARNING: This heater is not equipped with a device to control the room temperature. Do not
use this heater in small rooms when they are occupied by persons not capable of leaving the
room on their own, unless constant supervision is provided.
19.Pay attention for R-8070 which have button battery in the remote control.
19.1

KEEP OUT OF REACH OF CHILDREN.
Swallowing can lead to chemical burns, perforation of soft tissue, and death.
Severe burns can occur within 2 hours of ingestion.
Seek medical attention immediately.
19.2 Keep batteries out of the reach of children
19.3 Do not allow children to replace batteries without adult supervision
19.4 Do not short-circuit batteries
19.5 Do not heat batteries
19.6 Remove batteries from equipment if it is not to be used for an extended period of time
unless it is for emergency purposes
19.7 Always select the correct size and type of battery most suitable for the intended use.
Information provided with the equipment to assist correct battery selection should be
retained for reference.
19.8 Clean the battery contacts and also those of the equipment prior to battery installation.
19.9 Ensure that the batteries are installed correctly with regard to polarity (+ and –).
19.10 Remove exhausted batteries promptly.
19.11 Do not dismantle batteries
19.12 Do not dispose of batteries in fire except under conditions of approved and controlled
Incineration
19.13 Batteries may be disposed of via communal refuse arrangements provided no local rules
to the contrary exist.
20. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
21. Children of less than 3 years should be kept away unless continuously supervised.
22. Children aged from 3 years and less than 8 years shall only switch on/off the appliance
provided that it has been placed or installed in its intended normal operating position and they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user maintenance.
CAUTION —some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
Technical parameters:
Usage
Model
Rated
Power
Low heat
Rated
Voltage
Frequency
Class II
Vertical
Use
R-8070
3000W
2200W
220-240V~
50-60Hz

Flat Use
R-8070
2500W
1900W
INSTALLATION INSTRUCTION
Please install the upright post before use. See the following figure.
Back Handle
1、Remove 2 columns and 2 screws from
packaging accessories
2、The slot of the 2 columns is aligned to the slot
and screw hole above the handle.
3、Fix two columns on the back cover with two
screws respectively.
Usage:
1.Please check before you use:
A: The heating element and electric wire cannot be broken.
B: Please do not use the socket lower than 10A for fear of any accident.
2.Use the fan heater on the flat place to avoid being toppled.
3.Turn on the power switch first， “O”= ON，“—”OFF；
R-8070
1、Turn on the power switch, LED display environment
temperature after all functional indicators flicker for
a short time. See picture 1.1-1.2
2、Press “ ” ON(only Fan working). See picture 2.1
3、Press “ ” again, low heat. See picture 3.1
4、Press “ ” third time, high heat. See picture 4.1
5、Press “ ” fourth time, high heat+swing. See picture 5.1
6、Press “ ” fifth time, OFF(Fan keep working for 60 seconds
when shutdown the appliance after heating) See picture 6.1
1.1
1.2
2.1
3.1
4.1

5.1
6.1

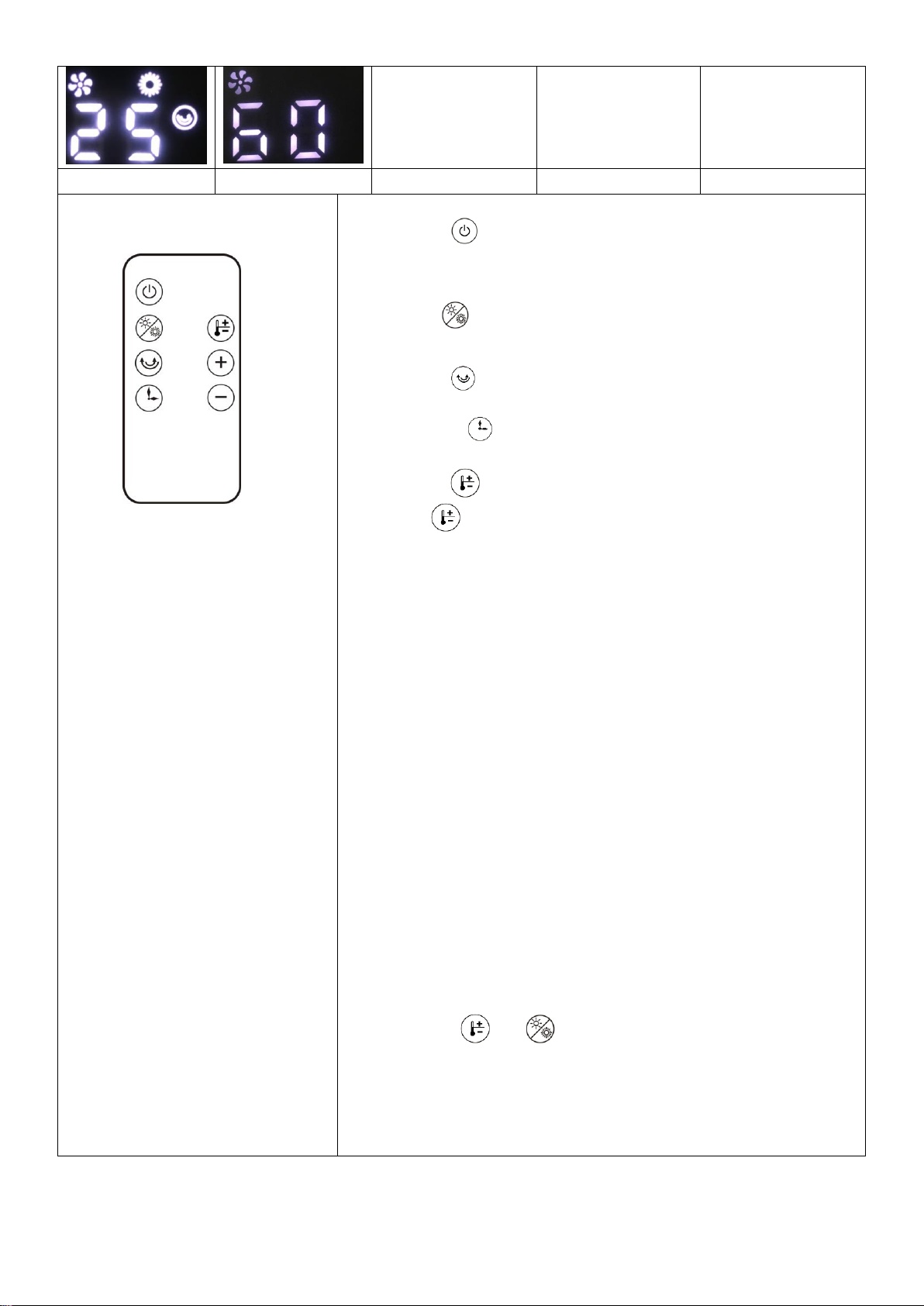

Remote control:
7、Press “”as follows: ON(only Fan working), OFF(Fan
keep working for 60 seconds when shutdown the appliance
after heating)
8、Press “ ”as follows: Low heat, High heat, FAN working.
See picture2.1-4.1;
9、Press “ ” as follows:, SWING ON, SWING OFF. See
picture 9.1;
10、Press “ ” to set timer as follows: 0.5h、1.0h、
1.5h.....7.5h See picture10.1-10.4;
11、Press“ ”to start and stop temperature setting；
Press“ ”before setting temperature. Press “+”“-”
to set temperature, Temperature range: 18-45℃See picture
11.1-11.2，
For example, Environment temperature is 25, low heat，
See picture 11.3：
Set temperature is equal to or lower than Environment
temperature, appliance will stop heating. See picture 11.4-11.5
Set temperature is 1-2 ℃higher than Environment
temperature, appliance will stop heating. See picture 11.6-11.7
Set temperature is higher or equal 3℃to Environment
temperature，appliance will start heating. See picture 11.8
Note：1、While setting temperature in low heat mode,then the
appliance will be still working in low heat after standby.
While setting temperature in high heat mode,then the
appliance will be still working in high heat after standby.
2、When the environment temperature reaches the setting
temperature:
2.1 Stop heating，the heating indicator light flickers；
2.2 If swing on, the swing will stop,and its indicator
light flickers
2.3 Fan keep working for 60 seconds while fan
indicator light flickers, then the appliance will be standby.
3、Press“ ”or“”，shutdown the setting temperature
mode.
Note: The indicator lights when corresponding function is
working

9.1
10.1
10.2
10.3
10.4
11.1
11.2
11.3
11.4
11.5
11.6
11.7
11.8
4.If you stop using heater, turn off all of the power switch, then put off the plug.
5.If you want to move the heater, please turn off the switches, then put off the plug, and hand on
the handle on the back of the convector.
Maintenance:
1.Please make sure the plug should be put off before cleaning the heater.
2.Strictly prohibit to use water to wash the radiator, it can be cleaned by a piece of soft damp
cloth with a little neutral detergent. Please do not use other solvent like gasoline.
3.The fan heater must be used or stored after cooled and dried completely.
4.If stop using heater, please put off the plug from the socket, and store it in the dry place with a
rust-proof polybag, original packing is favored.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN
ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be
taken to a special local authority differentiated waste collection centre or to a dealer providing
this service. Disposing of a household appliance separately avoids possible negative
consequences for the environment and health, deriving form inappropriate disposal and enables
the constituent materials to be recovered to obtain significant savings in energy and resources.
As a reminder of the need to dispose of household appliances separately, the product is marked
with a crossed-out wheeled dustbin.

Model Number: R-8070（When Vertical Use)
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat Input, for electric storage local
space heaters only (select one)
Nominal heat output
Pnom
3.00
kW
Manual heat charge control,
with integrated thermostat
No
Minimum heat output
(indicative)
Pmin
2.20
kW
Manual heat charge control with
room and/or outdoor
temperature feedback.
No
Maximum continuous
heat output
Pmax,c
3.00
kW
Electronic heat charge control
with room and/or outdoor
temperature feedback.
No
Auxiliary electricity
consumption
Fan assisted heat output
No
At nominal heat
output
elmax
N/A
kW
Type of heat output/room temperature
control (select one)
At minimum heat
output
elmin
N/A
kW
Single stage heat output, no
room temperature control.
No
In standby mode
elSB
0.00061
kW
Two or more manual stages, no
room temperature control.
No
With mechanical thermostat
room temperature control.
No
With electronic room
temperature control.
Yes
With electronic room
temperature control plus daily
timer.
No
With electronic temperature
control plus weekly timer.
No
Other control options (multiple selections
possible)
Room temperature control with
presence detection.
No
Room temperature control with
open window detection.
No
With distance control option.
No
With adaptive start control.
No
With working time limitation.
Yes
With black bulb sensor.
No
Contact details

Model Number: R-8070（When Flat Use)
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat Input, for electric storage local
space heaters only (select one)
Nominal heat output
Pnom
2.50
kW
Manual heat charge control,
with integrated thermostat
No
Minimum heat output
(indicative)
Pmin
1.90
kW
Manual heat charge control with
room and/or outdoor
temperature feedback.
No
Maximum continuous
heat output
Pmax,c
2.50
kW
Electronic heat charge control
with room and/or outdoor
temperature feedback.
No
Auxiliary electricity
consumption
Fan assisted heat output
No
At nominal heat
output
elmax
N/A
kW
Type of heat output/room temperature
control (select one)
At minimum heat
output
elmin
N/A
kW
Single stage heat output, no
room temperature control.
No
In standby mode
elSB
0.00061
kW
Two or more manual stages, no
room temperature control.
No
With mechanical thermostat
room temperature control.
No
With electronic room
temperature control.
Yes
With electronic room
temperature control plus daily
timer.
No
With electronic temperature
control plus weekly timer.
No
Other control options (multiple selections
possible)
Room temperature control with
presence detection.
No
Room temperature control with
open window detection.
No
With distance control option.
No
With adaptive start control.
No
With working time limitation.
Yes
With black bulb sensor.
No
Contact details
This product is only suitable for well insulated spaces or occasional use.
