Rointe SYGMA User manual

SYGMA
INSTRUCTIONS MANUAL
SYGMA DIGITAL
ELECTRIC RADIATOR
MOUNTING, INSTALLATION,
STARTING AND OPERATION
EN

2
SYGMA
WELCOME
Dear Customer,
Thank you for choosing the low consumption SYGMA digital electric
radiator, with an exclusive electronic temperature programmer and
made with the highest quality materials especially for you.
The low consumption SYGMA digital electric radiators have exceeded
the most stringent quality controls in order to comply with the most
rigorous requirements for safety and energy efficiency requirements.
Thanks to the OPTIMIZER ENERGY PLUS technology, exclusive to
the ROINTE SYSTEM, the low consumption SYGMA digital electric
radiators achieve the maximum energy saving.
Before using the low consumption SYGMA digital electric radiator,
we recommend that you read this instruction manual in order to
ensure correct operation.
IMPORTANT
THIS MANUAL SHOULD BE LEFT WITH THE PRODUCT AFTER
INSTALLATION

3
ATTENTION:
If you are the owner of a model bought in the UK or Éire, please refer
ONLY to its manual as the specifications of the radiators are different.
ENGLISH
TABLE OF CONTENTS
1. DESCRIPTION OF THE “SYGMA ” RADIATOR.....................................4
1.1. Front Panel Parts .........................................................................4
1.2. Switching On & Off (stand-by).......................................................6
1.3. Setting the Day and Time ..............................................................6
1.4. Locking the Control Panel ............................................................6
1.5. Temperature Selection..................................................................7
1.6. Manual/Automatic Functions .......................................................7
1.7. Menu/Programming Function.......................................................8
1.8. Open Window Function .................................................................8
1.9. Optimizer Energy Plus Function....................................................9
1.10. Screen Brightness Function....................................................... 9
2. INSTALLATION & MOUNTING ..........................................................10
2.1. Mounting ......................................................................................11
2.2. Fixing the supports .....................................................................11
3. MAINTENANCE & CLEANING ..........................................................14
4. INSTALLATION & SAFETY PRECAUTIONS (EN 60335 STANDARDS)...14
4.1. Installation precautions..............................................................14
4.2. Safety precautions ......................................................................14
5. GUARANTEE .....................................................................................16
6. SYGMA RADIATORS TECHNICAL CHARACTERISTICS ....................19

4
SYGMA
1. DESCRIPTION OF THE SYGMA RADIATOR

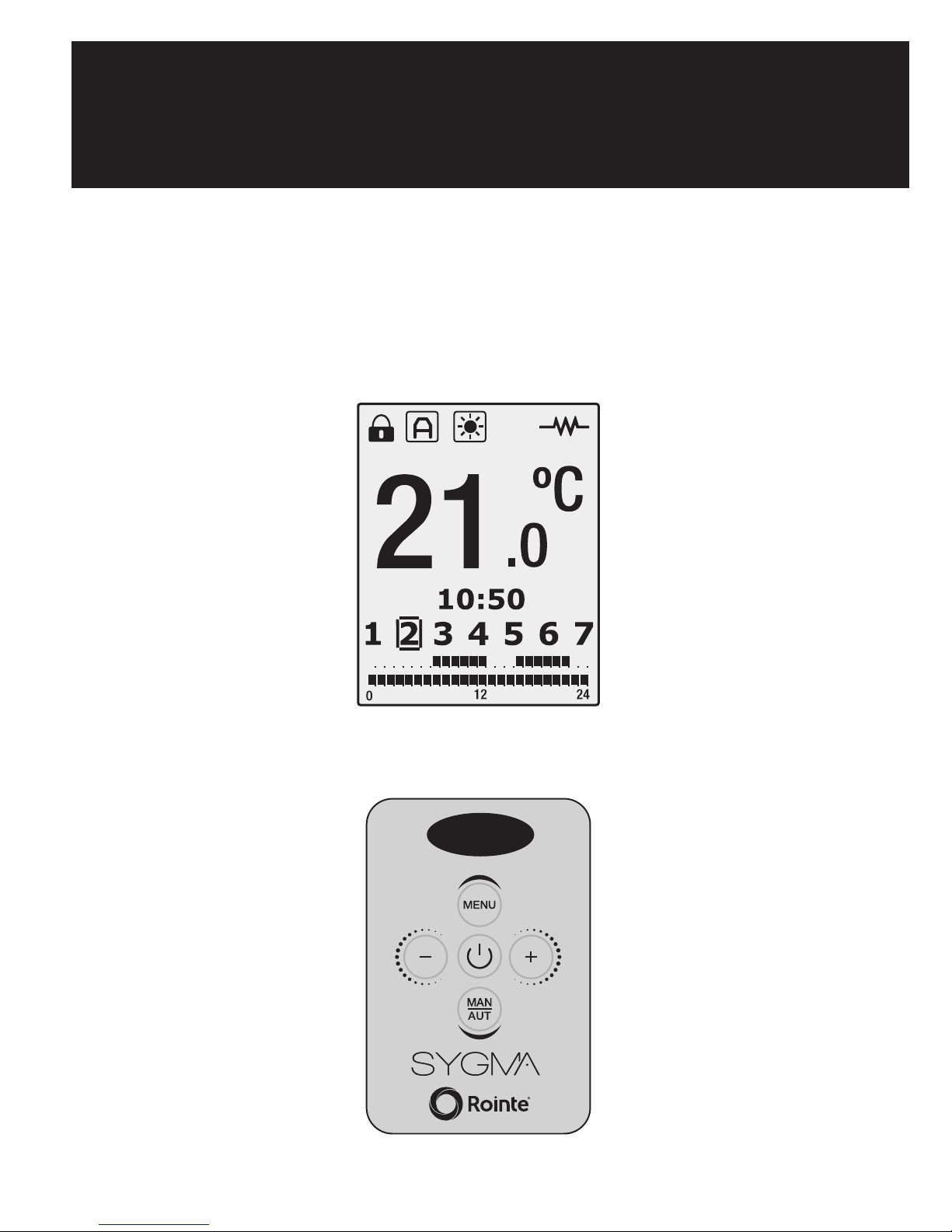

1.1. Front panel parts
TFT DISPLAY
CONTROL PANEL

5
NUM. FUNCTION
1PROGRAMMING
2DAYS OF THE WEEK
3TIME OF DAY
4TEMPERATURE SELECTED
5LOCKING THE CONTROL PANEL
6MANUAL/AUTOMATIC FUNCTION
7COMFORT / ECO / ANTI-FROST MODE
8OPTIMIZER ENERGY PLUS FUNCTION
9HEATER ELEMENT ON
10 OPEN WINDOW FUNCTION
1.1.1. TFT display symbols
1
2
3
4
5
67
9
8
10

6
SYGMA
1.2. Switching On & Off (stand-by)
By pressing the key , we can switch the radiator on or off. The
following image will appear on the screen when switched on:
The screen will automatically go into sleep mode if no button is pushed
for 10 seconds. By pushing the button again the radiator will go into
standby mode with the word “Standby” appearing followed by the
Rointe logo.
1.3. Setting the day and time
By pressing the button for 3 seconds, we can access the time and
date adjust feature to adjust the time and date of our radiator.
Pressing the button , flashes up the hours, minutes and days of
the week according to the number of times it is pressed. With the
buttons and we can alter the current settings.
To leave the time and date adjust feature, wait 30 seconds or press
after the date select.
1.4. Locking the control panel
By pressing the keys and , at the same time for 3 seconds, we
lock the control panel. The control panel symbol is activated and
the keys will not respond when pressed. The following symbol will
appear on the screen if any button is pushed:

7
To unlock, press the and keys again, at the same time for 3
seconds.

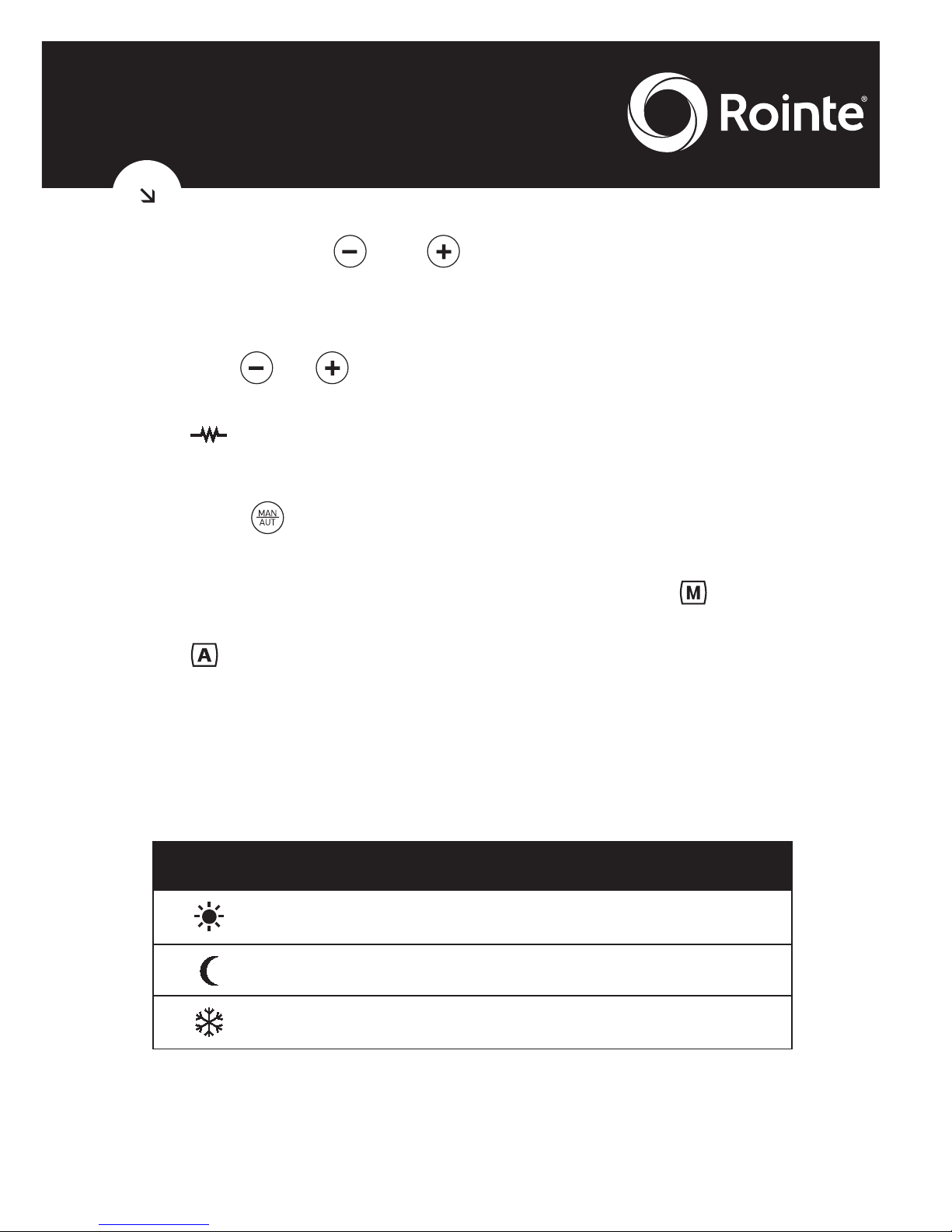

1.5. Temperature selection
By pressing or we change the temperature. When the room
temperature is lower than the one set, the heating element comes on
and the symbol appears.
1.6. Manual/Automatic functions
By pressing we change between the Manual and Automatic
functions.
When the Manual function is selected, the symbol appears on
the display. When the Automatic function is selected, the
symbol appears on the display.
1.6.1. Manual function
This enables you to choose between the COMFORT, ECO and ANTI-
FROST modes of operation, changing the temperature as indicated
in Section 1.5.
ICON MODE TEMPERATURE RANGE
COMFORT 20ºC–30ºC
ECO 15ºC –19.5ºC
ANTI-FROST 8ºC
1.6.2. Automatic function
This mode activates the programming set on the radiator.

8
SYGMA

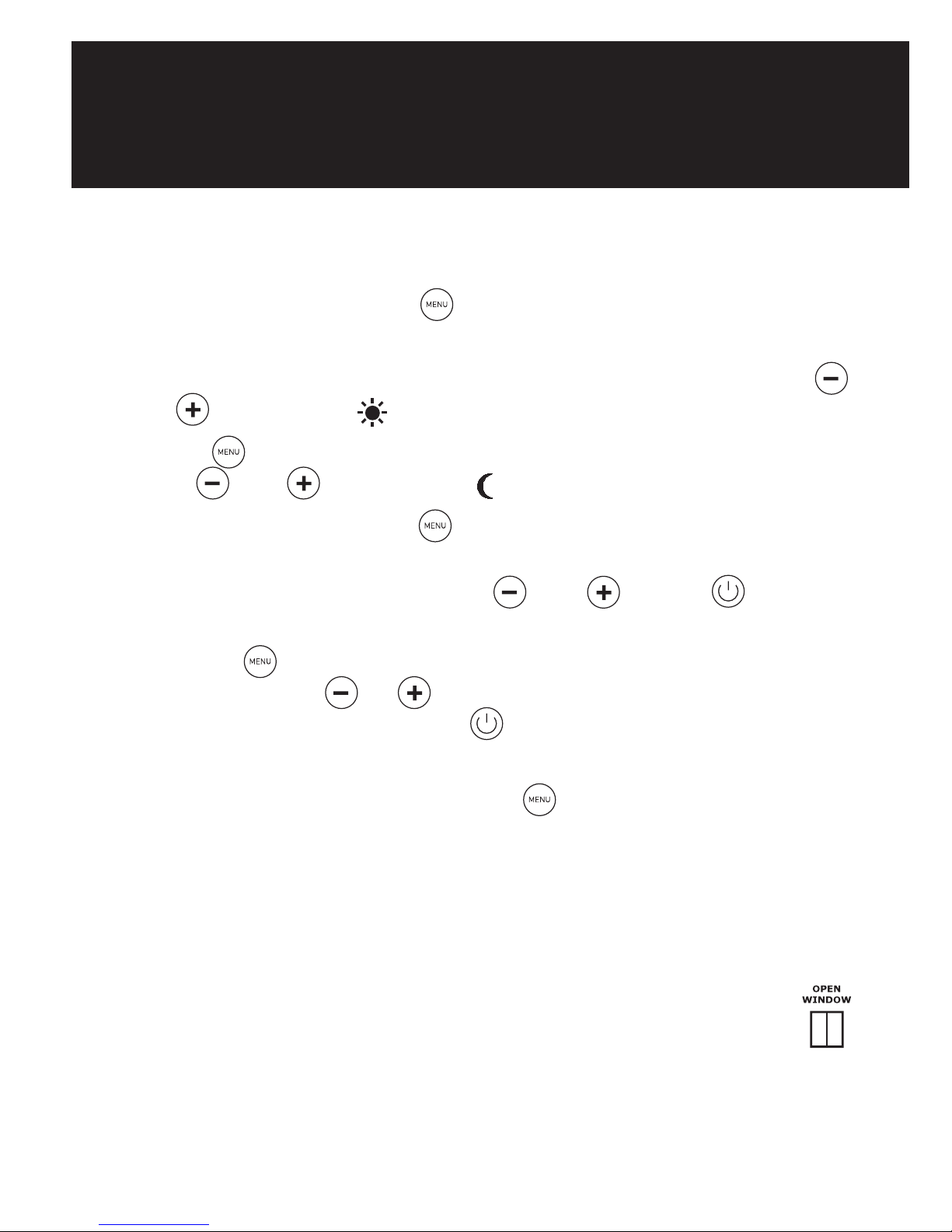

1.7. Menu/Programming function
In automatic mode, pressing for 3 seconds allows you to program
the radiator directly:
1. Select the COMFORT temperature setting (20ºC to 30ºC), using
and . The symbol and the temperature will flash.
2. Press and we can select the ECO temperature (15ºC to 19.5ºC)
using and . The symbol and the temperature will flash.
3. After pressing the button once again, the days of the week will
start flashing and show as DAY1, DAY2, DAY3... We can go forwards
and backwards using the button and . Press to select
the day or days that we wish to program.
4. Pressing , takes us to the hours we wish to program. To change
the hours use the or buttons. The hours selected will show
as 0h, 1h, 2h,… By pressing the button, we can select the mode
required hour by hour: COMFORT, ECO or OFF.
5. To finish the programming, press or leave it for 30 seconds
without pressing any buttons.
1.8. “Open Window” function
This function is activated when the probe detects a reduction of 4º in
respect of the set temperature during 30 minutes. On activation the
following image will appear on the radiator display for 5 seconds:
When the “Open window” function is activated, the following screen

9
will appear showing that the anti-frost mode is activated:
This function will be active for 2 hours. If the button is pushed
during this period the radiator will switch off. Pushing the button
again will switch on the radiator without the “Open window” function
being switched on.
1.9. Optimizer Energy Plus Function
This product includes Optimizer Energy Plus Rointe technology to
efficiently manage the energy consumption of the radiator.
Optimizer Energy Plus is a technology that bases its operation on
thousands of micropulses being sent to the radiator to keep a stable
temperature with a consumption as low as posible.
When the symbol replaces the , then the Optimizer Energy
Plus technology is working.

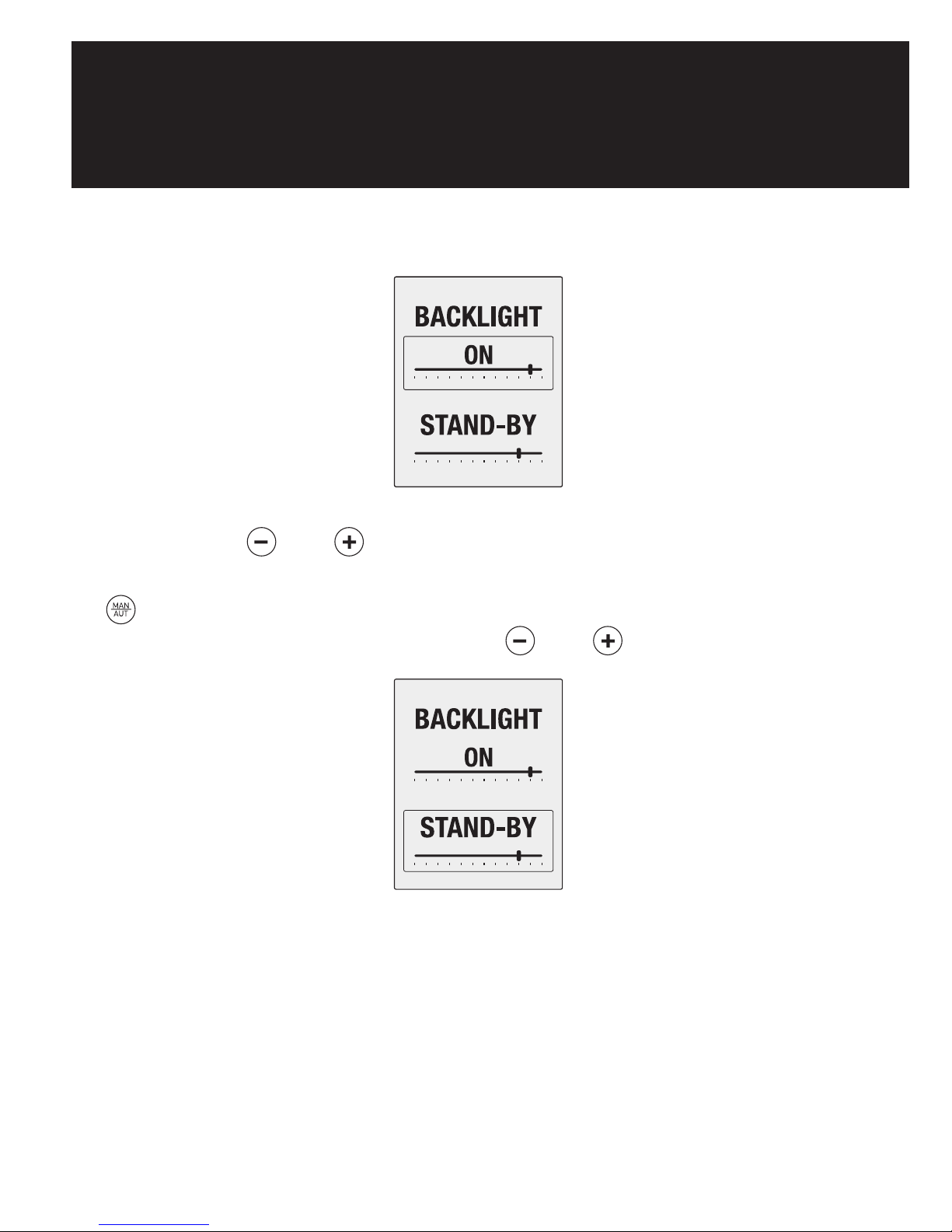

1.10. Screen brightness function
You can change the brightness of the screen by pushing the button
for 3 seconds when the product is in manual mode. Entering this mode

10
SYGMA
you will see the following screen:
In ON mode you can increase or decrease the brightness of the screen
by using the and buttons.
You can change the “Standby” mode brightness by pushing the button
to move the frame to the “STAND-BY” position. You can then adjust
the brightness by pushing the same and keys.
To finish the programming wait for 10 seconds without pressing any
buttons.
2. INSTALLATION & MOUNTING
The radiator must never be installed directly below a power point.
In bathrooms, the radiator must never be installed where the switches
and other devices may be within the reach of someone in the shower
or bathtub.

11
2.1. Mounting

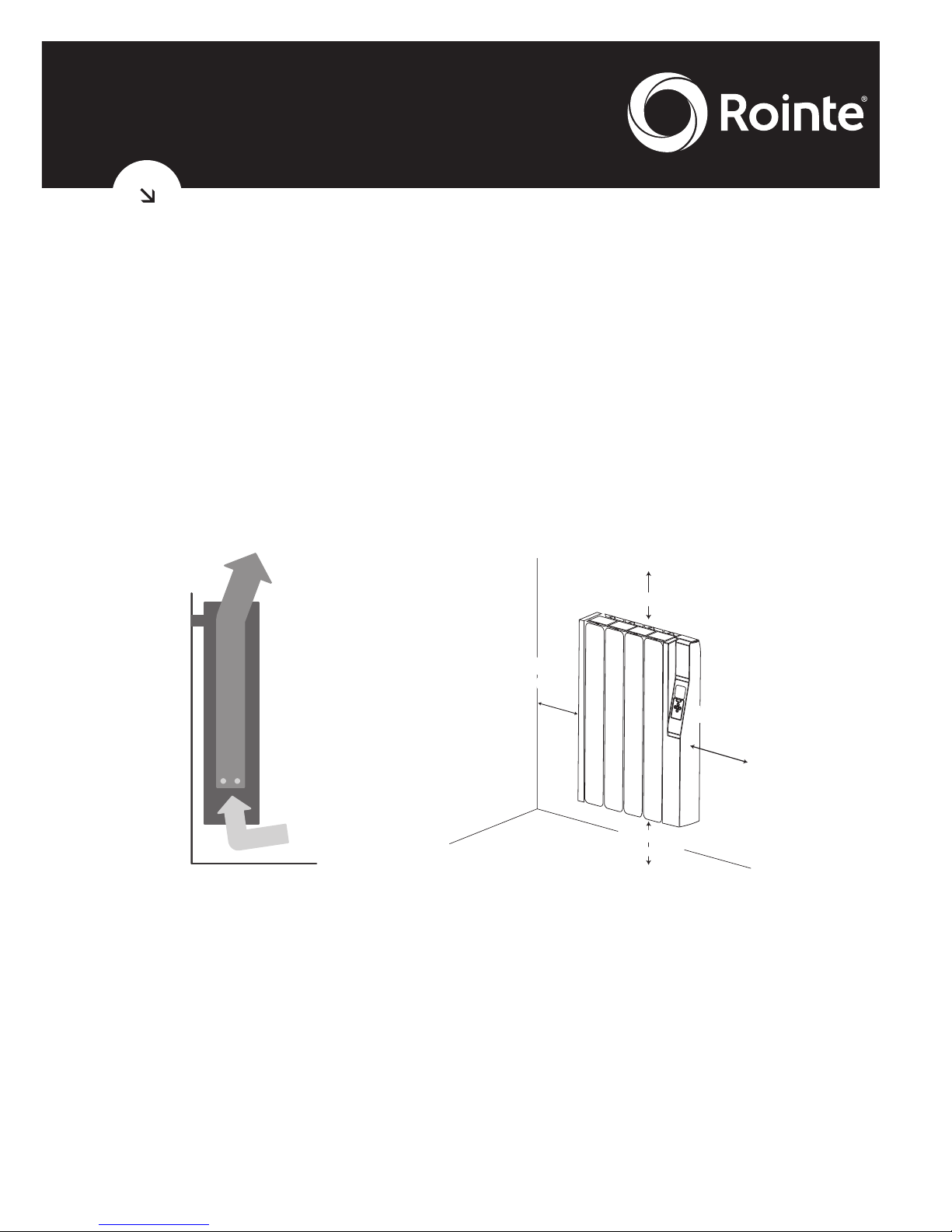

The SYGMA radiator works by means of natural air convection (Figure
1). In order to achieve optimal functioning and an even distribution of
heat, the lower part of the radiator, once mounted on the wall, must
be at least 10 to 12 cm from the floor, and 30 cm at the most.
As for the sides and above, a minimum distance of between 10-12
cm must be left from any wall or brickwork in order for it to function
correctly (Figure 2).
Fig. 1 Fig. 2
Minimum
10 cm. Minimum
10 cm.
Minimum 10 cm.
Minimum
10 cm.
2.2. Fixing the supports
Inside the packaging you will find a fixing kit.
• Choose the right part of the wall.
• Place the mounting stencil on the wall, marking the places for the
holes.

12
SYGMA
• Remove the stencil and make the holes in the wall.
• Fix the supports using the plugs and screws provided or others
suitable for the wall type.
• Check the correct positioning of the lower support.
• Align the radiator with the top supports.
• Place the radiator on the supports.

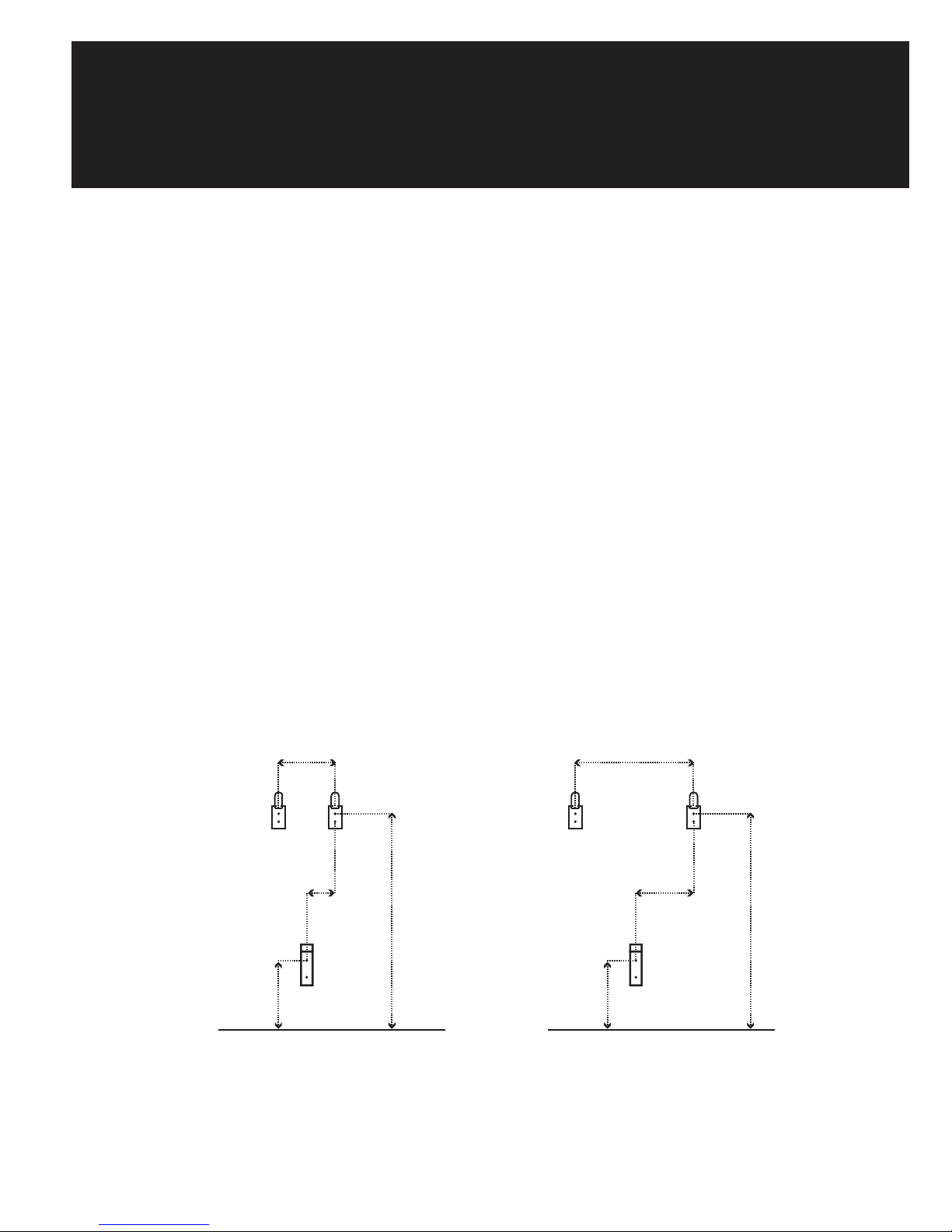

Installing template measurements depending on the model:
SRN0440RAD2
Floor
210 mm
642 mm
161 mm
81 mm 161 mm
322 mm
642 mm
210 mm
Floor
SRN0660RAD2

13
SRN0880RAD2
Floor
210 mm
642 mm
484 mm
242 mm 322 mm
644 mm
642 mm
210 mm
Floor
SRN01100RAD2
SRN1320RAD2
Floor
210 mm
642 mm
644 mm
322 mm

14
SYGMA
3. MAINTENANCE & CLEANING
The radiator does not require any type of maintenance. We recommend
that all parts of the radiator are kept clean (behind, underneath, upper
fins, etc.). Do not use any abrasive product on the aluminium. Clean
it with a damp cloth and a pH neutral soap, and the stencil with a dry
cloth.
4. INSTALLATION & SAFETY PRECAUTIONS (EN 60335
STANDARDS)
Before switching on the radiator, please read the “Installation &
Safety Precautions” in detail first to ensure the correct operation of
the radiator.
4.1. Installation precautions
The radiator is designed for household or residential use. You are
advised to have the radiator installed by an authorized professional
installer. Make sure the radiator is properly connected to230V and is
earthed.
4.2. Safety precautions
This appliance can be used by children aged from 8 years and above
and persons with reduced physical sensory or mental capabilities
or lack of experience and knowledge if they are supervised or have
been given instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children should not play with
the appliance. Cleaning and user maintenance should not be carried
out by children without supervision. Children must be supervised at
all times to ensure that they do not play with the product.
This radiator is filled with a precise amount of special oil that
does not need any maintenance. Any repairs requiring the

15
opening of the oil tank must only be done by ROINTE or its
after-sales service personnel, who should also be notified should
an oil leak be noticed. The regulations on discarding oil when the
heater is being disposed of must be observed. If the power cable is
damaged, it must be replaced by the manufacturer, its after-sales
service or authorized personnel in order to avoid any damage.
WARNING! In order to avoid overheating,
don’t cover the heater. Don’t insert any
kind of object in the air vents. Never
use with wet hands. Don’t place any
containers with water, such as glasses,
vases, etc. on the radiator. Don’t use
insecticides, paints or aerosols on the
radiator. Don’t sit on the radiator or
place anything in front of it.

16
SYGMA
5. GUARANTEE
In this section, we hereby describe the guarantee conditions which
the buyer acquires on buying a new radiator of Rointe brand. These
conditions comply with all the rights construed in the national
legislation in force, as well as any additional rights and guarantees
which are offered by Rointe brand.
5.1. Any incident that you might detect in your Rointe
radiator can be sorted by the product seller or quickly by the
manufacturer. Rointe provides a contact telephone for any
technical support 01432 598 024 or the following email address
[e-mail], through which we will instruct you on how to
solve the incident.
You will need to state the product reference (located on the label
indicating product features), serial number, proof of purchase and
the type of incident at hand when contacting us so that we can check
the guarantee. In addition, please attach a copy of the product invoice.
TIPO: RS6154311
REF: SRN0880RAD2
MOD: SYGMA
IP 21
84370070808720144424000001 230 V~ 50Hz 880 W
REFERENCE
SERIAL
NUMBER
5.2. Rointe guarantees that there are no material defects of design
or manufacture at the time of original acquisition and guarantees the
aluminium for a period of 120 months and 24 months for any electronic
and electrical components.
5.3. If during the guarantee period, the product does not work correctly
under normal use or any design, material or manufacturing defect is

17
found, ROINTE will repair or substitute the radiator as it may see fit
in accordance with the terms and conditions as follows:
5.3.1. The guarantee is only applicable if the original guarantee is
issued by the seller and when the said guarantee is filled in correctly
including product reference, series number (marked on the product’s
label indicating technical features), purchase date and the seller’s
stamp.
ROINTE reserves the right to reject the guarantee service when this
information has been removed or modified after the original product
purchase.
5.3.2. The guarantee only applies to those cases that concern material,
design and manufacturing defects, and under no circumstances
covers damage to the radiator for the following reasons:
a) Incorrect use of the product, i.e. used for other purposes that
are not construed as its normal use or for not respecting the
instructions of use and maintenance given by Rointe as well as
incorrect installation or use of the product that may not comply
with the current technical standards of safety.
Corrosion caused by direct exposure to salt water is excluded from
the guarantee. When the product is installed no more than 200m
from the coast the guarantee for damages caused by corrosion
the period will be reduced by 50%.
b) Any unauthorised repairs carried out by unauthorised technicians
or opening of the radiator by unauthorised people.
c) Any accidents that are deemed outside the control of Rointe,
such as lightning, fires, floods, public disorders, etc.

18
SYGMA
5.3.3. Any repairs or substitutions that are included in this guarantee
do not allow any additions or new periods of guarantee.
5.3.4. Any repairs or substitutions covered under this guarantee must
be parts that are functionally equivalent. The defective parts or parts
removed or replaced shall become the property of Rointe.
5.4. The technical service of Rointe will advise you if you need to buy
any parts not covered under the guarantee or out of guarantee.
5.5. This guarantee does not affect the buyer’s legal rights stipulated
in the current national legislation, nor affects those rights against the
distributor or installer that could come forth in compliance with the
purchase contract.
5.6. In the absence of a national legal legislation applicable, this
guarantee shall prevail and may be construed as the buyer’s only
protection. Rointe, its offices, distributors and installers may not
be held responsible for any accidental damage that emerges due to
infringement of any rules implicitly related to this product.

19
MODEL
NUMB.
OF
ELEM.
POWER VOLTAGE HEIGHT
(mm)
WIDTH
(mm)
DEPTH
(mm)
INST.
DEPTH
(mm)
WEIGHT
SRN0440RAD2
4440 W 230V~ 575 425 98 120 10 kg
SRN0660RAD2
6660 W 230V~ 575 585 98 120 14 kg
SRN0880RAD2
8880 W 230V~ 575 747 98 120 18 kg
SRN1100RAD2
10 1100 W 230V~ 575 907 98 120 22 kg
SRN1320RAD2
12 1,320 W 230V~ 575 1,069 98 120 26 kg
6. SYGMA RADIATORS TECHNICAL CHARACTERISTICS
SYGMA

20
SYGMA
European Directive (WEEE) 2012/19/EU
Under the European Directive 2012/19/EU on waste electrical and
electronic equipment (WEEE), the apparatus cannot be disposed in the
usual council bins and containers. They must be separated to optimize
the recovery and recycling of all of the components and materials
and reducing the impact to human health and the environment. The
symbol of the container crossed out over a horizontal line is marked
on all of ROINTE’s products to remind the consumer of the obligation
to separate them on disposal.
The consumer should contact the local authority or original point of
sale to learn more about the correct disposal of this product.
